J. Duan et al. / Catalysis Today 212 (2013) 180–185
185
be achieved, with the 0.008 reagent/oil ratio and at 323 K reaction
deacidification
following
the
order
temperature.
[APy]Br < [AMIm]Br < [AMIm]Im. The stronger alkalinity of
ionic liquids was, the higher deacidification would be. With
the increasing length of alkyl chain, each kind of ionic liquids
would have better performance of deacidification. As using
[AMIm]Im, the performance of deacidification followed the order
[EMIm]Im < [BMIm]Im < [HMIm]Im < [OMIm]Im. High reaction
temperature could decrease the reagent/oil ratio to reach maxi-
mum deacidification rate with each ionic liquid. The deacidification
mechanism was discussed using ESI-MS. Liquid clathrate could
form through – interaction between naphthenic acid with
unsaturated bond and the ILs with heterocyclic bond. Finally,
at the temperature of 323 K, the reagent/oil ratio of [OMIm]Im-to-
oil of 0.008, the reaction time of 2 h, the deacidification rate could
reach 100%, which had been greatly improved compared with
our previous work. It was possible to make continuous reaction
a reality because of the reusability of [OMIm]Im. The preliminary
results revealed that the process was feasible, product separates
easier and produces less pollution to environment. Using ionic
liquids to remove naphthenic acids from acid oil would become a
green and effective method.
3.6. Discuss the deacidification mechanism
To study the deacidification mechanism, electrospray ionization
uids before and after reactions. From Fig. 8, we could see that there
was not any change with cations before and after reactions. The
peaks of anions increased through the process, while no change
occurred in main peaks (Fig. 8). Thus, we judged that there are not
significant differences in structure of ionic liquid before and after
reactions.
Holbrey et al. [20] indicated that liquid clathrate could form due
to the – interaction. The mechanism for removal naphthenic
acid could be explained as a possible – interaction between
naphthenic acid with unsaturated bond and the ILs with het-
erocyclic bond, thus naphthenic acid was entrapped to clathrate
structure of ILs to achieve the removal of naphthenic acid. The fol-
lowing experimental results could be explained by this: (1) the
larger the heterocyclic -electron density of ionic liquid was, that
is, the stronger the ionic liquid alkalinity, the better the effect of
deacidification would be; (2) the longer alkyl chain ionic liquids
could make its alkalinity enhanced. On the other hand, it made the
space of clathrate structure bigger, which contributed to the storage
capacity of ILs, thus the deacidification rate increased and (3) in the
experiment without any regeneration operations, under the condi-
tion of less than 100% deacidification rate, the ILs still showed good
performance on deacidification in the next repetitive reactions.
The reason was that each ILs molecule could accommodate more
than one naphthenic acid molecule. When the ratio of naphthenic
acid decreased to a certain value in the oil, due to the surround-
ing of alkane molecules, which made naphthenic acid difficult to
enter the clathrate structure of ILs, then the naphthenic acid could
not be removed completely. However, naphthenic acid molecular
ratio increased after adding fresh acid oil, which made them break
into the surrounding of alkane molecules. Then ILs showed good
performance again until the clathrate structure was filled up. So
the phenomenon of experiments could be explained well by this
mechanism.
References
[1] P. Pedro, M. Roger, Z. Luis, Vision Technology 6 (1998) 5–13.
[2] W.E. Rudzinski, L. Oehlers, Y. Zhang, Energy and Fuels 16 (2002) 1178–1185.
[3] C.S. Hsu, G.J. Dechert, W.K. Robbins, E.K. Fukuda, Energy and Fuels 14 (2000)
217–223.
[4] R. Varadaraj, C. Brons, Energy and Fuels 21 (2007) 199–204.
[5] D.M. Jones, J.S. Watson, W. Meredith, M. Chen, B. Bennett, Journal of Analytical
Chemistry 73 (2001) 703–707.
[6] M.F. Huang, S.L. Zhao, P. Li, D. Huisingh, Journal of Cleaner Production 14 (2006)
736–739.
[7] M.G. Charles, Journal of Applied Catalysis A: General 222 (2001) 101–117.
[8] K.A. Howard, H.L. Mitchell, R.H. Waghore, US Patent No. 4,359,596 (1982).
[9] R.E. Schoonover, US Patent No. 7,001,504 (2006).
[10] J.F. Brennecke, E.J. Maginn, US Patent No. 6,579,343 (2003).
[11] K.R. Seddon, C. Hardacre, B.J. Mcauley, US Patent No. 7,928,031 (2011).
[12] A.J. Carmichael, D.M. Haddletton, S.A.F. Bon, Chemical Communications (2000)
1237–1238.
[13] G.R. Yu, X. Li, X.X. Liu, C. Asumana, X.H. Chen, Industrial and Engineering Chem-
istry Research 50 (2011) 2236–2244.
[14] S.G. Zhang, Q.L. Zhang, Z.C. Zhang, Industrial and Engineering Chemistry
Research 43 (2004) 614–622.
[15] G.W. Meindelsma, J.G. Podt, A.B. Haan, Fuel Processing Technology 87 (2005)
59–70.
[16] Y. Sun, L. Shi, Industrial and Engineering Chemistry Research 50 (2011)
9339–9343.
[17] J. Li, Y. Sun, L. Shi, China Petroleum Processing and Petrochemical Technology
12 (4) (2010) 46–51.
4. Conclusions
[18] T. Eicher, S. Hauptmann, A. Speicher, Five-membered heterocycles: sections
5.22–5.36, in: The Chemistry of Heterocycles: Structure, Reactions, Syntheses,
and Applications, Second ed., Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim,
2004, pp. 122–184.
[19] S. Baker, G. Baker, F. Bright, Journal of Green Chemistry 4 (2002) 165.
[20] J.D. Holbrey, W.M. Reichert, M. Nieuwenhuyzen, O. Sheppard, C. Hardacre, R.D.
Rogers, Chemical Communications (2003) 476–477.

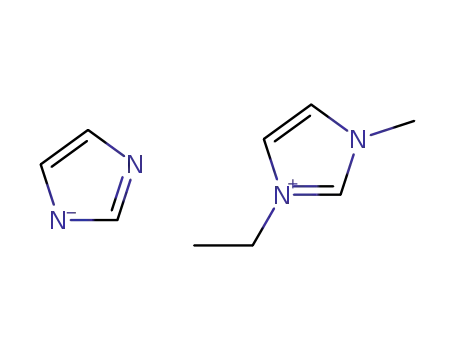

Imidazolium imidazolide-based ionic liquids were found to be
most effective for removal naphthenic acids from acid oil with
low reagent/oil ratio. Pyridinium-based ionic liquids, idazolium-
based ionic liquids and imidazolium imidazolide-based ionic
liquids with different alkalinity had different performance on
