Synthesis of three-dimensionally arranged bis-biphenol ligand on hexaaryl benzene scaffold and its application for cross-pinacol coupling reaction

Article abstract of DOI:10.1016/j.tetlet.2011.06.113

The three-dimensionally arranged bis-biphenol ligand on a hexaaryl benzene scaffold for a dinuclear complex was synthesized by the Diels-Alder addition-decarbonylation reaction as a key step. Its preliminary studies on the titanium-induced cross-pinacol c

Full text of DOI:10.1016/j.tetlet.2011.06.113

Tetrahedron Letters 52 (2011) 4567–4569
Contents lists available at ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
Synthesis of three-dimensionally arranged bis-biphenol ligand on
hexaaryl benzene scaffold and its application for cross-pinacol coupling
reaction
⇑
Toru Amaya, Akihiro Miyasaka, Toshikazu Hirao
Department of Applied Chemistry, Graduate School of Engineering, Osaka University, Yamada-oka, Suita, Osaka 565-0871, Japan
a r t i c l e i n f o
a b s t r a c t
Article history:
The three-dimensionally arranged bis-biphenol ligand on a hexaaryl benzene scaffold for a dinuclear
complex was synthesized by the Diels–Alder addition–decarbonylation reaction as a key step. Its preli-
minary studies on the titanium-induced cross-pinacol coupling reaction were performed based on
step-by-step activation of two different aldehydes.
Received 6 May 2011
Revised 21 June 2011
Accepted 28 June 2011
Available online 2 July 2011
Ó 2011 Elsevier Ltd. All rights reserved.
Keywords:
Dinuclear catalyst
Bimetallic catalyst
Biphenol ligand
Pinacol coupling
Dual reactive sites allow to position two substrates appropri-
ately for the reaction, activate them, and induce electrically cooper-
ating effect. Well-organized dinuclear transition metal complexes
are considered to permit such a system, which is also found some-
times in active sites of enzymes to catalyze the reactions.1 So far,
many dinuclear catalysts have been developed and applied to or-
ganic reactions.2 In this context, we envisioned that the controlled
arrangement of two metals on the rigid scaffold can provide spa-
tially regulated reaction sites. Based on this concept, the rigid bis-
biphenol ligand 1 on a hexaphenyl benzene scaffold was designed
(Scheme 1). The utility of our bis-biphenols depends on such con-
formationally regulated structure although there are various re-
ports of ligands possessing two biphenol moieties.2d,3 Here, we
report the synthesis of the bis-biphenol ligand 1 and its preliminary
studies on the ligand controlled cross-pinacol coupling reaction
based on step-by-step activation of two different aldehydes.
Structural optimization of ligand 1a was carried out using MM2
force field. The obtained structure showed the three-dimensionally
controlled arrangement of biphenol ligand moieties (see Supple-
mentary data, Fig. S1).
tolan 3 would arise from the two biphenol derivatives 4 and acety-
lene spacer through the repetitive Sonogashira coupling reaction.

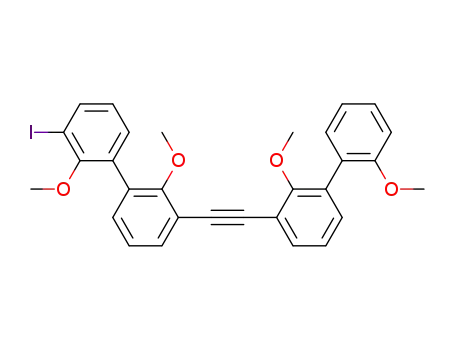

Scheme 2 shows the synthesis of 1. The iodide 4 and the ethynyl
derivative 55 were coupled by the Sonogashira reaction to give 3a
and 3b in 80% and 52% yields, respectively. The thus-obtained 3a
and 3b were treated with 2 in diphenylether at 250 °C, followed
by deprotection of the methoxy group with BBr3 to give the bis-
biphenol ligand 1a and 1b as a mixture of diastereomers (two steps
63% for 1a and 57% for 1b, Scheme 2). The cis/trans ratios for 1a and
1b are 35:65 and 32:68, respectively, the assignment of which is
described in the next paragraph. Diastereomers were able to be
separated by silica-gel chromatography. The gram scale synthesis
was possible.
The structural assignment was studied by 1D ROESY experi-
ments of the trimethylsilyl derivative 6cis, which was prepared
6
by the reaction of 3TMS with 2, followed by the separation of the
cis/trans diastereomers by preparative thin-layer chromatography
(Scheme 3). The isomer, in which ROEs were observed between
the trimethylsilyl and methoxy groups, was assigned as a cis-iso-
mer. The trimethylsilyl derivative 6cis was transformed to 1acis by
treatment with BBr3 for the deprotection of the methoxy and tri-
methylsilyl groups. In this way, the structure of 1acis was deter-
mined. Similarly, the cis/trans determination of 1bcis was carried
out by the transformation to 1acis by deiodation.
Our synthetic strategy for ligand 1 is outlined retrosynthetically
in Scheme 1. We envisaged that 1 is constructed via the Diels–Alder
addition–decarbonylation reaction4 of tetraphenylcyclopentadie-
none (2) with the tolan 3 possessing two bis-biphenol moieties. Such
The desired cis-isomer is a minor product in the Diels–Alder
addition–decarbonylation reaction, which made us investigate
the isomerization equilibrium. The treatment of the demethylated
compound 1atrans in diphenylether at 150 °C for 12 h resulted in
the trans- and cis-isomers in 37:63 (Scheme 4). This finding
⇑
Corresponding author. Tel.: +81 6 6879 7413; fax: +81 6 6879 7415.
E-mail address: hirao@chem.eng.osaka-u.ac.jp (T. Hirao).
0040-4039/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2011.06.113

4568
T. Amaya et al. / Tetrahedron Letters 52 (2011) 4567–4569
R
Structural determination
ROEs
0.4%
Me3Si
0.4%
HO
HO
0.3%
MeO
HO
HO
Dields-Alder addition-
decarbonylation
MeO
MeO
Ph2O, 250 °C, 24 h
3
TMS+ 2
MeO
33%
6cis
+
6trans
1a (R = H)
1b (R = I)
O
1) BBr3, CH2Cl2,
rt, 20 min
Ph
Ph
Ph
Ph
2) aqueous
work-up
1) BuLi, THF, -78 °C to rt,
10 min
80%
2
1bcis
1aci s
R
2) aqueous work-up
96%
OMe
MeO
OMe MeO
Scheme 3. Structural determination of 1 based on 1D ROESY experiments of 6cis
.
3a (R = H)
3b
(R = I)
TMS (R = SiMe3)
3
Sonogashira coupling
reaction
HO
HO
HO
HO
Ph2O,150 °C,
12 h
R
HO
HO
OMe
OMe
MeO
MeO
HO
HO
I
I
+
+
1atrans
1acis
4a (R = H)
4b (R = I)
37
:
63
THF, reflux, 24 h
Scheme 1. Synthetic strategy for the ligand 1.
1atrans
1acis
Scheme 4. Trans/cis isomerization of 1a.
MeO
MeO
Furthermore, the derivatization is possible by using the iodo-
substituent of 1bcis. For example, the B-alkyl Suzuki–Miyaura
cross-coupling reaction with MeB(OH)2 allowed the introduction
of the methyl group with the formation of 7 (Scheme 5).
Pd(PPh3)2Cl2 (1 mol%)
4a,b +
3a,b
CuI (1.5 mol%), NEt3,
70 °C
80% for 3a
52% for
Complexation of 1acis with TiCl4 was studied by 1H NMR (see Sup-
plementary data, Fig. S2). The integral ratio for the hydroxyl protons
in the phenoxy group decreased by half by the addition of 1 equiv
TiCl4. On further addition of 1 equiv TiCl4, the peaks disappeared,
suggesting the formation of the corresponding dinuclear complex.
With such a complex in hand, the intermolecular cross-pinacol
coupling reaction was studied using the stoichiometric amount of
1acis (Scheme 6) because the sequential activation of two different
aldehydes and subsequent cross-coupling is envisioned to be al-
lowed due to the fixed bimetallic reactive sites. Although catalytic,
diastereoselective, and/or enantioselective methods have been
developed,7,8 the intermolecular cross-pinacol coupling reaction
is still a challenging issue due to the difficulty in the discrimination
of two aldehydes in the reaction. So far, there are only few exam-
ples for the cross-pinacol-type coupling, which strongly depend on
the combination of substrates.9 First, the ligand (100 mol %) was
mixed with 200 mol % of TiCl4 for complexation in toluene under
argon at room temperature. After 1 h, the solvent was changed to
THF. Then, activated Zn (1000 mol %) was added to the mixture
to generate a reduced Ti complex.10 o-Trifluoromethyl benzalde-
hyde was added to the reaction mixture at room temperature.
One minute later, 2-thienylaldehyde was added to the reaction
mixture at the same temperature. The cross-coupling product 8
5
3b
1) Ph2O, 250 °C, 24 h
3a,b
2
+
2) BBr3, CH2Cl2, rt,
10 min
R
R
HO
HO
HO
HO
HO
HO
+
HO
HO
1cis
1trans
1a (R = H) : 2 steps 63%, cis
1b (R = I) : 2 steps 57%, cis
/
trans = 35/65
/
trans = 32/68
Scheme 2. Synthesis of 1a and 1b.
permits the better conversion to 1acis. On the other hand, this
isomerization did not occur in THF at reflux temperature even after
24 h to indicate the conformational rigidity.
was obtained in 56% yield (syn/anti = 51:49)11
, where the

T. Amaya et al. / Tetrahedron Letters 52 (2011) 4567–4569
4569
the dinuclear titanium complex permitted preliminary investiga-
tion on the cross-pinacol coupling reaction utilizing step-by-step
activation of two different aldehydes by sterically controlled
arrangement of the biphenol ligand moieties. Further increase of
cross-selectivity is expected by the left–right asymmetric ligand
as shown in the concept in Figure 1, which can be synthesized
using the Pd-catalyzed cross-coupling reaction as demonstrated
by the synthesis of 7. Furthermore, such ligands will be applied
to other reactions that need dual activation by metals.
Me
HO
MeB(OH)2, Pd(dppf)Cl2,
K3PO4, THF/CH2Cl2
HO
HO
HO
1bcis
60 °C, 18 h
7
23%
Acknowledgment
Scheme 5. Derivatization to 7.
A.M. expresses his special thanks for The Global COE (center of
excellence) Program ‘Global Education and Research Center for
Bio-Environmental Chemistry’ of Osaka University.
TiCl4 (200 mol%)
toluene, rt,1 h
removal of toluene
1aci s
Supplementary data
CHO
S
CHO
Supplementary data associated with this article can be found, in
the online version, at doi:10.1016/j.tetlet.2011.06.113.
CF3
(100 mol%) (100 mol%)
Zn(1000 mol%)
References and notes
THF, rt, 20 min
rt, 1 min rt, 1 h
1. For a review: Sträter, N.; Lipscomb, W. N.; Klabunde, T.; Krebs, B. Angew. Chem.,
Int. Ed. 1996, 35, 2024–2055.
CF3 OH
CF3 OH
2. For selected recent reviews and a highlight: (a) van den Beuken, E. K.; Feringa,
B. L. Tetrahedron 1998, 54, 12985–13011; (b) Molenveld, P.; Engbersen, J. F. J.;
Reinhoudt, D. N. Chem. Soc. Rev. 2000, 29, 75–86; (c) Ma, J.-A.; Cahard, D. Angew.
Chem., Int. Ed. 2004, 43, 4566–4583; (d) Matsunaga, S.; Shibasaki, M. Bull. Chem.
Soc. Jpn. 2008, 81, 60–75; (e) Takizawa, S.; Katayama, T.; Sasai, H. Chem.
Commun. 2008, 4113–4122; (f) Brown, R. S.; Lu, Z.-L.; Liu, C. T.; Tsang, W. Y.;
Edwards, D. R.; Neverov, A. A. J. Phys. Org. Chem. 2010, 23, 1–15; (g) Haak, R. M.;
Wezenberg, S. J.; Kleij, A. W. Chem. Commun. 2010, 2713–2723; (h) Kuwata, S.;
Ikariya, T. Dalton Trans. 2010, 39, 2984–2992; (i) North, M. Angew. Chem., Int.
Ed. 2010, 49, 8079–8081.
3. Ihori, Y.; Yamashita, Y.; Ishitani, H.; Kobayashi, S. J. Am. Chem. Soc. 2005, 127,
15528–15535. and references cited therein.
4. Ogliaruso, M. A.; Romanelli, M. G.; Becker, E. I. Chem. Rev. 1965, 65, 261–367.
5. Riggs, J. R.; Kolesnikov, A.; Hendrix, J.; Young, W. B.; Shrader, W. D.;
Vijaykumar, D.; Stephens, R.; Liu, L.; Pan, L.; Mordenti, J.; Green, M. J.;
Sukbuntherng, J. Bioorg. Med. Chem. Lett. 2006, 16, 2224–2228.
S
OH
8 56%
OH
OH CF3
9
36%
:
without 1acis
8
9
,
0% for , 69% for
S
49% for 10
S
use of 2,2'-biphenol
OH
10 43%
1a
8
,
instead of cis: 0% for
77% for 9, 71% for 10
Scheme 6. Cross-pinacol coupling reaction based on step-by-step activation using
the ligand 1acis
.
6. The trimethylsilyl compound 3TMS was prepared from 3b via the lithiation,
followed by the trapping with chlorotrimethylsilane, see Supplementary data
for details.
7. For a review: Chatterjee, A.; Joshi, N. N. Tetrahedron 2006, 62, 12137–12158.
8. A catalytic system using low-valent vanadiums has been achieved in our group.
(a) Hirao, T.; Hasegawa, T.; Muguruma, Y.; Ikeda, I. J. Org. Chem. 1996, 61, 366–
367; For a review: (b) Hirao, T. Chem. Rev. 1997, 97, 2707–2724; (c) Hirao, T.;
Asahara, M.; Muguruma, Y.; Ogawa, A. J. Org. Chem. 1998, 63, 2812–2813; (d)
Hirao, T.; Hatano, B.; Asahara, M.; Muguruma, Y.; Ogawa, A. Tetrahedron Lett.
1998, 39, 5247–5248; (e) Hatano, B.; Ogawa, A.; Hirao, T. J. Org. Chem. 1998, 63,
9421–9424; For a review: (f) Hirao, T. Synlett 1999, 175–181; (g) Hirao, T.;
Hatano, B.; Imamoto, Y.; Ogawa, A. J. Org. Chem. 1999, 64, 7665–7667; (h) Hirao,
T.; Ogawa, A.; Asahara, M.; Muguruma, Y.; Sakurai, H. Org. Synth. 2005, 81, 26–
32; (i) Xu, X.; Hirao, T. J. Org. Chem. 2005, 70, 8594–8596.
9. (a) Roskamp, E. J.; Pedersen, S. F. J. Am. Chem. Soc. 1987, 109, 6551–6553; (b)
Freudenberger, J. H.; Konradi, A. W.; Pedersen, S. F. J. Am. Chem. Soc. 1989, 111,
8014–8016; (c) Konradi, A. W.; Kemp, S. J.; Pedersen, S. F. J. Am. Chem. Soc.
1994, 116, 1316–1323; (d) Taniguchi, N.; Uemura, M. J. Am. Chem. Soc. 2000,
122, 8301–8302; (e) Takai, K.; Morita, R.; Toratsu, C. Angew. Chem., Int. Ed. 2001,
40, 1116–1119; (f) Shimizu, M.; Iwata, A.; Makino, H. Synlett 2002, 1538–1540;
(g) Nair, V.; Ros, S.; Jayan, C. N.; Rath, N. P. Tetrahedron Lett. 2002, 43, 8967–
8969; (h) Fischer, S.; Groth, U.; Jung, M.; Lindenmaier, M.; Vogel, T. Synlett
2004, 1–6; (i) Groth, U.; Jung, M.; Vogel, T. Chem. Eur. J. 2005, 11, 3127–3135; (j)
Yang, Y.-S.; Shen, Z.-L.; Loh, T.-P. Org. Lett. 2009, 11, 2213–2215; For a review:
(k) Burchak, O. N.; Py, S. Tetrahedron 2009, 65, 7333–7356.
homo-coupling products 9 and 10 were also formed in 36% (dl/
meso = 71:29)12 and 43% (dl/meso = 76:24)13 yields, respectively.
Here, yield was calculated as follows: (mol of product)/(maximal
mol of producible products)ꢀ100. On the other hand, the same
reaction using 2,20-biphenol instead of 1acis gave only the homo-
coupling products 9 and 10 in 77% (dl/meso = 48:52) and 71% (dl/
meso = 55:45) yields,14 respectively, without the formation of 8.
Similarly, the same reaction without 1acis led to only the homo-
coupling products 9 and 10 in 69% (dl/meso = 53:47) and 49% (dl/
meso = 71:29) yields,14 respectively. These results indicate a steric
effect of the bis-biphenol ligand 1acis toward the cross-pinacol
reaction.
In summary, the three-dimensionally arranged bis-biphenol li-
gand on the hexaaryl scaffold for the dinuclear complex was syn-
thesized to show the conformational stability. The formation of
R1
R2
10. (a) Mukaiyama, T.; Sato, T.; Hanna, J. Chem. Lett. 1973, 1041–1044; (b) Handa,
Y.; Inanaga, J. Tetrahedron Lett. 1987, 28, 5717–5718.
11. Determined by the 2D NOESY experiments after the acetonide formation of 8,
see Supplementary data for details.
12. Determined based on the reported 1H NMR spectra: (a) Broeker, J.;
Knollmueller, M.; Gaertner, P. Tetrahedron: Asymmetry 2006, 17, 2413–2429;
(b) Rauniyar, V.; Zhai, H.; Hall, D. G. J. Am. Chem. Soc. 2008, 130, 8481–8490.
13. Determined based on the reported 1H NMR spectra: Li, Y.-G.; Tian, Q.-S.; Zhao,
J.; Feng, Y.; Li, M.-J.; You, T.-P. Tetrahedron: Asymmetry 2004, 15, 1707–1710.
14. Dominant formation of homo-coupling products may be accounted for by the
completion of the coupling reaction of o-trifluoromethyl benzaldehyde before
addition of thienylaldehyde due to the higher reactivity of the former one.
M
M
Figure 1. Concept of next generation ligands.
