Cytotoxic gold(i)-bearing dendrimers from alkyne precursors

Article abstract of DOI:10.1039/c1dt10578g

A series of four dendrimers end-functionalized with gold(i) has been prepared from alkyne-terminated precursors and (tricyclohexylphosphine)gold(i) azide. Isolated yields range from 84-89%, based on gold. The first-generation dendrimer is cytotoxic toward 3T3 mouse fibroblast cells. Apoptosis ensues within 6 h of treatment with gold(i). The Royal Society of Chemistry 2011.

Full text of DOI:10.1039/c1dt10578g

View Article Online / Journal Homepage / Table of Contents for this issue
Dynamic Article Links
Dalton
Transactions
Cite this: Dalton Trans., 2011, 40, 8083
www.rsc.org/dalton
COMMUNICATION
Cytotoxic gold(I)-bearing dendrimers from alkyne precursors†
Thomas J. Robilotto,a Daniel S. Alt,b Horst A. von Recum*b and Thomas G. Gray*a
Received 4th April 2011, Accepted 22nd June 2011
DOI: 10.1039/c1dt10578g
A series of four dendrimers end-functionalized with gold(I)
has been prepared from alkyne-terminated precursors and
(tricyclohexylphosphine)gold(I) azide. Isolated yields range
from 84–89%, based on gold. The first-generation dendrimer
is cytotoxic toward 3T3 mouse fibroblast cells. Apoptosis
ensues within 6 h of treatment with gold(I).
We have reported that the [3 + 2] cycloaddition of (phos-
phine)gold(I) azides with terminal alkynes affords triazolato
complexes in good to excellent yields.11,12 In the product com-
plexes, triazolate ligands bind gold through carbon. The result-
ing organometallics are stable to air, moisture, and laboratory
lighting.13–15 We find this method of metalating alkyne precursors
simpler than classical deprotonation/metalation of alkynes.16
The reaction of Cy3PAuN3 (Cy = cyclohexyl) with the ethynyl-
terminated dendrimers of Hawker and co-workers17 yields den-
drimers bearing C-bound (phosphine)gold(I) triazolates. A rep-
resentative example appears in Scheme 1. Four generations
of dendrimer have been metalated this way, and the number
of bound gold atoms is 2n, where n is the cardinal number
corresponding to the dendrimer’s generation (e.g., the fourth-
generation dendrimer has 24 = 16 gold(I) centers). Isolated yields
based on Cy3PAuN3 are as follows: 84%, 1; 89%, 2; 89%, 3;
95%, 4. The dendrimers are soluble in THF, dimethyl sulfoxide
(DMSO), and DMSO/water mixtures. Solubility decreases with
each higher generation. The fourth-generation dendrimer, with
16 gold atoms, is insoluble in common solvents, and only the
first three generations are considered here. Fig. 1 depicts line-
drawings of the first three dendrimer generations. End-to-end
diameters, estimated from molecular mechanics minimization,
range from 2 nm for the first-generation dendrimer to 4 nm for the
fourth. These sizes fall below the £ 5.5-nm limit encountered for
kidney clearance of nanocrystals.18 Thus the new dendrimers are
potentially compatible with renal elimination.
Gold is prominent in restorative and prosthetic dentistry.1 Its
history in rheumatoid arthritis treatment reaches across decades.2
In recent years, the focus of medicinal gold(I) chemistry has shifted
toward cancer therapy in response to observations that gold(I)
anti-arthritics possess anti-inflammatory and immunosuppressive
activity.3,4 The orally bioavailable prodrug auranofin is toxic
to P388 leukemia and B16 melanoma cell lines.5 Results from
Berners-Price, Filipovska, and co-workers find bis(diphosphine)
gold(I) cations to be membrane-permeable, and indeed, to trigger
apoptosis in human breast-cancer cell lines.6–8 The mechanism of
this biological activity is drawing scrutiny. One hypothesis having
experimental support is that gold(I) inhibits the mitochondrial
form of the enzyme thioredoxin reductase. The single SeCys
residue of this enzyme, which lies near the protein’s C-terminus, is
thought to bind gold in a favorable soft-soft match.9 The inhibited
(gold-bound) reductase then fails to reduce thioredoxin, and
thereby triggers mitochondrial membrane permeability. Apoptosis
ensues. Malignant tissues up-regulate thioredoxin reductase, and
this enzyme is emerging as a chemotherapeutic target. The
anticancer propensities of gold(I) compounds continue to attract
clinical attention, and the medicinal prospects of gold chemistry
are far from exhausted.
Dendrimers are branched polymers having precisely control-
lable architectures and uniform composition. Their use as tar-
getable drug carriers now represents a mature field of study.10
Dendrimers exploit the enhanced permeability and retention of
tumors, where the blood vessels of cancerous tissue trap macro-
molecules. Polymeric drugs, or polymer-immobilized prodrugs,
linger inside tumors and acquire a longer residence time. Selectivity
results for malignant over healthy tissues.

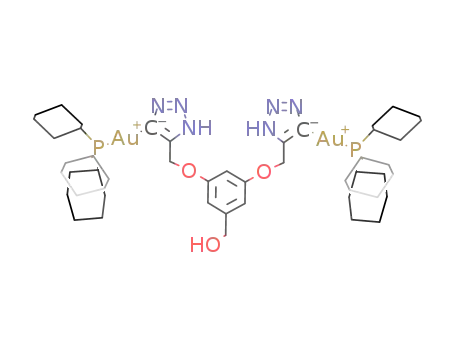

Scheme 1 Synthesis of first-generation dendrimer 1.
Organometallic products were characterized by multinuclear
NMR and infrared spectroscopies. Mass spectra and elemental
analysis indicate that all terminal alkynyl groups in the or-
ganic precursors are transformed into (triazolato)gold(I) moi-
eties. Vibrational signatures corresponding to terminal alkynes
or azide complexes are absent in the products’ infrared
spectra. The organogold dendrimers are colorless, and the
aDepartment of Chemistry, Case Western Reserve University, 10900 Euclid
Avenue, Cleveland, Ohio, USA. E-mail: tgray@case.edu; Fax: (216)368-
3006; Tel: (216) 368-0991
bDepartment of Biomedical Engineering, Case Western Reserve University,
10900 Euclid Avenue, Cleveland, Ohio, USA. E-mail: hav1@case.edu;
Fax: (216)368-4969; Tel: (216) 368-5513
† Electronic supplementary information (ESI) available: Full experimental
details. See DOI: 10.1039/c1dt10578g
This journal is
The Royal Society of Chemistry 2011
Dalton Trans., 2011, 40, 8083–8085 | 8083
©

View Article Online
Fig. 2 Phase-contrast microscopy images of 3T3 fibroblast cells. (a) 4.55
mM 1, following addition to medium in cell-culture well. (b) Without 1. All
samples are in D8 medium with 4.5% v:v DMSO after 6 h of treatment.
unmetallated alkyne dendrimer indicated toxicity similar to that
of the cell-culture medium.
Apoptosis was assayed using annexin-V and the vital stain
7-aminoactinomycin D (7-AAD). Cells alive but undergoing
apoptosis are defined as being positive for annexin-V and negative
for 7-AAD (red bars in Fig. 3). Cells that were positive for both
annexin-V and 7-AAD are dead (black, Fig. 3); they can have died
from apoptosis or cytotoxic necrosis. Cells that are undergoing
apoptosis or dead are plotted to demonstrate the change in
cell state over the course of the study as compared to controls.
Incubation of 3T3 cells with micromolar solutions 1 results in cell
death that increases with increasing concentrations of 1. These
were seeded at 105 cells per well in a 12-well polystyrene tissue
culture dish with 1 mL D8 medium per well, and were allowed to
attach over a period of several hours. Experimental details appear
in the Supporting Information.†
Fig. 1 (Triazolato)gold(I) dendrimers. End-to-end dimensions are es-
timated from molecular mechanics minimizations. A fourth-generation
dendrimer (not shown) has been prepared; its diameter is estimated to be
4.0 nm.
absorption spectra are featureless in the near-UV and visible
regions.
Fig. 3 Fluorescence-activated cell analysis of 3T3 mouse fibroblast cells
with solutions of 1 at various concentrations, after 20 h. The blue column
indicates cells that are still viable (living) in solution. The red column
indicates cells that are currently undergoing apoptosis or have died through
apoptosis. The black column shows cells that have died through an
unknown (apoptosis vs. necrosis) process. Concentrations are of 1 unless
otherwise indicated.
Initial experiments sought to determine cytotoxicity of a
representative dendrimer. Solutions of 1 at concentrations of
230 mM, 100 mM, and 50 mM were prepared in 12-well plates,
as was a DMSO control with no drug. To each well, which
contained 105 cells of 3T3 (immortalized mouse fibroblast) in
1 mL of D8 medium, was added 100 mL of a stock solution of
1. Cells were incubated at 37 ◦C and 5% CO2 for 6 h. Experiments
were conducted in duplicate. Phase-contrast microscopy images
of selected wells appear in Fig. 2. For all concentrations within
4.55–20.9 mM 1, the cytotoxicity is estimated to exceed 95%. Fig.
2b shows that cells with no drug in D8 medium containing 4.5%
DMSO remained attached to the dish and viable, as indicated by
their elongated shape. Cells that are dead or dying are spherical,
and detach readily with mechanical agitation. The amount of
DMSO used in this study was optimized to maintain viability
for the duration of the experiments. Control experiments with the
Fig. 3 indicates apoptosis brought about by 1 after 20 h, with
notable activity at 10.0 mM 1. Apoptosis and total cell death
increases with concentration from 0.1–10.0 mM 1. Little apoptosis
or cell death is seen in 3T3 cells treated with 1 over 6 h (Figure S1,
Supporting Information†), with one exception, namely apoptosis
at 10 mM concentration, indicating a rapid mechanism of action.
The LD50 was determined to be 90 ng mL-1.
Dendrimers bearing terminal alkyne functionalities have been
made into gold-bearing scaffolds. Cycloaddition reactions of
8084 | Dalton Trans., 2011, 40, 8083–8085
This journal is
The Royal Society of Chemistry 2011
©

View Article Online
(tricyclohexylphosphine)gold(I) azide with pendant –C CH moi-
eties attach gold through irreversible triazolate formation. Four
generations of gold(I) dendrimer have been prepared. First-
generation di-gold complex 1 is cytotoxic toward rapidly-dividing
mammalian cells. Compound 1 induces apoptosis at 1–10 mM
concentrations over a period of hours. Cellular evaluation of
higher-generation dendrimers and synthetic studies of gold-
bearing macromolecules are ongoing.
6 P. J. Barnard and S. J. Berners-Price, Coord. Chem. Rev., 2007, 251,
1889.
7 J. L. Hickey, R. A. Ruhayel, P. J. Barnard, M. V. Baker, S. J. Berners-
Price and A. Filipskova, J. Am. Chem. Soc., 2008, 130, 12570.
8 O. Rackham, S. J. Nichols, P. J. Leedman, S. J. Berners-Price and A.
Filipovska, Biochem. Pharmacol., 2007, 74, 992.
9 M. P. Rigobello, A. Folda, M. C. Baldoin, G. Maria, G. Scutari and A.
Bindoli, Free Radical Res., 2005, 39, 687.
10 E. R. Gillies and J. M. J. Fre´chet, Drug Discovery Today, 2005, 10, 35.
11 D. V. Partyka, J. B. Updegraff, III, M. Zeller, A. D. Hunter and T. G.
Gray, Organometallics, 2007, 26, 183.
12 D. V. Partyka, L. Gao, T. S. Teets, J. B. Updegraff, III, N. Deligonul
and T. G. Gray, Organometallics, 2009, 28, 6171.
13 D. V. Partyka, M. Zeller, A. D. Hunter and T. G. Gray, Angew. Chem.,
Int. Ed., 2006, 45, 8188.
14 D. V. Partyka, J. B. Updegraff, III, M. Zeller, A. D. Hunter and T. G.
Gray, Organometallics, 2009, 28, 1666.
15 L. Gao, M. A. Peay, D. V. Partyka, J. B. Updegraff, III, T. S. Teets, A.
J. Esswein, M. Zeller, A. D. Hunter and T. G. Gray, Organometallics,
2009, 28, 5669.
16 L. Gao, D. V. Partyka, J. B. Updegraff, III, N. Deligonul and T. G.
Gray, Eur. J. Inorg. Chem., 2009, 2711.
17 M. Malkoch, K. Schleicher, E. Drockenmuller, C. J. Hawker, T. P.
Russel, P. Wu and V. V. Fokin, Macromolecules, 2005, 38, 3663.
18 H. S. Choi, W. Liu, P. Misra, E. Tanaka, J. P. Zimmer, B. I. Ipe, M. G.
Bawendi and J. V. Frangioni, Nat. Biotechnol., 2007, 25, 1165.
Notes and references
1 J. Rothat, in Gold: Progress in Chemistry, Biotechnology, and Technol-
ogy, ed. H. Schmidbaur, Wiley, New York, 1999, p. 173.
2 C. F. Shaw, III, in Gold: Progress in Chemistry, Biotechnology, and
Technology, ed. H. Schmidbaur, Wiley, New York, 1999, p. 259.
3 S. Y. Ho and E. R. T. Tiekink, in Metallotherapeutic Drugs & Metal-
based Diagnostic Agents: The Use of Metals in Medicine, ed. M. Gielen
and E. R. T. Tiekink, Wiley, New York, 2005, p. 507.
4 K. P. Bhabak, B. J. Bhuyan and G. Mugesh, Dalton Trans., 2011, 40,
2099–2111.
5 C. K. Mirabelli, R. K. Johnson, D. T. Hill, L. F. Faucette, G. R. Girard,
G. Y. Kuo, C. M. Sung and S. T. Crooke, J. Med. Chem., 1986, 29,
218.
This journal is
The Royal Society of Chemistry 2011
Dalton Trans., 2011, 40, 8083–8085 | 8085
©
