Ready available chiral azapyridinomacrocycles n-oxides; First results as lewis base catalysts in asymmetric allylation of p-nitrobenzaldehyde

Article abstract of DOI:10.3987/COM-11-12249

We report here the straightforward synthesis of the first series of enantiomerically pure azapyridinomacrocycles N-oxides containing a cyclohexyl chiral moiety. These compounds were readily obtained in good overall yields by a convergent synthesis using natural amino acids as starting building blocks and macrocyclisation as the key step. This method is rapid, efficient and suitable for the introduction of various substituents at the macrocyclic skeleton. Finally, the compounds were tested as organocatalysts for the enantioselective allylation of p-nitrobenzaldehyde with allyltrichlorosilane.

Full text of DOI:10.3987/COM-11-12249

HETEROCYCLES, Vol. 83, No. 9, 2011
2011
HETEROCYCLES, Vol. 83, No. 9, 2011, pp. 2011 - 2039. © The Japan Institute of Heterocyclic Chemistry
Received, 7th May, 2011, Accepted, 6th July, 2011, Published online, 15th July, 2011
DOI: 10.3987/COM-11-12249
READY AVAILABLE CHIRAL AZAPYRIDINOMACROCYCLES
N-OXIDES; FIRST RESULTS AS LEWIS BASE CATALYSTS IN
ASYMMETRIC ALLYLATION OF p-NITROBENZALDEHYDE
Maité Sylla-Iyarreta Veitía,* Mounia Joudat, Mathieu Wagner, Annie
Falguières, Alain Guy, and Clotilde Ferroud*
Laboratory of Chemical and Pharmaceutical Transformations, ERL 3193 CNRS,
ESPCI ParisTech, Cnam, 2 rue Conté 75003 Paris, France. Email:
maite.sylla@cnam.fr, clotilde.ferroud@cnam.fr
Abstract – We report here the straightforward synthesis of the first series of
enantiomerically pure azapyridinomacrocycles N-oxides containing a cyclohexyl
chiral moiety. These compounds were readily obtained in good overall yields by a
convergent synthesis using natural amino acids as starting building blocks and
macrocyclisation as the key step. This method is rapid, efficient and suitable for
the introduction of various substituents at the macrocyclic skeleton. Finally, the
compounds were tested as organocatalysts for the enantioselective allylation of
p-nitrobenzaldehyde with allyltrichlorosilane.
INTRODUCTION
During the last few years, pyridine-based N-oxides have emerged as highly versatile compounds, since
they possess notable nucleophilicity and basicity properties which allow them to function as Lewis base
catalysts and as ligand for metal complexes. In each case, an oxygen atom serves as a basic/ligating
site.1-4 In asymmetric synthesis, chiral pyridine-based N-oxides have been widely used in various catalytic
processes including the asymmetric allylation of aldehydes,5-11 the reduction of ketones,12 the asymmetric
cyclopropanation,13 the enantioselective ring opening of meso-epoxides,14,15 or the Strecker reaction.16
Since several years, our laboratory is interested in the synthesis of azapyridinomacrocycles.17-21 These
polyamine ligands are recognized for their capacity to chelate metallic cations, particularly those of the
lanthanide family. Under their complexed form, these structures are involved in a wide field of
applications such as diagnostic area as contrast agents in Magnetic Resonance Imaging (MRI). Until now,

2012
HETEROCYCLES, Vol. 83, No. 9, 2011
the use of chiral macrocyclic derivatives as catalysts in enantioselective reactions is based exclusively on
their ability to form stable complexes with metal cations. However, such polyazamacrocycles might lead
to covalent catalysis suggesting that they could be used as organocatalysts.
Considering all the above and taking into account the experience of our laboratory, we have undertaken
the preparation of two series of chiral azapyridinomacrocycles from natural and easily available amino
acids featuring a pyridine N-oxide fragment as the key structural element (Figure 1). Their first
application as chiral organocatalysts in the asymmetric allylation of p-nitrobenzaldehyde with
allyltrichorosilane has been studied.
PyCyN-Ox[12]N4
PyCyN-Ox[15]N5
+
+
N
O
N
+
_
+
_
H N
O
O
N H
R1
H
N
N
Nos N
R1
N Nos
R1
H
_
_
R1
H N
R1
O
N H
H
Nos N
R1
O
N Nos
H
N
N
N
N
N
H
O
N
H
O
O
O
O
(3)
(4)
(2)
(1)
R1= Bn, i-Pr, H
2-Nos: (2-NO2) C6H4-SO2
Figure 1. Series of azapyridinomacrocycles N-oxides
RESULTS AND DISCUSSION
Synthesis of azapiridinomacrocycles N-oxides
In the preparation of azapyridinomacrocycles N-oxides, two synthetic strategies could be considered. The
first strategy concerns the oxidation of the polyazamacrocycles at the end of the synthesis. The second
strategy results from the condensation of the corresponding polyamine moieties (5) and (6), with
2,6-bis(chloromethyl)pyridine N-oxide (7), previously prepared from the 2,6-bis(chloromethyl)pyridine.
To prepare the N-protected amino acids (8), the corresponding L-amino acids were reacted with one
equivalent of 2-nitrobenzenesulfonylchloride in water at 60-70 °C for 17 h in presence of NaOH. The
corresponding N-nosyl amino acids (8a-c) were isolated in 65, 68 and 49% yields respectively. The chiral
pool, trans-1,2-(R,R)-diammoniumcyclohexane salt (9), was obtained from the racemic
trans-1,2-diaminocyclohexane by a conventional resolution method using the L-tartaric acid. This method

HETEROCYCLES, Vol. 83, No. 9, 2011
2013
reported in 2003 by Schanz and co-workers allows the isolation of both enantiomers in their enantiopure
forms (ee> 99.8%) as chemically inert bis-ammonium salts during the same separation process.22 The
racemic trans-1,2-diaminocyclohexane was treated with 0.5 equiv of L-tartaric acid in a mixture of water
and acetic acid to afford, after cooling to 5 °C, the selective precipitation of trans-1,2-(R,R)-diammonium
cyclohexane as tartrate salt (9), with a yield of 45% and an enantiomeric purity of 99.9% (Scheme 1).
R1
R1
a
Nos
OH
OH
SO2Cl
NO2
+
N
H2N
H
O
O
8a
R1 = Bn 65%
i-Pr 68%
8b
8c
OH
H
49%
HOOC
NH2
OH
COOH
Nos
Nos
NH
NH
R1
H
N
NH2
NH2
N
Nos
N
c
e
d
b
N
N
Nos
Nos
R1
N
N
H
H
H
N
O
N
H
73%
N
H
R1
(R,R)
(R,R)
(R,R,S)
R1 = Bn 92% 5a
O
O
10
9
R1 = Bn 98%
12a
12b
R1 = Bn 84% 13a
5b
5c
i-Pr 73%
56%
tartrate salts
i-Pr 85%
13b
13c
i-Pr 88%
H
H
70% 12c
H
90%
f
x
x
+
N
+
N
O
_
_
O
N
Nos
Nos
R1
N
g
N
H
H
N
N
H
N
H
R1
O
O
1a
1b
1c
R1 = Bn 94%
i-Pr 80%
2a
R1 = Bn 91%
H 70%
Scheme 1. Synthesis of azapyridinomacrocycles N-oxides, PyCyN-Ox[12]N4. Reagents and conditions:
(a) NaOH (2.1 equiv), H2O, 60-70 °C, 17 h; (b) (i) NaOH, TEA (1.3 equiv), CH2Cl2, 0 °C, 10 min; (ii)
ArSO2Cl (1.7 equiv), 0 °C to rt, 3 h; (c) (i) N-nosyl amino acid (8) (1.05 equiv), DMAP (1.05 equiv),
anhydrous THF, 0 °C, 10 min; (ii) EDCI (1.05 equiv), rt, 17 h; (d) (i) K2CO3 (4 equiv), DMF, 90 °C; (ii)
2,6-bis(bromomethyl)pyridine (11) (1.2 equiv), DMF, reflux, 1-2 h; (e) PhSH (2.5 or 3 equiv), K2CO3 (4
equiv), DMF, rt, 2-5 h; (f) (i) K2CO3 (4 equiv), MeCN, reflux, 5 min then KI (2.2 equiv); (ii)
2,6-bis(chloromethyl)pyridine N-oxide (7) (1.1 equiv), MeCN, reflux, 3-5 h; (g) mercaptoethanol (11.2
equiv), DBU (4.5 equiv), MeCN, rt, 2 h.
The chiral amidodisulfonamide blocks (5) could be obtained from the commercially available racemic
trans-diaminocyclohexane and natural amino acids by peptide coupling. We applied the Fukuyama’s
2-nitrobenzenesulfonamide strategy23,24 to control the selective regiofunctionalization of the polyamine

2014
HETEROCYCLES, Vol. 83, No. 9, 2011
framework. The nosyl group is compatible with many chemical functions, stable in acidic (HCl 10 equiv,
MeOH, 60 °C) and basic (NaOH, 10 equiv, MeOH, 60 °C) conditions and its cleavage is achieved under
mild reaction conditions. The nosyl group is used both for N-protection and to increase acidity of the
remaining N-H bond allowing the use of weak bases during the macrocyclization step. In addition, the
bulky nature of this group takes part of the arrangement of the transition state required for intramolecular
cyclization, thus avoiding intermolecular oligomerization process. Consequently the use of the
2-nitrobenzenesulfonamide group, in a protection-activation strategy of polyamines is very useful for an
efficient synthesis of azamacrocycles compounds (Scheme 1).
Ng and co-workers in 200125 reported the efficient synthesis of several mono-N-sulfonyl
diaminocyclohexane derivatives from tartrate salts (9) using a ratio 1.5/1 : diamine/sulfonyl chloride in
presence of triethylamine. Using this protocol slightly modified, 1.7 equiv of 2-nitrobenzenesulfonyl
chloride was reacted with the tartrate salts (9), in dichloromethane at 0 °C, then at room temperature in

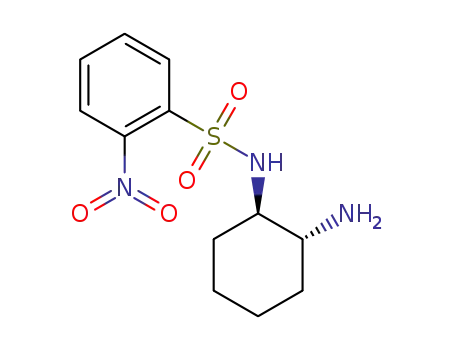

the presence of NaOH and triethylamine. The mono N-sulfonylated compound (10) was afforded after
crystallization with 73% yield. The condensation of the compounds (8) and (10) was achieved by a
peptide coupling reaction. The (R,R)-mono-N-sulfonylated cyclohexanediamine (10) was reacted with a
stoichiometric amount of the corresponding N-nosyl amino acids (8) in THF employing EDCI/DMAP as
activating agent. After stirring overnight at room temperature and then purification by flash
chromatography on silica gel, the corresponding chiral amidodisulfonamide blocks (5a-c) were isolated in
92, 73 and 56% yields respectively (Scheme 2).
In the macrocyclisation step the corresponding polyamine moieties (5) were reacted with the
2,6-bis(bromomethyl)pyridine (11) according to the procedure based on a Richman-Atkins cyclization
reaction.26 In order to minimize the amounts of competitive adducts such as cyclic [2+2] or uncyclized
[2+1] adducts, the optimization of the macrocyclisation conditions was carried out. A slow addition of a
slight excess of 2,6-bis(bromomethyl)pyridine (11) to a warmed DMF solution (90 °C) of
amidodisulfonamides (5) in the presence of an excess of K2CO3 (4 equiv), gave in less than two hours the
desired macrocycles (12a-c) isolated after chromatography in 70 to 98% yields. It is to be noticed that the
crude forms were pure enough to be used in the next step without prior purification (Scheme 1).
The cleavage of the 2-nitrobenzenesulfonamide framework to give the corresponding
diamino-compounds (13a-c) was carried out following a conventional method23,24 by treatment with
thiophenol with potassium carbonate in DMF at room temperature. In such conditions, the desulfonylated
macrocycles (13a-c) were isolated with yields of 84 to 90% (Scheme 2). The purification proceeded by a
simple work-up involving an acid-basic extraction. In the last step, classical methods of N-oxidation were
used (H2O2 30%/acetic acid, m-CPBA) to oxidize the compounds (12) and (13). Unfortunately, the
N-oxidation of the pyridine moiety of the azapyridinomacrocycles never occured.

HETEROCYCLES, Vol. 83, No. 9, 2011
2015
Considering the unsatisfying results obtained in the N-oxidation step of the first strategy, a convergent
synthesis was carried out. The 2,6-bis(chloromethyl)pyridine N-oxide (7) was previously prepared by
oxidation of the 2,6-bis(chloromethyl)pyridine following a simple procedure reported by Gan and
co-workers.27 and was obtained pure enough to be used in the next step without any further purification
(91% yield). After optimization of macrocyclisation conditions, the best results were obtained when
2,6-bis(chloromethyl)pyridine N-oxide (7) was reacted with the corresponding polyamine moieties (5) in
the presence of potassium carbonate and potassium iodide in refluxing MeCN. The desired nosylated
azapyridinomacrocycle N-oxides PyCyN-Ox[12]N4 (1a-c) were satisfactory afforded after purification by
flash column chromatography on silica gel in 94, 80 and 70% yields respectively. The desulfonylated
macrocycles (2a) was prepared following the same procedure described above but using
2-mercaptoethanol instead of thiophenol. This compound was isolated with yields of 91% (Scheme 2).
The same approach was envisaged to prepare the 15 membered azapyridinomacrocycles N-oxides,
PyCyN-Ox[15]N5 (3) and (4). The intermediate N-nosyl-tetraamine derivatives (6) were synthesized by a
double peptide coupling between the 1,2-(R,R)-diaminocyclohexane (14) with 2 equiv of the
corresponding N-nosyl amino acids (8) in THF. The 1,2-(R,R)-diaminocyclohexane (14) was obtained by
releasing the corresponding tartrate salt (9) in the presence of 4 equiv of NaOH with a yield of 98%. After
peptide coupling, the corresponding polyamine blocks (6a-c) were isolated in 64, 58 and 85% yields
respectively (Scheme 2).
In the macrocyclisation step, the K2CO3 was substituted by the Cs2CO3, widely used for the templated
construction of large rings, due to the "cesium effect".33 Cesium allows an optimal preorganization of the
two reactive species, thus promoting the macrocyclization compared to polymerization reaction.
Consequently, 2,6-bis(bromomethyl)pyridine (11) was reacted with the corresponding polyamine
moieties (6) in the presence of Cs2CO3 in DMF at 90 °C. The desired nosylated azapyridinomacrocycles
PyCy[15]N5 (15a) and (15c) were afforded after purification by flash column chromatography on silica
gel in 45 and 65% yields respectively. The cleavage of the 2-nitrobenzenesulfonamide framework was
carried out using the standard conditions described above (PhSH/K2CO3/DMF). The corresponding
macrocycle (16c) was isolated in 66% yield. Once more, the N-oxidation of the pyridine moiety failed.

2016
HETEROCYCLES, Vol. 83, No. 9, 2011
Nos
OH
N
H
R1
HOOC
NH2
OH
COOH
NH2
N
N
O
NH
R1
Nos
R1
N
N
Nos
R1
NH2
c
H
b
d
H
O
N
N
H
O
a
NH2
N
Nos
N
H
H
R1
R1
H
H
H
98%
N
N
N
N
O
O
O
(R,R)
(R,R)
(S,R,R,S)
6a
9
14
R1 = Bn 64%
i-Pr 58% 6b
6c
15a
15c
R1 = Bn 45%
65%
16c
R1 = H 66%
tartrate salts
H
H
85%
x
x
+
+
N
_
O
N
O
f
e
_
Nos
N
N
Nos
R1
H
O
N
N H
R1
H
H
R1
R1
H
H
N
N
N
N
O
O
O
R1 = Bn 46% 3a
4a
R1 = Bn 65%
i-Pr 33%
3b
3c
H
81%
Scheme 2. Synthesis of azapyridinomacrocycles N-oxides, PyCyN-Ox[15]N5. Reagents and conditions:
(a) NaOH (4 equiv), H2O/CH2Cl2, 25 min, rt; (b) (i) N-nosyl amino acid (8) (2.1 equiv), DMAP (2.1
equiv), anhydrous THF, 0 °C, 10 min; (ii) EDCI (1.05 equiv), rt, 17 h; (c) (i) Cs2CO3 (4 equiv), DMF,
reflux; (ii) 2,6-bis(bromomethyl)pyridine (11) (1.2 equiv) DMF, reflux, 4 h; (d) PhSH (2.5 equiv), K2CO3
(4 equiv), DMF, rt, 5 h; (e) (i) K2CO3 (4 equiv), MeCN, reflux, 5 min. then KI (2.2 equiv); (ii)
2,6-bis(chloromethyl)pyridine N-oxide (7) (1.1 equiv), MeCN, reflux, 3-5 h; (f) mercaptoethanol (11.2
equiv), DBU (4.5 equiv), MeCN, rt, 2 h.
The second strategy was envisaged involving the macrocyclisation step by the condensation of the
polyamine moieties (6) with the 2,6-bis(chloromethyl)pyridine N-oxide (7) using the same reaction
conditions described above for the 12 membered azapyridinomacrocycles. The desired nosylated
azapyridinomacrocycles N-oxides PyCyN-Ox[15]N5 (3a-c) were satisfactory afforded after purification
by flash column chromatography on silica gel in 46, 33, 81% yields respectively. The cleavage of
2-nitrobenzenesulfonamide moiety to afford the corresponding deprotected macrocycle (4a) was achieved
according to the previously described method by reaction with mercaptoethanol in MeCN in presence of
DBU at room temperature. In such conditions, the desulfonylated macrocycle PyCyN-Ox[15]N5 (4a) was
isolated in 65% yield (Scheme 2).
Asymmetric allylation of p-nitrobenzaldehyde
The application of the azapyridinomacrocycles N-oxides synthesized as chiral organocatalysts in the

HETEROCYCLES, Vol. 83, No. 9, 2011
2017
asymmetric allylation of p-nitrobenzaldehyde with allyltrichorosilane (Scheme 3) was investigated and
the main results (yields and ees determined by HPLC) are reported in Table 1. Addition of
allyltrichorosilane to p-nitrobenzaldehyde was carried out in the presence of PyCyN-Ox[12]N4 (1) and (2)
or PyCyN-Ox[15]N5 (3) and (4) derivatives as organocatalysts (20 mol%) and DIPEA. Different
parameters were studied, such as the solvent, the amount of additives and the temperature.
O
OH
Cat*
H
+
SiCl3
*
i-Pr2NEt
O2N
O2N
solvent
17
18
Cat*
PyCyN-Ox[12]N4 or PyCyN-Ox[15]N5
=
Scheme 3
In several studies, it has been clearly noticed that aldehydes with an electron-donating group at the
para-position of benzaldehyde exhibit a negative impact on the enantioselectivity whereas the substrate
bearing an electron-withdrawing group at the para-position resulted in a dramatic increase in both
reactivity and enantioselectivity.6,28,29 Considering these observations we decided to use the
p-nitrobenzaldehyde as model in order to compare our results with those reported in the literature.
The first results showed that azapyridinomacrocycles N-oxides 12-membered PyCyN-Ox[12]N4 (1) and
(2) are unsuccessful catalysts (48% of conversion rate and 12% of ee). No significant differences were
observed between the different functionalized 12 membered macrocycles and marginal improvements of
the conversion rate were observed when dichloromethane or THF were used as solvents. Furthermore,
disappointing results were also obtained for the denosylated macrocycle PyCyN-Ox[12]N4 (2a).
Therefore, we turned our attention to 15-membered macrocycles PyCyN-Ox[15]N5 (3) and (4) as
potentially more efficient catalysts. The results reported in Table 1 suggested a dramatic effect of the size
of the cavity in the catalytic process. The results obtained with the denosylated macrocycle
PyCyN-Ox[15]N5 (4a), suggested that the nucleophilicity of the N-oxide moiety of (3a) is significantly
reduced due to the electron-withdrawing effect of the nosyl group decreasing the conversion rate
(compare entry 1 with 6).

2018
HETEROCYCLES, Vol. 83, No. 9, 2011
Table 1. Allylation of p-nitrobenzaldehyde with allyltrichlorosilane catalyzed by 15-membered
azapyridinomacrocycles N-oxides[a]
Entry
1
Catalyst
#
Temp/°C
20
Time/h Yield (%)[b]
ee (%) [c] Configuration of 18[d]
NO2
O
O2
O
S
N
3a
72
28
10
(S)-()
N+
O
S
N
N
O
O
H
H
N
N
O
O
NO2
O
O2
O
S
N
2
3
3b
3b
20
0
72
72
48
27
2
3
(R)-(+)
(R)-(+)
N+
S
N
O
N
O
O
H
H
N
N
O
O
NO2
O
O2
O
S
N
4
5
3c
3c
20
0
48
48
60
42
5
6
(R)-(+)
(R)-(+)
N+
O
S
N
N
O
O
H
N
H
N
O
O
6
4a
4a
4a
4a
4a
20
0
24
24
24
24
24
83
72
58
43
65
13
8
(S)-()
(S)-()
(S)-()
(S)-()
(S)-()
7
N+
HN
O
NH
H
H
8
N
N
-30
-38
-38
14
40
5
O
O
9
10[e]
[a] The reaction was carried out in MeCN at 0.15 mmol scale with 2.4 equiv of allyltrichorosilane in the
presence of the corresponding catalyst (20 mol%) and DIPEA (3 equiv). [b] Conversion was determined
by HPLC. [c] Established by chiral HPLC. [d] Established from the optical rotation (measured in CHCl3)
and HPLC retention times by comparison with the literature data.31,32 [e] 6 equiv of DIPEA were used.
A dramatic improvement in the reaction rate and asymmetric conversion was observed with the
15-membered macrocycle PyCyN-Ox[15]N5 (4a), 83% at 20 °C in MeCN. However, the asymmetric
induction was rather low in this case: 13% ee. To amend this flaw, we explored the effect of the
temperature and the solvent. Thus, the allylation reaction using PyCyN-Ox[15]N5 (4a) as catalyst was
carried out at 0 °C, -30 °C and -38 °C. Decreasing the temperature from 20 °C to - 30 °C induces a lower
conversion rate, without any significant increase of the enantioselectivity (entries 6, 7 and 8). The best
results were obtained at -38 °C (40% ee) (entry 9). We used these conditions to investigate a possible
solvent effect. In dichloromethane, the reaction was slower and rather less enantioselective than in MeCN,
whereas practically no reaction was observed in THF. We checked the influence of the DIPEA as additive.
In the absence of DIPEA, the reaction was slower and less selective. An increase in the amount of DIPEA
(6 equiv instead 3 equiv) led to higher conversion rates but surprisingly decrease the enantiomeric excess
(compare entry 9 with 10). Hence, the combination of PyCyN-Ox[15]N5 (4a) as catalyst in MeCN

HETEROCYCLES, Vol. 83, No. 9, 2011
2019
appears to be a well-balanced choice, characterized by acceptable conversion rates, enantioselectivities
and catalyst loading (20 mol %).
A proposed mechanism for the asymmetric allylation and a hypothesized transition state are outlined in
Scheme 4. It has been suggested that the N-oxide binds to the silicon atom to generate a penta coordinate
cationic siliconium which activates as Lewis acid the carbonyl of the aldehyde. The nucleophilic attack
on the carbonyl group takes place at the γ position of allyl group via a six-membered cyclic chair like
transition structure to give the corresponding homoallylalcohol. It may be reasonable to suppose that the
diisopropylethylamine promotes the dissociation of catalyst from silicon atom in the compound by ligand
exchange to regenerate the catalyst and as a result allow assisting the reaction turnover. Thus, we consider
a similar mechanism to that proposed by Malkov in the case of terpene-derived bipyridine N,N’-dioxides.6
We can state that the reaction proceeds via a closed chair like transition structure highly crowded
organized around the silicon. This commonly accepted arrangement provides an enantiocontrol in the
allylation of aromatic aldehydes.9,30,31
O
H
O2N
+
R
+
H
H
N
BL*
O
BL*
Cl
_
Cl
Si
N+
H
O
Cl
_
Si
Cl
Si
+
HN
H
Cl
Cl
Cl
O
H
N
R
Cl
H
N
O
H
Transition State (TS )
O2N
R
O
Cl
Suggested Transition State (TS )
with a 15-membered macrocycle
Si
Cl
Cl
+
H
BL*
BL*
Cl
_
Si
Cl
chiral catalyst
Cl
O
OH
*
O2N
O2N
(S)-18
_
Cl
Cl
Quenching
Cl
+
Si
NEt(iPr)2
O
¨
N
O2N
Scheme 4. Proposed mechanism and transition state in catalysed allylation
It is noteworthy that the size of the cavity plays an important role in catalytic process. In our case it may
be supposed that the transition state should be accommodate inside of the macrocycle skeleton. The more
flexible skeleton of 15-membered macrocycles could explain the higher conversion yields and

2020
HETEROCYCLES, Vol. 83, No. 9, 2011
stereoselectivities observed in comparison with the 12-membered more conformationally restricted
macrocycles. This space disposition of the transition state would also allow additional interactions
between the silicon and the nitrogen atoms of the macrocyclic structure, generating a cationic complex
(TS). Moreover, in the silicon chelation, the N-oxide moiety of the desulfonylated macrocycles is more
accessible than in the sulfonylated compounds. This could explain why the compound (4a) is a more
efficient catalyst.
In summary, eight chiral azapyridinomacrocycles N-oxides have been easily synthesized, from
inexpensive starting materials. The optimization of the reaction conditions allowed us to obtain a first
serie of 12-membered chiral azapyridinomacrocycles N-oxides PyCyN-Ox[12]N4 (1) and (2) with 40% to
78% overall yields and a second one of 15-membered PyCyN-Ox[15]N5 (3) and (4) with 20% to 68%
overall yields. The macrocycles were tested as potential catalyts in the enantioselective allylation of
p-nitrobenzaldehyde with trichloroallylsilane and resulted in good conversion above 80% and promising
enantioselectivity (40% ee) for PyCyN-Ox[15]N5 (4a). Further studies are in progress to explore this
trend using larger macrocycles and to assess these original ligands in other enantioselective
organocatalyzed reactions.
EXPERIMENTAL
Chemicals
All reagents were obtained from commercial sources unless otherwise noted, and used as received. Room
temperature refers to ambient room temperature (18-25 °C). Heated experiments were conducted using
thermostatically controlled oil baths. All reactions were monitored by analytical thin layer
chromatography (TLC) performed on aluminium sheets precoated silica gel plates (60 F254, Merck). TLC
plates were visualized using UV (254 nm) and ninhydrine sprays or in an iodine chamber as appropriate.
Frontal retention values Rf have been mentioned when necessary. Flash column chromatography was
carried out routinely using silica gel 60 (particle size 0.040-0.063 mm, Merck).
Physical measurements
The structure of the products prepared by different methods was checked by comparison of their NMR,
IR and MS data and by the TLC behaviour. 1H and 13C-NMR spectra were acquired on a Bruker BioSpin
GmbH spectrometer 400 MHz, at room temperature. Chemical shifts are reported in δ units, parts per
million (ppm). Coupling constants (J) are measured in hertz (Hz). Splitting patterns are designed as
follows: s, singlet; d, doublet; t, triplet; dd, doublet of doublets; ddd, doublet of a doublet of doublets, m,
multiplet; br, broad; eq., equatorial; ax., axial. Various 2D techniques and DEPT experiments were used
to establish the structures and to assign the signals. For the assignments of the NMR signals, we use the

HETEROCYCLES, Vol. 83, No. 9, 2011
2021
convention presented in Figure 2. GC analyses were performed with an Agilent 6890N instrument
equipped with a 15 m x 0.25 mm HP-5MS column and an Agilent 5973N MS detector-column
temperature gradient 60-180 °C for 2,6-Bis(chloromethyl)pyridine N-oxide. Infrared spectra were
recorded from a thin film between KBr plates or as a KBr disc with a Nicolet FT-IR Avatar 320
spectrometer. Melting points (Mp) were determined on a Leica VMHB system Kofler apparatus.
High-resolution mass spectra (HRMS) analyses have been done on samples whose purity was checked by
1
HPLC and/or H NMR. Ionizations by electrospray (ESI-HRMS) were acquired on a Thermo Scientific
LTQ Orbitrap mass spectrometer. Low-resolution mass spectra (LRMS) resulting from ionization by
electronic impact (EI-LRMS) were acquired on an Agilent 5973 Network MSD mass spectrometer;
ionizations by electrospray (ESI-LRMS) were performed on a Waters Micromass ZQ2000 (mass)
spectrometer and on a Waters LCT-Premier XE mass spectrometer TOF type. The samples were prepared
in MeOH or MeCN and the analyses were performed in MeOH/HCOOH 0.05%. The cone voltage (CV)
was indicated and the m/z resulting from fragmentation processes are indicated, and sometimes assigned;
the corresponding ionic abundances were reported in percentage relative to the more abundance. Specific
rotations were determined on a Perkin Elmer 241 polarimeter with an error of <±0.1 and []D values are
given in 10-1 dg cm2 g-1; concentration (c) is in g/100 mL. The HPLC analyses were performed using
different columns. The chemical purity of macrocycles was determined using a reverse phase column
Hypersil ODS C18, 150 mm x 4.6 mm, 5 μm. The HPLC analyses for the catalytic study were carried out
with a normal phase column (Hypersil, 150 mm x 4.6 mm, 5 μm) in an isocratic system of elution using a
Photodiode Array Detector (PDA) Waters 996 (220 nm - 350 nm). The retention times Rt are expressed in
minutes in the decimal system. Enantiomeric excess was determined by chiral HPLC analyses using a
chiral normal stationary phase (Column ADH chiralpak, 250 mm x 4.6 mm, 5 μm). Allylation reactions
were performed under an atmosphere of dry, oxygen-free nitrogen in oven-dried glassware, twice
evacuated and filled with inert gas. All solvents for the reactions were of reagent grade. The DIPEA was
distilled from sodium hydroxide and the allyltrichlorosilane was used as purchased. The monitoring of the
allylation reactions was carried out by HPLC. The conversions have been calculated using the response
factor between the p-nitrobenzaldehyde and its corresponding homoallylic alcohol.
CAUTION: 2,6-Bis(chloromethyl)pyridine and its solutions should be handled in a well ventilated hood.
Skin and eye contact must be carefully avoided since the compound is an aggressive irritant. The
compound has a small vapor pressure at 23 °C and it can cause bronchial irritation as well. Moreover in
the preparation of its corresponding N-oxide the safety measures during the work-up should be taken
because of the formation of explosive compounds. All N-oxides could induce irritation, so care should be
exercised when preparing and handling these compounds.

2022
HETEROCYCLES, Vol. 83, No. 9, 2011
r
r
q
q
s
p
+
p
t
+
N
o
N
u
o
_
_
R
O
N
O
N
R
O
R
N
O
N
a
R
d
R1
R1
g
H
N
H
H
b
N
N
R1
f
c
a
O
e
b
d
c
Triamine blocks
Tetraazamacrocycle backbone
Tetraamine blocks
Pentazamacrocycle backbone
Figure 2. Convention adopted to assign signals of 1H and 13C-NMR spectra
Bis(chloromethyl)pyridine N-oxide (7)
To a solution of 2,6-bis(chloromethyl)pyridine (6.0 g, 34.3 mmol) in acetic acid (38 mL) was added 35%
aq. H2O2 (15.2 mL, 15 equiv). The solution was stirred and heated at 70 °C for 5 h (monitoring by TLC)
and the resulting mixture was evaporated in vacuo (30 –35 °C). The white residue obtained was dissolved
in CH2Cl2 (50 mL) and extracted with aqueous solution of NaHCO3–Na2CO3 (1:1) (50 mL). The organic
layer was dried over anhydrous MgSO4, filtered and concentrated leaving 2,6-bis(chloromethyl)pyridine
N-oxide 7 as a white solid which was used in the next step without any further purification. Yield: 5.9 g
1
(91%). Rf = 0.6, SiO2, (cyclohexane/EtOAc 3:7); GC (method 60): Rt = 10.7; H NMR (CDCl3, 400
MHz):  4.84 (s, 2H, Ho); 7.33 (t, 1H, 3J = 7.9 Hz , Hr); 7.61 (d, 2H, 3J = 7.9 Hz, Hq); 13C NMR (CDCl3,
100 MHz):  = 39.81 (Co); 124.84 (Cq); 125.04 (Cr); 147.42 (Cp); m/z (EI): 175 (100), 140 (70); IR (KBr):
 3019, 2964, 1259 cm-1
N-(2-Aminocyclohexyl)-2-nitrobenzene-1-sulfonamide (10)
To a solution of (±) trans-1,2-diaminocyclohexane diammonium tartrate salts 9 (12.5 g, 47 mmol, 1
equiv) in 75 mL of 2 M NaOH was added CH2Cl2 (460 mL) and triethylamine (8.75 mL, 61.1 mmol, 1.3
equiv). The reaction mixture was cooled at 0 °C for 10 min, then a solution of 2-nitrobenzenesulfonyl
chloride (6 g, 27 mmol, 1.7 equiv) in CH2Cl2 (312 mL) was added dropwise. After 30 min of stirring at
0 °C, the reaction mixture was stirred at room temperature for 3 h (monitoring by TLC, cyclohexane/
EtOAc, 5:5). Then 50 mL of water were added and the organic phase was recovered and washed with a
solution of 1M HCl (100 mL, pH 1). The aqueous phase was then extracted with CH2Cl2 (2 x 100 mL)
and basified with sodium hydrogen carbonate until pH 8. The aqueous phase was back-extracted with
CH2Cl2 (3 x 200 mL). The combined organic layers were dried over anhydrous MgSO4, filtered and

HETEROCYCLES, Vol. 83, No. 9, 2011
2023
concentrated under reduced pressure. The yellow solid was recrystallized in CH2Cl2 to afford the
expected product 10 as yellow crystals. Yield: 8 g (99%). Rf = 0.3, SiO2, (cyclohexane/EtOAc, 3:7); Mp
25
1
131-130 °C, []D -218.76 ± 0.1 (c 4, MeOH); H NMR (DMSO-d6, 400 MHz):  = 0.92-1.25 (m, 4H,
Heax., Hdax., Hcax., Hbax.), 1.49-1.70 (m, 3H, Heeq., Hdeq., Hceq.), 1.75-1.85 (m, 1H, Hbeq.), 2.33-2.46 (m, 1H,
Hf), 2.70-2.81 (m, 1H, Ha), 7.81-7.86 (m, 2H, CHar), 7.91-7.93 (m, 1H, CHarCSO2), 8.08-8.13 (m, 1H,
13
CHarCNO2); C NMR (DMSO-d6, 100 MHz):  = 24.2 (Cc or Cd), 24.5 (Cd or Cc), 32.21 (Ce), 33.8 (Cb),
53.6 (Cf), 60.3 (Ca), 124.1 (CHarCNO2), 129.9 (CHarCSO2), 132.4 (CHar), 133.8 (CHar), 133.8 (CquatSO2),
147.3 (CquatNO2); m/z (ESI+, CV 25): 300.2 M++H+ (100), IR (KBr): ν 3455, 2927, 2861, 1656, 1543,
1364 (asSO2), 1160 (sSO2) cm-1.
General procedure for the preparation of polyamines blocks (5) intermediates of PyCy[12]N4
To a solution of N-(2-aminocyclohexyl)-2-nitrobenzene-1-sulfonamide 10 (1 equiv) in anhydrous THF
was added the corresponding N-nosyl amino acid 8 (1.05 equiv) and the DMAP (1.05 equiv). The
reaction mixture was cooled at 0 °C for 10 min, then EDCI (1.05 equiv) was added. At the end of the
addition, the mixture was stirred at room temperature for 17 h (monitoring by TLC). The reaction mixture
was taken up in CH2Cl2 and the organic phase was washed with a solution of 1M HCl aqueous and then
with a saturated aqueous solution of sodium hydrogen carbonate. The layers were separated and the
organic phase was recovered, dried over anhydrous MgSO4, filtered and concentrated under reduced
pressure. The crude was purified by flash chromatography on silica gel to afford the corresponding
polyamine moieties. Yields: 5a, 92%; 5b, 73%; 5c 56%.
(S)-2-(2-Nitrophenylsulfonamido)-N-((1R,2R)-2-(2-nitrophenylsulfonamido)cyclohexyl)-3-phenyl-
propanamide (5a)
To a solution of trans-(R,R)-1,2-diaminocyclohexane mononosylated 10 (776 mg, 2.6 mmol) in
anhydrous THF (26 mL) was added the N-nosylphenylalanine 8a (1 g, 2.85 mmol) and the DMAP (345
mg, 2.85 mmol). The reaction mixture was cooled at 0 °C for 10 min, and then EDCI (546 mg, 2.85
mmol) was added. At the end of the addition, the mixture was stirred at room temperature for 17 h
(monitoring by TLC, cyclohexane/EtOAc 5:5). After workup the crude was purified by flash
chromatography on silica gel to afford the expected compound 5a as a yellowish solid. Yield: 1.5 g (92%).
25
1
Rf = 0.2, SiO2, (CH2Cl2/MeOH 99:1); Mp 97-99 °C, []D -6.04 ± 0.1 (c 4, CHCl3); H NMR (CDCl3,
400 MHz):  = 1.17-1.40 (m, 4H, Heax., Hdax., Hcax., Hbax.), 1.62-1.75 (m, 2H, Hceq., Hdeq.), 1.75-1.83 (m,
2
3
1H, Hbeq.), 1.99-2.06 (m, 1H, Heeq.), 2.84-2.88 (dd of AB, 1H, J = 14.5 Hz, JCH2benzyl-Hg = 8 Hz,
CH2benzyl), 3.07-3.12 (dd of AB, 1H, 2J = 14.5 Hz, 3JCH2benzyl-Hg = 4.5 Hz, CH2benzyl), 3.12-3.18 (m, 1H,
Ha), 3.63-3.69 (m, 1H, Hf), 4.06-4.10 (m, 1H, Hg), 5.97 (m, 2H, 2NH), 6.56 (d, 1H, 3JNH-Hf = 8 Hz, NH),
6.95 (m, 5H, CHarbenzyl), 7.55-7-68 (m, 5H, CHar), 7.77-7.82 (m, 2H, CHar), 8.07-8.1 (m,1H, CHar);

2024
HETEROCYCLES, Vol. 83, No. 9, 2011
13C NMR (CDCl3, 100 MHz):  = 24.3 (Cd or Cc), 24.7 (Cc or Cd), 32.1 (Ce), 33.1 (Cb), 38.6 (CHar), 52.9
(Ca), 58.3 (Cf), 60.3 (Cg), 125.2 and 125.9 (CHarCNO2), 126.9 (CHar), 128.5 (2 CHar), 129.0 (2 CHar),
130.5 and 130.9 (CHarCSO2), 132.6 (Cquat benzyl), 132.9 (CHar), 133.2(CHar), 133.50 (CHar), 133.56 (CHar),
134.9 and 135.7 (CquatSO2), 147.0 and 147.7 (CquatNO2), 170.7 (C=O); m/z (ESI+, CV 65): 654.2 M++23
(100).
(R)-3-Methyl-2-(2-nitrophenylsulfonamido)-N-((1R,2R)-2-(2-nitrophenylsulfonamido)cyclohexyl)-
butanamide (5b)
To a solution of trans-(R,R)-1,2-diaminocyclohexane mononosylated 10 (1.5 g, 5 mmol) in anhydrous
THF (50 mL) was added the N-nosylvaline 8b (1.7 g, 5.5 mmol) and the DMAP (671 mg, 5.5 mmol). The
reaction mixture was cooled at 0 °C for 10 min, and then EDCI (1.05 g, 5.5 mmol) was added. At the end
of the addition, the mixture was stirred at room temperature for 8 h (monitoring by TLC,
cyclohexane/EtOAc 3:7). After workup the crude was purified by flash chromatography on silica gel to
afford the expected compound 5b as a yellowish solid. Yield: 2.13 g (73%). Rf = 0.5, SiO2,
1
3
(cyclohexane/EtOAc 4:6); Mp 102-103 °C; H NMR (CDCl3, 400 MHz):  = 0.78 (d, 3H, J = 7 Hz,
3
CH3); 0.84 (d, 3H, J = 7 Hz, CH3); 0.85-0.99 (m, 4H, Heax., Hdax., Hcax., Hbax.); 1.50-1.63 (m, 2H, Heeq.
,
Hdeq.); 1.90-1.96 (m, 1H, Hbeq.); 2.21-2.23 (m, 1H, CH(CH3)2); 3.02-3.15 (m, 1H, Ha); 3.43-3.54 (m, 1H,
Hf); 3.72-3.75 (dd, 1H, 3Jg-CH(CH3)2 = 4.5 Hz and 3Jg-NH = 7.5 Hz, Hg); 5.39 (d, 1H, 3JNH-Ha = 8.3 Hz, NH),
6.07 (d,1H, 3JNH-Hg = 7.5 Hz, NH); 6.51 (d, 1H, 3JNH-Hf = 7.5 Hz, NH); 7.64-7.73 (m, 4H, CHar); 7.76-7.84
(m, 2H, CHar); 8.01-8.1 (m, 2H, CHar); 13C NMR (CDCl3, 100 MHz):  = 17.0 (CH3), 19.3 (CH3), 24.0
(Cd or Cc), 24.6 (Cc or Cd), 31.1 (CH(CH3)2), 32.2 (Ce or Cb), 32.8 (Cb or Ce), 53.2 (Ca), 57.6 (Cf), 64.4
(Cg), 125.41 (CHarCNO2), 124.48 (CHar), 130.4 and 131.0 (CHarCSO2), 133.1 (CHar), 133.30 (CquatSO2),
133.33 (CHar), 133.7 (CHar), 133.8 (CHar), 134.8 (CquatSO2), 147.74 and 147.76 (CquatNO2), 170.3
(C=O); m/z (ESI+, CV 65): 606.2 M++23 (100), HRMS: calcd. for C23H29N5O9S2 [M+Na]+ (606.12989);
found (606.13010).
2-(2-Nitrophenylsulfonylamino)-N-[(1R,2R)-2-(2-nitrophenylsulfonylamino)cyclohexyl]acetamide
(5c)
To a solution of trans-(R,R)-1,2-diaminocyclohexane mononosylated 10 (2 g, 6.7 mmol) in anhydrous
THF (67 mL) was added the N-nosylglycine 8c (1.8 g, 7.02 mmol) and the DMAP (860 mg, 7.02 mmol).
The reaction mixture was cooled at 0 °C for 10 min, and then EDCI (1.3 g, 7.02 mmol) was added. At the
end of the addition, the mixture was stirred at room temperature for 8 h (monitoring by TLC,
cyclohexane/EtOAc 3:7). After workup previously described the crude was purified by flash
chromatography on silica gel to afford the expected compound 5c as a yellowish solid. Yield: 1.04 g
13
(56%). Rf = 0.2, SiO2, (cyclohexane/EtOAc 3:7); Mp 90-92 °C; The analytical data (1H NMR and C

HETEROCYCLES, Vol. 83, No. 9, 2011
2025
NMR) are in accordance with those of the literature;21 IR (KBr): ν 3369, 2934, 2860, 1671, 1541, 1362
(asSO2), 1167 (sSO2) cm-1, HRMS: calcd. for C20H23N5O9S2 [M+Na]+ (564.08294); found (564.08328).
General procedure for the preparation of the polyamines blocks (6) intermediates of PyCy[15]N5
To a solution of trans-(R,R)-1,2-diaminocyclohexane 14 (1 equiv) in anhydrous THF was added the
corresponding N-nosyl amino acid 8 (2.1 equiv) and the DMAP (2.1 equiv). The reaction mixture was
cooled at 0 °C for 10 min, then EDCI (2.1 equiv) was added. At the end of the addition, the mixture was
stirred at room temperature for 17 h (monitoring by TLC). The reaction mixture was taken up in CH2Cl2
and the organic phase was washed with a solution of 1M HCl and then with a saturated aqueous solution
of sodium hydrogen carbonate. The layers were separated and the organic phase was recovered, dried
over anhydrous MgSO4, filtered and concentrated under reduced pressure. The crude was purified by
flash chromatography on silica gel to afford the corresponding polyamine moieties. Yields: 6a, 64%; 6b,
58%; 6c 85%.
(2S,2'S)-N,N'-((1R,2R)-Cyclohexan-1,2-diyl)bis(2-(2-nitrophenylsulfonamido)-3-phenylpropanamide
(6a)
To a solution of trans-(R,R)-1,2-diaminocyclohexane 14 (1.3 g, 11.84 mmol) in anhydrous THF (115 mL)
was added the N-nosylphenylalanine 8a (8.7 g, 24.86 mmol) and the DMAP (3.04 g, 24.9 mmol). The
reaction mixture was cooled at 0 °C for 10 min, and then EDCI (7.8 g, 24.9 mmol) was added. At the end
of the addition, the mixture was stirred at room temperature for 17 h (monitoring by TLC,
cyclohexane/EtOAc 6:4). The reaction mixture was taken up in CH2Cl2 (80 mL) and the organic phase
was washed firstly with a solution of 1M HCl (20 mL), then with a saturated aqueous solution of sodium
hydrogen carbonate (30 mL). The layers were separated and the organic phase was recovered, dried over
anhydrous MgSO4, filtered and concentrated under reduced pressure. The crude was purified by flash
chromatography on silica gel to afford the expected compound 6a as a whitish solid. Yield: 5.8 g (64%).
1
Rf = 0.4, SiO2, (cyclohexane/EtOAc, 3:7); Mp 115-118 °C, H NMR (CDCl3, 400 MHz):  = 1.01-1.29
3
(m, 4H, Hcax., Hbax.); 1.52-1.69 (m, 2H, Hceq.); 1.85-1.95 (m, 2H, Hbeq.); 2.80 (dd, 2H, JCH2benzyl-Hd = 9.8
2
3 3
2
Hz, J = 14.1 Hz, CH2benzyl); 3.23 (dd, 2H, J
= 5 Hz, J = 14.1 Hz, CH2benzyl); 3.54-3.66
CH2benzyl-Hd
(m, 2H, Ha); 4.05-4.10 (m, 2H, Hd); 6.77-7.00 (m, 12H, 10CHar, 2NH); 7.43-7.73 (m, 8H, 6CHar, 2NH);
7.84-7.90 (m, 2H, CHarCNO2); 13C NMR (CDCl3, 100 MHz):  = 23.61 (Cc), 30.84 (Cb), 38.19 (C
CH2benzyl), 51.66 (Ca), 59.58 (Cd), 124.24 (CHarCSO2), 126.16 (CHarCNO2), 127.63 (CHar), 129.01
(CHar), 132.23 (CHar), 133.08 (CHar), 133.24 (CquatSO2), 136.47 (Cquatbenzyl), 146.81 (CquatNO2), 170.05
(C=O); m/z (ESI+, CV 65): 801.4 M++23 (100), 817.3 M++39 (45); HRMS: calcd. for C36H38N6O10S2
[M+Na]+ (801.19830); found (801.19959); IR (KBr): ν 3304, 3095, 2942, 1656, 1540, 1353 (asSO2),
1166 (sSO2) cm-1.

2026
HETEROCYCLES, Vol. 83, No. 9, 2011
(2S,2S’)-N,N’-((1R,2R)-Cyclohexan-1,2-diyl)bis(3-methyl-2-(2-nitrophenylsulfonamido)butanamide)
(6b)
To a solution of trans-(R,R)-1,2-diaminocyclohexane 14 (0.8 g, 7.34 mmol) in anhydrous THF (75 mL)
was added the N-nosylvaline 8b (4.6 g, 15.4 mmol) and the DMAP (1.88 g, 15.4 mmol). The reaction
mixture was cooled at 0 °C for 10 min, and then EDCI (2.95 g, 15.4 mmol) was added. At the end of the
addition, the mixture was stirred at room temperature for 18 h (monitoring by TLC, cyclohexane/EtOAc
3:7). The reaction mixture was taken up in CH2Cl2 (50 mL) and the organic phase was washed with a
solution of 1M HCl (12 mL) and then with a saturated solution of sodium hydrogen carbonate (19 mL).
The layers were separated and the organic phase was recovered, dried over anhydrous MgSO4, filtered
and concentrated under reduced pressure. The crude was purified by flash chromatography on silica gel to
afford the expected compound 6b as a whitish solid. Yield: 2.9 g (58%). Rf = 0.6, SiO2, (CH2Cl2/MeOH
(95:5); Mp 111-113 °C; [α]D24 + 61.1 ± 0.1 (c 4, CH2Cl2); 1H NMR (CDCl3, 400 MHz):  = 0.77 (d, 6H,
3
3J = 6.8 Hz, CH3), 0.80 (d, 1H J = 6.8 Hz, CH3), 1.12-1.19 (m, 4H, Hb, Hcax.), 1.55-1.67 (m, 2H, Hceq.),
1.91-1.98 (m, 2H, Hbeq.), 2.08-2.17 (m, 2H, CH(CH3)2), 3.48-3.57 (m, 2H, Ha), 3.69-3.75 (dd, 1H, 3JHd-NH
3
3
3
= 7.6 Hz, JHd-CH(CH3)2 = 4.8 Hz, Hd), 6.28 (d, 2H, JNH-Hd = 7.3 Hz, NH), 6.85 (d, 2H, JNH-Ha = 6.3 Hz,
NH), 7.65-7.73 (m, 4H, CHar), 7.78-7.85 (m, 2H, CHarCSO2), 7.99-8.06 (m, 2H, CHarCNO2); 13C NMR
(CDCl3, 100 MHz):  = 17.2 (CH3), 19.1 (CH3), 24.3 (Cc), 30.1 (CH(CH3)2), 31.8 (Cb), 54.1 (Ca), 63.2
(Cd), 125.4 (CHarCNO2), 130.6 (CHarCSO2), 132.9 (CHar), 133.8 (CHar), 147.74 (CquatNO2); m/z (ESI+,
CV 45): 683.4 M++ H (30), 705.4 M++23 (100), 721.4 M++39 (33); HRMS: calcd. for C28H38N6O10S2
[M+Na]+ (705.19830); found (705.19830).
(2S,2S’)-N,N’-((1R,2R)-Cyclohexan-1,2-diyl)bis(3-methyl-2-(2-nitrophenylsulfonamido) acetic (6c)
To a solution of trans-(R,R)-1,2-diaminocyclohexane 14 (1.28 g, 11.2 mmol) in anhydrous THF (122 mL)
was added the N-nosylglycine 8c (6.11 g, 23.5 mmol) and the DMAP (2.87 g, 23.5 mmol). The reaction
mixture was cooled at 0 °C for 10 min, and then EDCI (4.5 mg, 23.5 mmol) was added. At the end of the
addition, the mixture was stirred at room temperature for 17 h (monitoring by TLC, EtOAc). The reaction
mixture was taken up in CH2Cl2 (76 mL) and the organic phase was washed with a solution of 1M HCl
(19 mL) and then with a saturated aqueous solution of sodium hydrogen carbonate (28 mL). The layers
were separated and the organic phase was recovered, dried over anhydrous MgSO4, filtered and
concentrated under reduced pressure. The crude was purified by flash chromatography on silica gel to
afford the expected compound 6c as a yellowish solid. Yield: 5.7 g (85%). Rf = 0.2, SiO2, (AcOEt); Mp
1
105-106 °C; H NMR (CDCl3, 400 MHz):  = 1.13-1.35 (m, 4H, Hcax., Hbax.), 1.61-1.72 (m, 2H, Hceq.),
1.82-1.92 (m, 2H, Hbeq.), 3.59-3.72 (m, 6H, Ha, Hd), 6.41 (s br, 2H, CHarCNO2), 6.65 (d, 2H, 3JNH-Ha = 6.8
13
Hz, NH), 7.63-7.70 (m, 4H, CHar), 7.76-7.96 (m, 2H, CHar), 7.99-8.11 (m, 2H, CHarCSO2); C NMR

HETEROCYCLES, Vol. 83, No. 9, 2011
2027
(CDCl3, 100 MHz):  = 24.6 (Cc), 31.9 (Cb), 46.2 (Cd), 53.6 (Ca), 125.5 (CHar), 131.2 (CHarCSO2), 132.9
(CHar), 133.0 (CHar), 133.9 (CquatSO2), 147.9 (CquatNO2), 168.5 (C=O); m/z (ESI+, CV (85): 621.2 M++
23 (100), 622.2 M++23+H (25); HRMS: calcd. for C22H26N6O10S2 [M+Na]+ (621.10440); found
(621.10463).
General procedure for the preparation of disulfonylated macrocycles PyCy[12]N4 (12)
To a solution of the polyamine moiety 5 (1 equiv) in DMF (or MeCN) was added anhydrous potassium
carbonate (4 equiv). The mixture was stirred at reflux during 30 min Then, a solution of
2,6-bis(bromomethyl)pyridine 11 (1.2 equiv) in DMF (or MeCN) was added dropwise over 30 min while
stirring at reflux and the heating was maintained for 1-2 h (monitoring by TLC, ethylacetate). The crude
mixture was concentrated and the residue was taken up in CH2Cl2/H2O (4:1 v/v). The layers were
separated, and the aqueous phase was back-extracted with CH2Cl2. The combined organic layers were
dried over anhydrous MgSO4, filtered and concentrated under vacuum at 40 °C. The crude residue was
purified by flash column chromatography on silica gel to afford the corresponding macrocycles 12,
Yields: 12a, 98%; 12b, 85%, 12c 70%.
(4R,9R,12S)-12-Benzyl-3,13-bis(2-nitrobenzenesulfonyl)-3,10,13,19-tetraazatricycle[13,3,1,0]nonadeca-
1(19), 15,17-trien 11-one (12a)
This compound was prepared according to the general procedure previously described. A solution of the
polyamine moiety 5a (1.1g, 1.74 mmol) in DMF (118 mL) and anhydrous potassium carbonate (965 mg,
7.0 mmol) was stirred at reflux for 30 min. A solution of 2,6-bis(bromomethyl)pyridine 11 (550 mg, 2.1
mmol) in anhydrous DMF (50 mL) was added dropwise in the previous mixture while stirring at reflux
and the heating was maintained for 3 h. After workup, the crude residue was purified by flash column
chromatography on silica gel (AcOEt/cHex, 75/25). The macrocycle 12a was obtained as a yellow solid.
Yield: 1.25 g (98%). Rf = 0.23, SiO2, (AcOEt/cHex, 50/50); Mp 234 °C; 1H NMR (CDCl3, 400 MHz):  =
0.85-1.16 (m, 4H, Hbax., Hcax., Hdax., Heax.); 1.30-1.62 (m, 3H, Hbeq., Hceq., Hdeq.); 1.88-2.01 (m, 1H, Heeq.);
2.66-2.70 (dd, 1H, 3J = 5.0 Hz, 2J = 13.3 Hz, HCH2benzyl); 2.90-3.03 (m, 1H, Hf); 3.34-3.40 (dd, 1H, 3J = 9.1
Hz; 2J = 13.3 Hz, HCH2benzyl); 3.70-3.77 (m, 1H, Ha); 4.12 (d of AB, 1H, 2J = 16.6 Hz, Hu); 4.60-4.64 (m, 1H,
2
Hg); 4.65 (d of AB, 1H, 2J = 17.1 Hz, Ho); 4.80 (d of AB, 1H, J = 16.1 Hz, Hu); 4.98 (d of AB, 1H, 2J =
17.1 Hz, Ho); 6,85-7.06 (m, 7H, 5CHar, Hs, Hr); 7.22 (d, 1H, 3JNH-Hf = 4.5 Hz, NH); 7.32-7.61 (m, 7H, Hr,
CHarCHCNO2, CHarCHCSO2, CHarCSO2); 7.80 (d, 1H, 3J = 7.5 Hz, CHarCNO2); 7.86-7.88 (dd, 1H, 3J =
8.0 Hz, CHarCNO2); 13C NMR (CDCl3, 100 MHz):  = 23.9 and 25.6 (Cc or Cd); 29.6 (Cb); 33.2 (Ce); 35.5
(CH2benzyl); 48.1 and 49.0 (Co or Cu); 52.1 (Cf); 59.5 (Ca); 61.4 (Cg); 120.0 and 120.5 (Cq or Cs); 124.3 and
124.4 (CHarCSO2); 126.4 (CHar); 128.1 and 128.5 (CHar); 129.5 (2 CHar); 131.1 and 131.5 (CHarCNO2);
131.6 and 131.8 (CHarCHCNO2); 133.2 and 133.5 (CHarCHCSO2); 133.6 and 133.9 (CquatSO2); 136.6

2028
HETEROCYCLES, Vol. 83, No. 9, 2011
(Cr); 136.9 (Cquat benzyl); 147.9 (2 CquatNO2); 155.7 and 156.2 (Cp or Ct); 168.3 (C=O); m/z (ESI+, CV 60):
735.4 [M+H]+ (100) , 757.4 [M+Na]+ (9).
(4R,9R,12S)-12-Isopropyl-3,13-bis(2-nitrobenzenesulfonyl)-3,10,13,19-tetraazatricyclo[13,3,1,0]-
nonadeca-1(19), 15,17-trien 11-one (12b)
This compound was prepared according to the general procedure previously described. A solution of the
polyamine moiety 5b (1.2 g, 2 mmol) in MeCN (140 mL) and anhydrous potassium carbonate (1.11 g, 8.0
mmol) was stirred at reflux for 30 min. A solution of 2,6-bis(bromomethyl)pyridine 11 (655 mg, 2.47
mmol) in anhydrous MeCN (60 mL) was added dropwise in the previous mixture while stirring at reflux
and the heating was maintained for 2 h. After workup, the crude residue was purified by flash column
chromatography on silica gel (AcOEt/cHex, 50/50). The macrocycle 12b was obtained as a yellow solid.
Yield: 1.16 g (85%). Rf = 0.43, SiO2, (AcOEt/cHex, 60/40); Mp 249 °C; 1H NMR (CDCl3, 400 MHz):  =
3
0.53 (d, 3H, J = 6.8 Hz, CH3); 0.84 (d, 3H, 3J = 6.2 Hz, CH3); 1.07-1.22 (m, 2H, Hcax, Hdax.); 1.31-1.71
(m, 6H, Hbax., Heax., Hbeq., Hceq., Hdeq., Heeq.); 2.08 (m, 1H, Hf); 2.36-2.51 (m, 1H, CH(CH3)2), 2.91-3.04 (m,
2
2
1H, Hg); 3.9-4.05 (m, 1H, Ha); 4.16 (d of AB, 1H, J = 16.3 Hz, Ho); 4.45 (d of AB, 1H, J = 17.3 Hz,
Hu); 4.92 (d of AB, 1H, 2J = 16.3 Hz, Ho); 5.07 (d of AB, 1H, 2J = 17.1 Hz, Hu); 6.99 (d, 1H, 3J = 7.5 Hz,
Hs or Hq); 7.04 (d, 1H, 3J = 7.8 Hz, Hq or Hs); 7.37-7.69 (m, 8H, CHar, NH); 7.96-8.02 (m, 2H, H16, H16’);
13C NMR (CDCl3, 100 MHz):  =18.4 and 20.1 (CH3); 24.1 (Cc); 25.2 (Cd); 26.9 (CH(CH3)2); 29.7 (Cb);
33.7 (Ce); 48.2 and 49.1 (Co or Cu); 52.0 (Cf); 59.5 (Ca); 65.4 (Cg); 119.8 and 120.2 (Cq or Cs); 124.1 and
124.6 (CHarCSO2); 130.9 and 131.5 (CHarCNO2); 131.6 (2 CHarCHCNO2); 133.3 and 133.4
(CHarCHCSO2); 134.0 and 135.1 (CquatSO2); 136.6 (Cr); 147.7 and 148.1 (CquatNO2); 155.2 and 156.6 (Cp
or Ct); 168.9 (C=O); m/z (ESI+, TOF): 687.1 [M+H]+ (100), 709.1 [M+Na]+ (100).
(4R,9R)-3,13-Bis(2-nitrobenzenesulfonyl)-3,10,13,19-tetraazatricyclo[13,3,1,0]nonadeca-1(19),-15,17-
trien 11-one (12c)
This compound was prepared according to the general procedure previously described. A solution of the
polyamine moiety 5c (7 g, 12.9 mmol) in DMF (850 mL) and anhydrous potassium carbonate (7.17 g,
51.7 mmol) was stirred at reflux for 30 min. A solution of 2,6-bis(bromomethyl)pyridine 11 (5.8 g, 15.48
mmol) in anhydrous DMF (430 mL) was added dropwise in the previous mixture while stirring at reflux
and the heating was maintained for 1 h. After workup, the crude residue was purified by flash column
chromatography on silica gel (AcOEt). The macrocycle 12c was obtained as a yellow solid. Yield: 5.8 g
(70%). Rf = 0.45, SiO2, (AcOEt); Mp 239 °C; The analytical data (1H NMR, 13C NMR, HPLC, and
HRMS) are in accordance with those of the literature.21
Preparation of disulfonated macrocycles PyCy[15]N5 (15)
To a solution of the polyamine moiety 6 (1 equiv) in DMF was added cesium carbonate (4 equiv). The

HETEROCYCLES, Vol. 83, No. 9, 2011
2029
mixture was stirred at 90 °C during 30 min. Then, a solution of 2,6-bis(bromomethyl)pyridine 11 (1.2
equiv) in DMF (or MeCN) was added dropwise over 30 min while stirring at reflux and the heating was
maintained until completion of the reaction. The crude mixture was then concentrated and the residue was
taken up in CH2Cl2/H2O (1:1 v/v). The layers were separated, and the aqueous phase was back-extracted
with CH2Cl2. The combined organic layers were dried over anhydrous MgSO4, filtered and concentrated
under vacuum at 40 °C. The crude residue was purified by flash column chromatography on silica gel
(cyclohexane/EtOAc) to afford the corresponding macrocycles 15.
(3S,7R,12R,16S)-4,15-Dibenzyl-3,16-bis(2-nitrobenzenesulfonyl)-3,6,13,16,22-pentaazatricyclo-
[16.3.1.07,12]docosa-1(21),18(22),19-trien-5,14-dione (15a)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 6a (100 mg, 0.14 mmol) and anhydrous cesium carbonate (189 mg, 0.58 mmol) in
anhydrous DMF (9 mL) was stirred at 90 °C for several minutes. A solution of 2,6-bis(bromomethyl)-
pyridine 11 (44 mg, 0.17 mmol) in anhydrous DMF (4.5 mL) was added dropwise and the mixture was
heated for 24 h. After the work-up, the crude residue was purified by flash column chromatography on
silica gel (EtOAc and then EtOAc/MeOH 95:5) to afford the expected compound 15a as a yellow solid.
Yield: 50 mg (45%). Rf = 0.80, SiO2, (CH2Cl2/MeOH 95:5); Mp 170 °C; 1H NMR (CDCl3, 400 MHz): 1H
NMR (CDCl3, 400 MHz):  = 0.99-1.11 (m, 4H, Hbax., Hcax.); 1.35-1.62 (m, 2H, Hceq.); 1.80-1.85 (m, 2H,
Hbeq.); 2.93-3.18 (m, 2H, CH2benzyl); 3.55-3.59 (m, 2H, Ha); 3.63-3.69 (m, 2H, CH2benzyl); 4.40-4.44
2
2
(m, 2H, Hd); 4.46 (d of AB, 2H, J = 15.1 Hz, Ho); 4.92 (d of AB, J = 15.6 Hz, Ho); 6.86-6.89 (m, 2H,
Hq); 6.95-6.98 (m, 10 H, CHar); 7.37-7.39 (m, 2H, CHar), 7.49-7.69 (m, 5H, Hr, CHarCSO2, CHar);
7.89-7.90 (m, 2H, CHarCNO2); 13C NMR (CDCl3, 100 MHz):  = 4.3 (Cc); 31.3 (Cb); 33.6 (CH2benzyl);
50.2 (Co); 61.2 (Cd); 64. 2(Ca); 123.8 (CHarCSO2); 124.7 (CHar); 126.4 (Cq); 128.3 (CHar); 129.1
(CHar); 131.8 (CHarCNO2); 131.9 (CHarCHNO2); 132.3 (CHarCHCSO2); 133.8 (CquatSO2); 137.1 (Cquat
benzyl); 148.0 (CquatNO2); 156.2 (Cp); 169.2 (2C=O); m/z (ESI+, CV 63): 882.4 [M+H]+ (100).
(7R,12R)-3,16-Bis-(2-nitrobenzenesulfonyl)-3,6,13,16,22-pentaazatricyclo[16.3.1.07,12]docosa-1(21),
18(22),19-trien-5,14-dione (15c)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 6c (712 mg, 1.2 mmol) and anhydrous cesium carbonate (1.54 g, 4.76 mmol) in
anhydrous DMF (80 mL) was stirred at 90 °C for several minutes. A solution of 2,6-bis(bromomethyl)-
pyridine 11 (378 mg, 1.43 mmol) in anhydrous DMF (40 mL) was added dropwise and the mixture was
heated for 6 h. After the work-up, the crude residue was purified by flash column chromatography on
silica gel (EtOAc/cHex 1:1) to afford the expected compound 15c as a yellow solid. Yield: 542 mg (65%).
Rf = 0.19, SiO2, (EtOAc/cHex 1:1); Mp 158 °C; 1H NMR (CDCl3, 400 MHz):  = 1.01-1.20 (m, 4H, Hbax.
,

2030
HETEROCYCLES, Vol. 83, No. 9, 2011
2
Hcax.); 1.56-1.58 (m, 2H, Hceq.); 1.81-184 (m, 2H, Hbeq.); 2.82-3.30 (m, 2H, Ha); 3.89 (d of AB, 2H, J =
17.1 Hz, Hd); 4.21 (d of AB, 2H, 2J = 17.1 Hz, Hd); 4.28 (d of AB, 2H, 2J = 14.1 Hz, Ho); 4.56 (d of AB,
2H, 2J = 14.5 Hz, Ho); 6.38 (d, 2H, 3J = 6.5 Hz, NH); 7.25 (d, 2H, 3J = 8 Hz, Hq); 7.54-7.66 (m, 7H, CHar,
CHarCHCNO2, CHarCHCSO2, Hr); 8.12-8.32 (m, 2H, CHarHCSO2); 8.42 (m, 2H, CHarCNO2); 13C
NMR (CDCl3, 100 MHz):  = 24.4 (Cc); 31.7 (Cb); 50.6 (Cd); 53.9 (Ca); 54.0 (Co); 123.5 (Cq); 124.4
(CHarCSO2); 131.1 (CHarCNO2); 132.1 (CHarCHCSO2); 132.5 (Cquat CSO2); 134.0 (CHarCHCSO2);
138.2 (Cq); 148.2 (Cquat CNO2); 154.4 (Cp); 168.1 (C=O); m/z (ESI+, CV 63) : 703.2 [M+H]+ (100).
General procedure for the preparation of desulfonylated macrocycles PyCy[12]N4 (13) and
PyCy[15]N5 (16)
To a solution of the corresponding nosylated macrocycle (1 equiv) in anhydrous MeCN (or DMF) were
added thiophenol (2.5 equiv) and anhydrous K2CO3 (4 equiv). The resulting mixture was stirred at room
temperature (monitoring by TLC). The crude mixture was then concentrated and the residue was taken up
in a mixture of 2M HCl/CH2Cl2 (1:1). The aqueous layer was then extracted with CH2Cl2 and basified by
addition of pellets of NaOH. After extraction with CH2Cl2, the combined organic layers were dried over
anhydrous MgSO4, filtered and concentrated to afford the corresponding denosylated macrocycles 13 and
16.
(4R,9R)-12-Benzyl-3,10,13,19-tetraazatricyclo[13.3.1.0*4,9*]nonadeca-1(19),15,17-trien-11-one (13a)
This compound was prepared according to the general procedure previously described. To a solution of
the corresponding nosylated macrocycle 12a (0.7 g, 0.95 mmol) in DMF (10 mL) were added thiophenol
(0.29 mL, 2.88 mmol) and anhydrous K2CO3 (0.395 g, 3.81 mmol). The resulting mixture was stirred at
room temperature for 2 h. After workup, the expected compound 13a was obtained as a white solid.
1
Yield: 290 mg (84%). Rf = 0.1, SiO2, (CH2Cl2/MeOH, NH4OH 95:5:0.5); Mp 220 °C; H NMR (CDCl3,
400 MHz):  =0.59-0.72 (m, 1H, Heax.); 0.96-1.37 (m, 3H, Hcax., Hdax., Hbax.); 1.52-1.61 (m, 1H, Hceq. or
Hdeq.); 1.61-1.71 (m, 1H, Hdeq. or Hceq.); 1.86-1.95 (m, 1H, Heeq.); 1.98-2.07 (m, 2H, H1, Hbeq.); 2.65 (sl, 2H,
NH); 2.88-2.95 (m, 1H, CH2benzyl); 2.99-3.09 (m, 2H, CH2benzyl, Hg); 3.29-3.40 (m, 2H, Ha, Hf); 3.68 (d
of AB, 1H, 2J = 16.1 Hz, Ho); 3,79 (d of AB, 1H, 2J = 16.3 Hz, Hu); 4.02 (d of AB, 1H, 2J = 16.1 Hz, Ho);
4.22 (d of AB, 1H, 2J = 16.3 Hz, Hu); 6.91-6.99 (m, 2H, Hs, Hp); 7.17-7.28 (m, 6H, CHar , NHCO); 7.51 (t,
3
13
1H, 3J = J = 7.6 Hz, Hr); C NMR (CDCl3, 100 MHz):  = 24.7 (Cc or Cd); 24.9 (Cd or Cc); 31.9 (Ce);
33.8 (Cb); 41.5 (CH2benzyl); 51.5 (Co); 52.7 (Cf); 54.7 (Cu); 62.6 (Ca); 66.2 (Cg); 120.0 (Cs or Cq); 120.7
(Cq or Cs); 126.4 (CHar); 128.4 (CHar); 129.2 (CHar); 136.7 (Cr); 138.8 (Cquat benzyl); 159.6 (Ct or Cp);
159.8 (Cp or Ct); 175.2 (C=O); []D25 +29,84 ± 0.1 (c 2, CHCl3); IR (KBr; cm-1): 3430; 3289; 2923; 2849;
1635; 1575; 1419; m/z (ES+): 403.2 [M+K]+; 387.2 [M+Na]+; 365.3 [M+H]+, 729.48 [2M+H]+; GC/MS:
50 °C (1 min); 180 °C à 300 °C (20 °C/min); 300 °C (1 min); Rt =11,53 min m/z: 364 [M]+ (8), 273

HETEROCYCLES, Vol. 83, No. 9, 2011
2031
[M-CH2C6H5]+ (20), 245 [M-CH2C6H5CHNH]+ (100), 133 (62), 106 (52), 91 [C7H7]+ (22), 78 [C6H6]+
(16).
(4R,9R,12S)-12-Iso-propyl-3,10,13,19-tetraazatricyclo[13,3,1,04,9]nonadeca-1(19),15,17-trien-11-one
(13b)
This compound was prepared according to the general procedure previously described. To a solution of
the corresponding nosylated macrocycle 12b (0.4 g, 0.58 mmol) in DMF (6 mL) were added thiophenol
(0.178 mL, 1.74 mmol, 3 equiv) and anhydrous K2CO3 (0.323 g, 2.33 mmol). The resulting mixture was
stirred at room temperature for 4 h. After workup, the expected compound 13b was obtained as a white
solid. Yield: 160 mg (88%). Rf = 0.55, Al2O3, (CH2Cl2/MeOH, 95:5); Mp 249 °C; GC (method 180): Rt =
1
3
8.5; H NMR (CDCl3, 400 MHz):  = 0.85 (d, 3H, J = 6.8 Hz, H10 or 3H11); 0.90-0.97 (m, 1H, (H3 or
H4)ax.); 1.02 (d, 3H, 3J = 6.5Hz, H11 or H10); 1.04-1.29 (m, 2H, (H4 or H3, H5)ax.); 1.30-1.45 (m, 1H, H2ax.);
1.55-1.75 (m, 1H, H4 eq.); 1.78-1.90 (m, 2H, H5eq., H1); 1.91-2.00 (m, 2H, H9, H2eq.); 2.24-2.37 (m, 1H,
H8); 3.42-3.57 (m,1H, H6); 3.67 (AB, 1H, 2JH19’-H19 = 15.8 Hz, H19’); 3.78 (AB, 1H, 2JH13’-H13 = 16.3 Hz,
H13’); 3.99 (AB, 1H, 2JH19-H19’ = 15.8 Hz, H19); 4.27 (AB, 1H, 2JH13-H13’ = 16.3 Hz, H13); 5.77-5.97 (m, 1H,
3
3
NH21) 6.96 (d, 1H, J = 7.3 Hz, H15 ou H17); 6.97 (d, 1H, J = 7.5 Hz, H17 ou H15); 7.42-7.63 (t, 1H,
3
13
3JH16-15 = JH16-17 = 7.5 Hz, H16); C NMR (CDCl3, 100 MHz):  =19.1 (C10 or C11); 19.3 (C11 or C12);
24.6 (C4 or C3); 24.7 (C3 or C4); 32.7 (C2 or C5); 32.9 (C9); 51.1 (C19 and C13); 51.2 (C6); 62.9 (C1); 70.3
(C8); 120.5 (C17 ou C15); 120.6 (C15 ou C17); 136.6 (C16); 160.4 (C14 et C18); 175.9 (C7); m/z 316 [M]+ (13),
245 (82), 107 (100).
(4R,9R,12S)-12-Iso-propyl-3,10,13,19-tetraazatricyclo[13,3,1,04,9]nonadeca-1(19),15,17-trien-11-one
(13c)
This compound was prepared according to the general procedure previously described. To a solution of
the corresponding nosylated macrocycle 12c (1 g, 1.55 mmol) in DMF (15 mL) were added thiophenol
(0.395 mL, 3.87 mmol) and anhydrous K2CO3 (0.86 g, 6.2 mmol). The resulting mixture was stirred at
room temperature for 5 h. After workup, the expected compound 13c was obtained as a white solid.
Yield: 382 mg (90%). Rf = 0.48, Al2O3, (CH2Cl2/MeOH, 95:5); Mp 113 °C; The analytical data (1H NMR,
13C NMR and HRMS ) are in accordance with those of the literature.21
(7R,12R)-3,6,13,16,22-Pentaazatricyclo[16.3.1.07,12]docosa-1(21),18(22),19-trien-5,14-dione (16c)
This compound was prepared according to the general procedure previously described. To a solution of
the corresponding nosylated macrocycle 15c (0.3 g, 0.43 mmol) in DMF (4.3 mL) were added thiophenol
(0.138 mL, 1.28 mmol, 3 equiv) and anhydrous K2CO3 (0.238 g, 1.72 mmol). The resulting mixture was
stirred at room temperature for 4 h. After workup, the expected compound 16c was obtained as yellow
pale cristals. Yield: 90 mg (66%). Rf = 0.46, Al2O3, (CH2Cl2/MeOH, 95:5); Mp 132 °C; 1H NMR (CDCl3,

2032
HETEROCYCLES, Vol. 83, No. 9, 2011
400 MHz):  = 0.93-1.16 (m, 4H, Hbax., Hcax.); 1.45-1.74 (m, 2H, Hceq.); 1.80-1.94 (m, 2H, Hbeq.);
3.10-3.42 (m, 2H, Ha); 3.43-3.52 (m, 2H, Hd); 3.90-4.27 (m, 2H, Hd); 4.27-4.57 (m, 2H, Ho); 4.71-4.99 (m,
3
3
13
2H, Ho); 7.24 (d, 2H, J = 8.0Hz, Hq); 7.76 (t, 1H, J = 7.8 Hz, Hr). C NMR (CDCl3, 100 MHz):  =
24.4 (Cc); 31.5 (Cb); 49.3 (Cd); 50.5 (Co); 52.2 (Ca); 122.0 (Cq); 138.5 (Cr); 152.9 (Cp); 162.5 (C=O); m/z
(ESI+, CV 63): 332.18 [M+H]+ (100).
General procedure for the preparation of disulfonated macrocycles PyCyN-Ox[12]N4 (1) and
PyCyN-Ox[15]N5 (3)
A suspension of the polyamine moiety 5 or 6 (1 equiv) and anhydrous potassium carbonate (4 equiv) in
anhydrous MeCN was stirred at reflux for several minutes. Then potassium iodide (2.2 equiv) was added
at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (1.1 equiv) in anhydrous MeCN was
added dropwise in the previous mixture while stirring at reflux and the heating was maintained for 3-5 h
(monitoring by TLC, Et2O). The crude mixture was concentrated and the residue was taken up in
CH2Cl2/H2O (3:1 v/v, 30 mL). The layers were separated, and the aqueous phase was back-extracted with
CH2Cl2 (3 x 25 mL). The combined organic layers were dried over anhydrous MgSO4, filtered and
concentrated at 40 °C. The crude residue was purified by flash column chromatography on silica gel to
afford the corresponding macrocycles 1 and 3, Yields: 1a, 94%; 1b, 80%, 1c, 70% and 3a, 46%; 3b, 33%,
3c, 81%
(4R,9R,12S)-12-benzyl-3,13-bis(2-nitrobenzenesulfonyl)-19-oxy-3,10,13,19-tetraazatricycle[13,3,1,0]-
nonadeca-1(19), 15,17-trien 11-one (1a)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 5 (958 mg, 1.52 mmol) and anhydrous potassium carbonate (830 mg, 6.08 mmol)
in anhydrous MeCN (100 mL) was stirred at reflux for several minutes. Then potassium iodide (548 mg)
was added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (320 mg, 1.67 mmol) in
anhydrous MeCN (25 mL) was added dropwise in the previous mixture while stirring at reflux and the
heating was maintained for 3 h (monitoring by TLC, Et2O). After the workup previously described the
macrocycle 1a was obtained as a yellow solid. Yield: 885 mg (94%). Rf = 0.2, SiO2, (CH2Cl2/MeOH/NH3,
95:4:1); Mp 194 °C; [α]D24 -66.6 ± 0.1 (c 1.0, CH2Cl2); 1H NMR (DMSO-d6, 400 MHz):  = 0.76 (m, 1H,
Heax.), 0.95 ( m, 2H, Hcax., Hdax.), 1.01 (m, 1H, Hbax.), 1.40 (m, 1H, Hdeq.), 1.49 (m, 1H, Hceq.), 1.75 (m, 1H,
Hbeq.), 1.94 (m, 1H, Heeq.), 2.57 (m, 2H, HCH2benzyl, Hf), 3.42 ( dd, 1H, 2J = 15.2 Hz, 3J = 8.7 Hz, HCH2benzyl),
3.59 (m, 1H, Ha), 4.32 (d, 1H, 2J = 15.4 Hz, Ho), 4.42 (m, 1H, Hg), 4.46 (d, 1H, 2J = 14.5 Hz, Hu), 5.08 (d
1H, 2J = 15.4 Hz, Ho), 5.14 (1H, d, 2J = 14.5 Hz, Hu), 6.90 (m, 2H, CHar), 6.84 (d, 1H, 3JNH-Hf = 3.9 Hz,
NH), 7.02 (m, 3H, CHar), 7.21 (t, 1H, 3Jr-s = 7.8 Hz, Hr), 7.74 (d, 2H, 3Js-r = 7.8 Hz, Hs, Hq), 7.77 (dd, 1H,
4
3
4
3J = 7.9 Hz, J = 1.4 Hz, CHarCHCNO2), 7.84 (ddd, 1H, J = 7.6 Hz, J = 0.9 Hz, CHarCHCSO2), 7.85

HETEROCYCLES, Vol. 83, No. 9, 2011
2033
3
4
3
4
(dd, 1H, J = 7.6 Hz, J = 1.52 Hz, CHarCHCNO2), 7.88 (dd, 1H, J = 7.6 Hz, J = 1.6 Hz,
3
4
3
4
CHarCHCSO2), 7.91 (dd, 1H, J = 7.9 Hz, J = 1.4 Hz, CHarCSO2), 7.96 (dd, 1H, J = 7.6 Hz, J = 1.5
Hz, CHarCSO2), 8.13 (dd, 1H, 3J = 7.9 Hz, 4J = 0.9 Hz, CHarCHNO2), 8.20 (dd, 1H, 3J = 7.6 Hz, 4J = 1.6
13
Hz, CHarCHNO2); C NMR (DMSO-d6, 100 MHz):  = 23.46 (Cd), 24.75 (Cc), 28.40 (Cb), 32.79 (Ce),
33.64 (CCH2benzyl), 43.81 (Co), 45.10 (Cu), 53.86 (Cf), 57.94 (Ca), 59.46 (Cg), 122.66 (Cr), 124.23 and
124.95 (CHarCSO2), 125.76 (CHar), 127.42 (Cs or Cq), 127.57 (CHar), 128.75 (CHar), 129.01 (Cs or Cq),
131.52 and 131.70 (CHCNO2), 132.14 (CHar), 132.46 (CHar), 134.23 (CHar), the signal of C=O and
quaternary carbons were not distinguished; m/z (ESI+, CV= 97): 773.3, M++23 (100); 774.3, M++23 +H+,
(40); HRMS: calcd. for C34H34N6O10S2Na [M+Na]+ (773.16700); found (773.16663); HPLC purity: 97%,
Hypersil ODS C18, column, 250 mm, 4.6 mm, 5 µm, MeCN/H2O 8:2, 0.7 mL min-1, = 220 nm, Rt =
5.17 min.
(4R,9R,12S)-12-Isopropyl-3,13-bis(2-nitrobenzenesulfonyl)-19-oxy-3,10,13,19-tetraazatricyclo[13,3,
1,0] nonadeca-1(19), 15,17-trien 11-one (1b)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 5b (397 mg, 0.68 mmol) and anhydrous potassium carbonate (376 mg, 2.78 mmol)
in anhydrous MeCN (45 mL) was stirred at reflux for several minutes. Then potassium iodide (247 mg)
was added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (143 mg, 0.74 mmol) in
anhydrous MeCN (20 mL) was added dropwise in the previous mixture while stirring at reflux and the
heating was maintained for 4 h 30 (monitoring by TLC, Et2O). After the workup previously described the
macrocycle 1b was obtained as a whitish solid. Yield: 384 mg (80%). Rf = 0.2, SiO2, (CH2Cl2/MeOH,
97:3); Mp 204 °C; [α]D24 -19.8 ± 0.1 (c 1.6, CH2Cl2); 1H NMR (CDCl3, 400 MHz):  = 0.50-1.55 (m, 13H,
2CH3, Hc, Hd, He, CH(CH3)2, 2.00-2.10 (m, 2H, Hb), 2.35-2.55 (m, 2H, Hg), 4.00-4.25 (m, 2H, Ho or Hu),
5.20-5.45 (m, 2H, Hu or Ho), 7.00-7.40 and 7.60-7.85 (2m, 11H, CHAr); 13C NMR (CDCl3, 100 MHz): 
= 21.72 (2CH3), 24.50 (Cc or Cd), 25.88 (Cd or Cc), 26.53 (CH(CH3)2), 29.84 (Cp), 34.20 (Cb), 45.47 (Co or
Cu), 47.14 (Cu or Co ), 54.49 (Cg), 125.44, 126.9, 128.37, 129.18, 132.03, 133.33, 133.60 (CHar), 135.31
(2CquatSO2), 145.12 (2CquatNO2), 148.12 (Ct and Cp), Uncertain assignement for aromatic carbones, the
signal of C=O was not distinguished; m/z (ESI+, CV= 81): 725.3, M++23 (100); 741.3, M++39 (56);
HRMS: calcd. for C30H34N6O10S2Na [M+Na]+ (725.16700); found (725.16728); HPLC purity: 95% on a
Hypersil ODS C18, column, 250 mm, 4.6 mm, 5 µm, MeCN/H2O 8:2, 0.7 mL min-1, = 220 nm, Rt =
5.08 min.
(4R,9R)-3,13-Bis(2-Nitrobenzenesulfonyl)-19-oxy-3,10,13,19-tetraazatricyclo[13,3,1,0]nonadeca-
1(19),15,17-trien 11-one (1c)
This compound was prepared according to the general procedure previously described. A suspension of

2034
HETEROCYCLES, Vol. 83, No. 9, 2011
the polyamine moiety 5c (408 mg, 0.76 mmol) and anhydrous potassium carbonate (415 mg, 3.01 mmol)
in anhydrous MeCN (25 mL) was stirred at reflux for several minutes. Then potassium iodide (278 mg)
was added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (160 mg, 0.84 mmol) in
anhydrous MeCN (50 mL) was added dropwise in the previous mixture while stirring at reflux and the
heating was maintained for 3 h (monitoring by TLC, Et2O). After the workup previously described the
macrocycle 1c was obtained as a yellow solid. Yield: 344 mg (70%). Rf = 0.2, SiO2, (CH2Cl2/MeOH,
97:3); Mp 202 °C; [α]D24 -80.1 ± 0.1 (c 1.0, CH2Cl2); 1H NMR (CDCl3, 400 MHz):  = 0.91 (m, 2H, Heax.
,
Hdax.), 1.10 (m, 1H, Hbax.), 1.38 (m, 1H, Hcax.), 1.52 (m, 1H, Hdax.), 1.62 (m, 1H, Hceq.), 1.67 (m, 1H, Hbeq.),
2.20 (m, 1H, Heeq.), 2.72 (m, 1H, Hf), 3.47 (m, 1H, Ha), 4.07 (d, 1H, 2J = 15.7 Hz, Hg), 4.23 (d, 1H, 2J =
15.8 Hz, Ho), 4.29 (d, 1H, 2J = 15.7 Hz, Hg), 4.44 (d, 1H, 2J = 13.9 Hz, Hu), 5.22 (d, 1H, 2J = 13.9 Hz, Hu),
2
3
3
5.45 (d 1H, J = 15.8 Hz, Ho), 7.02 (d, 1H, JNH-Hf = 3.9 Hz, NH), 7.21 (t, 1H, JHr-Hs = 7.7 Hz, Hr), 7.28
3
4
3
4
(ddd, 1H, 2 J = 7.8 Hz, J = 2.1 Hz, CHarCHCNO2), 7.65 (ddd, 1H, 2 J =7.7 Hz, J = 1.9 Hz,
CHarCHCSO2), 7.69-7.80 (m, 6H, Hs, H19, Hq, 4 CHar), 8.15-8.23 (m, 2H, 2 CHar); 13C NMR (DMSO-d6,
100 MHz):  = 23.98 (Cd), 25.95 (Cc), 28.91 (Cb), 44.72, (Cu), 45.38 (Co), 51.37 (Cg), 54.64 (Cf), 59.79
(Ca), 124.55 (Cq), 125.30 (Cs), 125.56 (Cr), 127.44 (CHar), 129.75 (CHar), 131.29 (CHar), 132.06 (CHar),
132.21 (CHar), 132.58 (CHar), 133.37 (CHar), 133.58 (CHar), 133.92 (Cp), 134.23 (Ct), 144.85 and
146.72 (CquatSO2), 148.00 and 148.26 (CquatNO2), 168.39 (C=O); m/z (ESI+, CV= 73): 683.2, M++23
(100); 684.2, M++23 +H+, (30); HRMS: calcd. for C27H28N6O10S2Na [M+Na]+ (683.12005); found
(683.11969); HPLC purity: 82%, Hypersil ODS C18, column, 250 mm, 4.6 mm, 5 µm, MECN/H2O 8:2,
0.7 mL min-1, = 220 nm, Rt = 4.45 min.
(4S,7R,12R,15S)-4,15-Dibenzyl-3,16-bis(2-nitrobenzenesulfonyl)-2-oxy-3,6,13,16,22-pentaazatricyclo-
[16,3,1,0]docosa-1(21), 18(22),19-trien-5,14-dione (3a)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 6a (1.04 g, 1.34 mmol) and anhydrous potassium carbonate (741 mg, 5.36 mmol)
in anhydrous MeCN (88 mL) was stirred at reflux for several minutes. Then potassium iodide (489 mg)
was added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (283 mg, 1.47 mmol) in
anhydrous MeCN (44 mL) was added dropwise in the previous mixture while stirring at reflux and the
heating was maintained for 5 h (monitoring by TLC, Et2O). After the workup previously described the
macrocycle 3a was obtained as a yellowish solid. Yield: 550 mg (46%). Rf = 0.8, SiO2, (cyclohexane/
EtOAc, 9:1); Mp 169-171 °C; [α]D24 +106.2 ± 0.1 (c 1.3, CH2Cl2); 1H NMR (CDCl3, 400 MHz):  = 0.88
(m, 2H, Hbax.), 1.10 (m, 2H, Hcax.), 1.56 (m, 2H, Hceq.), 1.92 (m, 2H, Hbeq.), 2.89 (m, 2H, CH2benzyl), 2.90
(m, 2H, Ha), 3.46 (s br, 2H, CH2benzyl), 4.63 (s br, 2H, Hd), 4.69 (d, 2H, 22J = 15.2 Hz, Ho), 5.00 (d, 2H, 2J
3
= 15.2 Hz, Ho), 6.44 (s br, 2H, NH), 7.06 (sbr, 10H, CHar), 7.20 (t, 1H, Jr-q = 7.8 Hz, Hr), 7.50 (m, 2H,

HETEROCYCLES, Vol. 83, No. 9, 2011
2035
3
3
CHar), 7.58 (m, 2H, CHar), 7.59 (d, 2H, JHr-Hq = 7.8 Hz, 2Hq), 7.69 (dd, 2H, J = 7.8 Hz, CHarCSO2),
8.00 (s br, 2H, CHarCNO2); 13C NMR (CDCl3, 100 MHz): = 21.35 (Cc), 31.84 (Cb), 34.06 (CH2benzyl),
43.74 (Co), 54.03 (Ca), 62.25 (Cd), 123.91 (Cr), 125.46 (CHarCSO2), 126.30 (CHar), 128.22 (CHar),
128.93 (2Cq), 129.42 (Ar), 131.97 (CHar), 132.87 (CHarCNO2), 133.52 (CHar), 137.22 (Cquat benzyl),
145.71 (2Cp), 147.51 (CquatSO2, CquatNO2), 168.54 (2C=O); m/z (ESI+, CV= 85): 920.6, M++23 (100);
921.6.2, M++23 +H+, (60); HRMS: calcd. for C43H43N7O11S2Na [M+Na]+ (920.23542); found
(920.23504); HPLC purity: 96%, Hypersil ODS C18, column, 250 mm, 4.6 mm, 5 µm, MeCN/H2O 8:2,
0.7 mL min-1,  = 220 nm, Rt = 6.88 min.
(7R,9R)-3,16-Bis(2-nitrobenzenesulfonyl)-23-oxy-3,6,13,16,22-pentaazatricyclo[16,3,1,0]docosa-1(21),
18(22),19-triene-5,14-dione (3b)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 6b (401 mg, 0.59 mmol) and anhydrous potassium carbonate (325 mg, 2.36 mmol)
in anhydrous MeCN (35 mL) was stirred at reflux for several minutes. Then potassium iodide (215 mg)
was added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (125 mg, 0.65 mmol) in
anhydrous MeCN (15 mL) was added dropwise in the previous mixture while stirring at reflux and the
heating was maintained for 6 h (monitoring by TLC, Et2O). After the workup previously described the
macrocycle 3b was obtained as a pale yellow solid. Yield: 207 mg (33%). Rf = 0.4, SiO2, (CH2Cl2/MeOH,
24
1
95:5); Mp 194 °C with decomposition; [α]D +106 ± 0.1 (c 1.3, CH2Cl2); H NMR (DMSO-d6, 400
MHz):  = 1.0-1.1 (dbr, 6H, J = 6.4 Hz, 2CH3), 1.15-1.2 (m, 6H, 2CH3), 1.35-1.45 (m, 2H, Hc), 1.50-1.75
(m, 2H, Hb), 1.80-2.0 (m, 4H, Hc, Hb), 2.61-2.70 (m, 2H, CH(CH3)2), 3.85-4.00 (m, 2H, Ho), 4.05-4.25 (m,
2H, Hd), 4.30-4.40 (d, 2H, J = 10.2 Hz, Ha), 4.75-4.90 (d, 2H, J = 13.2 Hz, Ho), 6.99 (sb, 1H, NH),
7.45-7.55 (m, 2H, CHar), 7.60-7.70 (m, 2H, CHar), 7.91-8.0 (m, 1H, CHar), 8.01-8.20 (m, 6H, CHar),
8.40-8.65 (sb, 1H, NH); 13C NMR (DMSO-d6, 100 MHz):  = 18.93 (CH3), 19.23 (CH3), 24.55 (Cc),
33.70 (Cb), 39.7 (CH(CH3)2, 43.51 (Co), 51.56 (Ca), 66.63 (Cd), 122.09, 124.27, 128.11, 129.25, 129.69,
131.67, 132.51 (2Cq, Cr, CHar), 133.38 (CquatSO2), 146.38 (2Cp), 147.19 (CquatNO2), 169.24 (C=O),
171.98 (C=O); m/z (ESI+): 824.3, M++23 (100); 825.3, M++23 +H+, (45), CV 50; HRMS: calcd. for
C35H43N7O11S2Na [M+Na]+ (824.23542); found (824.23526); HPLC purity: 80%, Hypersil ODS C18,
column, 250 mm, 4.6 mm, 5 µm, MeCN/H2O 8:2, 0.7 mL min-1,  = 220 nm, Rt = 5.72 min.
(7R,9R)-3,16-Bis(2-nitrobenzenesulfonyl)-23-oxy-3,6,13,16,22-pentaazatricyclo[16,3,1,0]docosa-1(21),
18(22),19-triene-5,14-dione (3c)
This compound was prepared according to the general procedure previously described. A suspension of
the polyamine moiety 6c (55 mg, 0.092 mmol) and anhydrous potassium carbonate (50 mg, 0.37 mmol)
in anhydrous MeCN (6 mL) was stirred at reflux for several minutes. Then potassium iodide (33 mg) was

2036
HETEROCYCLES, Vol. 83, No. 9, 2011
added at once. A solution of 2,6-bis(chloromethyl)pyridine N-oxide 7 (19 mg, 0.1 mmol) in anhydrous
MeCN (3 mL) was added dropwise in the previous mixture while stirring at reflux and the heating was
maintained for 6 h (monitoring by TLC, Et2O). After the workup previously described the macrocycle 3c
was obtained as a yellow solid. Yield: 39 mg (81%). Rf = 0.2, SiO2, (CH2Cl2/MeOH, 95:5); Mp 144 °C;
24
1
[α]D +52.9 ± 0.1 (c 1, CH2Cl2); H NMR (DMSO-d6, 400 MHz):  = 1.12 (m, 4H, 2Hbax. , 2Hcax.), 1.59
(m, 2H, 2Hceq.), 1.72 (m, 2H, 2Hbeq.), 3.33 (m, 2H, 2Ha), 3.92 (d, 2H, 2J = 18.0 Hz, Hd), 4.17 (d, 2H, 2J =
18.0 Hz, Hd), 4.64 (s br, 4H, Ho), 7.38 (s br, 3H, 2Hq , Hr), 7.66 (d, 2H, 3JNH-Ha = 7.3 Hz, NH), 7.78 (ddd,
2H, 23J = 7.7 Hz, 4J = 1.4 Hz, CHarCHCNO2), 7.92 (ddd, 2H, 23J = 7.7 Hz, 4J = 1.4 Hz, CHarCHCSO2),
8.02 (dd, 2H, 3J = 6.8 Hz, 4J = 1.4 Hz, CHarCSO2), 8.40 (dd, 2H, 3J = 7.7 Hz, 4J = 1.4 Hz, CHarCNO2);
13C NMR (DMSO-d6, 100 MHz):  = 24.00 (Cc), 31.86 (Cb), 45.35 (Co), 50.43 (Cd), 52.14 (Ca), 124.17
(CHarCSO2), 125.21 (2Cq), 125.97 (Cr), 13016 (CHarCNO2), 132.30 (CHar), 134.44 (CHar); m/z (ESI+,
CV= 45): 740.2, M++23 (100); 741.2, M++23+H+, (30); HRMS: calcd. for C29H31N7O11S2Na [M+Na]+
(740.14152); found (740.14159); HPLC purity: 98%, Hypersil ODS C18, column, 250 mm, 4.6 mm, 5
µm, MeCN/H2O 8:2, 0.7 mL min-1, = 220 nm, Rt = 4.19 min.
General procedure for the preparation of desulfonylated macrocycles PyCyN-Ox[12]N4 (2a) and
PyCyN-Ox[15]N5 (4a)
To a solution of the corresponding nosylated macrocycles 1a or 3a (1 equiv) in anhydrous MeCN were
added mercaptoethanol (11.2 equiv) and DBU (4.5 equiv). The resulting mixture was stirred at room
temperature for 2h (monitoring by TLC). The crude mixture was then concentrated and the residue was
taken up in a mixture of MeCN:H2O (1:1). The organic layers were separated and the aqueous layer was
further extracted with CH2Cl2. The combined organic layers were dried over anhydrous MgSO4, filtered
and concentrated. The crude residue was purified by flash column chromatography on silica gel to afford
the corresponding denosylated macrocycles 2a and 4a. Yields 2a, 91%; and 4a, 65%.
(4R,9R)-12-Benzyl-19-oxy-3,10,13,19-tetraaza-tricyclo[13.3.1.0*4,9*]nonadeca-1(19),15,17-trien-11-
one (2a)
To a solution of the corresponding nosylated macrocycle 1a (220 mg, 0.29 mmol, 1 equiv) in anhydrous
MeCN (15 mL) were added mercaptoethanol (0.24 mL, 3.46 mmol, 11.2 equiv) and DBU (0.2 mL, 1.34
mmol, 4.5 equiv). The resulting mixture was stirred at room temperature for 2 h (monitoring by TLC,
EtOAc). The crude mixture was then concentrated and the residue was taken up in a mixture of
MeCN:H2O (1:1) (40 mL). The organic layers were separated and the aqueous layer was further extracted
with CH2Cl2 (3 x 20 mL). The combined organic layers were dried over anhydrous MgSO4, filtered and
concentrated. The crude residue was purified by flash column chromatography on silica gel (CH2Cl2/
MeOH/NH4OH 95:4:1) to afford the expected compound 2a as a yellow solid. Yield: 100 mg (91%). Rf =

HETEROCYCLES, Vol. 83, No. 9, 2011
2037
1
0.1, SiO2, (CH2Cl2/MeOH, NH4OH 95:4:1); Mp 86 °C; H NMR (CDCl3, 400 MHz):  = 0.29-0.39 (m,
1H, Heax. ), 1.00-1.3 (m, 4H, Hcax., Hdax., Hbax. , Heeq.), 1.41-1.57 (m, 1H, Hbeq.), 1.69-1.75 (m, 1H, Hceq.),
1.77-1.90 (m, 1H, Hdeq.), 2.10-2.60 (m, 2H, Ha, Hf), 2.61 (dd of ABX, 1H, JAB = 12.9 Hz, JAX = 9.8 Hz,
CH2benzyl), 3.44-3.50 (m of ABX, 1H, Hg), 3.68 (d of AB, 1H, JHo-NH = 1.9 Hz, Ho), 7.72 (s br, 1H, Hu),
4.18 (d, 1H, J = 15.8 Hz, Ho), 4.89 (d, 1H, J = 14.6 Hz, Hu), 5.7 (s br, 1H, NH), 7.05-7.26 (m, 8H, Hs, Hr,
Hq, CHar); 13C NMR (CDCl3, 100 MHz):  = 24.57 (Cb), 25.95 (Cc), 30.50 (Cd), 32.79 (Ce), 41.71
(CH2benzyl), 44.97 (Co or Cu), 45.22 (Cu or Co), 56.23 (Cf), 58.82 (Cq), 63.69 (Cg), 124.71, 126.44,
126.82, 128.23, 128.35, 129.15, 129.43 (Cs, Cr, Cq, CHar), 137.50 (Cquat benzyl), 149.82 (Ct or Cp), 152.17
(Cp or Ct), 173.69 (C=O); m/z (ESI+, CV = 25): 381.3, M++H (100); 382.3, M++2H+, (30); HRMS: calcd.
for C22H29N4O2 [M+H]+ (381.22850); found (381.22858).
(4S,7R,12R,15S)-4,15-Dibenzyl-22-oxy-3,6,13,16,22-pentaazatricyclo[16.3.1.0*7,12*]docosa-1(21),
18(22),19-triene-5,14-dione (4a)
To a solution of the corresponding nosylated macrocycle 3a (260 mg, 0.29 mmol, 1 equiv) in anhydrous
MeCN (10 mL) were added mercaptoethanol (0.24 mL, 3.16 mmol, 11.2 equiv) and DBU (0.2 mL, 1.34
mmol, 4.5 equiv). The resulting mixture was stirred at room temperature for 2 h (monitoring by TLC,
cyclohexane/EtOAc, 5:5). The crude mixture was then concentrated and the residue was taken up in a
mixture of MeCN:H2O (1:1) (40mL). The organic layers were separated and the aqueous layer was
further extracted with CH2Cl2 (3 x 20 mL). The combined organic layers were dried over anhydrous
MgSO4, filtered and concentrated. The crude residue was purified by flash column chromatography on
silica gel (cyclohexane/EtOAc/NH4OH 9:1) to afford the expected compound 4a as a beige solid. Yield:
1
100 mg (65%). Rf = 0.1, SiO2, (cyclohexane/EtOAc 9:1); Mp 68 °C, H NMR (CDCl3, 400 MHz)*:  =
0.45-0.65 (m, 2H, 2Hbax.), 0.8-1.0 (m, 2H, 2Hcax.), 1.35-1.52 (m, 4H, 2Hbeq., 2Hceq.), 2.70-2.81 (dd, 4H, J =
15.4 Hz, 2J = 6.9 Hz, CH2benzyl), 2.82-2.90 (m, 2H, Ha), 3.20-3.31 (t, 2H, 2J = 7.5 Hz, Hg), 3.88-4.08 (m,
4H, Ho), 7.00-7.21 (m, 13H, 2Hq, Hr, CHar).* The signals accounting for NH were not distinguished. 13C
NMR (CDCl3, 100 MHz): = 24.19 (Cc), 31.51 (Cb), 41.65 (CH2benzyl), 47.39 (Co), 53.63 (Ca), 64.19
(Cd), 124.73 (Cq), 124.92 (Cr), 126.49 (CHar), 128.35 (CHar), 129.26 (CHar), 137.92 (Cquat benzyl),
150.02 (Cp), 173.15 and 174.80 (C=O); m/z (ESI+): 528.4, M++H (100); 529.5, M++2H+, (30); HRMS:
calcd. for C31H38N5O3 [M+H]+ (528.29692); found (528.29602).
General procedure for reaction of allyltrichlorosilane with p-nitrobenzaldehyde
Allyltrichorosilane (52 µL, 0.36 mmol, 2.4 equiv) was added to a solution of the catalyst (0.02 mmol),
diisopropylethylamine (78.5 µL, 0.45 mmol, 3 equiv) and p-nitrobenzaldehyde (22.7 mg, 0.15 mmol, 1
equiv) in anhydrous MeCN (1 mL) under argon at 0 °C. The mixture was stirred at the corresponding
temperature (monitoring by HPLC using a mini pre-column on silica gel; see Table 1 for the reaction

2038
HETEROCYCLES, Vol. 83, No. 9, 2011
times and temperatures), and quenched with saturated aqueous solution of sodium hydrogen carbonate (1
mL). The aqueous layer was extracted with CH2Cl2 (3 x 5 mL). The combined organic layers were dried
over anhydrous Na2SO4, filtered and the solvent was removed in vacuo. The crude residue was purified
by flash column chromatography on silica gel (CH2Cl2) to afford the expected compound 18 as a brown
solid.
(S)-()-1-(p-Nitrophenyl)-3-buten-1-ol (entry 9, Table 1)31,32
Rf = 0.5, SiO2, (CH2Cl2/MeOH 98:2); [α]D21 - 22 ± 0.1 (c 0.1, CHCl3); The 1H NMR data is in accordance
with those of the literature. The conversion rate was determinate by HPLC (Hypersil, 150 mm x 4.6 mm,
5 μm) in an isocratic system of elution using a PDA detector Waters (n-heptane/CH2Cl2/MeOH
20:80:0.1), 0.8 mL min-1,  = 272 nm, Rt aldehyde = 3.37 min, Rt alcohol = 7.52 min. The enantiopurity was
determined by chiral HPLC analyses (Column ADH chiralpak, 250 mm x 4.6 mm, 5 μm), using a PDA
detector Waters (n-hexane/EtOH 94:6), using a UV detector, 0.4 mL min-1,  = 220 nm, RR = 38.41 min
and RS = 40.40 min; enantiomeric excess was determined to +/- 0.25%. The absolute configuration was
established by the comparison of their optical rotations (measured in CHCl3) and HPLC retention times
with the literature data.
ACKNOWLEDGMENTS
We cordially acknowledge Kenza Motaib for her contribution to this work.
REFERENCES
1. G. Chelucci, G. Murineddu, and G. A. Pinna, Tetrahedron: Asymmetry, 2004, 15, 1373.
2. A. Malkov and P. Kocovsky, Eur. J. Org. Chem., 2007, 29.
3. J. Chen and N. Takenaka, Chem.Eur. J., 2009, 15, 7268.
4. S. E. Denmark and W.-J. Chung, J. Org. Chem., 2008, 73, 4582.
5. A. V. M. Malkov, C. MacDonald, and P. Kocovsky, Tetrahedron: Asymmetry, 2010, 21, 1173.
6. A. V. W. Malkov, M.-M. Westwater, A. Gutnov, P. Ramirez-Lopez, F. Friscourt, A. Kadlcikova, J.
Hodacova, Z. Rankovic, M. Kotora, and P. Kocovsky, Tetrahedron, 2008, 64, 11335.
7. L. Pignataro, M. Benaglia, R. Annunziata, M. Cinquini, and F. Cozzi, J. Org. Chem., 2006, 71, 1458.
8. M. Nakajima, M. Saito, and S. Hashimoto, Chem. Pharm. Bull., 2000, 48, 306.
9. M. Nakajima, M. Saito, M. Shiro, and S.-I. Hashimoto, J. Am. Chem. Soc., 1998, 120, 6419.
10. G. Chelucci, N. Belmonte, M. Benaglia, and L. Pignataro, Tetrahedron Lett., 2007, 48, 4037.
11. M. Kotora, Pure Appl. Chem., 2010, 82, 1813.

HETEROCYCLES, Vol. 83, No. 9, 2011
2039
12. V. Derdau, S. Laschat, E. Hupe, W. A. König, I. Dix, and P. G. Jones, Eur. J. Inorg. Chem., 1999,
1001.
13. W.-L. Wong, W.-S. Lee, and H.-L. Kwong, Tetrahedron: Asymmetry, 2002, 13, 1485.
14. M. Nakajima, M. Saito, M. Uemura, and S. Hashimoto, Tetrahedron Lett., 2002, 43, 8827.
15. B. Tao, M. M. C. Lo, and G. C. Fu, J. Am. Chem. Soc., 2001, 123, 353.
16. Z. Su, C. Hu, S. Qin, and X. Feng, Tetrahedron, 2006, 62, 4071.
17. J.-M. Siaugue, F. Segat-Dioury, A. Favre-Réguillon, C. Madic, J. Foos, and A. Guy, Tetrahedron
Lett., 2000, 41, 7443.
18. F. Dioury, I. Sylvestre, J.-M. Siaugue, V. Wintgens, C. Ferroud, A. Favre-Réguillon, J. Foos, and A.
Guy, Eur. J. Org. Chem., 2004, 4424.
19. F. Dioury, E. Guéné, A. D. Scala-Roulleau, C. Ferroud, A. Guy, and M. Port, Tetrahedron Lett., 2005,
46, 611.
20. F. Dioury, S. Sambou, E. Guéné, M. Sabatou, C. Ferroud, A. Guy, and M. Port, Tetrahedron, 2007,
63, 204.
21. F. Dioury, C. Ferroud, A. Guy, and M. Port, Tetrahedron, 2009, 65, 7573.
22. H.-J. Schanz, M. A. Linseis, and D. G. Gilheany, Tetrahedron: Asymmetry, 2003, 14, 2763.
23. T. Fukuyama, C.-K. Jow, and M. Cheung, Tetrahedron Lett., 1995, 36, 6373.
24. T. Kan and T. Fukuyama, Chem. Commun., 2004, 353.
25. K. Ng, R. Somanathan, and P. J. Walsh, Tetrahedron: Asymmetry, 2001, 12, 1719.
26. J. E. Richman and T. J. Atkins, J. Amer. Chem. Soc., 1974, 96, 2268.
27. X.-M. Gan, E. N. Duesler, S. Parveen, and R. T. Paine, Dalton Trans., 2003, 4704.
28. A. V. D. Malkov, L. Duflkova, L. Farrugia, and P. Kocovsky, Angew. Chem. Int. Ed., 2003, 42, 3674.
29. A. V. Malkov, P. Ramirez-Lopez, L. Biedermannova, L. Rulisek, L. Dufkoa, M. Kotora, F. Zhu, and
P. Kocovsky, J. Am. Chem. Soc., 2008, 130, 5341.
30. A. Kina, T. Shimada, and T. Hayashi, Adv. Synth. Catal., 2004, 346, 1169.
31. A. V. B. Malkov, M. Bell, M. Orsini, D. Pernazza, A. Massa, P. Herrmann, P. Premji, and P.
Kocovsky, J. Org. Chem., 2003, 68, 9659.
32. A. Yanagisawa, Y. Nakamura, and T. Arai, Tetrahedron: Asymmetry, 2004, 15, 1909.
33. A.Ostrowicki, E. Koepp, and F. Voegtle, Top. Curr. Chem., 1992, 161, 37.
