aqueous mixture was extracted with Et2O (3 × 20 mL). Previous Et2O
extracts also were basified with (20% w/w) aqueous NaOH to pH 10
and extracted with CH2Cl2 (3 × 15 mL). The combined organic
phases were dried over Na2SO4 and concentrated. The residue was
purified by column chromatography over silica gel (5−20% MeOH/
CHCl3) to give 23 (419.2 mg, 82%) as a colorless sticky liquid that
solidified on standing. Mp 56−58 °C; 1H NMR (500 MHz, CDCl3) δ
7.73 (s, 1H), 3.85 (s, 3H), 3.15−3.12 (m, 2H), 2.91 (t, 2H, J = 7.6
Hz), 1.42 (br s, 2H); 13C NMR (125 MHz, CDCl3) δ 154.0, 139.7,
135.4, 121.9, 120.0, 116.0, 60.6, 41.5, 40.7; IR (KBr) 3359, 3287, 3014,
2935, 1557, 1448, 1355, 1018, 930, 639 cm−1; HRMS (ESI) calcd for
C9H11Br3NO (M + H), 385.8391; found, 385.8398.
Synthesis of Amide 24. To a cooled (0 °C) solution of N-methyl-
L-proline (19.9 mg, 0.16 mmol) in anhydrous CH2Cl2 (1 mL) were
added HOBT (27.8 mg, 0.21 mmol), EDC·HCl (34.6 mg, 0.18
mmol), i-Pr2NEt (23.3 mg, 0.18 mmol), and 4 Å molecular sieves. The
mixture was then stirred for 30 min at 0 °C, and then a solution of
amine 23 (50 mg, 0.13 mmol) in anhydrous CH2Cl2 (0.6 mL) was
added. The reaction solution was then allowed to warm to room
temperature and stirred 12 h. After completion of starting material
(monitored by TLC), the reaction was diluted with CH2Cl2 (7 mL)
and quenched with 5% citric acid (0.8 mL). The solution was then
washed with saturated aqueous NaHCO3 solution and brine, dried
(Na2SO4), and concentrated under reduced pressure. The residue was
purified by silica gel column chromatography (5% MeOH/CHCl3) to
give 24 (43.2 mg, 67%) as a colorless liquid which solidified on
cooling. Mp 89−91 °C; [α]23D −39.8 (c 0.49, CHCl3); 1H NMR (500
MHz, CDCl3) δ 7.74 (s, 1H), 7.48 (br s, 1H), 3.85 (s, 3H), 3.54−3.50
(m, 2H), 3.24 (dt, 2H, J = 2.1, 7.3 Hz), 3.08−3.05 (m, 1H), 2.89 (dd,
1H, J = 4.9, 10.1 Hz), 2.33 (s, 4H), 2.20−2.14 (m, 1H), 1.83−1.76 (m,
1H), 1.74−1.69 (m, 2H); 13C NMR (125 MHz, CDCl3) δ 174.8,
154.1, 139.0, 135.5, 122.2, 120.2, 116.5, 69.0, 60.6, 56.8, 42.0, 37.1,
37.0, 31.0, 24.5; IR (KBr) 3309, 2967, 2939, 1650, 1529, 1448, 1360,
1264, 1050, 861, 746 cm−1; HRMS (ESI) calcd for C15H20Br3N2O2 (M
+ H), 496.9075; found, 496.9078.
were dried over Na2SO4 and concentrated under reduced pressure.
The residue was purified by silica gel column chromatography (10−
25% MeOH/CHCl3) to give 9 (188 mg, 91%) as a colorless viscous
liquid. 1H NMR (500 MHz, CDCl3) δ 7.72 (s, 1H), 3.85 (s, 3H), 3.16
(t, 2H, J = 7.8 Hz), 2.76 (t, 2H, J = 7.9 Hz), 2.49 (s, 3H), 1.45 (s, 1H);
13C NMR (125 MHz, CDCl3) δ 154.0, 139.9, 135.4, 121.8, 120.0,
116.0, 60.6, 49.7, 37.7, 36.4; IR (Neat) 3331, 2934, 2842, 1558, 1451,
1358, 1075, 864 cm−1; HRMS (ESI) calcd for C10H13Br3NO (M + H),
399.8547; found, 399.8540.

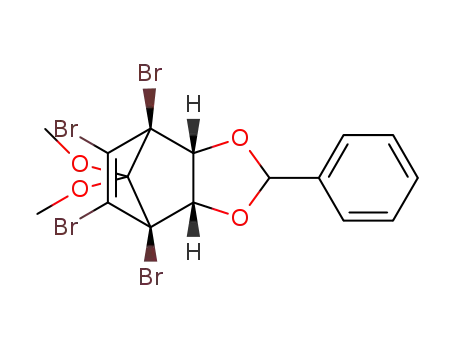

Synthesis of Benzylidene Acetal 27. To a solution of diol 26
(13.45 g, 26.79 mmol) in anhydrous benzene (428 mL) were added p-
toluenesulfonic acid monohydrate (509 mg, 2.68 mmol) and
benzaldehyde (3.98 g, 37.55 mmol). The reaction was refluxed for
11 h with azeotropic removal of water with a Dean−Stark condenser
(monitored by TLC). The reaction was allowed to cool to room
temperature, poured into saturated aqueous NaHCO3 solution (60
mL), and then extracted with Et2O (3 × 70 mL). The combined
organic phases were washed with brine, dried (Na2SO4), and
concentrated under reduced pressure. The residue was purified by
silica gel column chromatography (3% EtOAc/hexane) to give 27
(13.38 g, 85%) in 1.6:1 diastereomeric mixture as a white crystalline
solid. Mp 113−115 °C; 1H NMR (500 MHz, CDCl3) δ 7.50−7.48 (m,
2H), 7.39−7.34 (m, 8H), 6.01 (s, 1H), 5.81 (s, 1H), 5.07 (s, 2H), 4.98
(s, 2H), 3.65 (s, 3H), 3.62 (s, 3H), 3.60 (2 s, partially merged, due to
two -OMe, 6H); 13C NMR (125 MHz, CDCl3) δ 137.7, 134.1, 130.3,
129.6, 128.5, 128.4, 127.8, 126.2, 125.4, 124.8, 115.4, 113.7, 109.2,
107.7, 88.1, 87.1, 70.3, 69.8, 53.1, 52.1, 52.0; IR (KBr) 3039, 2946,
1608, 1461, 1187, 1039, 931, 702 cm−1; HRMS (ESI) calcd for
C16H18Br4NO4 (M + NH4), 603.7969; found, 603.7974.
3-(Benzyloxy)-1,4,5,6-tetrabromo-7,7-dimethoxybicyclo-
[2.2.1]hept-5-en-2-ol (28). To a cooled (−10 °C) solution of
benzylidene acetal 27 (12.6 g, 21.34 mmol) in anhydrous toluene (22
mL) was added DIBAL-H (25% in toluene, 36.4 g, 64.02 mmol). The
reaction was allowed to warm to room temperature and stirred for 14
h (monitored by TLC). The reaction was cooled to −20 °C, and
MeOH (30 mL) was added dropwise followed by 10% aq NaOH (30
mL). The mixture was then extracted with Et2O (5 × 30 mL). The
combined organic phases were washed with brine, dried (Na2SO4),
and concentrated under reduced pressure. The residue was purified by
silica gel column chromatography (2−5% EtOAc/hexane) to give 28
2-(2,4,6-Tribromo-3-methoxyphenyl)acetaldehyde (25). To a
cooled (0 °C) solution of methoxymethyltriphenylphosphonium
chloride (10.36 g, 30.23 mmol) in anhydrous THF (30 mL) was
added potassium tert-butoxide (3.30 g, 29.49 mmol). The mixture was
stirred for 20 min at 0 °C and then for 1.5 h at room temperature, and
a solution of aldehyde 21 (5.5 g, 14.74 mmol) in anhydrous THF (45
mL) was added via cannula at 0 °C. The reaction was allowed to warm
to room temperature and stirred overnight. The reaction was filtered
through a short silica pad, and the filtrate was then washed with water
(30 mL) and brine (40 mL), dried (Na2SO4), and concentrated under
reduced pressure. The residue was purified by silica gel column
chromatography (3% EtOAc/hexane) as eluent to furnish the enol
ether, which was used as such in the next reaction.
1
(10.95 g, 87%) as a colorless viscous liquid; H NMR (500 MHz,
CDCl3) δ 7.37−7.33 (m, 5H), 4.87 (d, 1H, J = 11.5 Hz), 4.75 (d, 1H, J
= 11.5 Hz), 4.51 (t, 1H, J = 7.4 Hz), 4.40 (d, 1H, J = 7.4 Hz), 3.59 (s,
3H), 3.57 (s, 3H), 2.76 (d, 1H, J = 8.2 Hz); 13C NMR (100 MHz,
CDCl3) δ 136.4, 128.5, 128.3, 128.0, 124.3, 110.1, 84.0, 78.1, 75.3,
73.0, 71.8, 53.1, 51.8; IR (Neat) 3501, 2948, 1571, 1455, 1139, 1105,
1030, 739 cm−1; HRMS (ESI) calcd for C16H20Br4NO4 (M + NH4),
605.8126; found, 605.8128.
To a cooled (0−10 °C) solution of the enol ether (obtained above)
in anhydrous CH2Cl2 (220 mL) was added methanesulphonic acid
(MeSO3H, 4.3 g, 44.8 mmol) dropwise. After 3 h, the reaction was
poured in saturated aqueous NaHCO3 solution (50 mL), and then
organic phase was separated and washed with brine, dried (Na2SO4),
and concentrated under reduced pressure. The residue was purified by
silica gel column chromatography (5% EtOAc/hexane) to give 25
(4.53 g, 79%) as a white solid. Mp 108−110 °C; 1H NMR (500 MHz,
CDCl3) δ 9.73 (s, 1H), 7.80 (s, 1H), 4.21 (s, 2H), 3.87 (s, 3H); 13C
NMR (125 MHz, CDCl3) δ 196.1, 154.2, 135.5, 134.1, 122.5, 120.5,
117.7, 60.7, 51.6; IR (KBr) 3073, 2939, 2850, 2724, 1714, 1561, 1452,
1038, 659 cm−1; HRMS (ESI) calcd for C9H8Br3O2 (M + H),
384.8074; found, 384.8091.
Convolutamine F (9). To a solution of aldehyde 25 (200 mg, 0.52
mmol) in anhydrous MeOH (3 mL) was added a 40% aqueous
solution of methylamine (100.1 mg, 1.29 mmol). The reaction was
stirred for 30 min at room temperatureand then cooled to 0 °C, and
NaBH4 (15.7 mg, 0.41 mmol) was added in three portions over a
period of 10 min. The reaction was stirred for 24 h at room
temperature, then water (2.5 mL) was added, and all MeOH was
removed under reduced pressure. The obtained aqueous phase was
extracted with CH2Cl2 (3 × 10 mL). The combined organic phases
3-(Benzyloxy)-1,4,5,6-tetrabromo-7,7-dimethoxybicyclo-
[2.2.1]hept-5-en-2-one (29). To a solution of pyridine (576.5 mg,
7.30 mmol) in CH2Cl2 (11.6 mL) was added CrO3 (365 mg, 3.65
mmol). The resultant solution was stirred at room temperature for
30−40 min, and then to this a solution of alcohol 28 (320 mg, 0.54
mmol) in CH2Cl2 (10 mL) was added and stirred for 90 h at room
temperature. The reaction solution was then filtered through a small
silica gel pad, and the filtrate was concentrated under reduced pressure.
The residue was purified by silica gel column chromatography (2%
EtOAc/hexane) to give 29 (267 mg, 84%) as a white crystalline solid.
1
Mp 94−96 °C; H NMR (400 MHz, CDCl3) δ 7.32−7.18 (m, 5H),
4.95 (d, 1H, J = 12.2 Hz), 4.85 (d, 1H, J = 12.2 Hz), 4.09 (s, 1H), 3.57
(s, 3H), 3.49 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 193.5, 136.6,
130.2, 128.4, 128.0, 127.8, 119.0, 112.4, 79.8, 74.4, 69.4, 53.4, 52.1; IR
(KBr) 2993, 1780, 1561, 1453, 1121, 1026, 745 cm−1; HRMS (ESI)
calcd for C16H15Br4O4 (M + H), 586.7704; found, 586.7701.
Methyl 2,3,4-Tribromo-5,6-dimethoxybenzoate (32). To a
solution of ketone 29 (2.0 g, 3.39 mmol) in anhydrous toluene (11.9
mL) was added p-toluenesulfonic acid monohydrate (322 mg, 1.69
mmol). The resultant solution was refluxed for 3.5 h and then allowed
to cool to room temperature. The reaction was poured into saturated
aqueous NaHCO3 solution (8 mL) and then extracted with EtOAc (3
