Solid-state structure of a tetrazole-substituted ferrocenium salt with weak intermolecular C-H...N hydrogen bonds

Article abstract of DOI:10.1016/j.ica.2011.11.032

A perchlorate salt of ferrocenylphenyltetrazole has been prepared and characterized crystallographically. In the crystal, tape-like one-dimensional molecular arrangements are formed by weak CH...N intermolecular hydrogen bonds between the tetrazole moieties (H...N distance: 2.49 ). A layer-like structure was formed, composed of neutral layers of phenyltetrazole moieties and ionic layers of ferrocenium moieties and anions.

Full text of DOI:10.1016/j.ica.2011.11.032

Inorganica Chimica Acta 382 (2012) 207–209
Contents lists available at SciVerse ScienceDirect
Inorganica Chimica Acta
journal homepage: www.elsevier.com/locate/ica
Note
Solid-state structure of a tetrazole-substituted ferrocenium salt with weak
intermolecular C–Hꢀ ꢀ ꢀN hydrogen bonds
⇑
Tomoyuki Mochida , Yusuke Funasako
Department of Chemistry, Graduate School of Science, Kobe University, Rokkodai, Nada, Hyogo 657-8501, Japan
a r t i c l e i n f o
a b s t r a c t
Article history:
Received 14 July 2011
Received in revised form 9 November 2011
Accepted 12 November 2011
Available online 19 November 2011
A perchlorate salt of ferrocenylphenyltetrazole has been prepared and characterized crystallographically.
In the crystal, tape-like one-dimensional molecular arrangements are formed by weak CHꢀ ꢀ ꢀN intermo-
lecular hydrogen bonds between the tetrazole moieties (Hꢀ ꢀ ꢀN distance: 2.49 Å). A layer-like structure
was formed, composed of neutral layers of phenyltetrazole moieties and ionic layers of ferrocenium moi-
eties and anions.
Ó 2011 Elsevier B.V. All rights reserved.
Keywords:
Crystal engineering
Ferrocenium salt
Tetrazole
Crystal structure
Weak hydrogen bond
1. Introduction
interactions of ferrocenylazole salts. Ferrocenium salts with conju-
gated heterocyclic substituents are interesting because of their
Crystal engineering of organometallic crystals has attracted
considerable attention in recent years [1]. C–Hꢀ ꢀ ꢀX intermolecular
interactions, where X is an electronegative atom such as oxygen,
nitrogen, and halogens, are regarded as weak hydrogen bonds
[2,3], and their importance in crystal engineering is well recog-
nized [1,4,5]. As part of our continuous investigation into ferro-
cene-based organometallic supramolecular assemblies [6,7], we
have previously prepared tetrazoles and triazoles with ferrocenyl
substituents, and investigated their structures and properties [8].
X-ray crystallography revealed that short intermolecular C–Hꢀ ꢀ ꢀN
contacts are formed between the azole moieties. Ferrocenyl-tetra-
zoles and -triazoles exhibit one-dimensional molecular arrange-
ments via these interactions (Fig. 1). The Hꢀ ꢀ ꢀN distances are
about 2.3 Å and are 0.4 Å shorter than the sum of the van der Waals
radii. Intermolecular C–Hꢀ ꢀ ꢀN contacts have been found in tetra-
zole [9] and related compounds [5], and play an important role
in their crystal architectures. Although heteroaryl ferrocenes form
a variety of organometallic supramolecular complexes when re-
acted with metal salts [10], only a few complexes of ferrocenylaz-
oles have been reported [11], despite the versatile metal
coordination properties of triazole and tetrazole [12].
optical and electronic properties, and several have been character-
ized crystallographically [13]. Here, we report the X-ray crystal
structure of 1, which exhibits weak C–Hꢀ ꢀ ꢀN interactions between
the tetrazole moieties and Coulombic interactions between the
cations and anions. The structure is compared with those of ferr-
ocenyl- and ferrocenylphenyl-azolium salts [14], which have been
prepared as part of our studies on ferrocene-based ionic liquids
[15]. To our knowledge, this is the first example of the structural
characterization of an azole-substituted ferrocenium salt, whereas
there is a report on a carbazole derivative of a ferrocenium salt
[13].
2. Results and discussion
A small amount of the crystalline salt of 1 was produced by the
reaction of ferrocenylphenyltetrazole and Fe(ClO4)2ꢀ6H2O in meth-
anol followed by vapor diffusion of ether. Considering the redox
potential of ferrocenylphenyltetrazole (E1/2 = 0.09 V, versus
+
FeCp2/FeCp2 [8]), Fe(III) species formed by air oxidation might
be acting as an oxidant.
The molecular structure of 1 determined at 100 K is shown in
Fig. 3 and its crystallographic parameters are listed in Table 1. The
average intramolecular Fe–C distance in the ferrocenium moiety
(2.083 Å) corresponds to the value for the ferrocenium cation
(2.095 Å) [16], and is longer than in neutral ferrocenylphenyltetraz-
ole (2.034 Å) [8]. Among the Fe–C bonds, the bond involving the car-
bon connected to the phenylene ring is the longest [2.112(5) Å]. The
In this study, we isolated and determined the crystal structure
of a perchlorate salt of ferrocenylphenyltetrazole, [Fe(C5H5)(C5H4
PhN4CH)](ClO4) (1; Fig. 2), to investigate the intermolecular
⇑
Corresponding author. Tel./fax: +81 78 803 5679.
E-mail address: tmochida@platinum.kobe-u.ac.jp (T. Mochida).
0020-1693/$ - see front matter Ó 2011 Elsevier B.V. All rights reserved.
doi:10.1016/j.ica.2011.11.032

208
T. Mochida, Y. Funasako / Inorganica Chimica Acta 382 (2012) 207–209
Table 1
Crystallographic parameters for 1.
Formula
Formula weight
T (K)
C17H14ClFeN4O4
429.62
100
Crystal system
Space group
a (Å)
b (Å)
c (Å)
monoclinic
P21/c
16.311(5)
8.053(3)
13.118(4)
101.229(4)
1690.0(9)
4
Fig. 1. Schematic illustration of weak C–Hꢀ ꢀ ꢀN hydrogen bonds in azole derivatives
b (°)
(X = CH or N).
V (Å3)
Z
Dcalc (g cmꢁ3
)
1.688
1.084
l
(mmꢁ1
)
Reflections collected
Independent reflections
F(000)
7986
3190
876
Parameters
244
0.0643, 0.1659
0.0918, 0.1883
b
Final R1a, wR2 (I > 2
r)
Final R1a, wR2 (all data)
b

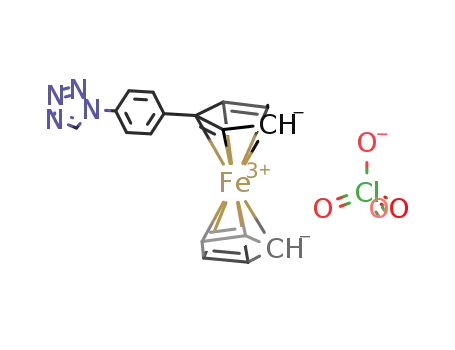

Fig. 2. Chemical diagram of [Fe(C5H5)(C5H4PhN4CH)](ClO4) (1).
a
R1
=
R
||Fo| ꢁ |Fc||/
R|Fo|.
P
P
2
1=2
wR2 ¼ ½ wðF2o ꢁ Fc2Þ= wðF2oÞ ꢂ
.
b
dihedral angles between the Cp–Cp, Cp–phenylene, and phenylene–
tetrazole rings are 1.8(4)°, 14.7(3)°, and 19.7(3)°, respectively. The
Cp rings in the cation adopt a staggered conformation. The bond
lengths in the azole moiety are almost the same as those observed
for ferrocenylphenyltetrazole [8] and N-aryl-tetrazoles [5a,17],
which is consistent with the charge localization in the ferrocenium
moiety.
The packing diagram of 1 projected along the b-axis is shown in
Fig. 4. The ionic moieties and the neutral moieties form layer-like
structures. The perchlorate anions are located between the ferroce-
nium cations, exhibiting a short CCpHꢀ ꢀ ꢀOanion contact [Hꢀ ꢀ ꢀO dis-
tance: 2.365(8) Å]. The cations and anions form ionic layers, in
which p–p interactions exist between the Cp rings of the neighbor-
ing ferrocenium unit. The ionic layers are separated by the neutral
layers of phenyltetrazole moieties. The azole moieties form a tape-
like one-dimensional arrangement via weak C–Hꢀ ꢀ ꢀN hydrogen
bonds (Fig. 5). The molecular arrangement closely resembles those
of ferrocenyl-tetrazole and -triazole (Fig. 1), whereas the arrange-
ment in ferrocenylphenyl-tetrazole and -triazole are somewhat
different [8]. The C–Hꢀ ꢀ ꢀN distance of 2.485(4) Å in 1 is 0.27 Å
shorter than the sum of the van der Waals radii (2.75 Å). The dis-
tance is comparable to those in ferrocenylphenyl-tetrazole and -
triazole (2.5 Å), but longer than those in ferrocenyl-tetrazole and
-triazole (2.3 Å) [8]. The ferrocenylphenyl moieties are arranged
as pendants with respect to the one-dimensional tape structure
of the neutral moieties, and adjacent phenylene-tetrazole moieties
overlap via p–p interactions.
Ferrocenyl- and ferrocenylphenyl-azolium salts also generally
exhibit layer-like structures [14]. The azolium cations and anions
form ionic layers, with the azole hydrogens interacting with the
anion and the ferrocenyl moieties aggregating to form neutral
Fig. 4. Packing diagram of 1 viewed along the b-axis. Hydrogen atoms are omitted
for clarity. C–Hꢀ ꢀ ꢀN contacts are indicated by dashed lines.
layers. Hence, despite the different location of the cation within
the molecules, the azolium salts and 1 have similar structures.
In summary, the importance of weak C–Hꢀ ꢀ ꢀN hydrogen bonds
in the salt of ferrocenylazole has been revealed. This study may
lead to the future construction of magnetic organometallic supra-
molecules involving ferrocenium cations.
3. Experimental
Ferrocenylphenyltetrazole
[4-(4-ferrocenylphenyl)-1H-tetra-
zole] was prepared according to the literature [8]. Other chemicals
were commercially available. Vapor diffusion of ether into a meth-
anol solution of ferrocenylphenyltetrazole and Fe(ClO4)2ꢀ6H2O pro-
duced a small amount of black crystals of 1 together with
Fig. 3. ORTEP drawing of the molecular structure of 1 with the numbering scheme.
Thermal ellipsoids are shown at the probability level of 50%.

T. Mochida, Y. Funasako / Inorganica Chimica Acta 382 (2012) 207–209
209
References
[1] (a) I. Haiduc, F.T. Edelmann, Supramolecular Organometallic Chemistry, Wiley-
VCH, Weinheim, 1999;
(b) J.W. Steed, J.L. Atwood, Supramolecular Chemistry, Wiley
Chichester, 2000;
& Sons,
(c) M. Oh, G.B. Carpenter, D.A. Sweigart, Acc. Chem. Res. 27 (2004) 1;
(d) D. Braga, F. Grepioni, G.R. Desiraju, Chem. Rev. 98 (1998) 1375;
(e) D. Braga, M. Curzi, S.L. Giaffreda, F. Grepioni, L. Maini, A. Pettersen, M.
ˇ
ˇ
Polito, in: P. Štepnicka (Ed.), Ferrocenes: Ligands, Materials and Biomolecules,
John Wiley & Sons Ltd., Chichester, 2008 (Chapter 12).
[2] G.R. Desiraju, T. Steiner, The Weak Hydrogen Bond in Structural Chemistry and
Biology, IUCR Monographs on Crystallography, vol. 9, Oxford University Press,
Oxford, 1999.
[3] (a) R. Taylor, O. Kennard, J. Am. Chem. Soc. 104 (1982) 5063;
(b) R.S. Rowland, R. Taylor, J. Phys. Chem. 100 (1996) 7384.
[4] (a) C.E. Marjo, R. Bishop, D.C. Craig, M.L. Scudder, Eur. J. Org. Chem. (2001) 863;
(b) D. Braga, F. Grepioni, J. Chem. Soc., Dalton Trans. (1999) 1;
(c) Gautam R. Desiraju, J. Chem. Soc., Dalton Trans. (2000) 3745.
[5] (a) A.T. Rizk, C.A. Kilner, M.A. Halcrow, CrystEngComm 7 (2005) 359;
´
(b) M. Pagacz-Kostrzewa, A. Białonska, R. Bronisz, M. Wierzejewska, J. Mol.
Struct. 976 (2010) 431;
(c) C. Foces-Foces, N. Jagerovic, J. Elguero, Acta Crystallogr., Sect. C 56 (2000)
215.
[6] (a) R. Horikoshi, T. Mochida, H. Moriyama, Inorg. Chem. 41 (2002) 3017;
(b) T. Mochida, K. Okazawa, R. Horikoshi, Dalton Trans. (2006) 693;
(c) T. Mochida, F. Shimizu, H. Shimizu, K. Okazawa, F. Sato, D. Kuwahara, J.
Organomet. Chem. 692 (2007) 1834.
[7] (a) R. Horikoshi, C. Nambu, T. Mochida, Inorg. Chem. 42 (2003) 6868;
(b) R. Horikoshi, K. Okazawa, T. Mochida, J. Organomet. Chem. 679 (2005)
1793;
(c) R. Horikoshi, M. Ueda, T. Mochida, New J. Chem. 27 (2003) 933;
(d) R. Horikoshi, C. Nambu, T. Mochida, New J. Chem. 28 (2004) 26.
[8] T. Mochida, H. Shimizu, S. Suzuki, T. Akasaka, J. Organomet. Chem. 691 (2006)
4882.
Fig. 5. Molecular tapes joined by C–Hꢀ ꢀ ꢀN interactions in 1, extending along the b-
axis. Nitrogen atoms are hatched. Intermolecular contacts that are 0.2 Å shorter
than the sum of the van der Waals radii are indicated by dotted lines.
uncharacterizable powders. X-ray diffraction data for 1 was col-
lected on a Bruker SMART APEX II Ultra CCD diffractometer using
[9] R. Goddard, O. Heinemann, C. Krüger, Acta Crystallogr., Sect. C 53 (1997) 590.
[10] R. Horikoshi, T. Mochida, Eur. J. Inorg. Chem. 34 (2010) 5355.
[11] (a) Y. Gao, B. Twamley, J.M. Shreeve, Organometallics 25 (2006) 3364;
(b) Y. Yu, X.-Y. Zhang, J. Hong, H.-B. Song, L.-F. Tang, Transition Met. Chem. 34
(2009) 791;
MoKa radiation (k = 0.71073 Å). Crystal data, data collection
parameters, and analysis statistics for these compounds are listed
in Table 1. All calculations were performed using SHELXL [18]. The
non-hydrogen atoms were refined anisotropically, and hydrogen
atoms were inserted at calculated positions. Empirical absorption
corrections (SADABS) [19] were applied. The packing diagrams were
drawn using ORTEP-3 [20].
(c) T. Sakano, M. Okano, K. Osakada, J. Inorg. Organomet. Polym. 19 (2009) 35;
(d) C.-Y. Shi, X.-L. Zhou, B. Wu, N. Zhu, Z.-S. Weia, Acta Crystallogr., Sect. E 66
(2010) m96.
[12] (a) D.S. Moore, S.D. Robinson, Adv. Inorg. Chem. 32 (1998) 171;
(b) J.G. Haasnoot, Coord. Chem. Rev. 200–202 (2000) 131.
[13] (a) S. Zurcher, J. Petrig, M. Perseghini, V. Gramlich, M. Worle, D.v. Arx, A. Togni,
Helv. Chim. Acta 82 (1999) 1324;
(b) M. Malaun, Z.R. Reeves, R.L. Paul, J.C. Jeffery, J.A. McCleverty, M.D. Ward, I.
Asselberghs, K. Clays, A. Persoons, Chem. Commun. (2001) 49;
(c) B. Neumann, U. Siemeling, H.-G. Stammler, U. Vorfeld, J.G.P. Delis, P.W.N.M.
van Leeuwen, K. Vrieze, J. Fraanje, K. Goubitz, P. Zanello, J. Chem. Soc., Dalton
Trans. (1997) 4705;
Acknowledgments
This work was financially supported by KAKENHI (23110719).
The authors thank M. Tagomori (Toho University) for preparation
of the salt and M. Nakama (Crayonsoft Ltd., Tokyo) for providing
web-based database systems.
(d) X.-C. Wang, Y.-P. Tian, Y.-H. Kan, C.-Y. Zuo, J.-Y. Wu, B.-K. Jin, H.-P. Zhou, J.-
X. Yang, S.-Y. Zhang, X.-T. Tao, M.-H. Jiang, Dalton Trans. (2009) 4096.
[14] (a) T. Mochida, Y. Miura, F. Shimizu, Cryst. Growth Des. 11 (2011) 262;
(b) Y. Miura, F. Shimizu, T. Mochida, Inorg. Chem. 49 (2010) 10032.
[15] (a) T. Inagaki, T. Mochida, Chem. Lett. 39 (2010) 572;
(b) Y. Funasako, T. Mochida, T. Inagaki, T. Sakurai, H. Ohta, K. Furukawa, T.
Nakamura, Chem. Commun. 47 (2011) 4475.
[16] S. Scholz, M. Scheibitz, F. Schödel, M. Bolte, M. Wagner, H.-W. Lerner, Inorg.
Chim. Acta 360 (2007) 3323.
[17] T. Matsunaga, Y. Ohno, Y. Akutsu, M. Arai, M. Tamura, M. Iida, Acta Crystallogr.,
Sect. C 55 (1999) 129.
Appendix A. Supplementary material
CCDC 832625 contains the supplementary crystallographic data
for this paper. These data can be obtained free of charge from The
Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/
data_request/cif.
Supplementary data associated with this article can be found, in
the online version, at doi:10.1016/j.ica.2011.11.032.
[18] G.M. Sheldrick, SADABS: Program for Semi-empirical Absorption Correction,
University of Göttingen, Germany, 1996.
[19] G.M. Sheldrick, Program for the Solution for Crystal Structures, University of
Göttingen, Germany, 1997.
[20] L.J. Farrugia, J. Appl. Crystallogr. 30 (1997) 565.
