Organometallics
Article
113.8 (t, JCP = 7.3 Hz, CH), 129.3−129.4 (m, CH), 129.6 (d, JCP
=
22.1 Hz, C), 131.5 (s, CH), 134.1−134.2 (m, CH), 139.4−139.6
(m, C), 163.2 ppm (dd, JCF = 248, 13.0 Hz, C). 31P NMR (CD2Cl2,
162 MHz): δ 27.5 ppm. 19F NMR (CD2Cl2, 376 MHz): δ −150.63
to −150.62 (m, 3 F, BF4), −150.58 to −150.57 (m, 1 F, BF4), −110.32
to −110.28 ppm (m, 4 F, FAr). HRMS (ESI+): calcd 895.1492
(C51H39F4P2106Pd+), found 895.1498.
(E)-[(η3-1,3-Bis(3,5-difluorophenyl)allyl)Pd(PPh3)2]+TfO− (1b-OTf).
Analogous to 1b-BF4. From 5b-PdCl (186 mg, 0.228 mmol), PPh3
(242 mg, 0.923 mmol), and sodium triflate (393 mg, 2.28 mmol):
205 mg (0.196 mmol, 43%); yellow needles; mp 206.5−208.5 °C
(dec). To obtain crystals suitable for X-ray diffraction analysis, 1b-OTf
was recrystallized from acetone−Et2O.
(E)-[(η3-1,3-Bis(4-(dimethylamino)phenyl)allyl)Pd-
−
(PPh3)2]+BF4 (1c-BF4). Pd(PPh3)4 (871 mg, 0.754 mmol) and 5c-
BF4 (268 mg, 0.732 mmol) were mixed in the solid state followed by
addition of dichloromethane (10 mL). The resulting solution was
stirred for 10 min at rt; then pentane (ca. 50 mL) was added. After 2 h
of cooling (4 °C), the precipitate was filtered, washed with pentane,
and dried in vacuo to yield 1c-BF4: 476 mg (0.477 mmol, 65%); red
1
powder; mp 162.0−164.0 °C (dec). H NMR (CD2Cl2, 400 MHz):
δ 2.91 (s, 12 H, 2 × NMe2), 5.48−5.53 (m, 2 H, ArCHCHCHAr),
3
6.11 (t, JHH = 12.4 Hz, 1 H, ArCHCHCHAr), 6.26−6.28 (m, 4 H,
HAr), 6.71−6.73 (m, 4 H, HAr), 7.00−7.04 (m, 12 H, o-PPh3), 7.13−
7.17 (m, 12 H, m-PPh3), 7.32−7.36 ppm (m, 6 H, p-PPh3). 13C NMR
(CD2Cl2, 101 MHz): δ 40.5 (s, CH3), 98.7 (t, JCP = 11.7 Hz, CH),
101.3 (t, JCP = ca. 6 Hz, CH), 112.4 (s, CH), 122.0 (t, JCP = 4.1 Hz,
C), 129.1−129.2 (m, CH), 130.0 (s, CH), 130.9 (s, CH), 131.2 (d,
JCP = 19.3 Hz, C), 134.0−134.1 (m, CH), 151.4 ppm (s, C). HRMS
(ESI, positive): calcd 909.2713 (C55H53N2P2106Pd+), found 909.2721.
Reaction of 1a-BF4 with Triphenylphosphine (2e). Triphenyl-
phosphine (553 mg, 2.11 mmol) was added to a solution of 1a-BF4
(315 mg, 0.346 mmol) in acetonitrile (10 mL). After 1 h of stirring
(rt), the precipitate was filtered off, and the filtrate was dried in vacuo.
Diethyl ether (50 mL) was added to the solid residue, and the result-
ing slurry was placed in an ultrasonic bath for 20 min. The remaining
solid was filtered and recrystallized from CH2Cl2/Et2O, yielding a 2:1
mixture of (E)-(1,3-diphenylallyl)triphenylphosphonium tetrafluorobo-
rate (6) and (Z)-(1,3-diphenylprop-1-en-1-yl)triphenylphosphonium
tetrafluoroborate (6′). The 1H and 13C NMR spectra of 6′ were
obtained comparing the spectra of the mixture with those of isolated 6.9
Figure 11. Comparison of the electrophilicities of the allylpalladium
complexes 1(a−c) and electron-deficient π-systems of similar
reactivity.22
in dichloromethane (20 mL) using the procedure from ref 23: 3.82 g
(12.7 mmol, 78%); colorless oil. 1H NMR (CDCl3, 599 MHz): δ 5.54
3
3
(d, JHH = 7.7 Hz, 1 H, ArCHCHCH(Cl)Ar), 6.41 (dd, JHH = 15.6,
3
7.7 Hz, 1 H, ArCHCHCH(Cl)Ar), 6.57 (d, JHH = 15.6 Hz, 1 H,
ArCHCHCH(Cl)Ar), 6.71−6.81 (m, 2 H, HAr), 6.89−6.93 (m, 2 H,
HAr), 6.98−7.02 ppm (m, 2 H, HAr). 13C NMR (CDCl3, 151 MHz): δ
61.2 (t, JCF = 2.2 Hz, CH), 103.4 (s, CH), 103.8 (t, JCF = 25.5 Hz,
CH), 103.9 (t, JCF = 2.9 Hz, CH), 104.1 (t, JCF = 25.2 Hz, CH), 109.6
(dd, JCF = 20.3, 5.3 Hz, CH), 110.5 (dd, JCF = 20.8, 5.6 Hz, CH), 138.7
(t, JCF = 9.5 Hz, C), 143.3 (t, JCF = 8.7 Hz, C), 163.0 (dd, JCF = 251,
12.0 Hz, C), 163.2 ppm (dd, JCF = 249, 13.6 Hz, C).
1
3
4
6′: H NMR (CD2Cl2, 400 MHz): δ 3.62 (dd, JHH = 7.5, JHP
=
3.0 Hz, 2 H, CH2), 6.93−7.02 (m, 3 H, CH, HAr), 7.05−7.10 (m,
2 H, HAr, overlapped with HAr of 6), 7.26−7.36 (m, 5 H, HAr over-
lapped with HAr of 6), 7.38−7.45 (m, 7 H, o-PPh3, HAr, overlapped
with HAr of 6), 7.62−7.70 (m, 6 H, m-PPh3, overlapped with m-PPh3
of 6), 7.83−7.88 ppm (m, 3 H, p-PPh3 overlapped with p-PPh3 of 6).
13C NMR (CD2Cl2, 101 MHz): δ 38.0 (d, JCP = 14.4 Hz, CH2), 117.4
(d, JCP = 88.9 Hz, C), 124.5 (d, JCP = 77.9 Hz, C), 127.7 (s, CH),
129.0 (s, CH), 129.6 (s, CH), 130.4 (d, JCP = 2.5 Hz, CH), 130.08−
130.13 (m, overlapped with resonance of 6, CH), 130.7 (m, over-
lapped with resonance of 6, CH), 130.9 (d, JCP = 12 Hz, CH), 131.5
(d, JCP = 9.5 Hz, C), 135.1 (d, JCP = 10.1 Hz, CH), 136.1 (d, JCP = 3.0
Hz, CH), 137.2 (d, JCP = 1.8 Hz, C), 157.4 ppm (d, JCP = 10.1 Hz,
CH). 31P NMR (CD2Cl2, 162 MHz): δ 24.5 ppm.
[Pd(1,3-bis(3,5-difluorophenyl)-π-allyl)(μ-Cl)]2 (5b-PdCl). Pre-
pared from palladium(II) chloride (400 mg, 2.26 mmol), 5b-Cl (2.70 g,
8.98 mmol), and lithium chloride (405 mg, 9.55 mmol) following
the procedure described in ref 24: 834 mg (1.02 mmol, 90%); yellow
1
powder; mp 247.8−249.2 °C (dec). H NMR (DMSO, 400 MHz):
δ 5.20 (d, 3JHH = 11.8 Hz, 4 H, ArCHCHCHAr), 7.09 (t, J = 11.8 Hz,
2 H, ArCHCHCHAr), 7.17−7.34 (m, 4 H, HAr), 7.40−7.64 ppm (m,
8 H, HAr). 13C NMR (DMSO, 101 MHz): δ 80.7 (s, CH), 103.4 (t,
JCF = 26.0 Hz, CH), 109.5 (s, CH), 111.4−111.6 (m, CH), 141.5
(t, JCF = 10.1 Hz, C), 162.7 ppm (dd, JCF = 245.1, 13.5 Hz, C). 19F NMR
(DMSO, 376 MHz): δ −110.7 to −110.4 ppm (m). HRMS (ESI+,
acetonitrile−water as eluents): calcd 453.0201 (C19H15F4N2106Pd+,
[C6H3F2CHCHCHC6H3F2Pd(CH3CN)2]+), found 453.0202.
Isomerization of 6 in the Presence of Pd(PPh3)4. Pd(PPh3)4
(8.4 mg, 7.3 μmol) and 6 (104 mg, 0.192 mmol) were mixed in the
solid state, and acetonitrile (10 mL) was added. After 15 h of stirring
(ambient temperature), the reaction mixture was freed from the
1
solvent, yielding a 4:1 mixture of 6 and 6′ (based on H NMR).
Reaction of 1a-BF4 with Benzylamine (2g) in the Presence of
Triphenylphosphine and Fumaronitrile. A solution containing
benzylamine (151 mg, 1.41 mmol), triphenylphosphine (185 mg,
0.706 mmol), and fumaronitrile (17 mg, 0.22 mmol) in acetonitrile
(5 mL) was added to a solution of 1a-BF4 (199 mg, 0.218 mmol) in
the same solvent (5 mL). After 1 h of stirring (rt), the precipitate was
filtered off and the filtrate was dried in vacuo. (E)-N-Benzyl-1,
3-diphenylprop-2-en-1-amine (7) was found to be the only allylic
product in the crude mixture (1H NMR). Column chromatography
(MPLC, silica gel, isohexane−EtOAc = 93:7, flow rate 25 mL/min)
−

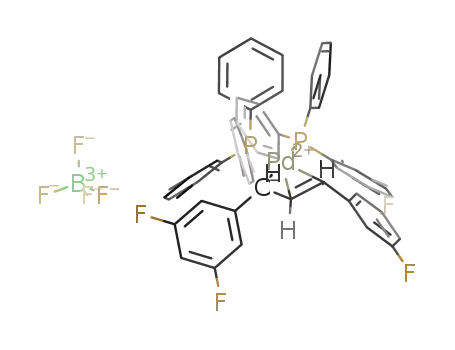

(E)-[(η3-1,3-Bis(3,5-difluorophenyl)allyl)Pd(PPh3)2]+BF4 (1b-BF4).
Synthesized according to ref 17 from 5b-PdCl (420 mg, 0.516 mmol),
triphenylphosphine (542 mg, 2.07 mmol), and NaBF4 (568 mg,
5.17 mmol): 605 mg (0.615 mmol, 60%); yellow powder; mp 170−
1
172 °C (dec). H NMR (CD2Cl2, 400 MHz): δ 5.45−5.51 (m, 2 H,
ArCHCHCHAr), 6.38−6.51 (m, 7 H, ArCHCHCHAr, HAr), 7.11−
7.16 (m, 12 H, o-PPh3), 7.19−7.23 (m, 12 H, m-PPh3), 7.34−7.38
ppm (m, 6 H, p-PPh3). 13C NMR (CD2Cl2, 101 MHz): δ 91.1 (t, JCP
=
15.0 Hz, CH), 103.7 (t, JCF = 25.6 Hz, CH), 111.3−111.9 (m, CH),
2423
dx.doi.org/10.1021/om3000357 | Organometallics 2012, 31, 2416−2424
