Journal of the American Chemical Society
Communication
origin of the underestimation of its energy at the TD-B3LYP/6-
31G* level. The next transition, which has a higher intensity,
deserves a comment, since its energy decreases considerably in

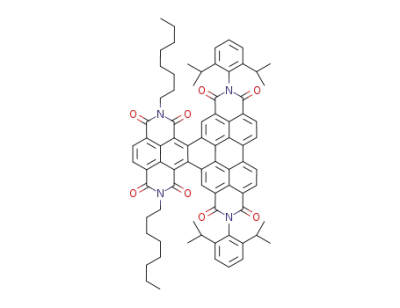

going from 9 (ca. 480 nm) to 10 (ca. 550 nm). This band is
dominated by a π → π* electronic excitation to the LUMO
from an occupied orbital bearing the same parentage for 9 and
10. The occupied π orbital is highly delocalized on the
extended π core (see Figures S7−S8) since it results from PDI
and NDI orbitals that have suitable energy and shape to mix
strongly. Therefore, the energy of this transition decreases
remarkably with the extension of the aromatic core by fusion of
NDI and PDI units.
Figure 4. (left) Output and (right) transfer characteristics of organic
FETs consisting of thin films of hybrid rylene array 10b with a
mobility of 0.25 cm2 V−1 s−1 and an on/off ratio of 107.
The redox properties of these hybrid rylene arrays were
investigated by cyclic voltammetry in dichloromethane (vs Ag/
AgCl). The half-wave reduction potentials of the representative
compounds are −0.63 and −1.11 V for NDI; −0.56 and −0.82
V for PDI; −0.49, −0.64, −0.88, and −1.17 V for singly linked
NDI−PDI 8; −0.19, −0.52, −1.14, and −1.38 V for hybrid
NDI−PDI array 9; and −0.16, −0.35, −0.63, and −0.84 V for
hybrid NDI−PDI−NDI array 10a. The first reduction
potentials of these hybrid rylene arrays are much less negative
than those of parent the NDI and PDI (Table 1), indicating
transformation. The success of π-system extension along the
equatorial axis of rylenes not only leads to a dramatically
broadened absorption spectrum but also increases the electron
affinities to facilitate electron injection and transport with
ambient stability. One of these hybrid rylene arrays exhibits
excellent OTFT characteristics under ambient conditions.
ASSOCIATED CONTENT
■
S
* Supporting Information
Experimental details and characterization data for all new
compounds; absorption spectrum of hybrid rylene array 10c;
cyclic voltammograms of hybrid rylene arrays 8, 9, and 10; and
computational details and additional computational results.
This material is available free of charge via the Internet at
Table 1. Optoelectronic Properties and Energy Levels of
Hybrid Rylene Arrays
a
b
c
d
e
λ1(nm)
E1r (V)
EA (eV)
IP (eV)
Eg (eV)
f
NDI
380
527
532
608
610
614
613
−0.63
−0.56
−0.49
−0.19
−0.16
−0.20
3.90
3.91
3.98
4.24
4.28
4.26
4.35
7.02
6.21
6.19
6.10
6.20
6.16
6.25
3.12
2.30
2.21
1.86
1.92
1.90
1.90
g
PDI
8
AUTHOR INFORMATION
Corresponding Author
■
9
10a
10b
10c
−0.12
Notes
a
b
Peak in the visible region. Half-wave redox potential (in V vs Ag/
The authors declare no competing financial interest.
AgCl) measured in CH2Cl2 at a scan rate of 0.1 V/s with ferrocene as
c
an internal potential marker. Estimated from the onset potential of
d
ACKNOWLEDGMENTS
the first reduction wave. Ionization potential estimated from the EA
■
e
and Eg. Band-gap energy obtained from the edge of the absorption
For financial support of this research, we thank the National
Natural Science Foundation of China (91027043, 21190032,
20721061), the 973 Program (2011CB932301,
2012CB932903), NSFC−DFG Joint Project TRR61, Solvay,
the Chinese Academy of Sciences, the STC Program of the
National Science Foundation (DMR-0120967), and Italian
PRIN 2008, Project JKBBK4.
f
spectrum. NDI: N,N′-di-n-octylnaphthalene-1,2:6,7-tetracarboxylic
g
acid diimide. PDI: N,N′-bis(2,6-diisopropylphenyl)perylene-3,4:9,10-
tetracarboxylic acid diimide.
that they are considerably stronger electron acceptors. The EAs
of these compounds were estimated from the onset potentials
of the first reduction waves; those of the fused arrays are all in
excess of 4.2 eV, meeting the criterion for achieving air-stable
electron transport.3b,4c
REFERENCES
■
(1) (a) Facchetti, A. Mater. Today 2007, 10, 28. (b) Usta, H.;
Facchetti, A.; Marks, T. J. Acc. Chem. Res. 2011, 44, 501.
Thin films of the hybrid rylene array 10b with thicknesses of
40−60 nm were spin-coated from a chloroform solution onto
octadecyltrichlorosilane-treated SiO2/Si substrates. Gold elec-
trodes with width/length of 1 mm/0.05 mm were applied on
the organic thin films through a shadow mask, affording a
bottom-gate top-contact device configuration. All devices were
tested under ambient conditions. The unannealed thin-film
devices showed a moderate electron mobility of 0.02 cm2 V−1
s−1. Thermal annealing of the thin films led to a substantial
improvement in the device performance. The highest electron
mobility (0.25 cm2 V−1 s−1) was achieved after annealing at 220
°C and was accompanied by a high current on/off ratio of 107
(Figure 4).
(2) For recent reviews, see: (a) Wurthner, F.; Stolte, M. Chem.
̈
Commun. 2011, 47, 5109. (b) Huang, C.; Barlow, S.; Marder, S. R. J.
Org. Chem. 2011, 76, 2386. (c) Weil, T.; Vosch, T.; Hofkens, J.;
Peneva, K.; Mullen, K. Angew. Chem., Int. Ed. 2010, 49, 9068.
̈
(3) (a) Jones, B. A.; Ahrens, M. J.; Yoon, M.-H.; Facchetti, A.; Marks,
T. J.; Wasielewski, M. R. Angew. Chem., Int. Ed. 2004, 43, 6363.
(b) Gsanger, M.; Oh, J. H.; Konemann, M.; Hoffken, H. W.; Krause,
̈
̈
̈
A.-M. ; Bao, Z.; Wurthner, F. Angew. Chem., Int. Ed. 2010, 49, 740.
̈
(c) Schmidt, R.; Oh, J. H.; Sun, Y.-S.; Deppisch, M.; Krause, A.-M. ;
Radacki, K.; Braunschweig, H.; Konemann, M.; Erk, P.; Bao, Z.;
̈
Wurthner, F. J. Am. Chem. Soc. 2009, 131, 6215.
̈
(4) (a) Guo, X.; Watson, M. D. Org. Lett. 2008, 10, 5333. (b) Yan,
H.; Chen, Z.; Zheng, Y.; Newman, C.; Quinn, J. R.; Dotz, F.; Kastler,
̈
M. Nature 2009, 457, 679. (c) Jones, B. A.; Facchetti, A.; Wasielewski,
M. R.; Marks, T. J. J. Am. Chem. Soc. 2007, 129, 15259. (d) Katz, H. E.;
Lovinger, A. J.; Johnson, J.; Kloc, C.; Siegrist, T.; Li, W.; Lin, Y.-Y.;
In summary, a new family of hybrid rylene arrays has been
prepared via a combination of Stille coupling and C−H
5772
dx.doi.org/10.1021/ja301184r | J. Am. Chem. Soc. 2012, 134, 5770−5773
