Phosphane Ligands with Enaminoketone Scaffold and their Palladium
Complexes
Michael Schmidt[a] and Jürgen Heck*[a]
Dedicated to Professor Ulrich Zenneck on the Occasion of His 65th Birthday
Keywords: Crystal structures; Palladium; Dichloridopalladium(II) complexes; Phosphorus; Phosphane ligands
Abstract. The reaction of (Z)-4-aminopent-3-en-2-one with different larged and allows more flexibility. The reaction between (Z)-4-(2Ј-
chlorodiorganylphosphanes established three new ligands composed of
a hard and soft coordination site. The soft phosphane site is easily revealed two new ligands that coordinate to palladium(II). With phenyl
coordinated to palladium(II) as a first step in the potential formation substituents at the phosphorus atom a cis palladium complex was ob-
of heterodinuclear complexes. Surprisingly, the formed square-planar tained, whereas for isopropyl substituents a trans complex was formed.
dichloridopalladium(II) complexes exhibit exclusively trans configura- Molecular structures of all complexes were analyzed by single-crystal
hydroxyethylamino)pent-3-en-2-one and chlorodiorganylphosphanes
tion. A cis configurated palladium(II) complex can be formed, when X-ray diffraction.
the linker between the phosphane and the enaminoketone unit is en-
nation of corresponding hard and soft metal atoms in one com-
Introduction
plex. As the soft metal atoms should be a group 10 element,
the coordination could be performed by soft phosphorus donor
atoms. The hard metal atom should be coordinated by a deriva-
tive of a hard acetylacetonato ligand. For complexes with only
one hard and one soft metal we needed a cis configuration,
while a trans configuration could only be used for a tri- or
oligonuclear species. We chose for a ligand combining a phos-
phane and a ketoiminato ligand via a direct bond between ni-
Metal complexes are necessary for a plethora of different
reactions. In special cases the application of only one metal is
not sufficient. Like, for example, in Wacker process, where
palladium is used as the catalyst metal in the formation of
acetaldehyde from ethylene, and copper(II) ions are needed for
the reoxidation of palladium(0) to palladium(II).[1] It has even
been demonstrated that some catalytic reactions can only be
carried out with two different metal atoms combined in a sin-
gle molecule.[2–5] Heterodinuclear complexes are also applied
as functional models in bioinorganic chemistry for the metal
reaction sites and therefore used as bio-mimics.[6,7] Heterodi-
nuclear complexes, bearing unpaired electrons, exhibit electron
exchange interactions between the two metal centers and can
display peculiar magnetic properties.[8–12] The electronic influ-
ence of a second metal has nicely been demonstrated in dif-
ferent electrochemical studies.[13–17] Finally, the complexation
of different metals is also an interesting topic in supramolec-
ular chemistry.[18]
trogen and phosphorus. The reaction of (Z)-4-aminopent-3-en-
[19]
2-one (1)
with chlorodiphenylphosphane or chlorodialkyl-
phosphane afforded the desired ligand (Scheme 1).

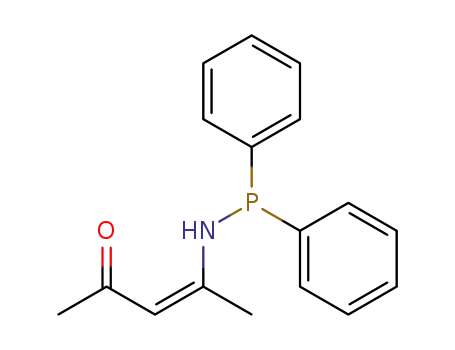

Scheme 1. Synthesis of (Z)-4-(diorganylphosphanylamino)pent-3-en-
2-one.
Results and Discussion
The synthesis of the ligands 2–4 revealed low to moderate
yields due to the formation of by-products, in particular for 2.
Some of them could be characterized by 31P NMR spec-
troscopy and were compared with literature data. The iden-
tified by-products are tetraphenyldiphosphane[20] and tet-
raphenyldiphosphane monoxide.[21] 1H NMR spectra of the de-
sired ligands are similar. Coupling of the phosphorus nucleus
with the proton bonded to the nitrogen atom could hardly be
observed because of a broadening of the signal. All ligands
Our approach to novel heterodinuclear complexes was to
design ligands with hard and soft binding sites for the coordi-
* Prof. Dr. J. Heck
Fax: +49 40-42838-6945
E-Mail: juergen.heck@chemie.uni-hamburg.de
[a] Department of Chemistry
Institute of Inorganic and Applied Chemistry
University of Hamburg
Martin-Luther-King-Platz 6
20146 Hamburg, Germany
Z. Anorg. Allg. Chem. 2012, 638, (7-8), 1151–1158
© 2012 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim
1151

M. Schmidt, J. Heck
ARTICLE
demonstrate a coupling between phosphorus and the protons an increased broadening of the signal. However, in compound
in the enaminoketone scaffold except for the distal methyl
group next to the carbonyl function. In contrast to the starting
material 1 the methyl group next to the C–N bond was always
shifted more downfield than the methyl group next to the carb-
onyl function. A different influence of the substituents of the
phosphanyl groups can only be observed in the shift of the
proton bonded to the nitrogen atom. Whereas the signal of the
N–H proton for 2 is found above 11 ppm, the resonance signal
of the corresponding protons of the alkyl derivates 3 and 4
appear below this value. Chemical shifts in 31P NMR spec-
troscopy for compounds 2–4 fall in the range of 26.9 to 52.9
ppm and are shifted to higher field compared to amino phos-
phanes like 1,2-bis{(diphenylphosphino)amino}ethane (63.7
ppm) or 1,2-bis{(diphenylphosphino)amino}benzene (93.4
ppm).[22]
7 a 1:2:1 triplet pattern on each signal of a septet could be
observed for the methine protons of the isopropyl groups. 13C
NMR spectra of 6, 7 and 9 display a 1:2:1 pattern for the carbon
atom bonded to the phosphorus atom.
The trans configuration is in agreement with the data re-
corded from far infrared spectroscopy. For all complexes 6, 7
and 9 only a single absorption band is observed for the palla-
dium-chlorine stretching vibration at about 360 cm–1.
Compound 6 could only be isolated with a small amount
(less than 3%) of a second palladium complex as byproduct.
The impurity appeared as an AB spin system in the 31P NMR
spectrum. It is probably an analogue palladium complex in
trans configuration with two different phosphorus containing
ligands. One signal center has the same shift as the signal cor-
responding to 6. Therefore, one ligand could be 2 while the
other is still unknown and further investigations were needed
to identify this compound.
First attempts to crystallize 6 afforded small amounts of
[{Pd(μ-Cl)(PPh2O)(PPh2OH)}2].[27] Formation of this com-
pound is explained by a hydrolysis of 6 with traces of water
in dichloromethane during crystallization. Therefore, all syn-
thesized palladium complexes should be taken as sensitive to
water.
The coordination of palladium(II) was carried out by reac-
tion of these ligands with suitable palladium precursors like
bis(benzonitrile)dichloridopalladium(II)
(5)[23]
or
dichlorido(η4-cyclooctadiene)palladium(II) (8)[24] (Scheme 2).
The reactions reveal square-planar, exclusively P-coordinated
palladium complexes in trans configuration.
A palladium complex with a cis configuration, which is nec-
essary for the coordination of a second metal atom next to the
first needed a different ligand design. To reduce the Tolman
cone angle a phosphonite ligand was considered, which con-
tains a longer spacer between the nitrogen function of the en-
aminoketone unit and the phosphorus atoms. With this type of
ligand it is also expected to improve the stability of the com-
plexes against hydrolysis. The synthesis of the new phos-
phonite ligands was achieved by an ethoxy bridge between
nitrogen and phosphorus of the previous ligand design. An ad-
ditional benefit would be an increased flexibility for a second
coordination. Compound 11 and 12 were obtained by reaction
of (Z)-4-(2Ј-hydroxyethylamino)pent-3-en-2-one (10)[28] with
chlorodiphenylphosphane and chlorodiisopropylphosphane,
respectively (Scheme 3).
Scheme 2. Synthesis of trans dichloridopalladium(II) complexes with
the ligands 2–4. *Not isolated in pure form.
1H NMR spectroscopic characterization of 11 and 12
showed only minor deviations of the proton shifts in the en-
aminoketone scaffold relative to 10. The proton signals of the
ethoxy bridge were slightly shifted downfield in both com-
pounds. The phenyl groups of 11 exhibit a stronger influence
than the isopropyl groups of 12.
A different purification method was used for these two li-
gands. While a chromatography on silica gel was successful
for 11, this method resulted in a complete decomposition of
12. Finally, 12 could only be obtained by vacuum distillation,
however, the product was still contaminated with a minimum
of a by-product (approx. 8%). Nevertheless, the product was
in sufficient quality for the coordination of palladium(II).
The formation of the palladium complex from 11 was car-
ried out under the same condition mentioned above. The reac-
tion afforded, on the contrary to 6, the expected palladium
The crystal system for all three crystalline palladium com-
plexes is monoclinic with the space group C2/c for compound
6 and 7 while 9 crystallizes in space group P21/c (Table 1).
The structure determination by means of single-crystal X-ray
diffraction verifies the trans configuration of the complexes
(Figure 1). Steric effects of the ligands like a large Tolman
cone angle[25] seem to be the reason for the formation of exclu-
sively trans palladium complexes.[26] Compounds 6 and 9 ex-
hibit dihedral angles between Cl–Pd–P–N of about 61° and
55°, respectively, whereas the bulky isopropyl groups in 7 re-
sult in a corresponding angle of 36°.
The square-planar trans configurated dichloridopalladium(II)
1
complexes 6, 7 and 9 are also characterized by H NMR spec-
troscopy. The coupling pattern for the proton of 6, which is
bonded to the nitrogen atom, resulted in a spin system of higher
order, which looked like a broadened 1:2:1 triplet. The coupling
pattern of this proton for 7 und 9 could not be verified due to complex 13 in cis configuration (Scheme 4).
