Table 1. Optimisation of cross-coupling reaction.
phosphine ligand had a dramatic effect on the reaction yield
with palladium dibromide and bis-tert-butylmethyl phos-
phine proving optimal to effect the transformation. In 2007,
the Fu laboratory disclosed the cross-coupling of fluorinated
aromatic silanes with activated and unactivated secondary
alkyl halides by using a nickel–norephedrine catalytic sys-
tem.[9c] In addition, Fu and colleagues later described a very
elegant asymmetric cross-coupling of alkoxysilanes with rac-
emic a-bromo esters, using a chiral nickel–diamine catalytic
complex.[10] To expand the scope of existing cross-coupling
methodology to incorporate a wider variety of sp3 substrates,
we sought to develop a protocol for the efficient, regio- and
stereoselective Hiyama type cross-coupling of vinyldisilox-
anes with benzylic and allylic alkyl halides.
An on-going area of interest within our research group is
the use of disiloxanes as masked silanols in cross-coupling
reactions.[12] Disiloxanes have been shown to exist in equilib-
rium with silanolate species when activated, and we have
harnessed this phenomenon for the development of both
fluoride-activated and fluoride-free cross-coupling reactions
between a variety of aromatic- and vinyldisiloxanes with
aryl and heteroaryl halides.[12] In a detailed mechanistic
study of the fluoride-activated reaction between silanols or
their masked equivalents with aromatic halides, Denmark
demonstrated that regardless of the organosilicon starting
material, the species that participates in the transmetalation
step is thought to be a fluoride-activated disiloxane.[13]
Unlike silanols and silanolates, disiloxanes display enhanced
stability, present good levels of functional-group tolerance
and, therefore, offer significant advantages over other orga-
nosilane coupling agents in the context of multistep synthe-
sis.[12a,14]
Catalyst
PdCl2A(MeCN)2
(PPh3)4
(OAc)2
TBAF [equiv]
Yield[a,b] [%]
1
2
3
4
5
6
7
8
9
U
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
1.0
0.2
52
15
76
19
19
82
77
83
68
19
Pd
Pd
ACHTUNGTRENNUNG
ACHTUNGTRENNUNG
PdCl2
Pd
Pd
Pd
ACHTUNGTRENNUNG
CHTUNGTRENNUNG
ACHTUNGTRENNUNG
[allylPdCl]2
[allylPdCl]2
[allylPdCl]2
10
[a] Reactions were performed by using disiloxane (1.0 equiv) and alkyl
halide (1.5 equiv). [b] Isolated yield after column chromatography.
pound 2 was formed in 83% yield as a single isomer
(Table 1, entry 8). The reactions were performed by using
1.0 equivalent of vinyldisiloxane and 1.5 equivalents of
halide. Since both vinyl groups in a single disiloxane mole-
cule are transferred, this corresponds so a slight excess of
disiloxane, which ensures the reaction goes to completion.
Next, we focused on determining whether other benzylic
halides and indeed halide equivalents could be effectively
cross-coupled by using the same conditions. Fortunately, in
addition to bromide substrates, benzylic chlorides, tosylates
and mesylates underwent clean conversion to the corre-
sponding product 2, all in good yield (Table 2, entries 1–3).
To determine the scope of the reaction, vinyldisiloxane
1 was reacted with a number of commercially available ben-
zylic halides (Table 2). Gratifyingly, the electronic nature of
the halide substrate did not significantly affect the outcome
of the reaction: electron rich (Table 2, entry 8), neutral
(Table 2, entry 1) and deficient (Table 2, entry 6) benzylic
halides underwent facile conversion to their corresponding
products all in good yield. In general, yields were higher for
meta- and para-substituted benzylic halides (Table 2, en-
tries 7 and 8) than more sterically hindered ortho-substituted
substrates (Table 2, entries 4 and 9). The reaction was also
successfully carried out with heteroaromatic substrates
(Table 2, entries 10 and 11), which demonstrated the poten-
tial applicability of this reaction for the synthesis of natural
products or pharmaceuticals. Pleasingly, a wide variety of
functional groups were tolerated. Entry 9 from Table 2 dem-
onstrated the selectivity profile of the reaction, in which no
cross-coupling was observed between the sp2 halide and the
disiloxane. In addition, the secondary halide, benzhydryl
chloride, was effectively cross-coupled in excellent yield, al-
though the more sterically demanding trityl chloride proved
beyond the orbit of this methodology. Unfortunately, the
methodology could not be extended to the cross-coupling of
benzylic halides containing beta hydrogens, for example, 1-
bromo-1-phenyl ethane.
Results and Discussion

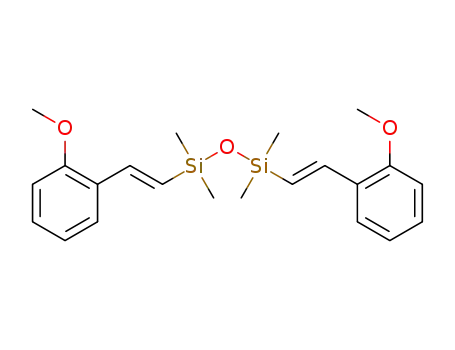

Our study began with the reaction between vinyldisiloxane
1 (which can be easily synthesized through the hydosilyla-
tion of para-ethynylanisole)[12a] and benzyl bromide in the
presence of a range of palladium catalysts (Table 1) and
a source of fluoride to activate the disiloxane species. A
wide variety of palladium catalysts proved effective at cata-
lysing the reaction to some degree with [Pd2ACTHNUGTRNE(UNG dba)3] and [al-
lylPdCl]2 (APC) proving optimal (Table 1, entries 6 and 8).
The activation of the disiloxane species was accomplished
by using Lewis base catalysis. Several bases were investigat-
ed including KOtBu in tBuOH, but tetrabutylammonium
fluoride (TBAF) proved most effective. Highest yields were
obtained when 3.0 equivalents of TBAF were used.
The effect of temperature on the reaction was also stud-
ied. No appreciable difference was observed in yield when
the reaction was performed at 08C or at room temperature,
but significantly lower temperatures did result in a decrease
in yield. The optimum concentration for the reaction was
determined to be 0.5m.
By using our optimized reaction conditions (TBAF,
3.0 equiv; APC, 5 mol%, 0.5m; 4 h; RT), the desired com-
&
2
&
