Synthesis of isoniazid-substituted tetraphenylethylene stereoisomers with dramatic differences on aggregate morphologies, optical and mechanocharomic properties

Article abstract of DOI:10.1016/j.jphotochem.2020.112357

Stereoisomers play an irreplaceable prominent role in life sciences. In molecular engineering, the isomers have been continuously designed and synthesized, and their interrelationships among structure-property-function have also been explored. However, th

Full text of DOI:10.1016/j.jphotochem.2020.112357

Journal Pre-proof
Synthesis of isoniazid-substituted tetraphenylethylene stereoisomers with
dramatic differences on aggregate morphologies, optical and
mechanocharomic properties
Zhixiang Lu, Shuhan Lu, Yi Cheng, Yu Qin, Shaoxiong Yang,
Xiaolan Liu, Wenwen Fan, Liyan Zheng, Hongbin Zhang
PII:
S1010-6030(19)31910-0
DOI:
https://doi.org/10.1016/j.jphotochem.2020.112357
JPC 112357
Reference:
To appear in:
Journal of Photochemistry & Photobiology, A: Chemistry
Received Date:
Revised Date:
Accepted Date:
8 November 2019
24 December 2019
5 January 2020
Please cite this article as: Lu Z, Lu S, Cheng Y, Qin Y, Yang S, Liu X, Fan W, Zheng L, Zhang
H, Synthesis of isoniazid-substituted tetraphenylethylene stereoisomers with dramatic
differences on aggregate morphologies, optical and mechanocharomic properties, Journal of
Photochemistry and amp; Photobiology, A: Chemistry (2020),
doi: https://doi.org/10.1016/j.jphotochem.2020.112357
This is a PDF file of an article that has undergone enhancements after acceptance, such as
the addition of a cover page and metadata, and formatting for readability, but it is not yet the
definitive version of record. This version will undergo additional copyediting, typesetting and
review before it is published in its final form, but we are providing this version to give early
visibility of the article. Please note that, during the production process, errors may be
discovered which could affect the content, and all legal disclaimers that apply to the journal
pertain.
© 2019 Published by Elsevier.

Synthesis of isoniazid-substituted tetraphenylethylene stereoisomers with
dramatic differences on aggregate morphologies, optical and mechanocharomic
properties
Zhixiang Lu, Shuhan Lu, Yi Cheng, Yu Qin, Shaoxiong Yang, Xiaolan Liu, Wenwen
Fan, Liyan Zheng *and Hongbin Zhang*
Key Laboratory of Medicinal Chemistry for Natural Resource (Yunnan University),
Ministry of Education, Functional Molecules Analysis and Biotransformation key
laboratory of Universities in Yunnan Province, School of Chemical Science and
Technology, Yunnan University, Kunming, Yunnan 650091, China
*Corresponding author: Liyan Zheng *and Hongbin Zhang*
E-mail address: zhengliyan@ynu.edu.cn (L. Zheng), zhanghb@ynu.edu.cn
Graphical abstract

Highlights
•
The pure E/Z isomers isoniazid-substituted TPE derivatives with high yields
was synthesized and the structure was confirmed by single crystal, mass
spectrometry and NMR spectroscopy.
 • The structure-property relationships of these molecules have been
systematically investigated by the combining the spectroscopic methods,
theoretical calculations and single crystal data analysis.
 •The E/Z isomers possessed dramatic differences in fluorescent properties and
distinct aggregate self-assembly morphologies, they exhibited diverse changes
in response to stimuli. Meanwhile, they can be used as efficient fluorescent
probes for the detection of copper in the environment.
Abstract
Stereoisomers play an irreplaceable prominent role in life sciences. In molecular
engineering, the isomers have been continuously designed and synthesized, and their
interrelationships among structure-property-function have also been explored.
However, the difficulties in purification and structural confirmation of
tetraphenylethene (TPE) derivatives' stereoisomers hinder their structural diversity and

scope of functions. Meanwhile, there were few researches on the macroscopic optical
differences about TPE derivatives isomers. Herein, isoniazid-substituted TPE
derivatives stereoisomers have been synthesized, as confirmed by single crystal data,
mass spectrometry and NMR spectroscopy. The different photophysical properties
were caused by the introduction of functional group isoniazid on the periphery of TPE.
These isomers possessed dramatic differences in fluorescent properties, and exhibited
diverse changes in response to stimuli. They also have distinct aggregated self-
assembly morphologies because of different intermolecular hydrogen bonding, and
they can be used as efficient fluorescent probes for detecting copper. Based on the
coordination-driven sensing system, the morphologies of isomers aggregates changed
significantly after interaction with copper, and the stoichiometry between them is 2:1.
The theoretical calculation demonstrated that they have obvious intramolecular charge
transfer behavior. Our research provided a good strategy for designing different
substituted groups that can produce various functions and have more potential
applications.
Key words
Aggregation induced emission, Optical difference, Self-assembly morphologies,
Mechanochromism, Fluorescent probe.
1. Introduction

Molecular research plays a crucial role in the creation of new functional materials,
from design to investigation of their performance, behavior and interrelationships [1-
4]. Researchers have modified multitudinous molecular structures with TPE core to
construct functional applications in chemical sensing, bioimaging, optical materials and
biomedical therapies and so on [5-8]. Modifying and controlling the spatial
configuration of a molecule is an efficient strategy for adjusting the macroscopic
properties [9-11]. Isomers have the same molecular formula but different geometric
configurations in space, which play a vital role in current life and materials science [12-
13]. For example, the E-isomer of entacapone can be used as a new generation COMT
(catechol-oxygen-methyltransferase) inhibitor for the treatment of Parkinson's disease,
while the Z-isomer has no effect for therapy [14]. Therefore, designing new
stereoisomers and elucidating their structure-property-function relationships are worthy
in molecular engineering. The exploration of E/Z isomers is of great significance and
application value in understanding the working mechanism of various new molecules
and materials [15-17].
Since the aggregation induced emission(AIE) phenomenon was first reported in
2001 [18], it has rapidly become hot research topics of molecular materials. What’s
more, TPE and its derivatives are a class of typical fluorescent molecules with
outstanding AIE characteristic. TPE has the advantages of easy modification,
meanwhile it possesses high-efficiency optical properties. To date, multiple functional
group-substituted TPE derivatives have been applied to bioimaging, optoelectronic
devices, biosensing and therapeutic applications [19-23]. Designing and developing

new AIE molecules based on TPE and expanding their scope of applications are
important development directions of AIE research.
Nowadays, the stereoisomers of TPE and its derivatives can be obtained by the
McMurry unsymmetrical coupling reaction [24-25]. In the present research reports,
macroscopic differences in optical properties of pure isomers were scarce. Tang et al.
have successfully synthesized pure isomers of ureidopyrimidinone-functionalized
tetraphenylethenes ((Z)-TPE-UPy and (E)-TPE-UPy), which they showed distinct
fluorescence in the aggregate state and different self-assembly behaviours [26]. The
apparently different stereoisomers of TPE derivatives were currently rare, which were
invaluable.
As is well-known, luminescent stimuli-responsive materials are extensively applied
in sensing, photoelectric device devices, drug release and optical recording because of
their unique performance [27-30]. Mechanochromic materials as stimuli-responsive
luminescent material that can change their fluorescence emission colors or intensity
exposed to appropriate external force stimulus such as grinding, shearing, pressing or
crushing [31-33]. In general, mechanical forces can destroy the pristine packing of
molecules, including phase transitions from the crystalline state to the amorphous state,
or transition from one crystal stage to another one, and change intermolecular
interactions or molecular structures, which resulting in mechanochromism [34-35]. The
specifically distinct isomers possess mechanochromic property will induce different
color change or intensity response, which must attract more attention.

The presence of intramolecular hydrogen bonding causes the molecules to
accumulate in different pattern or the rotation of the bond, so the photophysical
properties will be also very various [36-37]. Isoniazid contains rich heteroatoms, which
has large electronegativity and small radius. Intramolecular interactions will be formed
when it was designed as functional molecules. At the same time, the N atoms on
isoniazid provide the possibility of coordination with metals [38-39].
Here, the isoniazid group was modified on the TPE core unit by covalent connection,
and the E/Z isomers (TPE-INH-E and TPE-INH-Z) were identified by single crystal X-
ray diffraction, 2D COSY NMR and 2D ROESY NMR. The stereoisomer displayed
markedly differences in optical properties. This dramatic difference was rare between
the E/Z isomers of TPE derivatives. Intermolecular hydrogen bonding interaction
promotes the formation of different polymers in the aggregated state of TPE-INH-E
and TPE-INH-Z. These two isomers have different response to mechanochromic
phenomenon and intramolecular charge transfer behaviors. In addition, TPE-INH
emitted strong fluorescence in the aggregate state, which can be applied to the detection
of Cu2+ in aqueous solution.
2. Experimental section
2.1 Materials
4-Methylbenzophenone, Titanium tetrachloride, Anhydrous tetrahydrofuran,
NBromosuccinimide(NBS), Dibenzoyl peroxide (BPO) were purchased from Aladdin.
Anhydrous tetrahydrofuran (THF), silver trifluoroacetate and sodium acetate were

purchased from Energy Chemical. All other reagents were of analytical grade and used
as received. Ultrapure water was prepared using a Milli-Q water purification system.
2.2 Apparatus
The NMR spectra were recorded using a AVANCEDRX600 NMR spectrometer
(Bruker, Germany) operated at 600 MHz. High resolution mass spectrometry was
measured by Agilent 6540 Q-TOF mass spectrometer. The crystallographic data
collection was performed on a Bruker SMART APEX-II CCD area detector using
graphitemonochromated Mo-Kα radiation (λ = 0.71073 Å). The data reduction and
integration and global unit cell refinements were performed using the INTEGRATE
program of the APEX2 software package. Semiempirical absorption corrections were
applied using the SCALE program for the area detector. Fluorescence spectra were
performed on a Hitachi High-Technologies Corporation Tokyo Japan 512-0004 model
F-7000 FL spectrofluorometer. UV-Vis absorption was characterized using a
UV/Vis/NIR spectrophotometer (Shimadzu, Japan). The Fourier transform infrared
(FT-IR) spectra were obtained on a FT-IR spectrophotometer (Thermo Nicolet 365).
X-ray powder diffraction patterns were taken using a D/max-TTR III X-ray
diffractometer (Rigaku, Japan) with a scan speed of 0.1 s per step and a step size of
0.01°.
2.3 Synthesis
2.3.1 Synthesis of compound 1 1,2-bis-(4-methylphenyl)-1,2-diphenylethene

1,2-bis-(4-methylphenyl)-1,2-diphenylethene was synthesized referred to the
previous reported. Zinc powder (1.0 g, 15.3 mmol) was added into a 100 mL double-
neck flask. 15 mL anhydrous THF was added under an N2 atmosphere, which cooled to
−5 °C, and then TiCl4 (1.1 mL, 10 mmol) and pyridine (0.05 mL, 0.6 mmol) were added
dropwise. The mixture was refluxed at 75 °C for 2 hours, then 20 mL THF solution of
4-methylbenzophenone (1.0 g, 5 mmol) was added. The solution was further refluxed
at 75 °C for 12 hours. Upon completion of the reaction, the solution cooled to room
temperature and 40 mL 30 % water solution of K2CO3 was poured into it, which was
stirred strongly for 5 minutes and then filtered. The filtrate was extracted with ethyl
acetate, washed with water and brine successively, and dried with Na2SO4. A white
solid was obtained by rotary evaporation, and purified by column chromatography
(silica gel, petroleum ether) to result in a white product 1 (Yield, 85 %). The 1H NMR
13
and C NMR spectrum of product 1 (400 MHz, CDCl3, 25 °C), δ (TMS, ppm) were
1
showed in Figure S1 and S2, respectively. H NMR: 7.105-7.016(10 H, m), 6.928-
6.905(8 H, m), 2.276(3 H, s), 2.258(3 H, s);13C NMR: 144.528, 141.294, 140.766,
136.270, 131.738, 131.704, 131.599, 131.545, 128.759, 128.701, 127.974, 127.916,
126.560, 21.580, 21.538. High resolution mass spectrometry of product 1 is showed in
[
Figure S3, (m/z): calculated for C28H24 M+Na]+ 383.1770, found 383.1771.

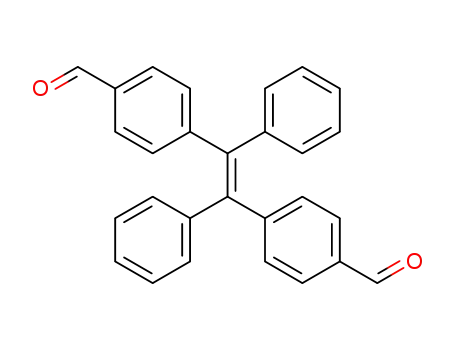

2.3.2 Synthesis of (E)-4,4'-(1,2-diphenylethene-1,2-diyl)dibenzaldehyde and (Z)-4,4'-
(1,2-diphenylethene-1,2-diyl)dibenzaldehyde
1,2-bis-(4-methylphenyl)-1,2-diphenylethene 720 mg (2 mmol) obtained in the
previous step was added into a 100 mL round bottom flask, and then NBS (700 mg, 4

mmol), BPO (32 mg, 0.125 mmol) and CCl4 (30 mL) were added. Under an N2
atmosphere, the mixture was reacted at 80 °C for 2 hours. Then, NBS (700 mg, 4 mmol)
and BPO (32 mg, 0.125 mmol) were added into the mixture every two hours for twice.
After 24 hours, the mixture was filtered, and the solid was washed with ethyl acetate.
The filtrate was concentrated by rotating evaporation. Next, the yellow solid (1.5 g),
sodium acetate trihydrate (750 mg, 9 mmol), silver trifluoroacetate (2.0 mg, 10 mmol),
THF (25 ml) and H2O (5 ml) were placed in a 100 mL round bottom flask. The mixture
was further refluxed at 75 °C for 24 hours, the solution was cooled to room temperature
and filtered. The filtrate was extracted with ethyl acetate, washed with water and brine
successively, and dried with Na2SO4. A light yellow viscous liquid was obtained by
rotary evaporation, and purified by column chromatography (silica gel, petroleum
ether/ ethyl acetate=20:1) to result in a yellow-green product (TPE-2CHO-E and TPE-
1
13
2CHO-Z, yields were 15 % and 10 %). The H NMR and C NMR spectra of TPE-
2CHO-E (600 MHz, DMSO-d6, 25 °C) were showed in Figure S4 and S5, respectively.
1H NMR: 9.886 (2 H, s), 7.686 (4 H, d, J = 8.4 Hz), 7.208 (4 H, d, J = 8.4 Hz), 7.183-
7.152 (6 H, m), 7.006 (4 H, d, J = 8.4 Hz); 13C NMR: 192.549, 149.079, 141.892,
141.291, 134.425, 131.334, 130.652, 129.071, 128.206, 127.341. HRMS(ESI)
calculated for C28H20O2 [M+H]+ 389.1536, found 389.1537, as shown in Figure S6. The
1H NMR and 13C NMR spectrum of TPE-2CHO-Z (600 MHz, DMSO-d6, 25 °C) were
showed in Figure S7 and S8, respectively. 1H NMR: 9.895 (2 H, s), 7.699 (4 H, d, J =
8.4 Hz), 7.226 (4 H, d, J = 7.8 Hz), 7.177-7.153(6 H, m), 7.012 (4 H, d, J = 5.4 Hz) ;13C
NMR: 192.391, 148.861, 141.923, 141.140, 134.435, 131.320, 130.492, 129.081,

127.972, 127.087. HRMS(ESI) calculated for C28H20O2 [M+H]+ 389.1536, found
389.1535, as shown in Figure S9.
2.3.3 Synthesis of TPE-INH
TPE-2CHO-E (40 mg, 0.1 mmol) and TPE-2CHO-Z (40 mg, 0.1 mmol) were
severally added to 10 mL round bottom flasks, followed by isoniazid (42 mg, 0.3
mmol), and methanol (2 mL) as a solvent, refluxing at 75 ° C for 5 hours. The solid was
centrifuged and washed with methanol, then the light yellow solid (TPE-INH-E, yield,
90 %) and the light pink solid (TPE-INH-E, yield, 70 %) were obtained by drying at 60
1
℃ for 24 hours. The H NMR and 13C NMR spectrum of TPE-INH-E (600 MHz,
1
DMSO-d6, 25 °C) were showed in Figure S10 and S11, respectively. H NMR:
12.066(2 H, s), 8.778(4 H, d, J =4.8 Hz), 8.371(2 H, s), 7.812(4 H, d, J = 4.8 Hz), 7.517
(4 H, d, J = 8.0 Hz), 7.179-7.162 (6 H, m), 7.061 (4 H, d, J = 8.0 Hz), 7.024 (4H, d, J
= 7.2 Hz); 13C NMR: 161.456, 150.231, 148.586, 145.069, 142.495, 140.784, 140.378,
132.245, 131.078, 130.6539, 127.950, 126.902, 126.673, 121.401. HRMS(ESI)
calculated for C40H30N6O2 [M+Na]+ 649.2322, found 649.2321, as shown in Figure
13
S12. The 1H NMR and C NMR spectrum of TPE-INH-Z (600 MHz, DMSO-d6, 25
°C) were showed in Figure S13 and S14, respectively. 1H NMR: 12.059(2 H, s), 8.770
(4 H, d, J = 5.6 Hz), 8.369(2 H, s), 7.804(4 H, d, J =7.8 Hz), 7.546(4 H, d, J = 8.4 Hz),
7.164-7.119 (6 H, m), 7.078 (4 H, d, J = 8.4 Hz), 7.008 (4 H, d, J = 6 Hz). 13C NMR:
161.448, 150.211, 148.576, 148.046, 142.490, 140.768, 140.387, 132.353, 131.120,
130.590, 127.845, 126.750, 121.397, 120.898. HRMS(ESI) calculated for C40H30N6O2
[M+Na]+ 649.2322, found 649.2319, as shown in Figure S15.

3. Results and discussion
3.1 Design, synthesis and characterization of all compounds.
The compound 1 (1,2-bis-(4-methylphenyl)-1,2- diphenylethene) was prepared from
starting material 4-methylbenzophenone through the McMurry unsymmetrical
coupling. TPE-2CHO was obtained by NBS under the induction of a free radical
initiator (BPO) in CCl4 at 80 °C and with silver trifluoroacetate as catalyst. The pure
TPE-2CHO-E and TPE-2CHO-Z were separated and purified by column
chromatography. High resolution mass spectrometry revealed that the two new
compounds have the same molecular weight as the target molecule, demonstrating that
they are E/Z isomers. Then, yellow TPE-INH-E and pink TPE-INH-Z were synthesized
by Schiff base condensation reaction with isoniazid, respectively. The configuration of
TPE-2CHO did not alter when heated in methanol, and the spatial configuration
remained unchanged after the reaction with isoniazid. The synthetic routes were shown
in Scheme 1, their related NMR data were detailed in supporting information.
The single crystal of E isomers can be obtained by solvent diffusion method. E
isomers could be identified by single crystal test, and the detailed single crystal data
and structure were shown in Table 1 and Fig. 1, respectively. TPE-2CHO-E and TPE-
INH-E were both monoclinic systems, and the space groups were P 21 and C 2/c,
respectively. All the single crystal data were submitted to the Cambridge
Crystallographic Data Centre (CCDC), and each compound has its corresponding
number, 1955284 (TPE-2CHO-E) and 1955283 (TPE-INH-Z).

The geometry structures of E/Z isomers were further affirmed by 2D COSY and
ROESY NMR spectroscopy, which certified these structures shown in Fig.2 and Figure
S16.The spatial difference of E/Z isomers mainly depends on the spatial correlation of
hydrogen atoms on TPE. The 2D COSY and ROESY NMR of TPE-2CHO-E and TPE-
2CHO-Z were shown in Figure S16, H 1 and H 11 (δ = 9.886 ppm) were used as
correction reference values. According to this assignment and the explicit correlations
in the 2D COSY spectrum, δ= 7.693 and 7.215 ppm belong to H 2, H 3, H 12, H 13 and
H 4, H 5, H 14, H 15, respectively. These protons signal of δ = 7.183-7.152 ppm are
attributed to H 8, H 9, H 10, H 18, H 19, H 20, δ= 7.013 ppm is assigned to H 6, H 7,
H 16, H17, respectively, because they have a strong correlation in 2D COSY NMR. As
shown in Figure S16C, the cross-peaks in the blue circles indicate obvious correlation
between H 4/ H 5/H 14/H 15 and H 6/H 7/H 16/H 17, which indicates ring A and ring
C is very close in space, and means they are on the same side of the double bond.
However, there are no correlations for those hydrogens in COSY NMR spectroscopy
(Figure S16B). In the meantime, we cannot find clear correlations between H 4/ H 5/H
14/H 15 and H 6/H 7/H 16/H 17 in Figure S16F, because ring A/C are far from ring
B/D in Z isomers. Consequently, the 2D ROESY and COSY NMR spectra confirmed
the geometrical structures of the E/Z isomers of TPE-2CHO molecule.
The 2D COSY and ROESY NMR of TPE-INH-E and TPE-INH-Z were shown in
Fig.2 and Figure S17-20. The resonance at δ =12.066 ppm corresponds to the H5 and
H20 protons as a reference for correction. δ = 8.371 ppm is attributed to H 6 and H 21,
δ= 8.784 ppm is ascribed to H 1, H 3, H 16 and H 17, δ= 7.818 ppm belongs to H 2, H

4, H 18, and H 19, because H 1, H 3, H 16, H 17 and H 2, H 4, H 18, H 19 have strong
correlation in 2D COSY NMR. δ= 7.527 ppm is attributed to H 9, H 10, H 24 and H
25, δ = 7.179 ppm is ascribed to H 7, H 8, H 22 and H 23, because of their strong
correlation in 2D COSY NMR. These proton signals with δ = 7.162-7.051 ppm belong
to H 13, H 14, H 15, H 28, H 29, H 30, δ = 7.015 ppm was assigned to H 11, H 12, H
26, H 27, respectively. As shown in Fig. 2C, the cross-peaks in the blue circles suggest
distinguished correlation between H 9, H 10, H 24, H 25 and H 11, H 12, H 26, H 27,
which reveals ring A and ring C is very adjacent in space, and verifies they are on the
same side of the double bond. At the same time, the correlation of these hydrogen was
not observed in the 2D COSY NMR spectrum. In Fig.2F, since the A / C ring is far
from the B / D ring in the Z isomer, there is no significant correlation between H 9, H
10, H 24, H 25 and H 11, H 12, H 26, H 27. TPE-INH-E and TPE-INH-Z have the same
molecular formula and different spatial configurations, therefore, their FTIR spectra are
almost the same (Figure S22).
3.2 Photophysical properties in solution
After the structure was confirmed, the AIE properties of TPE-INH-E and TPE-INH-
Z were investigated. They have good solubility in DMF and almost no fluorescence,
but the hydrophobicity of aromatic rings makes them insoluble in aqueous solution and
tend to aggregation. With the increasing of the water fractions (fw) in the mixed solvent,
TPE-INH-E and TPE-INH-Z gradually aggregate, and their fluorescent intensity
progressively enhances at 510 nm thanks to the restriction of intermolecular rotation
(Fig.3). When fw was up to 99 %, its fluorescent intensity of TPE-INH-E was 35-fold

higher than that in pure DMF. The fluorescence enhancement of TPE-INH-Z at fw = 99
% was 45 times stronger than that in pure DMF. Clearly, they displayed the same
phenomenon under UV light (Figure S21). These results indicated that they have
highlighted AIE characteristic. As shown in Fig.3C/F, the excitation spectrum of the
TPE-INH-E was a narrow one, while the TPE-INH-Z was a broad spectrum when fw =
99 %, indicating that the excitation light source of the TPE-INH-Z was wider than TPE-
INH-E. The UV absorption of TPE-INH-E and TPE-INH-Z have dramatic differences
when they were dissolved in DMF, as shown in Fig.4B. The maximum UV absorption
wavelength of TPE-INH-E were 286 nm and 355 nm, while that of TPE-INH-Z was
322 nm. Interestingly, the two isomers exhibited the similar AIE properties in the
aggregated state, but obviously different UV absorption in the solution state.
Furthermore, the different photophysical properties of the isomers inspire us to
research their self-assembly behaviors in the aggregation state (50 μM, fw = 99 %).
TPE-INH-E formed nanofibers and TPE-INH-Z formed a sheet-like particle that can be
observed by SEM (Fig. 5 C/D). We believed that TPE-INH-E and TPE-INH-Z may
form polymers with different structures upon linking their molecules through
intermolecular forces. To gain more insight into the structure-property correlations, we
analysed the single crystal structures of TPE-INH-E and the theoretical calculation of
TPE-INH-Z according to density functional theory (DFT) on the basis of the B3LYP /
6 311G(d) method in the Gaussian 09 program. As shown in Fig. 5, TPE-INH-E has a
strong hydrogen bond interaction with adjacent molecules, and this intermolecular
force make it forms long periodic linear polymers by side-by-side association, thus, it

tends to form nanofibers. The optimization of theoretical results demonstrated that
TPE-INH-Z is easy to form dimer, which aggregation is apt to form particles. The
different aggregation morphologies of isomers are consistent with their differences in
polymerization, which indicates that the slight change of TPE configuration will have
a great influence on the self-assembly behavior.
3.3 Mechanochromic property
Interestingly, the isomers displayed distinctly different emission in the solid-state.
TPE-INH-E was light green-emitting, with fluorescent spectrum peaked at 489 nm,
while TPE-INH-Z presented light blue fluorescence at 469 nm. The excitation spectrum
of TPE-INH-E was broad (370-440 nm), while that of the TPE-INH-Z was narrow (370
nm), as shown in Fig.4A. The excitation wavelength of the two molecules in the
aggregation state was significant different with that the solid state. Compared with TPE-
INH-Z, the emission wavelength of TPE-INH-E has a red shift of 20 nm, which may
be due to the large interaction (C-H· · ·N) between the TPE-INH-E molecules, while
TPE-INH-Z has strong intramolecular (C-H· · · N) and molecular-molecular
interactions (C-H· · ·N, C-H· · ·O) (Fig.5A/B). The fluorescence radiative rate constant
(kr) and non-radiative rate constant (knr) were estimated by combining the results of
quantum yield [Ф= kr / (kr + knr)] and fluorescence lifetime [τ = (kr + knr) −1]. TPE-INH-
Z (20.20 %, 2.69 ns) has a longer fluorescence lifetime than TPE-INH-E (31.69 %, 1.86
ns), but it has a low fluorescence quantum yield. The macroscopic optical difference
E/Z isomers powder is relatively obvious, which was rarely reported. According to the
formula, the kr of TPE-INH-E isomer is calculated to be 0.75 × 108 s−1 and knr is

calculated to be 2.96× 108s−1 in the pristine state. However, the kr of TPE-INH-Z
isomers is 1.70× 108 s−1, which is higher than that of TPE-INH-E isomers. The knr of
TPE-INH-Z isomers is 3.68×108 s−1, which is lower than that of TPE-INH-E isomers.
These suggests that the molecular packing of isomers produces different optical
properties by combining the non-radiative decay process with the radiative transition
(Table 2).
The controllable mechanochromic behaviour of organic molecules have attracted
much attention because of their potential applications in sensors, logic gate units,
memories and security inks, etc [31-35]. The two isoniazid-substituted TPE derivatives
have prominent fluorescent response when they suffered from grinding stimuli. As
shown in Fig.6, the fluorescence changed from light green to yellow when TPE-INH-
E was subjected to grinding, while the fluorescence of TPE-INH-Z transformed from
light blue to yellow, and then the fluorescence turned back to its original after being
fumed by DCM vapor.
The mechanocharomic properties of TPE-INH-E and TPE-INH-Z were studied by
emission and UV absorption spectrum in detail. In Fig. 7C/D, the solid UV absorption
indicated that the maximum absorption wavelength showed blue shifted after grinding,
which could be caused by the destruction of the π-π stack between molecules and the
change of the packing mode. The TPE-INH-E isomers at the pristine state emitted at
489 nm, which displayed red-shifted emission peak at 520 nm upon grinding. It can
return back to the original state after being fumed by DCM vapor. Under the same
conditions, the fluorescent emission red-shifted of TPE-INH-Z isomers solid from 469

nm to 520 nm. The red shift wavelengths of they are 31 nm and 51 nm, respectively
(Fig. 7A/B). Their fluorescent emission change was reversible and recyclable when
TPE-INH-E and TPE-INH-Z repeated grinding-fuming by DCM process, as shown in
Figure S24.
After being subjected to grinding stimuli, the fluorescence quantum yield,
fluorescence lifetime of TPE-INH-E and TPE-INH-Z were all decreased. In addition,
their non-radiative rate constant increased, these results indicated that the non-radiative
decay process of the two isomers was activated when stimulated by grinding (Table 2
and Figure S23).
To better explain the different spectral properties between the luminogens, we further
analyzed their structure by powder X-ray diffraction (XRD) measurement. As shown
in Fig. 8A/B, the XRD patterns revealed that significant difference between TPE-INH-
E and TPE-INH-Z powders but both of them have a series of sharp diffraction peaks.
Upon grinding, their crystalline structure almost completely transformed into the
amorphous state. The ground samples underwent recrystallization process with the
original peak intensity and peak position recovery when the sample was fumed with
DCM vapor. Distinctly, the reversible conversion between ordered crystal and
amorphous state is very crucial to the switchable response of luminophor.
3.4 Theoretical study
We performed theoretical calculations on their energy levels by DET method at
B3LYP/6-311G(d) basis in the Gaussian 09. The theoretical calculation results include

optimized molecular configuration, energy levels, electron distribution of the highest
occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO)
of TPE-INH-E and TPE-INH-Z, as shown in Fig. 9A/B. The electron of TPE-INH-E
LUMO is mainly distributed on the isoniazid and benzene ring connected with
isoniazid, while the electron cloud of HOMO is mainly distributed on the TPE center
and conjugated bonds. The electron cloud of TPE-INH-Z LUMO is mainly distributed
on the conjugated bond and benzene ring connected with isoniazid, and the electron
cloud distribution of HOMO is the same as that of TPE-INH-E. The energy gaps of
TPE-INH-E and TPE-INH-Z are 3.37 eV and 3.43 eV, respectively. Theoretical results
distinctly declared that TPE-INH-E and TPE-INH-Z have obvious intramolecular
charge transfer behaviors.
3.5 Fluorescence Probe for Cu2+
As a fundamental element of human body, copper was used by many enzymes to
perform the functions of energy generation, neurotransmitter and pigment synthesis
based on its redox activity [40]. The balance regulation of copper in the body is also
connected with many diseases, including cancer, neurodegenerative alzheimer's disease
and Parkinson's disease [40-41]. Copper ion is an important analytical material in
biochemistry, medicine and environment, because of its bio-accumulation and
destruction of the central nervous system, blood components, lungs, kidneys and liver
in the human body [42]. Therefore, it is of great significance to establish a highly
selective and sensitive method to detect Cu2+ in the environment [43-45].

The isoniazid contains rich heteroatoms, which provides the possibility of
coordination with metal ions for TPE-INH-E and TPE-INH-Z. To demonstrate this
possibility, metal ions such as Ag+, Cu2+, Ca2+, Co2+, Cr3+, Pd2+, Fe2+, Fe3+, Hg2+, Zr2+,
Mn2+, Sn2+, Ni2+ and Zn2+ were added to the TPE-INH-E and TPE-INH-Z solutions of
DMF/H2O (4 μM, 1/99, v / v), respectively. From the fluorescence spectrum (Fig. 10D
and Figure S26D), it can be seen that there was a higher fluorescence quenching
selectivity for Cu2+ in comparison with other metal ions, and the quenching efficiency
of the TPE-INH-Z to the copper ions was higher than the TPE-INH-E, as shown in
Figure S24.
In order to determine the conditions under which TPE-INH-E and TPE-INH-Z were
used to detect copper ions, we investigated the response time of their fluorescence
signals, as shown in Fig. 10C and Figure S26C. The fluorescence was almost
completely quenched by adding copper ions to the TPE-INH-E and TPE-INH-Z
aggregation solutions in about 1 minute. Then the fluorescence intensity remained
stable for 5 minutes, which proved that the response was fast and stable. To evaluate
the detective range of copper ion detection in the sensing system, the effects of Cu2+ on
the fluorescence intensity of TPE-INH-E and TPE-INH-Z aggregation solutions were
explored, as shown in Fig. 10A/B and Figure S26A/B. The fluorescence intensity of
TPE-INH-E and TPE-INH-Z aggregation solutions decreased gradually at 510 nm with
the increase of Cu2+ concentration, respectively. There is a linear relationship of log[(F-
F0)/ F0] = 0.553 log (Cu2+)-0.212 and log[(F-F0)/ F0] = 0.648 log (Cu2+)-0.219 from
0.01 to 4 µM for TPE-INH-E and TPE-INH-Z, respectively. The detection limit is 2

nM and 5 nM on the basis of a signal-to-noise ratio of 3:1, respectively. The presence
of Cu+ has no effect on the fluorescence signal, that it could be an excellent Cu2+ ion
sensing material (Figure S27).
To investigate the practicability of Cu2+ sensing system, it was applied to detect the
concentration of copper ions in the Green Lake water sample. When TPE-INH-E as
detector, an average value of 0.59 ± 0.05 μM of Cu2+ was found for n = 3
determinations, using this developed approach with good recovery (99.14 ± 1.19 %).
The average concentration of copper detected was 0.54 ± 0.07 μM (n=3) and the
standard recovery rate was 99.59 ± 1.84 % when TPE-INH-Z was used as fluorescence
probe (Table S1 and S2). It is indicated that TPE-INH-E and TPE-INH-Z have good
reliability as probes for detecting copper ions in environmental samples.
Based on the response sensing mode driven by coordination. The morphology of
TPE-INH-E and TPE-INH-Z aggregates changed significantly after the addition of
Cu2+, which changed from nanofibers to spherical and flaky structures to prismatic
shapes, as shown in Fig. 11. The morphology of isomer aggregates in Cu2+ changed
solution obviously after self-assembly due to the difference of spatial configuration.
The fluorescence lifetime of TPE-INH did not change after the addition of copper ions,
which revealed static quenching process (Figure S28).
In order to demonstrate the difference between the different isomers with the copper,
we further studied their coordination of TPE-INH-E and TPE-INH-Z in the dissolved
state with copper. TPE-INH-E and TPE-INH-Z (60 mg, 0.1 mmol) were dissolved in

(1 mL) DMF, and methanol solution containing copper nitrate trihydrate (15 mg, 0.05
mmol) was added into it, respectively. The green solid was obtained by static reaction
for 2 days at 75 ℃, and were successively washed by DMF and methanol for
centrifugation. The green powder was dried overnight at 75 ℃. They assembled into
different complexes with significantly different peak positions by XRD measure
(Figure S29). The two complexes did not emit fluorescence (Figure S30). In the FTIR
spectrum, TPE-INH-E and TPE-INH-Z have the same absorption peak. The formation
of intermolecular hydrogen bonds of TPE-INH-E in solid state caused two absorption
peaks of N-H stretching vibration, which are 3442.46 cm-1 and 3279.37 cm-1(TPE-INH-
Z 3422.77 cm-1 and 3277.07 cm-1), respectively. After coordinating with copper ions,
the absorption peak of TPE-INH-E at 3279.37 cm-1(TPE-INH-Z 3277.07 cm-1)
disappeared because the intermolecular hydrogen bond weakened or disappeared. The
absorption peak of TPE-INH-E at 1288.69 cm-1(TPE-INH-Z 1292.62 cm-1) is attributed
to the interaction between the bending vibration of N-H and the stretching vibration of
C-N. This interaction weakened after coordination, so this peak disappeared. The C =
O absorption peak of TPE-INH-E at 1663.37 cm-1 (TPE-INH-Z 1665.74 cm-1), and the
electron cloud density around C=O changed after coordination, which led to the change
of carbon-oxygen double bond force constant that caused the absorption to decrease.
The C-N expansion vibration of TPE-INH-E at 1542.96 cm-1(TPE-INH-E 1546.26 cm-
1), the distribution of N-electron cloud after coordination changed, resulting in change
of the C-N bond force constant so that the peak moved to 1384 cm-1, and the absorption

is enhanced. These results indicated that the coordination between copper ions and
ligands leads to the change of infrared absorption peak (Figure S22).
MALDI-TOF-MS also suggested the composition of the Cu-TPE-INH product
(Figure S31). Unfortunately, only Cu-TPE-INH-E was detected. The peak at m/z
=1501.999 was assigned to [Cu(TPE-INH-E)26H2O(DMF)]+4H+, and the other two
peaks were assigned to [Cu(TPE-INH-E)23H2O(DMF)]+2H+(m/z = 1440.992) and
[Cu(TPE-INH-E-8H)2(DMF)]+H+ (m/z = 1382.373). Combined with fluorescence
Job’s plot, we recommend the stoichiometry of TPE-INH-E to Cu2+ may be 2:1. Cu-
TPE-INH-Z has the similar Job’s plot as Cu-TPE-INH-E, so we inferred that the
stoichiometric ratio may be also 2:1(Fig. 10E and Figure S26E). The possible
coordination structures as show in Figure S32.
4. Conclusions
In summary, pure stereoisomers of isoniazid-substituted TPE derivatives were
synthesized with high yields and characterized by different spectroscopic techniques.
The optical properties and aggregate self-assembly behaviours of the stereoisomers
strongly depend on the configuration of TPE. They form different polymers due to
intermolecular hydrogen bonding interactions. The stereoisomers with dramatic
difference in fluorescence properties provide excellent references for further design and
preparation of optical systems through covalent bonding strategies. Both compounds
exhibited significant mechanocharomic behavior with different color change responses.
Interestingly, such changes could be well recovered under mild fuming in DCM,

indicating their great potential for applications in practical devices. The two E/Z
isomers compounds can function as fluorescent sensors for specific detection of Cu2+
due to the heteroatoms offered by the isoniazide unit. We believed that this work may
open up a rational approach for developing a broad class of novel functional materials
with photophysical functions. Considering that E/Z isomerization of TPE may change
under special stimulation, the construction of smart materials using TPE-INH-E and
TPE-INH-Z, whose photophysical properties and corresponding morphologies could
be controlled by external stimuli, is of great significance and will be carried out in the
future.
5. Conflicts of interest
There are no conflicts to declare.
6. Acknowledgements
This work was financially supported by the National Natural Science Foundation of
China (NSFC, 21765024) and program for changjiang scholars and innovative research
team in university (IRT▁17R94)
Notes and references

[1] T. Otsubo, Y. Aso and K. Takimiya, Research progress on dissolution and
functional modification of cellulose in ionic liquids, J. Mol. Liq. 142 (2008) 1-5.
[2] P. J. Hall, M. Mirzaeian, S. I. Fletcher, F. B. Sillars, A. J. R. Rennie, G. O. Shitta-
Bey, G. Wilson, A. Cruden and R. Carter, Energy storage in electrochemical capacitors:
designing functional materials to improve performance, Energy. Environ. Sci. 9 (2010)
1238-1251.
[3] K. E. Evans, A. Alderson, Auxetic materials: functional materials and structures
from lateral thinking!, Adv. Mater. 12 (2000) 617-628.
[4] P. S. Watson, B. Jiang and B. Scott, A diastereoselective synthesis of 2, 4-
disubstituted piperidines: scaffolds for drug discovery, Org. Lett. 2 (2000) 3679-3681.
[5] X. Chen, X. Y. Shen, E. Guan, Y. Liu, A. Qin, J. Z. Sun and B. Z. Tang, A pyridinyl-
functionalized tetraphenylethylene fluorogen for specific sensing of trivalent cations,
Chem. Comm. 49 (2013) 1503-1505.
[6] F. Hu, Y. Huang, G. Zhang, R. Zhao, H. Yang, D. Zhang, Targeted bioimaging and
photodynamic therapy of cancer cells with an activatable red fluorescent bioprobe,
Anal. Chem. 86(2014) 7987-7995.
[7] N. Zhao, M. Li, Y. Yan, J. W. Y. Lam, Y. L. Zhang, Y. S. Zhao, K. S. Wong and
B. Z. Tang, A tetraphenylethene-substituted pyridinium salt with multiple
functionalities: synthesis, stimuli-responsive emission, optical waveguide and specific
mitochondrion imaging, J. Mater. Chem. C, 1 (2013) 4640-4646.

[8] J. G. Croissant, C. Mauriello-Jimenez, M. Maynadier, X. Cattoën, M. Wong, C.
Man, L. Raehm, O. Mongin, M. Blanchard-Desce, M. Garcia, M. Gary-Bobo, P.
Maillard and J. O. Durand, Synthesis of disulfide-based biodegradable bridged
silsesquioxane nanoparticles for two-photon imaging and therapy of cancer cells,
Chem. Commun. 51(2015) 12324-12327.
[9] G. Volpe, S. Cherukulappurath, R. J. Parramon, G. M. Terriza, R. Quidant,
Controlling the optical near field of nanoantennas with spatial phase-shaped beams,
Nano Lett. 9 (2009) 3608-3611.
[10] Z. Ahmed, A. Siiskonen, M. Virkki and A. Priimagi, Controlling azobenzene
photoswitching through combined ortho-fluorination and-amination, Chem. Comm. 53
(2017) 12520-12523.
[11] O. Sadovski, A. A. Beharry, F. Zhang, A. Woolley, Spectral tuning of azobenzene
photoswitches for biological applications, Angew. Chem. Int. Ed. 48 (2009) 1484-1486.
1
[12] M. C. Fournié-Zaluski, E. Lucas-Soroca, J. Devin and B. P. Roques, H NMR
Configurational Correlation for Retro-Inverso Dipeptides: Application to the
Determination of the Absolute Configuration of “Enkephalinase” Inhibitors.
Relationships between Stereochemistry and Enzyme Recognition, J. Med. Chem. 29
(1986) 751-757.
[13] S. Danishefsky, E. Larson, D. Askin and N. Kato, On the scope, mechanism and
stereochemistry of the Lewis acid catalyzed cyclocondensation of activated dienes with

aldehydes: an application to the erythronolide problem, J. Am. Chem. Soc. 107 (1985)
1246-1255.
[14] A. Schrag, Entacapone in the treatment of Parkinson's disease, Lancet Neurol. 4
(2005) 366–70.
[15] M. Jacolot, M. Jean, N. Tumma, A. Bondon, S. Chandrasekhar, P. Weghe,
Synthesis of stachybotrin C and all of its stereoisomers: structure revision, J. Org.
Chem. 78 (2013) 7169-7175.
[16] N. W. Tseng, J. Liu, J. C. Y. Ng, J. W. Y. Lam, H. H. Y. Sung, I. D. Williamsa
and B. Z. Tang, Deciphering mechanism of aggregation-induced emission (AIE): Is E–
Z isomerisation involved in an AIE process?, Chem. Sci. 3 (2012) 493-497.
[17] S. M. Landge, E. Tkatchouk, D. Benítez, D. A. Lanfranchi, M. Elhabiri, W. A.
Goddard, I. Aprahamian, Isomerization mechanism in hydrazone-based rotary
switches: lateral shift, rotation, or tautomerization?, J. Am. Chem. Soc. 133 (2011)
9812-9823.
[18] J. Luo, Z. Xie, J. W. Y. Lam, L. Cheng, H. Chen, C. Qiu, H. S. Kwok, X. Zhan,
Y. Liu, D. Zhu and B. Z. Tang, Aggregation-induced emission of 1-methyl-1, 2, 3, 4,
5-pentaphenylsilole, Chem. Commun. 18 (2001) 1740-1741.
[19] Z. Zhao, J. W. Y. Lam and B. Z. Tang, Tetraphenylethene: a versatile AIE building
block for the construction of efficient luminescent materials for organic light-emitting
diodes, J. Mater. Chem. 22 (2012) 23726-23740.

[20] L. Chen, G. Lin, H. Peng, H. Nie, Z. Zhuang, P. Shen, S. Ding, D. Huang, R. Hu,
S. Chen, F. Huang, A. Qin, Z. Zhao and B. Z. Tang, Dimesitylboryl-functionalized
tetraphenylethene derivatives: efficient solid-state luminescent materials with enhanced
electron-transporting ability for nondoped OLEDs, J. Mater. Chem. C 4 (2016) 5241-
5247.
[21] D. K. Mai, J. Lee, I. Min, T. P. Vales, K. H. Choi, B. J. Park, S. Cho and H. J.
Kim, Aggregation-induced emission of tetraphenylethene-conjugated phenanthrene
derivatives and their bio-imaging applications, Nanomaterials 8 (2018) 728.
[22] J. Zhou, Z. Chang, Y. Jiang, B. He, M. Du, P. Lu, Y. Hong, H. S. Kwok, A. Qin,
H. Qiu, Z. Zhao and B. Z. Tang, From tetraphenylethene to tetranaphthylethene:
structural evolution in AIE luminogen continues, Chem. Commun. 49 (2013) 2491-
2493.
[23] Y. Yuan, C. J. Zhang, R. T. K. Kwok, S. Xu, R. Zhang, J. Wu, B. Z. Tang, Bin
Liu, Light‐ up probe for targeted and activatable photodynamic therapy with real‐ time
in situ reporting of sensitizer activation and therapeutic responses, Adv. Funct. Mater.
25 (2015) 6586-6595.
[24] J. Wang, J. Mei, R. Hu, Jing, Z. Sun, A. Qin, B. Z. Tang, Click Synthesis,
Aggregation-Induced Emission, E/Z Isomerization, Self-Organization, and Multiple
Chromisms of Pure Stereoisomers of a Tetraphenylethene-Cored Luminogen, J. Am.
Chem. Soc. 134 (2012) 9956-9966.

[25] R. Hu, C. F. A. Gómez-Durán, J. W. Y. Lam, J. L. Belmonte-Vázquez, C. Deng,
S. Chen, R. Ye, E. Peña-Cabrera, Y. Zhong, K. S. Wong and B. Z. Tang, Synthesis,
solvatochromism, aggregation-induced emission and cell imaging of
tetraphenylethene-containing BODIPY derivatives with large Stokes shifts, Chem.
Commun. 48 (2012) 10099-10101.
[26] H. Q. Peng, X. Zheng, T. Han, R. T. K. Kwok, J. W. Y. Lam, X. Huang and B. Z.
Tang, Dramatic differences in aggregation-induced emission and supramolecular
polymerizability of tetraphenylethene-based stereoisomers, J. Am. Chem. Soc. 139
(2017) 10150-10156.
[27] L. Ionov, S. Sapra, A. Synytska, A.ꢀL. Rogach, M. Stamm, S. Diez, Fast and
spatially resolved environmental probing using stimuli‐ responsive polymer layers and
fluorescent nanocrystals, Adv. Mater. 18 (2006) 1453-1457.
[28] E. K. Fleischmann, R. Zentel, Liquid‐ crystalline ordering as a concept in
materials science: from semiconductors to stimuli‐ responsive devices, Angew. Chem.
Int. Ed. 52 (2013) 8810-8827.
[29] C. Chen, J. Geng, F. Pu, X. Yang, J. Ren, X. Qu, Polyvalent nucleic
Acid/Mesoporous silica nanoparticle conjugates: dual stimuli‐ responsive vehicles for
intracellular drug delivery, Angew. Chem. Int. Ed. 50 (2011) 882-886.
[30] X. Li, Y. Xie, B. Song, H. L. Zhang, H. Chen, H. Cai, W. Liu, Y, Tang, A Stimuli‐
Responsive Smart Lanthanide Nanocomposite for Multidimensional Optical Recording
and Encryption, Angew. Chem. Int. Edi. 56 (2017) 2689-2693.

[31] G. Zhang, J. Lu, M. Sabat, C. L. Fraser, Polymorphism and reversible
mechanochromic luminescence for solid-state difluoroboron avobenzone, J. Am.
Chem. Soc. 132 (2010) 2160-2162.
[32] G. I. Peterson, M. B. Larsen, M. A. Ganter, D. W. Storti, A. J. Boydston, 3D-
printed mechanochromic materials, ACS Appl. Mater. Inter. 7 (2014) 577-583.
[33] W. Z. Yuan, Y. Tan, Y. Gong, P. Lu, J. W. Y. Lam, X. Y. Shen, C. Feng, H. H.Y.
Sung, Y. Lu, I. D. Williams, J. Z. Sun, Y. Zhang, B. Z. Tang, Synergy between twisted
conformation and effective intermolecular interactions: strategy for efficient
mechanochromic luminogens with high contrast, Adv. Mater. 25 (2013) 2837-2843.
[34] Y. Gong, G. Chen, Q. Peng, W. Z. Yuan, Y. Xie, S. Li, Y. Zhang, B. Z. Tang,
Achieving persistent room temperature phosphorescence and remarkable
mechanochromism from pure organic luminogens, Adv. Mater. 27 (2015) 6195-6201.
[35] P. Xue, J. Ding, P. Wang and R. Lu, Recent progress in the mechanochromism of
phosphorescent organic molecules and metal complexes, J. Mater. Chem. C, 4 (2016)
6688-6706.
[36] M. I. Hashim, H. T. M. Le, T. H. Chen, Y. S. Chen, O. Daugulis, C. W. Hsu, A. J.
Jacobson, W. Kaveevivitchai, X. Liang, T. Makarenko, O. Š. Miljanić, I. Popovs, H.
Vu Tran, X. Wang, C. H. Wu, J. I. Wu, Dissecting Porosity in Molecular Crystals:
Influence of Geometry, Hydrogen Bonding, and [π··· π] Stacking on the Solid-State
Packing of Fluorinated Aromatics, J. Am. Chem. Soc. 140 (2018) 6014-6026.
