Synthesis of polysubstituted β-amino cyclohexane carboxylic acids via Diels-Alder reaction using Ni(II)-complex stabilized β-alanine derived dienes

Article abstract of DOI:10.1007/s00726-012-1404-x

This paper describes the design and synthesis of a new class of β-alanine derived dienes stabilized by Ni(II)-complex. Preliminary study of their Diels-Alder cycloaddition reactions with several types of dienophiles demonstrates their significant synthetic potential for the preparation of various polyfunctional β-aminocyclohexane carboxylic acids.

Full text of DOI:10.1007/s00726-012-1404-x

Amino Acids (2013) 44:791–796
DOI 10.1007/s00726-012-1404-x
ORIGINAL ARTICLE
Synthesis of polysubstituted b-amino cyclohexane carboxylic acids
via Diels–Alder reaction using Ni(II)-complex stabilized b-alanine
derived dienes
•
Xiao Ding Hengshuai Wang Jiang Wang Sinan Wang Daizong Lin
•
•
•
•
•
•
•
•
•
´
Li Lv Yu Zhou Xiaomin Luo Hualiang Jiang Jose Luis Acen˜a
•
Vadim A. Soloshonok Hong Liu
Received: 17 April 2012 / Accepted: 14 September 2012 / Published online: 30 September 2012
Ó Springer-Verlag Wien 2012
Abstract This paper describes the design and synthesis
of a new class of b-alanine derived dienes stabilized by
Ni(II)-complex. Preliminary study of their Diels–Alder
cycloaddition reactions with several types of dienophiles
demonstrates their significant synthetic potential for the
preparation of various polyfunctional b-aminocyclohexane
carboxylic acids.
between acyclic and cyclic compounds (Diels and Alder
1928). Although numerous variants on this reaction have
been studied, the potential synthetic wealth of this
approach for preparation of six-membered cyclic com-
pounds has still not been completely explored (Takao et al.
2005). In particular, application of Diels–Alder reactions
for the preparation of b-amino cyclohexane carboxylic
acids is one of the least studied areas (Juaristi and Solos-
honok 2005). Current established methods usually rely on
indirect introduction of the desired amino group via nitro
(Pitacco et al. 1977) or carboxylic (Furuta et al. 1987)
functionalities on the starting dienophile. Besides increas-
ing synthetic steps, these approaches required operationally
inconvenient high-pressure reduction or Curtius protocols
(Pitacco et al. 1977; Furuta et al. 1987). One may agree that
methods using dienes/dienophiles directly containing pro-
tected amino group would be methodologically more
straightforward and therefore practically attractive. How-
ever, this approach presents several synthetic challenges
associated, most notably, with low stabilities of the
required amino-containing starting compounds (Juaristi
and Soloshonok 2005). To the best of our knowledge, there
are only two reports in the literature representing this direct
approach. As shown in Scheme 1, b-amino acid 3 can be
prepared by a Lewis acid-catalyzed cycloaddition between
amino-containing diene 2 and acrylic acid derivative 1
(Wipf and Wang 2000). Alternatively, dienophile 4,
derived from glycine, can react at room temperature with
activated dienes (Danishefsky’s diene or cyclopentadiene)
5 to afford a particular type of a-/b-amino acids 6 in a
5-step procedure (Bunuel et al. 1996a, b). Remarkably, this
type of Diels–Alder reactions still remain underdeveloped
and presents an intellectually challenging line of research.
Furthermore, besides methodological novelty, this area of
research has additional aspects of general synthetic
Keywords Diels–Alder reaction ꢀ Nickel (II) ꢀ b-Alanine ꢀ
b-Aminocyclohexane carboxylic acids
Introduction
The Diels–Alder reaction is one of the most magnificent
discoveries in organic chemistry by bridging the realms
X. Ding and H. Wang contributed equally to this work.
Electronic supplementary material The online version of this
article (doi:10.1007/s00726-012-1404-x) contains supplementary
material, which is available to authorized users.
X. Ding ꢀ H. Wang ꢀ J. Wang ꢀ S. Wang ꢀ D. Lin ꢀ L. Lv ꢀ
Y. Zhou ꢀ X. Luo ꢀ H. Jiang ꢀ H. Liu (&)
State Key Laboratory of Drug Research, Shanghai Institute
of Materia Medica, Shanghai Institutes for Biological Sciences,
Chinese Academy of Sciences, 555 Zu Chong Zhi Road,
Shanghai 201203, People’s Republic of China
e-mail: hliu@mail.shcnc.ac.cn
J. L. Acen˜a ꢀ V. A. Soloshonok
IKERBASQUE, Basque Foundation for Science,
48011 Bilbao, Spain
V. A. Soloshonok
University of the Basque Country UPV/EHU,
San Sebastian, Spain
123

792
X. Ding et al.
Literature approaches
CbzHN
O
HOOC
R
NH2
COOH
R
NH2
R'O
O
O
+
O
COOH
N
+
R
N
1
O
R
Ph
5
4
6
2
3
This work
R
L
L
Ni
NH2
O
N
Ph
+
HOOC
R1
* R3
*
R3
R4
O
*
R4
*
R2
R1
R2
7
8
9
Scheme 1 Methodologically different approaches for preparation of b-amino cyclohexane carboxylic acids via Diels–Alder reaction
importance (Chola and Masesane 2008; Csende et al. 2008;
Songis et al. 2008), considering a notable role of b-amino
cyclohexane carboxylic acid motif in the chemistry of
natural products (Oki et al. 1989; Iwamoto et al. 1990) and
b-peptides (Epand et al. 2004; Hayen et al. 2004).
Ni(II)-complexes of glycine of type 10 (Scheme 2)
(Deng et al. 2007; Ueki et al. 2003a, b; Soloshonok et al.
2005a, b; Ellis et al. 2005, 2006) proved to be of quite
general application for preparation of various tailor-made
(Soloshonok et al. 1999a, b) a-amino acids (Soloshonok
2002; Soloshonok et al. 2000a; Yamada et al. 2006).
Homologation of glycine moiety in 10 can be conducted
with high chemical yields and stereoselectivity via alkyl-
ation (Soloshonok et al. 1992, 2001a; Ellis et al. 2003a;
Wang et al. 2011), Michael (Soloshonok et al. 1999c,
2000b, 2005a), Mannich (Soloshonok et al. 1997; Wang
et al. 2008) and aldol (Soloshonok et al. 1995, 1996a, b)
addition reactions. Of particular importance is that the
homologation of 10 can be performed under operationally
convenient conditions (Ellis et al. 2003b; Soloshonok et al.
2004, 2006), allowing synthesis of target a-amino acids on
large scales (Qiu et al. 2000; Soloshonok et al. 2001b; Tang
et al. 2000).
Scheme 2 Ni(II)-complexes of glycine (10), b-alanine (11) and its
a,b-unsaturated a-bromo derivative 12
a-aryl-substituted b-amino acids via two-step alkylation-
reduction sequence (Ding et al. 2009). Continuing our work
on synthetic applications of b-alanine derived complexes
11 and 12, we found that the bromine atom in 12 can be
easily substituted with boronic acids containing unsaturated
moieties by Suzuki coupling reaction giving rise to new
compoundsof type 13 containing1,3-dienesystem(Table 1).
Using the reported conditions, the reaction proceeded satis-
factorily when reacting 12 with various boronic acids in the
presence of Pd(PPh3)4 and Na2CO3 in toluene and water
under microwave irradiation (Ding et al. 2009). As shown in
Table 1, a variety of acyclic and cyclic boronic acids can
participate in the reaction to afford the corresponding prod-
ucts 13 and 16a–g in moderate to excellent yields (73–93 %,
entries 1–8). While a relatively lower yield (76 %, entry 8)
was obtained in the case of tert-butyl related boronic acid
presumbably due to a steric effect.
Results and discussion

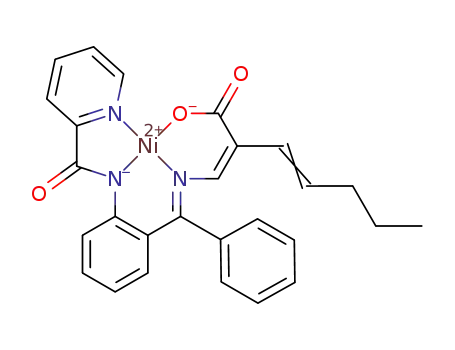

Ni(II)-complex 13 (R1 = Me, R2 = H) (Table 2), con-
taining a structurally simple diene residue, and dienophile
N-ethylmaleimide 14 were used as the model substrate to
study the possibility to conduct the corresponding Diels–
Alder cycloaddition reactions. We found that the formation
of target product 15 takes place upon heating of the starting
compounds in toluene with a yield of 60 % (Table 2, entry
1). Higher temperatures and longer reaction time favored
the formation of cycloaddition product 15 allowing its
On the other hand, the chemistry and synthetic potential of
the corresponding complex 11, derived from b-alanine, still
remains virtually unexplored. Our initial results in this area
convincingly demonstrate that compounds of this type hold
significant promise for practical preparations of various
b-amino acids (Ding et al. 2009). In particular, we have
recently developed a convenient procedure for the prepa-
ration of the corresponding a-bromo-a,b-unsaturated ana-
log 12, and demonstrated its application for preparation of
123

Synthesis of polysubstituted b-amino cyclohexane carboxylic acids
793
Table 1 Synthesis of complexes 13 and 16a–g containing b-alanine
and 1,3-diene fragments
Table 3 Diels–Alder reactions of the dienophile N-ethylmaleimide
with different dienes
Entry
Dienes
R
Products
Yield (%)
Entry
R1
R2
Dienes
Yield (%)
1
2
3
4
5
6
7
16a
16b
16c
16d
16e
16f
H
17a
17b
17c
17d
17e
17f
93
90
88
85
90
82
76
1
2
3
4
5
6
7
8
CH3
H
H
13
82
73
84
91
93
90
87
76
CH3
H
16a
16b
16c
16d
16e
16f
16g
Propyl
H
CH3
Hexyl
H
Propyl
Hexyl
Cyclopropyl
Cyclohexyl
C(CH3)3
Cyclopropyl
Cyclohexyl
C(CH3)3
H
H
16g
17g
H
Reactions were conducted using 0.1 mmol of dienes 16a–g and
0.3 mmol of dienophile 14 in 2 mL of toluene at 120 °C for 24 h
H
Reactions were run with 1.31 mmol of 12, 3.9 mmol of boric acids,
3.9 mmol Na2CO3 in 5 mL of toluene and 2 mL of water with
0.014 mmol of Pd(PPh3)4 at 70 °C under microwave irradiation
diverse groups. The results summarized in Table 3 dem-
onstrated that the reaction under study has rather general
application. Substrates 16a–g bearing various alkyl and
cycloalkyl groups gave the target products 17a–g in
excellent yields (76–93 %, entries 1–7). Acyclic and cyclic
substituents on the starting dienes 16b–g showed no dra-
matic influence on the yields. Remarkably, this cycload-
dition reaction was also tolerated in the presence of
sterically bulky tert-butyl group, though the reaction rate
was noticeably slower and resulted in lower isolated yield
of the corresponding product 17g (76 %, entry 7).
Table 2 Diels–Alder reaction of the nickel(II) complex 13 with N-
ethylmaleimide
Another aspect of the synthetic generality of this Diels–
Alder reaction was explored by investigating the cycload-
ditions between dienes of type 13 and various dienophiles
18. The results were shown in Table 4. First, we examined
the effects of the N-substituent of maleimide on the Diels–
Alder reaction using derivatives 18a and 18b bearing
methyl and phenyl groups, respectively. Expectedly, the
reaction of N-methylmaleimide 18a with Ni(II)-complex
13 gave the cycloaddition product 19a with 92 % yield
(entry 1). While a relatively lower yield was obtained when
the dienophile was phenyl-substituted maleimide presum-
ably because of the steric effect (72 %, entry 2). These
results suggested that the cyclic dienophiles of type 14
showed good reactivities and provide reliable access to the
corresponding b-amino acids derivatives. However, only
trace amount of the product 19c (entry 3) was obtained
when benzoquinone was used as the dienophile. We then
decided to concentrate our further study on acyclic deriv-
ative 18d–h containing electronically activating as well as
deactivating functional groups. Cycloadditions of diene 13
with dienophiles 18d and 18e, bearing electron-
Entry
Temperature (°C)
Time (h)
Yield (%)
1
2
3
4
80
120
120
120
12
18
24
24
60
85
92
45a
Reactions were conducted using 0.1 mmol of diene 13 and 0.3 mmol
of dienophiles in 2 mL of toluene
a
1.0 equiv of BF3 was added as the Lewis acid
preparation in 92 % yield (Table 2, entry 3). Attempt to
further improve the reaction outcome by catalysis with
Lewis acid BF3 was less successful and only 45 % yield of
the product 15 was obtained. This is mainly because the
Ni(II)-complex is unstable under acidic conditions result-
ing in the decomposition and the recovery of the starting
material PBP (Table 2, entry 4).
With these promising results in hand, we examined
further the generality of Diels–Alder reactions using a
series of Ni(II)-complexes 16a–g containing structurally
123

794
X. Ding et al.
Table 4 Diels–Alder reactions of the diene 13 with various dienophiles
Entry
1
Dienophiles
R3
R4
R5
Products
Yield (%)
92
18a
19a
N
O
O
2
3
18b
18c
19b
19c
72
Ph
N
O
O
O
O
Tracea
4
5
6
7
8
18d
18e
18f
H
COOCH3
COOCH3
19d
19e
19f
58
61b
Tracea
H
CN
H
CN
H
COOEt
CH3
OEt
18g
18h
CH3
H
CH3
H
19g
19h
0
0
Reactions were run with 0.1 mmol of dienes 13 and 0.3 mmol of dienophiles 18 in 2 mL toluene at 120 °C for 24 h
a
Detected by LC/MS
b
Not isolated yield. Detected by LC/MS. The product was not stable during the workup
withdrawing substituents on both sides of the double bond,
occurred with relatively low yields of 58 % (entry 4) and
61 % (entry 5), respectively. These results clearly sug-
gested that this approach can be optimized for the efficient
preparation of b-amino acid derivatives of type 19c–e. In
sharp contrast, the reaction of dienophile 18f, bearing only
one activating substituent (entry 6) proceeded very slowly
Scheme 3 Disassembling of nickel(II) complex 17c to release target
b-amino acid 20 and recovery of the ligand 21
and only trace amount of the product was detected by
LC/MS. No product was observed when the dienophiles
were alkyl- or electron-donating substituted (Table 4,
entries 7 and 8). These results clearly pointed to obvious
limitation of this approach in terms of generality of the
dienophile type.
Conclusion
In conclusion, we have successfully developed a new type
of Ni(II) complex stabilized b-alanine derived dienes and
outlined their reactivity with different types of dienophiles.
The results presented in this work convincingly suggested
that the designed dienes have a significant synthetic
potential for highly diastereospecific preparation of poly-
functional b-amino-cyclohexanecarboxylic acids via
Diels–Alder reaction. Further work on asymmetric version
of this approach is currently under study and will be
reported in a due course.
Taking into account that the cycloaddition products 15,
17 and 19 are structurally new type of Ni(II) complexes, we
needed to demonstrate that they can be reliably disassem-
bled to release the target b-amino acid. To this end, we
treated product 17c under the standard disassembly con-
ditions by heating suspension of 17c in 1 N HCl/MeOH.
Decomposition of complex 17c took place quite in a usual
manner allowing isolation of the target b-amino acid 20 in
90 % yield along with quantitative recovery of ligand 21,
which can be recycled to prepare starting b-alanine derived
Ni(II) complex 11 (Scheme 3).
Acknowledgments We gratefully acknowledge financial support
from National Basic Research Program of China (Grants
2009CB940903 and 2009CB918502), the National Natural Science
123

Synthesis of polysubstituted b-amino cyclohexane carboxylic acids
795
Foundation of China (Grants 20721003 and 81025017), National S&T
Major Projects (2012ZX09103-101-072), China-EU Science and
Technology Cooperation Project (1109) and Silver Project (260644).
Pitacco G, Risaliti A, Trevisan ML, Valentin E (1977) Octaline and
decalone derivatives from a new annulation reaction in enamine
field. Tetrahedron 33:3145–3148
Qiu W, Soloshonok VA, Cai C, Tang X, Hruby VJ (2000)
Convenient, large-scale asymmetric synthesis of enantiomeri-
cally pure trans-cinnamylglycine and -a-alanine. Tetrahedron
56:2577–2582
Soloshonok VA (2002) Highly diastereoselective Michael addition
reactions between nucleophilic glycine equivalents and b-substi-
tuted-a, b-unsaturated carboxylic acid derivatives: a general
approach to the stereochemically defined and sterically v-con-
strained a-amino acids. Curr Org Chem 6:341–364
Soloshonok VA, Belokon YN, Kuzmina NA, Maleev VI, Svistunova
NY, Solodenko VA, Kukhar VP (1992) Asymmetric synthesis of
phosphorus analogues of dicarboxylic a-amino acids. J Chem
Soc Perkin Trans I 1992:1525–1529
References
Bunuel E, Cativiela C, de Diaz Villegas MD (1996a) Z-2-phenyl-4-
[(S)-2,2-dimethyl-1,3-dioxolan-4-ylmethylen]-5(4H)-oxazolone
as the dienophile in asymmetric Diels–Alder reactions. Tetrahe-
dron: Asymm 7:1431–1436
Bunuel E, Cativiela C, de Diaz Villegas MD (1996b) Diastereose-
lective synthesis of (1S,2S,3R,4R)- and (1R,2S,3R,4S)-bicy-
clo[2.2.1]hept-2-amino-2,3-dicarboxylic
acids:
new
conformationally-constrained (S)-aspartic acid analogues. Tet-
rahedron: Asymm 7:1521–1528
Chola J, Masesane IB (2008) Stereoselective synthesis of 3,4,5,6-
tetrahydroxycyclohexyl b-amino acid derivatives. Tetrahedron
Lett 49:5680–5682
Csende F, Fulop F, Stajer G (2008) Chemistry of norbornane/ene and
heteronorbornane/ene b-amino acids. Curr Org Syn 5:173–185
Deng G, Wang J, Zhou Y, Jiang H, Liu H (2007) One-pot, large-scale
synthesis of Nickel(II) complexes derived from 2-[N-(a-picol-
yl)amino]benzophenone (PABP) and a- or b-amino acids. J Org
Chem 72:8932–8934
Soloshonok VA, Avilov DV, Kukhar VP, Tararov VI, Saveleva TF,
Churkina TD, Ikonnikov NS, Kochetkov KA, Orlova SA,
Pysarevsky AP, Struchkov YT, Raevsky NI, Belokon YN
(1995) Asymmetric aldol reactions of chiral Ni(II)-complex of
glycine with aliphatic aldehydes. Stereodivergent synthesis of
syn-(2S)- and syn-(2R)-b-alkylserines. Tetrahedron: Asymm
6:1741–1756
Soloshonok VA, Avilov DV, Kukhar VP (1996a) Highly diastereo-
selective asymmetric aldol reactions of chiral Ni(II)-complex of
glycine with alkyl trifluoromethyl ketones. Tetrahedron: Asymm
7:1547–1550
Diels O, Alder K (1928) Synthesen in der hydroaromatischen Reihe.
Just Lieb Ann Chem 460:98–122
Ding X, Ye D, Liu F, Deng G, Liu G, Luo X, Jiang H, Liu H (2009)
Efficient synthesis of a-aryl-/heteroaryl-substituted b-amino
acids via Ni(II) complex through the Suzuki coupling reaction.
J Org Chem 74:5656–5659
Ellis TK, Hochla VM, Soloshonok VA (2003a) Efficient synthesis of
2-aminoindane-2-carboxylic acid via dialkylation of nucleophilic
glycine equivalent. J Org Chem 68:4973–4976
Soloshonok VA, Avilov DV, Kukhar VP (1996b) Asymmetric aldol
reactions of trifluoromethyl ketones with a chiral Ni(II) complex
of glycine: stereocontrolling effect of the trifluoromethyl group.
Tetrahedron 52:12433–12442
Soloshonok VA, Avilov DV, Kukhar VP, Meervelt LV, Mischenko N
(1997) Highly diastereoselective aza-aldol reactions of a chiral
Ni(II) complex of glycine with imines. An efficient asymmetric
approach to 3-perfluoroalkyl-2,3-diamino acids. Tetrahedron
Lett 38:4671–4674
Ellis TK, Martin CH, Tsai GM, Ueki H, Soloshonok VA (2003b)
Efficient synthesis of sterically constrained symmetrically a, a-
disubstituted a-amino acids under operationally convenient
conditions. J Org Chem 68:6208–6214
Ellis TK, Ueki H, Soloshonok VA (2005) New generation of
nucleophilic glycine equivalents. Tetrahedron Lett 46:941–944
Ellis TK, Ueki H, Yamada T, Ohfune Y, Soloshonok VA (2006)
Design, synthesis, and evaluation of a new generation of modular
nucleophilic glycine equivalents for the efficient synthesis of
sterically constrained a-amino acids. J Org Chem 71:8572–8578
Epand RF, Raguse TL, Gellman SH, Epand RM (2004) Antimicrobial
14-helical b-peptides: potent bilayer disrupting agents. Bio-
chemistry 43:9527–9535
Furuta K, Hayashi S, Miwa Y, Yamamoto H (1987) Asymmetric
Diels–Alder reaction. A facile route to chiral alkyl hydrogen
cyclohexene-1,2-dicarboxylate. Tetrahedron Lett 28:5841–5844
Hayen A, Schmitt MA, Ngassa FN, Thomasson KA, Gellmann SH
(2004) Two helical conformations from a single foldamer
backbone: ‘‘split personality’’ in short a/b-peptides. Angew
Chem Int Ed 43:505–510
Iwamoto T, Tsujii E, Ezaki M, Fujie A, Hashimoto S, Okuhara M,
Kohsaka M, Imanaka H, Kawabata K, Inamoto Y, Sakane K
(1990) FR109615, a new antifungal antibiotic from Streptomyces
setonii. Taxonomy, fermentation, isolation, physico-chemical
properties and biological activity. J Antibiotics 43:1–7
Juaristi EC, Soloshonok VA (2005) Enantioselective synthesis of-
amino acids, 2nd edn. Wiley-VCH, New York
Soloshonok VA, Cai C, Hruby VJ, Meervelt LV, Mischenko N
(1999a) Stereochemically defined C-substituted glutamic acids
and their derivatives. 1. An efficient asymmetric synthesis of
(2S,3S)-3-methyl- and -3-trifluoromethylpyroglutamic acids.
Tetrahedron 55:12031–12044
Soloshonok VA, Cai C, Hruby VJ, Meervelt LV (1999b) Asymmetric
synthesis of novel highly sterically constrained (2S,3S)-3-
methyl-3-trifluoromethyl- and (2S,3S,4R)-3-trifluoromethyl-4-
methylpyroglutamic acids. Tetrahedron 55:12045–12058
Soloshonok VA, Cai C, Hruby VJ (1999c) Asymmetric Michael
addition reactions of chiral Ni(II)-complex of glycine with
(N-trans-enoyl)oxazolidines: improved reactivity and stereo-
chemical outcome. Tetrahedron: Asymm 10:4265–4269
Soloshonok VA, Cai C, Hruby VJ (2000a) (S)- or (R)-3-(E-enoyl)-4-
phenyl-1,3- oxazolidin-2-ones: ideal Michael acceptors to afford
a virtually complete control of simple and face diastereoselec-
tivity in addition reactions with glycine derivatives. Org Lett
2:747–750
Soloshonok VA, Cai C, Hruby VJ (2000b) A unique case of face
diastereoselectivity in the Michael addition reactions between
Ni(II)-complexes of glycine and chiral 3-(E-enoyl)-1,3-oxazoli-
din-2-ones. Tetrahedron Lett 41:9645–9649
Soloshonok VA, Tang X, Hruby VJ, Meervelt LV (2001a) Asym-
metric synthesis of a, b-dialkyl-a-phenylalanines via direct
alkylation of a chiral alanine derivative with racemic a-alkylb-
enzyl bromides. A case of high enantiomer differentiation at
room temperature. Org Lett 3:341–343
Oki T, Hirano M, Tomatsu K, Numata K, Kamei H (1989)
Cispentacin, a new antifungal antibiotic. II. In vitro and in vivo
antifungal activities. J Antibiotics 42:1756–1762
Soloshonok VA, Tang X, Hruby VJ (2001b) Large-scale asymmetric
synthesis of novel sterically constrained 20,60-dimethyl- and
a,20,60-trimethyltyrosine and -phenylalanine derivatives via
123

796
X. Ding et al.
alkylation of chiral equivalents of nucleophilic glycine and
alanine. Tetrahedron 57:6375–6382
Takao K, Munakata R, Tadano K (2005) Recent advances in natural
product synthesis by using intramolecular Diels–Alder reactions.
Chem Rev 105:4779–4807
Tang X, Soloshonok VA, Hruby VJ (2000) Convenient, asymmetric
synthesis of enantiomerically pure 20,60-dimethyltyrosine (DMT)
via alkylation of chiral equivalent of nucleophilic glycine.
Tetrahedron: Asymm 11:2917–2925
Ueki H, Ellis TK, Martin CH, Soloshonok VA (2003a) Efficient
large-scale synthesis of picolinic acid-derived Nickel(II) com-
plexes of glycine. Eur J Org Chem 2003:1954–1957
Ueki H, Ellis TK, Martin CH, Bolene SB, Boettiger TU, Soloshonok
VA (2003b) Improved synthesis of proline-derived Ni(II)
complexes of glycine: versatile chiral equivalents of nucleophilic
glycine for general asymmetric synthesis of a-amino acids. J Org
Chem 68:7104–7107
Wang J, Shi T, Deng G, Jiang H, Liu H (2008) Highly enantio- and
diastereoselective mannich reactions of chiral Ni(II) glycinates
with amino sulfones. Efficient asymmetric synthesis of aromatic
a, b-diamino acids. J Org Chem 73:8563–8570
Wang J, Lin D, Zhou S, Soloshonok VA, Liu H (2011) Asymmetric
synthesis of sterically and electronically demanding linear
x-trifluoromethyl containing amino acids via alkylation of chiral
equivalents of nucleophilic glycine and alanine. J Org Chem
76:684–687
Wipf P, Wang X (2000) Diels–Alder approaches to ring-functional-
ized cyclic b-amino acids. Tetrahedron Lett 41:8747–8751
Yamada T, Okada T, Sakaguchi K, Ohfune Y, Ueki H, Soloshonok
VA (2006) Efficient asymmetric synthesis of novel 4-substituted
and configurationally stable analogues of thalidomide. Org Lett
8:5625–5628
Soloshonok VA, Ueki H, Tiwari R, Cai C, Hruby VJ (2004) Virtually
complete control of simple and face diastereoselectivity in the
Michael addition reactions between achiral equivalents of a
nucleophilic glycine and (S)- or (R)-3-(E-enoyl)-4-phenyl-1,3-
oxazolidin-2-ones: practical method for preparation of beta-
substituted pyroglutamic acids and prolines. J Org Chem
69:4984–4990
Soloshonok VA, Ueki H, Ellis TK, Yamada T, Ohfune Y (2005a)
Application of modular nucleophilic glycine equivalents for
truly practical asymmetric synthesis of b-substituted pyroglu-
tamic acids. Tetrahedron Lett 46:1107–1110
Soloshonok VA, Cai C, Yamada T, Ueki H, Ohfune Y, Hruby VJ
(2005b) Michael addition reactions between chiral equivalents of
a nucleophilic glycine and (S)- or (R)-3-[(E)-enoyl]-4-phenyl-1,3-
oxazolidin-2-ones as a general method for efficient preparation of
b-substituted pyroglutamic acids. Case of topographically con-
trolled stereoselectivity. J Am Chem Soc 127:15296–15303
Soloshonok VA, Yamada T, Ueki H, Moore AM, Cook TK, Arbogast
KL, Soloshonok AV, Martin CH, Ohfune Y (2006) Operation-
ally convenient, efficient asymmetric synthesis of enantiomeri-
cally pure 4-aminoglutamic acids via methylene dimerization of
chiral glycine equivalents with dichloromethane. Tetrahedron
62:6412–6419
Songis O, Geant PY, Sautrey G, Martinez J, Calmes M (2008)
Asymmetric Diels–Alder reaction of aminodienes with
a
nonracemic acrylate bound to rink resin: a comparison of these
reactions with their solution-state analogues. Eur J Org Chem
2008:308–318
123
