A Naphthalocyanine Based Near-Infrared Photosensitizer: Synthesis
and In Vitro Photodynamic Activities
Liqiang Luana,b, Lanlan Dinga,b, Weijia Zhanga,b, Jiawei Shia,b, Xiaoqiang Yua,b, Wei
Liua,b,*
aState Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China
bInstitute of Crystal Materials, Shandong University, Jinan 250100, China
*Corresponding author. E-mail: weiliu@sdu.edu.cn; Tel.: +86-531-88365606
Fax: +86-531-88364864

Abstract
A hydrophilic near-infrared (NIR) photosensitizer featuring a naphthalocyanine
core and peripheral carboxylate acid groups was synthesized and characterized. Its
photophysical and photochemical properties were studied and compared with
phthalocyanine. Due to the extended π-conjugation, both the Q band and fluorescence
emit of this naphthalocyanine bathochromically shift to NIR region. It also exhibits
superior NIR photodynamic efficiency to phthalocyanine as evidenced by high
efficiency in generating singlet oxygen (ΦΔ = 0.66) and in vitro phototoxicity toward
Hela human cervical cancer cells. Therefore, this novel naphthalocyanine could
potentially be a NIR photosensitizer for photodynamic therapy.
Keywords: Naphthalocyanine, Photodynamic therapy; Singlet Oxygen;
Photosensitizer.

Photodynamic therapy (PDT) is an emerging modality for the diagnosis and
treatment of various cancers and metastases. It essentially takes advantages of the
interaction of light with drug (photosensitizer) and oxygen to initiate apoptosis or
necrosis of cancer cells and destroy the tumor，while sparing normal tissue.1, 2
Porphyrin (Por) is traditional clinical photosensitiser for the treatment of many
cancers, 2-5however， its weak absorption in the red to near-infrared (NIR) region
where light penetrates deeper through tissue make it unsuitable for the treatment of
6
deep-seated or large solid tumors. Thus，considerable research efforts have been
devoted to the development of new generation photosensitizers that have stronger
absorptions in the near-infrared region to match the body’s optimal therapeutic
window (700-1000nm).6-10
One of the most promising second-generation photosensitizers for PDT is
phthalocyanine (Pc), which is the synthetic analogue of Por with intense red-shifted
absorption. Naphthalocyanine (Nc) is a Pc derivative , which possesses four extra
benzene rings condensed to the periphery of the Pc macrocycle,11-13 thus imparting
strong absorbance at long wavelengths (750-900 nm) to it. The light penetration
through tissues in this region is approximately twice that of porphyrin-mediated PDT.6
In addition, Ncs are also reported to be much more stable photochemically and
photophysically than conventional used porphyrin photosensitizers.1 These features
have led to the impetus for Nc-based photosensitizers for PDT. However, due to their
complicated synthetic procedures and poor solubility in common organic solvents,
only a few Ncs have been reported in the biomedical area so far despite their great
potential in PDT. In particular, hydrophilic Ncs remain extremely rare. As a matter of
fact, the hydrophilicity of photosensitizers is very important and crucial for their
14-19
biological application.12,
Herein, we report the design and synthesis of a
hydrophilic naphthalocyanine bearing carboxylate functionalities 1, and its in vitro
photodynamic activities. For comparison, the corresponding Pc counterpart 2 was also
prepared and studied parallel. It is expected that this hydrophilic NIR photosensitizer
1, can have strong absorption in the NIR region, high efficiency to generate singlet

oxygen, and efficient in vitro photodynamic activity.
Carboxylate group is a commonly used hydrophilic moiety that can change the
water-solubility of the photosensitizers, thereby affecting their photodynamic activity.
To impart the hydrophilicity of the molecules, which is believed to be an advantage
characteristic in photosensitizers, 4-carboxyphenoxy group was selected to
incorporate into Nc 1 via simple aromatic necleophilic substitution reaction. Pc 2 has
been prepared before but its biological studies remain unexplored.20, 21 In this work, a
direct comparison of the PDT efficacy between hydrophilic Nc and Pc is reported.
The synthesis of this tetra-substituted Nc 1 is shown in Scheme 1. Treatment of
6-bromo-2,3-dicyanonaphthalene (3), which was synthesized following reported
procedures,22, 23 with methyl p-hydroxybenzoate (4) in the presence of K2CO3 in DMF

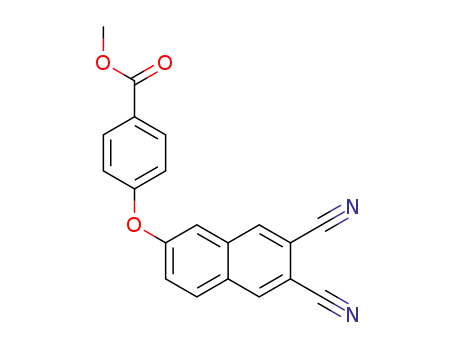

gave the corresponding substituted product 5. Cyclization of this precursor 5 in the
presence of zinc acetate and a catalytic amount of 1,8-diazabicyclo[5.4.0]undec-7-ene
(DBU) in n-heptanol under refluxing led to the formation of Nc 6 with concomitant
transesterfication of the ester groups to give the heptyl esters as observed by us before.
18, 24
This tetra-substituted Nc could be isolated and purified readily by column
chromatography due to its good solubility in common organic solvents, such as THF,
pyridine, DMF, CHCl3, benzene, and DMSO. Hydrolysis of the ester groups of 6
using NaOH in a mixed solvent system (THF/MeOH/H2O), according to the method
described by us,18 gave the naphthalocyanine bearing four sodium carboxylate groups.
Upon addition of 1 M HCl until pH 2, a green precipitate of 1 was obtained in

quantitative yield. Although this peripheral tetra- substituted Nc existed as a mixture
1
of structural isomers, the H NMR recorded in THF was simpler than expected. Two
sets of well-separated multiplets in the region
7.4-9.3 were observed for
naphthalocyanine ring protons and carboxyphenoxy moieties, respectively, along with
a broad signal at ca. 11.0 for the carboxylic acid protons.
The UV-vis spectra of 1 and 2 in N, N-dimethylformamide (DMF) are displayed
in Figure 1. The Q band for the Nc 1 at 763 nm is significantly red-shifted by ca. 90
nm compared with that for the Pc counterpart 2 at 674 nm. The inset shows the
fluorescence spectra of 1 and 2, in which fluorescence of 1 appears with a ca. 80 nm
red-shift compared to that of 2. These large bathochromic shifts could be attributed to
the extended -conjugation of Nc. The solubility of this hydrophilic Nc in water was
evidenced by two Q bands at 698 nm and 778 nm in slightly basic water, which could
be ascribed to aggregated and monomeric absorption, respectively. The pH from
acidic to basic does affect the solubility of 1 in water to some extent because of the
existence of carboxylate groups. The electronic absorption and basic photophysical
data are compiled in Table 1.
The efficiency of these compounds in generating singlet oxygen ( ) was also
compared by steady-state method using 1, 3-diphenylisobenzofuran (DPBF) as the
scavenger. The absorption of DPBF at 415 nm was monitored along with irradiation
time, from which the values of could be determined by method described previously
using ZnPc as the reference ( = 0.56 in DMF).25-27 To evaluate their photosensitizing
efficiency in the NIR region, two sets of light source consisted of a halogen lamp and
a color glass filter ( > 610 nm or = 750 10 nm) were used to initiate the singlet
oxygen generation. Upon illumination with red light ( > 610 nm), both 1 and 2 can
efficiently
generate
singlet
oxygen
in
DMF
with
the values of 0.66 and 0.45 for 1 and 2, respectively (Figure 2). This is the best
singlet oxygen quantum yield that was reported for Nc so far,12, 13, 28-30 mainly because

of its good solubility and the coordinating property of DMF to Zn(II) disrupted the
interactions of these macrocycles . By contrast, upon illumination with NIR
light ( = 75 10 nm), the singlet oxygen generation of 2 was greatly reduced because
of its weak absorption at NIR region, while that of Nc remains unchanged under the
same conditions. These data are also compiled in Table 1.
The photobleaching
rates of DPBF under different light sources were compared in Figure 3. As a result,
Nc 1 is a superior NIR singlet oxygen generator to Pc 2.
The in vitro photodynamic activities of compounds 1 and 2 formulated with
Cremophor EL were investigated against Hela cells. In the absence of light, all these
compounds were not cytotoxic. As shown in figure 4, upon irradiation with red light (
> 610 nm), both naphthalocyanine 1 and phthalocyanine 2 are highly photocytotoxic
with IC50 of 3.7 and 3.5 µM, respectively, showing they have similar in vitro PDT
efficiency under these conditions. By contrast, Pc 2 becomes less effective on the
phototoxicity when irradiated by NIR light, which can again be attributed to its
negligible absorption in NIR region.
As reveled by fluorescence microscopy, both Nc 1 and Pc 2 could enter the Hela
cells causing intracellular fluorescence. While the fluorescence was rather uniform in
the cytoplasm of the cells for both of them, 2 appeared as brighter than 1 (Figure 5).
To account for the different cellullar activities of these two compounds, their
absorptions in DMEM cell culture medium was examined. As shown in figure 6, 2
gives a typical absorption spectrum of nonaggregated phthalocyanine, but two Q
bands are observed for 1 ascribed to the aggregated and monomeric bands,
respectively. The results suggest that Nc is more aggregated than Pc in the culture
medium due to the strong intermolecular interactions, which is undesirable for
photodynamic action. Since the lower cellular fluorescence intensity of 1 maybe
caused by either higher aggregation tendency or lower cellular uptake, the
photosensitizer concentrations inside the cells were quantified by an extraction
method. DMF was used to extract the photosensitizers inside the cells after
incubation with 1 and 2 for 2 h. The cellular uptake of 1 was about 2-fold lower than

that of 2 (figure 7). To take into account that these two compounds had similar in vitro
PDT efficiency (figure 4), the photocytotoxicity of 1 was in accord with its higher
singlet oxygen generation.
In summary, we have synthesized and characterized a novel water-soluble
naphthalocyanine, which shifts the Q-band absorption from red to the NIR region
comparing to its phthalocyanine counterpart. Our in vitro evaluation results indicate
that this compound has efficient photodynamic activities in NIR region, and is
therefore a highly promising NIR photosensitizer for PDT. Further studies of this
system are in progress.
Acknowledgments
This work was supported by the grant from Natural Science Foundation of China
(21071090, 51273107) and the Excellent Young Scientist Fund of Shandong Province
(BS2010CL032). The authors also acknowledge the financial supports from the
Research Fund for the Doctoral Program of Higher Education of China
(20100131120026) and Independent Innovation Foundation of Shandong University
(2012JC013).
References and notes
1. Ali, H.; van Lier, J. E. Chem. Rev. 1999, 99, 2379.
2. Dougherty, T. J.; Gomer, C. J.; Jori, G.; Kessel, D.; Korbelik, M.; Moan, J.; Peng, Q. J. Natl.
Cancer Inst. 1998, 90, 889.
3. Hu, Z. Y.; Pan, Y. F.; Wang, J. W.; Chen, J. J.; Li, J.; Ren, L. F. Biomed. Phar. 2009, 63, 155.
4. Anand, S.; Ortel, B. J.; Pereira, S. P.; Hasan, T.; Maytin, E. V. Cancer Lett. 2012, 326, 8.
5. Dolmans, D. E..; Fukumura, D.; Jain, R. K. Nat. Rev. Cancer 2003, 3, 380.
6. Sternberg, E. D.; Dolphin, D.; Bruckner, C. Tetrahedron 1998, 54, 4151.
7. Lu, T.; Shao, P.; Mathew, I.; Sand, A.; Sun, W. J. Am. Chem. Soc. 2008, 130, 15782.
8. Muranaka, A.; Yonehara, M.; Uchiyama, M. J. Am. Chem. Soc. 2010,132, 7844.
9. Brasseur, N.; Nguyen, T.-L.; Langlois, R.; Ouellet, R.; Marengo, S.; Houde, D.; van Lier, J. E. J.
Med. Chem. 1994, 37, 415.
10. Camerin, M.; Rello, S.; Villanueva, A.; Ping, X.; Kenney, M. E.; Rodgers, M. A. J.; Jori, G. Eur. J.
Cancer 2005, 41, 1203.
11. Bucking, M.; Dickson, E. F. G.; Farahani, M.; Fischer, F.; Holmes, D.; Jori, G.; Kennedy, J. C.;
Kenney, M. E.; Peng, X.; Pottier, R. H.; Weagle, G. J.Photochem. Photobiol., B 2000, 58, 87.
12. Wohrle, D.; Shopova, M.; Muller, S.; Milev, A. D.; Mantareva, V. N.; Krastev, K. K. J. Photochem.
Photobiol., B 1993, 21, 155.

13. Ishii, K.; Shiine, M.; Shimizu, Y.; Hoshino, S.-i.; Abe, H.; Sogawa, K.; Kobayashi, N. J. Phys.
Chem.B 2008, 112, 3138.
14. Yates, N. C.; Moan, J.; Western, A. J. Photochem. Photobiol., B 1990, 4, 379.
15. Xu, H.; Ng, D. K. P. Chem. Asian J. 2009, 4, 104.
16. Saydan, N.; Durmus, M.; Dizge, M. G.; Yaman, H.; Gurek, A. G.; Antunes, E.; Nyokong, T.;
Ahsen, V. J. Porphyrins Phthalocyanines 2009, 13, 681.
17. Soares, A. R. M.; Tome, J. P. C.; Neves, M.; Tome, A. C.; Cavaleiro, J. A. S.; Torres, T. Carbohydr.
Res. 2009, 344, 507.
18. Liu, W.; Jensen, T. J.; Fronczek, F. R.; Hammer, R. P.; Smith, K. M.; Vicente, M. G. H. J. Med.
Chem. 2005, 48, 1033.
19. Medina, W. S. G.; dos Santos, N. A. G.; Curti, C.; Tedesco, A. C.; dos Santos, A. C. Chem. Biol.
Interact. 2009, 179, 402.
20. a) Verdree, V.; Pakhomov, S.; Su, G.; Allen, M.; Countryman, A.; Hammer, R.; Soper, S. J.
Fluoresc. 2007, 17, 547; b) Leng, X.; Choi, C.; Luo, H.; Cheng, Y.; Ng, D. K. P. Org. Lett. 2007, 9,
2497.
21. Yan, Y.; Lu, S.; Li, B.; Zhu, R.; Zhou, J.; Wei, S.; Qian, S. J. Phys. Chem. A 2006, 110, 10757.
22. Kitahara, K.; Asano, T.; Hamano, K.-i.; Tokita, S.; Nishi, H. J. Heterocycl. Chem. 1990, 27, 2219.
23. Kovshev, E. I.; Puchnova, V. A.; Luk'yanets, E. A. Zh. Org. Khim.1971, 7, 369.
24. Luan, L.; Chen, J.; Ding, L.; Wang, J.; Cheng, X.; Ren, Q.; Liu, W. Chem. Lett .2012, 41, 1012.
25. Shen, X.; Jiang, X.; Huang, C.; Zhang, H.; Huang, J. Tetrahedron 2010, 66, 9041.
26. Spiller, W.; Kliesch, H.; Wöhrle, D.; Hackbarth, S.; Röder, B.; Schnurpfeil, G. J. Porphyrins
Phthalocyanines 1998, 2, 145.
27. Maree, M. D.; Kuznetsova, N.; Nyokong, T. J. Photochem. Photobiol., A 2001, 140, 117.
28. Spikes, J. D.; van Lier, J. E.; Bommer, J. C. J. Photochem. Photobiol., A 1995, 91, 193.
29. Mantareva, V.; Shopova, M.; Spassova, G.; Wohrle, D.; Muller, S.; Jori, G.; Ricchelli, F. J.
Photochem. Photobiol. B 1997, 40, 258.
30. Muller, S.; Mantareva, V.; Stoichkova, N.; Kliesch, H.; Sobbi, A.; Wohrle, D.; Shopova, M. J.
Photochem. Photobiol., B 1996, 35, 167.

Figure captions:
Scheme 1. Synthetic route for naphthalocyanine 1.
Table 1. Electronic absorption and photophysical data for 1 and 2 in DMF.
Figure 1.UV-vis Absorption spectra of 1 (solid) and 2 (dash) in DMF (both at 4 µM).
The inset shows the normalized florescence spectra of 1 (solid) and 2 (dash) in DMF
excited at 680 and 610 nm, respectively.
Figure 2. Typical spectra for the determination of singlet oxygen quantum yield of 1
(A, C) and 2 (B, D) in DMF; A, B: exposed to light > 610nm; C, D: exposed to
light = 750 10 nm.
Figure 3. Comparison of the photobleaching rate of DBPF (KDPBF) by the
photosensitizers.
Figure 4. Cytotoxic effects of 1 (squre, solid line) and 2 (circle, dash line) against
Hela cells in the absence (solid symbols) and presence (hollow symbols) of light ( >
610 nm, ~1 J cm-2).
Figure 5. Visualization of intracellular fluorescence of 1 (A) and 2 (B) in Hela cells
after being incubated (both at 10µM) for 2 h (acquired with an Olympus IX71
inverted microscope equipped with a U-MWU2 fluorescence unit, excited at 330 -
380 nm and monitored at > 420nm).
Figure 6 Electronic absorption spectra of 1 (solid) and 2 (dash), formulated with
cremophor EL, in DMEM (both at 10 µM).
Figure 7 Cellular uptake of 1 and 2 determined by an extraction method using DMF

as solvent.
Scheme 1.

Table 1.
Electronic absorption and photophysical data for naphthalocyalnine 1 and phthalocyanine 2 in
DMF.
b
c,d
c,e
Compound
max/nm
em/nma
KDPBF
KDPBF
( >610nm)
2.8x10-2
1.8x10-2
(750 10nm)
2.7x10-2
7.1x10-3
1
2
341, 390, 680, 726, 763
355, 610, 643, 674
764
680
0.66
0.45
a Excited at 680 nm for 1 or 610 nm for 2.
b singlet oxyen quantum yield measured in DMF relative to ZnPc ( = 0.56).
c KDPBF represents the photobleaching rate of DPBF by the photosensitizer, taken as the slope of the
central linear region of the decay curve.
d measured with >610nm cut-off glass filter. e measured with 750 10nm band-pass glass filter.

Figure 1.

Figure 2.

Figure 3.

Figure 4.

Figure 5.

Figure 6.

Figure 7.

Graphic Abstract
