Metal-Templated Ligand Architectures for Trinuclear Chemistry:
Tricopper Complexes and Their O2 Reactivity
Davide Lionettia, Michael W. Daya and Theodor Agapie*a
A trinucleating framework was assmbled by templation of a heptadentate ligand around yttrium and lanthanides. The generated complexes
orient three sets of two or three N-donors each for binding additional metal centers. Addition of three equivalents of copper(I) leads to the
formation of tricopper(I) species. Reactions with dioxygen at low temperatures generate species whose spectroscopic features are
consistent with a µ3,µ3-dioxo-tricopper complex. Reactivity studies were performed with a variety of substrates. The dioxo-tricopper
species deprotonates weak acids, undergoes oxygen atom transfer with one equivalent of triphenylphosphine to yield triphenylphosphine
oxide, and abstracts two hydrogen atom equivalents from tetramethylpiperidine-N-hydroxide (TEMPO-H). Thiophenols reduce the
oxygenated species to a CuI3 complex and liberate two equivalents of disulfide, consistent with a four-electron four-proton process.
multidentate sites for binding of transition metals. The synthesis
of tricopper complexes and their reactivity with O2 is discussed.
Introduction
Enzyme active sites containing three metal centers perform
Results and Discussion
diverse biological functions, including electron transfer,
hydrolytic reactions, and O2 reduction.1 These enzymes display
trimetallic moieties comprising of zinc, iron, magnesium, or
copper.2 In the context of O2 reduction to water, the tricopper
active sites of laccase and ascorbate oxidase (AO) have been
studied extensively given the potential applications in fuel cell
chemistry.3 In these enzymes, a fourth copper center situated ~12
Å away provides an additional reducing equivalent.4 Synthetic
efforts have focused on modeling the tricopper site where O2
activation occurs. Mononuclear diamine complexes have been
shown to self-assemble upon reaction with O2 to form a
CuII2CuIII(µ3-O)2 species.5 Reduction of these trinuclear cores
leads to dinuclear species, however, hindering attempts for
developing catalytic versions of this reaction. An alternate
strategy has been the employment of trinucleating frameworks.6
Most systems investigated are rather flexible and do not faciliate
cooperative trinuclear reactivity. Macrocyclic ligands have been
shown to bind three CuII centers, but O2 reactivity has not been
reported with these systems.7 Beyond tricopper models, recent
ligand-design synthetic efforts have been reported on trinuclear
complexes of manganese, iron, cobalt, and zinc.8
Group 3 and lanthanide ions are known to bind heptadentate,
tripodal [O3N4]-trisphenoxide-trisimine-amine ligands in
a
fashion that positions carbon substituents ortho- to the phenoxide
oxygen about 3–4 Å apart from each other.10 This separation is in
the range observed for the copper centers in laccase and AO.
Substitution with multidentate moieties at these positions are
expected to allow for binding of three metal centers in close
proximity. Additionally, these ligating moieties were selected to
allow for orthogonal binding of different metals (e.g. first row
transition metals vs lanthanides or yttrium) at the desired sites.
Toward assembling such multinucleating ligand architecture, a

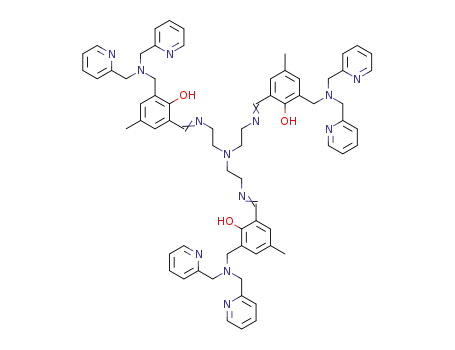

variant (2) of the [O3N4]-trisphenoxide-trisimine-amine
framework with dipicolylamine substitutents was prepared via a
condensation between tris(2-amino-ethyl)amine and three
equivalents of previously reported aldehyde 1 (Scheme 1).11
Metallation was perfomed via alkane elimination with an yttrium
trialkyl precursor. NMR spectroscopic characterization shows a
single phenoxide and pyridine environment, consistent with
yttrium binding to the [O3N4]-trisphenoxide-trisimine-amine
moiety to generate a high-symmetry species (3). Addition of three
equivalents of CuI precursor (Cu(CH3CN)4OTf) dissolved in
acetonitrile (MeCN) to a suspension of 3 in MeCN leads to the
generation of a homogeneous mixture and to a color change from
light yellow to gold. In contrast to 3, the generated species is
soluble in acetonitrile but not soluble in less polar solvents (e.g.:
THF) suggesting the formation of an ionic complex. Single
crystal X-ray diffraction studies show the formation of a
tricationic Cu3Y species, 4 (Figure 1), with the seven-coordinate
yttrium center bound to the [O3N4]-trisphenoxide-trisimine-amine
We have investigated 1,3,5-triarylbenzene frameworks,
appended with a variety of donors, capable of supporting
9
multimetallic systems.8c, The reaction of O2 with a tricopper
complex based on this framework was complicated in part
because of the presence of alcohol groups which lead to a bridged
alkoxide species upon oxidation to CuII.9b We report here a novel
strategy for the generation of trimetallic moieties based on
templating a ligand scaffold around yttrium or lanthanides to
generate
a seven-coordinate complex that displays three
