Molecules 2013, 18, 13043-13060; doi:10.3390/molecules181013043
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis and Structure-Activity Relationships of Amino Acid
Conjugates of Cholanic Acid as Antagonists of the
EphA2 Receptor
Simonetta Russo 1, Matteo Incerti 1, Massimiliano Tognolini 1, Riccardo Castelli 1, Daniele Pala 1,
Iftiin Hassan-Mohamed 1, Carmine Giorgio 1, Francesca De Franco 2, Antimo Gioiello 3,
Paola Vicini 1, Elisabetta Barocelli 1, Silvia Rivara 1, Marco Mor 1 and Alessio Lodola 1,*
1
Dipartimento di Farmacia, Università degli Studi di Parma, Viale delle Scienze 27/A,
Parma I-43124, Italy
2
TES Pharma S.r.l., Via P. Togliatti, 20, Loc Taverne, Corciano 06073, Italy
3
Dipartimento di Scienze Farmaceutiche, Università degli Studi di Perugia, Via del Liceo, 1,
Perugia 06123, Italy
* Author to whom correspondence should be addressed; E-Mail: alessio.lodola@unipr.it;
Tel.: +39-0521-905-062; Fax: +39-0521-905-007.
Received: 29 August 2013; in revised form: 11 October 2013 / Accepted: 12 October 2013 /
Published: 21 October 2013
Abstract: The Eph–ephrin system plays a critical role in tumor growth and vascular
functions during carcinogenesis. We had previously identified cholanic acid as a
competitive and reversible EphA2 antagonist able to disrupt EphA2-ephrinA1 interaction
and to inhibit EphA2 activation in prostate cancer cells. Herein, we report the synthesis and
biological evaluation of a set of cholanic acid derivatives obtained by conjugation of its
carboxyl group with a panel of naturally occurring amino acids with the aim to improve
EphA2 receptor inhibition. Structure-activity relationships indicate that conjugation of
cholanic acid with linear amino acids of small size leads to effective EphA2 antagonists
whereas the introduction of aromatic amino acids reduces the potency in displacement
studies. The β-alanine derivative 4 was able to disrupt EphA2-ephrinA1 interaction in the
micromolar range and to dose-dependently inhibit EphA2 activation on PC3 cells. These
findings may help the design of novel EphA2 antagonists active on cancer cell lines.
Keywords: cholanic acid; amino acid conjugates; EphA2 antagonists;
structure-activity relationships

Molecules 2013, 18
13044
1. Introduction
The erythropoietin-producing hepatocellular carcinoma (Eph) receptors form the largest family of
receptor tyrosine kinases (RTKs) and, together with their ephrin ligands, are involved in the processes of
cellular communication by virtue of the membrane localization of both Eph receptors and ephrins [1]. To
date, fourteen Eph-family members, divided in two classes (EphA and EphB receptors) and eight
ephrin ligands have been identified in humans. The bidirectional cell-cell signalling resulting from the
Eph-ephrin interaction participates in the modulation of the complex dynamics of cellular migration
and adhesion, which are inherently connected to cancer insurgence and progression [2]. Dys-regulation
of the Eph-ephrin system activity affects cell-matrix adhesion, cell-cell adhesion, organization of the
cytoskeleton and tumor cell survival, leading to increased cellular motility, tumor cell invasion and
metastasis [3,4]. High levels of Eph receptors have been found in several cancer types [5] comprising
breast, lung, colon, prostate and melanoma, as well as in blood vessels, where they promote tumor
angiogenesis [6].
The function of the Eph-ephrin system in tumorigenesis and angiogenesis makes it a promising
therapeutic target for the treatment of solid tumors. Several strategies have been applied during the
past years to target this system such as monoclonal antibodies, recombinant proteins (i.e., soluble
forms of Eph or ephrin) and peptides [7]. An attractive alternative is represented by small molecules
able to interfere with the Eph-ephrin system. In this context, a possible approach is represented by
heterocyclic compounds able to inhibit the kinase activity of the Eph receptor [8] by occupying its
ATP-binding site. However, the lack of selectivity of classical kinase inhibitors remains so far an
indisputable limit of this class of compounds [9], the highly conserved sequences of the ATP-binding
pocket among protein kinases. A different strategy features the use of small molecules to directly
prevent the interaction between the Eph receptor and its ephrin ligand. Few low-molecular weight
compounds able to disrupt the Eph-ephrin binding have been recently identified: (i) disalicylic acid
derivatives that bind the EphA2 and EphA4 receptors with a non competitive mechanism of action [10];
(ii) doxazosin, which acts as an agonist on EphA2 and EphA4 receptors [11]; (iii) naturally occurring
polyphenols and their metabolites, such as gallic acid [12,13].
We have recently described lithocholic acid (LCA, Figure 1) as a competitive and reversible Eph
receptor ligand. Functional studies showed that LCA acts as an antagonist of the EphA2 receptor as it
inhibits, in a dose-dependent manner, the phosphorylation of EphA2 and blocks PC3 cells retraction
and rounding induced by EphA2 stimulation with ephrin-A1 at non-cytotoxic concentrations[14].
Exploration of the structure-activity relationships (SARs) of lithocholic acid derivatives identified
cholanic acid (1) as a more potent inhibitor of the EphA2-ephrin-A1 interaction (pIC50 = 4.91) than
LCA (pIC50 = 4.24) [15], confirming that the 5β-cholan-24-oic acid structure could serve as an
effective scaffold to design improved EphA2 inhibitors. To improve the inhibitory potency and
physicochemical properties of lithocholic acid, a series of α-amino acid conjugates of LCA were
prepared based on its theoretical binding mode to the EphA2 receptor [16]. As a result of this
investigation, the L-Trp conjugate of LCA (known as PCM126/UniPR126) resulted the most potent
derivative, able to disrupt the EphA2-ephrin-A1 interaction with a pIC50 of 5.69 (Figure 1).
Conjugation of LCA with L-Trp not only provided an effective antagonist at the EphA2 receptor but it
allowed facing the issue of selectivity versus versus known targets of bile acids. Specifically, while

Molecules 2013, 18
13045
LCA is a rather potent agonist of both FXR and TGR5 receptors [17,18] PCM126/UniPR126 does not
interact with FXR while it is endowed with activity on TGR5 receptor in the micromolar range (data
from an unpublished study).
All together, these findings prompted us to prepare and characterize some α and β-amino acid
conjugates of the reference EphA2 antagonist cholanic acid. The newly synthetized compounds were
tested on the EphA2 receptor and the gathered SAR data were rationalized through molecular
docking simulations.
Figure 1. Chemical structure of lithocholic acid, cholanic acid (1) and PCM126 (UniPR126).
2. Results and Discussion
2.1. Chemistry

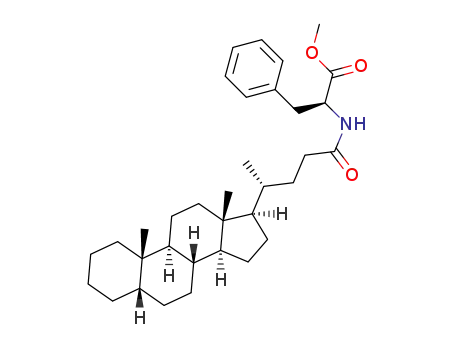

Cholanic acid (1) and methyl ester hydrochlorides of amino acids are commercially available, while
compounds 2–4, 6–9 were synthesized according to known procedures or minor modifications to those
described in ref. [16] (Schemes 1 and 2). The methyl ester hydrochloride of the appropriate amino acid
was reacted with 1, using N-(3-dimethylaminopropyl)-N'-ethylcarbodiimide hydrochloride (EDCI) as
coupling agent. The ester group of amides 3, 4a, 6a–9a was hydrolyzed with NaOH to give
compounds 2, 4, 6–9.
Compound 5 was synthesized according to the procedure reported in Scheme 3. Commercially
available cysteamine hydrochloride was coupled to 1, to yield the corresponding mercapto-amide 5a.
Subsequent oxidation with peracetic acid afforded cholanic acid-taurine conjugate 5.

Molecules 2013, 18
13046
Scheme 1. General synthesis of compound 2 and 4. a
a Reagents and conditions: (i) NMM, EDCI, CH2Cl2, r.t., overnight; (ii) NaOH (15% aq.), EtOH, r.t., 1 h.
Scheme 2. General synthesis of compound 6–9. a
a Reagents and conditions: (i) NMM, EDCI, CH2Cl2, r.t., overnight; (ii) NaOH (15% aq.), EtOH, r.t., 1 h.

Molecules 2013, 18
13047
Scheme 3. General synthesis of compound 5. a
a
Reagents and conditions: (i) NMM, EDCI, CH2Cl2, r.t., overnight; (ii) CH3CO2H (40% aq.), CH2Cl2, 0 °C
to r.t., 30 min.
2.2. Structure-Activity Relationship Analysis of Cholanic Acid Derivatives
Compounds 1–9 were evaluated for their ability to inhibit the binding of ephrin-A1 to the EphA2
receptor, by means of an ELISA assay protocol [14]. The pIC50 values of tested compounds are
reported in Table 1, together with the corresponding standard deviations of the mean (SEM).
Conjugation of cholanic acid with glycine provided compound 2 that was able to displace ephrin-A1
from the immobilized EphA2 receptor with an inhibitory potency (pIC50 = 4.88) comparable to that of
cholanic acid (1). The methyl ester 3 resulted inactive, indicating that a free carboxylate group is
fundamental to disrupt the interaction between the EphA2 receptor and the ephrin-A1 ligand. This result
parallels EphA2-ephrin-A1 displacement data observed for the glycine and glycine methyl ester conjugates
of LCA [16].
The β-alanine derivative 4 showed an inhibitory potency similar to 1 and 2 (pIC50 = 4.82),
suggesting that the EphA2 receptor is tolerant to lengthening of the spacer between the terminal
carboxyl group and the amide group. On the other hand, replacement of the carboxylic acid of
compound 4 with a bioisosteric sulfonic acid (5) led to a loss of inhibitory activity, probably due to a
detrimental arrangement of the sulfonate within the ligand-binding site of the receptor. Finally,
conjugation with L-phenylalanine and L-tryptophan gave compounds 6 and 8, that resulted less potent
than 1 in the binding assay, with pIC50 values of 4.67 and 4.55, respectively. Finally, cholanic acid

Molecules 2013, 18
13048
conjugates with D-phenylalanine (7) and D-tryptophan (9) had slightly lower pIC50 values than the
corresponding L-amino acid derivatives 6 and 8, highlighting a poor stereochemistry impact of the
chiral amino acid portion.
In contrast with SAR for α-amino acid conjugates of LCA, where the introduction of an aromatic
side chain (i.e. the 3-methylindole of tryptophan and the benzyl group of phenylalanine) resulted in a
marked improvement of the inhibitory potency [16], in the case of cholanic acid derivatives, the same
structural modification did not lead to an improvement of the EphA2-ephrin-A1 inhibitory potency,
indicating that LCA conjugates and cholanic acid conjugates have a different SAR profile on the
EphA2 receptor.
Table 1. pIC50 values for amino acid conjugates of cholanic acid tested on the EphA2 receptor.
Compound
R
pIC50±SEM a
4.91 ± 0.09
4.88 ± 0.06
<3.50
1
2
3
4
5
4.82 ± 0.07
<3.50
6
7
4.67 ± 0.07
4.58 ± 0.07
8
4.55 ± 0.08
9
4.20 ± 0.11
a Values are means ± standard error of the mean (SEM) from at least three independent experiments.
2.3. Molecular Modeling Studies
In our previous work, we proposed a binding mode for LCA to the EphA2 receptor based on
docking and molecular dynamics simulations [15]. We speculated that this compound (LCA) might
bind the EphA2 receptor by (i) inserting its cyclopenta[a]-perhydrophenanthrene scaffold into a large

Molecules 2013, 18
13049
hydrophobic channel of the receptor and (ii) forming a key salt bridge with the guanidine group of
Arg103, a critical residue involved in ephrin-A1 recognition [19]. In this model, the 3α-hydroxyl
group, emerging from the A-ring of LCA, points towards the lipophilic side chain of Phe156 and does
not undertake favorable interactions with the receptor (Figure 2A). This theoretical binding mode was
supported by experimental data, as the removal of the hydroxyl group (LCA to cholanic acid, Figure 2B)
led to a significant gain in potency [15].
Figure 2. Lithocholic acid (A), cholanic acid (B), PCM 126 (C) and compound 8 (D)
docked within the ligand binding domain of the EphA2 receptor. Secondary structure
elements of EphA2 are colored in white, while carbon atoms of Arg103 and Phe156 are
colored in grey (oxygens in red; nitrogens in blue, hydrogens in white). H-bond between
the carboxylic acid of the ligands (A–D) and the guanidine group of Arg103 are
highlighted with a dotted blue line. H-bond between the 3α-hydroxyl group of PCM126
and the backbone oxygen of Phe156 is depicted with a dotted green-line (C).
Herein, we docked the L-Trp conjugate of both LCA (PCM126/UniPR126) and cholanic acid
(compound 8) within the EphA2 receptor to account for their experimental potency. The top-ranked
binding poses (i.e., those with the highest Gscore) are depicted in Figure 2C and 2D. These poses are
slightly different compared to those of the corresponding non-conjugated compounds. Indeed, the
presence of the L-tryptophan moiety induced a shift of the whole structure to a lower position within
the EphA2 channel both for PCM126 and compound 8. In the case of PCM126, the small
rearrangement of the binding mode allowed the formation of a hydrogen-bond between the 3α-hydroxyl
group on the A-ring and the backbone oxygen of Phe156 (Figure 2C). This additional interaction could
explain the higher inhibitory potency of PCM126 compared to LCA (pIC50 = 5.69 vs. pIC50 = 4.24). In

Molecules 2013, 18
13050
the case of compound 8, no additional hydrogen-bond can be formed, thus accounting for its reduced
potency compared to PCM126 (pIC50 = 4.55 vs. pIC50 = 5.69). Further, the lipophilic A-ring of 8
undertakes an unfavorable interaction with the polar backbone oxygen of Phe156, accounting for its
lower potency than free cholanic acid (pIC50 = 4.55 vs. pIC50 = 4.91).
2.4. Effects on EphA2 Phosphorylation in Human Prostate Adenocarcinoma Cells
Compounds 2 and 4, which display an inhibitory potency comparable to that of cholanic acid in the
ELISA binding assay, were evaluated in a functional study performed on PC3 human prostate
adenocarcinoma cells that express the EphA2 receptor [20]. Cholanic acid (1) inhibited EphA2
phosphorylation induced by ephrin-A1-Fc, with an IC50 value of 17 µM. Similar to cholanic acid,
4 blocked EphA2 phosphorylation in a dose dependent manner with an IC50 of 21 µM, in agreement
with the potency observed in the ELISA assay. Compound 2 was less potent than 1 in inhibiting
EphA2 phosphorylation (Figure 3). The multikinase inhibitor dasatinib (1 µM), used as control,
completely blocked EphA2 phosphorylation.
Figure 3. Relative EphA2 phosphorylation in the presence of different concentrations
(50 μM, 25 μM, 12 μM, 6 μM) of compounds 1 (black), 2 (white) and 4 (sky blue). EphA2
phosphorylation was induced by treatment of PC3 cells with 0.25 μg/mL ephrin-A1-Fc.
Cells were pretreated for 20 min with 1% DMSO or the indicated concentration of
compounds and then stimulated for 20 min with ephrin-A1-Fc. Data are reported as a mean
± SEM of at least three independent experiments. One-way ANOVA followed by Dunnet’s
post-test was performed to compare ephrin-A1-Fc + DMSO to all the other columns.
* p < 0.05, ** p < 0.01.

Molecules 2013, 18
13051
3. Experimental
3.1. Chemistry
General
Unless otherwise noted, reagents and solvents were purchased from commercial suppliers (Aldrich,
Milano, Italy and Fluka, Milano, Italy) and were used without purification. The progress of the reaction
was monitored by thin-layer chromatography with F254 silica-gel precoated sheets (Merck, Darmstadt,
Germany). UV light, ninhydrin ethanolic solution (0.3% w/v) and potassium permanganate solution
(10% w/v) were used for detection. Flash chromatography was performed using Merck silica-gel 60 (Si 60,
40–63 μm, 230–400 mesh ASTM). Dichloromethane was dried by distillation over calcium hydride.
All reactions were carried out using flame-dried glassware under nitrogen atmosphere. Melting points
were determined on a Gallenkamp melting point apparatus and were not corrected. The 1H-NMR (400
MHz) and 13C-NMR (100 MHz) spectra were recorded on a Bruker Avance 400 spectrometer;
1
chemical shifts (δ scale) are reported in parts per million (ppm). H-NMR spectra are reported in the
following order: multiplicity, approximate coupling constants (J value) in Hertz (Hz) and number of
protons; signals were characterized as s (singlet), d (doublet), t (triplet), q (quadruplet), m (multiplet),
b (broad). Mass spectra were recorded on an Applied Biosystems API-150 EX system spectrometer
equipped with an ESI interface. The final compounds were analyzed on a ThermoQuest Italia (Milano,
Italy). A FlashEA 1112 Elemental Analyzer was used for for C, H and N analyses. The percentages
found were within ± 0.4% of the theoretical values.
Methyl N-(5β-cholan-24-oyl)glycinate (3). Compound 3 was synthesized following a modification of a
described procedure [21] in which to a stirred solution of cholanic acid (1, 0.832 mmol), L-glycine
methyl ester hydrochloride (0.915 mmol) and N-methylmorpholine (NMM, 2.080 mmol) in anhydrous
CH2Cl2 (20 mL) under nitrogen was added N-(3-dimethylaminopropyl)-N'-ethylcarbodiimide
hydrochloride (EDCI, 0.857 mmol). The reaction mixture was stirred at room temperature overnight
and then was diluted with CH2Cl2, (30 mL) washed with HCl 2N, brine and dried over anhydrous
Na2SO4. Evaporation of the solvent under reduced pressure yielded a white solid that was purified by
flash chromatography [SiO2, CH2Cl2:EtOH 98:2]. The crude product was re-crystallized from ethanol-
water to give 3. Yield: 81%. Mp: 116–119 °C. 1H-NMR (CDCl3) δ = 0.63 (s, 3H, CH3), 0.90–0.92 (m,
7H), 1.00–1.13 (m, 4H), 1.14–1.30 (m, 8H), 1.32–1.42 (m, 7H), 1.53–1.57 (m, 1H), 1.71–1.74 (m,
3H), 1.78–1.87 (m, 3H), 1.92–1.95 (m, 1H), 2.09–2.16 (m, 1H), 2.26–2.33 (m, 1H), 3.75 (s, 3H,
13
OCH3), 4.04 (d, J = 5.2 Hz, 2H, CH2CO), 6.02 (bs, 1H, NH). C-NMR (CDCl3) δ = 12.06, 18.37,
20.83, 21.34, 24.24, 24.26, 26.55, 27.03, 27.25, 27.51, 28.25, 31.61, 33.26, 35.36, 35.49, 35.89, 37.59,
40.29, 40.51, 41.20, 42.77, 43.73, 52.34, 56.05, 56.61, 170.64 (C=O), 173.78 (C=O). MS (ESI) calc
for C27H45NO3: 431.34; found: 432.6 [M+H]+, 454.6 [M+Na]+, 470.5 [M+K]+. Anal. calc for
C27H45NO3: C, 75.13; H, 10.51; N, 3.24; found: C, 75.77; H, 10.96; N, 3.11.
N-(5β-cholan-24-oyl)glycine (2). Compound 2 was synthesized following a modification of a
described procedure [22] in which to a solution of compound 3 (0.563 mmol) in ethanol (15 mL) a
solution of sodium hydroxide 15% w/v (12 mL) was added and the mixture stirred at room temperature

Molecules 2013, 18
13052
for 1 h. Ethanol was removed under reduced pressure and the solution was acidified with concentrated
hydrochloric acid until a precipitate was formed. The resulting suspension was suction-filtered and the
obtained white residue washed with water. The crude product was crystallized from ethanol-water to
give the title compound 2 (94%) as a white solid. Mp: 192–195 °C. 1H-NMR (DMSO-d6) δ = 0.60 (s,
3H, CH3), 0.81–0.88 (m, 7H), 0.94–1.09 (m, 4H), 1.13–1.25 (m, 9H), 1.32–1.34 (m, 6H), 1.49–1.51
(m, 1H), 1.65–1.84 (m, 6H), 1.90–1.92 (m, 1H), 1.97–2.04 (m, 1H), 2.09–2.16 (m, 1H), 3.69 (d,
13
J = 6.0 Hz, 2H, CH2), 8.07 (t, J = 6.0 Hz, 1H, NH), 12.43 (bs, 1H, COOH). C-NMR (DMSO-d6)
δ = 12.34, 18.75, 20.91, 21.28, 24.32, 24.50, 26.62, 26.96, 27.17, 27.51, 28.16, 31.90, 32.51, 35.34,
35.39, 35.86, 37.60, 40.99, 42.74, 43.57, 56.12, 56.53, 171.90 (C=O), 173.36 (C=O). MS (ESI) calc
for C26H43NO3: 417.32; found: 416.6 [M−1]−. Anal. calc for C26H43NO3: C, 74.77; H, 10.38; N, 3.35;
found: C, 74.88; H, 10.75; N, 3.32.
Methyl N-(5β-cholan-24-oyl)-β-alaninate (4a). Compound 4a was synthesized following the procedure
described for compound 3 using β-alanine methyl ester hydrochloride and purified by flash
chromatography [SiO2, CH2Cl2:EtOH 98:2]. The crude product was re-crystallized from ethanol-water
to give 4a. Yield: 81%. Mp: 108–111 °C. 1H-NMR (CDCl3) δ = 0.63 (s, 3H, CH3), 0.90–092 (m, 7H),
1.01–1.14 (m, 4H), 1.16–1.32 (m, 8H), 1.34–1.41 (m, 6H), 1.54–1.57 (m, 1H), 1.61–1.65
(m, 1H), 1.72–1.88 (m, 6H), 1.92–1.96 (m, 1H), 2.00–2.08 (m, 1H), 2.18–2.25 (m, 1H), 2.54 (t, J = 6.0 Hz,
2H, CH2), 3.49–3.54 (m, 2H, CH2), 3.70 (s, 3H, OCH3), 6.02 (bs, 1H, NH). 13C-NMR (CDCl3)
δ = 12.04, 18.36, 20.83, 21.34, 24.23, 24.27, 26.55, 27.03, 27.25, 27.51, 28.26, 31.74, 33.62, 33.86,
34.72, 35.36, 35.49, 35.89, 37.59, 40.29, 40.51, 42.76, 43.73, 51.78, 56.04, 56.61, 173.25 (C=O),
173.60 (C=O). MS (ESI) calc for C28H47NO3: 445.36; found: 446.5 [M+H]+, 468.5 [M+Na]+, 484.5
[M+K]+. Anal. calc for C28H47NO3: C, 75.46; H, 10.63; N, 3.14; found: C, 75.28; H, 10.56; N, 3.08.
N-(5β-Cholan-24-oyl)-β-alanine (4). Compound 4 was synthesized following a modification of a
described procedure [23]. To a solution of compound 4a (0.449 mmol) in ethanol (15 mL) a solution
of sodium hydroxide 15% w/v (12 mL) was added and the mixture stirred at room temperature for 1 h.
Ethanol was removed under reduced pressure and the solution was acidified with concentrated
hydrochloric acid until a precipitate was formed. The resulting suspension was suction-filtered and the
solid residue thus obtained washed with water. The crude product was re-crystallized from ethyl
acetate to give the title compound 4. Yield: 93%. Mp: 152–155 °C. 1H-NMR (DMSO-d6) δ = 0.59 (s,
3H, CH3), 0.84–0.88 (m, 7H), 1.03–1.08 (m, 4H), 1.15–1.34 (m, 15H), 1.50–1.58 (m, 1H), 1.65–1.71
(m, 4H), 1.76–1.84 (m, 2H), 1.89–1.96 (m, 2H), 2.01–2.08 (m, 1H), 2.32 (bt, J = 6.8 Hz, 2H, CH2),
13
3.16–3.21 (m, 2H, CH2), 7.82 (s, 1H, NH), 12.14 (bs, 1H, COOH). C-NMR (DMSO-d6) δ = 12.31,
18.74, 20.90, 21.28, 24.31, 24.50, 26.62, 26.96, 27.17, 27.51, 28.18, 32.00, 32.73, 34.42, 35.18, 35.39,
35.86, 37.60, 42.73, 43.57, 56.07, 56.53, 173.01 (C=O), 173.37 (C=O). MS (ESI) calc for C27H45NO3:
431.34; found: 430.6 [M−1]−. Anal. calc for C27H45NO3: C, 75.13; H, 10.51; N, 3.24; found: C, 75.20;
H, 10.53; N, 3.18.
2-[N-(5β-Cholan-24-oyl)amino]ethanethiol (5a). Compound 5a was synthesized following the
procedure described for 3 using cysteamine hydrochloride and purified by flash chromatography
1
[SiO2, CH2Cl2:MeOH(NH3) 98:2]. Yield: 36%. H-NMR (CDCl3) δ = 0.64 (s, 3H, CH3), 0.84–091

Molecules 2013, 18
13053
(m, 7H), 1.01–1.41 (m, 20H), 1.57 (m, 1H), 1.72–1.96 (m, 6H), 2.09–2.11 (m, 1H), 2.23–2.26 (m, 1H),
2.39 (m, 1H), 2.64–2.70 (m, 1H, CH2CHH), 3.41–3.46 (m, 1H, CH2CHH), 5.89 (bs, 1H, NH).
13C-NMR (CDCl3) δ = 12.08, 18.40, 20.83, 21.35, 24.26, 24.74, 26.56, 27.04, 27.25, 27.52, 28.29,
30.85, 31.81, 33.63, 35.36, 35.52, 35.90, 37.60, 40.30, 40.52, 42.28, 42.78, 43.74, 56.05, 56.62, 173.86
(C=O). MS (ESI) calc for C26H45NOS: 419.32; found: 420.5 [M+H]+, 442.4 [M+Na]+.
2-[N-(5β-Cholan-24-oyl)amino]ethanesulfonic Acid (5). Compound 5 was synthesized following a
modification of a described procedure [24]. To a stirred solution of 5a (0.295 mmol) in CH2Cl2 under
nitrogen at 0 °C, a solution of peracetic acid in water (40% w/w, 0.966 mmol) was added dropwise The
mixture was allowed to warm to room temperature while stirring over the course of 30 min.
Evaporation of the solvent under reduced pressure afforded a white solid that was purified by flash
chromatography [SiO2, CH2Cl2:HCOOH:EtOH 76:4:20]. The crude product was re-crystallized from
ethanol-water to give 5. Yield: 98%. Mp: 200–203 °C. 1H-NMR (CDCl3) δ = 0.59 (s, 3H, CH3), 0.84–0.88
(m, 7H), 1.01–1.08 (m, 5H), 1.14–1.22 (m, 9H), 1.31–1.34 (m, 6H), 1.51 (m, 1H), 1.61–1.71
(m, 4H), 1.76-1.81 (m, 2H), 1.84–1.94 (m, 2H), 2.00–2.07 (m, 1H), 7.65 (bs, 1H, NH). 13C-NMR
(CDCl3) δ = 12.35, 18.77, 20.92, 21.30, 24.31, 24.50, 26.62, 26.99, 27.17, 27.53, 28.14, 31.93, 33.11,
35.37, 35.42, 35.91, 35.97, 37.64, 42.77, 43.62, 51.10, 56.09, 56.54, 172.51 (C=O). MS (ESI) calc for
C26H45NO4S: 467.31; found: 466.4 [M−1]−−. Anal. calc for C26H45NO4S: C, 66.77; H, 9.70; N, 2.99;
found: C, 66.60; H, 9.11; N, 2.68.
Methyl N-(5β-cholan-24-oyl)-L-phenylalaninate (6a). Compound 6a was synthesized following
procedure described for compound 3 starting from L-phenylalanine methyl ester hydrochloride and
purified by flash chromatography [SiO2, CH2Cl2:EtOH 98:2]. The crude product was re-crystallized
1
from ethanol-water to give 6a. Yield: 83%. Mp: 78–81 °C. H-NMR (CDCl3) δ = 0.63 (s, 3H, CH3),
0.89–0.91 (m, 7H), 1.04–1.08 (m, 4H), 1.13–1.23 (m, 9H), 1.36–1.39 (m, 6H), 1.57 (m, 1H), 1.72–1.95
(m, 7H), 2.03–2.10 (m, 1H), 2.18–2.22 (m, 1H), 3.09 (dd, J = 13.8, 5.7 Hz, 1H, CHCHH), 3.15 (dd,
J = 13.8, 5.8 Hz, 1H, CHCHH), 3.73 (s, 3H, OCH3), 4.87–4.92 (m, 1H, CHCH2), 5.86
(d, J = 7.7 Hz, 1H, NH), 7.09 (d, J = 6.4 Hz, 2H, Ar), 7.24-7.30 (m, 3H, Ar). 13C-NMR (CDCl3)
δ = 12.07, 18.36, 20.83, 21.35, 24.25, 24.28, 26.56, 27.04, 27.26, 27.52, 28.24, 31.61, 33.40, 35.37,
35.44, 35.89, 37.60, 37.88, 40.29, 40.51, 42.76, 43.73, 52.32, 52.91, 56.01, 56.61, 127.12, 128.56, 129.28,
135.89, 172.21 (C=O), 173.15 (C=O). MS (ESI) calc for C34H51NO3: 521.39; found: 522.6 [M+H]+, 544.5
[M+Na]+. Anal. calc for C34H51NO3: C, 78.26; H, 9.85; N, 2.68; found: C, 78.62; H, 10.27; N, 2.67.
N-(5β-Cholan-24-oyl)-L-phenylalanine (6). Compound 6 was synthesized following the procedure
described for compound 2 starting from compound 6a. The crude product was re-crystallized from
1
ethanol-water to give 5. Yield: 97%. Mp: 189–192 °C. H-NMR (DMSO-d6) δ = 0.57 (s, 3H, CH3),
0.81–0.82 (m, 4H), 0.88 (s, 3H, CH3), 0.99–1.04 (m, 6H), 1.12–1.18 (m, 8H), 1.25–1.34 (m, 6H),
1.48–1.59 (m, 2H), 1.68–1.80 (m, 5H), 1.87–1.97 (m, 1H), 2.02–2.05 (m, 1H), 2.82 (dd, J = 13.6, 10.0 Hz,
1H, CHCHH), 3.02 (dd, J = 14.0, 4.8 Hz, 1H, CHCHH), 4.34–4.40 (m, 1H, CHCH2), 7.15–7.26 (m, 5H,
Ar), 8.08 (d, J = 8.4 Hz, 1H, NH). 13C-NMR (DMSO-d6) δ = 12.32, 18.72, 20.90, 21.28, 24.31, 24.51,
26.62, 26.96, 27.17, 27.51, 28.11, 31.90, 32.50, 35.30, 35.39, 35.86, 37.20, 37.60, 42.70, 43.57, 53.78,
56.05, 56.52, 126.76, 128.53, 129.52, 138.26, 173.03 (C=O), 173.66 (C=O). MS (ESI) calc for

Molecules 2013, 18
13054
C33H49NO3: 507.37; found: 506.6 [M−H]−−. Anal. calc for C33H49NO3: C, 78.06; H, 9.73; N, 2.76;
found: C, 78.34; H, 9.40; N, 2.76.
Methyl N-(5β-cholan-24-oyl)-D-phenylalaninate (7a). Compound 7a was synthesized following the
procedure described for compound 3 starting from D-phenylalanine methyl ester hydrochloride and
purified by flash chromatography [SiO2, CH2Cl2:C2H5OH 99:1]. The crude product was re-crystallized
1
from ethanol-water to give 7a. Yield: 90%. Mp: 82–85 °C. H-NMR (CDCl3) δ = 0.63 (s, 3H, CH3),
0.88–0.91 (m, 7H), 1.04–1.13 (m, 5H), 1.16–1.23 (m, 8H), 1.36–1.38 (m, 6H), 1.57 (m, 1H), 1.65 (m, 1H),
1.72–1.85 (m, 6H), 1.93–1.96 (m, 1H), 2.05–2.09 (m, 1H), 2.20–2.24 (m, 1H), 3.09 (dd, J = 13.84,
5.68 Hz, 1H, CHCHH), 3.15 (dd, J = 13.84, 5.84 Hz, 1H, CHCHH ), 3.73 (s, 3H, OCH3), 4.87–4.92
(m, 1H, CHCH2), 5.86 (d, J = 7.6 Hz, 1H, NH), 7.08–7.09 (m, 2H, Ar), 7.24–7.30 (m, 3H, Ar). 13C-NMR
(CDCl3) δ = 12.09, 18.33, 20.84, 21.35, 24.24, 24.28, 26.56, 27.04, 27.26, 27.53, 28.24, 31.60, 33.47,
35.37, 35.48, 35.90, 37.60, 37.91, 40.30, 40.52, 42.77, 43.74, 52.30, 52.90, 56.07, 56.61, 127.11,
128.55, 129.28, 135.89, 172.18 (C=O), 173.05 (C=O). MS (ESI) calc for C34H51NO3: 521.39; found:
522.5 [M+H]+, 544.3 [M+Na]+. Anal. calc for C34H51NO4: C, 78.26; H, 9.85; N, 2.68; found: C, 78.62;
H, 10.27; N, 2.67.
N-(5β-cholan-24-oyl)-D-phenylalanine (7). Compound 7 was synthesized following the procedure
described for 2 using 7a. The crude product was re-crystallized from ethanol-water to give 7. Yield:
97%. Mp: 195–198 °C. 1H-NMR (DMSO-d6) δ = 0.56 (s, 3H, CH3), 0.79–0.81 (m, 3H), 0.83–0.88 (m,
4H), 0.99-1.04 (m, 5H), 1.15–1.18 (m, 9H), 1.31–1.32 (m, 5H), 1.50–1.55 (m, 2H), 1.68–1.96 (m, 7H),
2.04–2.07 (m, 1H), 2.82 (dd, J = 13.52, 8.96 Hz, 1H, CHCHH), 3.03 (dd, J = 13.64, 4.68 Hz, 1H,
CHCHH), 4.31–4.32 (m, 1H, CHCH2), 7.14–7.22 (m, 5H, Ar), 7.86 (d, J = 7.64 Hz, 1H, NH).
13C-NMR (CDCl3) δ = 12.33, 18.64, 20.91, 21.28, 24.31, 24.51, 26.62, 26.95, 27.17, 27.51, 28.14,
31.92, 32.75, 35.30, 35.38, 35.84, 37.51, 37.60, 42.70, 43.56, 54.46, 56.22, 56.50, 126.49, 128.34,
129.65, 138.78, 172.52 (C=O), 173.96 (C=O). MS (ESI) calc for C33H49NO3: 507.37; found: 506.5
[M−H]−−. Anal. calc for C33H49NO4: C, 78.06; H, 9.73; N, 2.76; found: C, 78.34; H, 9.40; N, 2.76.
Methyl N-(5β-cholan-24-oyl)-L-tryptophanate (8a). Compound 8a was synthesized following the
procedure described for compound 3 starting from L-tryptophan methyl ester hydrochloride and
purified by flash chromatography [SiO2, CH2Cl2:EtOH 98:2], yielding compound 8a as a pale-yellow oil,
1
which was used in the next step without further purification. Yield: 98%. H-NMR (DMSO-d6)
δ = 0.62 (s, 3H, CH3), 0.83–0.91 (m, 7H), 0.99–1.09 (m, 5H), 1.12–1.30 (m, 9H), 1.35–1.38
(m, 6H), 1.55–1.57 (m, 1H), 1.73–2.09 (m, 7H), 2.18–2.26 (m, 1H), 3.32 (dd, J = 5.2, 2.1 Hz, 2H,
CHCH2), 3.70 (s, 3H, OCH3), 4.96 (dt, J = 7.8, 5.4 Hz, 1H, CHCH2), 6.00 (bd, J = 8.1 Hz, 1H, NH),
6.97 (d, J = 2.4 Hz, 1H, Ar), 7.12 (td, J = 7.2, 1.2 Hz 1H, Ar), 7.19 (td, J = 7.2, 1.2 Hz 1H, Ar), 7.36
(d, J = 8.1 Hz, 1H, Ar), 7.53 (d, J = 8.1 Hz, 1H, Ar), 8.32 (bs, 1H, NH). 13C-NMR (DMSO-d6) δ = 12.05,
18.35, 20.83, 21.35, 24.24, 24.28, 26.57, 27.04, 27.26, 27.53, 27.65, 28.22, 31.51, 33.45, 35.37, 35.43,
35.89, 37.60, 40.28, 40.52, 42.75, 43.74, 52.33, 52.93, 56.00, 56.60, 110.17, 111.28, 118.59, 119.72,
122.25, 122.67, 127.76, 136.11, 172.33 (C=O), 173.33 (C=O). MS (ESI) calc for C36H52N2O3: 560.40;
found: 561.7 [M+H]+, 583.6 [M+Na]+, 599.5 [M+K]+.

Molecules 2013, 18
13055
N-(5β-cholan-24-oyl)-L-tryptophan (8). Compound 8 was synthesized following the procedure
described for 2 using 8a. The crude product was re-crystallized from ethanol-water to give 8. Yield:
1
80%. Mp: 98–101 °C. H-NMR (DMSO-d6) δ = 0.57 (s, 3H, CH3), 0.80–0.88 (m, 7H), 0.97–1.37 (m,
19H), 1.48–1.57 (m, 2H), 1.68–1.92 (m, 7H), 1.98–2.06 (m, 1H), 2.97 (dd, J = 14.4, 5.6 Hz, 1H,
CHCHH), 3.19 (dd, J = 14.4, 5.2 Hz, 1H, CHCHH), 4.12 (q, J = 5.6 Hz, 1H, CHCH2), 6.87
(t, J = 7.6 Hz, 1H, Ar), 6.97 (t, J = 7.2 Hz, 1H, Ar), 7.02 (d, J = 1.6 Hz, 1H,, Ar), 7.17 (d, J = 7.2 Hz,
1H, NH), 7.26 (d, J = 8.0 Hz, 1H, Ar), 7.46 (d, J = 8.0 Hz, 1H, Ar). 13C-NMR (DMSO-d6) δ = 12.33,
18.77, 20.90, 21.28, 24.33, 24.51, 26.62, 26.96, 27.17, 27.52, 28.05, 28.15, 31.91, 33.19, 35.40, 35.46,
35.86, 37.61, 42.70, 43.58, 55.45, 56.07, 56.48, 111.42, 112.13, 118.17, 119.06, 120.72, 123.64,
128.74, 136.32, 171.70 (C=O), 174.85 (C=O). MS (ESI) calc for C35H50N2O3: 546.38; found: 545.7
[M−H]−. Anal. calc for C35H50N2O3 • 0.2 H2O: C, 76.37; H, 9.23; N, 5.09; found: C, 76.07; H, 9.61; N, 4.78.
D-Tryptophan methyl ester hydrochloride (9b). Compound 9b was synthesized following a described
procedure [25] starting from D-tryptophan.
Methyl N-(5β-cholan-24-oyl)-D-tryptophanate (9a). Compound 9a was synthesized following the
procedure described for compound 3 starting from D-tryptophan methyl ester hydrochloride 9b and
purified by flash chromatography [SiO2, CH2Cl2:C2H5OH 98:2], to furnish compound 9a as a
1
pale-yellow oil. Yield: 81%. H-NMR (DMSO-d6) δ = 0.61 (s, 3H, CH3), 0.85–0.91 (m, 7H), 1.02–1.38
(m, 20H), 1.53–1.58 (m, 1H), 1.72–2.04 (m, 7H), 2.15–2.27 (m, 1H), 3.31 (d, J = 5.3 Hz, 2H,
CHCH2), 3.68 (s, 3H, OCH3), 4.96 (dt, J = 7.8, 5.3 Hz, 1H, CHCH2), 6.95 (d, J = 1.9 Hz, 1H, Ar), 7.10
(td, J = 6.9, 1.2 Hz 1H, Ar), 7.18 (td, J = 6.9, 1.2 Hz 1H, Ar), 7.34 (d, J = 7.9 Hz, 1H, Ar), 7.52 (d, J =
7.7 Hz, 1H, Ar), 8.43 (bs, 1H, NH). 13C-NMR (DMSO-d6) δ = 12.05, 18.40, 20.90, 21.42, 24.30,
24.35, 26.63, 27.11, 27.33, 27.60, 27.74, 28.27, 31.57, 33.50, 35.43, 35.52, 35.96, 37.67, 40.35, 40.58,
42.82, 43.81, 52.39, 53.02, 56.06, 56.65, 110.06, 111.41, 118.59, 119.72, 122.25, 122.83, 127.80,
136.23, 172.63 (C=O), 173.44 (C=O). MS (ESI) calc for C36H52N2O3: 560.40; found: 561.6 [M+H]+,
583.4 [M+Na]+, 599.5 [M+K]+.
N-(5β-cholan-24-oyl)-D-tryptophan (9). Compound 9 was synthesized following the procedure
described for 2 using compound 9a. The crude product was re-crystallized from ethanol-water to give 9.
1
Yield: 77%. Mp: 141–145 °C. H-NMR (DMSO-d6) δ = 0.56 (s, 3H, CH3), 0.82–0.88 (m, 7H),
1.00–1.34 (m, 19H), 1.47–1.62 (m, 2H), 1.69–1.98 (m, 7H), 2.05–2.09 (m, 1H), 2.97 (dd, J = 14.4, 8.4
Hz, 1H, CHCHH), 3.15 (dd, J = 14.4, 4.6 Hz, 1H, CHCHH), 4.38–4.43 (m, 1H, CHCH2), 6.95 (t, J =
7.2 Hz, 1H, Ar), 7.04 (t, J = 7.4 Hz, 1H, Ar), 7.10 (s, 1H, Ar), 7.31 (d, J = 8.0 Hz, 1H, Ar), 7.51 (d, J =
7.6 Hz, 1H, Ar), 7.94 (bd, J = 7.6 Hz, 1H, NH), 10.8 (s, 1H, COOH). 13C-NMR (DMSO-d6) δ = 11.81,
18.23, 20.42, 20.81, 23.84, 24.05, 26.15, 26.48, 26.69, 27.04, 27.18, 27.64, 31.37, 32.17, 34.84, 34.93,
35.39, 37.13, 42.23, 43.09, 53.18, 55.65, 56.03, 110.25, 111.27, 118.21, 120.77, 123.41, 127.36, 136.04,
172.36, 173.80. MS (ESI) calc for C35H50N2O3: 546.38; found: 545.5 [M−H]−. Anal. calc for C35H50N2O3 •
0.5 H2O: C, 75.63; H, 9.25; N, 5.04; found: C, 75.58; H, 9.46; N, 4.58.

Molecules 2013, 18
13056
3.2. Molecular Modeling
The crystal structure of the EphA2–ephrin-A1 complex (PDB accession 3HEI) [19] was used for
molecular modeling simulations. Chains A and B of the crystal structure were extracted and processed
with the Protein Preparation Wizard tool implemented in Maestro [26], which was used to assign bond
orders and to add missing hydrogen atoms. The overall hydrogen bonding network was optimized by
sampling the sidechain amide-groups orientation of asparagines and glutamines, the hydroxyl-group of
serine and threonine residues and the thiol-group of cysteine residues and water molecules, and finally
by adjusting the tautomeric forms of histidines. A final restrained minimization was conducted with
the OPLS2005 force field to a root mean square deviation value of 0.3 Å calculated on protein heavy
atoms. Small molecules were built with Maestro 9.2 and energy-minimized applying the OPSL2005
force field and the GBSA water solvation treatment to a gradient of 0.05 kj•mol-1•Å−1. The minimized
ligand structures were then docked within the EphA2 receptor using Glide5.5 [27] in standard
precision mode and applying a hydrogen bond constraint between the carboxylic group of the
compound and the guanidine group of Arg103. Docking grids were centered within the EphA2
receptor binding site in a region delimited by Arg103, Phe156 and Arg159; the dimensions of
enclosing and bounding boxes were set to 29.4 and 10 Å, respectively. Van der Waals (VdW) radii of
protein atoms were not scaled, while a scaling factor of 0.8 was applied to the VdW radii of ligand
atoms having partial atomic charges lower than |0.15|. Twenty docking poses were retained for each
ligand and ranked according to the Gscore. Log P calculation (AlogP) for cholanic acid and compound
4 were performed with Canvas [28].
3.3. Pharmacology
3.3.1. Reagents
All culture media and supplements were purchased from Euroclone (Milano, Italy). Recombinant
proteins and antibodies were from R&D Systems (Minneapolis, MN, USA). Cells were purchased
from ECACC (Salisbury, UK). Leupeptin, aprotinin, NP40, tween20, BSA and salts for solutions were
from Applichem (Darmstadt,Germany); EDTA and sodium orthovanadate were from Sigma (Milano,
Italy). Human IgG Fc fragment was from Millipore (AG714, Darmstadt, Germany).
3.3.2. Cell Cultures
PC3 human prostate adenocarcinoma cells were grown in Ham F12 media and supplemented with
5% fetal bovine serum (FBS) and 1% antibiotic solution. PC3 cells were grown in a humidified
atmosphere of 95% air, 5% CO2 at 37 °C.
3.3.3. ELISA Assays and IC50 Determination
ELISA assays were performed as previously described [14]. Briefly, compounds were stocked as
5 mM solutions in dimethyl sulfoxide (DMSO) and tested in displacing studies, starting from a
concentration of 50 µM. Ninety-six well ELISA high binding plates (2592, Costar, Amsterdam, The
Netherlands) were incubated overnight at 4 °C with 100 µL/well of 1 µg/mL EphA2-Fc (R&D 639-A2)

Molecules 2013, 18
13057
diluted in sterile phosphate buffered saline (PBS, 0.2 g/L KCl, 8.0 g/L NaCl, 0.2 g/L KH2PO4, 1.15 g/L
Na2HPO4, pH 7.4). The wells were then washed with washing buffer (PBS +0.05% tween20, pH 7.5)
and treated with blocking solution (PBS + 0.5% BSA) for 1 h at 37 °C. Compounds were added to the
wells at proper concentration in 1% DMSO and incubated at 37 °C for 1 h. Biotinylated ephrin-A1-Fc
(R&D Systems BT602) was added at 37 °C for 4 h at its KD in displacement assays. The wells were
washed and incubated with 100 µL/well streptavidin-HRP (Sigma S5512) in blocking solution
(0.05 µg/mL in PBS supplemented with 0.5% BSA, pH 7.4) for 20 min at room temperature, then
washed again and incubated at room temperature with 0.1 mg/mL tetramethylbenzidine (Sigma T2885)
reconstituted in stable peroxide buffer (11.3 g/L citric acid, 9.7 g/L sodium phosphate, pH 5.0) and
0.02% H2O2 (30% m/m in water), added immediately before use. The reaction was stopped with 3N
HCl 100 µL/well and the absorbance was measured using an ELISA plate reader (Sunrise, TECAN,
Männedorf, Switzerland) at 450 nm. IC50 values were determined using one-site competition
non-linear regression analysis with Prism software (GraphPad Software Inc., San Diego, CA, USA).
3.3.4. Phosphorylation of EphA2 in Cells
PC3 cells were seeded in 12-well plates at concentration of 105 cells/mL, 1 mL/well, in complete
medium until they reached ~70% confluence and serum starved overnight. Thereafter, the cells were
treated with the compounds under study, vehicle or standard drug, stimulated with ephrin-A1-Fc, rinsed
with sterile PBS and solubilized in lysis buffer (1% NP-40, 20 mM Tris (pH 8.0), 137 mM NaCl, 10%
glycerol, 2 mM EDTA, 1 mM activated sodium orthovanadate, 10 µg/mL Aprotinin, 10 µg/mL
Leupeptin). The lysates were resuspended and rocked at 4 °C for 30 min and then centrifuged at 14,000g
for 5 min. The protein content of supernatant was measured with BCA protein assay kit (Thermo
Fisher scientific, Pittsburgh, PA) and standardized to 200 µg/mL. EphA2 phosphorylation was
measured in cell lysates using a DuoSet®IC Sandwich ELISA (R&D Systems, DYC4056) following
the manufacturer’s protocol: 96 well ELISA high binding plates (Costar 2592) were incubated
overnight at room temperature with 100 µL/well of EphA2 capture antibody diluted in sterile PBS to
the proper working concentration. After blocking, the wells were incubated for 2 h at room
temperature with 100 µL/well of lysates, followed by incubation with the detection antibody at room
temperature for 2 h. Receptor phosphorylation was revealed utilizing a standard HRP format with a
colorimetric reaction read at 450 nm.
4. Conclusions
The pivotal role of the Eph-ephrin system in tumor growth and angiogenesis makes increasingly
necessary the development of pharmacological tools to better clarify the cellular functions regulated by
this system, as well as to investigate the potential antitumor action resulting from the blockage of the
Eph-ephrin signaling. In this scenario, bile acids such as lithocholic acid and cholanic acid [14,15]
enter as promising EphA2 antagonists being able to disrupt the EphA2-ephrin-A1 complex in binding
assay and to inhibit EphA2 activation in cells.
Prompted by the observation that conjugation of lithocholic acid with naturally occurring amino
acids yielded potent and effective EphA2 antagonists [16], in the present work we prepared a set of

Molecules 2013, 18
13058
cholanic acid derivatives obtained by conjugation with a panel of amino acids with the aim of
improving the inhibitory potency on the EphA2 receptor.
With the exception of the methyl ester 3 and the sulfonic acid derivative 5, all the synthetized
cholanic acid conjugates were indeed able to disrupt the EphA2-ephrin-A1 interaction, suggesting that,
after conjugation, the bioisostery between lithocholic and cholanic acid is maintained at some extent.
However, in contrast to what observed for LCA conjugates, no improvement was observed, when
cholanic acid was conjugated to the aromatic L-tryptophan and L-phenylalanine. Moreover, the pair
comparison between the LCA derivative PCM126 and the cholanic derivative 8 indicated that the
3α-hydroxyl group is vital to obtain potent EphA2 binders. On the other hands, our exploration
identified the β-alanine derivative 4 (AlogP = 5.0) as an effective antagonist of EphA2 receptor,
featuring a slightly lower lipophilicity than cholanic acid (Alog P = 5.8) and thus more promising for a
future chemical expansion. These findings will help the design and synthesis of novel antagonists of
the Eph-ephrin system.
Acknowledgments
This work was supported by Ministero dell’Università e della Ricerca, “Futuro in Ricerca” program
(project code: RBFR10FXCP). Roberto Pellicciari (Università di Perugia and TES Pharma) is kindly
acknowledged for scientific input and discussion.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Gale, N.W.; Yancopoulos, G.D. Ephrins and their receptors: a repulsive topic? Cell Tissue Res.
1997, 290, 227–241.
2. Pasquale, E.B. Eph receptor signalling casts a wide net on cell behaviour. Nat. Rev. Mol.
Cell. Biol. 2005, 6, 462–475.
3. Himanen, J.P.; Saha, N.; Nikolov, D.B. Cell-cell signaling via Eph receptors and ephrins.
Curr. Opin. Cell. Biol. 2007, 19, 534–542.
4. Pasquale, E.B. Eph receptors and ephrins in cancer: bidirectional signalling and beyond. Nat. Rev.
Cancer 2010, 10, 165–180.
5. Wikosky, J.; Debinski, W. The EphA2 receptor and ephrin A1 ligand in solid tumors: Function
and therapeutic targeting. Mol. Cancer Res. 2008, 6, 1795–1806.
6. Mosch, B.; Reissenweber, B.; Neuber, C.; Pietzsch, J. Eph receptors and ephrin ligands: Important
players in angiogenesis and tumor angiogenesis. J. Oncol. 2010, doi:10.1155/2010/135285.
7. Tandon, M.; Vemula, S.V.; Mittal, S.K. Emerging strategies for EphA2 receptor targeting for
cancer therapeutics. Expert Opin. Ther. Targets. 2011, 15, 31–51.
8. Noberini, R.; Lamberto, I.; Pasquale, E.B. Targeting Eph receptors with peptides and small
molecules: Progress and challenges. Semin. Cell Dev. Biol. 2012, 23, 51–57.

Molecules 2013, 18
13059
9. Chang, Q.; Jorgensen, C.; Pawson, T.; Hedeley, D.V. Effects of Dasatinib on EphA2 receptor
tyrosine kinase activity and downstream signaling in pancreatic cancer. Brit. J. Cancer 2008, 99,
1074–1082.
10. Noberini, R.; De, S.K.; Zhang, Z.; Wu, B.; Raveendra-Panickar, D.; Chen, V.; Vazquez, J.;
Qin, H.; Song, J.; Cosford, N.D.; et al. A disalicylic acid-furanyl derivative inhibits ephrin
binding to a subset of Eph receptors. Chem. Biol. Drug Des. 2011, 78, 667–678.
11. Petty, A.; Myshkin, E.; Qin, H.; Guo, H.; Miao, H.; Tochtrop, G.P.; Hsieh, J.T.; Page, P.; Liu, L.;
Lindner, D.J.; et al. A small molecule agonist of epha2 receptor tyrosine kinase inhibits tumor cell
migration in vitro and prostate cancer metastasis in vivo. PLoS One 2012, 7, e42120.
12. Tognolini, M.; Giorgio, C.; Hassan Mohamed, I.; Barocelli, E.; Calani, L.; Reynaud, E.; Dangles,
O.; Borges, G.; Crozier, A.; Brighenti, F.; et al. Perturbation of the EphA2-EphrinA1 System in
Human Prostate Cancer Cells by Colonic (Poly)phenol Catabolites. J. Agric. Food Chem. 2012,
60, 8877–8884.
13. Mohamed, I.H.; Giorgio, C.; Bruni, R.; Flammini, L.; Barocelli, E.; Rossi, D.; Domenichini, G.;
Poli, F.; Tognolini, M. Polyphenol rich botanicals used as food supplements interfere with
EphA2-ephrinA1 system. Pharmacol. Res. 2011, 64, 464–470.
14. Giorgio, C.; Hassan Mohamed, I.; Flammini, L.; Barocelli, E.; Incerti, M.; Lodola, A.;
Tognolini, M. Lithocholic acid is an Eph-ephrin ligand interfering with Eph-kinase activation.
PLoS One 2011, 6, e18128.
15. Tognolini, M.; Incerti, M.; Hassan-Mohamed, I.; Giorgio, C.; Russo, S.; Bruni, R.; Lelli, B.;
Bracci, L.; Noberini, R.; Pasquale, E. B.; et al. Structure-activity relationships and mechanism of
action of Eph-ephrin antagonists: interaction of cholanic acid with the EphA2 receptor.
ChemMedChem 2012, 7, 1071–1083.
16. Incerti, M.; Tognolini, M.; Russo, S.; Pala, D.; Giorgio, C.; Hassan-Mohamed, I.; Noberini, R.;
Pasquale, E.B.; Vicini, P.; Piersanti, S.; et al. Amino acid conjugates of lithocholic acid as
antagonist of the EphA2 receptor. J. Med. Chem. 2013, 56, 2936–2947.
17. Sato, H.; Macchiarulo, A.; Thomas, C.; Gioiello, A.; Une, M.; Hofmann, A.; Saladin, R.;
Schoonjans, K.; Pellicciari, R.; Auwerx, J. Novel potent and selective bile acid derivatives as
TGR5 agonists: biological screening, structure acticity relationships, and molecular modeling
studies. J. Med. Chem. 2008, 51, 1831–1841.
18. Gioiello, A.; Rosatelli, E.; Nuti, R.; Macchiarulo, A.; Pellicciari, R. Patented TGR5 modulators:
A review (2006-present). Expert Opin. Ther. Pat. 2012, 22, 1399–1414.
19. Himanen, J.P.; Goldgur, Y.; Miao, H.; Myshkin, E.; Guo, H.; Buck, M.; Nguyen, M.;
Rajashankar, K.R.; Wang, B.; Nikolov, D.B. Ligand recognition by A-class Eph receptors: crystal
structures of the EphA2 ligand-binding domain and the EphA2/ephrin-A1 complex. EMBO Rep.
2009, 10, 722–728.
20. Noberini, R.; Rubio de la Torre, E.; Pasquale, E.B. Profiling Eph receptor expression in cells and
tissues: A targeted mass spectrometry approach. Cell. Adhes. Migr. 2012, 6, 102−112.
21. Street, J.M.; Trafford, D.J.H.; Makin, H.L.J. Carrier gas flow-rate and injection system in
capillary gas chromatography of unconjugated and glycine-conjugated bile acids. J Chromatogr. B
1989, 495, 31–40.

Molecules 2013, 18
13060
22. Norman, A. Preparation of conjugated bile acids with mixed carboxylic acid anhydrides.
Ark Kemi. 1955, 8, 331–342.
23. Hashizume, M.; Horii, H.; Kikuchi, J.; Kamitakahara, M.; Ohtsuki, C.; Tanihara, M. Effects of
surface carboxylic acid groups of cerasomes, morphologically stable vesicles having a silica
surface, on biomimetic deposition of hydroxyapatite in body fluid conditions. J. Mater. Sci.
Mater. Med. 2010, 1, 11–19.
24. Song, C.; Liao, S.; Fukuchi, J. Farnesoid X-activated receptor agonists. WO 03086303, 2003.
25. Abadi, A.H.; Gary, B.D.; Tinsley, H.N.; Piazza, G.A.; Abdel-Halim, M. Synthesis, molecular
modeling and biological evaluation of novel tadalafil analogues as phosphodiesterase 5 and colon
tumor cell growth inhibitors, new stereochemical perspective. Eur. J. Med. Chem. 2010, 45,
1278–1286.
26. Maestro, version 9.2; Schrodinger LLC: New York, NY, 2009.
27. Glide, version 5.5; Schrodinger LLC: New York, NY, 2009.
28. Canvas, version 1.4; Schrödinger LLC: New York, NY, 2011.
Sample Availability: Samples of all synthesized compounds are available from the authors.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
