Antiviral activity of 3D, a butene lactone derivative against influenza a virus in vitro and in vivo

Article abstract of DOI:10.3390/v13020278

Influenza A virus is a highly variable and contagious respiratory pathogen that can cause annual epidemics and it poses an enormous threat to public health. Therefore, there is an urgent need for a new generation of antiviral drugs to combat the emergence of drug-resistant strains of the influenza virus. A novel series of butene lactone derivatives were screened and the compound 3D was selected, as it exhibited in vitro potential antiviral activity against A/Weiss/43 H1N1 virus with low toxicity. In addition, 3D dose-dependently inhibited the viral replication, expression of viral mRNA and viral proteins. 3D exerted a suppressive effect on A/Virginia/ATCC2/2009 H1N1 and A/California/2/2014 H3N2 in vitro. The time-of-addition analysis indicated that 3D suppressed H1N1 in the early stage of its life cycle. A/Weiss/43 H1N1-induced apoptosis in A549 cells was reduced by 3D via the mitochondrial apoptosis pathway. 3D could decrease the production of H1N1-induced pro-inflammatory cytokines that are induced by H1N1 in vitro and in vivo. The administration of 3D reduced lung lesions and virus load in vivo. These results suggest that 3D, which is a butene lactone derivative, is a promising agent for the treatment of influenza A virus infection.

Full text of DOI:10.3390/v13020278

viruses
Article
Antiviral Activity of 3D, a Butene Lactone Derivative Against
Influenza A Virus In Vitro and In Vivo
Zhenya Wang 1,2, Jieyu Fang 1,2, Jiao Luo 1, Duoduo Hou 1,2, Yayun Tan 1,2, Zichen Gu 1,2, Yongzhuang Ge 1,2
,
Lu Mao 1,2, Luyang Liu 1,2, Hongmin Liu 1,2, Zhanyong Wei 3 and Haiwei Xu 1,
*
1
Collaborative Innovation Center of New Drug Research and Safety Evaluation, Key Laboratory of Advanced
Drug Preparation Technologies, Ministry of Education, Zhengzhou University, Zhengzhou 450001, China;
zhenyawang@zzu.edu.cn (Z.W.); fangjieyu1996@163.com (J.F.); luojiao8891@163.com (J.L.);
hdd950712@163.com (D.H.); tanyayun789@163.com (Y.T.); guzichen22@163.com (Z.G.);
yongzhuangge@163.com (Y.G.); maolu2020@163.com (L.M.); Liuluyang2021@163.com (L.L.);
liuhm@zzu.edu.cn (H.L.)
Key Laboratory of “Runliang” Antiviral Medicines Research and Development,
Institute of Drug Discovery & Development, Zhengzhou University, Zhengzhou 450001, China
College of Animal Science and Veterinary Medicine, Henan Agricultural University,
Zhengzhou 450002, China; weizhanyong@henau.edu.cn
2
3
*
Correspondence: xhwei01@126.com
Abstract: Influenza A virus is a highly variable and contagious respiratory pathogen that can cause
annual epidemics and it poses an enormous threat to public health. Therefore, there is an urgent
need for a new generation of antiviral drugs to combat the emergence of drug-resistant strains of
the influenza virus. A novel series of butene lactone derivatives were screened and the compound
3D was selected, as it exhibited in vitro potential antiviral activity against A/Weiss/43 H1N1 virus
with low toxicity. In addition, 3D dose-dependently inhibited the viral replication, expression
of viral mRNA and viral proteins. 3D exerted a suppressive effect on A/Virginia/ATCC2/2009
H1N1 and A/California/2/2014 H3N2 in vitro. The time-of-addition analysis indicated that 3D
suppressed H1N1 in the early stage of its life cycle. A/Weiss/43 H1N1-induced apoptosis in A549
cells was reduced by 3D via the mitochondrial apoptosis pathway. 3D could decrease the production
of H1N1-induced pro-inflammatory cytokines that are induced by H1N1 in vitro and in vivo. The
administration of 3D reduced lung lesions and virus load in vivo. These results suggest that 3D, which
is a butene lactone derivative, is a promising agent for the treatment of influenza A virus infection.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Citation: Wang, Z.; Fang, J.; Luo, J.;
Hou, D.; Tan, Y.; Gu, Z.; Ge, Y.;
Mao, L.; Liu, L.; Liu, H.; et al.
Antiviral Activity of 3D, a Butene
Lactone Derivative Against Influenza
A Virus In Vitro and In Vivo. Viruses
2021, 13, 278. https://doi.org/
10.3390/v13020278
Academic Editor: Deborah H. Fuller
Keywords: butenolide; antiviral activity; influenza A virus; apoptosis; cytokines
Received: 20 January 2021
Accepted: 9 February 2021
Published: 11 February 2021
1. Introduction
Influenza is a serious global public health problem [
respiratory disease that causes severe morbidity and mortality worldwide [
1
]. It is a contagious pandemic
]. The in-
Publisher’s Note: MDPI stays neutral
with regard to jurisdictional claims in
published maps and institutional affil-
iations.
2
fluenza virus (IAV) can cause frequent seasonal epidemics with severe outcomes. In the
last two decades, the pandemic influenza A H1N1 2009 virus (A/2009/H1N1) caused the
first pandemic influenza of the new millennium, which affected over 214 countries and it
caused over 18,400 deaths. In 2013, infection with avian influenza A H7N9 virus caused
severe pneumonia in patients and it did not respond to typical or atypical antimicrobial
treatment [
and treatment of influenza. However, antigenic drift and shift, safety, and the emergence
of seasonal viruses make the use of vaccinations difficult [ ]. M2 inhibitors (rimantadine
and amantadine) have been historically approved for treatment and prevention of IAV
infection. CDC has not recommended the use of rimantadine and amantadine for recently
circulating influenza viruses because many strains of influenza virus, including the 2009
3,4]. Therefore, vaccinations and antiviral drugs are required for the prevention
Copyright:
© 2021 by the authors.
Licensee MDPI, Basel, Switzerland.
This article is an open access article
distributed under the terms and
conditions of the Creative Commons
Attribution (CC BY) license (https://
creativecommons.org/licenses/by/
4.0/).
5
H1N1 influenza virus, are now resistant to these drugs [6]. There are two classes of drugs
recommended by CDC for use against recently circulating influenza viruses, including
Viruses 2021, 13, 278. https://doi.org/10.3390/v13020278
https://www.mdpi.com/journal/viruses

Viruses 2021, 13, 278
2 of 19
neuraminidase inhibitors (peramivir, zanamivir, and oseltamivir phosphate) and PA in-
hibitor (baloxavir) [
7
,8]. However, several recent studies have reported efficacies of NA
inhibitors were limited due to the emergence of drug-resistant IAV strains [
9–
11]. These
problems pose challenges for the treatment or prevention of influenza. It is urgent to
develop and identify novel drugs for controlling the drug-resistant strains and mitigation
of pandemic situations.
Butenolides are found in a variety of natural product scaffolds, such as andrographolide [12],
aspulvione [13], and uncinine [14]. In addition, butenolides present a series of bio-
logically active properties, including anti-virus, anti-tumor, anti-bacterium, and anti-
inflammation [15–17]. Andrographolide exhibits antiviral effects against H1N1 by tar-
geting the retinoic acid-inducible gene-I (RIG-I) receptors signaling pathway [18]. We are
interested in the research of butene lactone compounds against influenza virus, according
to previous studies on the synthesis and biological activity of butenolides [19,20]. For this
reason, we synthesized a series of novel butene lactone compounds based on the lead
compound andrographolide and assayed their activities against IAV. Among these com-
pounds, 3D exhibited the best antiviral activity against IAV and was selected for the current
study. The antiviral mechanism of butene lactone derivatives, including 3D, has rarely
been elucidated. In this study, we examined the effect of 3D and found its broad-spectrum
activity against IAV in vivo and in vitro. We then investigated the mechanism of 3D action
on RIG-I-mediated pro-inflammatory response and IAV-induced apoptosis in host cells.
2. Materials and Methods
2.1. Compounds
Butenolide derivatives were synthesized and provided by Dr. Haiwei Xu’s Research
Group. Ribavirin (RBV), which is an antiviral agent against a broad spectrum of viruses,
was purchased from Zahn Chemical Technology Co. (Shanghai, China). The NA inhibitor
Oseltamivir acid (OC) and its prodrug Oseltamivir (OS) were obtained from APExBIO
Technology LLC (Houston, TX, USA).
2.2. Cells and Virus
Madin–Darby canine kidney (MDCK) cells and human lung adenocarcinoma (A549)
cells were purchased from Chinese Academy of Sciences Cell Bank (Shanghai, China). Cells
were cultivated in Dulbecco’s modified Eagle’s medium (DMEM; Hyclone, Logan, USA)
◦
containing 10% fetal bovine serum (FBS; Gibco, Grand Island, USA) at 37 C in a humidified
atmosphere containing 5% CO2. The influenza strains A/Virginia/ATCC2/2009 H1N1 and
A/California/2/2014 H3N2 were purchased from the American Tissue Culture Collection
(ATCC; Manassas, VA, USA). The A/Weiss/43 H1N1 virus was obtained from the China
Center for Type Culture Collection (Wuhan, China). All of the viruses were propagated
◦
in MDCK cells at 37 C. The viruses were harvested from cell culture sup◦ernatant by
centrifuging virus growth medium at 1500
The virus titer was determined by the median tissue culture infective dose (TCID50).
×
g for 10 min. and stocked at
−
70 C until use.
2.3. Mice
Special-pathogen-free female BALB/c mice that were six weeks old and weighed
18–22 g were purchased from Beijing Vital River Laboratory Animal Technology Co., Ltd.
(Beijing, China). All of the mice were housed under specific-pathogen-free conditions in
a 12 h light/dark cycle, where the temperature was controlled at 22
±
2 ◦C. During the
experiment, all of the protocols were complied with the requirements in the Guide for the
Care and Use of Laboratory Animals and approved by the Experimental Animal Ethics
Committee of Zhengzhou University.
2.4. Cytotoxicity Assay
The 3-[4, 5-dimethylthiazol-2-yl]-2, 5-diphenyltetrazolium bromide (MTT; Biotopped,
Beijing, China) assay was performed in order to assess the cytotoxicity of compounds.

Viruses 2021, 13, 278
3 of 19
A549 or MDCK cells were seeded in 96-well plates at 1
×
104 cells per well. After 24 h, cell
growth medium was removed and cells were washed three times with phosphate-buffered
saline (PBS). Subsequently, cells were treated by cell maintenance medium containing a
series of concentrations of compounds and no compound as control for 72 h at 37 ◦C in
a humidified 5% CO2 atmosphere. Afterwards, 20
added to each well and incubated at 37 C for 4 h. The supernatants were gently aspirated
µ
L of MTT reagent (5 mg/mL) was
◦
and added 150 µL dimethyl sulfoxide (DMSO) to each well. The plates were shaken on a
decolorizing shaker for 10 min. for dissolving the formazan product at room temperature.
The absorbance (OD) at 490 nm were measured using a microplate reader. The cell viability
rate was calculated, as follows:
Cell viability (%) = [the average OD value of the compound-treated cells/control average OD value] × 100%
(1)
The 50% cytotoxic concentration (CC50) was calculated using SPSS software. At least
three independent experiments were required.
2.5. Antiviral Activity Assay
A549 and MDCK cells were seeded in 96-well plates at 1
×
104 cells per well and
then cultured at 37 ◦C for 18–24 h. When cells were 80–90% confluent, removed growth
medium and washed three times by using PBS. The cells were inoculated with viruses at
◦
100TCID50 per well in FBS-free DMEM containing 2
µ
g/mL TPCK-trypsin for 2 h at 37 C.
After absorption, medium was discarded and washed with PBS. Subsequently, DMEM
containing various concentrations of compounds and 2 g/mL TPCK-trypsin were added
µ
into each well. Meanwhile, the normal controls (with no viruses and compounds) and
virus controls (without compounds) were set up.
After 72 h, MTT assays were used in order to measure the absorbance in MDCK cells.
The inhibition rate (%) was calculated according to the following formula:
Inhibition (%) = [(the average OD value of drug-treated group − the average OD value of virus controls)/
(2)
(the average OD value of normal controls − the average OD value of virus controls)] × 100%
A549 cells and medium were collected, frozen, and thawed twice, and then centrifuged
to obtain supernatants. Subsequently, the inhibition of compound in A549 cells was
determined by the changes of viral titers that were measured by TCID50.
2.6. Inhibitory Effects of 3D on Different Stages of Viral Infection
We conducted this experiment to determine which stage the compounds worked. The
MDCK cells were treated with various concentrations (3.125, 6.25, 12.5, 25, 50, and 100 µM)
before viral infection for 2 h (protocol 1), during viral infection for 2 h (protocol 2) and after
viral infection (protocol 3). After 72 h inoculation, MTT was added into the plates and the
inhibition rates of compounds were assessed.
2.7. Quantitative Real-Time PCR Assay (qRT-PCR)
The levels of different genes were detected by qRT-PCR. The total RNA from cells
or lung tissues was extracted according to the instructions of Ultrapure RNA Kit (CW,
Beijing, China). 1 µg of RNA was reverse transcribed into cDNA by using Thermo Scientific
Revert Aid First Strand cDNA Synthesis Kit (Thermo, Waltham, MA, USA). qRT-PCR was
performed using QuantiNovaTM SYBR® Green PCR Kit (Qiagen, Hilden, Germany). The
primer sequences were designed and synthesized using the corresponding cDNA as the
templates. Supplementary Table S1 lists the primer sequences (BGI, Shenzhen, China).
Additionally, the qRT-PCR cycling conditions were: 95 ◦C (2 min.); 40 cycles of 95 ◦C (5 s),
60 ◦C (10 s), and melt curve (65 to 95 ◦C, increment 0.5 ◦C for 5 s). Finally, GAPDH was
used as an internal reference gene and the relative expression of the gene was calculated by
the cyclic threshold (2−∆∆Ct) method.

Viruses 2021, 13, 278
4 of 19
2.8. Time-of-Addition Assay
A time-of-addition assay was performed in order to elucidate the special time when
viral replication was interfered by 3D. In brief, the MDCK cells were treated with 3D
(50
µ
M) at indicated time periods (( 2)–0, 0–2, 2–4, 4–6, 6–10). Virus control was treated
−
with maintained medium without 3D. Subsequently, at 10 h post infection, MDCK cells
were collected and RNA was extracted. The relative expression of M gene was detected by
qRT-PCR to elucidate the time 3D taken effect.
2.9. Apoptosis Assay
Apoptosis was detected by flow cytometer with Annexin V-FITC/PI staining. A549
cells were seeded in six-well plates at a density of 2
×
105 cells per well. When cells grew
about 80% monolayer, the cells were infected or mock-infected with IAV (100 TCID50) for
2 h. Subsequently, maintained medium with different concentrations of 3D or without
compounds was added to the six-well plates. After compounds treatment for 24 h, all of
the operations were performed according to the instructions of the Annexin V-FITC/PI
Apoptosis Detection Kit (BestBio, Shanghai, China). Briefly, the cells were dissociated
with trypsin without EDTA, suspended by 400
µL binding buffer, and stained with 5 µL
Annexin V-FITC for 15 min. and 10 L PI for 5 min. Subsequently, cell suspension was
µ
analyzed with flow cytometer immediately and the proportion of apoptotic cells for each
sample was presented.
2.10. Western Blotting Assay
A549 cells that were infected with IAV were treated by different concentrations of
3D (30 µM, 50 µM, and 80 µM). After 24 h infection, the cells were collected, added into
RIPA buffer, and lysed for 30 min. on ice After centrifugation at 12,000 rpm for 12 min, the
supernatants were aspired, a◦nd protein concentrations were quantified by BCA kit. The
protein was denatured at 100 C for 10 min. Equal amounts of protein (30 µg) were loaded
in every well, separated by 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis
(SDS-PAGE), and then transferred to nitrocellulose filter membrane. The membranes were
blocked with 5% skimmed milk for 2 h and incubated with primary antibodies overnight
◦
at 4 C. Antibodies against cleaved caspase-3 (CST), cleaved caspase-7 (CST), cleaved
caspase-9 (CST), cleaved PARP (CST), Bcl2 (CST), Bax (CST), GAPDH (ZSJQ-Bio), and
viral M2 (Abcam) were diluted at a ratio of 1:1000. The membranes were washed with
TBST three times to remove the unbound primary antibodies. Subsequently, horseradish
peroxidase (HRP)-conjugated goat anti-mouse or anti-rabbit secondary antibodies (CST,
1:3000) were added on the membranes for 2 h at room temperature. Finally, membranes
were covered by chemiluminescent (ECL) substrate and the protein bands were detected.
The images were analyzed by ImageJ software.
2.11. In Vivo Experiments
Six-week female BALB/c mice were randomly divided into seven groups, as follows,
the normal control group, the virus control group, the 3D high-dose group (100 mg/kg/d),
the 3D middle-dose group (50 mg/kg/d), the 3D low-dose group (25 mg/kg/d), the
oseltamivir group (50 mg/kg/d), and the ribavirin group (50 mg/kg/d). Each group had
18 mice. After the mice acclimatization for three days, mice, except normal control mice,
were intranasally infected with 40
µL of A/Weiss/43 H1N1 virus while normal control
mice were intranasally treated with 40
µL of normal saline. After 4 h post infection, the
compounds-treated mice were intragastrically administered with different compounds
once a day for six consecutive days. As for control mice, were given saline once daily
for six days. The symptoms of the mice were observed, and the recorded daily and body
weight was monitored. Mice were euthanized at two, four, and six days post-infection.
Lungs were morphologically observed, weighted, and divided into two parts, one for
histopathological, immunohistochemistry, and the other one for qRT-PCR. Serum was

Viruses 2021, 13, 278
5 of 19
collected for subsequent experiments. The lung index and the inhibition radio were
calculated by using the following formula:
Lung index = lung weight (g)/body weight (g) × 100%
(3)
(4)
Inhibition = (the lung index of virus group − the lung index of drug-treated group)/
the lung index of virus group × 100%
2.12. Histopathology and Immunohistochemistry
Lung tissues from mice at six days post-infection were fixed with 4% polyformalde-
hyde, embedded in paraffin, and then sliced for histopathology and immunohistochemistry.
The tissue sections were dewaxed, hydrated, stained with hematoxylin and eosin, and
dehydrated. Finally, the lung tissue lesions were observed under the microscope. For im-
munohistochemistry, the sections were dewaxed, hydrated, repaired, blocked, treated with
anti-influenza A virus nucleoprotein (NP) antibody and HRP-labelled antirabbit antibodies,
stained with 3,3-diaminobenzidin (DAB) and hematoxylin, and dehydrated. Subsequently,
the expression of viral antigen in the lung tissue was observed.
2.13. Statistical Analysis
All of the statistical analyses were performed using GraphPad Prism 8 and IBM SPSS
Statistics 21. At least three independent experiments were required. The experimental
results were presented as the mean
±
standard deviation (SD). Statistical differences
between the groups were assessed using the student’s t-test, followed by one-way ANOVA.
The results were considered to be statistically significant at p < 0.05 (*/#), p < 0.01 (**/##).
3. Results
3.1. The Synthetic Route of Compounds and Their Antiviral Activity against A/Weiss/43 H1N1
In Vitro
Figure 1 shows the synthetic route of the series of novel butene lactone compounds.
All of the synthetic compounds were evaluated by antiviral activity against A/Weiss/43
H1N1 in MDCK cells (Table 1). Compounds (3D, 3E, 4A, 4C, and 4E) presented the antiviral
activity against A/Weiss/43 H1N1. Among them, 3D was the best one, which had an EC50
of 12.30 µM with low toxicity.
Figure 1. Synthesis route for compounds.

Viruses 2021, 13, 278
6 of 19
Table 1. Anti-viral activity against A/Weiss/43 H1N1 of synthetic compounds in Madin–Darby
canine kidney (MDCK) cells.
ID
R1
R2
CC50 (µM) 1
EC50 (µM) 2
SI 3
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
p-F
p-F
p-Cl
p-Cl
p-Br
p-Br
p-F
H
Ph
H
Ph
H
Ph
H
Ph
H
191.18 ± 3.87
677.68 ± 4.05
256.25 ± 3.93
365.02 ± 1.58
225.78 ± 4.09
119.49 ± 1.52
256.63 ± 11.69
614.86 ± 41.20
389.22 ± 7.34
338.42 ± 8.14
238.76 ± 10.70
359.72 ± 5.22
-
-
-
-
-
-
29.68
-
7.40
10.26
-
17.56
-
12.49
-
12.30 ± 0.53
-
16.15 ± 0.96
25.01 ± 0.77
p-F
-
p-Cl
p-Cl
p-Br
p-Br
22.17 ± 2.65
Ph
H
Ph
-
19.12 ± 2.97
-
50% cytotoxic concentration; 2 50% effective concentration; 3 Selectivity index (ratio of CC50 to EC50).
1
3.2. Antiviral Activity of 3D against Influenza A Virus In Vitro
The non-toxic concentration range of 3D in MDCK and A549 cells was determined
through MTT assay. 3D had small cytotoxic effects on A549 and MDCK cells, as the cell
viability was approximately 40%, even at 800 µM (Figure 2B). The CC50 values of 3D on
MDCK and A549 cells were calculated by SPSS software, which were 365.02
±
1.58 µM
and 308.76 ± 9.96 µM, respectively.
The antiviral activities of different concentration of 3D (3.125–100 µM) on different IAV
strains, including A/Weiss/43 H1N1, A/Virginia/ATCC2/2009 H1N1 and A/California/2/
2014 H3N2, were assayed on MDCK cells oseltamivir and ribavirin were used as posi-
tive controls. 3D could efficiently inhibit infection of IAV with EC50 values from 12.30 to
24.09 µM, as mentioned in Table 2. Additionally, 3D inhibited these three virus strains in
a dose-dependent manner (Figure 2C). Microscopic observation revealed that 3D could
effectively reduce the cytopathic effect of A/Weiss/43 H1N1 on MDCK cells (Figure 2D).
Furthermore, virus titers of A549 cells significantly decreased after the treatment of 3D in a
dose-dependent manner (Figure 2E). Therefore, the results indicate that 3D exerts a broad-
spectrum anti-IAV activity without significant cytotoxicity.
The levels of IAV nucleoprotein (NP) mRNA were detected by qRT-PCR at 24, 36,
and 48 h post-infection after treatment with different concentrations of 3D (6.25–100 µM).
The results demonstrate a decrease in the levels of NP mRNA in IAV-infected MDCK cells
(Figure 2F), indicating that 3D could effectively inhibit the viral replications cycle.

Viruses 2021, 13, 278
7 of 19
Figure 2. Inhibition of influenza virus infection by 3D, a butene lactone compound. (
) Cytotoxic effect of 3D on MDCK and A549 cells. Cells were treated with different concentrations of 3D for 72 h and
cell viability was measured by 3-[4, 5-dimethylthiazol-2-yl]-2, 5-diphenyltetrazolium bromide (MTT) assay. ( ) MDCK

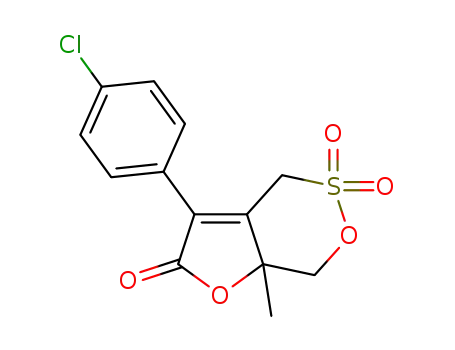

A) The chemical structure of 3D.
(
B
C
cells were infected with influenza A virus (A/Weiss/43 H1N1, A/Virginia/ATCC2/2009 H1N1 and A/California/2/2014
H3N2; 100 TCID50) and then treated with indicated concentrations of 3D for 72 h. Then, MTT assay was performed to
determine the viability of these cells. (
was acquired after incubation with 3D (50
with different concentrations of 3D for 72 h. Viral titers in the medium were analyzed by measuring the TCID50. (
cells were infected with A/Weiss/43 H1N1 and treated with different concentrations of 3D. The expression of NP mRNA
D
) MDCK cells were mock-infected or infected with A/Weiss/43 H1N1. The image
M) for 24 h (100 ). ( ) A549 cells infected with A/Weiss/43 H1N1 were treated
) MDCK
µ
×
E
F
was detected by qRT-PCR at 24, 36, and 48 h post-infection (x-axis). The data are shown as the mean
compared with the normal control; * p < 0.05, ** p < 0.01 compared with the virus control).
±
SD. (## p < 0.01 as

Viruses 2021, 13, 278
8 of 19
Table 2. Antiviral activities of different drugs against influenza virus (IAV) strains.
A/Virginia/ATCC2/2009
A/Weiss/43 H1N1
A/California/2014 H3N2
Compound
H1N1
CC50 (µM)
EC50 (µM)
SI
EC50 (µM)
SI
EC50 (µM)
SI
3D
365.02 ± 1.58
>800
608.33 ± 33.95
12.30 ± 0.53
0.57 ± 0.29
22.21 ± 0.76
29.68
>1403.51
27.39
18.08 ± 2.60
6.97 ± 0.38
13.92 ± 1.06
20.19
>114.78
43.70
24.09 ± 1.16
9.47 ± 2.48
12.99 ± 3.74
15.15
>84.48
46.83
Oseltamivir
Ribavirin
3.3. The Effects of 3D on Different Stages of Viral Infection
In order to examine the stages at which 3D interferes with viral replication, 3D was
added at varying concentrations into the medium before, during, or after viral adsorption,
and the cell viability was measured by MTT assay at 72 h post-infection (Figure 3A). When
added before viral adsorption, 3D had almost no inhibitory effects on viral replication and
a slight inhibitory effect was observed when added during viral inoculation. When 3D was
added after viral adsorption, a significant protective effect was observed on the infected
MDCK cells (Figure 3B). These results show that the activity of 3D against IAV was mainly
manifested as a therapeutic effect through different dosing methods.
Figure 3. Inhibition of influenza A virus replication by 3D. (
before viral adsorption for 2 h, during viral adsorption for 2 h and after viral adsorption. The inhibition rates were determined
by MTT assay at 72 h post-infection. ( ) The infected MDCK cells were treated with 3D at indicated time intervals. At 10 h
A,B) MDCK cells were treated with various concentrations of 3D
C,D
post-infection, cells were harvested and the expression level of viral NP mRNA was analyzed by qRT-PCR. The data are
shown as the mean ± SD. (## p < 0.01 compared with the normal control; ** p < 0.01 compared with the virus control).
A time-of-addition assay was performed to further understand the stage of the single-
round replication cycle at which 3D works, as shown in Figure 3C. IAV-infected MDCK
cells were added at different time points into DMEM medium containing 50
the levels of NP mRNA were tested at 10 h post-infection. The results confirm that the
levels of NP mRNA were significantly suppressed with 3D treatment, especially at ( 2)–0,
µM 3D, and
−
and 0–2 periods of the viral replication cycle (Figure 3D), indicating the inhibitory effect of
3D at the early stage of the viral cycle.

Viruses 2021, 13, 278
9 of 19
3.4. Effects of 3D on IAV-Induced Apoptosis and the Mitochondrial Apoptosis Pathway in A549 Cells
Pandemic influenza A (H1N1) virus can induce apoptosis in human airway epithelial
cells due to caspase-3 activation [21,22]. In order to explore the effect of 3D on apoptosis,
the infected A549 cells were treated with various concentrations of 3D, and apoptosis
was detected by flow cytometry at 24 h post-infection. The apoptosis rate of virus control
increased markedly, due to viral infection (32.85
±
3.05%) as compared with normal control
0.75%). The apoptosis rates were, respectively, 21.93 0.97%, 15.17 2.87%, and
1.30% at 30 M, 50 M, 80 M concentrations (Figure 4A). Thus, 3D evidently
(2.30
7.23
±
±
±
±
µ
µ
µ
reduced the IAV-induced apoptosis in A549 cells.
Figure 4. Effect of 3D on apoptosis induced by H1N1. A549 cells were mock-infected or infected with A/Weiss/43 H1N1
and treated with 3D (30, 50, and 80 M) for 24 h. ( ) Apoptosis was analyzed by flow cytometry using Annexin V-FITC/PI
staining. ( ) Cell lysates were collected and the indicated proteins were detected by western blot assay. For positive control,
the indicated cells were treated with ribavirin (100 µM).
µ
A
B
We estimated the changes in the levels of apoptosis-related proteins in infected A549
cells with drug stimulation to further clarify the mechanism of apoptotic inhibition by 3D.
Monolayer A549 cells were mock-infected or infected with A/Weiss/43 H1N1 virus and
then treated with 3D or blank medium. The levels of cleaved caspase-3, cleaved caspase-7,
cleaved caspase-9, and cleaved PARP visibly decreased after 3D treatment in a dose-dependent
manner. Moreover, the expression of influenza M2 protein was inhibited by 3D, confirming a
good anti-IAV effect of 3D through the inhibition of apoptosis proteins (Figure 4B).
The mitochondrial apoptotic pathway is activated during influenza virus infection.
Mitochondria are believed to play a central role in the process of apoptosis. The expressions
of Bax (a pro-apoptotic protein) and Bcl-2 (an anti-apoptotic protein) were tested to explore
whether 3D affects apoptosis by mitochondrial pathway. We found that IAV-infection
increased the ratio of Bax/Bcl-2, while 3D treatment reduced this upregulation of Bax and
Bcl-2 in A549 cells (Figure 4B). These observations indicate that 3D reduced IAV-induced
apoptosis through the mitochondrial apoptosis pathway in A549 cells.
3.5. Effects of 3D on the Production of Pro-Inflammatory Cytokines Induced by H1N1 Infection
IAV infection can lead to mass production of pro-inflammatory factors, causing severe
lung damage and aggravating the severity of the disease. A549 cells were infected with
A/Weiss/43 H1N1 virus, and the expression levels of pro-inflammatory cytokines were
determined by qRT-PCR at 24 h post-infection. IAV infection significantly up-regulated the
mRNA levels of viral genes and pro-inflammatory cytokines, including interleukin (IL-1
β),
IL-6, IL-8, and tumor necrosis factor- (TNF- ). As expected, 3D could decrease the levels
α
α
of viral NP and M mRNA, and it significantly decreased the mRNA expression of these
cytokines and chemokines in a dose-dependent manner (Figure 5).

Viruses 2021, 13, 278
10 of 19
Figure 5. Effects of 3D on the expression of inflammatory mediators in A549 cells. Infected A549 cells were incubated in the absence or presence of the indicated concentrations of 3D (the
X-axis) for 24 h. Subsequently, total RNA was extracted, and the qRT-PCR assay was performed to figure out the expression level of mRNA. (# p < 0.05, ## p < 0.01 as compared with the
normal control; * p < 0.05, ** p < 0.01 compared with the virus control).

Viruses 2021, 13, 278
11 of 19
The mRNA expression of RIG-I and its downstream signaling molecules, including
mitochondrial antiviral signaling protein (MAVS), toll-like receptor 3 (TLR3), interferon reg-
ulatory factor 3 (IRF3), and IRF7, increased significantly in infected cells as compared with
those in normal cells (Figure 5) and their levels decreased after 3D treatment. Taken together,
these results suggest the inhibitory effect of 3D on the production of pro-inflammatory
cytokines via the decrease in RIG-I expression and its downstream signaling pathway.
3.6. Therapeutic Efficiency of 3D against A/Weiss/43 H1N1 In Vivo
An infected mice model was used to further explore the therapeutic efficacy of 3D
against IAV in vivo. After infection, the changes in body weight and clinical symptoms
were observed every day. On the third day post-infection, mice of the virus group showed
clinical symptoms, such as slow and heavy breathing, bradykinesia, poor appetite, weight
loss, and shaggy fur. Treatments with 3D, oseltamivir, and ribavirin could relieve these
symptoms (the change in body weight is shown in Figure 6A).
Figure 6. Evaluation of therapeutic efficacy of 3D in vivo. After three days for adaption, mice were mock-infected or
infected with A/Weiss/43 H1N1. Mice were intragastrically administered with different compounds once a day for six
consecutive days. (
and weighed. ( ) The lung indexes were calculated and analyzed. (
with HE staining were recorded (100 ). Data are shown as the mean
** p < 0.01 compared with the virus control.) ( ) and ( ) samples from (a) the normal control group; (b) the virus control
A
) Body weight was monitored every day. (
B
) At six days post-infection, lungs were harvested, observed,
) Photomicrographs of histopathology in lung tissue
SD. (## p < 0.01 compared with the normal control;
C
D
±
×
B
D
group; (c) the 3D low-dose group, (d) the 3D middle-dose group, (e) the 3D high-dose group, (f) the ribavirin group, and
(g) the oseltamivir group.

Viruses 2021, 13, 278
12 of 19
On the sixth day after infection, intact lung tissues were harvested, and the image
was acquired. The lung tissues of the normal control group were pink, while a portion
of the lung tissues of the virus control group appeared obviously dark red, indicating
severe lung hyperemia and lesions. The range and degree of damaged lung tissues were
reduced with the treatment of control drugs and 3D. In addition, the inhibition of dark
red lung tissues by 3D occurred in a dose-dependent manner (Figure 6B). Accordingly,
the lung indexes of mice in the virus control group were significantly increased when
compared with that of the normal control group. The lung indexes of mice in the 3D,
oseltamivir, and ribavirin treatment groups were significantly lower than those in the virus
control group (Figure 6C), clearly indicating that treatment with drugs could obviously
improve lung injury symptoms. The inhibition rate of the 3D high-dose group reached
as high as 33.21%, which was similar to the inhibition rates of oseltamivir or ribavirin
group (Table 3). Histopathologic examination of lung tissues showed that the lungs of
the normal control mice were normal in terms of size, color, and form. However, the lung
tissues of the virus control group had severe infiltration of inflammatory cells, thickened
alveolar walls, and inflammatory cells that are full of the alveolar cavity. When exposed
to 3D, oseltamivir, or ribavirin, the severity of pulmonary inflammation was attenuated
(Figure 6D). These results indicate the therapeutic effect of 3D in mice that were infected
with A/Weiss/43 H1N1.
Table 3. The inhibitory effect of 3D on lung index at sic days post infection.
Group
Mice
Lung Index
Inhibition 1
Normal control
Virus control
3D (25 mg/kg/d)
3D (50 mg/kg/d)
3D (100 mg/kg/d)
Ribavirin
10
10
10
10
10
10
10
0.61 ± 0.03
1.70 ± 0.06 ##
1.51 ± 0.06
-
-
11.35%
28.47%
33.21%
34.27%
35.99%
1.22 ± 0.09 **
1.14 ± 0.05 **
1.12 ± 0.15 **
1.09 ± 0.12 **
Oseltamivir
Inhibition ratio of lung index. (## p < 0.01 as compared with the normal control; ** p < 0.01 compared with the
1
virus control).
3.7. Effects of 3D on Influenza A Virus the Replication in Mouse Lungs
The level of viral NP mRNA was detected by qRT-PCR assay to assess the effect
of 3D on viral replication. Lung tissues were harvested at two, four, and six days post-
infection and qRT-PCR assay was performed. The level of viral NP mRNA was the
highest at two days post-infection and then gradually decreased at four and six days post-
infection (Figure 7A). After the administration of drugs, the viral NP mRNA expression
was significantly lower than that in the virus control group. Likewise, 3D decreased the
expression of viral NP mRNA in a dose-dependent manner in the IAV infected lungs. An
immunohistochemistry assay was performed in the lungs to detect the expression of viral
NP protein. Brown-yellow spots indicate positive immune-histochemical staining. NP was
found to express strongly in the lungs of mice in the virus control group, and treatment
with drugs significantly decreased the area of NP staining (Figure 7B). Taken together, these
observations indicate that 3D exerts an inhibitory effect on A/Weiss/43 H1N1 in vivo.

Viruses 2021, 13, 278
13 of 19
Figure 7. Inhibition of viral replication by 3D in the lung. At two, four and six d days post-infection, mice were euthanized
◦
and lung tissues were stored at
are shown as the mean
SD. (## p < 0.01 compared with the normal control; * p < 0.05, ** p < 0.01 compared with the virus
control) ( ) The expression of NP protein in lung tissues at six days post-infection was visualized by immunohistochemistry.
−
80 C. (A) The expression of viral NP mRNA in lungs was determined using qRT-PCR. Data
±
B
Samples from (a) the normal control group; (b) the virus control group; (c) the 3D low-dose group, (d) the 3D middle-dose
group, (e) the 3D high-dose group, (f) the ribavirin group, and (g) the oseltamivir group.
3.8. Effects of 3D on Cytokine Production in Mouse Lungs
The effect of 3D on cytokine production in mice lungs was assessed by measuring
the levels of several inflammatory cytokines in the lungs at two, four, and six days post-
infection. Meanwhile, the mRNA expression levels of genes expressing pattern-recognition
receptors (PRRs) that triggered the synthesis and release of cytokines were also assayed.
The levels of TLR3, TLR7, myeloid differentiation primary response 88 (Myd88), and
RIG-I were up-regulated due to viral infection, which were decreased, as expected, in the
presence of 3D, oseltamivir, or ribavirin. We then tested the effect of 3D on the expressions
of inflammatory cytokines. The levels of pro-inflammatory cytokines (TNF-α, IL-1β, IL-6,
and IL-8) were markedly higher after infection than those in the normal control group. The
administration of 3D, oseltamivir, or ribavirin could inhibit the increased expressions of
pro-inflammatory cytokines. Unexpectedly, the expression of anti-inflammatory cytokines
(IL-10 and IL-13) was also repressed with the treatment of drugs. Interferon-
is the downstream signaling factor of RIG-I and is widely considered to inhibit viral
replication. The level of IFN- increased significantly after viral infection and reduced after
the treatment with 3D, oseltamivir, or ribavirin at two days post infection. On four and six
days post infection, there was a decrease in the level of IFN- in drug-treated groups as
β (IFN-β)
β
β
compared to that in the virus control group, although the difference is not significant. In
addition, the mRNA expression of genes expressing antiviral proteins myxovirus resistance
1 (Mx1) and 29,59-oligoadenylate synthetase 1 (OAS1) was also repressed by the treatment
with drugs (Figure 8).

Viruses 2021, 13, 278
14 of 19
Figure 8. Effects of 3D on the expression of mediators related to RIG-I in vivo. At two, four, and six days post-infection, the
mice were euthanized and RNA was isolated from lung tissues. The mRNA expression of the genes expressing indicated
mediators in the lungs was determined using qRT-PCR. Data are shown as the mean
with the normal control; * p < 0.05, ** p < 0.01 as compared with the virus control).
±
SD. (# p < 0.05, ## p < 0.01 compared

Viruses 2021, 13, 278
15 of 19
4. Discussion
Emerging and re-emerging viruses pose a continuous threat to human health [23].
Influenza viruses, which are a typical example of re-emergence, inflict immense morbid-
ity and mortality that range from 291,000 to 646,000 annual deaths worldwide [24]. The
administrations of vaccines and targeted antiviral drugs are restricted due to viral mu-
tations [25–27]. With the scarcity of diverse and effective medical methods, a series of
new strategies are urgently needed. Based on these reasons, 3D, a novel butene lactone
derivative, was synthesized and its antiviral effects were assessed.
Viral load is a key factor in the pathogenesis of influenza [28], so the effect of an
anti-viral compound on viral load is assessed in order to measure its efficiency. In this
study, 3D exhibited a broad-spectrum antiviral activity against several influenza viruses
A/Weiss/43 H1N1, A/Virginia/ATCC2/2009 H1N1 (pdm09), and A/California/2/2014
H3N2 in vitro. The antiviral activity of 3D against A/Weiss/43 H1N1 was confirmed by
viral inhibition, viral titers, and cytopathic effect. In addition, 3D significantly repressed
the viral genes in MDCK, A549 cells, and mouse lungs. Therefore, 3D could inhibit viral
replication in vivo and in vitro and it impelled us to clarify the anti-influenza mechanism
of 3D.
The mode of action of 3D in inhibiting IAV replication was examined at three different
stages (before, during, and after viral infection). We found that 3D inhibits viral replication
in more than one way (during, as well as after viral infection) and significantly prevents
the viral infection when administered post-infection. The IAV life cycle is approximately
8–10 h and it includes entry, replication and transcription, virion assembly, and virus
budding [29,30]. The time-of-addition assay revealed that 3D inhibited viral replication at
the early stage of its life cycle.
Apoptosis, which is a type of programmed cell death, plays a complicated and pivotal
role in IAV replication and pathogenicity [31]. Influenza virus induces apoptosis in a
variety of cell types. Hosts and viruses regulate apoptosis to achieve their goals. While
hosts use apoptosis to resist the invasion of pathogens [32
evade the host response and accelerate their own replication [34
suppresses the apoptosis of cells to gain sufficient time for its replication and production
of viral proteins [32 36]. In the late stage of infection, IAV induces apoptosis via caspase-3
activation to promote the release of virions and accelerate the infection of cells [37 38]. In
,
33], viruses employ apoptosis to
,
35]. In the initial stage, IAV
,
,
our study, 3D was found to suppress the apoptosis in A549 cells induced by A/Weiss/43
H1N1 in a dose-dependent manner at 24 h post-infection and repressed the expression of
cleaved caspase-3, caspase-7, caspase-9, and cleaved PARP (the main cleavage target of
caspase-3 in vivo). The mitochondrial pathway, as a primary mechanism of apoptosis, is
controlled by the Bcl-2 family of protein. Bcl-2 is associated with damaged replication of
the influenza virus [39,40]. An increase in the Bax/Bcl-2 ratio indicates the activation of
intrinsic apoptosis [41]. We observed that 3D decreased the Bax/Bcl-2 ratio. These results
indicate that 3D suppresses apoptosis via the mitochondrial pathway, which may be the
mechanism of the anti-IAV effect of 3D.
The first host defense against viral infection is the immune response. Host recognizes
the conserved components of pathogens, called pathogen associated molecular patterns
(PAMPs). For IAV, double-stranded and triphosphorylated RNAs are PAMPs that are
detected by pattern recognition receptors (PRRs), such as TLR3, TLR7, and RIG-I [42–45].
RIG-I is the primary receptor for recognizing the PAMPs of IAVs in the infected host
cells and it has been widely studied [46]. A variety of IFNs and cytokines are released
to limit the spread of viruses by interfering with virus release and translation of viral
proteins [47]. However, over-production of pro-inflammatory cytokines and chemokines,
and immune cell activation may lead to acute lung injury and, thus, has an important
role in the pathophysiology of influenza-induced acute respiratory distress syndrome [48].
Pulmonary inflammation and respiratory failure are the primary reasons for the death
of patients that are infected with IAV [49]. Therefore, anti-inflammatory treatment for
lung injury caused by viruses has shown promise in preclinical models [50]. H5N1 and

Viruses 2021, 13, 278
16 of 19
H1N1 has been found to trigger cells in mice to release inflammatory cytokines and
chemokines, including TNF-
and TLR3 signaling pathways [51
pro-inflammatory cytokines is dependent on RIG-I and TLR3. Some anti-viral compounds
could reduce the expression levels of inflammatory factors (IL-1, IL-6, and TNF- , etc.)
by suppressing the activation of RIG-I and TLR3 [54 56]. Consistent with these findings,
our study showed that 3D administration could repress the expression of inflammatory
cytokines (IL-6, IL-8, IL-1 , and TNF- ) by inhibiting RIG-I, TLR3, and their downstream
α
, IL-6, IL-1β, IL-8, and IFN-β, which are involved in RIG-I
–
53]. These findings suggest that the expression of these
α
–
β
α
signal factors (TLR7, MAVS, Myd88, etc.) in vivo and in vitro. IL-10 and IL-13 have anti-
inflammatory properties [57]. The 3D-mediated inhibition of RIG-I and TLR3 expression
led to decreased IL-10 and IL-13 levels. Type I interferons (IFN-α and IFN-β) are key innate
antiviral defense effectors [58], which are critical for resisting viral invasion. However,
recent studies have shown that continuous IFN stimulation can aggravate the expression of
cytokines that are mediated by IAV and they contribute to lung injury [44
,59]. Congruent
with this, our study demonstrates that 3D can down-regulate the expression of IFN-
β.
Moreover, OAS1 and Mx1 induced by IFNs can restrict viruses [60], and their levels
decreased after 3D administration. 3D could also alleviate the severe clinical symptoms
(such as inactivity, anorexia, labored breathing, and ruffled fur), moderate the weight loss,
reduce the lung index, and mitigate lung damage in infected mice. Therefore, relief from
lung damage and protective effect against IAV were associated with the regulation of
inflammation by 3D.
5. Conclusions
The current study showed the mechanism of action of 3D, a novel compound pos-
sessing anti-IAV properties. Our study demonstrates that 3D, which is a butene lactone
derivative, exhibits a broad-spectrum antiviral effect against influenza virus, including
the 2009 pandemic strain. Additionally, 3D could suppress the apoptosis induced by the
influenza virus via the mitochondrial pathway. With the treatment of 3D, the production of
inflammatory cytokines was alleviated during viral infection in vivo and in vitro. Further
structural optimization and screening of 3D will be carried out in our future work.
Supplementary Materials: The following are available online at https://www.mdpi.com/1999-491
5/13/2/278/s1, Table S1: Primers for qRT-PCR.
Author Contributions: Conceptualization, Z.W. (Zhenya Wang) and H.X.; methodology, Z.W.
(Zhenya Wang) and J.F.; investigation, Z.W. (Zhenya Wang), J.F., J.L., D.H., Y.T., Z.G., Y.G., L.M. and
L.L.; data, Z.W. (Zhenya Wang), J.F. and H.X.; writing-original draft preparation, Z.W. (Zhenya Wang),
J.F. and H.X.; supervision, Z.W. (Zhanyong Wei), H.L. and H.X.; funding acquisition, Z.W. (Zhenya Wang)
and H.X. All authors have read and agreed to the published version of the manuscript.
Funding: This research was funded by the Department of Education of Henan province (No. 18A350012),
the Department of Science and Technology of Henan province (No. 182102310100) and Fang’s family
(Hong Kong) foundation.
Institutional Review Board Statement: The study was conducted according to the guidelines of the
Declaration of Helsinki, and approved by the Institutional Review Board of Zhengzhou University.
Informed Consent Statement: Not applicable.
Data Availability Statement: The data presented in this study are available in Supplementary
Materials.
Acknowledgments: We are grateful to Hui Hu of Henan Agricultural University for critical revising
of the manuscript.
Conflicts of Interest: The authors declare that the research was conducted in the absence of any
commercial or financial relationships that could be construed as a potential conflict of interest.

Viruses 2021, 13, 278
17 of 19
References
1.
Meade, P.; Kuan, G.; Strohmeier, S.; Maier, H.E.; Amanat, F.; Balmaseda, A.; Ito, K.; Kirkpatrick, E.; Javier, A.; Gresh, L.; et al.
Influenza Virus Infection Induces a Narrow Antibody Response in Children but a Broad Recall Response in Adults. mBio 2020
11, 3219. [CrossRef]
,
2.
3.
Ampomah, P.B.; Lim, L.H.K. Influenza A virus-induced apoptosis and virus propagation. Apoptosis 2020, 25, 1–11. [CrossRef]
To, K.K.W.; Chan, J.F.W.; Chen, H.; Li, L.; Yuen, K.-Y. The emergence of influenza A H7N9 in human beings 16 years after
influenza A H5N1: A tale of two cities. Lancet Infect. Dis. 2013, 13, 809–821. [CrossRef]
4.
5.
6.
Cheng, V.C.C.; To, K.K.W.; Tse, H.; Hung, I.F.N.; Yuen, K.-Y. Two Years after Pandemic Influenza A/2009/H1N1: What Have We
Learned? Clin. Microbiol. Rev. 2012, 25, 223–263. [CrossRef] [PubMed]
Zhou, F.; Trieu, M.-C.; Davies, R.; Cox, R.J. Improving influenza vaccines: Challenges to effective implementation. Curr. Opin.
Immunol. 2018, 53, 88–95. [CrossRef] [PubMed]
Influenza (Flu) Antiviral Drugs and Related Information|FDA. Available online: https://www.fda.gov/drugs/information-
drug-class/influenza-flu-antiviral-drugs-and-related-information (accessed on 2 February 2021).
De Clercq, E. Antiviral agents active against influenza A viruses. Nat. Rev. Drug Discov. 2006, 5, 1015–1025. [CrossRef]
Hsu, J.; Santesso, N.; Mustafa, R.; Brozek, J.; Chen, Y.L.; Hopkins, J.P.; Cheung, A.; Hovhannisyan, G.; Ivanova, L.; Flottorp, S.A.;
et al. Antivirals for Treatment of Influenza A Systematic Review and Meta-analysis of Observational Studies. Ann. Intern. Med.
2012, 156, 512–595. [CrossRef] [PubMed]
7.
8.
9.
Marjuki, H.; Mishin, V.P.; Chesnokov, A.P.; Jones, J.; De La Cruz, J.A.; Sleeman, K.; Tamura, D.; Nguyen, H.T.; Wu, H.-S.; Chang,
F.-Y.; et al. Characterization of Drug-Resistant Influenza A(H7N9) Variants Isolated from an Oseltamivir-Treated Patient in
Taiwan. J. Infect. Dis. 2015, 211, 249–257. [CrossRef] [PubMed]
10. Hai, R.; Schmolke, M.; Leyva-Grado, V.H.; Thangavel, R.R.; Margine, I.; Jaffe, E.L.; Krammer, F.; Solórzano, A.; García-Sastre,
A.; Palese, P.; et al. Influenza A(H7N9) virus gains neuraminidase inhibitor resistance without loss of in vivo virulence or
transmissibility. Nat. Commun. 2013, 4, 2854. [CrossRef]
11. Yang, J.; Huang, Y.; Liu, S. Investigational antiviral therapies for the treatment of influenza. Expert Opin. Investig. Drugs 2019
28, 481–488. [CrossRef]
,
12. Xiao, H.; Duan, H.; Ye, J.; Yao, R.; Ma, J.; Yuan, Z.; Zhao, G. Chemoselective Synthesis of Trifluoromethylated gamma-Butenolide
Derivatives via Phosphine-Promoted Tandem Reaction of Allylic Carbonates and Trifluoromethyl Ketones. Org. Lett. 2014
16, 5462–5465. [CrossRef]
,
13. Manchoju, A.; Annadate, R.A.; Desquien, L.; Pansare, S.V. Functionalization of diazotetronic acid and application in a stereose-
lective modular synthesis of pulvinone, aspulvinones A–E, G, Q and their analogues. Org. Biomol. Chem. 2018, 16, 6224–6238.
[CrossRef] [PubMed]
14. Fakova, H.; Pour, M.; Kunes, J.; Senel, P. Carbonylative lactonization via carbonyl oxygen attack: A short and selective total
synthesis of uncinine and its analogues. Tetrahedron Lett. 2005, 46, 8137–8140. [CrossRef]
15. Yin, Q.; Liang, J.; Zhang, W.; Zhang, L.; Hu, Z.-L.; Zhang, Y.; Xu, Y. Butenolide, a Marine-Derived Broad-Spectrum Antibiofilm
Agent Against Both Gram-Positive and Gram-Negative Pathogenic Bacteria. Mar. Biotechnol. 2019, 21, 88–98. [CrossRef]
16. Hakimelahi, G.H.; Ly, T.W.; Moosavi-Movahedi, A.A.; Jain, M.L.; Zakerinia, M.; Davari, H.; Mei, H.-C.; Sambaiah, T.; Moshfegh,
A.A.; Hakimelahi, S. Design, synthesis, and biological evaluation of novel nucleoside and nucleotide analogues as agents against
DNA viruses and/or retroviruses. J. Med. Chem. 2001, 44, 3710–3720. [CrossRef]
17. Hakimelahi, G.H.; Mei, N.-W.; Moosavi-Movahedi, A.A.; Davari, H.; Hakimelahi, S.; King, K.-Y.; Hwu, J.R.; Wen, Y.-S. Synthesis
and biological evaluation of purine-containing butenolides. J. Med. Chem. 2001, 44, 1749–1757. [CrossRef]
18. Yu, B.; Dai, C.-Q.; Jiang, Z.-Y.; Li, E.-Q.; Chen, C.; Wu, X.-L.; Chen, J.; Liu, Q.; Zhao, C.-L.; He, J.-X.; et al. Andrographolide as an
Anti-H1N1 drug and the mechanism related to retinoic acid-inducible gene-I-like receptors signaling pathway. Chin. J. Integr.
Med. 2014, 20, 540–545. [CrossRef]
19. Wang, Z.; Tan, Y.; Mou, X.; Wang, C.; Li, Y.; Xiao, F.; Hu, X.; Liu, H.; Xu, H. Screening and pharmacodynamic evaluation of the
anti-respiratory syncytial virus activity of butene lactones in vitro and in vivo. J. Med. Virol. 2020, 92, 17–25. [CrossRef] [PubMed]
20. Wang, Z.; Hu, X.; Li, Y.; Mou, X.; Wang, C.; Chen, X.; Tan, Y.; Wu, C.; Liu, H.; Xu, H. Discovery and SAR Research for Antivirus
Activity of Novel Butenolide on Influenza A Virus H1N1 In Vitro and In Vivo. ACS Omega 2019, 4, 13265–13269. [CrossRef]
21. Yang, P.; Deng, J.; Li, C.; Zhang, P.; Xing, L.; Li, Z.; Wang, W.; Zhao, Y.; Yan, Y.; Gu, H.; et al. Characterization of the 2009 Pandemic
A/Beijing/501/2009 H1N1 Influenza Strain in Human Airway Epithelial Cells and Ferrets. PLoS ONE 2012, 7, e46184. [CrossRef]
22. Yang, N.; Hong, X.; Yang, P.; Ju, X.; Wang, Y.; Tang, J.; Li, C.; Fan, Q.; Zhang, F.; Chen, Z.; et al. The 2009 pandemic
A/Wenshan/01/2009 H1N1 induces apoptotic cell death in human airway epithelial cells. J. Mol. Cell Biol. 2011, 3, 221–229.
[CrossRef] [PubMed]
23. Gao, G.F. From “A”IV to “Z”IKV: Attacks from Emerging and Re-emerging Pathogens. Cell 2018, 172, 1157–1159. [CrossRef]
[PubMed]
24. Iuliano, A.D.; Roguski, K.M.; Chang, H.H.; Muscatello, D.J.; Palekar, R.; Tempia, S.; Cohen, C.; Gran, J.M.; Schanzer, D.; Cowling,
B.J.; et al. Estimates of global seasonal influenza-associated respiratory mortality: A modelling study. Lancet 2018, 391, 1285–1300.
[CrossRef]

Viruses 2021, 13, 278
18 of 19
25. Hayden, F.G.; Sugaya, N.; Hirotsu, N.; Lee, N.; De Jong, M.D.; Hurt, A.C.; Ishida, T.; Sekino, H.; Yamada, K.; Portsmouth, S.;
et al. Baloxavir Marboxil for Uncomplicated Influenza in Adults and Adolescents. N. Engl. J. Med. 2018, 379, 913–923. [CrossRef]
[PubMed]
26. Uyeki, T.M.; Bernstein, H.H.; Bradley, J.S.; Englund, J.; File, T.M.; Fry, A.M.; Gravenstein, S.; Hayden, F.G.; Harper, S.; Hirshon,
J.M.; et al. Clinical Practice Guidelines by the Infectious Diseases Society of America: 2018 Update on Diagnosis, Treatment,
Chemoprophylaxis, and Institutional Outbreak Management of Seasonal Influenzaa. Clin. Infect. Dis. 2019, 68, 895–902. [CrossRef]
27. Rossman, J.S.; Jing, X.; Leser, G.P.; Lamb, R.A. Influenza Virus M2 Protein Mediates ESCRT-Independent Membrane Scission. Cell
2010, 142, 902–913. [CrossRef] [PubMed]
28. Liang, X.; Huang, Y.; Pan, X.; Hao, Y.; Chen, X.; Jiang, H.; Li, J.; Zhou, B.; Yang, Z. Erucic acid from Isatis indigotica Fort.
suppresses influenza A virus replication and inflammation in vitro and in vivo through modulation of NF-kappaB and p38
MAPK pathway. J. Pharm. Anal. 2020, 10, 130–146. [CrossRef]
29. Yu, M.; Si, L.; Wang, Y.; Wu, Y.; Yu, F.; Jiao, P.; Shi, Y.; Wang, H.; Xiao, S.; Fu, G.; et al. Discovery of Pentacyclic Triterpenoids as
Potential Entry Inhibitors of Influenza Viruses. J. Med. Chem. 2014, 57, 10058–10071. [CrossRef]
30. Te, V.A.; Fodor, E. Influenza virus RNA polymerase: Insights into the mechanisms of viral RNA synthesis. Nat. Rev. Microbiol.
2016, 14, 479–493.
31. Lam, W.Y.; Tang, J.W.; Yeung, A.C.; Chiu, L.C.; Sung, J.J.; Chan, P.K. Avian influenza virus A/HK/483/97(H5N1) NS1 protein
induces apoptosis in human airway epithelial cells. J. Virol. 2008, 82, 2741–2751. [CrossRef]
32. Othumpangat, S.; Beezhold, N.H.; Noti, J.D. Influenza virus infection modulates the death receptor pathway during early stages
of infection in human bronchial epithelial cells. Physiol. Genom. 2018, 50, 770–779. [CrossRef]
33. Benedict, C.A.; Norris, P.S.; Ware, C.F. To kill or be killed: Viral evasion of apoptosis. Nat. Immunol. 2002, 3, 1013–1018. [CrossRef]
[PubMed]
34. Lin, C.; Gu, J.; Wang, H.; Zhou, J.; Li, J.; Wang, S.; Jin, Y.; Liu, C.; Liu, J.; Yang, H.; et al. Caspase-Dependent Apoptosis Induction
via Viral Protein ORF4 of Porcine Circovirus 2 Binding to Mitochondrial Adenine Nucleotide Translocase 3. J. Virol. 2018
92, e00238-18. [CrossRef]
,
35. Galluzzi, L.; Brenner, C.; Morselli, E.; Touat, Z.; Kroemer, G. Viral Control of Mitochondrial Apoptosis. PLoS Pathog. 2008
4, e1000018. [CrossRef] [PubMed]
,
36. Zhirnov, O.P.; Klenk, H.-D. Control of apoptosis in influenza virus-infected cells by up-regulation of Akt and p53 signaling.
Apoptosis 2007, 12, 1419–1432. [CrossRef]
37. Herold, S.; Ludwig, S.; Pleschka, S.; Wolff, T. Apoptosis signaling in influenza virus propagation, innate host defense, and lung
injury. J. Leukoc. Biol. 2012, 92, 75–82. [CrossRef]
38. Brydon, E.W.; Morris, S.J.; Sweet, C. Role of apoptosis and cytokines in influenza virus morbidity. FEMS Microbiol. Rev. 2005
29, 837–850. [CrossRef] [PubMed]
,
39. Kakkola, L.; Denisova, O.V.; Tynell, J.; Viiliäinen, J.; Ysenbaert, T.; Matos, R.C.; Nagaraj, A.; Öhman, T.; Kuivanen, S.; Paavilainen,
H.; et al. Anticancer compound ABT-263 accelerates apoptosis in virus-infected cells and imbalances cytokine production and
lowers survival rates of infected mice. Cell Death Dis. 2013, 4, e742. [CrossRef] [PubMed]
40. Nencioni, L.; De Chiara, G.; Sgarbanti, R.; Amatore, D.; Aquilano, K.; Marcocci, M.E.; Serafino, A.; Torcia, M.; Cozzolino, F.;
Ciriolo, M.R.; et al. Bcl-2 expression and p38MAPK activity in cells infected with influenza A virus: Impact on virally induced
apoptosis and viral replication. J. Biol. Chem. 2009, 284, 16004–16015. [CrossRef]
41. Ji, B.-C.; Hsu, W.-H.; Yang, J.-S.; Hsia, T.-C.; Lu, C.-C.; Chiang, J.-H.; Yang, J.-L.; Lin, C.-H.; Lin, J.-J.; Suen, L.-J.W.; et al. Gallic
Acid Induces Apoptosis via Caspase-3 and Mitochondrion-Dependent Pathways in Vitro and Suppresses Lung Xenograft Tumor
Growth in Vivo. J. Agric. Food Chem. 2009, 57, 7596–7604. [CrossRef]
42. Ouyang, J.; Zhu, X.; Chen, Y.; Wei, H.; Chen, Q.; Chi, X.; Qinghuang, C.; Zhang, L.; Zhao, Y.; Gao, G.F.; et al. NRAV, a Long
Noncoding RNA, Modulates Antiviral Responses through Suppression of Interferon-Stimulated Gene Transcription. Cell Host
Microbe 2014, 16, 616–626. [CrossRef]
43. Rehwinkel, J.; Tan, C.P.; Goubau, D.; Schulz, O.; Pichlmair, A.; Bier, K.; Robb, N.; Vreede, F.; Barclay, W.; Fodor, E.; et al. RIG-I
Detects Viral Genomic RNA during Negative-Strand RNA Virus Infection. Cell 2010, 140, 397–408. [CrossRef]
44. Cao, X. Self-regulation and cross-regulation of pattern-recognition receptor signalling in health and disease. Nat. Rev. Immunol.
2015, 16, 35–50. [CrossRef]
45. Yoneyama, M.; Kikuchi, M.; Natsukawa, T.; Shinobu, N.; Imaizumi, T.; Miyagishi, M.; Taira, K.; Akira, S.; Fujita, T. The RNA
helicase RIG-I has an essential function in double-stranded RNA-induced innate antiviral responses. Nat. Immunol. 2004
5, 730–737. [CrossRef] [PubMed]
,
46. Chen, X.; Liu, S.; Goraya, M.U.; Maarouf, M.; Huang, S.; Chen, J.-L. Host Immune Response to Influenza A Virus Infection. Front.
Immunol. 2018, 9, 320. [CrossRef]
47. Fu, B.; Wang, L.; Ding, H.; Schwamborn, J.C.; Li, S.; Dorf, M.E. TRIM32 Senses and Restricts Influenza A Virus by Ubiquitination
of PB1 Polymerase. PLoS Pathog. 2015, 11, e1004960. [CrossRef] [PubMed]
48. Darwish, I.; Mubareka, S.; Liles, W.C. Immunomodulatory therapy for severe influenza. Expert Rev. Anti-Infect. Ther. 2011
9, 807–822. [CrossRef] [PubMed]
,
49. Florence, J.M.; Krupa, A.; Booshehri, L.M.; Davis, S.A.; Matthay, M.A.; Kurdowska, A.K. Inhibiting Bruton’s tyrosine kinase
rescues mice from lethal influenza-induced acute lung injury. Am. J. Physiol. Cell. Mol. Physiol. 2018, 315, L52–L58. [CrossRef]

Viruses 2021, 13, 278
19 of 19
50. Gotts, J.E.; Abbott, J.; Matthay, M.A. Influenza causes prolonged disruption of the alveolar-capillary barrier in mice unresponsive
to mesenchymal stem cell therapy. Am. J. Physiol. Cell. Mol. Physiol. 2014, 307, L395–L406. [CrossRef]
51. Jia, X.; Liu, B.; Bao, L.; Lv, Q.; Li, F.; Li, H.; An, Y.; Zhang, X.; Cao, B.; Wang, C. Delayed oseltamivir plus sirolimus treatment
attenuates H1N1 virus-induced severe lung injury correlated with repressed NLRP3 inflammasome activation and inflammatory
cell infiltration. PLoS Pathog. 2018, 14, e1007428. [CrossRef]
52. Huo, C.; Xiao, K.; Zhang, S.; Tang, Y.; Wang, M.; Qi, P.; Xiao, J.; Tian, H.; Hu, Y. H5N1 Influenza a Virus Replicates Productively
in Pancreatic Cells and Induces Apoptosis and Pro-Inflammatory Cytokine Response. Front. Cell. Infect. Microbiol. 2018, 8, 386.
[CrossRef] [PubMed]
53. Perrone, L.A.; Szretter, K.J.; Katz, J.M.; Mizgerd, J.P.; Tumpey, T.M. Mice Lacking Both TNF and IL-1 Receptors Exhibit Reduced
Lung Inflammation and Delay in Onset of Death following Infection with a Highly Virulent H5N1 Virus. J. Infect. Dis. 2010
202, 1161–1170. [CrossRef] [PubMed]
,
54. Shi, D.; Chen, M.; Liu, L.; Wang, Q.; Liu, S.; Wang, L.; Wang, R. Anti-influenza A virus mechanism of three representative
compounds from Flos Trollii via TLRs signaling pathways. J. Ethnopharmacol. 2020, 253, 112634. [CrossRef]
55. Singh, U.; Kumar, A.; Sinha, R.; Manral, S.; Arora, S.; Ram, S.; Mishra, R.K.; Gupta, P.; Bansal, S.K.; Prasad, A.K.; et al. Calreticulin
transacetylase catalyzed modification of the TNF-α mediated pathway in the human peripheral blood mononuclear cells by
polyphenolic acetates. Chem. Interact. 2010, 185, 263–270. [CrossRef]
56. Zhou, B.; Liang, X.; Feng, Q.; Li, J.; Pan, X.; Xie, P.; Jiang, Z.; Yang, Z. Ergosterol peroxide suppresses influenza A virus-induced
pro-inflammatory response and apoptosis by blocking RIG-I signaling. Eur. J. Pharmacol. 2019, 860, 172543. [CrossRef]
57. Xia, Y.; Qi, F.; Zou, J.; Yao, Z. Influenza A(H1N1) vaccination during early pregnancy transiently promotes hippocampal
neurogenesis and working memory. Involvement of Th1/Th2 balance. Brain Res. 2014, 1592, 34–43. [CrossRef] [PubMed]
58. Garcia-Sastre, A.; Biron, C.A. Type 1 interferons and the virus-host relationship: A lesson in detente. Science 2006, 312, 879–882.
[CrossRef]
59. Hogner, K.; Wolff, T.; Pleschka, S.; Plog, S.; Gruber, A.D.; Kalinke, U.; Walmrath, H.D.; Bodner, J.; Gattenlohner, S.; Lewe-
Schlosser, P.; et al. Macrophage-expressed IFN-beta contributes to apoptotic alveolar epithelial cell injury in severe influenza
virus pneumonia. PLoS Pathog. 2013, 9, e1003188. [CrossRef]
60. Kim, S.; Kim, M.-J.; Kim, C.-H.; Kang, J.W.; Shin, H.K.; Kim, D.-Y.; Won, T.-B.; Chang-Hoon, K.; Rhee, C.S.; Yoon, J.-H.; et al. The
Superiority of IFN-lambda as a Therapeutic Candidate to Control Acute Influenza Viral Lung Infection. Am. J. Respir. Cell Mol.
Biol. 2016, 56, 202–212. [CrossRef]
