Identification and X-ray Co-crystal structure of a small-molecule activator of LFA-1-ICAM-1 binding

Article abstract of DOI:10.1002/anie.201310240

Stabilization of protein-protein interactions by small molecules is a concept with few examples reported to date. Herein we describe the identification and X-ray co-crystal structure determination of IBE-667, an ICAM-1 binding enhancer for LFA-1. IBE-667 was designed based on the SAR information obtained from an on-bead screen of tagged one-bead one-compound combinatorial libraries by confocal nanoscanning and bead picking (CONA). Cellular assays demonstrate the activity of IBE-667 in promoting the binding of LFA-1 on activated immune cells to ICAM-1. Tuned up: The LFA-1 ICAM-1 interaction is a fundamental step in T-cell activation in response to antigen encounter. A small-molecule activator of LFA-1, IBE-667, was identified by confocal on-bead screening. The identified activator binds to LFA-1 I domain, as revealed by the co-crystal structure, and increases the affinity of LFA-1 for ICAM-1 on activated T-cells.

Full text of DOI:10.1002/anie.201310240

Supporting Information
ꢀ Wiley-VCH 2014
69451 Weinheim, Germany
Identification and X-ray Co-crystal Structure of a Small-Molecule
Activator of LFA-1-ICAM-1 Binding**
Martin Hintersteiner,* Jçrg Kallen, Mario Schmied, Christine Graf, Thomas Jung,
Gemma Mudd, Steven Shave, Hubert Gstach, and Manfred Auer*
anie_201310240_sm_miscellaneous_information.pdf

Supporting online material
Contents
Part I Experimental Section
Part II: Comparison of IBE-667 co-crystal structure to previously published LFA-1 structures
Part III: Chemical Synthesis and Characterization
Part I Experimental Section
AIDA based fluorescence assay:
Steady state fluorescence measurements were performed on a SLM 8100C spectrofluorometer with excitation and
emission wavelengths set to 336 and 400 nm, 1 nm slit width, respectively, using a 1 ml quartz cuvette, 10 mm
optical path length, under constant stirring. IBE-667 at a concentration of 25 nM in a 50 mM TRIS/HCl buffer, pH
8.0 (with 100 mM KCl, 10 mM MgCl2), containing 5% DMSO was titrated with LFA-1 ID to a final concentration
of 500 nM, followed by a titration of the complex with ICAM-1(40 nM to 1 µM). After each addition of protein the
solution was incubated for 15 min at 25°C with constant stirring. Dissociation constants were obtained by non-linear
curve fitting in GraFit using a 1:1 binding model.
Binding of sICAM-1 to activated T cells:
Peripheral blood mononuclear cells (PBMC) were obtained from healthy donors and activated for 24 h to 72 h with
anti-CD3 and anti-CD28 antibodies. Cells were incubated with the indicated compounds at various concentrations
for 15 minutes on ice in PBS, 1 mM Ca2+, 1 mM Mg2+ and 1% BSA. Biotinylated sICAM-1 was added at a final
concentration of 2.5 µg/ml and incubated for 15 min on ice. Streptavidin-PE (life technologies) was added without
further washing to a final concentration of 1 µg/ml for 15 min. Thereafter cells were washed twice in PBS and
analyzed in duplicate by FACS. Results are expressed as percentage of sICAM-1 binding cells.
Aggregation of T cells
Activated T cells were split into two parts and labeled with either dihydroethidium or calcein AM (life-technologies)
for 1 h at 37°C. Cells were washed and incubated together with or without the indicated compounds for 1 h at 37°C.
Cells were analyzed by FACS and the portion of double-positive, aggregated cells was monitored. As a control,
neutralizing anti-LFA-1 antibody L15 was used to block the interaction between LFA-1 and ICAM-1.
Co-crystallization and structure determination of the LFA-1 I domain/ IBE-667 complex
For the LFA-1 I domain, the construct comprising residues Lys127-Gly311 was used and purification was performed
as reported previously.[28] The complex LFA-1 I-domain/IBE-667 was prepared by adding the ligand (100mM
solution in DMSO) to the protein solution (12.7 mg/ml, 10 mM MgSO4, PBS pH 7.4). Briefly, 3 µl of LFA-1 I-
domain/IBE-667 at 12.7 mg/ml (in 10 mM MgSO4) were mixed with 2 µl of well solution (0.085 M sodium acetate,
pH 4.6, 0.17 M ammonium acetate, 15% glycerol and 25.5% (w/v) PEG4000) and allowed to equilibrate against 0.7
ml of the latter at 20oC. The complex crystallized in an orthorhombic crystal form (a=45.3Å, b=65.9Å, c=133.6Å, in
I222 with 1 complex/asymmetric unit). Diffraction data were collected to 1.8 Å at 20oC on a Mar345 imaging plate
detector at the Swiss-Norwegian beamline of the European Synchrotron Facility (Grenoble, France). After data
processing with the HKL software suite[29], initial phases were obtained by molecular replacement with X-PLOR
Version 3.1 using 1XDG[30] as a search model. Manual rebuilding was done with O[31] and refinement with
REFMAC5[32]. Five percent of the unique data were randomly selected for the calculation of Rfree. The final
refinement model (one LFA-1 I domain including residues Gly128-Ile309, one IBE-667 ligand, one magnesium ion,
299 water molecules) gave an R factor of 17.2% and Rfree = 19.9% (for all data in the resolution range 8-2.1 Å),
with good stereochemistry (rms bond lengths = 0.007Å, rms bond angles = 0.97o). The coordinates and structure
factors have been deposited in the Protein Data Bank, www.rcsb.org (PDB ID code 4IXD).

Part II: Comparison of IBE-667 co-crystal structure to previously published LFA-1 structures
Results
Structural comparison of the LFA-1 l-domain/IBE-667 structure to low, medium and high affinity I-domain cystine
mutants produced by Shimaoka[9] et al. reveal small perturbations (largest RMSD of protein c- positions compared
to wild-type is 0.38Å) in the 7 helix of the LFA-1 l-domain, which increase affinity to ICAM-1. However, the
opposite effect is also observable with the antagonist mevinolin, sharing the same binding pocket as IBE-667,
causing a small, similar perturbation in the 7 helix (RMSDs of protein c- positions compared to wildtype are 0.32
and 0.35 Å respectively). As noted by Kallen[28], no structural changes are observed within the MIDAS binding site
upon mevinolin binding, the same holds true for IBE-667, suggesting the increased Kds of active mutants to ICAM-1
coordinated through this binding site are attributable to dynamic kinetic effects not captured in static form. This is
partially backed up by the high activity mutants referred to above having improvements in Kd by changes in kon and
more pronounced in koff rates.
Materials and methods:
Structural comparisons were performed using the PyMol molecular graphics system. The in-built MatchAlign
algorithm brought highly active mutants (PDB IDs: 1MJN, 1MQA)[9] into spatial alignment with wildtype LFA1 I-
domain (PDB ID: 3F74). Structural comparison of bound mevinolin/lovastatin to IBE-667 was achieved through
similar structural alignments of lovastatin/KFA-1 I-domain (PDB ID: 1CQP) to the solved LFA-1 I-domain/IBE-667
structure.
With heightened activity levels of the I-domain cystine mutants seemingly explained by increasing disorder within
the 7 helix, the newly presented LFA-1 l-domain/IBE-667 structure breaks with the trend, straightening and
seemingly adding order to the 7 helix when compared to wildtype (see figure S2). Examination of the mevinolin-
bound antagonist structure suggests an inactivation of LFA-1 with an increase on 7 helix order, the opposite
observed with IBE-667 present (see figure S5).
Figure S1
7 helix from alignments of LFA-1 l-domain/IBE-667 structure (yellow, with IBE-667 shown in cyan), medium
affinity mutant with PDBID 1MJN (orange) and high affinity mutant with PDBID 1MQA (red), all aligned to
wildtype LFA-1 I-domain structure with PDBID 3F74 (green).

Figure S2
7 helix from alignments of LFA-1 l-domain/IBE-667 structure (yellow, with IBE-667 shown in cyan), aligned to
wildtype LFA-1 I-domain structure with PDBID 3F74 (green) – RMSD of all c- positions between structures is
0.35 Å
Figure S3
7 helix from medium affinity mutant with PDBID 1MJN (orange) and high affinity mutant with PDBID 1MQA
(red), both aligned to wild type LFA-1 I-domain structure with PDBID 3F74 (green) – RMSD of all c- positions
between structures is 0.28 Å and 0.38 Å, respectively.

Figure S4
7 helix from alignments of antagonist mevinolin-LFA-1 bound structure with PDBID 1CQP (magenta, with
mevinolin also shown in magenta) to LFA-1 l-domain/IBE-667 structure (yellow, with IBE-667 also shown in
yellow), RMSD of all c- positions between structures is 0.38 Å.
Figure S5
7 helix from alignments of antagonist mevinolin-LFA-1 bound structure with PDBID 1CQP (magenta, with
mevinolin also shown in magenta) to wildtype LFA-1 l-domain structure (green), RMSD of all c- positions
between structures is 0.32 Å.

Figure S6
LFA-1 l-domain (yellow cartoon) with 7 helix (red cartoon), IBE-667 (blue spheres), MIDAS site Mg (green
sphere) and ICAM-1 (cyan cartoon).
Part III: Chemical Synthesis and Characterization
HPLC-ESI-MS
Samples were analyzed on an HPLC-ESI-MS system consisting of a Finnigan Deka XP Plus ESI-MS detector
connected to an Agilent 1100 capillary LC with a G1376A capillary pump, a G1377A Micro-autosampler and a
G1325B DAD detector with micro flow cell. The system was run with a spray voltage of 5 kV, capillary temperature
of 275°C, a capillary voltage of 15 V in single MS mode. The LC-system contained a Zorbax-SB-C18 0.5x35 mm
3.5 μm particle size column and was run with a gradient of solvent A: Water containing 0.1 % TFA and B: MeCN
(LCMS grade) containing 0.1 % TFA. All analyses use standard gradient unless stated otherwise.
Standard Gradient: 2.5 min 0 % B, 22.5 min 0 – 100 % B, 25 min 100 – 0 % B, 28 min 0 % B at a flow rate of 200
μl/min.
HPLC-ESI-MS data were processed using the Xcalibur software package (version 2.0, Thermo Electron Corporation,
MA, USA).
Analytical HPLC
HPLC analysis was performed on an Agilent 1100 series HPLC system, consisting of a quaternary pump (G1311A),
a degasser (G1322A), an FLD detector (G1321A) and a DAD detector; column: Waters symmetry C8, 4.6 mm x 50
mm, 3.5 μm particle diameter size. Analyses were performed using a linear gradient of A: Water containing 0.1 %
TFA and B: Acetonitrile (HPLC grade) containing 0.1 % TFA with a flow rate of 0.8 mL/min, Retention times (tR)
are denoted in minutes. All analyses use standard gradient unless stated otherwise.
Method A: 5 min 0 % B, 25 min 0 – 100 % B, 27.5 min 100 – 0 % B, 30 min 0 % B.
Method B: 0 min 20 % B, 5 min 20 % B, 30 min 20 – 40 % B, 33 min 40 – 100 % B, 35 min 100 – 20 % B.
Semi Preparative HPLC
Purification of mg quantities of peptides was carried out using a preparative HPLC system (Agilent 1100 prep-HPLC
system), equipped with a preparative autosampler (G2260A), preparative scale pumps (G1361A), a fraction collector

(G1364B-prep) and a multiwavelength UV detector (G13658 MWD with preparative flow cell). Material was
separated using either method A or B, which are outlined below.
Method A: Material was separated at a flow rate 20 mL/min on an Agilent RP-C-18 column (21.2 x 150 mm, 10 μm
particle size), using a water/acetonitrile gradient and a detection wavelength of 210 nm. Solvent A: Water containing
0.1 % TFA; solvent B: Acetonitrile containing 0.1 % TFA. Gradient: 0 min 20 % B, 5 min 20 % B, 30 min 40 % B,
33 min 100 % B, 35 min 20 % B.
Method B: Material was separated at a flow rate 20 mL/min on a Waters X Bridge RP-C-18 column (18 x 100 mm, 5
μm particle size), using a water/acetonitrile gradient and a detection wavelength of 210 nm. Solvent A: Water, 0.1 %
TFA; solvent B: Acetonitrile, 0.1 % TFA. Gradient: 5 min 0 % B, 45 min 80 % B, 50 min 80 % B, 55 min 0 % B, 60
min 0 % B.
Experimental Methods
The general procedure for synthesis of AIDA libraries has been described previously.[1,2] In short, the sequence
consists of a) Loading standard 90 µm TentaGel® (NH2) resin from Rapp Polymere (Tübingen, Germany) with 4-
bromomethyl-3-nitrobenzoic acid as photocleavable linker. b) A methylamine substitution step is carried out to
complete the photo-linker setup. c) The AIDA molecule including an Fmoc-protected diaminopropane spacer is
immobilized on the beads as the first building block using (4-{3-{4-[N-3-[(9H-fluoren-9-yl)-
methyloxycarbonylamino]-propyl]-aminocarbonyl}-phenyl-1H-indazol-1-yl} benzoic Acid as a building block. d)
After Fmoc deprotection library synthesis is started using the first variable building block.
4-{3-[4-(methoxycarbonyl)-phenyl]-1H-indazol-1yl}-benzoic Acid (CAS 279249-34-2):
The AIDA precursor was synthesized according to literature described procedures:
1. Gladstone, W. A. F. and Norman, R. O. C. J. Chem. Soc. (1965), 3048-52;
2. Gladstone, W. A. F. and Norman, R. O. C. J. Chem. Soc. (1965), 5177-82;
3. Gladstone, W. A. F. et al. J. Chem. Soc. (1966), 1781-4;
4. Iffland, D. C. et al. J. Am. Chem. Soc. (1961) 83, 747
4-[3-[4-(3-Aminopropylcarbamoyl)phenyl]indazol-1-yl]benzoic acid (CAS 279249-36-4):
4-[3-(4-Methoxycarbonylphenyl)indazol-1-yl]benzoic acid (1.00 g; 2.69 mmol; CAS 279249-34-2) was added to
1,3-diaminopropane (10 mL) and the mixture was heated to 60 °C for 6 h. The reaction was followed by TLC and
once disappearance of the starting material was observed, excess diamine was removed under reduced pressure to
give a viscous orange oil. To this was added methanol (15 mL) and the mixture heated to reflux for 10 min. During
this time a white solid precipitated, which was collected by filtration and washed with diethyl ether. The residual

material was dried under vacuum to give the title compound as a white solid (800 mg, 70%). HPLC-MS (ESI) tR:
11.34; Exact mass calcd for C24H23N4O3 [M+H]+: 415.18, found: 415.11.
4-[3-[4-(2-Aminoethylcarbamoyl)phenyl]indazol-1-yl]benzoic acid:
The title compound was prepared from 4-[3-(4-methoxycarbonyl -
phenyl)indazol-1-yl]benzoic acid (2.00 g; 5.34 mmol; CAS 279249-34-2)
using the same procedure as for the propyl derivative outlined above but
exchanging 1,3-diaminopropane for 1,2-diaminoethane (20 mL) to give the
amino acid as a white solid (1.94 g, 88%). HPLC-MS (ESI) tR: 11.04; Exact
mass calcd for C23H21N4O3 [M+H]+: 401.16, found: 401.11.
4-[3-[4-[3-(9H-Fluoren-9-ylmethoxycarbonylamino)propylcarbamoyl]phenyl]indazol-1-yl]benzoic acid (CAS
279249-37-5):
4-[3-[4-(3-Aminopropylcarbamoyl)phenyl]indazol-1-yl]benzoic acid (400 mg; 0.93 mmol; CAS 279249-36-2) was
stirred in 1,4-dioxane/water (1:1, 30 mL). To this was added potassium carbonate (257 mg; 1.86 mmol) and the
mixture cooled to 0 °C. Fmoc chloride (265 mg; 1.02 mmol) in 1,4-dioxane (5 mL) was added slowly then the
mixture was allowed to warm to room temperature and was stirred overnight. The mixture was washed with diethyl
ether then acidified to pH1 with 2M HCl which caused a precipitate to form. This was filtered off and washed with
diethyl ether then dried to give the title compound as a white solid (493 mg, 83%). HPLC-MS (ESI) tR: 16.36; Exact
mass calcd for C39H33N4O5 [M+H]+: 637.24, found: 637.14.
4-[3-[4-[2-(9H-Fluoren-9-yl)methoxycarbonylamino)ethylcarbamoyl]phenyl]indazol-1-yl]benzoic acid:
The title compound was prepared from 4-[3-[4-(3-amino-
ethylcarbamoyl) phenyl]indazol-1-yl]benzoic acid (1.00 g; 2.50
mmol) using the same procedure as for the propyl derivative
outlined above to give the Fmoc protected amine as a white solid
(1.05 g; 1.69 mmol, 68%). HPLC-MS (ESI) tR: 16.03; Exact mass
calcd for C38H31N4O5 [M+H]+: 623.23, found: 623.09.

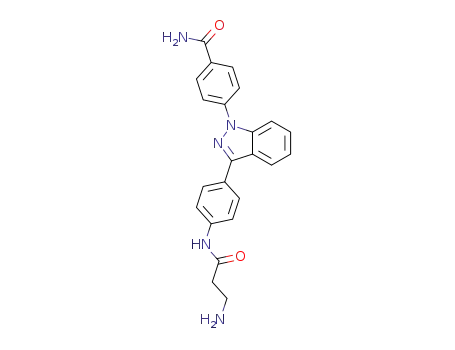

9H-Fluoren-9-ylmethyl N-[3-[[4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzoyl]amino]propyl]- carbamate :
4-[3-[4-[3-(9H-Fluoren-9-ylmethoxycarbonylamino)propylcarbamoyl]phenyl]indazol-1-yl]benzoic acid (100 mg;
0.16 mmol; CAS 279249-37-5) and methylamine hydrochloride (13 mg; 0.19 mmol) were stirred in DMF under
argon and the mixture cooled to 0°C. HATU (72.2 mg; 0.19 mmol) and DIPEA (219 µL; 1.26 mmol) were added and
the mixture was allowed to warm to rt and stirred overnight. The product was precipitated by adding excess of water.
The white precipitate was washed with ethyl acetate and dried under vacuum (27 mg; 26%). HPLC-MS (ESI) tR:
15.83; Exact mass calcd for C40H36N5O4 [M+H]+: 650.28, found: 650.14.

9H-Fluoren-9-ylmethyl N-[3-[[4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzoyl]amino]ethyl] carbamate:
The title compound was prepared from 4-[3-[4-[2-(9H-
fluoren-9-ylmethoxycarbonylamino)ethylcarbamoyl]phenyl] -
indazol-1-yl]benzoic acid (400 mg; 0.64 mmol) using the
same procedure as for the propyl derivative outlined above to
give the methyl amide as a white solid (393 mg, 97%).
HPLC-MS (ESI) tR: 15.46; Exact mass calcd for C39H34N5O4
[M+H]+: 636.26, found: 636.12.
N-(3-Aminopropyl)-4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzamide :
9H-Fluoren-9-ylmethyl
N-[3-[[4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzoyl]amino]propyl]carba-mate
(27.00 mg; 0.0416 mmol) was stirred in a solution of 20% piperidine in DMF (2 mL) for 3 h. Solvents were removed
under reduced pressure and water used to precipitate the product. A white solid was filtered off, washed with diethyl
ether and dried. The residual material was purified using semi- preparative RP HPLC (Method A) as described above
to yield the title compund as a white solid (3.95 mg, 23%); HPLC-MS (ESI) tR: 10.95; Exact mass calcd for
1
C25H26N5O2 [M+H]+: 428.21, found: 428.14; RP HPLC tR: 14.79 (99%, 220 nm), Method A; H NMR (500 MHz,
DMF-d7) δ 8.63 (1H, d, J = 4.5 Hz), 8.44 (2H, br s), 8.33 (2H, d, J = 8.3 Hz), 8.31 - 8.27 (2H, m), 8.24 (2H, d, J =
8.7 Hz), 8.22 – 8.19 (2H, m), 8.10 (2H, d, J = 8.6 Hz), 8.08 (2H, d, J = 8.7 Hz), 7.66 (1H, ddd, J = 8.4, 7.1, 0.9 Hz),
7.50 – 7.44 (1H, m), 3.60 (2H, q, J = 6.3 Hz), 3.24 (2H, t, J = 7.3 Hz), 2.95 (3H, d, J = 4.5 Hz), 2.12 (2H, quin, J =
6.9 Hz); 13C NMR (125.8 MHz, DMF-d7) δ 166.8 (C), 166.2 (C), 145.2 (C), 142.0 (C), 140.3 (C), 135.7 (C), 134.4
(C), 133.0 (C), 128.8 (CH), 128.1 (CH), 127.4 (CH), 123.2 (C), 123.1 (CH), 122.0 (CH), 121.7 (CH), 111.5 (CH),
37.7 (CH2), 36.6 (CH2), 27.9 (CH2), 26.1 (CH3).
N-(2-Aminoethyl)-4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzamide:
The title compound was prepared from 9H-fluoren-9-ylmethyl N-[3-
[[4-[1-[4-(methylcarbamoyl)phenyl]indazol-3-yl]benzoyl]
-
amino]ethyl] carbamate (50.00 mg; 0.0787 mmol) following the same
procedure as for the propyl derivative outlined above and purified
using semi preparative RP HPLC (Method A) to give the amine as a
white solid (11.05 mg, 34%); HPLC-MS (ESI) tR: 10.95; Exact mass
calcd for C24H24N5O2 [M+H]+: 414.19, found: 414.09; RP HPLC tR:
1
13.71 (95%, 220 nm), Method B; H NMR (500 MHz, DMF-d7) δ 9.09 (1H, t, J = 5.4 Hz), 8.63 (2H, d, J = 4.5 Hz),
8.58 (2H, br s), 8.33 (2H, d, J = 8.3 Hz), 8.31 – 8.27 (2H, m), 8.26 – 8.20 (4H, m), 8.13 – 8.06 (4H, m), 7.66 (t, J =
7.4 Hz), 7.50 – 7.45 (1H, m), 3.83 (2H, q, J = 5.6 Hz), 3.41 (2H, t, J = 5.6 Hz), 2.95 (3H, d, J = 4.6 Hz); 13C NMR
(125.8 MHz, DMF-d7) δ 167.1 (C), 166.3 (C), 145.3 (C), 142.2 (C), 140.5 (C), 135.9 (C), 134.4 (C), 133.2 (C), 129.0
(CH), 128.4 (CH), 128.3 (CH), 127.5 (CH), 123.4 (C), 123.3 (CH), 122.2 (CH), 121.8 (CH), 111.6 (CH), 40.0 (CH2),
38.0 (CH2), 26.3 (CH3).

4-[3-[4-(3-aminopropanoylamino)phenyl]indazol-1-yl]benzamide
The title compound was synthesized using Fmoc solid phase peptide synthesis. Tentagel® S RAM resin (Rapp
Polymere) was preswollen in DMF then to this was added a solution of 5 equiv. amino acid, 5 equiv. HATU and 10
equiv. DIPEA in DMF. The reaction mixture was shaken for 1 h followed by washing repeatedly with DMF then
DCM. Fmoc group removal was carried out by shaking the resin in a solution of 20% piperidine in DMF, followed
by excessive washing with DMF and DCM. Cleavage of the final compound from the solid support was performed
with TFA for 2 h. The solution was then concentrated to dryness and the residue purified using RP HPLC (Method
B) to yield the title compound as a white solid. HPLC-MS (ESI) tR: 10.79; Exact mass calcd for C23H22N5O2 [M+H]+:
400.18, found: 400.11; RP HPLC tR: 11.71 (98%, 220 nm), Method A; 1H NMR (500 MHz, DMF-d7) δ 10.60 (1H, s),
8.43 (2H, br s), 8.30 - 8.26 (3H, m), 8.16 – 8.13 (2H, m), 8.10 (1H, d, J = 8.6 Hz), 8.08 – 8.05 (2H, m), 7.94 (2H, d, J
= 8.7 Hz), 7.64 (1H, ddd, J = 8.4, 7.1, 1.0 Hz), 7.45 – 7.43 (1H, m), 3.49 (2H, t, J = 6.5 Hz), 3.04 (2H, t, J = 6.5 Hz);
13C NMR (125.8 MHz, DMF-d7) δ 169.1 (C), 167.5 (C), 145.9 (C), 142.4 (C), 140.2 (C), 139.9 (C), 132.5 (C), 129.3
(CH), 128.1 (CH), 128.0 (C), 127.9 (C), 123.2 (C), 122.8 (CH), 121.8 (CH), 121.6 (CH), 119.6 (CH), 111.3 (CH),
36.1 (CH2), 33.7 (CH2).

O
N
NH2
H
O
N
N
N
H
1H NMR, 500 MHz, DMF-d7
10
9
8
7
6
5
4
3
2
1
0
Chemical Shift (ppm)

O
N
NH2
H
O
N
N
N
H
13C NMR, 125 MHz, DMF-d7
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
Chemical Shift (ppm)

O
NH2
N
H
O
N
N
N
H
1H NMR, 500 MHz, DMF-d7
10
9
8
7
6
5
4
3
2
1
Chemical Shift (ppm)

O
NH2
N
H
O
N
N
N
H
13C NMR, 125 MHz, DMF-d7
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
Chemical Shift (ppm)

O
H
N
H2N
N
N
NH2
O
1H NMR, 500 MHz, DMF-d7
10
9
8
7
6
5
4
3
2
1
Chemical Shift (ppm)

O
H
N
H2N
N
N
NH2
O
13C NMR, 125 MHz, DMF-d7
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
Chemical Shift (ppm)
