Synthesis, Characterization, Structure, Electrochemistry, and Spectroscopy of Porphyrins
That Have a Conjugated Connection to Donor/Acceptor Groups
Edia E. Bonfantini, Anthony K. Burrell,* David L. Officer,* and David C. W. Reid
Department of Chemistry, Massey University, Private Bag 11222, Palmerston North, New Zealand
Michael R. McDonald, Paul A. Cocks, and Keith C. Gordon*
Department of Chemistry, University of Otago, P.O. Box 56, Dunedin, New Zealand
ReceiVed February 27, 1997X
The reaction of ((tetraphenylporphyrinyl)methyl)triphenylphosphonium chloride and benzaldehydes (CHO-C6H4-
R; R ) H, NO2, NMe2, OMe, Me, CHO) yields the styryl porphyrin derivatives. These new styryl-substituted
porphyrins have been studied using electrochemistry, electronic absorbance, and resonance Raman spectroelec-
trochemical techniques. The substituents on the styryl group have a modest perturbation on the electronic spectrum
of the porphyrin core. The resonance Raman data suggest that a charge-transfer interaction is observed between
the porphyrin core and the NO2 group for the 4-NO2 compound.
Introduction
The study of electron transfer to and from porphyrins has
been an area of active research for several years. This is largely
due to their relationship to the chlorins which play a decisive
role in photosynthetic systems.1 Many model systems have been
prepared in an effort to understand the natural photosynthetic
systems. As a result the number and variety of synthetic routes
toward functionalized porphyrins have expanded rapidly. How-
ever, the procedures required to generate functionalized por-
phyrins generally require either a large number of synthetic steps
or rely on the outcome of one or more reactions that produce
statistical mixtures. A simple change in the target porphyrin
often requires the construction of a completely new synthetic
strategy. We have endeavored to develop a synthetic strategy
that enables the use of a readily prepared porphyrin that is
capable of being simply converted to a wide variety of functional
groups. The key to such a system is the use of a single
porphyrin starting material in a common reaction with a diverse
selection of substrates, to provide a variety of functionalized
porphyrins. Toward this end we have been examining substi-
tuted porphyrins that are derived from 5,10,15,20-tetraphen-
ylporphyrin (TPP).2 The result of this investigation has been
the preparation of a TPP phosphonium salt derivative 1, shown
in Figure 1.3 This reagent has provided a general synthetic
procedure for the formation of olefin-substituted derivatives of
Figure 1. TPP phosphonium salt derivative.
TPP in essentially one step. In this work we report the synthesis
of several of these compounds. Of particular interest in these
compounds is the effectiveness of the vinyl linker in transferring
information to and from the porphyrin core.4 The level of
communication between the porphyrin core and the various aryl
groups may be compared by observing the effect of those
substituents on the electrochemistry, optical spectroscopy, and
Raman spectroscopy of the compounds.
Results
X Abstract published in AdVance ACS Abstracts, December 1, 1997.
(1) (a) Deisenhofer, J.; Epp, O.; Miki, K.; Huber, R.; Michel, H. J. Mol.
Biol. 1984, 180, 385. (b) Deisenhofer, J.; Epp, O.; Miki, K.; Huber,
R.; Michel, H. Nature 1985, 318, 618. (c) Chang, C.-H.; Schiffer,
M.; Tiede, D.; Smith, U.; Norris, J. J. Mol. Biol. 1985, 186, 201. (d)
Chang, C.-H.; Tiede, D.; Tang, J.; Smith, U.; Norris. J.; Schiffer, M.
FEBS Lett. 1986, 205, 82. (e) Allen, J. P.; Feher, G.; Yeates, T. O.;
Rees, D. C.; Deisenhofer, J.; Huber, R. Proc. Natl. Acad. Sci. U.S.A.
1986, 83, 8589. (f) Allen, J. P.; Feher, G.; Yeates, T. O.; Komiya, H.;
Rees, D. C. Proc. Natl. Acad. Sci. U.S.A. 1987, 84, 5730. (g) Allen,
J. P.; Feher, G.; Yeates, T. O.; Komiya, H.; Rees, D. C. Proc. Natl.
Acad. Sci. U.S.A. 1987, 84, 6162. (h) Pearlstein, R. H. New Compr.
Biochem. 1987, 15, 299. (i) Fleming, G. R.; Martin, J.-L.; Breton, J.
Nature 1988, 333, 190.
Synthesis. The phosphonium salt 1 is prepared from TPP
in five steps in an overall yield of 85%.3 The reaction of 1
with aryl aldehydes, shown in Scheme 1, can be carried out at
room temperature with no special precautions. Thus, the
treatment of a solution of 1 and 4-tolualdehyde with base results
in the rapid formation of a cis/trans mixture of the olefin 3. It
is not necessary to isolate or purify the cis/trans mixture because
treatment with iodine gives the trans isomer exclusively. Simple
chromatography then gives 3 in 61% yield. The exclusive
(2) TPP can be obtained commercially or prepared in large quantities by
a simple procedure: Barnett, G. H.; Hudson, M. F.; Smith, K. M.
Tetrahedron Lett. 1973, 30, 2887-2888.
(3) Bonfantini, E. E.; Officer, D. L. Tetrahedron Lett. 1993, 34, 8531-
8534.
(4) Related compounds have been examined in this respect: (a) Wied-
errecht, G. P.; Svec, W. A.; Niemczyk, M. P.; Wasielewski, M. R. J.
Phys. Chem. 1995, 99, 8918-8926. (b) Wiederrecht, G. P.; Svec, W.
A.; Niemczyk, M. P.; Wasielewski, M. R. J. Am. Chem. Soc. 1996,
118, 81-88.
S0020-1669(97)00233-4 CCC: $14.00 © 1997 American Chemical Society

Porphyrins Conjugated to Donor/Acceptor Groups
Inorganic Chemistry, Vol. 36, No. 27, 1997 6271
Scheme 1
presence of the trans olefin can be unequivocally determined
by 1H NMR spectroscopy. The vinyl protons resonances appear
as 16 Hz coupled doublets at 7.30 and 6.96 ppm, respectively.
The other notable feature of the 1H NMR spectrum is the signal
due to the lone â-pyrrolic proton5 that appears at 9 ppm as a
singlet. This singlet is a general feature that appears in 1H NMR
spectra of all of the substituted compounds. Using the same
procedure a variety of functionalized porphyrins can be obtained
in reasonable yield (Scheme 1). The reaction of 1 with
4-nitrobenzaldehyde proceeds rapidly to give an 81% yield of
4 after purification. Once again the trans geometry can be
assigned from the presence of two 16 Hz coupled doublets (7.11
and 7.28 ppm) in the 1H NMR spectrum. In general, all of the
reactions proceed with reasonable yields although some of the
benzaldehydes give lower yields than others; the reactions are
apparently influenced by subtle combinations of steric and
electronic factors. The lower yields obtained in the formation
of the compounds 5 and 10 do not pose a significant problem
as the reactions have been successfully scaled-up to give
reasonable amounts of product. Thus, the reaction of 614 mg
of 1 with isophthalaldehyde yields 343 mg (70%) of 7 after
purification. Further modification of these compounds is
possible Via the coordination of metals to the porphyrin core.
This is achieved for simple first-row transition metals using
standard techniques.6
Structure. The presence of the conjugated link between the
porphyrin core and the functionalized styrene provides the
opportunity for significant communication between these groups.
The possibility for there to be communication between the two
“ends” of the molecule is strengthened by the geometry observed
in the solid-state of 6‚Cu.7 A single-crystal X-ray diffraction
study, shown in Figure 2, of 6‚Cu was carried out, and the
porphyrin, olefin, aryl ring, and aldehyde are effectively co-
planar. Although the structure in solution may differ from that
observed in the solid-state, clearly there is no significant barrier
to a planar system. It is also reasonable to assume that all of
the 4-substituted derivatives have similar structures to 6‚Cu.
Simple modeling using CPK models indicates it is possible for

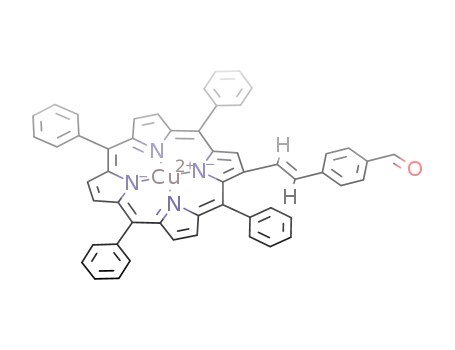

Figure 2. Molecular structure of 6‚Cu with the meso phenyl rings in
