Abstract
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Four novel ON donor Schiff bases (E)-2-((4-phenoxyphenylimino)methyl)phenol (HL1), (E)-2-
((4-(4-biphenyloxy)phenylimino)methyl)phenol(HL2),(E)-2-((4-(naphthalen-1-yloxy)
phenylimino)methyl)phenol(HL3)and(E)-2-((4-(2-naphthoxy)phenylimino)methyl)phenol
(HL4)have been synthesized and characterized by various spectroscopic, analytical and electro-
analytical techniques. Single crystal X-ray diffraction analysis of Schiff base (HL3) revealed that
phenol and anthracene rings are inclined at 30.25(9)° and 89.64(4)° to the central phenyl ring,
respectively. Intra and inter molecular interactions are observed in single crystal analysis of HL3
Intramolecular interactions are hydrogen bonding but most of the intermolecular interactions are
of the C-H…π type .There is a bit of π…π stacking between the anthracene groups. Only
compounds (HL1) and (HL3) have been investigated for the biological activities due to slight
solubility of (HL2) and (HL4) in DMSO. The results of brine shrimp cytotoxicity assay indicated
LD50 values <1ꢀg/ml showing significant antitumor activity with IC50 values 14.20 and 4.54
µg/ml respectively. The compounds were highly active in protecting DNA against hydroxyl free
radicals in concentration dependent manner. Voltammetric results indicated the one electron
irreversible oxidation product is formed due to hydroxyl moiety and the process is diffusion
controlled. On exposing to DNA environment the electrooxidised product developed electrostatic
linkage and groove binding intercalation while consuming the DNA concentration substantially.
The binding strength was quantitative in terms of drug-DNA binding of the order of 104 M-1.
34
35
Keywords: Schiff bases, electrochemical studies, pharmacological studies, DNA-interaction
36
37
38
39
40
41
42

ACCEPTED MANUSCRIPT
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
1. Introduction
Schiff bases are most widely used organic compounds that coordinate to metal ions via
azomethine nitrogen and have a wide variety of applications in many fields including analytical,
biological, and inorganic chemistry. In azomethine derivatives, the C=N linkage is present in
various natural (ancistrocladidine have antimalarial activity), natural-derived (chitosin-derived
Schiff bases have antifungal activity), and non-natural compounds which is essential for
biological activity[1].Several azomethines possess remarkable antibacterial, antifungal,
anticancer and diuretic activities.The nitrogen atom of azomethine may be involved in the
formation of a hydrogen bond with the active centers of cell constituents and interferes in normal
cell processes[2]. Apart from biological activities, they have found applications in many other
fields such as intermediates in organic synthesis, dyes, pigments, polymer stabilizers, corrosion
inhibitors, fungicidal, agrochemical, analytical chemistry, electrical conductivity, magnetism,
host guest chemistry, ion exchange, nonlinear optics and catalysis [3-10]. Schiff bases have
played an important role in the development of coordination chemistry and inorganic
biochemistry as well. They have been used for the synthesis of a number of biologically and
industrially active compounds like formazans, 4-thiazolidinines, benzoxazines, and so forth, via
ring closure, cycloaddition and replacement reactions [11].
Particularly salicyaldehyde-Schiff bases derived from salicyaldehyde and primary amines have
recently acquired a considerable importance due to their promising biological properties. Such
Schiff bases are found to be a versatile pharmacophore for design and development of various
bioactive lead compounds.These Schiff bases may act as bidentate-O, N and a tridentate -O, O,
N donor ligand etc[12]. which can be employed for the synthesis of various coordination
complexes.Cambridge structural database have shown that about 42% of Schiff bases
synthesized worldwide are derived from salicylaldehyde based aldehydes and almost 68% of
Schiff base complexes are synthesized from such ligands [13]. A very useful application of such
new compounds is that they specially target DNA molecule with significant potential and thus
can be proposed as drugs. Among other techniques the voltammetric methods have established a
prominent role to study drug-DNA interaction due to high sensitivity, selectivity, versatility and
fast detection ability in addition to cost effectiveness. Monitoring of the reaction of interest at the
electrode surface helps to elucidate the mechanism of drug- DNA interactions [14-16].

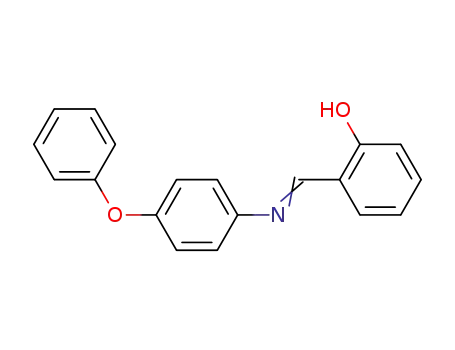

In the present work (E) -2- ((4-phenoxyphenylimino) methyl) phenol (HL1), (E)-2-((4-(4-
biphenyloxy)phenylimino)methyl)phenol(HL2),(E)-2-((4-(naphthalen-1-yloxy)phenylimino)
methyl)phenol(HL3)and(E)-2-((4-(2-naphthoxy)phenylimino)methyl)phenol(HL4)were
synthesised and characterized successfully by various spectroscopic, analytical, advanced
electro-analytical techniques and single crystal analysis. As Schiff bases are biological active in
nature therefore synthesised compounds (HL1-HL4) were studied to acquire valuable information
about their role in cellular vicinities. Biological studies (cytotoxic, antitumor and inhibition of
hydroxyl (OH) free radical induced DNA damage assay) were proceeded to screen the
pharmacological importance of the compounds. Voltammetric studies were carried to investigate
the redox behaviour and to identify the electrophoric centres in the compounds. Further, the
interactions with the DNA and the binding mode of the synthesised compounds were also
investigated.
2. Experimental

ACCEPTED MANUSCRIPT
89
90
2.1. Materials and methods
91
Solvents used were purified by standard distillation procedure and drying methods [17].The
Schiff bases (HL1 –HL4) were prepared by condensation reactions of salicylaldehyde and
corresponding aromatic amines [18] already reported by our research group in ethanol following
the reported method [19-20].The progress as well as purity of products was checked by thin layer
chromatography on pre-coated Kieselgel 60HF TLC plates. Elemental analysis was carried out
on a CHNS 932 (Leco-USA) elemental analyzer. Melting points were determined, using a MPD
Mitamura Riken Kogyo (Japan) electrothermal melting point apparatus. FTIR spectra were
recorded on a Thermoscientific (USA) Nicolet 6700 spectrometer in the frequency range of
4000-400 cm-1.1H NMR (300MHz) and13C NMR (75MHz) spectra were recorded on a Bruker
NMR Spectrometer.
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
Single crystal of Schiff base (HL3) was obtained by the slow evaporation of ethanol from the
mother liquor at room temperature. X-ray data were collected at 150(2) K on a Bruker Apex II
CCD diffractometer using MoKα radiation (λ = 0.71073Å). The structure was solved by direct
methods [21] and refined on F2 using all the reflections [22].All the non-hydrogen atoms were
refined using anisotropic atomic displacement parameters and hydrogen atoms bonded to carbon
were inserted at calculated positions using a riding model. The phenolic proton was located and
its coordinates refined. Parameters for data collection and refinement are summarised in Table 1.
The bioactive nature of the synthesized compounds was evaluated by brine shrimp lethality
assay[23].Brine shrimp (Artemiasalina) eggs (Ocean Star Inc., USA) were hatched in shallow
rectangular dish (22×32 cm) filled with prepared seawater (34 g/l) under constant aeration for 48
h at room temperature. After 24 h, phototropicnauplii (brine shrimp larvae) were shifted to glass
vial by Pasteur pipette and 25 µl of the each stock solution (0.1 g/ml, 1 g/ml, and 10 g/ml) of
113
114
115
116
117
118
119
120
the test compound was added .The volume of test compounds from their stock solutions was
raised up to 5 ml of artificial seawater with 10, 1, 0.5, 0.25, 0.125 and 0.0625 µgml-1 final
concentration. Three replicates were prepared for each concentration. The vials were maintained
under illumination at room temperature. After 24 h of incubation survivors were observed and
LD50 (Lethal Dose that killed 50% of shrimps) was calculated by using Finny (1971) software
[24].
Antitumor activity of the synthesized compounds was checked by executing modified potato disc
antitumor assay [25].Inoculum with three different concentrations (1000, 100 and10 g/ml) was
121
122
123
124
125
126
127
128
129
130
131
132
133
134
prepared containing 48 h bacterial culture of Agrobacterium tumefaciens(At 10). Red-skinned
potatoes were surface sterilized in 0.1% HgCl2 solution and potato discs of size 8mm×4mm were
prepared with the help of sterilized cork borer. Ten discs were placed on the agar plates along
with 50 µl of inoculum on the surface of each disc. After 21 days of incubation at 28°C, discs
were stained with Lugol solution (10% KI & 5% I2) and tumors were counted on each disc. The
tumor inhibition was calculated by formula, (Percentage inhibition = 100 – average number of
tumors of sample/ average number of tumors of negative control × 100).
Antioxidant or prooxidant activity of the synthesized compounds was assessed by DNA damage
assay [26].Plasmid DNA (pBR322 Fermentas) with a concentration of 0.5 ꢀg/3ꢀl was treated
with three different concentrations of test samples (1000, 100, and 10 ppm).Fenton reaction was
induced by addition of 30% H2O2 (4 ꢀl) and 2 mM FeSO4 (3 ꢀl) into the reaction mixture. Three
controls, untreated pBR322 DNA as negative, DNA treated with compound (C+P), DNA treated
with 2 mM FeSO4 and 30% H2O2 as positive control were run simultaneously. Each reaction
mixture was incubated at 37ºC for an hour. After incubation, the sample was loaded on a 0.9%

ACCEPTED MANUSCRIPT
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
agarose gel and was visualized with Doc-IT (VWR). Estimation of antioxidant or pro-oxidant
effects on DNA was estimated on the basis of percentage increase or loss of a super-coiled
monomer, compared with the control.
Voltammetric studies (cyclic voltammetry (CV), differential pulse voltammetry (DPV) and
square wave voltammetry (SWV)) were conducted by using Eco Chemie Autolab PGSTAT 302
potentiostat/galvanostat (Utrecht, the Netherlands) with software version GPES 4.9.The
conventional three-electrode cell with Ag/AgCl(aq) as a reference, home-made platinum wire as
a counter electrode and a glassy carbon electrode (GCE) with surface area of 0.09 as a working
electrode was employed. The active surface area of GCE was polished with 0.25 m alumina
paste on a nylon buffing pad followed by rinsing with distilled water and DMSO. The
electrochemical behaviour of each compound (2mM) was investigated in argon saturated
H2O/DMF (1:9,v:v) solution containing 0.1M tetrabutylammoniumtetrafluroborate
(TBATFB).Drug-DNA interaction studies by CV were carried out in aqueous-DMF mixture
(1/9,v/v) at a scan rate of 100 mV/s by the sequential addition of DNA.
2.2 General procedure for the synthesis of ON donor Schiff bases (HL1-HL4)
ON donor Schiff bases (HL1-HL4) were synthesized by adopting the following general
procedure:
In a pre-backed two necked round bottom flask (250 ml) equipped with magnetic stirrer and
reflux condenser, the solution of salicyaldehyde was taken in dried ethanol. To this, solution of
corresponding amine in dried ethanol was added drop wise with constant stirring. The reaction
mixture was refluxed for 8 h under inert conditions using nitrogen. The progress of the reaction
was monitored by TLC. After the completion of the reaction the ethanol was removed by rotary
evaporator [27].The solid product was recrystallized from ethanol (scheme 1).
O
Ethanol
R
NH2
H
C
R
N
C
H2O
H
Reflux, 8h
HO
HO
O
O
R=
O
O
HL1
HL2
HL3
HL4
160
161
162
163
164
165
Scheme1: Synthesis of Schiff bases (HL1-HL4)
2.2.1. (E)-2-((4-phenoxyphenylimino)methyl)phenol (HL1)

ACCEPTED MANUSCRIPT
166
167
168
169
170
171
172
173
(E)-2-((4-phenoxyphenylimino)methyl)phenol (HL1) was manufactured by refluxing equimolar
quantities of 1-amino-4-phenoxybenzene 1.85 g (10 mmol) and 1.05 ml (10 mmol) 2-hydroxy
benzaldehyde.
Color: yellow, Yield 90%, melting point 910C. FTIR: ( υ /cm-1) 3405 (−OH), 1603, (-CH=N),1H
NMR (300 MHz, CDCl3, δ ppm):13.30 (s, 1 H, -OH), 8.65 (s, 1 H, -CH=N), 7.43-6.94 (13 H, m,
13
Ar- H)., C NMR (75 MHz ,CDCl3, δ ppm): 162.13 (-C=N), 160.24-117.15 (18 C, Ar-C), MS
(m/z): 289(M +) CHN found (calcd.) for C19H15NO2 : C: 78.79 (78.89), H: 5.73 (5.19), N: 4.72
(4.84).
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
2.2.2. (E)-2-((4-(4-biphenyloxy)phenylimino)methyl)phenol (HL2)
(E)-2-((4-(4-biphenyloxy)phenylimino)methyl)phenol (HL2) was synthesized by refluxing
equimolar quantities of 4-4(aminophenyloxy) biphenyl 2.61 g (10 mmol) and 1.05 ml (10 mmol)
2-hydroxy benzaldehyde.
Color: light yellow, Yield 92%, melting point 1730C. FTIR: ( υ /cm-1) 3400 (−OH), 1601 (-
1
CH=N), H NMR (300 MHz, CDCl3, δ ppm):13.30 (s, 1 H, -OH),8.66 (s, 1 H, -CH=N), 7.63-
13
6.95 (17 H, m, Ar- H), C NMR (75 MHz, CDCl3, δ ppm): 161.73 (-C=N), 160.15-117.28 (24
C, Ar-C), MS (m/z): 365 (M +) CHN found (calcd.) for C25H19NO2 : C: 82.15 (82.19), H: 5.58
(5.20), N: 3.94 (3.84).
2.2.3. (E) - 2-((4-(naphthalen-1-yloxy)phenylimino)methyl)phenol (HL3)
(E) - 2-((4-(naphthale,n-1-yloxy)phenylimino)methyl)phenol (HL3) was prepared by taking
equimolar quantities of 1-(4-aminophenoxy) naphthalene 2.35 g (10 mmol) and 1.05 ml (10
mmol) 2-hydroxy benzaldehyde.
Color: yellow, Yield 87%, melting point 1050C. FTIR: ( υ /cm-1) 3412 (−OH), 1613 (-CH=N), 1H
NMR (300 MHz, CDCl3, δ ppm): 13.32, (s, 1 H, -OH), 8.65 (s, 1 H, -CH=N), 8.23-6.94 (15 H,
m, Ar- H), 13C NMR (75 MHz, CDCl3, δ ppm): 162.27 (-C=N), 159.01-114.72 (22 C, Ar-C), MS
(m/z): 339(M +) CHN found (calcd.) for C23H17NO2 : C: 81.69 (81.41), H: 5.06 (5.01), N: 4.06
(4.13).
2.2.4. (E)-2-((4-(2-naphthoxy)phenylimino)methyl)phenol (HL4)
(E)-2-((4-(2-naphthoxy)phenylimino)methyl)phenol (HL4) was synthesized by using equimolar
quantities of 2-(4-aminophenoxy) naphthalene 2.35g (10 mmol) and 1.05 ml (10mmol) 2-
hydroxy benzaldehyde.
0
Color: yellow, Yield 93%, melting point 120 C. FTIR :( υ /cm-1) 3408 (-OH), 1610 (-CH=N),
1H NMR (300 MHz, CDCl3, δ ppm):13.30 (s, 1H, -OH),8.68 (s, 1 H ,-CH=N), 7.90-6.96 (15H,
m, Ar- H), 13C NMR (75 MHz , CDCl3, δ ppm): 162.25 (-C=N), 161.08-114.27 (22 C, Ar-C),
MS (m/z): 339(M +) CHN found (calcd.) for C23H17NO2 : C: 81.39 (81.41), H: 5.75 (5.01), N:
4.06 (4.13).
3 Results and Discussion

ACCEPTED MANUSCRIPT
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
Schiff bases (HL1-HL4) have been successfully synthesised in a single step as described in
experimental section and were characterised by spectroscopic, analytical, voltammetric and X-
ray diffraction analysis. They are air stable under ambient conditions and soluble in common
organic solvents such as C2H5OH, CH2Cl2, CHCl3, DMSO, and DMF. The synthesized Schiff
bases (HL1-HL4) were tested for biological, voltammetric and DNA interaction studies by cyclic
voltammetrically.
3.1 Spectral characterization
The structures of the synthesised compounds were established by means of spectral studies
(FTIR, 1H NMR, 13C NMR and mass spectrometry), elemental analysis, and single crystal X-ray
diffraction studies.
The FTIR spectral analysis of Schiff bases indicated the presence of all expected
functionalities.Schiff bases having O-hydroxy group on an aldehyde can form intramolecular
hydrogen bonding which affects ν(OH) vibration by shifting towards lower frequency with
broadening. The extent of shift depends on the strength of hydrogen bonding.The FTIR spectra
of these compounds exhibited the strong absorptions bands in the region of 1601-1613 cm-1 due
to azomethine bond (CH=N).The hydroxyl groups (-OH) of the Schiff bases showed broad
absorption bands in the region of 3400-3412 cm-1.The disappearance of peaks in the region
3391-3468 (asymmetric) and 3315-3372 (symmetric) cm-1 for –NH2 moiety confirmed the
conversion of amino group into azomethine bond. They also exhibited absorption bands of C-O-
C vibrations in the region of 1244-1260 cm-1 [28]. The FTIR spectra of Schiff bases as presented
in Fig. S1(a-d).
1
The H NMR and13C NMR spectra of all the Schiff bases are consistent with the proposed
1
molecular structures. The H NMR spectra showed the characteristic azomethine singlet in the
region of 8.68-8.65 ppm. Phenyl protons were present in all the compounds which were verified
by the appearance of multiplets in the range of 7.43-6.94 (HL1), 7.63-6.95 (HL2), 8.23-6.94
(HL3) and 7.90-6.96 (HL4) ppm, according to the substituents attached. The resonance signals
observed around 13.30-12.14 were assigned to phenolic proton as shown in Fig. S2(a-d).
13C NMR spectra of Schiff bases show all the characteristic signals of azomethine and aromatic
carbon atoms in their respective ranges of chemical shift values. Azomethine carbon resonated
around 162 ppm. The resonance signals observed around 160, 155-150 and 141 ppm were
assigned to C–OH, C-O-C and C-N carbons respectively. The rest of the peaks from 146-110
ppm were due to aromatic carbon atoms of Schiff bases as displayed in Fig. S3(a-d).
The mass spectral data of the Schiff bases justified their formation as their molecular ion peaks
were obtained at (m/z) 289, 365, 339 and 339 respectively as revealed in Fig. S4(a-d).
3.2 X- ray structure analysis of HL3
The single crystals of Schiff base (HL3) for X-ray crystallographic analysis were grown by the
slow evaporation of its ethanolic solution at room temperature. A single suitable crystal was
selected for X-ray diffraction analysis and was mounted on Bruker Apex II CCD diffractometer.
The crystal was kept at 150(2)K during analysis. A perspective diagram of HL3 is shown in Fig.
1. There are no unusual bond lengths; the phenol and anthracene rings are inclined at 30.23(8)°
and 89.64(4)° to the central phenyl ring, respectively and the phenol group makes an
intramolecular hydrogen bond to the imine nitrogen ()1 – N1, 2.5591(18)Å) .There is some π…π

ACCEPTED MANUSCRIPT
256
257
258
stacking between anthracene groups, but most of the intermolecular interactions are of the C-H…π
type as shown in Fig. 2.
259
260
261
Fig.1 Perspective diagram of HL3 showing 50% probability ellipsoids.
262
263

ACCEPTED MANUSCRIPT
264
265
266
267
Fig. 2 Intermolecular interactions in HL3
Crystal data and refinement details are listed in Table 1. Selected bond lengths and angles for
HL3 are summarized in Table 2 and hydrogen bonding parameters in Table 3.
Table 1.Crystal data and structure refinement for HL3
268
269
270
271
272
273
274
275
276
Empirical formula
Formula weight
Temperature
Wavelength
Crystal system
Space group
C23 H17 N O2
339.38
150(2) K
0.71073 Å
Monoclinic
P21/c
Unit cell dimensions
a = 13.3952(11)Å
b = 8.8205(7)Å
c = 14.7042(12)Å
α= 90°.
β= 100.9600(10)°
γ= 90°.
277
278
Volume
Z
1705.6(2)Å3
4
279
Density (calculated)
1.322 Mg/m3
280
281
Absorption coefficient
F(000)
0.084 mm-1
712
282
283
284
285
286
287
288
289
290
Crystal size
Crystal description
Theta range for data collection
Index ranges
Reflections collected
Independent reflections
Completeness to theta = 28.32°
Absorption correction
Max. and min. transmission
0.44 × 0.30 × 0.04mm3
Yellow plate
1.55 to 26.40°
-16<=h<=16, -11<=k<=11, -18<=l<=18
14712
3497 [R(int) = 0.0439]
100.0%
Semi-empirical from equivalents
0.9966 and 0.9638
291
292
Refinement method
Full-matrix least-squares on F2
3497 / 0 / 235
Data / restraints / parameters
293
294
295
Goodness-of-fit on F2
Final R indices [I>2sigma(I)]
R indices (all data)
0.993
R1 = 0.0423, wR2 = 0.0975
R1 = 0.0752, wR2 = 0.1127
296
Largest diff. peak and hole
0.264 and -0.173 e.Å-3
297
298
299
300
K: kelvin temperature; Å: angstrom; Å3: volume; Z: number of chemical formula units per unit
cell; D: density; F: structure factor; R: reliability factor
Table 2.Selected bond lengths [Å] and angles [°] for HL3
Bond
Length Measurement(Å) Bond angle
Angle measurement(°)
118.46(16)
O(1)-C(1)
C(7)-N(1)
N(1)-C(8)
C(11)-O(2)
O(2)-C(14)
1.356(2)
1.286(2)
1.415(2)
1.387(2)
1.399(2)
O(1)-C(1)-C(2)
O(1)-C(1)-C(6)
N(1)-C(7)-C(6)
C(11)-O(2)-C(14)
C(15)-C(14)-O(2)
121.05(15)
120.79(16)
117.31(13)
120.58(18)
301
302

ACCEPTED MANUSCRIPT
303
304
Table 3.Hydrogen bonds for HL3 [Å and °].
305
306
D-H...A
O(1)-H(1)...N(1)
d(D-H)
0.84
d(H...A)
1.81
d(D...A)
2.5613(18)
<(DHA)
147.6
307
308
309
310
311
312
313
314
315
316
317
318
3.3. Pharmacological studies
3.3.1. Brine shrimp cytotoxic assay
Brine shrimp cytotoxicity assay is a pre-screen test to observe the bioactive nature of
compounds. The compounds HL1 and HL3 showed significant activity against brine shrimp
nauplii to be highly active with LD50 values 0.18 and 0.06 ꢀg/ml respectively. This cytotoxic
action of a drug is simply provided by disturbing the basic mechanisms concerned with mitotic
activity, cell growth, function and differentiation (Table 4).
Table 4. Results of cytotoxicity, potato disc antitumor and inhibition of hydroxyl free radical
induced DNA damage assays.
Compound Cytotoxic
activity
Antitumor activity
DNA protection activity
IC50
percentage inhibition± SD
10(µg/ml) 100(µg/ml) 1000(µg/ml)
LD50value
(µg/ml)
10(µg/ml)
100(µg/ml) 1000(µg/ml)
(µg/ml)
14.20
4.54
0.18
0.06
+
+
+++
+++
+++
+++
HL1
HL3
40±1.8
55±1.4
82.5±0.8 95±0.4
75±1.3 100±0
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
DNA: Deoxyribonucleic acid; LD50: lethal dose 50 or median lethal dose; SD: standard
deviation; IC50: half maximal inhibitory concentration
3.3.2. Potato disc antitumor assay
The compounds were screened for possible antitumor activity by using potato disc antitumor
assay and results are summarized in Table 4. The results of compounds HL1 and HL3 showed
significant antitumor activity with IC50 values 14.20 and 4.51 µg/ml respectively. It is thought
that these compounds at different doses may be used against different cancer-chemopreventive
models and may appear to contrive safer drugs for future.
3.3.3. DNA protection assay
To check the antioxidant and pro-oxidant behavior of compounds free radical induced DNA
•
damage assay was performed. With the attack of OH produced from the Fenton reaction,
supercoiled plasmid DNA is broken into two forms, including open circular (OC) and linear
form (linear). By analyzing the intensity of bands formed on 1% agarose gel, results are noted
and tabulated (Fig.3). The compounds HL1and HL3 showed moderate protection at 1000 µg/ml
and 100 µg/ml concentrations; while slight protection at 10 µg/ml concentration. So, it was
concluded that these compounds showed DNA protection in concentration dependent manner i.e.
DNA protection increased with the increase in concentration of the test compound.
340

ACCEPTED MANUSCRIPT
341
342
343
L
P
X
1
2
3
4
5
6
7
8
Open circular DNA
Super coiled DNA
Linear DNA
344
345
346
347
348
349
350
351
352
Fig.3 Effect of compounds HL1and HL2 on pBR322 plasmid DNA [L = 1Kb ladder, P = pBR322
plasmid, X = pBR322 plasmid treated with FeSO4 and H2O2 (positive control), 1 (C+P) =
pBR322 plasmid + 1000 µg/ml of HL1 control for the pro-oxidant effect of the compound on
DNA, 2 = plasmid + 1000 µg/ml of HL1+ FeSO4 + H2O2, 3 =plasmid + 100 µg/ml of HL1+
FeSO4 + H2O2, 4 = plasmid + 10 µg/ml of HL1 + FeSO4 + H2O2, 5 = pBR322 plasmid + 1000
µg/ml of HL2; control for the pro-oxidant effect of the compound on DNA, 6 = plasmid + 1000
µg/ml of HL2+ FeSO4 + H2O2, 7 = plasmid + 100 µg/ml of HL2+ FeSO4 + H2O2, 8= plasmid + 10
µg/ml of HL2+ FeSO4 + H2O2
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
3.2 Voltammetric studies.
Electrochemical behaviour of the Schiff bases (HL1-HL4, 2mM) was investigated by employing
three voltammetry techniques (CV, DPV and SWV) in oxygen free atmosphere in DMF solution.
The cyclic voltammograms are displayed in Fig. 4. During anodic scan only one oxidation peak
was observed for all the four Schiff bases, which appears in the range of 0.815 to 0.844 V,
without corresponding reduction peak on the backward scan. This describes the irreversible
oxidation of OH moiety present on the Schiff base molecule. To inspect the adsorption of the
oxidation product, which is likely in such type of compounds, the successive scans were
recorded at constant potential scan rate (100 mVs-1). A systematic decrease in peak current was
observed in following cycles for all the compounds revealing adsorption of oxidation product
while hindering the further electron transfer process on the surface of working electrode. The
GCE was very carefully renewed each time for a new compound. While increasing the scan rate
for all the Schiff bases, it was found that oxidation peak current increases linearly with square
root of scan rates as shown in Fig. 5 and follows the Randles-Sevcik equation of an irreversible
process. The details about the equation and parameters are given in our earlier papers[29-
32].The diffusion coefficients evaluated from the slope of anodic peak current vs. square root of
371
372
scan rate were found to be 4.65 × 10-6, 3.18 × 10-7, 5.15 ×10-10and 1.55 × 10-7for HL1, HL2, HL3
and HL4 respectively. The values depict that the ET process is diffusion controlled.

ACCEPTED MANUSCRIPT
373
374
375
376
Fig.4 Cyclic voltammograms of Schiff bases HL1, HL2, HL3and HL4 (2mM each) recorded in
their argon saturated H2O/DMF (1/ 9; v/v) + 0.1M TBATFB solution at 100 m Vs-1(Vs-1)1/2scan
rate at 25oC.
377
378
Fig. 5 Plots of anodic peak current (ipa) with square root of scan rate v1/2/ (Vs-1)1/2for HL1, HL2,
HL3 and HL4.
To further confirm the irreversibility of the ET process SWV was run. The resultant
voltammograms of HL1, HL2, HL3 and HL4 are shown in Fig. 6 (A-D). The absence of reduction
current in all the four cases evidently indicates the complete irreversible nature of ET process as
shown in CV results.
379
380
381
382
383

ACCEPTED MANUSCRIPT
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
Fig.6 Square wave voltammograms of compound, HL1(a), HL2(b), HL3(c) and HL4(d) (2 mM
each) recorded at GCE in argon saturated H2O/DMF (1/ 9; v / v) + 0.1 M TBATFB solution at
25oC, Esw =5 mV frequency = 10 Hz . Pulse amplitude =25mV. The symbols are; It– total
current, If – forward current, Ib –backward current.
DP voltammograms of the Schiff bases, displayed in Fig. 7, were recorded to estimate the
number of electrons involved in the electrooxidation. The recorded peak currents are in the order
of HL1> HL3> HL2>HL4 same as observed in CV studies indicating the enough sensitivity of CV
for these compounds in the given time scale. The full peak width at half peak current(W1/2)
values are 122, 88, 117 and 88 mV for HL1, HL2, HL3and HL4,respectively and are close to the
theoretical value of 90 mV for ET process involving one electron only. Hence, it is concluded on
the basis of voltammetry results that there is single electrophore in the studied Schiff bases
offering one ET irreversible diffusion controlled oxidation process. Corollary of this result is that
the electro-oxidised species will act as a good nucleophile for the DNA molecules.

ACCEPTED MANUSCRIPT
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
Fig.7 Differential pulse voltammograms of the Schiff bases with 2 mM each recorded in argon
saturated H2O /DMF(1/9; v /v) + 0.1M TBATFB solution at 25oC.
4 DNA-drug interaction studies
The CV was employed to envisage the role of Schiff bases as drug molecules against DNA
degradation. The characteristic parameters of the peak potential and peak current of a compound
are prone to change on addition of DNA if the former is ‘active’. The variation in peak current
with varying concentration of DNA at fixed concentration of a Schiff base was utilized to
determine the quantitative binding parameters (Fig. 8, Table 4) whereas the shift in peak
potential was used to get an idea about the modes of interaction.
The values of binding constant (K) were calculated from equation 1 which determines the
strength of binding of a molecule to the DNA.
1/ [DNA] = K (1-A) / (1-I/I0) – K
(1) [33]
Where A is an empirical constant, I0 and I are peak currents in the absence and presence of DNA,
respectively.
From Fig. 8 and the tabulated data (Table 4) it is evident that on addition of first increment of
DNA (5.44 µM) to the electro-oxidised product of the Schiff base there is a marked decrease in
the peak current which is about two third of the original peak current. To ensure that this
decrease is not due to adsorption of the molecule on the electrode surface, the GCE surface was
renewed each time before running the next increment of DNA. On the other hand the addition of
DNA caused a very small negative shift in the peak potential even up to the 16.01µM DNA. The
negative shift in peak potential is revealing the electrostatic interaction between the
electrooxidised electrophile of Schiff base and the negative phosphate component of DNA
molecules. The result is in agreement to that conferred above in DPV analysis of the compounds.
The sequential drop in peak current has attributed the decrease in free drug concentration due to
formation of slow diffusing Schiff base-DNA adducts. Formation of this slow diffusing complex

ACCEPTED MANUSCRIPT
427
428
429
430
431
432
433
434
is also evident from lowering in diffusion coefficient values upon the addition of DNA as
compared to free compounds as shown in Table 4. The binding constant values given in Table 4
are in the range of the order of ≈ 104 M-1. These moderately high values (K = 3.6 x 104 M-1for
cisplatin[34]) suggest that ON donor Schiff bases are efficient DNA binders.
As a whole it can be safely interpreted from the results that the investigated Schiff bases possess
sufficient potential to be pursed as drug molecules whereas they were found interacting with
DNA while being consumed chemically and partially due to electrostatic linkage.
435
436
437
438
439
Fig.8 Cyclic voltammograms of 2mM H2O/DMF (1/ 9; v/v) of HL1 (a), HL2 (b), HL3 (c) and HL4
(d) (▬) without DNA, (▬) in the presence of 5.44 µM DNA, (▬) 10.78 µM DNA and (▬)
16.01 µM DNA on glassy carbon electrode at scan rate of 100 mV/s.
440
441
442
443
444
445
446

ACCEPTED MANUSCRIPT
447
448
Table 5. The drug-DNA interaction electrochemical parameters of compounds on glassy carbon
electrode vs. Ag/AgCl in H2O/DMF (1/ 9; v/v) solution at 50 mVs-1 scan rate at 25oC.
Compound
In the absence of DNA
In the Presence of DNA
-1
Ep (V)
Do(cm2s-1)
Ep (V)
Do(cm s )
K (M-1)
2
4.65 ×10-6
3.18 × 10-7
5.15 × 10-10
1.55 × 10-7
2.25 ×10-6
2.27 × 10-7
1.62 × 10-10
1.12 × 10-7
2.04 × 104
1.77 × 104
4.16 × 104
3.06 × 104
0.844
0.815
0.838
0.821
0.833
0.809
0.833
0.809
HL1
HL2
HL3
HL4
449
450
451
DNA: Deoxyribonucleic acid; Do: diffusion coefficient; Ep: peak potential; K: complex stability
constant.
452
453
4 Conclusions
454
455
456
457
458
459
460
461
462
463
464
465
466
Four novel ON donor Schiff bases (HL1-HL4) have been successfully synthesized and
characterized by various spectroscopic, analytical and electro-analytical techniques. Single
crystal X-ray diffraction analysis of Schiff base (HL3) reveals intra (hydrogen bonding) and inter
molecular interactions(C-H…π type, π…π stacking between anthracene groups).The biological
findings showed significant activity in inhibiting the tumour formation by A. tumefaciens on
potato discs. These compounds also have potential to prevent H2O2 induced oxidative damage to
pBR322 DNA. Overall these compounds displayed a variant degree of activity in all the assays,
further investigations are required to explore the exact mechanism of biological activities which
may be helpful to explore new and alternative chemotherapeutic agent(s) in clinical implications.
The compounds were found to respond irreversible one electron diffusion controlled
electrooxidation on glassy carbon electrode. Further, they were found to interact to DNA in
electrooxidised form through combined mode of groove binding and electrostatically with
sufficiently good strength to be pursued further as drug molecules.
467
468
469

ACCEPTED MANUSCRIPT
470
References
471 1. T. Rosu, E. Pahontu, C. Maxim, R. Georgescu, N. Stanica, A. Gulea, Some new Cu (II)
472
473
complexes containing an ON donor Schiff base: synthesis, characterization and antibacterial
activity, Polyhedron, 30 (2011)154-162.
474 2. S. Amer, N. El-Wakiel, H. El-Ghamry, Synthesis, spectral, antitumor and antimicrobial
475
studies on Cu (II) complexes of purine and triazole Schiff base derivatives, J. Mol.
Struct.,1049 (2013) 326-335.
476
477 3. K. Hariprasath, B. Deepthi, I. S. Babu, P. Venkatesh, S. Sharfudeen, V. Soumya, Metal
478 complexes in drug research - A review, J. Chem. Pharm. Res.,2(2012) 496-499.
479 4. P. Ghosh, N. Kumarb, S. K. Mukhopadhyayc, P. Banerjeea, Sensitive and fluorescent Schiff
480
481
base chemosensor for pico molar level fluoride detection: In vitro study and mimic of logic
gate function,Sens. Actuator B-Chem. 224 (2016) 899–906.
482 5. P. Ghosh , B. G. Roy ,S. Jana ,S. K. Mukhopadhyay , P. Banerjee , Colorimetric and
483
484
485
fluorimetric response of Schiff base molecules towards fluoride anion, solution test kit
fabrication, logical interpretations and DFT-D3 study, Phys. Chem. Chem. Phys.,17(2015)
20288-95.
486 6. P. Roya, M. Manassero, Tetranuclear copper(II)–Schiff-base complexes as active catalysts for
487 oxidation of cyclohexane and toluene, Dalton Trans., 39 (2010) 1539-1545.
488 7. A. R. Chowdhury, P. Ghosh, B. G. Roy, S. K. Mukhopadhyay, P. Mitra , P. Banerjee , A
489
490
491
simple and dual responsive efficient new Schiff base chemoreceptor for selective sensing of
F− and Hg2+: application to bioimaging in living cells and mimicking of molecular logic gates,
RSC Adv.,5 (2015) 62017-23.
492 8. R. Kitaura, G. Onoyama, H. Sakamoto, R. Matsuda, S-I. Noro, S. Kitagawa, Immobilization
493
494
of a Metallo Schiff Base into a Microporous Coordination Polymer, Angew. Chem. Int. Ed. 43
(2004) 2684 -2687.
495 9. P. Ghosh, B. G. Roy, S. K. Mukhopadhyay, P. Banerjee, Recognition of fluoride anions at
496
low ppm level inside living cells and from fluorosis affected tooth and saliva samples, RSC
Adv., 5 (2015) 27387-92.
497
498 10. P. Ghosh, A. Roychowdhury, M. Corbella, A .Bhaumik, P. Mitra, S. M. Mobin, A.
499
500
501
Mukherjee, S. Basu , P. Banerjee Designed synthesis of CO2-promoted copper(II)
coordination polymers: synthesis, structural and spectroscopic characterization, and studies of
versatile functional properties, Dalton Trans., 43 (2014) 13500-08.
502 11. A. Kajal, S. Bala, S. Kamboj, N. Sharma, V. Saini, Schiff Bases: A Versatile Pharmacophore,
503 J. Catalysts, 2013(2013) 1-14.
504 12. P. Ghosh, A. R. Chowdhury, S. K. Saha, M. Ghosh, M. Pal, N. C. Murmu, P. Banerjee,
505
506
507
Synthesis and characterization of redox non-innocent cobalt (III) complexes of a O, N, O
donor ligand: Radical generation, semi-conductivity, antibacterial and anticancer activities,
Inorgan. Chim. Acta, 429 (2015) 99-108.
508 13. F. H. Allen, The cambridge structural database: a quarter of a million crystal structures and
509 rising, Acta Crystallogr., B58, (2002) 380–388.

ACCEPTED MANUSCRIPT
510 14. S. Neidle, D. E. Thurston, Chemical approaches to the discovery and development of cancer
511
512 15. A. C. Komor, J. K. Barton, The path for metal complexes to a DNA target, Chem.
513 Commun.,49 (2013) 3617-3630.
514 16. X. Tian, F. Li, L. Zhu, B. Ye, Study on the electrochemical behavior of anticancer herbal drug
515 rutin and its interaction with DNA, J. Elec. Chem., 621 (2008) 1-6.
therapies, Nat. Rev. Cancer, 5 (2005) 285-296.
516 17. A. I .Vogel, Textbook of Practical Organic Chemistry, 5th edn., Longman: London, (1989).
517 18. H. Ismail, B. Mirza, I. U. Haq, M. Shabbir, Z. Akhter, A. Basharat, Synthesis,
518
Characterization and Pharmacological Evaluation of Selected Aromatic Amines, J.
Chem.,2015(2015) 1-10.
519
520 19. A. R. Chowdhury, P. Ghosh, B. G. Roy, S. K. Mukhopadhyay, N. C. Murmu, P. Banerjee.
521
Cell permeable fluorescent colorimetric Schiff base chemoreceptor for detecting F− in
522
aqueous solvent, Sens. Actuator B-Chem., 220 (2015) 347-355.
523 20. S .Mukherjee, P. S. Mukherjee. CuII–azide polynuclear complexes of Cu4 building clusters
524
with Schiff-base co-ligands: synthesis, structures, magnetic behavior and DFT studies, Dalton
Trans., 42 (2013) 4019-4030.
525
526 21. M. C. Burla, R. Caliandro, M. Camalli, B. Carrozzini, G. L. Cascarano, L. D. Caro, C.
527
Giacovazzo, G. Polidori, and R. Spagna, SIR2004: an improved tool for crystal structure
determination and refinement, J. Appl. Cryst., 38(2005) 381-388.
528
529 22. G. M. Sheldrick, Crystal structure refinement with SHELXL, Acta Cryst. 2015, C71, 3-8.
530 23. I. Haq, N. Ullah, G. Bibi, S. Kanwal, M. S. Ahmad, B. Mirza, Antioxidant and cytotoxic
531
activities and phytochemical analysis of Euphorbia wallichiiroot extract and its fractions,Iran
J. Pharm. Res., 11 (2012) 241-249.
532
533 24. D. J. Finney, Probit Analysis, Cambridge University Press, New York, (1971), 333.
534 25. A. Ullah., F. L.Ansari ,I. Haq , S. Nazir, B. Mirza, Combinatorial synthesis and antitumor
535
studies on aryl and heteroarylchalcone library using positional scanning method., Chem.
Biodiv.,4 (2007) 203–214.
536
537 26. .M. Shabbir, Z. Akhter, I. Ahmad, S. Ahmed, H. Ismail, B. Mirza, B., V. Mckee, M. Bolte,
538
Synthesis, biological and electrochemical evaluation of novel nitroaromatics as potential
anticancerous drugs, Bioelectrochem., 104(2015)85-92.
539
540 27. M. N. Ibrahim, K. J. Hamad, S. H. Al-Joroshi, Synthesis and characterization of some Schiff
541 bases, Asian J. Chem., 18 (2006) 2404-2406.
542 28. B. Lakshmi, K. N.Shivananda, G. A. Prakash, A. M. Isloor, K. N. Mahendra, Synthesis and
543
characterization of schiff base metal complexes and reactivity studies with malemide epoxy
resin, B. Korean Chem. Soc.,33 (2012) 473-482.
544
545 29. S. Ahmed ,M. Ahmad , S. B. Butt, Electrooxidation of chloro, nitro, and amino
546
547
substitutedphenols in aqueous medium and their heterogeneous kinetics, Res. Chem.
Intermed., 38 (2012) 705–722.
548 30. M. Ghosh, T Weyhermüller , K. Wieghardt
,
Electronic structure of the members of the
549
550
551
electron transfer series [NiL]z (z = 3+, 2+, 1+, 0) and [NiL(X)]n (X = Cl, CO, P(OCH3)3)
species containing a tetradentate, redox-noninnocent, Schiff base macrocyclic ligand L: an
experimental and density functional theoretical study, Dalton Trans., 39 (2010) 1996-2007.
552 31. M. Iqbal, I. Ahmad, S. Ali, N. Muhammad, S. Ahmed, M. Sohail, Dimeric‘‘paddle-wheel’’
553
carboxylates of copper(II): Synthesis, crystal structure and electrochemical studies,
Polyhedron, 50 (2013) 524–531.
554

ACCEPTED MANUSCRIPT
555 32. M. Ghosh, T Weyhermüllera , K. Wieghardt, A structural, spectroscopic and computational
556
study of the molecular and electronic structure of a [bis(α-diiminato)manganese(II)] π radical
557
complex, Dalton Trans.,(2008) 5149-5151.
558 33. G. C. Zhao, J. J. Zhu, J. J. Zhang, Voltammetric studies of the interaction of methylene blue
559 with DNA by means of β-cyclodextrin,Anal. Chim. Acta, 394 (1999) 337-344.
560 34. F. Perveen, R. Qureshi, F. L. Ansari, S. Kalsoom, S. Ahmed, Investigations of drug–DNA
561
interactions using molecular docking, cyclic voltammetry and UV–Vis spectroscopy, J. Mol.
Struct., 1004 (2011) 67–73.
562
563
Acknowledgements
564
565
566
567
The authors are highly grateful to Chemistry and Biochemistry Departments of Quaid-I-Azam
University Islamabad, Pakistan and Institutfür Anorganische Chemie, J. W. Goethe-Universität
Frankfurt, Germany for providing technical support and laboratory facilities.
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585

ACCEPTED MANUSCRIPT
Highlights
•
•
Four novel ON donor Schiff bases were synthesized with yields around 90%.
Exhibited strong •OH scavenging activity in concentration dependent manner.
•
•
Voltammetry revealed irreversible single electron oxidation with Do ~10-10-10-6 cm2s-1.
Anticancerous nature, intercalating with DNA having binding constants of 104 M-s1.
