Y. Liu et al. / Catalysis Communications 11 (2010) 880–883
881

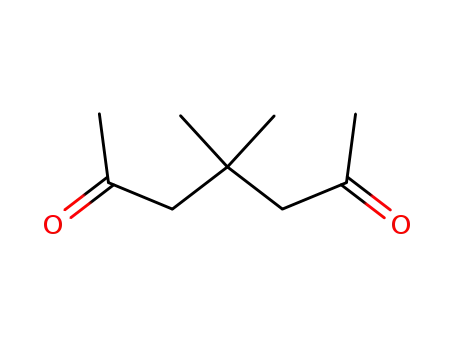

Fig. 1. General reaction mechanism for synthesis of isophorone.
The as-synthesized hydrotalcite was denoted as M/HTas in which M
represented the modified metal cations. In the same fashion, the
sample calcinated at 773 K for 8 h was denoted as M/HTox. For
comparison, the hydrotalcite HTas with molar ratio of Mg/Al=2:1
and the corresponding mixed oxide HTox were prepared via the same
method.
width at half maximum (FWHM) of (110) and (003) diffraction peaks,
using the Debye-Scherrer formula. The parameters a and c of Cr/HTas
and Zr/HTas were bigger than that of HTas. The enlargement of a of Zr/
HTas was related to the replacement of Mg2+ (0.65 Å) or Al3+
(0.50 Å) by cations with larger ionic radius Zr4+ (0.72 Å). As is known,
The radius of Zr4+ is larger than that of Cr3+ (0.62 Å). However, the
enlargement of a of Cr/HTas was larger than that of Zr/HTas. This may
be indicative of less introduced Zr4+ due to its lager radius. The
parameter c also showed the same tendency of a, which can be
attributed to the increase of the thickness of the brucite-like layer
upon incorporation of Cr3+ or Zr4+ [14]. The dimension of HTas in a-
direction was larger than that in c-direction, which was typical for the
plate-like hydrotalcite crystals [15]. Compared with HTas, particle size
of Cr/HTas and Zr/HTas was smaller. Moreover, their particle sizes in
a-direction was smaller than those in c-direction, indicating formation
of more irregular structures.
The XRD patterns of the as-prepared hydrotalcites were shown in
Fig. 2 A. All the three patterns showed the characteristic diffraction lines
typical for an HT compound, proving the formation of hydrotalcite-like
structure. There were no other diffraction peaks observed on patterns of
Cr/HTas and Zr/HTas, indicating that the modified cations were
incorporated into the lattice or highly dispersed on the surface.
Combined with the enlargement of lattice parameter a of the Cr/HTas
and Zr/HTas, the incorporations of the modified cations were confirmed.
After heat treatment of HTas at 773 K the layered compound was
destroyed and the mixed oxide (Mg(Al)O) was formed. From the XRD
patterns of the calcined mixed oxide (Fig. 2 B), Cr/HTox displayed
pattern similar to that of HTox. Besides diffraction peaks corresponding
to the Mg(Al)O, there wasanother diffractionpeak around 30° shown in
pattern of Zr/HTox. This peak could be attributed to ZrO2 (88-1007),
which suggested that the incorporation of large atom Zr was not stable
in the calcination process. Upon calcinations, color of Cr-modified
hydrotalcite changed from grey-blue of Cr/HTas to yellow of Cr//HTox.
The former was typically displayed by Cr (III) and the latter by Cr (VI).
These phenomena implied that both the coordination number and
valence of Cr changed in calcination process.
2.2. Catalyst characterizations
X-ray diffraction (XRD) patterns were obtained by Philips X Pert
Pro X diffractometer operated with a Ni-filtered Cu Kα radiation.
Physisorption of N2 was carried out at 77 K on a volumetric apparatus
(ASAP 2020). Temperature-programmed desorption of CO2 (CO2–
TPD) was performed on a homemade instrument. Typically, 50 mg of
sample was firstly pretreated in helium at 823 K for 30 min, then the
temperature was cooled to 323 K and the sample was saturated with
CO2. Desorption of CO2 was carried out from 323 K to 823 K under
flowing helium (30 mL/min) using a temperature rate of 10 K/min.
2.3. Catalytic activity test
The reactions were carried out in a fixed-bed microreactor (6 mm
i.d.) using 0.6 g of catalyst under atmospheric pressure. Acetone and
N2 were fed into the reactor from the top and mixed in preheating
section. The N2 (20 mL/min) was introduced with two aims. Firstly, N2
flow can avoid the interaction between catalyst and CO2 in air.
Secondly, it can carry away the product timely and prevent the
further-condensations. The experiments were carried out at 513 K for
2 h. The products were collected in a cold trap (held in an ethanol/dry
ice bath) and quantified by gas-chromatography (GC) equipped with
a flame ionization detector (FID).
3. Results and discussion
3.1. Characterizations
The lattice parameters and particle sizes of the hydrotalcites are
shown in Table 1. The lattice parameters a and c were calculated from
the expression a=2d(110) and c=3d(003), respectively. The average
particle sizes in the a- and c- directions were determined from full
The texture properties of the mixed oxides were shown in Table 2.
Compared with those of HTox, the surface area, pore volume and pore
size of Cr/HTox slightly decreased. These results could be indicative of
the similar structure of these two samples. Zr/HTox showed remarked
different texture properties, which implied significant modifications
stemming from the incorporation of Zr. Larger pore size of Zr/HTox
deduced the smaller surface area and pore volume. It was reported
that there was more interlayer waters in the Zr-modified hydrotalcite
[14]. This larger pores may be related to the departure of more water
molecules.
Table 1
Parameters from the XRD.
Sample
Cell parameter (Å)
Particle size (Å)
d(110)
a
c
d(003)
HTas
Cr/HTas
Zr/HTas
3.045
3.048
3.046
22.765
22.887
22.842
1421.5
409.3
314.6
557.0
424.6
466.3
CO2–TPD was usually employed to determine the density and
strength of basic sites in mixed oxides derived from the hydrotalcites.
The CO2 as probe molecule has enough acidity to probe all the basic
