Gold complexes of bis-indazole-derived N-Heterocyclic carbene: Synthesis, structural characterizations, and catalysis

Article abstract of DOI:10.1016/j.molstruc.2021.130043

A novel series of bis Indy-NHC gold complexes have been developed and investigated via a mild Ag-carbene transfer route. The obtained complexes were characterized by NMR spectroscopy and X-ray diffraction analysis. The catalytic property of these gold complexes was further evaluated in the oxidation of benzylic. The gold complex E1 showed a high catalytic activity in the oxidation of various benzylic substrates, resulting in the corresponding carbonyl compounds with excellent yields using TBHP as oxidant.

Full text of DOI:10.1016/j.molstruc.2021.130043

Journal of Molecular Structure 1233 (2021) 130043
Contents lists available at ScienceDirect
Journal of Molecular Structure
journal homepage: www.elsevier.com/locate/molstr
Gold complexes of bis-indazole-derived N-Heterocyclic carbene:
Synthesis, structural characterizations, and catalysis
Hua Zhanga,b,1, Ting Xub,1, Dongdong Lic, Tao Chengd, Jing Chenb,∗, Yang Zhoub,∗
a School of Materials Science and Engineering, Xi’an University of Technology, Xi’an, 710048, China
b Cixi Institute of Biomedical Engineering, Ningbo Institute of Materials Technology & Engineering, Chinese Academy of Sciences, Ningbo, 315201, China
c College of Chemical Engineering, Nanjing Forestry University, 159 Long Pan Road, Nanjing, 210037, China
d Pharmaron (Ningbo) Technology Development Co., Ltd., Hangzhou Bay New Zone, Ningbo 315366, China
a r t i c l e i n f o
a b s t r a c t
Article history:
A novel series of bis Indy-NHC gold complexes have been developed and investigated via a mild Ag-
carbene transfer route. The obtained complexes were characterized by NMR spectroscopy and X-ray
diffraction analysis. The catalytic property of these gold complexes was further evaluated in the oxida-
tion of benzylic. The gold complex E1 showed a high catalytic activity in the oxidation of various benzylic
substrates, resulting in the corresponding carbonyl compounds with excellent yields using TBHP as oxi-
dant.
Received 13 October 2020
Revised 26 January 2021
Accepted 29 January 2021
Available online 3 February 2021
Keywords:
N-Heterocyclic carbenes
bis Indy-NHC gold (I) complexes
benzylic oxidation
© 2021 Elsevier B.V. All rights reserved.
1. Introduction
NHCs with reduced heteroatom stabilization based on the indazole
backbone, shows even stronger donating capacities than the clas-
N-Heterocyclic carbenes (NHCs) have been used as ligands in
organometallic chemistry and in catalysis ever since their isola-
tion in the free state by Arduengo and coworkers in 1991 [1,2].
Comparing with most of phosphine ligands, NHC complexes have
higher catalytic activities and thermal stability, partially owing to
their strong NHC-metal bonds and high σ-donating ability of NHC
ligands [3–5].
sical NHC ligands [16]. The organic chemistry of these ligands and
a few of transition metals bearing these ligands have been studied
[17,18]. Previously, we expanded these kinds of NHCs with intro-
ducing an aryl group with different substituents on the central ni-
trogen atom of the Indy-NHCs, The electronic and steric properties
around the Indy-N-heterocyclic carbene skeleton are thus changed
[19]. The iPr Indy-NHC ligands could react with [AuCl(SMe2)] by
a silver carbene transfer method to give AuI Indy-NHC complex,
leading to high catalytic activities in the hydration of alkynes at
room temperature. As a continuation of our previous work, we
herein report on the synthesis of bis Indy-NHC gold (I) complexes
and their catalytic activity in benzylic oxidation.
Most research in the field has focused on the development of
popular diamino N-heterocyclic carbenes variants such as imida-
zole, benzimidazole, imidazoline, 1,2,4-triazole and diamido car-
benes [6-9]. However, other families of stable carbenes with re-
duced heteroatom stabilization, such as the cyclic-amino-carbenes
(CAACs) or the 1,2,3-triazole mesoionic carbenes (MICs) have also
emerged as interesting fields of study [10,11]. Notably, this is due
to removing of one or both heteroatoms from the positions next to
the ylidene carbon increasing the energy of the σ-HOMO orbital
and leading to a more strongly donating carbene center [12–14].
Fig. 1 shows representatives subclasses of stable carbenes includ-
ing those with reduced heteroatom stabilization [15].
2. Results and discussion
2.1. Synthesis of the Indy-NHC ligands
In our previous work, excess triethyl phosphate as the reduc-
tant was added for the synthesis of indazoles. In the mean time,
the reaction systems needed to be stirred at high temperature for
a long time with a favorable yield and the triethyl phosphate was
difficult to be removed in the post processing. To improve the syn-
thetic program, low-valent Ti reagents (TiCl4/Sm/Et3N) with high
reducing abilities are introduced in this work following a previous
report [20]. The synthetic routes of these novel Indy-NHC ligands
is outlined in Scheme 1.
Huynh and coworkers pioneered the design and synthesis of
indazolin-s-ylidene (Indy) carbenes in 2009. This new class of
∗
Corresponding authors.
E-mail addresses: jing.chen@nimte.ac.cn (J. Chen), zhouyang876@nimte.ac.cn (Y.
Zhou).
1
These authors contributed equally to this work
https://doi.org/10.1016/j.molstruc.2021.130043
0022-2860/© 2021 Elsevier B.V. All rights reserved.

H. Zhang, T. Xu, D. Li et al.
Journal of Molecular Structure 1233 (2021) 130043
2.2. Synthesis and structure of bis (Indy-NHC) Au complexes
In an initial attempt, the steric bulky bis iPr Indy-NHC ligands
(C1) with iodine or chloride as an anion are not able to pro-
duce their bis carbene Au complex by the Ag2O method [21]. It
is found that NHC ligands with non-coordinating anions, such as
BF4—/PF6—could obtain the bis(carbene) complexes in good yields
—
[22-24]. After replacing the anion with BF4 by reacting with
NaBF4 in acetone, the bis(Indy-NHC) Au complex E1 was suc-
cessfully obtained without the isolation of the presumed silver
(Scheme 2). Subsequently, complex E1 was isolated and character-
ized by NMR spectroscopy, and the signal of the ylidene carbon
atom was observed at 185.34 ppm in the 13C NMR.
Fig. 1. Representative classes of stable carbenes. . Adapted with permission from
[15]. Copyright (2009) American Chemical Society.
The effect of the different substitutes of the phenyl group on
the coordination process was further surveyed. The para-position
group of benzene ring with non-substituent (D2) or substituted by
electron-donating group methyl (D3) affected neither the rate nor
the yield of the chelation of Au and NHC. While the para-position
group was substituted with electron-withdrawing groups (D4, D5),
leading to unstable bis (carbene) Au complexes. The NHC precursor
D6 failed to give a stable bis Indy-NHC Au complex by using the
same route. The steric hindrance with two groups of R1/R2 on the
ortho-positions and the electronic effect of substituents on benzene
ring were both needed to promote the formation of stable bis car-
bene Au complexes.
1H NMR spectrums of bis(carbene) Au complexes and monocar-
bene complexes are very similar, pointing out the chemical enviro-
ments of the hydrogen atoms are not deeply affected by the coor-
dination of an additional NHC ligands to the gold(I) center. The car-
bene carbon chemical shift value belonging to compounds E were
observed around at δ 185 ppm.This is significantly more downfield
than the signals of any of the corresponding monocarbene com-
plexes around at δ 172 ppm. This indicates the Lewis acidity of the
metal cente are reduced by coordination of an additional strong σ-
donating carbene ligand nd cause the observed downfield shift of
the carbene carbon [25, 26].
Fig. 2. The molecular structure of Complex E1. Hydrogen atoms, hydrogen atoms,
−
BF4 anion have been omitted for clarity. Selected geometrical parameters of
complex were as follows:Au1-C24
=
2.031(7), Au1-C24b
=
2.031(7), C24-Au1-
C24b = 180.000(2).
The molecular structure of complex E1 was confirmed by sin-
gle crystal X-ray analysis (Fig. 2). The geometry is essentially lin-
ear about the gold(I) center, and the average Au−C bond length of
The Ar group bearing no substitution or just o-tolyl with low
steric bulkiness is not able to form stable silver complexes in the
previous work [19], neither two NHC ligands were not synthe-

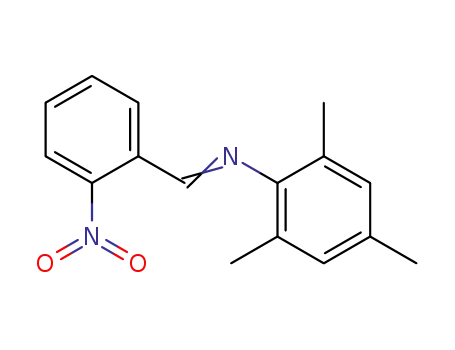

sized in this work. Compounds A were prepared by a condensation
reaction of 2-nitrobenzaldehyde and aniline with excellent yield
(87–93%). Then, by Ti reagents, intramolecular cyclization was per-
formed after adding THF at the condition of pH 8, and refluxing for
4 h under an inert atmosphere to give the indazole compounds B
with 65–71% yield. Finally, the NHC ligands C were conveniently
synthesized by reacting indazoles with CH3I in CH3CN at 80 °C
(yield = 79–90%) (Scheme 1). The synthetic details and ligands’
characterization data are shown in the Supporting Information.
˚
2.031 A is within the expected range for gold(I) carbene complexes
[27].
2.3. The catalytic application of bis (Indy-NHC) Au complexes
It has been proven that Aryl ketone is a useful building block in
a plethora of significant molecules, including natural products, ac-
tive pharmaceutical ingredients, agrochemicals and advanced ma-
terials (Fig. 3) [28]. However, the classical methods to assemble
Scheme 1. Synthesis of indazole N-Heterocyclic carbene ligands.
2

H. Zhang, T. Xu, D. Li et al.
Journal of Molecular Structure 1233 (2021) 130043
Scheme 2. Synthesis of bis Indy-NHC Au complexes.
Table 1
Reaction condition optimizationa.
Entry
Cat.
Amt of cat. (mol%)
Solvent
T( °C)
Yield(%)b
1
E1
5
5
5
5
5
4
3
5
5
5
-
H2O
90
90
90
100
110
90
90
90
90
90
90
30
37
99
65
42
58
43
80
77
31
<5
2
E1
Toluene
Pyridine
Pyridine
Pyridine
Pyridine
Pyridine
Pyridine
Pyridine
Pyridine
Pyridine
3
E1
4
E1
5
E1
6
E1
7
E1
8
E2
9
10c
E3
iPr NHC-Au-Cl
11
-
a
All the reactions were carried out in the scale of 0.5 mmol of F1.
b
c
GC yield.
The synthesis of iPr NHC-Au Cl followed our previous work19
.
3

H. Zhang, T. Xu, D. Li et al.
Journal of Molecular Structure 1233 (2021) 130043
Table 2
Bis iPr NHC gold complex catalyzed benzylic oxidationa,b
.
To optimize the reaction conditions, solvents, catalyst loadings and
reaction temperature were all screened (Table 1). Five mol% of E1
was employed as the catalyst in our primary attempt, with TBHP
(2eq.) as the oxidant. Pyridine as the best solvent for this reac-
tion, offered the desired carbonyl compounds with highest yield
(99%, entry 1–3). Whereas, the yields were declined to 42% with
increasing the reaction temperature from 90 to 110 °C, indicating
that the gold catalyst was sensitive to the reaction temperature.
The higher temperature (> 90 °C) costed the catalyst E1 unstable,
and the catalytic efficiency was reduced (Entry 3–5). Further in-
vestigation revealed that the amount of the catalyst E1 is crucial
to the reaction outcome, the optimal amount was 5 mol% and the
lower catalyst loadings would lead to lower yield (Entry 3; 6, 7).
Comparing the catalytic activities of E1, E2 and E3 at the same re-
action condition, the gold complex E1 achieved the best yield. We
thought the iPr-Indy-NHC ligand was a stronger donor than other
ligands, which would provide a stronger donating ability, mean-
while the bulk group iPr might help to facilitate the generation of
the oxidative intermediate, and improve catalytic activity of gold
[19]. It is worth to mention the important role of bis iPr NHC lig-
ands in the gold-catalyzed benzylic oxidation, while the single iPr
NHC ligand gold complex showed extremely lower activity.
With these optimized reaction condition in hand, an explo-
ration of the substrate scope was further explored. The results
revealed in Table 2. The bis iPr-NHC gold complex E1 showed
highly effective for such oxidation. Interestingly, the electronic ef-
fect of the substituents on the aromatic ring of diarymethylene
was not evident. The substituents bearing electron donating-group
CH3(F3) or these different electron-withdrawing groups (F4-F7)
all produced products with 89–94% yields. Next, the less active
substrates cyclic alkylarenes (F8, F9) were employed to give tar-
get ketone products in slightly lower yields in 83% and 81% re-
spectively. Furthermore, E1 gold-catalyzed benzylic C–H oxidation
transformation could smoothly convert alkylarenes to the corre-
sponding aryl ketones with good yields ranging between 78 to
85%.
Fig. 3. Selected aryl ketones.
such motifs are one of the most difficult reactions to perform, be-
cause it requires harsh reaction conditions and corrosive chemi-
cal reagents such as potassium permanganate, potassium dichro-
mate or ammonium cerium nitrate [29, 30]. Transition metal cat-
alyzed oxidation is an environmentally friendly and cost-effective
synthetic method. Transition metal catalyzed oxidation is an en-
vironmentally friendly and cost-effective synthetic method, and
many impressive achievements have been accomplished in metal
complexes (Ni, Cu, Ru, Pd et al.) [31-34]. Among them, some re-
searches reported the Au NPs or Au (III) to promote such benzylic
oxidations [35–37]. Impovement of Au(I) as catalysts are have been
rarely reported, although Shi group showed the AuCl supported by
neocuproine could catalyze the benzylic oxidations with maximum
yield of 46%, which was much lower than Au(III) [38]. Herein, we
report the prepared air-stable bis Indy-NHC gold complex was used
to achieve an excellent catalytic benzylic oxidation with tert-butyl
hydroperoxide (TBHP) as oxidant.
We initiated this investigation on the reaction of hydration of
diphenylmethane (F1) with bis NHC complex E1 as the catalyst.
4

H. Zhang, T. Xu, D. Li et al.
Journal of Molecular Structure 1233 (2021) 130043
3. Conclusion
coligands as catalysts for the sonogashira coupling and the hydroamination of
alkynes, Organometallics 33 (2014) 3607–3617.
[13] R.H. Crabtree, Abnormal, mesoionic and remote N-heterocyclic carbene com-
plexes, Coord. Chem. Rev. 257 (2013) 755–766.
In summary, we have improved the synthesis of a serial Indy-
N-heterocyclic carbene ligands with stronger donor ability and uti-
lized these ligands to synthesize a novel series of bis Indy-NHC
gold complexes. Significantly, all these gold complexes showed cat-
alytic activities in the benzylic oxidation with TBHP as oxidant. Es-
pecially gold complex E1 with stronger donating ability and bulk
group catalyzed various benzylic substrates, resulting in the corre-
sponding carbonyl compounds in high yields (78%−99%). Further
studies on catalytic mechanism of the types NHC Au complexes
and the effective role of the iPr NHC ligand are currently under
investigation.
[14] S.C. Sau, P.K. Hota, S.K. Mandal, M. Soleilhavoup, G. Bertrand, Stable abnor-
mal N-heterocyclic carbenes and their applications, Chem. Soc. Rev. 49 (2020)
1233–1252.
[15] O. Schuster, L. Yang, H.G. Raubenheimer, M. Albrecht, Beyond conventional
N-heterocyclic carbenes: abnormal, remote, and other classes of NHC ligands
with reduced heteroatom stabilization, Chem. Rev. 109 (2009) 3445–3478.
[16] H.V. Huynh, Y. Han, R. Jothibasu, J.A. Yang, 13C NMR spectroscopic determi-
nation of ligand donor strengths using N-Heterocyclic carbene complexes of
Palladium(II), Organometallics 28 (2009) 5395–5404.
[17] S. Guo, M.H. Lim, H.V. Huynh, Copper(I) Heteroleptic Bis(NHC) and mixed
NHC/Phosphine complexes: syntheses and catalytic activities in the one-pot
sequential CuAAC reaction of aromatic amines, Organometallics 32 (2013)
7225–7233.
[18] D. Yuan, H.V. Huynh, Hetero-dicarbene Complexes of Palladium(II): syntheses
and catalytic activities, Organometallics 33 (2014) 6033–6043.
[19] Y. Zhou, Q. Liu, W. Lv, Q. Pang, R. Ben, Y. Qian, J. Zhao, Indazolin-s-yli-
dene–N-Heterocyclic Carbene Complexes of Rhodium, Palladium, and Gold:
synthesis, characterization, and catalytic hydration of alkynes, Organometallics
32 (2013) 3753–3759.
Declaration of Competing Interest
The authors declare that they have no known competing finan-
cial interests or personal relationships that could have appeared to
influence the work reported in this paper.
[20] W. Lin, M. Hu, X. Feng, C. Cao, Z. Huang, D. Shi, A facile one-step synthesis
of 2-Arylindazoles via Reductive Cyclization of N-(2-nitroarylidene)amines, J.
Heterocycl. Chem. 52 (2015) 1170–1174.
[21] H.M.J. Wang, I.J.B Lin, Facile synthesis of Silver(I)-Carbene complexes. Useful
carbene transfer agents, Organometallics 17 (1998) 972–975.
CRediT authorship contribution statement
[22] L.N. Appelhans, C.D. Incarvito, R.H. Crabtree, Synthesis of monodentate
bis(N-heterocyclic carbene) complexes of iridium: mixed complexes of abnor-
mal NHCs, normal NHCs, and triazole NHCs, J. Organomet. Chem. 693 (2008)
2761–2766.
[23] M.n. Viciano, M. Poyatos, M. Sanau´, E. Peris, A. Rossin, G. Ujaque, Lledos´, A.
C-H oxidative addition of bisimidazolium salts to Iridium and Rhodium com-
plexes, and N-Heterocyclic carbene generation. a combined experimental and
theoretical study, Organometallics 25 (2006) 1120–1134.
Hua Zhang: Conceptualization, Methodology, Investigation.
Ting Xu: Conceptualization, Methodology. Dongdong Li: Data cur-
tion, Validation. Tao Cheng: Investigation, Formal analysis. Jing
Chen: Supervision, Writing – original draft. Yang Zhou: Writing –
review & editing.
[24] U.E.I. Horvath, G. Bentivoglio, M. Hummel, H. Schottenberger, K. Wurst,
Acknowledgment
M.J. Nell, C.E.J. van Rensburg, S. Cronje, H.G. Raubenheimer,
A cytotoxic
bis(carbene)gold(i) complex of ferrocenyl complexes: synthesis and structural
characterisation, New J. Chem. 32 (2008) 533–539.
[25] R. Jothibasu, H.V. Huynh, L.L. Koh, Au(I) and Au(III) complexes of a sterically
bulky benzimidazole-derived N-heterocyclic carbene, J. Organomet. Chem. 693
(2008) 374–380.
This work was supported by the Zhejiang Provincial Natural Sci-
ence Foundation of China under grant no. LQ19E030006 and the
Natural Science Foundation of China (22007090). We are indebted
to Professor Jing Zhao for the assistance in the whole work.
[26] H. Sivaram, R. Jothibasu, H.V. Huynh, Gold complexes of an alicyclic inda-
zole-derived N-Heterocyclic carbene: syntheses, characterizations, and ligand
disproportionation, Organometallics 31 (2012) 1195–1203.
Supplementary materials
[27] R. Jothibasu, H.V. Huynh, Versatile coordination chemistry of indazole-derived
carbenes, Chem. Commun. 46 (2010) 2986–2988.
[28] J. Tan, T. Zheng, Y. Yu, K. Xu, TBHP-promoted direct oxidation reaction of ben-
zylic Csp3–H bonds to ketones, RSC Adv. 7 (2017) 15176–15180.
[29] T. Punniyamurthy, S. Velusamy, J. Iqbal, Recent advances in transition metal
catalyzed oxidation of organic substrates with molecular oxygen, Chem. Rev.
105 (2005) 2329–2363.
Supplementary material associated with this article can be
found, in the online version, at doi:10.1016/j.molstruc.2021.130043.
Reference
[30] A.V. Biradar, T. Asefa, Nanosized gold-catalyzed selective oxidation of alkyl–
substituted benzenes and n-alkanes, Appl. Catal. A: Gen. 435-436, (2012)
19–26.
[31] G. Urgoitia, R. SanMartin, M.T. Herrero, E. Domínguez, An outstanding catalyst
for the oxygen-mediated oxidation of arylcarbinols, arylmethylene and ary-
lacetylene compounds, Chem. Commun. 51 (2015) 4799–4802.
[32] P. Karthikeyan, P.R. Bhagat, S.S. Kumar, A novel, green 1-glycyl-3-methyl imi-
dazolium chloride-copper(II) complex catalyzed C-H oxidation of alkyl benzene
and cyclohexane, Chinese Chem. Lett. 23 (2012) 681–684.
[1] A.J. Arduengo III, R.L. Harlow,
Chem. Soc. 113 (1991) 361–363.
M Kline, A stable crystalline carbene, J. Am.
[2] A.J. Arduengo III, Looking for Stable Carbenes: the Difficulty in Starting Anew,
Acc. Chem. Res. 32 (1999) 913–921.
[3] W.A. Herrmann, C Kocher, N-Heterocyclic Carbenes, Angew. Chem. Int. Ed. 36
(1997) 2162–2187.
[4] W.A. Herrmann, O. Runte, G. Artus, Synthesis and structure of an ionic berylli-
um-“carbene” complex, J. Organomet. Chem. 501 (1995) C1–C4.
[5] N. Fro¨hlich, U. Pidun, M. Stahl, G. Frenking, Carbenes as pure donor ligands:
theoretical study of Beryllium-carbene complexes, Organometallics 16 (1997)
442–448.
[6] H.V. Huynh, Electronic properties of N-Heterocyclic carbenes and their experi-
mental determination, Chem. Rev. 118 (2018) 9457–9492.
[7] D. Rottschafer, B. Neumann, H.G. Stammler, M. van Gastel, D.M. Andrada,
R.S. Ghadwal, Crystalline radicals derived from classical N-Heterocyclic car-
benes, Angew. Chem. Int. Ed. 57 (2018) 4765–4768.
[8] N. Marion, S. Diez-Gonzalez, S.P. Nolan, N-heterocyclic carbenes as organocat-
alysts, Angew. Chem. Int. Ed. 46 (2007) 2988–3000.
[9] J.P. Moerdyk, D. Schilter, C.W. Bielawski, N, N’- Diamidocarbenes: isolable di-
valent carbons with bona fide carbene reactivity, Acc. Chem. Res. 49 (2016)
1458–1468.
[33] Y.C. Zhang, L.Y. Zhao, H.Y. Zhang, R. Huang, J.Q. Zhao, Oxidation of alkanes
and secondary alcohols to ketones with tert-butyl hydroperoxide catalyzed
by
a water-soluble rutheniumcomplex under solvent-free conditions, Appl.
Organometal. Chem. 31 (2017) e3709.
[34] G. Urgoitia, A. Maiztegi, R. SanMartin, M.T. Herrero, E. Domínguez, Aerobic ox-
idation at benzylic positions catalyzed by a simple Pd(OAc)2/bis-triazole sys-
tem, RSC Adv 5 (2015) 103210–103217.
[35] M. Mahyari, M.S. Laeini, A. Shaabani, H. Kazerooni, Gold nanoparticles sup-
ported on three-dimensional nitrogen-doped graphene: an efficient catalyst
for selective aerobic oxidation of hydrocarbons under mild conditions, Appl.
Organometal. Chem. 29 (2015) 456–461.
[36] A.S. Sharma, H. Kaur, Sustainable protocol for Benzylic-CH2 oxidation with
dioxygen to phenones using AuNPs@ resin beads, ChemistrySelect 2 (2017)
10112–10117.
[10] Á. Vivancos, C. Segarra, M. Albrecht, Mesoionic and related less het-
eroatom-stabilized N-Heterocyclic carbene complexes: synthesis, catalysis, and
other applications, Chem. Rev. 118 (2018) 9493–9586.
[37] D. Dey, A. Al-Hunaiti, V. Gopal, B. Perumalsamy, G. Balakrishnan, T. Ramasamy,
D. Dharumadurai, Biswas, B. C-H functionalization of alkanes, bactericidal and
antiproliferative studies of a gold(III)-phenanthroline complex, J. Mol. Struct.
1222 (2020) 128919.
[11] M.
Melaimi,
R.
Jazzar,
M.
Soleilhavoup,
G.
Bertrand,
Cyclic
(Alkyl)(amino)carbenes (CAACs): recent developments, Angew. Chem. Int.
Ed. 56 (2017) 10046–10068.
[12] J.C. Bernhammer, N.X. Chong, R. Jothibasu, B. Zhou, H.V. Huynh, Palladium(II)
complexes bearing an indazole-derived N-Heterocyclic carbene and phosphine
[38] H. Li, Z. Li, Z. Shi, Gold-catalyzed benzylic oxidation to carbonyl compounds,
Tetrahedron 65 (2009) 1856–1858.
5
