Syn th esis a n d Ch a r a cter iza tion of New Silver Com p lexes
of Alk yn es. Sin gle-Cr ysta l Str u ctu r es of
(1,1,1,5,5,5-Hexa flu or o-2,4-p en ta n ed ion a to)-
(d ip h en yla cetylen e)silver a n d Tetr a k is(1,1,1,5,5,5-
h exa flu or o-2,4-p en ta n ed ion a to)bis(4-octyn e)tetr a silver
Kai-Ming Chi* and Chia-Tien Lin
Department of Chemistry, National Chung Cheng University, Ming-Hsiung,
Chia-Yi, Taiwan, ROC
Shie-Ming Peng and Gene-Hsiang Lee
Department of Chemistry, National Taiwan University, Taipei, Taiwan, ROC
Received March 12, 1996X
Summary: Novel silver alkyne complexes of the empirical
formula [(hfac)Ag]nL, where hfac ) 1,1,1,5,5,5-hexafluoro-
2,4-pentanedionato and n ) 1 for L ) diphenylacetylene
(1) and bis(trimethylsilyl)acetylene (2) and n ) 2 for L
) 2-butyne (3), 2-hexyne (4), 3-hexyne (5), and 4-octyne
(6), were prepared from reactions of Ag2O with hfacH
in the presence of the corresponding alkynes. X-ray
single-crystal diffraction analyses reveal that compound
1 is a mononuclear silver complex with a coordination
number of 3 and compound 6 is a tetranuclear silver
species in which each silver atom is four-coordinate.
π-coordinated alkyne complexes are [Ag(TBC)2]+, where
TBC ) 1,2:5,6:9,10-tribenzocyclododeca-1,5,9-triene-
3,7,11-triyne,10 and the polymeric species [(CF3SO3)-
AgL]n, where L ) 1,6-cyclodecadiyne, 1,7-cyclododec-
adiyne, and 1,8-cyclotetradecadiyne.11 Thus, it is
valuable to investigate the preparation and structural
properties of (â-diketonato)silver alkyne compounds and
their potential as CVD precursors. Here we report the
synthesis and characterization of several (hfac)Ag alkyne
complexes (hfac ) 1,1,1,5,5,5-hexafluoro-2,4-pentanedi-
onato) and single-crystal structures of two of these
compounds.
In tr od u ction
Exp er im en ta l Section
It has been shown that (â-diketonato)copper(I) com-
plexes of alkynes are suitable for chemical vapor deposi-
tion (CVD) of pure copper films.1 The synthesis and
structural characterization of the analogous compounds
of silver have not been reported, although they have
been mentioned in the patent literature.2 As a matter
of fact, relatively few examples of silver complexes of
alkynes have been reported.3 Most of these compounds
contain silver centers asymmetrically π-coordinated
with acetylenic CtC bonds which σ-bond to other
metals.4-9 The only two examples of symmetrically
Gen er a l P r oced u r es a n d Sta r tin g Ma ter ia ls. All op-
erations were performed under an atmosphere of nitrogen
purified by passage through columns of activated BASF
catalyst and molecular sieves and using standard Schlenk
techniques12 in conjunction with a double-manifold vacuum
line. All hydrocarbon and ethereal solvents were dried and
distilled from sodium benzophenone ketyl at atmospheric
pressure before use. Silver(I) oxide, 1,1,1,5,5,5-hexafluoro-2,4-
pentanedione, diphenylacetylene, bis(trimethylsilyl)acetylene,
2-butyne, 2-hexyne, 3-hexyne, and 4-octyne (Aldrich Chemical
Co.) were used without further purification. Elemental analy-
ses were carried out at the National Science Council Southern
Instrument Center (Department of Chemistry, National Cheng
Kung University). NMR data were recorded on a Varian
Gemini-200 NMR spectrometer by using the protio impurities
* To whom correspondence should be addressed.
X Abstract published in Advance ACS Abstracts, May 1, 1996.
(1) (a) J ain, A.; Chi, K.-M.; Kodas, T. T.; Hampden-Smith, M. J .;
Farr, J . D.; Paffett, M. Chem. Mater. 1991, 3, 995. (b) Baum, T. H.;
Larson, C. E. Chem. Mater. 1992, 4, 365. (c) Kodas, T. T.; Hampden-
Smith, M. J . The Chemistry of Metal CVD; VCH: Weinheim, Germany,
1994; Chapter 5.
(2) Baum, T. H.; Larson, C. E.; Reynolds, S. K. US Patent 5,096,737,
1992.
(3) Lang, H.; Kohler, K.; Blau, S. Coord. Chem. Rev. 1995, 143, 113
and references cited therein.
(4) Corfield, P. W. R.; Shearer, H. M. M. Acta Crystallogr. 1966, 20,
502.
(5) (a) Abu-Salah, O. M.; Bruce, M. I.; Churchill, M. R.; DeBoer, B.
G. J . Chem. Soc., Chem. Commun. 1974, 688. (b) Churchill, M. R.;
DeBoer, B. G. Inorg. Chem. 1975, 14, 2630. (c) Abu-Salah, O. M.;
Bruce, M. I. Aust. J . Chem. 1977, 30, 2639.
(6) (a) Abu-Salah, O.; Knobler, C. B. J . Organomet. Chem. 1986,
302, C10. (b) Mazhar-Ul-Haque; Horne, W.; Abu-Salah, O. M. J .
Crystallogr. Spectrosc. Res. 1992, 22, 421.
(7) (a) Espinet, P.; Fornies, J .; Martinez, F.; Tomas, M.; Lalinde,
E.; Moreno, M. T.; Ruiz, A.; Welch, A. J . J . Chem. Soc., Dalton Trans.
1990, 791. (b) Espinet, P.; Fornies, J .; Martinez, F.; Sotes, M.; Lalinde,
E.; Moreno, M. T.; Ruiz, A.; Welch, A. J . J . Organomet. Chem. 1991,
403, 253. (c) Fornies, J .; Gomez-Saso, M. A.; Martinez, F.; Lalinde,
E.; Moreno, M. T.; Welch, A. J . New. J . Chem. 1992, 16, 483. (d)
Fornies, J .; Lalinde, E.; Martinez, F.; Moreno, M. T.; Welch, A. J . J .
Organomet. Chem. 1993, 455, 271.
1
of deuterated solvents as references for the H NMR and the
13C signals of the solvents as references for 13C NMR spec-
troscopy. 19F NMR spectra were externally referenced to
CFCl3. Infrared data were recorded on a Perkin-Elmer Model
16 PC FTIR spectrophotometer. Melting points were mea-
sured in sealed capillaries on a Thomas-Hoover Unimelt
instrument without calibration.
Syn th esis a n d Ch a r a cter iza tion of th e (h fa c)Ag Com -
p lexes of Alk yn es. a . (h fa c)Ag(P h CtCP h ) (1). A solution
of diphenylacetylene (0.77 g, 4.32 mmol) in 20 mL of Et2O was
transferred to a 250-mL Schlenk flask containing a slurry
(8) J in, X.-L.; Zhou, G.-D.; Wu, N.-Z.; Tang, Y.-Q.; Huang, H.-C. Acta
Chim. Sin. 1990, 48, 232.
(9) Lang, H.; Herres, M.; Zsolnai, L. Organometallics 1993, 12, 5008.
(10) Ferrara, J . D.; Djebli, A.; Tessier-Youngs, C.; Youngs, W. J . J .
Am. Chem. Soc. 1988, 110, 647.
(11) Gleiter, R.; Karcher, M.; Kratz, D.; Ziegler, M. L.; Nuber, B.
Chem. Ber. 1990, 123, 1461.
(12) Shriver, D. F.; Drezdon, M. A. The Manipulation of Air-Sensitive
Compounds, 2nd ed.; Wiley: New York, 1986.
S0276-7333(96)00190-2 CCC: $12.00 © 1996 American Chemical Society

Notes
Organometallics, Vol. 15, No. 11, 1996 2661
Ta ble 1. Su m m a r y of Cr ysta llogr a p h ic Da ta for
Com p ou n d s 1 a n d 6
solution of Ag2O (0.50 g, 2.16 mmol) in Et2O (30 mL). After
the solution was stirred for 30 min and cooled to -30 °C, a
solution of hfacH (0.61, 4.32 mmol) in Et2O (30 mL) was added
to the reaction flask dropwise. The solution mixture was
stirred for 4 h and slowly warmed to room temperature. After
filtration and removal of the volatile components in vacuo (0.1
Torr), a pale yellow powder was obtained. Recrystallization
of the compound from hexane (10 mL) at 0 °C afforded 1.66 g
(78% yield) of analytically pure, white product.
1
6
emp formula
fw
C19H11O2AgF6
493.15
C36H32O8Ag4F24
1480.06
0.08 × 0.30 × 0.60
monoclinic; P21/c
11.475(3)
cryst size (mm3)
space group
a (Å)
0.20 × 0.40 × 0.45
triclinic; P1h
12.335(3)
12.387(3)
14.509(3)
68.945(17)
87.751(20)
66.324(20)
1880.3(7)
4
b (Å)
c (Å)
26.924(6)
16.549(5)
Anal. Calcd for C19H11O2F6Ag: C, 46.28; H, 2.25. Found:
C, 46.06; H, 2.27. NMR data (C6D6, 18 °C): 1H δ 7.49 (m, 4H,
H on diphenylacetylene), 7.02 (m, 6H, H on diphenylacetylene),
6.12 (s, 1H, CH on hfac) ppm; 13C{1H} δ 177.9 (q, J F-C ) 31.7
Hz, CF3CO on hfac), 132.8 (s), 129.4 (s), 129.2 (s), 124.3 (s)
(phenyl C’s on diphenylacetylene), 119.3 (q, J F-C ) 287.3 Hz,
CF3 on hfac), 90.6 (s, PhCtCPh), 88.1 (s, CH on hfac) ppm;
19F{1H} δ -76.5 (s) ppm. IR data (KBr disk): νCtC 1963 (w),
νCO 1659 (s), 1558 (m), 1524 (s), 1498 cm-1. Mp: 113 °C dec.
R (deg)
â (deg)
105.58(3)
γ (deg)
V (Å3)
4924.9(23)
4
1.996
0.7107
298.00
2849
Z
d(calcd) (g/cm3)
λ (Å)
T (K)
1.742
0.7107
298.00
968
F(000)
2θ range (deg)
15.52-25.60
16.66-30.52

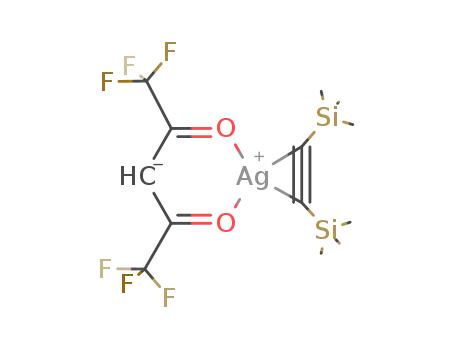

b. (h fa c)Ag(Me3SiCtCSiMe3) (2). White, crystalline
