6826
J. Am. Chem. Soc. 1996, 118, 6826-6840
Synthesis of Sialyl Lewis X Mimetics and Related Structures
Using the Glycosyl Phosphite Methodology and Evaluation of
E-Selectin Inhibition
Chun-Cheng Lin, Makoto Shimazaki, Marie-Pierre Heck, Shin Aoki, Ruo Wang,
Teiji Kimura,† Helena Ritze`n, Shuichi Takayama, Shih-Hsiung Wu,‡
Gabriel Weitz-Schmidt,§ and Chi-Huey Wong*
Contribution from the Department of Chemistry, The Scripps Research Institute,
10666 North Torrey Pines Road, La Jolla, California 92037
ReceiVed July 11, 1995. ReVised Manuscript ReceiVed February 28, 1996X
Abstract: This paper describes our recent study of glycosyl phosphites for glycosylation reactions, with particular
emphasis on the investigation of protecting group and stereochemistry effects on the anomeric reactivity and
stereoselectivity, and the application of this methodology to the synthesis of Lewis X (Lex), Lewis Y (Ley),
glycopeptides, and sialyl Lewis X (SLex) mimetics. Both R-O-fucosyl-L-threonine and R-O-fucosyl-(1R,2R)-2-
aminocyclohexanol were found to be effective templates for the chemical/enzymatic synthesis of SLex mimetics,
and some fucopeptides prepared were 5-10 times more active than SLex as inhibitors of E-selectin.
Introduction
Chart 1. Structure of Glycosyl Phosphites 1-3
Since the introduction of sialyl phosphites as glycosylation
reagents,1,2 the glycosyl phosphite method has been extended
to various glycosylation reactions using monosaccharides3,4 and
disaccharides as donor substrates, and both the mechanism and
alternative Lewis acids have been investigated.3,5 In these
glycosylation reactions, dibenzyl per-O-acetylglycosyl phos-
phites are generally less reactive than the corresponding per-
O-benzylglycosyl phosphites, a trend similar to that observed
with the use of other glycosylation reagents.6 The anomeric
stereoselectivity of glycosyl phosphites in certain cases is,
however, different from that of other glycosylation reagents.
For example, â-O-glycosides are often selectively obtained using
2,3,4,6-tetra-O-benzyl-D-glycosyl phosphite 1a, 1b, or 3,5a
whereas R-O-glycosides are selectively obtained using 2,3,4-
tri-O-benzyl-6-deoxy-L-galactopyranosyl (L-fucopyranosyl) phos-
phite 2 (Chart 1). In order to further evaluate the utility of this
new glycosylation reaction, we have studied the effects of
protecting group and stereochemistry on the glycosylation of
glycosyl phosphites using a limited number of examples,
including the use of 1,3,5-trimethoxybenzene as a weak nu-
cleophile in C-glycosylation reactions7 and other oxygen species
in O-glycosylations. A major effort was then directed toward
the use of glycosyl phosphites in the synthesis of bioactive
O-glycosides, especially O-fucosides.
Many naturally occurring glycoconjugates contain an R-fu-
cosidic linkage at the nonreducing end and are involved in
important intercellular recognition processes. Lewis X (Lex)
trisaccharide 4, Lewis Y (Ley) tetrasaccharide 5,8 and sialyl Lex
(SLex), as shown in Chart 2, for example, are often expressed
on the surface of a variety of tumor cells9 and have emerged as
new targets for drug discovery. The monoclonal antibody
against Ley has been shown to be potentially useful for the
† On leave from the Department of Medicinal Chemistry, Eisai Co., Ltd.,
Tsukuba, Japan.
‡ On leave from the Institute of Biological Chemistry, Academia Sinica,
Taipei, Taiwan.
§ Preclinical Research, Sandoz Pharmaceuticals, Ltd., Basel, Switzerland.
X Abstract published in AdVance ACS Abstracts, June 15, 1996.
(1) Martin, T. J.; Schmidt, R. R. Tetrahedron Lett. 1992, 33, 6123.
(2) Kondo, H.; Ichikawa, Y.; Wong, C.-H. J. Am. Chem. Soc. 1992, 114,
8748.
(3) Kondo, H.; Aoki, S.; Ichikawa, Y.; Halcomb, R. L.; Ritzen, H.; Wong,
C.-H. J. Org. Chem. 1994, 59, 864. Dibenzyl diethylphosphoramidate (DDP)
is commercially available from Aldrich Chemical Co., Inc.
(4) (a) Mu¨ller, T.; Hummel, G.; Schmidt, R. R. Liebigs Ann. Chem. 1994,
325. (b) Martin, T. J.; Brescello, R.; Toepfer, A.; Schmidt, R. R.
Glycoconjugate J. 1993, 10, 16. (c) Martin, T. J.; Schmidt, R. R. Tetrahedron
Lett. 1993, 34, 1765. (d) Sugai, T.; Ritze`n, H.; Wong, C.-H. Tetrahedron:
Asymmetry 1993, 4, 1051. (e) Sim, M. M.; Kondo, H.; Wong, C.-H. J. Am.
Chem. Soc. 1993, 115, 2260. (f) Corey, E. J.; Lee, J. J. Am. Chem. Soc.
1993, 115, 8871.
(5) (a) Hashimoto, S.; Umeo, K.; Sano, A.; Watanabe, N.; Nakajima,
N.; Ikegami, S. Tetrahedron. Lett. 1995, 36, 2251. (b) Watanabe, Y.;
Nakamoto, C.; Ozaki, S. Synlett 1993, 115.
(6) For a review involved in the effects of protecting groups and
stereochemistry on the reactivity of glycosylation reagents on O-glycosy-
lations, see: (a) Paulsen, H. Angew. Chem., Int. Ed. Engl. 1982, 21, 155.
(b) Paulsen, H. Chem. Soc. ReV. 1984, 13, 15. (c) Paulsen, H. Angew. Chem.,
Int. Ed. Engl. 1990, 29, 823. (d) Schmidt, R. R. Angew. Chem., Int. Ed.
Engl. 1986, 25, 212. (e) Schmidt, R. R.; Kinzy, W. AdV. Carbohydr. Chem.
Biochem. 1994, 50, 21.
(7) For a review involved in the synthesis of C-glycosides, see: (a)
Postema, M. H. D. C-Glycoside Synthesis; CRC Press, Inc.: Boca Raton,
FL, 1995; pp 1-377. (b) Postema, M. H. D. Tetrahedron 1992, 48, 8545.
(c) Jaramillo, C.; Knapp, S. Synthesis 1994, 1.
(8) For previous synthetic work toward Lex and Ley, see: (a) Windmu¨ller,
R.; Schmidt, R. R. Tetrahedron Lett. 1994, 35, 7927. (b) Ley: Danishefsky,
S. J.; Behar, V.; Randolph, J. T.; Lloyd, K. O. J. Am. Chem. Soc. 1995,
117, 5701.
(9) (a) Hakomori, S. AdV. Cancer Res. 1989, 52, 257. (b) Varki, A. Proc.
Natl. Acad. Sci. U.S.A. 1994, 91, 7390. (c) Lasky, L. A. Science 1992,
258, 964. (d) Springer, T. A.; Lasky, L. A. Nature 1991, 349, 196. (e)
Feizi, T. TIBS 1991, 16, 84.
S0002-7863(95)02265-7 CCC: $12.00 © 1996 American Chemical Society

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6827
Chart 2. Structure of Lex, Ley, and SLex
Chart 3. Strategy for the Development of SLex Mimetics:
Use of Thr or (1R,2R)-2-Aminocyclohexanol as a Template
To Fix the Fucosidic and Galactosidic Torsion Angles
hydroxy acid (P1) to replace the Gal residue and a carboxylate-
or sulfate-containing group (P2) to replace the Neu5Ac residue
(Chart 3). Since the two stereogenic centers of Thr or
2-aminocyclohexanol are consistent with the trans-diol stere-
ochemistry of the GlcNAc group in SLex, the fucose and Gal-
mimetic components are expected to have a proper orientation
in space to mimic the corresponding Lex component of SLex.
treatment of several human cancers,10-13 and the sialyl Lewis
X (SLex) saccharide, a ligand for E-selectin, has been identified
as a new anti-inflammatory agent.14,15a
Although SLex can be prepared on large scales15a and
currently is being used in clinical trials for the treatment of
reperfusion injury and heart attack, it can only be used as an
injectable form because it is orally inactive and unstable. As
the free and bound conformations15 of SLex, the X-ray structure
of the human E-selectin,16 and the functional groups of SLex
required for E-selectin interaction17 are known, current efforts
of our group and others have been directed toward the design
and synthesis of less complex structures which mimic the active
conformation of SLex.18 Our strategy described in this paper
is to develop novel fucopeptides as SLex mimetics. We chose

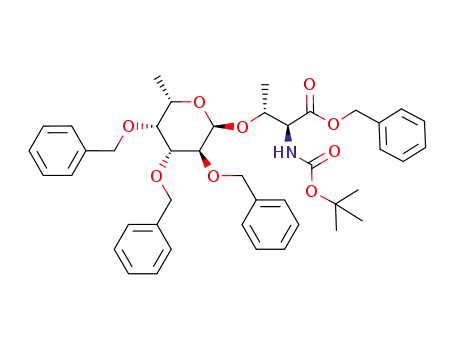

O-R-fucopyranosyl-L-threonine or R-O-fucopyranosyl-(1R,2R)-
2-aminocyclohexanol as a template for incorporation of a
Results and Discussion
C-Glycosylations. In order to further understand the ano-
meric reactivity and stereoselectivity of glycosyl phosphites, we
first prepared both the R- and â-anomers of dibenzyl 2,3,4-tri-
O-acetyl-L-fucosyl phosphites 6 and 7 and both the R- and
â-anomers of dibenzyl 2,3,4,6-tetra-O-acetyl-D-glycosyl phos-
phites 8-10 according to the procedure described previously1
and examined their C-glycosylation reaction19 with the weak
nucleophile 1,3,5-trimethoxybenzene (TMB) in the presence of
0.5 equiv of trimethylsilyl triflate (TMSOTf). Also, the 6-O-
(tert-butyldiphenylsilyl) (TBDPS) and 6-O-benzyl derivatives
11 and 12 and 2,3,4-tri-O-benzyl-L-fucosyl phosphite 2 were
prepared and examined under the same conditions. The results
are summarized in Table 1.
(10) Tril, P. A.; Willner, D.; Lasch, S. J.; Henderson, A. J.; Hofstead,
S.; Casazza, A. M.; Firestone, R. A.; Hellstro¨m, I.; Hellstro¨m, K. E. Science
1993, 261, 212.
(11) Fell, H. P.; Yarnold, S.; Hellstro¨m, I.; Hellstro¨m, K. E.; Folger, K.
R. Proc. Natl. Acad. Sci. U.S.A. 1989, 86, 8507.
(12) Hellstro¨m, I.; Garrigues, H. J.; Garrigues, U.; Hellstro¨m, K. E.
Cancer Res. 1990, 50, 2183.
(17) The three OH groups of the Fuc residue, the 4- and 6-OH groups
of the Gal residue, and the CO2- group of the NeuAc residue are essential:
(a) Stahl, W.; Sprengard, U.; Kretzschmar, G.; Kunz, H. Angew. Chem.,
Int. Ed. Engl. 1994, 33, 2096. (b) Ramphal, J. Y.; Zheng, Z.-L.; Perez, C.;
Walker, L. E.; DeFrees, S. A.; Gaeta, F. C. A. J. Med. Chem. 1994, 37,
3459. (c) DeFrees, S. A.; Gaeta, F. C. A.; Lin, Y.-C.; Ichikawa, Y.; Wong,
C.-H. J. Am. Chem. Soc. 1993, 115, 7549. (d) Brandley, B. K.; Kiso, M.;
Abbas, S.; Nikrad, P.; Srivastava, O.; Foxall, C.; Oda, Y.; Hasegawa, A.
Glycobiology 1993, 3, 633. (e) Tyrrell, D.; James, P.; Rao, N.; Foxall, C.;
Abbas, S.; Dasgupta, F.; Nashed, M.; Hasegawa, A.; Kiso, M.; Asa, D.;
Kidd, J.; Brandley, B. K. Proc. Natl. Acad. Sci. U.S.A. 1991, 88, 10372. (f)
Nelson, R. M.; Dolish, S.; Aruffo, A.; Cecconi, O.; Bevilacqua, M. P. J.
Clin. InVest. 1993, 91, 1157.
(18) (a) Bamford, M. J.; Bird, M.; Gore, P. M.; Holmes, D. S.; Priest,
R.; Prodger, J. C.; Saez, V. Bioorg. Med. Chem. Lett. 1996, 6, 239. (b)-
Thoma, G.; Schwarzenbach, F.; Duthaler, R. O. J. Org. Chem. 1996, 61,
514. (c) Huang, H.; Wong, C.-H. J. Org. Chem. 1995, 60, 3100. (d)
Uchiyama, T.; Vassilev, V. P.; Kajimoto, T.; Wong, W.; Huang, H; Lin,
C.-C.; Wong, C.-H. J. Am. Chem. Soc. 1995, 117, 5395. (e) Kogan, T. P.;
Dupye, B.; Keller, K. M.; Scott, I. L.; Bui, H.; Market, B. V.; Beck, P. J.;
Voytus, J. A.; Revelle, B. M.; Scott, D. J. Med. Chem. 1995, 38, 4976. (f)
Bertozzi, C. R. Chem. Biol. 1995, 2, 703. (g) DeFrees, S. A.; Kosch, W.;
Way, W.; Paulson, J. C.; Sabesan, S.; Halcomb, R. L.; Huang, D.-H.;
Ichikawa, Y.; Wong, C.-H. J. Am. Chem. Soc. 1995, 117, 66. (h) Prodger,
J. C.; Bamford, M. J.; Gore, P. M.; Holms, D. S.; Saez, V.; Ward, P.
Tetrahedron Lett. 1995, 36, 2339. (i) Hanessian, S.; Prabhanjan, H. Synlett
1994, 868. (j) Allanson, N. M.; Davidson, A. D.; Martin, F. M. Tetrahedron
Lett. 1993, 34, 3945. (k) Ragan, J. A.; Cooper, K. Bioorg. Med. Chem.
Lett. 1994, 4, 2563. (l) Narasinga Rao, B. N.; Anderson, M. B.; Musser, J.
H.; Gilbert, J. H.; Schaefer, M. E.; Foxall, C.; Brardley, B. K. J. Biol. Chem.
1994, 269, 19663.
(13) Jeffrey, P. D.; Bajorath, J.; Chang, C.-Y. Y.; Yelton, D.; Hellstro¨m,
I.; Hellstro¨m, K. E.; Sheriff, S. Nature Struct. Biol. 1995, 2, 466.
(14) (a) Phillips, M. L.; Nudelman, E.; Gaeta, F. C. A.; Perez, M.;
Singhal, A. K.; Hakomori, S.; Paulson, J. C. Science 1990, 250, 1132. (b)
Walz, G.; Aruffo, A.; Kolanus, W.; Bevilacqua, M.; Seed, B. Science 1990,
250, 1130. (c) Lowe, J. B.; Stoolman, L. M.; Nair, R. P.; Larsen, R. D.;
Berhend, T. L.; Marks, R. M. Cell 1990, 63, 475. (d) Kameyama, A.; Ishida,
H.; Kiso, M.; Hasegawa, A. Carbohydr. Res. 1991, 209, C1. (e) Nicolaou,
K. C.; Hummel, C. W.; Bockovich, N. J.; Wong, C.-H. J. Chem. Soc., Chem.
Commun. 1991, 870. (f) Danishefsky, S. J.; Gervay, J.; Perterson, J. M.;
McDonald, F. E.; Koseki, K.; Oriyama, T.; Griffith, D. A. J. Am. Chem.
Soc. 1992, 114, 8329. (g) Singh, K.; Ferna´ndez-Mayoralas, A.; Lomas, M.
J. J. Chem. Soc., Chem. Commun. 1994, 775. (h) Palcic, M. M.; Venot, A.;
Ratcliffe, R. M.; Hindsgaul, O. Carbohydr. Res. 1989, 190, 1.
(15) For the free conformation, see: (a) Ichikawa, Y.; Lin, Y.-C.; Dumas,
D. P.; Shen, G.-J.; Garcia-Junceda, E.; Williams, M. A.; Bayer, R.; Ketcham,
C.; Walker, L.; Paulson, J. C.; Wong, C.-H. J. Am. Chem. Soc. 1992, 114,
9283. (b) Ball, G. E.; O’Neill, R. A.; Schultz, J. E.; Lowe, J. B.; Weston,
B. W.; Nagy, J. O.; Brown, E. G.; Hobbs, C. J.; Bendnarski, M. D. J. Am.
Chem. Soc. 1992, 114, 5449. For the bound conformation based on transfer
NOE, see: (c) Cooke, R. M.; Hale, R. S.; Lister, S. G.; Shah, G.; Weir, M.
P. Biochemistry 1994, 33, 10591. (d) Scheffler, K.; Ernst, B.; Katopodis,
A.; Magnani,J. L.; Wang, W. T.; Weisemann, R.; Peters, T. Angew. Chem.,
Int. Ed. Engl. 1995, 34, 1841.
(16) Graves, B. J.; Crowther, R. L.; Chandran, C.; Rumberger, J. M.;
Li, S.; Huang, K. S.; Presky, D. H.; Familletti, P. C.; Wolitzky, B. A.;
Burns, D. K. Nature 1994, 367, 532.

6828 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
Table 1. Coupling of 1,3,5-Trimethoxybenzene (2 equiv) with
Various Glycosyl Phosphites in CH2Cl2
Scheme 1
Scheme 2
a
a All reactions were carried out in CH2Cl2 in the presence of 2 equiv
of TMB and 0.5 equiv of TMSOTf for 1 h. For a general procedure,
see the Experimental Section.
2). In the O-glycosylation reactions, glycosyl phosphites can
be activated by TMSOTf, or preferentially by trifluoromethane-
sulfonic acid (TfOH) generated from the reaction of TMSOTf
with the acceptor hydroxyl group.3 In the C-glycosylation
reactions at -15 or -78 °C, however, TMSOTf activates
glycosyl phosphites instead of TMB as no reaction between
TMSOTf and TMB has been observed.
While both 8 and 9 gave the corresponding â-C-galactoside
15 at -15 °C as described above, an R- and â-mixture (1:1) of
glucosyl phosphite 104e gave only the R-orthoester 20,3 and even
a trace amount of C-glucoside 21 was not obtained. Perhaps
20 is relatively more stable for activation, and/or the axial group
of 8, 9, or 14 also participates in the anomeric activation.
Indeed, it was observed that the glucose type orthoester 20 was
more stable than the galactose type 14 for activation.
To further investigate the effect of the 6-O-protecting group
of galactosyl phosphite on the C-glycosylation reaction, the 6-O-
(tert-butyldiphenylsilyl) derivative 11 (R:â ) 62:38) and the
6-O-benzyl derivative 12 (R:â ) 76:24) were subjected to the
same reaction conditions as those for 8 and 9. It was found
that both reacted faster to give the corresponding â-C-glycosides
22 and 23 in 52% and 77% yields, respectively, and only trace
amounts of the corresponding R-orthoesters were observed. It
appears that, in the case of R-phosphites, the ones with a 6-ether
type of protecting group are more reactive than those with an
ester type of protecting group due to the electronic effect, and
the 6-ester derivatives are more reactive than the 6-deoxy
derivatives due to the 6-acyl participation in the anomeric
activation. This is further supported by the observation that
no reaction was observed when 6 was treated with TMB at -78
or -15 °C in the presence of TMSOTf (0.2 equiv). In the case
When the reaction was carried out at -78 °C, â-fucosyl
phosphite 7 gave the expected C-fucoside 13,3 but no reaction
was observed for R-fucosyl phosphite 6 either at this temperature
or at -15 °C. However, both R- and â-galactosyl phosphites
8 and 9 gave the R-orthoester 14 as the sole product at -78
°C, and a mixture of 14 and â-C-galactoside 15 was obtained
at -15 °C. As expected, â-glycosyl phosphites are more
reactive than the R-isomers. The 6-ester group of R-galactosyl
phosphite perhaps participates in the activation process through
the formation of 18 and 19, as the corresponding 6-deoxy
enantiomer 6 is inactive at -78 °C. In an analogous case, the
reaction of 6-acetamido-2,3,4-tri-O-benzyl-6-deoxy-D-glucopy-
ranose (16) with thionyl chloride gave compound 17 (Scheme
1).20 It was indeed shown in our previous study that both
orthoester 14 and the intermediate 19 react at -78 °C with an
oxygen nucleophile in the presence of TMSOTf.3 When the
weak nucleophile TMB was used at -78 °C, the only product
was 14, which was isolated and in reaction with TMB and
TMSOTf (cat) at -15 °C gave the â-C-galactoside 15 (Scheme
(19) For other syntheses of C-aryl glycosides, see: (a) Mahling, J.-A.;
Jung, K.-H.; Schmidt, R. R. Liebigs Ann. Chem. 1995, 461. (b) Ramaiah,
P. A.; Row, L. R.; Reddy, D. S.; Anjaneyulu, A. S. R.; Ward, R. S.; Pelter,
A. J. Chem. Soc., Perkin Trans. 1 1979, 2313. (c) Eade, R. A.; Pham, H.-
P. Aust. J. Chem. 1979, 32, 2483. (d) Mahling, J.-A.; Schmidt, R. R. Liebigs
Ann. Chem. 1995, 467. (e) Stewart, A. O.; Williams, R. M. J. Am. Chem.
Soc. 1985, 107, 4289. (f) Schmidt, R. R.; Hoffmann, M. Tetrahedron Lett.
1982, 23, 409. (g) Matsumoto, T.; Katsuki, M.; Suzuki, K. Tetrahedron
Lett. 1989, 30, 833.
(20) Ueno, T.; Kurihara, N.; Hashimoto, S.; Nakajima, M. Agric. Biol.
Chem. 1967, 31, 1346.

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6829
Table 3. Effect of Lewis Acids on the Fucosylation of 26
Scheme 3
entry
Lewis acid
TfOH (0.05 equiv)
TMSOTf (0.05 equiv)
TMSOTf (0.5 equiv)
ZnCl2 (1.2 equiv)
yield (%) R:â ratio
1
2
3
4
5
73
68
47
92:8
92:8
92:8
trace
76
ZnCl2 (1.2 equiv)/AgClO4 (2.2 equiv)
98:2
Scheme 4a
Table 2. Fucosylation of 26-38 with Fucopyranosyl Phosphite 2a
a Conditions: (a) (i) BH3-NMe3, THF, rt, 30 min. (ii) AlCl3, THF,
rt, 18 h. (b) 12, TMSOTf (0.3 equiv), CH2Cl2, -20 °C, 1 d.
Scheme 5a
a Conditions: (a) lactose, â-galactosidase (B. circulans), 20 mM
phosphate buffer/MeCN (1:1), rt, 48 h. (b) TBDPSCl (2.2 equiv),
imidazole, DMF, rt, 8 h. (c) TBDPSCl, (2.0 equiv), imidazole, CH2Cl2,
rt, 8 h.
have been encountered with the use of glycosyl phosphites.
When mannosyl phosphite (with acetyl or benzyl protecting
groups) was used in the C-glycosylation reaction, traces of
unidentified byproducts were formed, but no desired products
were observed probably due to the steric hinderance caused by
the 2-axial group. The O-glycosylations, however, proceeded
smoothly.3 In an attempt to prepare 2-deoxy-2-azidoglycosyl
phosphites, the products were not obtained, probably because
of the reaction between the azido and phosphite groups.
O-Glycosylations and Synthesis of Lex and Ley. With the
appropriate choice of protecting groups to maximize the
reactivity and yield, compound 2 (R:â ) 99:1)3 was used in
the fucosylation of 2621 and other hydroxy derivatives (27-
38) in the presence of TfOH, and the results are shown in Table
2. The R-selectivity in the fucosylation of secondary alcohols
is relatively high except in reaction with the cyclohexanol
derivative.
a All reactions were carried out in CH2Cl2 in the presence of TfOHb
and 0.8 equiv of 2 for 1 h at -15 °C. For a general procedure, see the
Experimental Section. b 1.2 equiv for the reaction of 31 and 0.05 equiv
for the other reactions were employed. c Unable to know the ratio of
four diastereomers due to the complex 1H NMR spectrum. It was
1
estimated on the basis of the H and 13C NMR that the major product
was bis-R-L-fucoside.
of â-phosphites, interestingly, 7 was more reactive than 9 toward
the C-nucleophole, presumably due to the electronic effect.
Compound 6 is, however, as reactive as 7 toward benzyl alcohol
to form the expected â-O-glycoside 24 in 85% yield (Scheme
3). Therefore, the differences in the anomeric reactivity and
selectivity of glycosyl phosphites are more easily detected with
the use of a weaker nucleophile as indicated in the C-
glycosylation reactions. An explanation of the results from the
peracetylated R-phosphite 8 is summarized in Scheme 2.
In order to improve the reactivity of R-fucosyl phosphite in
the C-glycosylation reactions, the ether derivative 2,3,4-tri-O-
benzyl-L-R-fucopyranosyl phosphite (2) was reacted with TMB
under the same conditions, and as expected, the â-C-fucoside
25 was obtained in 68% yield (Scheme 3). Some problems
The fucosylation of 26 with 2 in the presence of 0.05 equiv
of TfOH gave 39 (R:â ) 92:8) in 73% yield. Using TMSOTf
as the promoter, a similar result was observed. However, a
lower yield (47%) was obtained when 0.5 equiv of the promoter
was used (Table 3). Using a stoichiometric amount of zinc
chloride as a promoter in the glycosylation reactions gave a
(21) Lemieux, R.; Bundle, D. R.; Baker, D. A. J. Am. Chem. Soc. 1975,
97, 4076.

6830 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
Scheme 6
Scheme 7a
Table 4. Structures and IC50 Values of SLex Mimeticsa
a Conditions: (a) N-hydroxysuccinimide, EDC, DMF, CH2Cl2, rt, 2
h. (b) 59, 60, DMF, CH2Cl2, rt, 15 h. (c) (i) 47, 48 treated with 30%
TFA, Et3N, HOBt, EDC, CH2Cl2, 30 min. (ii) H2 (1 atm), 20% Pd(OH)2
on C, MeOH, rt, 24 h. (d) (i) 50% TFA, CH2Cl2, rt, 3 h. (ii) 47 treated
with 30% TFA, HOBt, EDC, CH2Cl2, 30 min. (iii) H2 (1 atm), 20%
Pd(OH)2 on C, MeOH, rt, 24 h.
6,3′,6′-tri-O-TBDPS LacNAc derivative 27 by further silylation
with TBDPSCl in CH2Cl2. Double fucosylation of 27 with 2
gave 40, which is equivalent to the Ley tetrasaccharide 5.
a IC50 values were determined in a cell free assay for inhibition of
E-selectin binding to poly-SLex and compared to â-methyl SLex
glycoside (IC50 ) 0.5 mM).
An interesting observation in the O-glycosylation using
R-galactosyl phosphite with a tri-O-acetyl or tri-O-benzyl
protecting group is that only the â-isomer is obtained as a
product. Using the corresponding tri-O-benzylglycosyl chloride
or bromide,6a or trichloroimidate,6d however, gave the R-gly-
coside (in the former case) or a mixture of R- and â-glycosides
(in the latter case). To achieve R-galactosylation using the
phosphite methodology, the 6-acyl participation strategy was
employed with the use of 6-O-acetylgalactosyl phosphite 57 as
the glycosylation reagent. As shown in Scheme 6, the glyco-
sylation reaction gave an 85:15 R/â mixture of the product.
Sialyl Lewis X Mimetics. We then applied the glycosylation
method to the synthesis of fucopeptides as SLex mimetics.
Though the glycosylation of N-acylated â-hydroxy amino acid
derivatives is a useful procedure for the synthesis of O-linked
glycopeptides, this reaction often gives low yields and poor R/â-
selectivity.24 Polt et al. attributed the problem to the decreased
nucleophilicity of the glycosyl acceptors due to a hydrogen-
bonding interaction between the acceptor OH and NH groups.25
A low R-selectivity was also observed in our fucosylation
reaction; however, as shown in Table 2, the R-selectivity in the
O-R-fucosylation of N-acylated â-hydroxy amino acid deriva-
tives 28-3626 is improved when benzyl ester is used as the
very low yield (entry 4). A relatively high yield and high
R-selectivity were, however, observed in the presence of
4f
AgClO4 (entry 5).
As shown in Scheme 4 compound 39 was then subjected to
the selective reduction22 with borane-trimethylamine complex
in the presence of aluminum trichloride to give 52 in 51% yield.
The â-galactosylation of 52 was then carried out with 12 (R:â
) 33:67) to obtain 53 (â > 99%) which is equivalent to the
Lex trisaccharide 4 (Scheme 4).
For the synthesis of Ley tetrasaccharide 5, compound 27 was
prepared for fucosylation according to the procedure shown in
Scheme 5. The â-galactosidase from Bacillus circulans was
used in the 4-O-â-galactosylation of benzyl 2-acetamido-2-
deoxy-R-D-glucopyranoside (54) to give the LacNAc derivative
55 in 59% yield.23 Silylation of 55 with tert-butyldiphenylsilyl
chloride (TBDPSCl) was carried out in DMF to obtain the 6,6′-
di-O-TBDPS LacNAc derivative 56, which was converted to
(24) (a) Nicolaou, K. C.; Caufield, T. J.; Kataoka, H.; Stylianides, N. A.
Carbohydr. Res. 1990, 202, 177. (b) Lacombe, J. M.; Pavia, J. Org. Chem.
1983, 48, 2557. (c) Garg, H. G.; Jeanloz, R. W. Carbohydr. Res. 1976, 49,
482.
(22) Garegg, P. J.; Hultberg, H.; Oscarson, S. J. J. Carbohydr. Chem.
1983, 2, 305.
(23) Takayama, S.; Shimazaki, M.; Wong, C.-H. Bioorg. Med. Chem.
Lett., in press.
(25) Polt, R.; Szabo`, L.; Treiberg, J.; Li, Y.; Hruby, V. J. J. Am. Chem.
Soc. 1992, 114, 10249.

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6831
Scheme 8a
Scheme 9a
a Conditions: (a) (i) 30% TFA, CH2Cl2. (ii) Fmoc-4(OH)-L-Pro (1.3
equiv), ECC, HOBt, CH2Cl2, rt, 6 h. (b) (i) 40% Et2NH, THF, 2 h. (ii)
80 (2 equiv) EDC, HOBt, CH2Cl2, 6 h. (c) H2, Pd(OH)2 on C, EtOH/
H2O (2:1), 6 h.
Scheme 10a
a Conditions: (a) sialic acid aldolase. (b) Dowex 50W (H+), MeOH,
reflux, 2 h. (c) (i) PhCH(OMe)2, CSA, DMF, 60 °C, 16 h. (ii) LiOH,
MeOH, 25 °C, 2 h. (d) 48 treated with 30% TFA, Et3N-HOBt, EDC,
NMM, DMF, -20 °C to about rt, 12 h. (e) SO3‚NMe3, Py, rt, 6 h. (f)
(i) H2, Pd(OH)2, MeOH, rt, 12 h. (ii) Dowex 50W-X8 (Na+), H2O, 2
h.
carboxyl protecting group. For comparison, the fucosylation
of 34 with the trichloroacetoimidate method6d gave 47 in 82%
yield and 90% R-selectivity. Using the phosphite method, 47
was obtained in 84% yield and 99% R-selectivity. The
chemoselective O-fucosylation of Ser benzyl ester 31 was
accomplished in the presence of 1.2 equiv of TfOH to obtain
44 as a sole product, though the yield was relatively low
compared to that of 41-43.
In the synthesis of SLex mimetics,27 compounds 65-71
shown in Table 4 were prepared by incorporating hydroxy acids
such as 59-6428-30 and glutarate or aspartate into the N-
deprotected R-O-L-fucosyl derivatives 47 and 48 as described
in Schemes 7-10. These fucopeptides were to mimic the
configuration and essential functional groups of SLex according
to the previous studies.15a,17 Fucopeptides 72-79 were syn-
a Conditions: (a) (i) 30% TFA, CH2Cl2. (ii) Cbz-(3,4-OH)-D-Pro (1.3
equiv), EDC, HOBt, CH2Cl2, rt, 6 h. (b) (i) 10% Pd/C, EtOAc/MeOH
(1:1), 2 h. (ii) 80 (2 equiv) EDC, HOBt, CH2Cl2, 6 h. (c) H2, Pd(OH)2,
EtOH/H2O (2:1), 6 h. (d) (i) MeOH, SOCl2, reflux overnight. (ii) Cbz-
Cl, DIEA, 2 h. (e) (i) MsCl, Et3N, CH2Cl2. (ii) PhSe-SePh, NaBH4,
EtOH, 2 h. (f) H2O, Pyr, CH2Cl2, 2 h. (g) (i) K2OsO4, NMO, 0 °C. (ii)
0.1 N LiOH (2 equiv), THF/H2O (1:1), 4 h.
(26) Compounds 28, 31, and 33 were purchased from Bachem Bioscience
Inc., and 29, 30, 32, and 34-36 were prepared from the corresponding
amino acids according to a reported procedure; see: Wang, S.-S.; Gisin,
B. F.; Winter, D. P.; Makotske, R.; Kulesha, I. D. J. Org. Chem. 1977, 42,
1287. For the synthesis of 37, see: Takada, H.; Takagi, S.; Kawakubo, H.
Bull. Chem. Soc. Jpn. 1994, 67, 1196. For the synthesis of 38, see: Faber,
K.; Ho¨nig, H.; Seufer-Wasserthal, P. Tetrahedron Lett. 1988, 29, 1903.
(27) For the synthesis of 65, see: Wu, S.-H.; Shimazaki, M.; Lin, C.-
C.; Qiao, L.; Moree, W. J.; Weitz-Schmidt, G.; Wong, C.-H. Angew. Chem.,
Int. Ed. Engl. 1996, 35, 88.
(28) For the synthesis of 59, see: Vassilev, V. P.; Uchiyama, T.;
Kajimoto, T.; Wong, C.-H. Tetrahedron Lett. 1995, 36, 4081.
(29) For the synthesis of 60, see: Nakamura, Y.; Shin, C. Chem. Lett.
1992, 49.
thesized from 51 via reduction with triphenylphosphine31
according to Schemes 11-13. Deprotection of the BOC group
in 50 with trifluoroacetic acid (TFA) also cleaved the glycosidic
bond, whereas the glycosidic bonds of 47 and 48 were stable
under the same conditions. All the mimetics prepared were
stereochemically pure.
(31) (a) Dong, Z.; Butcher Jr., J. A. Tetrahedron Lett. 1991, 32, 5291.
(b) Greilich, U.; Zimmermann, P.; Jung, K. H.; Schmidt, R. R. Liebigs
Ann. Chem. 1993, 859.
(30) For the synthesis of 62, see: Fitz, W.; Schwark, J.-R.; Wong, C.-
H. J. Org. Chem. 1995, 60, 3663.

6832 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
Scheme 11a
Scheme 13a
a Conditions: (a) 92, HOBt, NMM, EDC, DMF, -20 °C to about
rt, 12 h. (b) BrCH2COOMe, NaH, Bu4NI, DMF, rt, 4 h. (c) H2 (1 atm),
20% Pd(OH)2 on C, MeOH, rt, 12 h. (d) 0.1 N NaOH, rt, 4 h.
a Conditions: (a) Ph3P, benzene, reflux, 15 h. (b) (i) N-Fmoc
derivative of 59, HOBt, EDC, CH2Cl2, 0 °C to about rt, 6 h. (c) (i)
Et2NH, CH2Cl2, rt, 7 h. (ii) Succinic acid or glutaric acid monobenzyl
ester or N-Boc-aspartic acid â-benzyl ester, HOBt, EDC, CH2Cl2, 0
°C to about rt, 9 h. (d) H2 (1 atm), 20% Pd(OH)2 on C, MeOH, rt, 6
h. (e) H2 (1 atm), 20% Pd(OH)2 on carbon, MeOH, rt, 18 h.
Scheme 12a
Figure 1. Overlay of three SLex conformations and their glycosidic
torsion angles (φ/ψ for NeuAc-Gal, Gal-GlcNAc, and Fuc-GlcNAc):
white, solution conformation determined by NMR15a (167/-63, 48/15,
23/30); gray, a predicted conformation based on GESA15a (-79/7, 55/
7, 48/25); black, bound conformation determined by transfer NOE15d
(-76/6, 39/12, 38/26).
peptide bonds. Replacement of the Thr component with
(1R,2R)-2-aminocyclohexanol26 resulted in a significant decrease
in activity as shown in 73. However, replacement of the P2
residue with a four-carbon acid provides active mimetics (e.g.,
72 and 74). Compounds 69 and 79 are inactive at 3 mM.
Perhaps the OH groups equivalent to the Gal residue are too
far away from the Fuc residue. It appears that the charge-
charge and multi-hydrogen-bonding interactions between E-
selectin and SLex have to be precisely matched in the mimetic
design. Work is in progress to prepare the next generation of
SLex mimetics with restricted conformation mimicking the
bound structure (Figure 1).
a Conditions: (a) (i) 50% TFA, CH2Cl2, rt, 3 h. (ii) 92, HOBt, EDC,
CH2Cl2, rt, 20 h. (iii) H2 (1 atm), 20% Pd(OH)2 on C, MeOH, rt, 6 h.
The activities of these fucopeptides were determined and their
IC50 values in inhibiting the SLex glycoconjugate binding to
E-selectin32 are shown in Table 4. According to the results, all
the functional groups required for E-selectin binding in SLex
exist in 65, and as expected it exhibited the same activity as
SLex (IC50 ) 0.5 mM). Compounds 66 and 67 are slightly less
active than SLex, probably due to the presence of a free carboxyl
group in the Thr moiety. Compound 68 is, however, surpris-
ingly active as the OH group of Tyr in 68 is not exactly a mimic
in space of the essential OH groups of the Gal residue in SLex.
Whether the hydrophobic nature of the aromatic group or the
additional amino group contributes to the binding is unclear.
Compounds 70 and 71 are more active than SLex, perhaps due
to the increasing constraint of the hydroxyproline-containing
In summary, we have investigated the effects of protecting
group and stereochemistry6,33 on the C- and O-glycosylation
reactions using glycosyl phosphites. This method is comple-
mentary to other glycosylation methods6,34 and is of general
use35 except that 2-deoxy-2-azido sugars are not applicable and
N-protected 2-amino sugars should be used.3 Some of the sialyl
Lewis X mimetics prepared in this study exihit greater inhibitory
activities than SLex against E-selectin.
(32) The cell free assay was similar to that described in ref 18g except
that a synthetic SLex polymer instead of HL-60 cells was used: Weitz-
Schmidt, G.; Stokmaier, D.; Scheel, G.; Nifant’ev, N. E.; Tuzikov, A. B.;
Bovin, N. V. Ann. Biochem., in press.
(33) Feather, M. S.; Harris, J. F. J. Org. Chem. 1965, 30, 153 and
references cited therein. For a recent investigation of the hydrolysis of
n-pentenyl glycosides, see: Wilson, B. G.; Fraser-Reid, B. J. Org. Chem.
1995, 60, 317.

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6833
temperature. The reaction was quenched by addition of Et3N (0.5 mL),
and the resulting reaction mixture was diluted with AcOEt and washed
with 5% NaHCO3, 10% HCl, and 5% NaHCO3, successively. After
drying over MgSO4, the solvent was removed and the residue was
purified by flash chromatography (hexane/AcOEt) to give 13 mg of
14 (22%) and 16 mg of 15 (32%) as a viscous oil.
Experimental Section
Synthesis of Glycosyl Phosphites 2 and 6-12. The syntheses of
2 and 6-12 were carried out according to the reported procedure,3 and
the anomeric mixtures were separated by silica gel column chroma-
tography (hexane:EtOAc:Et3N ) 10:1:0.1).3,4e Compound 710 was
prepared as described previously.
1
Compound 14: H NMR (CDCl3) δ 1.67 (d, J ) 10.9 Hz, 3H),
1
Compound 6: H NMR (CDCl3) δ 1.05 (d, J ) 6.5 Hz, 3H), 1.89
2.068 (s, 3H), 2.074 (s, 3H), 2.10 (s, 3H), 4.14 (m, 2H), 4.29-4.34
(m, 2H), 5.04-5.13 (m, 5H), 5.40 (dd, J ) 2.3, 3.3 Hz, 1H), 6.07 (d,
J ) 4.8 Hz, 1H), 7.35 (br s, 10H); 13C NMR (CDCl3) δ 20.54, 20.74,
22.89, 23.09, 61.49, 65.68, 68.51, 68.94, 72.98, 98.90, 128.00, 128.51,
128.57, 128.69; HRMS calcd for C28H33O12PCs (M + Cs) 725.0764,
found 725.0794.
(s, 3H), 2.00 (s, 3H), 2.16 (s, 3H), 4.21 (q, J ) 6.4 Hz, 1H), 4.90 (dd,
J ) 5.2 and 7.9 Hz, 2H), 4.94 (d, J ) 7.4 Hz, 2H), 5.18 (dd, J ) 3.4
and 10.8 Hz, 1H), 5.28 (d, J ) 3.2 Hz, 1H), 5.39 (dd, J ) 3.2 and 10.8
Hz, 1H), 5.76 (dd, J ) 3.5 and 8.3 Hz, 1H), 7.26-7.37 (m, 10H).
Compound 8: 1H NMR (CDCl3) δ 1.88 (s, 3H), 1.93 (s, 3H), 2.00
(s, 3H), 2.14 (s, 3H), 3.98 (dd, J ) 6.7 and 11.4 Hz, 1H), 4.06 (dd, J
) 6.4 and 11.2 Hz, 1H), 4.34 (t, J ) 6.5 Hz, 1H), 4.90 (d, J ) 8.0 Hz,
2H), 4.93 (dd, J ) 2.2 and 8.0 Hz, 2H), 5.20 (dd, J ) 3.4 and 10.8 Hz,
1H), 5.40 (dd, J ) 3.3 and 10.8 Hz, 1H), 5.45 (dd, J ) 1.2 and 3.2 Hz,
1H), 5.82 (dd, J ) 3.4 and 8.3 Hz, 1H), 7.28-7.36 (m, 10H).
Compound 9: 1H NMR (CDCl3) δ 1.91 (s, 3H), 1.99 (s, 6H), 2.17
(s, 3H), 3.97 (t, J ) 6.8 Hz, 1H), 4.12 (dd, J ) 7.0 and 11.5 Hz, 1H),
4.16 (dd, J ) 6.4 and 11.5 Hz, 1H), 4.84 (dd, J ) 7.0 and 12.2 Hz,
1H), 4.92 (d, J ) 7.2 Hz, 2H), 4.95 (dd, J ) 7.3 and 12.2 Hz, 1H),
5.05 (dd, J ) 3.5 and 10.5 Hz, 1H), 5.07 (dd, J ) 7.8 and 8.2 Hz, 1H),
5.35 (dd, J ) 7.8 and 10.5 Hz, 1H), 5.41 (dd, J ) 1.0 and 3.5 Hz, 1H),
7.29-7.37 (m, 10H).
Compound 15: 1H NMR (CDCl3) δ 2.00 (s, 3H), 2.03 (s, 3H), 2.05
(s, 3H), 2.20 (s, 3H), 3.79 (s, 6H), 3.87 (s, 3H), 3.98 (ddd, J ) 1.0,
6.0, 7.2 Hz, 1H), 4.11 (dd, J ) 6.1, 11.2 Hz, 1H), 4.17 (dd, J ) 7.6,
11.1 Hz, 1H), 4.97 (d, J ) 10.0 Hz, 1H), 5.12 (dd, J ) 3.4, 10.0 Hz,
1H), 5.48 (dd, J ) 0.9, 3.4 Hz, 1H), 6.07 (d, J ) 2.2 Hz, 1H), 6.110
(t, J ) 10.0 Hz, 1H), 6.112 (d, J ) 2.2 Hz, 1H); 13C NMR (CDCl3) δ
20.55, 20.77, 55.20, 56.00, 56.22, 61.78, 67.27, 67.99, 72.16, 73.07,
74.20, 90.66, 91.81; HRMS calcd for C23H30O12Cs (M + Cs) 631.0792,
found 631,0817.
Compound 22: 1H NMR (CDCl3) δ 1.02 (s, 9H), 1.73 (s, 3H), 2.01
(s, 3H), 2.10 (s, 3H), 3.62 (t, J ) 9.3 Hz, 1H), 3.74 (dd, J ) 5.2, 9.8
Hz, 1H), 3.76 (s, 6H), 3.81 (s, 3H), 3.87 (dd, J ) 5.3, 8.7 Hz, 1H),
4.94 (d, J ) 9.9 Hz, 1H), 5.06 (t, J ) 9.4 Hz, 1H), 5.17 (dd, J ) 3.3,
10.0 Hz, 1H), 5.73 (d, J ) 3.2 Hz, 1H), 6.03 (d, J ) 2.2 Hz, 1H), 6.06
(d, J ) 2.2 Hz, 1H), 6.08 (t, J ) 10.0 Hz, 1H), 7.31-7.41 (m, 6H),
7.57-7.63 (m, 4H); 13C NMR (CDCl3) δ 20.58, 20.75, 20.87, 26.69,
26.73, 55.17, 55.98, 56.16, 61.11, 67.63, 67.80, 72.05, 73.46, 76.87,
76.94, 90.56, 91.70, 127.63, 129.67, 135.64, 135.70; HRMS calcd for
C37H46O11SiCs (M + Cs) 827.1864, found 827.1895.
Compound 11 (r:â ) 62:38): (for R-anomer) 1H NMR (CDCl3) δ
1.01 (s), 1.87 (s), 2.00 (s), 2.01 (s), 3.57 (dd, J ) 1.6 and 9.9 Hz), 3.63
(dd, J ) 4.2 and 9.8 Hz), 4.84 (dt, J ) 1.5 and 3.5 Hz), 4.90 (d, J )
7.2), 5.16 (dd, J ) 3.5 and 10.8 Hz), 5.45 (dd, J ) 3.2 and 10.8 Hz),
5.67 (dd, J ) 1.1 and 3.2 Hz), 5.75 (dd, J ) 3.5 and 8.6 Hz), 7.25-
1
7.39 (m), 7.58-7.61 (m). (for â-anomer) H NMR (CDCl3) δ 1.02
(s), 1.90 (s), 2.00 (s), 2.03 (s), 3.65 (dd, J ) 4.4 and 8.6 Hz), 3.71 (dd,
J ) 5.6 and 9.8 Hz), 3.83 (dd, J ) 5.8 and 7.5 Hz), 5.07 (dd, J ) 3.4
and 10.5 Hz), 5.19 (t, J ) 8.2 Hz), 5.30 (dd, J ) 7.8 and 10.4 Hz),
5.61 (d, J ) 2.6 Hz), 7.58-7.61 (m). HRMS calcd for C42H49O11-
PSiCs (M + Cs) 921.1836, found 921.1879.
Compound 23: 1H NMR (CDCl3) δ 1.73 (s, 3H), 1.99 (s, 3H), 2.10
(s, 3H), 3.44 (dd, J ) 7.8, 9.2 Hz, 1H), 3.56 (dd, J ) 5.4, 9.2 Hz, 1H),
3.77 (s, 3H), 3.78 (s, 3H), 3.85 (s, 3H), 3.92 (ddd, J ) 1.0, 5.4, 7.8
Hz, 1H), 4.39 (d, J ) 12.0 Hz, 1H), 4.53 (d, J ) 12.0 Hz, 1H), 4.96
(d, J ) 10.0 Hz, 1H), 5.12 (dd, J ) 3.4, 10.0 Hz, 1H), 5.58 (dd, J )
0.8, 3.4 Hz, 1H), 5.58 (dd, J ) 0.8, 3.4 Hz, 1H), 6.05 (d, J ) 2.2 Hz,
1H), 6.085 (t, J ) 9.8 Hz, 1H), 6.089 (d, J ) 2.2 Hz, 1H), 7.26-7.33
(m, 5H); 13C NMR (CDCl3) δ 20.57, 20.77, 20.81, 55.18, 55.96, 56.19,
67.54, 67.58, 68.46, 72.14, 73.27, 73.41, 75.58, 90.56, 91.75, 127.72,
128.04, 128.36; HRMS calcd for C28H34O11Cs (M + Cs) 679.1155,
found 679.1186.
Compound 12 (r:â ) 76:24): (for R-anomer) 1H NMR (CDCl3) δ
1.88 (s), 2.00 (s), 2.04 (s), 3.41 (d, J ) 6.3 Hz), 4.35 (d, J ) 12.1 Hz),
4.37 (t, J ) 5.5 Hz), 4.49 (d, J ) 12.0 Hz), 4.88 (d, J ) 7.9 Hz), 4.93
(dd, J ) 1.9 and 7.4 Hz), 5.19 (dd, J ) 3.5 and 10.8 Hz), 5.40 (dd, J
) 3.3 and 10.8 Hz), 5.53 (dd, J ) 1.2 and 3.3 Hz), 5.81 (dd, J ) 3.4
and 8.3 Hz), 7.22-7.34 (m). (for â-anomer) 1H NMR (CDCl3) δ 1.90
(s), 1.99 (s), 2.07 (s), 3.48 (dd, J ) 6.8 and 9.6 Hz), 3.52 (dd, J ) 6.0
and 9.6 Hz), 3.91 (t, J ) 6.8 Hz), 4.40 (d, J ) 12.0 Hz), 4.53 (d, J )
12.0 Hz), 4.82-4.95 (m), 5.04 (dd, J ) 3.5 and 10.8 Hz), 5.05 (t, J )
8.4 Hz), 5.33 (dd, J ) 8.4 and 10.8 Hz), 5.49 (dd, J ) 1.2 and 3.5
Hz), 7.22-7.34 (m). HRMS calcd for C33H37O11PCs (M + Cs)
773.1128, found 773.1130.
A General Procedure for the C-Glycosylation with 1,3,5-Tri-
methoxybenzene. A solution of dibenzyl 2,3,4,6-tetra-O-acetyl-R-D-
galactopyranosyl phosphite (8) (59.2 mg, 0.1 mmol) and 1,3,5-
trimethoxybenzene (33.6 mg, 0.2 mmol) dissolved in dry CH2Cl2 (2
mL) was stirred in the presence of molecular sieves (3 Å) for 1 h at
room temperature, and the mixture was cooled to -15 °C. A solution
of 0.1 M TMSOTf in CH2Cl2 (0.5 mL, 0.05 mmol) was added to the
reaction mixture, and stirring was continued for 1 h at the same
Compound 25: 1H NMR (CDCl3) δ 1.27 (d, J ) 6.3 Hz, 3H), 3.61
(q, J ) 6.4 Hz, 1H), 3.65 (dd, J ) 3.0, 9.2 Hz, 1H), 3.69 (s, 3H), 3.76
(s, 3H), 3.80 (s, 3H), 4.12 (d, J ) 10.6 Hz, 1H), 4.55 (d, J ) 10.6 Hz,
1H), 4.68 (d, J ) 11.7 Hz, 1H), 4.75 (t, J ) 9.4 Hz, 1H), 4.80 (s, 2H),
4.87 (d, J ) 9.7 Hz, 1H), 5.13 (d, J ) 11.6 Hz, 1H), 6.09 (d, J ) 2.2
Hz, 1H), 6.15 (d, J ) 2.2 Hz, 1H), 6.90-6.93 (m, 2H), 7.12-7.16 (m,
3H), 7.25-7.37 (m, 6H), 7.40-7.42 (m, 2H), 7.47-7.49 (m, 2H); 13
C
NMR (CDCl3) δ 17.65, 55.30, 56.00, 56.04, 72.71, 72.94, 74.23, 74.41,
74.62, 76.95, 77.97, 85.52, 90.88, 92.12, 108.40, 126.98, 127.08, 127.17,
127.29, 127.39, 127.51, 127.96, 128.11, 128.31, 138.82, 139.08, 139.71,
159.89, 161.15; HRMS calcd for C36H40O7Cs (M + Cs) 717.1828, found
717.1862.
General Procedure for O-Fucosylation. A solution of dibenzyl
2,3,4-tri-O-benzyl-R-L-fucopyranosyl phosphite (2; 100 mg, 0.13 mmol)
and the acceptor alcohol (26-38, 0.16 mmol) in CH2Cl2 (4 mL) was
stirred for 1 h at room temperature in the presence of molecular sieves
(4 Å, 100 mg). To the mixture was added 1% TfOH in CH2Cl2 solution
(100 µL) at -15 °C. After stirring for 1 h at the same temperature,
Et3N (1 mL) was added to quench the reaction, and the mixture was
diluted with CH2Cl2 (10 mL) and washed with 5% NaHCO3, 5% HCl
and 5% NaHCO3, successively. The organic layer was dried over
MgSO4 and concentrated in Vacuo. The residue was purified by silica
gel column chromatography (hexane/EtOAc) to obtain the desirable
fucosides.
(34) (a) Lemieux, R. U. Chem. Soc. ReV. 1978, 7, 423. (b) Mukaiyama,
T.; Murai, Y.; Shoda, S. I.; Chem. Lett. 1981, 431. (c) Ogawa, T.;
Yamamoto, H.; Nukada, T.; Kitajima, T.; Sugimoto, M. Pure Appl. Chem.
1984, 56, 779. (d) Fugedi, P.; Garegg, P. J.; Lonn, H.; Norberg, T.
Glycoconjugate J. 1987, 4, 97. (e) Mootoo, D. R.; Konradsson, P.; Udodong,
U. Fraser-Reid, B. J. Am. Chem. Soc. 1988, 110, 5583. (f) Halcomb, R. L.;
Danishefsky, S. J. J. Am. Chem. Soc. 1989, 111, 6661. (g) Kahne, D.;
Walker, S.; Cheng, Y.; Van Engen, D. J. Am. Chem. Soc. 1989, 111, 6881.
(h) Suzuki, K.; Maeta, H. Matsumoto, T. Tetrahedron Lett. 1989, 36, 4853.
(i) Sinay, P. Pure Appl. Chem. 1991, 63, 519. (j) Nicolau, K. C.; Caulfield,
T. J.; Groneberg, R. D. Pure Appl. Chem. 1991, 63, 555. (k) Garegg, P. J.
Acc. Chem. Res. 1992, 25, 575. (l) Kanie, O.; Hindsgaul, O. Curr. Opin.
Struct. Biol. 1992, 2, 674. (m) Boons, G.-J. Tetrahedron 1996, 52, 1095.
(35) For comparison of various glycosylation methods, see: (a) Barresi,
F.; Hindsgaul, O. In Modern Synthetic Methods; Ernst, B., Leumann, C.,
Eds.; Verlag Helvetica Chimica Acta: Basel, Switzerland, 1995; Vol. 5,
pp 283-330. (b) Barresi, F.; Hindsgaul, O. J. Carbohydr. Chem. 1995, 14,
1043. (c) Paulsen, H. Angew. Chem., Int. Ed. Engl. 1995, 34, 1432.
Compound 39: 1H NMR (400 MHz, CDCl3) δ 0.81 (d, J ) 6.4 Hz,
3H), 1.28-1.41 (m, 2H), 1.48-1.65 (m, 4H), 1.65 (s, 3H), 2.27-2.32
(m, 2H), 3.31-3.59 (m, 5H), 3.65 (s, 3H), 3.75 (t, J ) 10.1 Hz, 1H),
3.79-3.85 (m, 1H), 3.93 (dd, J ) 2.7 and 10.2 Hz, 1H), 4.04-4.10
(m, 2H), 4.27-4.35 (m, 2H), 4.58 (d, J ) 11.9 Hz, 1H), 4.67 (d, J )

6834 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
11.9 Hz, 1H), 4.74 (s, 2H), 4.88-4.94 (m, 3H), 5.07 (d, J ) 3.5 Hz,
1H), 5.49 (s, 1H), 5.74 (d, J ) 7.2 Hz, 1H), 7.13-7.47 (m, 20H);
HRMS calcd for C49H59NO12Cs (M + Cs) 986.3092, found 986.3090.
Compound 40: 1H NMR (CDCl3) δ 1.02 (d, J ) 6.5 Hz, 3H), 1.06
(s, 9H), 1.07 (s, 9H), 1.20 (d, J ) 6.4 Hz, 3H), 1.24 (s, 9H), 2.04 (s,
3H), 3.44-3.56 (m, 3H), 3.67-3.86 (m, 4H), 3.86-4.21 (m, 8H), 4.42-
4.44 (m, 2H), 4.56-4.99 (m, 20H), 5.21 (d, J ) 3.5 Hz, 1H), 5.276 (d,
J ) 3.5 Hz, 1H), 5.283 (d, J ) 6.7 Hz, 1H), 7.19-7.40 (m, 61H),
7.64-7.73 (m, 4H); electrospray positive ion mass, m/z 2020 (M +
H)+.
Compound 41: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 0.91
(d, J ) 6.4 Hz, 3H), 1.45 (s, 9H), 3.35-3.37 (m, 2H), 3.47 (dd, J )
3.0 and 9.8 Hz, 1H), 3.62 (dd, J ) 2.5 and 10.1 Hz, 1H), 3.95 (dd, J
) 3.6 and 10.1 Hz, 1H), 4.14 (dd, J ) 2.3 and 9.8 Hz, 1H), 4.50-4.53
(m, 1H), 4.60-4.64 (m, 3H), 4.66 (d, J ) 11.7 Hz, 1H), 4.78 (d, J )
11.7 Hz, 1H), 4.79 (d, J ) 12.0 Hz, 1H), 4.92 (d, J ) 11.6 Hz, 1H),
5.02 (d, J ) 12.2 Hz, 1H), 5.26 (d, J ) 12.2 Hz, 1H), 5.87 (d, J ) 9.2
Hz, 1H), 7.23-7.40 (m, 20H); 13C NMR (125 MHz, CDCl3) δ 28.3,
54.0, 66.5, 67.0, 69.1, 73.2, 74.7, 76.4, 77.2, 78.8, 79.9, 98.8, 127.5,
127.6, 127.7, 127.9, 128.1, 128.2, 128.3, 128.4, 128.5, 128.6, 135.5,
138.4, 138.5, 138.8, 155.7, 170.4. (for â-fucoside) 1H NMR (500 MHz,
CDCl3) δ 1.15 (d, J ) 6.3 Hz, 3H), 1.44 (s, 9H), 3.42 (q, J ) 6.3 Hz,
1H), 3.47 (dd, J ) 2.9 and 9.7 Hz, 1H), 3.54 (d, J ) 2.9 Hz, 1H), 3.75
(dd, J ) 7.7 and 9.7 Hz, 1H), 4.05 (dd, J ) 2.8 and 10.1 Hz, 1H), 4.13
(dd, J ) 2.8 and 10.1 Hz, 1H), 4.23 (d, J ) 7.7 Hz, 1H), 4.48 (td, J )
2.8 and 9.1 Hz, 1H), 4.66 (d, J ) 11.0 Hz, 1H), 4.71 (d, J ) 11.7 Hz,
2H), 4.77 (m, 2H), 4.97 (d, J ) 11.7 Hz, 1H), 5.03 (d, J ) 12.4 Hz,
1H), 5.06 (d, J ) 12.4 Hz, 1H), 5.75 (d, J ) 9.1 Hz, 1H), 7.24-7.36
(m, 20H); 13C NMR (125 MHz, CDCl3) δ 16.6, 28.3, 54.0, 67.0, 70.6,
73.2, 74.6, 74.9, 75.9, 78.8, 78.9, 82.3, 104.3, 127.5, 127.6, 127.7, 127.9,
128.1, 128.2, 128.4, 128.5, 128.7, 135.4, 138.3, 138.4, 138.6, 155.6,
170.5. HRMS calcd for C42H49NO9Cs (M + Cs) 844.2462, found
844.2498.
Compound 42: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 0.83
(d, J ) 6.5 Hz, 3H), 3.25 (q, J ) 6.5 Hz, 1H), 3.28 (br s, 1H), 3.41
(dd, J ) 3.1 and 9.8 Hz, 1H), 3.53 (dd, J ) 2.7 and 10.1 Hz, 1H), 3.87
(dd, J ) 3.6 and 10.1 Hz, 1H), 4.09 (dd, J ) 2.5 and 9.8 Hz, 1H),
4.50-4.54 (m, 4H), 4.56 (d, J ) 6.5 Hz, 1H), 4.60 (d, J ) 6.5 Hz,
1H), 4.69 (d, J ) 11.8 Hz, 2H), 4.85 (d, J ) 11.8 Hz, 1H), 4.99 (d, J
) 12.1 Hz, 1H), 5.07 (d, J ) 2.5 Hz, 1H), 5.16 (d, J ) 12.1 Hz, 1H),
6.70 (d, J ) 9.1 Hz, 1H), 7.17-7.31 (m, 25H); 13C NMR (125 MHz,
CDCl3) δ 16.4, 54.4, 66.5, 67.0, 67.1, 68.9, 73.1, 73.3, 74.6, 76.4, 77.1,
78.8, 98.6, 126.9, 127.5, 127.6, 127.8, 128.1, 128.4, 128.5, 128.6, 135.4,
136.3, 138.4, 138.8, 156.3, 170.1. (for â-fucoside) 1H NMR (500 MHz,
CDCl3) δ 1.13 (d, J ) 6.3 Hz, 3H), 3.40 (q, J ) 6.3 Hz, 1H), 3.46 (dd,
J ) 2.9 and 9.7 Hz, 1H), 3.53 (d, J ) 2.9 Hz, 1H), 3.74 (dd, J ) 7.8
and 9.7 Hz, 1H), 4.07 (dd, J ) 2.9 and 10.1 Hz, 1H), 4.14 (dd, J ) 2.7
and 10.1 Hz, 1H), 4.22 (d, J ) 7.7 Hz, 1H), 4.53-4.56 (m, 1H), 4.65
(d, J ) 10.7 Hz, 1H), 4.69 (d, J ) 11.8 Hz, 1H), 4.73 (d, J ) 10.7 Hz,
1H), 4.77 (d, J ) 11.8 Hz, 2H), 4.96 (d, J ) 11.8 Hz, 1H), 5.01 (d, J
) 12.4 Hz, 1H), 5.09 (d, J ) 12.4 Hz, 1H), 5.12 (s, 2H), 6.01 (d, J )
8.9 Hz, 1H), 7.20-7.30 (m, 25H). HRMS calcd for C45H47NO9Cs (M
+ Cs) 878.2305, found 878.2339.
10.6 Hz, 1H), 4.54-4.56 (m, 1H), 4.76 (d, J ) 10.1 Hz, 1H), 4.78 (d,
J ) 10.1 Hz, 1H), 4.92-5.14 (m, 4H), 5.18 (d, J ) 12.2 Hz, 1H), 6.10
(d, J ) 9.0 Hz, 1H), 7.23-7.37 (m, 24H), 7.64 (t, J ) 3.5 Hz, 2H),
7.75 (d, J ) 7.6 Hz, 2H). HRMS calcd for C52H51NO9Cs (M + Cs)
966.2618, found 966.2660.
Compound 44: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 0.95
(d, J ) 6.6 Hz, 3H), 1.80 (br s, 2H), 3.44 (d, J ) 2.8 Hz, 1H), 3.52 (q,
J ) 6.6 Hz, 1H), 3.60 (dd, J ) 3.6 and 9.7 Hz, 1H), 3.67 (m, 1H),
3.71 (dd, J ) 2.8 and 10.1 Hz, 1H), 3.95 (dd, J ) 4.5 and 9.7 Hz, 1H),
3.99 (dd, J ) 3.7 and 10.1 Hz, 1H), 4.62 (d, J ) 11.6 Hz, 1H), 4.63
(d, J ) 11.8 Hz, 1H), 4.68 (d, J ) 11.8 Hz, 1H), 4.76 (d, J ) 11.8 Hz,
1H), 4.77 (d, J ) 3.7 Hz, 1H), 4.82 (d, J ) 11.8 Hz, 1H), 4.94 (d, J
) 11.6 Hz, 1H), 5.05 (d, J ) 12.1 Hz, 1H), 5.19 (d, J ) 12.1 Hz, 1H),
7.26-7.33 (m, 20H); 13C NMR (125 MHz, CDCl3) δ 16.5, 54.7, 66.4,
66.8, 70.0, 73.1, 73.2, 74.7, 76.5, 77.3, 78.9, 98.1, 127.5, 127.6, 127.8,
128.2, 128.3, 128.4, 128.5, 128.6, 138.5, 138.6, 138.9, 173.4; HRMS
calcd for C37H41NO9 (M + H) 612.2961, found 612.2984.
Compound 45: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 1.01
(d, J ) 6.5 Hz, 3H), 1.16 (t, J ) 7.1 Hz, 3H), 1.38 (s, 9H), 3.47 (dd,
J ) 3.2 and 10.0 Hz, 1H), 3.52 (br s, 1H), 3.67 (q, J ) 6.5 Hz, 1H),
3.75 (dd, J ) 2.8 and 10.1 Hz, 1H), 3.94 (dd, J ) 3.7 and 10.0 Hz,
1H), 4.05-4.12 (m, 3H), 4.36-4.38 (m, 1H), 4.56 (d, J ) 11.9 Hz,
1H), 4.58 (d, J ) 11.9 Hz, 1H), 4.60 (d, J ) 3.7 Hz, 1H), 4.64 (d, J
) 11.6 Hz, 1H), 4.75 (d, J ) 11.9 Hz, 2H), 4.89 (d, J ) 11.6 Hz, 1H),
5.76 (d, J ) 9.0 Hz, 1H), 7.19-7.32 (m, 15 H); 13C NMR (125 MHz,
CDCl3) δ 14.1, 16.5, 28.3, 53.9, 61.3, 66.6, 69.1, 73.1, 73.2, 74.7, 76.2,
77.4, 79.0, 98.7, 127.5, 127.6, 127.8, 128.1, 128.3, 128.4, 138.4, 138.5,
1
138.7, 155.7, 170.5. (for â-fucoside) H NMR (500 MHz, CDCl3) δ
1.16 (d, J ) 6.5 Hz, 3H), 1.18 (t, J ) 7.1 Hz, 3H), 1.45 (s, 9H), 3.44
(q, J ) 6.5 Hz, 1H), 3.48 (dd, J ) 2.9 and 9.7 Hz, 1H), 3.55 (d, J )
2.9 Hz, 1H), 3.76 (dd, J ) 7.7 and 9.7 Hz, 1H), 4.05-4.16 (m, 4H),
4.26 (d, J ) 7.7 Hz, 1H), 4.41 (td, J ) 2.7 and 9.1 Hz, 1H), 4.68 (d,
J ) 11.3 Hz, 1H), 4.70 (d, J ) 12.3 Hz, 1H), 4.72 (d, J ) 11.8 Hz,
1H), 4.77 (d, J ) 12.3 Hz, 1H), 4.80 (d, J ) 11.3 Hz, 1H), 4.97 (d, J
) 11.8 Hz, 1H), 5.68 (d, J ) 9.1 Hz, 1H), 7.30-7.37 (m, 15H); 13C
NMR (125 MHz, CDCl3) δ 14.1, 16.7, 28.3, 53.8, 61.4, 67.2, 70.5,
73.3, 74.6, 74.9, 75.8, 78.8, 82.4, 104.2, 127.5, 127.6, 127.7, 128.1,
128.2, 128.4, 128.7, 138.4, 138.6, 155.6, 170.6. HRMS calcd for
C37H47NO9Cs (M + Cs) 782.2305, found 782.2325.
Compound 46: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 1.03
(d, J ) 6.5 Hz, 3H), 1.35 (s, 9H), 1.38 (s, 9H), 3.40 (dd, J ) 3.1 and
9.8 Hz, 1H), 3.50 (br s, 1H), 3.73-3.76 (m, 2H), 3.97 (dd, J ) 3.6
and 9.8 Hz, 1H), 4.04 (dd, J ) 2.8 and 9.8 Hz, 1H), 4.27 (td, J ) 2.8
and 9.1 Hz, 1H), 4.56 (d, J ) 11.7 Hz, 1H), 4.59 (d, J ) 12.0 Hz, 1H),
4.60 (d, J ) 3.6 Hz, 1H), 4.63 (d, J ) 12.0 Hz, 1H), 4.74 (d, J ) 11.8
Hz, 1H), 4.76 (d, J ) 11.8 Hz, 1H), 4.90 (d, J ) 11.7 Hz, 1H), 5.68
(d, J ) 9.1 Hz, 1H), 7.19-7.32 (m, 15H); 13C NMR (125 MHz, CDCl3)
δ 16.5, 27.9, 28.3, 54.4, 66.5, 69.3, 73.1, 73.2, 74.8, 76.4, 77.7, 79.0,
98.6, 127.5, 127.6, 127.9, 128.2, 128.4, 138.5, 138.6, 155.7, 169.5.
1
(for â-fucoside) H NMR (500 MHz, CDCl3) δ 1.17 (d, J ) 6.5 Hz,
3H), 1.41 (s, 9H), 1.44 (s, 9H), 3.45 (q, J ) 6.5 Hz, 1H), 3.49 (dd, J
) 2.9 and 9.7 Hz, 1H), 3.55 (d, J ) 2.9 Hz, 1H), 3.76 (dd, J ) 7.7 and
9.7 Hz, 1H), 3.98 (dd, J ) 3.0 and 10.1 Hz, 1H), 4.10 (dd, J ) 3.0 and
10.1 Hz, 1H), 4.27 (d, J ) 7.7 Hz, 1H), 4.29 (td, J ) 3.0 and 9.1 Hz,
1H), 4.68-4.72 (m, 3H), 4.78 (d, J ) 11.9 Hz, 1H), 4.86 (d, J ) 11.1
Hz, 1H), 4.97 (d, J ) 11.8 Hz, 1H), 5.67 (d, J ) 9.1 Hz, 1H), 7.29-
7.36 (m, 15H); 13C NMR (125 MHz, CDCl3) δ 16.6, 28.0, 28.3, 54.3,
70.6, 73.2, 74.6, 74.9, 76.0, 78.8, 81.8, 82.4, 104.1, 127.4, 127.5, 127.6,
128.2, 128.4, 128.6, 138.4, 138.5, 138.6, 155.6, 169.6. HRMS calcd
for C39H51NO9Cs (M + Cs) 810.2618, found 810.2650.
Compound 47: (for R-fucoside) 1H NMR (400 MHz, CDCl3) δ 0.94
(d, J ) 6.4 Hz, 3H), 1.19 (d, J ) 6.2 Hz, 3H), 1.48 (s, 9H), 3.42 (d,
J ) 2.4 Hz, 1H), 3.68 (dd, J ) 2.8 and 10.1 Hz, 1H), 3.99 (dd, J ) 3.8
and 10.2 Hz, 1H), 4.31 (dq, J ) 2.2 and 6.2 Hz, 1H), 4.37 (dd, J ) 2.1
and 9.8 Hz, 1H), 4.60 (d, J ) 11.6 Hz, 1H), 4.62 (d, J ) 11.9 Hz, 1H),
4.67 (d, J ) 11.7 Hz, 1H), 4.76 (d, J ) 11.5 Hz, 1H), 4.79 (d, J )
11.4 Hz, 1H), 4.84 (d, J ) 3.8 Hz, 1H), 4.92 (d, J ) 11.6 Hz, 1H),
5.07 (d, J ) 12.2 Hz, 1H), 5.12 (d, J ) 12.2 Hz, 1H), 5.41 (d, J ) 9.8
Hz, 1H), 7.26-7.40 (m, 20H); 13C NMR (100 MHz, CDCl3) δ 15.7,
16.5, 28.4, 58.5, 66.7, 67.1, 71.9, 73.1, 73.2, 74.7, 76.2, 76.7, 77.3,
Compound 43: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 0.84
(d, J ) 6.6 Hz, 3H), 3.28 (q, J ) 6.6 Hz, 1H), 3.30 (br s, 1H), 3.43
(dd, J ) 2.9 and 10.0 Hz, 1H), 3.56 (dd, J ) 2.7 and 10.1 Hz, 1H),
3.89 (dd, J ) 3.6 and 10.0 Hz, 1H), 4.11 (dd, J ) 2.4 and 10.1 Hz,
1H), 4.13-4.16 (m, 1H), 4.28 (dd, J ) 7.3 and 10.6 Hz, 1H), 4.40
(dd, J ) 7.0 and 10.6 Hz, 1H), 4.50-4.53 (m, 1H), 4.53 (d, J ) 3.6
Hz, 1H), 4.53 (d, J ) 11.9 Hz, 1H), 4.54 (d, J ) 11.6 Hz, 1H), 4.61
(d, J ) 11.9 Hz, 1H), 4.69 (d, J ) 11.6 Hz, 1H), 4.72 (d, J ) 11.6 Hz,
1H), 4.86 (d, J ) 11.6 Hz, 1H), 5.00 (d, J ) 12.1 Hz, 1H), 5.18 (d, J
) 12.1 Hz, 1H), 6.31 (d, J ) 9.1 Hz, 1H), 7.13-7.35 (m, 24H), 7.53
(t, J ) 6.8 Hz, 2H), 7.66 (d, J ) 7.5 Hz, 2H); 13C NMR (125 MHz,
CDCl3) δ 16.4, 47.1, 54.5, 66.6, 67.2, 69.0, 73.1, 73.4, 74.7, 76.3, 77.1,
78.8, 98.9, 119.9, 125.1, 127.0, 127.5, 127.7, 127.8, 127.9, 128.2, 128.4,
128.5, 128.6, 135.4, 138.4, 138.7, 141.2, 143.7, 143.9, 156.4, 170.1.
1
(for â-fucoside) H NMR (500 MHz, CDCl3) δ 1.14 (d, J ) 6.3 Hz,
3H), 3.41 (q, J ) 6.3 Hz, 1H), 3.48 (dd, J ) 2.8 and 9.8 Hz, 1H), 3.55
(d, J ) 2.8 Hz, 1H), 3.78 (dd, J ) 8.0 and 9.8 Hz, 1H), 4.07 (dd, J )
2.7 and 10.3 Hz, 1H), 4.20 (dd, J ) 2.4 and 10.3 Hz, 1H), 4.23-4.25
(m, 2H), 4.34 (dd, J ) 7.3 and 10.6 Hz, 1H), 4.42 (dd, J ) 7.1 and

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6835
78.9, 94.5, 127.5, 127.6, 127.8, 128.1, 128.2, 128.32, 128.35, 128.43,
128.5, 128.6; HRMS calcd for C43H51NO9Cs (M + Cs) 858.2618, found
858.2657.
3.65 (s, 3H), 3.66-3.71 (m, 2H), 3.82 (dd, J ) 1.8 and 10.7 Hz, 1H),
3.85-3.91 (m, 2H), 3.95 (dd, J ) 2.3 and 10.2 Hz, 1H), 4.07 (dd, J )
3.6 and 10.7 Hz, 1H), 4.10 (m, 1H), 4.17 (br s, 1H), 4.57-4.69 (m,
4H), 4.73-4.85 (d, J ) 3.3 Hz, 1H), 5.59 (d, J ) 7.1 Hz, 1H), 7.25-
7.41 (m, 20H); 13C NMR (100 MHz, CDCl3) δ 16.6, 23.1, 24.5, 25.5,
29.0, 33.9, 51.4, 56.2, 68.0, 69.2, 69.6, 70.4, 72.8, 73.4, 74.0, 74.8,
74.9, 75.9, 77.2, 79.0, 83.9, 99.0, 99.9, 127.5-128.5, 138.2, 138.4,
170.7, 174.1; HRMS calcd for C49H62NO12 (M + H) 856.4272, found
856.4278.
1
Compound 48r: (for R-fucoside) H NMR (400 MHz, CDCl3) δ
1.06 (d, J ) 6.4 Hz, 3H), 1.20-1.26 (m, 6H), 1.48 (s, 9H), 3.60 (d, J
) 2.4 Hz, 1H), 3.69 (q, J ) 7.0 Hz, 1H), 3.80 (dd, J ) 2.8 and 10.1
Hz, 1H), 3.99-4.32 (m, 5H), 4.60 (d, J ) 11.6 Hz, 1H), 4.62 (d, J )
11.9 Hz, 1H), 4.67 (d, J ) 11.7 Hz, 1H), 4.76 (d, J ) 11.5 Hz, 1H),
4.79 (d, J ) 11.4 Hz, 1H), 4.84 (d, J ) 3.8 Hz, 1H), 4.92 (d, J ) 11.6
Hz, 1H), 5.34 (d, J ) 9.6 Hz, 1H), 7.25-7.40 (m, 15H); 13C NMR
(100 MHz, CDCl3) δ 15.9, 16.6, 28.4, 58.4, 61.5, 66.7, 72.4, 73.0,
73.1, 74.8, 76.1, 77.5, 79.0, 94.8, 127.5, 127.6, 127.8, 128.1, 128.2,
128.3; HRMS calcd for C38H49NO9Cs (M + Cs) 796.2462, found
796.2485.
Galactosylation of 52 with 12 for the Synthesis of 53. TMSOTf
(14 µL of a 10% solution in CH2Cl2, 7.2 µmol) was added to a mixture
of 52 (20 mg, 23.4 µmol) and molecular sieves (4 Å) in CH2Cl2 at
-20 °C under an argon atmosphere. After 10 min, a solution of 12
(61 mg, 94.6 µmol, R:â ) 33:67) in CH2Cl2 (5 mL) was added, and
the mixture was stirred at -20 °C for another 10 min. The temperature
was raised to 40 °C, and the stirring was continued for 20 h at that
temperature. The reaction was quenched with 10% NH4Cl (5 mL),
and CH2Cl2 (10 mL) was added to the reaction mixture. The organic
layer was separated, dried with MgSO4, and evaporated in Vacuo. The
residue was applied to silica gel column chromatography (hexane:
EtOAc ) 1:1) to obtain 53 (8.5 mg, 29%): 1H NMR (400 MHz, CDCl3)
δ 1.11 (d, J ) 6.5 Hz, 3H), 1.21-1.33 (m, 2H), 1.48-1.61 (m, 4H),
1.77 (s, 3H), 1.86 (s, 3H), 1.96 (s, 3H), 2.00 (s, 3H), 2.25 (t, J ) 7.7
Hz, 2H), 3.31-3.41 (m, 2H), 3.48-3.58 (m, 5H), 3.64 (s, 3H), 3.72-
3.79 (m, 2H), 3.85 (dd, J ) 2.5 and 10.2 Hz, 1H), 3.93 (t, J ) 6.9 Hz,
1H), 4.09 (dd, J ) 3.5 and 10.0 Hz, 1H), 4.17 (t, J ) 7.0 Hz, 1H),
4.28-4.31 (m, 2H), 4.42 (d, J ) 12.3 Hz, 1H), 4.45 (d, J ) 12.4 Hz,
1H), 4.53 (d, J ) 8.2 Hz, 1H), 4.62-4.84 (m, 6H), 4.82 (d, J ) 6.6
Hz, 1H), 4.84 (dd, J ) 3.4 and 10.6 Hz, 1H), 4.94 (d, J ) 12.0 Hz,
1H), 5.01 (dd, J ) 8.1 and 10.4 Hz, 1H), 5.08 (d, J ) 3.4 Hz, 1H),
5.40 (d, J ) 3.3 Hz, 1H), 5.95 (d, J ) 7.9 Hz, 1H), 7.16-7.19 (m,
2H), 7.24-7.37 (m, 23H); 13C NMR (100 MHz, CDCl3) δ 16.6, 20.6,
20.7, 23.2, 24.6, 25.4, 28.9, 29.7, 33.9, 51.5, 66.4, 66.6, 68.5, 69.0,
69.2, 70.8, 71.5, 72.9, 83.2, 73.3, 73.4, 73.9, 74.3, 77.2, 79.9, 97.1,
99.5, 127.2-128.5, 137.3, 137.8, 138.6, 138.7, 138.8, 169.5, 169.8,
167.0, 170.2, 174.2; HRMS calcd for C68H83NO20Cs (M + Cs)
1366.4563, found 1366.4622.
Compound 49: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 1.03
(d, J ) 6.4 Hz, 3H), 1.38 (s, 9H), 3.50 (br s, 1H), 3.63-3.67 (m, 2H),
3.71 (dd, J ) 2.6 and 10.2 Hz, 1H), 3.96 (dd, J ) 3.7 and 10.2 Hz,
1H), 4.24 (dd, J ) 3.3 and 11.5 Hz, 1H), 4.37-4.39 (m, 1H), 4.56 (d,
J ) 11.5 Hz, 1H), 4.59 (d, J ) 12.0 Hz, 1H), 4.64 (d, J ) 3.7 Hz,
1H), 4.64 (d, J ) 3.7 Hz, 1H), 4.66 (d, J ) 11.7 Hz, 1H), 4.73 (d, J
) 12.0 Hz, 1H), 4.79 (d, J ) 11.7 Hz, 1H), 4.92 (d, J ) 11.5 Hz, 1H),
5.05 (d, J ) 12.3 Hz, 1H), 5.08 (d, J ) 12.3 Hz, 1H), 5.91 (d, J ) 8.8
Hz, 1H), 7.20-7.36 (m, 20H); 13C NMR (125 MHz, CDCl3) δ 16.3,
28.3, 54.5, 67.1, 71.2, 73.1, 73.2, 74.8, 76.2, 77.3, 78.9, 79.8, 99.8,
127.4, 127.5, 127.6, 127.7, 127.9, 128.2, 128.3, 128.4, 128.5, 135.4,
138.4, 138.5, 138.8, 155.6, 170.4. (for â-fucoside) 1H NMR (500 MHz,
CDCl3) δ 1.16 (d, J ) 6.3 Hz, 3H), 1.41 (s, 9H), 3.41 (q, J ) 6.3 Hz,
1H), 3.49 (dd, J ) 2.9 and 9.7 Hz, 1H), 3.55 (d, J ) 2.9 Hz, 1H), 3.76
(dd, J ) 7.7 and 9.7 Hz, 1H), 3.78 (dd, J ) 3.3 and 10.4 Hz, 1H), 4.29
(d, J ) 7.7 Hz, 1H), 4.36 (dd, J ) 3.3 and 10.4 Hz, 1H), 4.49 (td, J )
3.3 and 8.3 Hz, 1H), 4.68 (d, J ) 11.6 Hz, 1H), 4.69 (d, J ) 10.9 Hz,
1H), 4.72 (d, J ) 11.9 Hz, 1H), 4.78 (d, J ) 11.9 Hz, 1H), 4.81 (d, J
) 10.9 Hz, 1H), 4.98 (d, J ) 11.6 Hz, 1H), 5.16 (d, J ) 12.4 Hz, 1H),
5.22 (d, J ) 12.4 Hz, 1H), 5.56 (d, J ) 8.3 Hz, 1H), 7.28-7.37 (m,
20H); 13C NMR (125 MHz, CDCl3) δ 16.4, 28.3, 54.2, 67.2, 69.9, 70.5,
73.1, 74.7, 75.3, 76.3, 79.0, 82.4, 104.2, 127.6, 128.0, 128.2, 128.3,
128.4, 128.5, 135.4, 138.4, 155.5, 170.2.
Compound 50: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 1.16
(d, J ) 6.9 Hz, 3H), 1.40 (s, 9H), 1.27-1.78 (m, 8H), 3.22-3.25 (m,
2H), 3.66 (br s, 1H), 3.94 (dd, J ) 2.7 and 10.2 Hz, 1H), 4.04 (dd, J
) 3.8 and 10.2 Hz, 1H), 4.05 (q, J ) 6.9 Hz, 1H), 4.65 (d, J ) 11.5
Hz, 1H), 4.69 (d, J ) 11.8 Hz, 1H), 4.70 (d, J ) 2.7 Hz, 1H), 4.72 (d,
J ) 11.5 Hz, 1H), 4.47-5.48 (m, 3H), 4.99 (d, J ) 11.4 Hz, 1H),
7.28-7.40 (m, 15H). (for â-fucoside) 1H NMR (500 MHz, CDCl3) δ
1.16 (d, J ) 6.3 Hz, 3H), 1.38 (s, 9H), 1.27-1.78 (m, 6H), 2.01 (br s,
1H), 2.17 (br s, 1H), 3.46 (q, J ) 6.3 Hz, 1H), 3.50 (dd, J ) 2.9 and
9.7 Hz, 1H), 3.55 (d, J ) 2.9 Hz, 1H), 3.55-3.59 (m, 2H), 3.81 (dd,
J ) 7.7 and 9.7 Hz, 1H), 4.43 (d, J ) 7.7 Hz, 1H), 4.69 (d, J ) 11.0
Hz, 1H), 4.70 (d, J ) 11.5 Hz, 1H), 4.73 (d, J ) 11.0 Hz, 1H), 4.82-
4.88 (m, 2H), 4.95 (d, J ) 11.4 Hz, 1H), 4.97 (d, J ) 11.4 Hz, 1H),
7.28-7.40 (m, 15H). HRMS calcd for C38H49NO7Cs (M + Cs)
764.2563, found 764.2575.
Compound 51: (for R-fucoside) 1H NMR (500 MHz, CDCl3) δ 1.13
(d, J ) 6.1 Hz, 1H), 1.14-1.28 (m, 4H), 1.67-1.76 (m, 2H), 2.02-
2.08 (m, 2H), 3.41-3.47 (m, 2H), 3.71 (br s, 1H), 4.05 (br s, 2H),
4.13 (q, J ) 6.1 Hz, 1H), 4.98 (br s, 1H), 4.64-4.99 (m, 6H), 7.25-
7.41 (m, 15H); 13C NMR (125 MHz, CDCl3) δ 16.7, 23.6, 24.1, 29.1,
30.8, 64.5, 66.6, 73.4, 74.8, 75.9, 76.2, 77.8, 79.4, 93.5, 127.4, 127.5,
127.6, 128.0, 128.2, 128.3, 128.5, 136.6; HRMS calcd for C33H39N3O5-
Cs (M + Cs) 580.2787, found 580.2761.
Selective Reduction of 39 for the Synthesis of 52. A mixture of
39 (733 mg, 0.858 mmol), borane-trimethylamine complex (376 mg,
5.15 mmol), and molecular sieves (4 Å) in THF (5 mL) was stirred at
room temperature for 30 min. Aluminum trichloride (687 mg, 5.15
mmol) was added, and the mixture was stirred at room temperature
for 18 h. The reaction mixture was then filtered, and the filtrate was
neutralized with Dowex 50W (H+), filtered again, and concentrated.
The residue was concentrated three times with MeOH, and the product
was applied to silica gel column chromatography (hexane:EtOAc )
1:1) to obtain 52 (374 mg, 51%): 1H NMR (400 MHz, CDCl3) δ 1.15
(d, J ) 6.4 Hz, 3H), 1.30-1.38 (m, 2H), 1.53-1.66 (m, 4H), 1.61 (s,
3H), 2.29 (t, J ) 7.5 Hz, 2H), 3.25-3.35 (m, 1H), 3.40-3.50 (m, 3H),
â-Galactosylation of Benzyl 2-Acetamido-2-deoxy-r-D-glucopy-
ranoside (54)36 with â-Galactosidase from B. circulans for the
Synthesis of 55. â-Galactosidase (50 mg, B. circulans, Daiwa Kasei)
was added to a mixture of lactose monohydrate (3.3 g, 9.16 mmol)
and 54 (570 mg, 1.83 mmol) in a mixed solvent prepared from 20 mM
phosphate buffer (10 mL, pH 7.0) and MeCN (10 mL). The reaction
mixture was stirred under an argon atmosphere for 48 h at room
temperature, after which it was concentrated in Vacuo. The residue
was passed through a silica gel column eluted with a mixture of CHCl3,
MeOH, and 30% NH4OH (3:1:0.3) to obtain 55 (107 mg, 59% based
on unrecovered 54): 1H NMR (400 MHz, D2O) δ 1.94 (s, 3H), 3.53
(dd, J ) 7.8 Hz and 9.8 Hz, 1H), 3.65 (dd, J ) 3.2 Hz and 9.9 Hz,
1H), 3.68-3.77 (m, 5H), 3.86-3.91 (m, 6H), 4.46 (d, J ) 7.8 Hz,
1H), 4.53 (d, J ) 12.0 Hz, 1H), 4.74 (d, J ) 11.9 Hz, 1H), 4.93 (d, J
) 1.2 Hz, 1H), 7.38-7.45 (m 5H); 13C NMR (100 MHz, D2O) δ 22.2,
53.7, 60.3, 61.4, 68.9, 69.9, 70.1, 71.2, 71.4, 73.0, 75.7, 79.2, 96.0,
103.3, 128.8, 128.9, 129.2, 137.3, 174.6; HRMS calcd for C21H31O11-
NCs (M + Cs) 606.0951, found 606.0926.
Double Silylation of 55 with TBDPSCl for the Synthesis of 56.
To a solution of 55 (120 mg, 0.254 mmol) in DMF (5 mL) were added
imidazole (38 mg, 0.559 mmol) and TBDPSCl (160 µL, 0.583 mmol)
at 0 °C. The mixture was stirred at room temperature for 8 h and
poured into water (50 mL). The solution was extracted with EtOAc,
and the organic layer was dried over MgSO4 and evaporated in Vacuo.
The residue was applied to silica gel column chromatography (hexane:
EtOAc ) 1:1) to obtain 56 (198 mg, 82%): 1H NMR (400 MHz,
CDCl3) δ 1.03 (s, 9H), 1.04 (s, 9H), 1.92 (s, 3H), 3.31 (d, J ) 5.1 Hz,
1H), 3.43-3.46 (m, 1H), 3.56 (t, J ) 6.3 Hz, 1H), 3.61 (t, J ) 9.2 Hz,
1H), 3.67-3.88 (m, 10H), 3.91 (d, J ) 1.8 Hz, 1H), 3.96-4.00 (m,
2H), 4.09 (ddd, J ) 3.7, 8.7 and 10.4 Hz, 1H), 4.25 (br s, 1H), 4.37 (d,
J ) 11.8 Hz, 1H), 4.39 (d, J ) 7.8 Hz, 1H), 4.61 (d, J ) 11.8 Hz,
1H), 4.93 (d, J ) 3.6 Hz, 1H), 5.75 (d, J ) 8.6 Hz, 1H), 7.23-7.41
(36) (a) Paulsen, H.; Kolar, C.; Stenzel, W. Chem. Ber. 1978, 11, 2370.
(b) Flowers, H. M.; Jeanloz, R. W. J. Org. Chem. 1963, 28, 1377.

6836 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
(m, 17H), 7.62-7.65 (m, 4H), 7.70-7.76 (m, 4H); 13C NMR (100 MHz,
CDCl3) δ 19.0, 19.2, 23.3, 26.7, 26.8, 31.4, 36.5, 53.2, 62.2, 63.1, 68.1,
69.2, 70.6, 70.9, 71.5, 73.5, 74.9, 80.8, 96.2, 103.5, 127.5-128.1, 128.4,
129.7, 129.8, 135.5-135.8, 170.3; HRMS calcd for C53H67NO11Si2Cs
(M + Cs) 1082.3307, found 1082.3332.
) 11.9Hz, 1H), 4.87 (d, J ) 7.4 Hz, 2H), 4.98 (d, J ) 11.4 Hz, 1H),
5.69 (dd, J ) 3.4 and 8.4 Hz, 1H), 7.24-7.52 (m, 25H); HRMS calcd
for C43H45O9PCs (M + Cs) 869.1856, found 869.1891.
Benzyl 3-O-(6-O-Acetyl-2,3,4-tri-O-benzyl-D-galactopyranosyl)-
6-O-(tert-butyldiphenylsilyl)-â-D-galactopyranoside (58). A solution
of 57 (73.6 mg, 0.1 mmol) and benzyl 6-O-(tert-butyldiphenylsilyl)-
â-D-galactoside (76.2 mg, 0.15 mmol) in CH2Cl2 (2 mL) was stirred
for 1 h at room temperature in the presence of molecular sieves (4 Å)
and cooled in a dry-ice/ethylene glycol bath (-15 °C). To this solution
was added 0.1 M TMSOTf/CH2Cl2 solution (0.1 mL, 10 µmol) to start
the coupling reaction, and the mixture was stirred for 2 h at -15 °C.
Et3N (1 mL) was added to stop the reaction. The reaction mixture
was allowed to warm to room temperature and passed through filter
paper. The filterate was diluted with CH2Cl2 and washed with 5%
NaHCO3, 10% HCl, 5% NaHCO3, and brine, successively. After drying
over MgSO4, the solvent was removed in Vacuo, and the residue was
purified by silica gel column chromatography (hexane/EtOAc) to obtain
the title compound (58.8 mg, 58%, R:â ) 84:16) as an amorphous
colorless solid: 1H NMR (400 MHz, CDCl3) δ 1.08 (s, 9H), 1.91 (s,
3H), 2.32 (d, J )2.2 Hz, 1H), 3.07 (br s, 1H), 3.48-3.55 (m), 3.72-
3.78 (m), 3.89-4.13 (m), 4.23 (d, J ) 7.8 Hz), 4.23-4.26 (m), 4.60
(d, J )11.9 Hz), 4.61 (d, J ) 11.5 Hz), 4.66 (d, J ) 11.8 Hz), 4.77 (d,
J ) 11.8 Hz), 4.82 (d, J ) 12.0 Hz), 4.89 (d, J ) 11.7 Hz), 4.90 (d,
J ) 4.6 Hz), 4.96 (d, J ) 11.6 Hz), 7.17-7.45 (m), 7.67-7.72 (m);
HRMS calcd for C58H66O12SiCs (M + Cs) 1115.3378, found 1115.3342.
Synthesis of Benzyl Monoglutarate (80). A mixture of glutaric
anhydride (2.7 g, 23.7 mmol), benzyl alcohol (2.5 mL, 24.2 mmol),
pyridine (15 mL), and 4-(dimethylamino)pyridine (10 mg) was stirred
in CHCl3 (20 mL) at 50 °C for 15 h. The reaction mixture was
evaporated in Vacuo, and the residue was dissolved in Et2O (30 mL).
The Et2O solution was washed successively with 5% HCl and saturated
CuSO4, and extracted with 5% NaHCO3. The extract was acidified
with 35% HCl and extracted with EtOAc. The organic layer was dried
over MgSO4 and concentrated in Vacuo to obtain 80 (4.10 g, 76%):
1H NMR (500 MHz, CDCl3) δ 1.98 (m, 2H), 2.43 (t, J ) 7.5 Hz, 2H),
2.45 (t, J ) 7.5 Hz, 2H), 5.12 (s, 2H), 7.33-7.37 (m, 5H); 13C NMR
(125 MHz, CDCl3) δ 19.7, 32.9, 33.1, 66.3, 128.2, 128.3, 128.6, 135.8,
172.7, 179.1; HRMS calcd for C12H14O4 (M + H) 223.0970, found
223.0976.
Synthesis of 81. To a solution of 80 (761 mg, 3.43 mmol),
N-hydroxysccinimide (395 mg, 3.43 mmol), NEt3 (0.2 mL), and DMF
(0.5 mL) in CH2Cl2 (7 mL) was added 1-[3-(dimethylamino)propyl]-
3-ethylcarbodiimide hydrochloride (EDC, 660 mg, 3.43 mmol) at 0
°C. The mixture was stirred at room temperature for 2 h and evaporated
in Vacuo. The residue was dissolved in AcOEt (30 mL) and washed
with water. The organic layer was dried over MgSO4 and evaporated
in Vacuo to obtain 81 (777 mg, 71%): 1H NMR (500 MHz, CDCl3) δ
2.05-2.13 (m, 2H), 2.52 (t, J ) 7.5 Hz, 2H), 2.71 (t, J ) 7.5 Hz, 2H),
2.82-2.84 (m, 4H), 5.13 (s, 2H), 7.34-7.37 (m, 5H); HRMS calcd
for C16H18NO6 (M + H) 320.1134, found 320.1142.
General Procedure for the Coupling Reaction of 81 with 59 and
60: Synthesis of 82 and 83. Amino acids 59 and 60 were prepared
according to the reported procedures.28,29 To a suspension of amino
acid (0.59 mmol) in DMF (5 mL), H2O (2 mL), Et3N (0.1 mL), and
CH2Cl2 (10 mL) was added 81 (230 mg, 0.65 mmol) at 0 °C. The
mixture was stirred for 1 h at 0 °C, and the temperature was allowed
to rise to room temperature within 15 h. The solvent was removed in
Vacuo, and the residue was dissolved in AcOEt (20 mL) and washed
with water. The organic layer was dried over MgSO4 and evaporated
in Vacuo. The residue was applied to silica gel column chromatography
(CHCl3:MeOH ) 4:1) to obtain 82 and 83.
Silylation of 56 for the Synthesis of 27. To a solution of 56 (100
mg, 0.105 mmol) in CH2Cl2 (5 mL) were added imidazole (14 mg,
0.206 mmol) and TBDPSCl (60 µL, 0.219 mmol) at 0 °C. The mixture
was stirred at room temperature for 8 h, diluted with CH2Cl2 (20 mL),
and washed with water. The organic layer was dried over MgSO4 and
evaporated in Vacuo. The residue was applied to silica gel column
chromatography (hexane:EtOAc ) 2:1) to obtain 27 (97 mg, 78%):
1H NMR (400 MHz, CDCl3) δ 0.98 (s, 9H), 1.00 (s, 9H), 1.10 (s, 9H),
1.88 (s, 3H), 3.34 (t, J ) 6.5 Hz, 1H), 3.55-3.61 (m, 4H), 3.70-3.84
(m, 8H), 3.88 (dd, J ) 4.2 and 11.5 Hz, 1H), 4.05 (ddd, J ) 3.6, 8.6
and 10.6 Hz, 1H), 4.21 (d, J ) 7.8 Hz, 1H), 4.27 (d, J ) 1.2 Hz, 1H),
4.35 (d, J ) 11.8 Hz, 1H), 4.60 (d, J ) 11.8 Hz, 1H), 4.92 (d, J ) 3.6
Hz, 1H), 5.50 (d, J ) 8.6 Hz, 1H), 7.22-7.43 (m, 23H), 7.56-7.59
(m, 4H), 7.66-7.71 (m, 8H); 13C NMR (100 MHz, CDCl3) δ 19.4,
23.4, 26.76, 26.83, 27.0, 53.0, 62.1, 63.4, 68.3, 69.3, 70.6, 70.8, 71.9,
74.5, 82.4, 96.3, 103.9, 127.6, 127.6, 127.7, 127.75, 127.82, 127.9,
128.5, 129.7, 129.8, 130.0, 130.2, 135.5, 135.60, 135.64, 135.7, 135.8,
170.1; electrospray positive ion mass, m/z 1188 (M + H)+.
6-O-Acetyl-2,3,4-tri-O-benzyl-r-D-galactopyranosyl Dibenzyl Phos-
phite (57). To a solution of methyl R-D-galactoside (5.82 g, 30 mmol)
and benzyl bromide (21 g, 123 mmol) in DMF (60 mL) was added
60% NaH (5.0 g, 125 mmol). The resulting suspension was stirred
for 5 h at room temperature, poured into water (300 mL), and extracted
with EtOAc. The obtained extract was washed with water and brine,
dried over MgSO4, and evaporated in Vacuo. The residue was purified
by silica gel chromatography (hexane/EtOAc) to obtain the title
compound (12.0 g, 72%) as a colorless syrup: 1H NMR (400 MHz,
CDCl3) δ 3.37 (s, 3H), 3.52 (s, J ) 6.4 Hz, 2H), 3.89 (t, J ) 6.5 Hz,
1H), 3.93 (dd, J ) 2.9 and 10.9 Hz, 1H), 3.94 (s, 1H), 4.04 (ddd, J )
1.2, 3.4 and 10.9 Hz, 1H), 4.39 (d, J ) 11.8 Hz, 1H), 4.48 (d, J )
11.8 Hz, 1H), 4.57 (d, J ) 11.5 Hz, 1H), 4.682 (d, J ) 3.6 Hz, 1H),
4.684 (d, J ) 12.0 Hz, 1H), 4.73 (d, J ) 11.8 Hz, 1H), 4.83 (d, J )
12.1 Hz, 1H), 4.84 (d, J ) 11.8 Hz, 1H), 4.94 (d, J ) 11.4 Hz, 1H);
HRMS calcd for C35H38O6Cs (M + Cs) 687.1723, found 687.1753.
To a solution of the above compound (5.54 g, 10 mmol) in Ac2O
(50 mL) was added 98% H2SO4 (0.13 mL) at -15 °C, pyridine (10
mL) was added to the mixture, and the resulting solution was stirred
for 15 h at room temperature and poured into MeOH (300 mL) cooled
on an ice bath. The solvent was removed in Vacuo, and the residue
was dissolved in EtOAc and washed with 10% HCl, 5% NaHCO3, and
brine, successively. The solution was dried over MgSO4 and evaporated
in Vacuo. The residue was purified by silica gel column chromatog-
raphy (hexane/EtOAc) to obtain the 1,6-di-O-acetyl derivative (3.68
g, 69%, R:â ) 85:15): 1H NMR (400 MHz, CDCl3) δ 1.97 (s, 3H),
2.11 (s, 3H), 3.87-3.95 (m), 3.96-4.19 (m), 4.19 (dd, J ) 3.7 and 7.8
Hz, 1H), 4.63 (d, J ) 10.2 Hz, 1H), 4.68 (d, J ) 11.4 Hz, 1H), 4.98
(d, J ) 11.4 Hz, 1H), 6.40 (d, J ) 3.7 Hz, 1H), 7.28-7.39 (m, 15H);
HRMS calcd for C31H34O8Cs (M + Cs) 667.1308, found 667.1329.
To a solution of the above compound (2.67 g, 5 mmol) in THF (50
mL) was added benzylamine (3.0 mL). The mixture was stirred for 6
h at room temperature, and the solvent was removed in Vacuo at 35
°C. The residue was dissolved in Ac2O and washed with 10% HCl,
5% NaHCO3, and brine, successively. The solution was dried over
MgSO4 and evaporated in Vacuo. The residue was purified by silica
gel column chromatography (hexane/EtOAc) to obtain the C1-depro-
tected product (1.40 g, 57%) as a colorless solid, which was used in
the next step without characterization.
Compound 82: 1H NMR (500 MHz, CDCl3) δ 1.91-1.95 (m, 2H),
2.20-2.26 (m, 2H), 2.38 (t, J ) 5.2 Hz, 2H), 3.58-3.68 (m, 2H), 4.22-
4.24 (m, 1H), 4.48 (d, J ) 10.5 Hz, 1H), 4.53 (d, J ) 10.5 Hz, 1H),
5.09 (s, 2H), 6.75 (d, J ) 8.2 Hz, 1H), 7.25-7.36 (m, 10H); 13C NMR
(125 MHz, CDCl3) δ 20.6, 33.7, 35.2, 56.1, 66.3, 70.9, 71.1, 73.8,
128.2, 128.3, 128.5, 128.6, 128.7, 128.9, 135.7, 137.3, 172.1, 173.2,
174.4; HRMS calcd for C23H27NO7Na (M + Na) 452.1685, found
452.1672.
Compound 83: 1H NMR (500 MHz, CDCl3) δ 1.23 (br s, 3H), 1.98
(br s, 4H), 2.45 (br s, 6H), 5.08 (s, 2H), 7.15-7.33 (m, 5H); electrospray
negative mass, m/z 338 (M - H)-.
To a solution of the product (984 mg, 2 mmol) and 1H-tetrazole
(145 mmol, 2.1 mmol) in THF (10 mL) was added dibenzyl dieth-
ylphosphoramidate (DDP). The mixture was stirred for 2 h at room
temperature and passed through filter paper. The filterate was
evaporated in Vacuo, and the residue was purified by silica gel column
chromatography (hexane/EtOAc/Et3N) to obtain 57 (1.19 g, 81%, only
R) as a viscous oil: 1H NMR (400 MHz, CDCl3) δ 1.83 (s, 3H), 3.88
(d, J )2.3 Hz, 1H), 3.94 (dd, J ) 2.6 and 9.9 Hz, 1H), 4.03-4.14 (m,
4H), 4.62 (d, J ) 11.4 Hz, 1H), 4.68 (s, 2H), 4.70 (d, J )11.7 Hz,
1H), 4.74 (d, J ) 11.5 Hz, 1H), 4.76 (d, J ) 11.5 Hz, 1H), 4.83 (d, J

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6837
General Procedure for the Coupling Reaction of 82 and 83 with
47 and 48 and the Following Hydrogenation: Synthesis of 65-67.
A solution of N-Boc-L-threonine esters 47 and 48 (30 µmol) dissolved
in 30% TFA in CH2Cl2 (2 mL) was allowed to stand for 30 min at
room temperature and evaporated in Vacuo. The residue was dissolved
in CH2Cl2 (1 mL) and neutralized with Et3N (0.5 mL). To the solution
were successively added 1-hydroxybenzotriazole (HOBt, 5.4 mg, 40
µmol), 82 and 83 (40 µmol), and EDC (7.7 mg, 40 µmol) at 0 °C. The
solution was stirred for 1 h at 0 °C, and the temperature was allowed
to rise to room temperature within 15 h. The reaction mixture was
washed with 10% HCl, 5% NaHCO3, and brine, successively, and dried
over MgSO4. After evaporation in Vacuo, the residue was applied to
silica gel column chromatography (hexane:EtOAc ) 1:2) to obtain the
corresponding coupling products, which were dissolved in MeOH (5
mL) and stirred in the presence of 20% Pd(OH)2 on carbon (Degussa
type, 1 mg) under an atmosphere of hydrogen (1 atm) for 8 h. After
filtration, the filtrate was evaporated in Vacuo to obtain 65-67.
Compound 65 (Amorphous): 1H NMR (400 MHz, D2O) δ 1.18-
1.30 (m, 9H), 1.79-1.90 (m, 2H), 2.22-2.42 (m, 4H), 3.59-3.86 (m,
5H), 3.98-4.02 (m, 1H), 4.13-4.28 (m, 3H), 4.45 (dd, J ) 2.2 and
6.4 Hz, 1H), 4.56 (d, J ) 7.2 Hz, 1H), 4.61 (d, J ) 2.2 Hz, 1H), 4.98
(d, J ) 3.2 Hz, 1H); electrospray negative ion mass, m/z 523 (M -
H)-.
diluted with water (2 mL). The solution was adjusted to pH 2 with
0.1 N HCl, and extracted with EtOAc. The organic layer was dried
over MgSO4 and concentrated in Vacuo. The residue was applied to
silica gel column chromatography (CH2Cl2:MeOH ) 8:2) to afford 85
(117 mg, 49%): 1H NMR (400 MHz, CDCl3) δ 1.99 (dd, J ) 12.0
and 6.0 Hz, 1H), 2.17 (m, 1H), 3.35 (s, 3H), 4.05-4.09 (m, 2H), 4.11-
4.39 (m, 3H), 5.9 (s, 1H), 7.53-7.34 (m, 5H); 13C NMR (63 MHz,
CDCl3) δ 44.78, 51.76, 72.12, 73.74, 75.51, 75.92, 89.22, 104.40,
126.72, 126.46, 128.38, 129.68, 137.43, 170.1; HRMS calcd for
C15H19O7 (M + H) 311.1131, found 311.1139.
Coupling of 85 and 48 for the Synthesis of 86. A solution of 48
(22 mg, 33.6 µmol) dissolved in 30% TFA in CH2Cl2 (1.5 mL) was
allowed to stand for 10 min at room temperature and evaporated in
Vacuo. The residue was dissolved in dry DMF (0.2 mL), neutralized
with 4-methylmorpholine, and stirred for 1 h at room temperature. To
the solution were added 85 (12.5 mg, 40 µmol) dissolved in dry DMF
(0.2 mL), HOBt (9 mg, 67 µmol), and 4-methylmorpholine (8 µL, 70
µmol), successively, at -20 °C. The resulting mixture was stirred for
20 min at -20 °C followed by addition of EDC (13 mg, 67 µmol).
The temperature was allowed to rise to room temperature within 16 h.
The reaction mixture was diluted with water and extracted with EtOAc.
The organic layer was dried over MgSO4
and concentrated in Vacuo.
The residue was applied to silica gel column chromatography (hexane:
EtOAc ) 5:5) to afford 86 (13.5 mg, 48%): 1H NMR (400 MHz, CD3-
OD) δ 1.02 (d, J ) 6.4 Hz, 3H), 1.19-1.26 (m, 2H), 1.88-2.02 (m,
2H), 2.32 (dd, J ) 5.1 and 2.6 Hz, 2H), 2.87-2.92 (m, 3H), 2.94 (s,
3H), 3.21 (s, 3H), 3.50-3.52 (m, 1H), 3.66-3.68 (m, 2H), 3.80-3.83
(m, 2H), 3.91-4.23 (m, 6H), 4.37-4.46 (m, 3H), 4.56-4.90 (m, 6H),
5.55 (s, 1H), 7.12-7.34 (m, 20H); HRMS calcd for C48H57NO3Cs (M
+ Cs) 988.2884, found 988.2916.
1
Compound 66 (Amorphous): H NMR (400 MHz, D2O) δ 1.18
(d, J ) 6.5 Hz, 3H), 1.18 (d, J ) 6.2 Hz, 3H), 1.77-1.85 (m, 2H),
2.20 (t, J ) 7.4 Hz, 2H), 2.32 (t, J ) 7.5 Hz, 2H), 3.57-3.86 (m, 5H),
3.94-4.03 (m, 2H), 4.33-4.34 (br s, 1H), 4.40-4.42 (m, 1H), 4.58
(dd, J ) 1.1 and 8.3 Hz, 1H), 4.98 (d, J ) 3.2 Hz, 1H); electrospray
negative ion mass, m/z 495 (M - H)-.
Compound 67 (Amorphous): 1H NMR (400 MHz, D2O) δ 1.13-
1.23 (m, 6H), 1.75-1.85 (m, 2H), 2.37-2.43 (m, 4H), 3.63-4.07 (m,
7H), 4.37-4.68 (m, 3H), 4.96 (d, J ) 3.2 Hz, 1H); electrospray negative
ion mass, m/z 495 (M - H)-.
Sulfation of 86 for the Synthesis of 87. To a solution of 86 (6.3
mg, 73 µmol) in dry pyridine (1.3 mL) was added SO3‚NMe3 (2.1 mg,
0.15 mmol). The mixture was stirred at room temperature for 6 h and
evaporated in Vacuo. The residue was purified by silica gel column
Synthesis of Cbz-L-Asp(r-Bn)-L-Tyr-OtBu (84). This compound
was synthesized in 82% yield according to the procedure for the
syntheses of 82 and 83: 1H NMR (500 MHz, CDCl3) δ 1.41 (s, 9H),
2.73 (dd, J ) 4.2 and 16.2 Hz, 1H), 2.94 (d, J ) 4.5 Hz, 2H), 2.95
(dd, J ) 4.4 and 16.2 Hz, 1H), 4.60-4.64 (m, 2H), 4.79 (br s, 1H),
5.11 (br s, 2H), 5.19 (s, 2H), 5.98 (d, J ) 7.2 Hz, 1H), 6.01 (d, J ) 8.9
Hz, 1H), 6.67 (d, J ) 8.4 Hz, 2H), 6.92 (d, J ) 8.4 Hz, 2H), 7.29-
7.35 (m, 10H); 13C NMR (125 MHz, CDCl3) δ 28.0, 36.9, 37.5, 50.7,
53.7, 67.0, 67.4, 82.7, 115.3, 127.6, 128.1, 128.5, 130.6, 135.3, 136.2,
154.7, 156.2, 169.1, 170.5, 171.0; HRMS calcd for C32H37N2O8 (M +
H) 577.2550, found 577.2550.
+
chromatography (CH2Cl2:MeOH ) 9.5:0.5) to yield 87 as a HNMe3
salt (5.2 mg, 72%): 1H NMR (400 MHz, CDCl3) δ 0.95 (d, J ) 6.2
Hz, 3H), 1.04-1.19 (m, 9H), 2.12-2.28 (m, 2H), 3.13 (s, 3H), 3.57-
3.63 (m, 5H), 3.87-3.90 (m, 2H), 4.04-4.13 (m, 5H), 4.42 (dd, J )
12.6 Hz and 12.8 Hz, 2H), 4.59-4.87 (m, 6H), 5.51 (s, 1H), 7.16-
7.49 (m, 20H); HRMS calcd for C48H56NO16SCs2 (M - H + 2Cs)
1200.1662, found 1200.1671.
Debenzylation of 87 for the Synthesis of 69. To a solution of 87
(5.2 mg, 5 µmol) in MeOH (0.5 mL) was added Pd(OH)2 on carbon
(Degussa type, 1 mg). The mixture was stirred for 18 h under hydrogen
(1 atm), and the catalyst was removed by filtration with Celite. The
filtrate was evaporated in Vacuo, and the residue was dissolved in water.
The resulting solution was stirred for 2 h in the presence of Dowex 50
W-X8 (Na+). The resin was removed by filtration, and the filtrate was
evaporated in Vacuo. The residue was applied to Biogel P-2 chroma-
tography (H2O) to afford 69 (2.3 mg, 86%): 1H NMR (400 MHz, CD3-
OD) δ 1.08-1.29 (m, 7H), 1.80-1.88 (m, 3H), 2.37-2.43 (m, 4H),
3.69-3.75 (m, 8H), 3.83-3.95 (m, 5H), 4.15-4.20 (m, 3H), 4.50 (d,
J ) 4.1 Hz, 1H), 3.23 (s, 3H); HRMS calcd for C20H34O16NSCs2 (M
- H + 2Cs) 842.9708, found 842.9672; electrospray negative ion mass,
m/z 576.
Synthesis of Compound 70. A solution of R-48 (30 µmol) dissolved
in 30% TFA in CH2Cl2 (2 mL) was allowed to stand for 30 min at
room temperature and evaporated in Vacuo. The residue was dissolved
in CH2Cl2 (1 mL) and neutralized with Et3N (0.5 mL). To the solution
were successively added HOBt (5.4 mg, 40 µmol), N-Fmoc-trans-4-
hydroxy-L-proline (40 µmol), and EDC (7.7 mg, 40 µmol) at 0 °C.
The solution was stirred for 1 h at 0 °C, and the temperature was
allowed to rise to room temperature within 15 h. The reaction mixture
was washed with 10% HCl, 5% NaHCO3, and brine, and dried over
MgSO4. After evaporation in Vacuo, the residue was applied to silica
gel column chromatography (hexane:EtOAc ) 1:2) to obtain compound
88 (MS m/z calcd for C53H58N2O11Cs (M + Cs) 1031.3095, found
1031.3143) which was used directly in the next step without further
characterization.
Coupling of 84 and 47 Followed by Hydrogenation: Synthesis
of 68. A solution of 84 (62 mg, 0.11 mmol) dissolved in a mixture of
TFA (7 mL) and CH2Cl2 (7 mL) was allowed to stand for 3 h at room
temperature and evaporated in Vacuo. The residue was subjected to a
coupling reaction with 47 followed by the hydrogenation according to
the previous procedure described for the synthesis of 65-67 to obtain
68 (28 mg, 48%): 1H NMR (500 MHz, D2O) δ 0.97 (d, J ) 6.0 Hz,
3H), 1.01 (d, J ) 6.5 Hz, 3H), 2.50-2.58 (m, 1H), 2.72-2.81 (m,
2H), 2.99-3.05 (m, 1H), 3.55-3.74 (m, 3H), 3.85 (q, J ) 6.5 Hz,
1H), 4.07-4.29 (m, 3H), 4.57 (dd, J ) 4.8 and 9.0 Hz, 1H), 4.81 (d,
J ) 4.0 Hz, 1H), 6.69 (d, J ) 8.3 Hz, 1H), 7.02 (d, J ) 8.4 Hz, 1H);
electrospray negative ion mass, m/z 542 (M - H)-.
Synthesis of 85. 3-Deoxy-D-lysoheptulosonic acid (300 mg, 1.35
mmol), which was prepared by enzymatic aldol condensation of
D-threose and pyruvate,30 and Dowex 50W-X8 (H+) (250 mg) were
refluxed for 2 h in MeOH (18 mL). The reaction mixture was passed
through Celite and concentrated in Vacuo. The residue was purified
by silica gel column chromatography (CHCl3:MeOH ) 9.5:0.5) to give
the corresponding methyl glycoside mixture 62 (pyranoside:furanoside
) 3:1, 194 mg, 60%). To a solution of 62 (183 mg, 0.78 mmol) in
dry DMF (10 mL) were added benzaldehyde dimethyl acetal (0.29 mL,
1.94 mmol) and camphorsulfonic acid (180 mg, 0.78 mmol). The
mixture was stirred for 12 h at 60 °C and allowed to stand at room
temperature. The solution was diluted with water and extracted with
EtOAc. The organic layer was dried over MgSO4 and concentrated in
Vacuo. The residue was purified by silica gel column chromatography
(hexane:EtOAc ) 3:7) and dissolved in 4 mL of 0.25 N LiOH in
MeOH/H2O. The mixture was stirred for 2 h at room temperature and
Reaction of a solution of 88 (258 mg, 0.27 mmol) in 40% HNEt2 in
THF (10 mL) was allowed to proceed at room temperature for 2 h,
and the solvent was evaporated in Vacuo. The residue was dissolved

6838 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
in 4 mL of THF, and then benzyl monoglutarate, HOBt (73 mg, 0.54
mmol), and EDC (104 mg, 0.54 mmol) were added at 0 °C. After the
mixture was stirred at 0 °C for 10 h, the solvent was evaporated and
the residue was diluted with EtOAc. The resulting organic layer was
washed with H2O (2 × 10 mL), 1 N HCl (2 × 5 mL), saturated aqueous
NaHCO3 (2 × 5 mL), and brine. The organic layer was dried over
MgSO4, filtered, and concentrated. The organic residue was purified
by flash column chromatography eluted with toluene/EtOAc (1:1 and
then 1:2) to afford product 89 (106 mg, 42%): 1H NMR (500 MHz,
CDCl3) δ 1.10 (d, J ) 6.5 Hz, 3H), 1.24 (q, J ) 7.0 Hz, 3H), 1.26 (d,
J ) 6.5 Hz, 3H), 1.85-1.93 (m, 2H), 1.98-2.10 (m, 3H), 2.19-2.24
(m, 1H), 2.30-2.41 (m, 2H), 3.15-3.17 (m, 1H), 3.42 (dd, J ) 11.0,
3.5 Hz, 1H), 3.65-3.70 (m, 2H), 3.78 (dd, J ) 10.5, 2.5 Hz, 1H),
3.97-4.05 (m, 1H), 4.07 (dd, J ) 10.5, 3.5 Hz, 1H), 4.15-4.21 (m,
1H), 4.36-4.40 (m, 1H), 4.45 (br, 1H), 4.55 (t, J ) 8.0 Hz, 1H), 4.61-
4.79 (m, 7H), 4.93 (d, J ) 3.5 Hz, 1H), 4.94 (d, J ) 11.5 Hz, 1H),
5.08 (s, 2H), 7.23-7.40 (m, 20H), 8.26 (d, J ) 9.5 Hz, 1H); 13C NMR
(125 MHz, CDCl3) δ 14.2, 14.5, 16.6, 20.0, 33.2, 33.4, 33.5, 37.5,
55.9, 56.4, 58.6, 61.2, 66.1, 66.4, 70.2, 71.0, 72.7, 73.6, 74.8, 76.2,
79.4, 92.9, 127.1, 127.5, 127.7, 128.0, 128.1, 128.2, 128.2, 128.2, 128.3,
128.3, 128.5, 128.5, 137.5, 138.4, 170.6, 171.1, 172.5, 173.2; MS m/z
calcd for C50H60N2O12Cs (M + Cs) 1013.3201, found 1013.3171.
Compound 89 (16 mg, 15 mmol) was dissolved in ethanol/H2O (2:
1, 2 mL), and then Pd(OH)2 (Degussa type) on carbon was added.
Hydrogen was then applied to the mixture through a balloon for 6 h.
The mixture was filtered through Celite, concentrated in Vacuo, and
purified by Biogel P-2 (water) to obtain 70 after lyophilization (5.6
mg, 70%): 1H NMR (500 MHz, D2O) δ 1.05 (d, J ) 6.5 Hz, 3H),
1.12-1.15 (m, 6H), 1.68 (t, J ) 7.5 Hz, 2H), 1.91-1.97 (m, 1H), 2.11
(t, J ) 7.0 Hz, 2H), 2.22-2.33 (m, 3H), 3.52-3.67 (m, 6H), 3.97-
4.03 (m, 1H), 4.08-4.14 (m, 1H), 4.33-4.37 (m, 1H), 4.45 (br, 1H),
4.48-4.52 (m, 2H), 4.87 (d, J ) 3.9 Hz, 1H); 13C NMR (125 MHz,
D2O) δ 13.6, 14.5, 15.6, 21.4, 33.9, 36.4, 37.6, 52.5, 55.9, 57.8, 58.8,
63.3, 68.0, 69.7, 70.1, 70.9, 71.9, 94.7, 172.3, 175.3; MS m/z calcd for
negative electrospray C22H35N2O12 (M - H) 519, found 519.
67.7, 70.7, 90.3, 167.8, 168.9, 169.1, 171.0 (rotamers present in NMR);
MS m/z calcd for C22H36N2O13Cs (M + Cs) 669.1272, found 669.1287.
Synthesis of N-Cbz-3,4-dihydroxy-D-proline.37 The synthesis is
described in Scheme 10. To a solution of cis-4-hydroxy-D-proline (502
mg 3.8 mmol) in MeOH (7 mL) at 0 °C was added thionyl choride
(0.3 mL, 4.25 mmol) dropwise. The reaction was stirred at rt for 1 h
before it was heated at reflux for 22 h. The resulting solution was
concentrated, and the residue was azeotroped with MeOH. The white
product formed was kept under reduced pressure at 0.5 mmHg for 2 h
(699 mg, 99% yield). A mixture of methyl cis-4-hydroxy-D-prolinate
hydrochloride salt (699 mg, 3.83 mmol) was cooled to 0 °C. With
efficient stirring, CbzCl (0.6 mL, 4.2 mmol) was added, followed by
DIEA (1.6 mL, 9.2 mmol) dropwise and H2O (3 mL). The reaction
was stirred at room temperature for 12 h, and then the organic solvent
was evaporated. This aqueous residue was extracted with EtOAc (50
mL), and the organic layer was washed with 5% aqueous HCl (10 mL),
5% aqueous NaHCO3 (10 mL), and saturated aqueous NaCl (10 mL),
dried (MgSO4), filtered, and concetrated. The crude product was
purified by flash column chromatography eluting with EtOAc/hexane
(3:2) to provide the N-protected methyl ester as a viscous oil (897 mg,
84%): 1H NMR (500 MHz, CDCl3) δ 2.12-2.16 (m, 2H), 2.29-2.38
(m, 2H), 3.23 (d, J ) 9.3 Hz, 1H), 3.39 (d, J ) 9.6 Hz, 1H), 3.62 (s,
3H), 3.58-3.65 (m, 2H), 3.70-3.77 (m, 2H), 3.81 (s, 3H), 4.38-4.42
(m, 3H), 4.45 (dd, J ) 9.8, 1.2 Hz, 1H), 5.06 (d, J ) 12.4 Hz, 1H),
5.11 (d, J ) 12.4 Hz, 1H), 5.20 (d, J ) 12.7 Hz, 2H), 7.27-7.37 (m,
10H); 13C NMR (125 MHz, CDCl3) δ 37.7, 38.6, 52.6, 52.9, 55.7, 56.0,
57.7, 58.1, 67.3, 70.2, 71.2, 127.8, 128.0, 128.1, 128.4, 128.5, 136.3,
154.2, 155.0, 174.9, 175.2 (rotamers present in NMR); MS m/z calcd
for C14H17NO5Cs (M + Cs) 412.0161, found 412.0175.
To a solution of N-Cbz-4-hydroxy-D-proline methyl ester (1.23 g,
4.4 mmol) in CH2Cl2 (30 mL) at 0 °C was added Et3N (0.68 mL, 4.87
mmol) dropwise, followed by mesyl chloride (0.45 mL, 5.76 mmol).
A catalytic amount of DMAP was added, and the reaction mixture was
stirred at 0 °C to rt for 1.5 h. The mixture was poured into 30 mL of
ice/H2O with stirring. The product was extracted with EtOAc (2 × 30
mL). The combined organic layer was washed with 0.1 M HCl, 5%
aqueous NaHCO3, and saturated aqueous NaCl, then dried over MgSO4,
filtered, and concentrated. The crude product was purified by flash
column chromatography eluting with EtOAc/hexane (2:1) to give the
mesylate derivative (1.41 g, 86%) as a clear oil.
Synthesis of Compound 71. The coupling procedure was the same
as that described in Scheme 9. Deprotection of the Cbz group was
also the same as described previously.
Compound 90: 1H NMR (500 MHz, CDCl3) δ 1.16 (d, J ) 6.4
Hz, 3H), 1.22 (d, J ) 6.1 Hz, 3H), 1.26 (t, J ) 7.3 Hz, 3H), 3.43-
3.436 (m, 1H), 3.55-3.70 (m, 3H), 3.80-3.82 (m, 1Hb), 3.86-3.90
(m, 1Ha), 3.98-4.04 (m, 1Hb), 4.06 (dd, J ) 10.0, 3.2 Hz, 1Ha), 4.11-
4.25 (m, 2H), 4.33 (q, J ) 6.4 Hz, 1Ha), 4.44 (br, 1Hb), 4.58-4.63 (m,
1H), 4.63 (d, J ) 11.6 Hz, 1H), 4.69-4.78 (m, 4H), 4.91 (br, 1Hb),
4.93 (d, J ) 3.2 Hz, 1Ha), 4.96 (d, J ) 11.6 Hz, 1H), 5.08 (s, 2H),
7.03-7.17 (m, 1H), 7.26-7.43 (m, 20H); 13C NMR (125 MHz, CDCl3)
δ 14.1, 16.1, 16.4, 16.6, 29.7, 51.5, 51.8, 56.0, 56.2, 61.6, 64.2, 67.0,
67.1, 67.2, 69.9, 70.5, 71.5, 72.7, 74.5, 74.9, 75.0, 76.1, 76.2, 76.3,
79.0, 79.2, 93.4, 127.4, 127.6, 127.7, 127.7, 127.8, 127.9, 128.2, 128.3,
128.3, 128.3, 128.4, 128.5, 128.6, 128.6, 136.4, 137.3, 138.3, 138.3,
155.3, 170.4, 170.9 (rotamers present in NMR); MS m/z calcd for
C46H54N2O12Cs (M + Cs) 959.2731, found 959.2761.
Sodium borohydride (26.6 mg, 0.7 mmol) was added in small
portions to a solution of diphenyl selenide (109.6 mg, 0.35 mmol) at
0 °C. The mixture was stirred for 5 min until the bright yellow color
disappeared. The mixture was added to the previously prepared
mesylate (209 mg, 0.59 mmol), followed by refluxing for 2 h, and
then the solvent was removed in Vacuo. The residue was diluted with
EtOAc (50 mL), and the organic layer was washed with H2O. The
resulting organic phase was dried (MgSO4), filtered, and concentrated.
The crude product was purified by flash column chromatography eluting
with EtOAc/hexane (1:4) to afford the phenylselenyl derivative (179
mg, 70%): 1H NMR (500 MHz, CDCl3) δ 1.11 (t, J ) 7.5 Hz, 3H),
2.25-2.38 (m,1.26, t, 7.0, 3), 3.51 (dd, J ) 11.0, 7.0 Hz, 1H), 3.59
(dd, J ) 11.5, 7.0 Hz, 1H), 3.76-3.82 (m, 2H), 3.95-4.06 (m, 4H),
4.16-4.22 (m, 2H), 4.39 (dd, J ) 8.5, 4.5 Hz, 1H), 4.45 (dd, J ) 8.5,
4.0 Hz, 1H), 5.04 (d, J ) 12.5 Hz, 1H), 5.09 (d, J ) 12.5 Hz, 1H),
5.15 (d, J ) 8.0 Hz, 1H), 5.18 (d, J ) 8.0 Hz, 1H), 7.26-7.38 (m,
16H), 7.52-7.57 (m, 4H); 13C NMR (125 MHz, CDCl3) δ 14.0, 14.1,
36.3, 36.8, 36.9, 37.7, 52.8, 53.3, 58.7, 59.0, 61.3, 61.4, 67.2, 127.8,
127.9, 128.0, 128.0, 128.3, 128.4, 128.5, 129.3, 135.1, 135.3, 153.9,
154.5, 172.1, 172.3 (rotamers present in NMR); MS m/z calcd for
C21H25NO4Se (M + H) 434.0871, found 434.0858.
Compound 91: 1H NMR (500 MHz, CDCl3) δ 1.05 (d, J ) 6.4 Hz,
3H), 1.18 (d, J ) 6.2 Hz, 3H), 1.23 (t, J ) 7.1 Hz, 3H), 1.91 (t, J )
7.1 Hz, 2H), 2.22-2.30 (m, 2H), 2.39 (t, J ) 7.3 Hz, 2H), 3.43-3.51
(m, 2H), 3.63-3.68 (m, 2H), 3.87-3.92 (m, 2H), 3.99 (dd, J ) 10.6,
7.2 Hz, 1H), 4.03-4.06 (m, 2H), 4.18 (dd, J ) 10.6, 7.2 Hz, 1H), 4.30
(d, J ) 6.3 Hz, 1H), 4.38 (t, J ) 7.9 Hz, 1H), 4.59-4.80 (m, 6H),
4.85 (d, J ) 3.7 Hz, 1H), 4.94 (d, J ) 11.5 Hz, 1H), 5.07 (s, 2H),
7.25-7.43 (m, 20H), 7.58 (d, J ) 9.5 Hz, 1H); 13C NMR (125 MHz,
CDCl3) δ 14.0, 16.1, 16.5, 19.8, 20.0, 29.6, 32.7, 33.1, 51.8, 56.3, 61.5,
64.2, 66.0, 66.6, 70.7, 71.5, 72.6, 74.2, 74.8, 76.0, 79.0, 93.7, 127.5,
127.6, 127.8, 128.0, 128.1, 128.1, 128.2, 128.2, 128.4, 128.5, 128.6,
128.6, 135.9, 137.4, 138.3, 138.4, 170.3, 170.4, 172.0, 173.1 (rotamers
present in NMR); MS m/z calcd for C50H60N2O13Cs (M + Cs)
1029.9406, found 1029.9368.
A mixture of the above (phenylselenyl)proline derivative (146.4 mg,
0.38 mmol) and CH2Cl2 (5 mL) was initially cooled to 0 °C in an ice
bath. Pyridine was added dropwise to this solution. A solution of
30% H2O2 was then gradually added over a 5 min period. The mixture
was stirred at rt for 1 h and then diluted with EtOAc (25 mL). The
organic layer was washed with 0.1 M HCl (5 mL), saturated aqueous
NaHCO3 (5 mL), and saturated aqueous NaCl. The organic phase was
then dried over MgSO4, filtered, and concentrated. The resulting residue
1
Compound 71: H NMR (500 MHz, D2O) δ 1.15 (d, J ) 5.8 Hz,
3H), 1.19-1.25 (m, 6H), 1.77 (t, J ) 7.2 Hz, 2H), 2.27-2.39 (m, 4H),
3.58-3.60 (m, 2H), 3.67-3.73 (m, 4H), 3.81 (dd, J ) 11.5, 4.4 Hz,
1H), 4.08-4.13 (m, 1H), 4.17-4.29 (m, 4H), 4.40-4.46 (m, 1H), 4.93
(d, J ) 3.4 Hz, 1H); 13C NMR (125 MHz, D2O) δ 9.4, 10.0, 11.3,
16.3, 28.6, 47.9, 53.4, 59.0, 60.3, 63.0, 63.1, 63.7, 65.5, 66.4, 66.6,
(37) (a) Rueger, H.; Benn, M. H. Can. J. Chem. 1982, 60, 2918. (b)
VanRheenen, V.; Kelly, R. C.; Cha, D. Y. Tetrahedron Lett. 1976, 23 1973.

Synthesis of Sialyl Lewis X Mimetics
J. Am. Chem. Soc., Vol. 118, No. 29, 1996 6839
was purified by flash column chromatography eluting with EtOAc/
hexane (1:4) to afford the dehydro product (76 mg, 73%) as a clear
oil: 1H NMR (500 MHz, CDCl3) δ 1.14 (dt, J ) 0.7, 7.1 Hz, 3H),
1.27 (dt, J ) 0.8, 7.1 Hz, 3H), 4.02-4.10 (m, 2H), 4.21 (dq, J ) 0.7,
7.1 Hz, 2H), 4.25-4.38 (m, 4H), 5.03-5.23 (m, 6H), 5.73-5.80 (m,
1H), 5.94-6.01 (m, 1H), 7.26-7.39 (m, 10H); 13C NMR (125 MHz,
CDCl3) δ 14.0, 14.1, 53.4, 53.8, 61.3, 61.4, 66.4, 66.7, 67.1, 127.7,
127.8, 127.9, 127.9, 128.0, 128.0, 128.4, 128.4, 128.4, 128.5, 129.0,
129.0, 129.1, 129.1, 136.4, 136.5, 153.9, 154.3, 169.9, 170.2 (rotamers
present in NMR); MS m/z calcd for C15H18NO4 (M + H) 276.1236,
found 276.1241.
To a mixture of the above compound (405 mg, 1.48 mmol) and
H2O/acetone/tert-butyl alcohol (6.25:2.5:1, 4.68 mL) were added
N-methylmorpholine N-oxide (518 mg, 4.43 mmol) and a catalytic
amount of K2OsO4. The reaction mixture was stirred at 0 °C overnight.
To the reaction mixture was added Na2SO3 (559 mg, 4.4 mmol), and
the mixture was stirred at rt for 1 h. The organic solvent was
evaporated, and the aqueous layer was extracted with EtOAc (3 × 25
mL). The organic phase was dried over MgSO4, filtered, and
concentrated. The resulting residue was purified by flash column
chromatography eluting with EtOAc/hexane/MeOH (10:10:1) to afford
the title compound ethyl ester (375 mg, 82%) as a clear oil: 1H NMR
(500 MHz, CDCl3) δ 1.01 (t, J ) 7.1 Hz, 3H), 1.27 (t, J ) 7.1 Hz,
3H), 3.51 (dd, J ) 11.4, 4.6 Hz, 1H), 3.60 (dd, J ) 11.7, 4.1 Hz, 1H),
3.73-3.78 (m, 2H), 4.00-4.07 (m, 2H), 4.20-4.34 (m, 8H), 5.01 (d,
J ) 12.4 Hz, 1H), 5.09 (d, J ) 12.4 Hz, 1H), 5.14 (d, J ) 12.4 Hz,
2H), 7.27-7.34 (m, 10H); 13C NMR (125 MHz, CDCl3) δ 14.0, 14.1,
31.0, 50.8, 51.2, 61.6, 61.7, 64.6, 64.9, 67.4, 69.8, 70.5, 74.7, 75.8,
127.9, 127.9, 128.1, 128.4, 128.5 (rotamers present in NMR); MS m/z
calcd for C15H19NO6Na 332.1110, found 332.1124.
Coupling of Deprotected 93 and Succinic Acid Monobenzyl Ester,
Glutaric Acid Monobenzyl Ester, or N-Boc-Asparatic Acid â-Benzyl
Ester for the Syntheses of 94-96. A solution of 93 (146 mg, 0.152
mmol) and diethylamine (0.83 mL) in CH2Cl2 was stirred for 7 h at
room temperature and evaporated in Vacuo. The residue was purified
by silica gel column chromatography (CH2Cl2:MeOH ) 10:1) to obtain
the corresponding deprotected compound (88.7 mg, 79%). To the
solution of this amine (34.6 mg, 46.9 µmol) in CH2Cl2 were added
succinic acid monobenzyl ester (9.8 mg, 46.9 µmol) or N-Boc-asparatic
acid â-benzyl ester (15.2 mg, 46.9 µmol), HOBT (10 mg, 74.1 µmol),
and EDC (12 mg, 62.6 µmol), successively, at 0 °C. The solution was
stirred for 20 min at 0 °C and allowed to rise to room temperature
within 9 h. The reaction mixture was evaporated in Vacuo, and the
residue was dissolved in AcOEt (10 mL). The AcOEt solution was
washed with 1 N HCl, saturated NaHCO3, and brine, successively. The
organic layer was dried over MgSO4 and evaporated in Vacuo. The
residue was applied to silica gel column chromatography (CH2Cl2:
AcOEt ) 2:1) to obtain 94 (30.5 mg, 70%), 95 (48.5 mg, 55%), or 96
(58.5 mg, 77%).
Compound 94: 1H NMR (500 MHz, CDCl3) δ 1.07-1.20 (m, 2H),
1.14 (d, J ) 6.5 Hz, 3H), 1.26-1.41 (m, 2H), 1.54-1.59 (m, 1H),
1.67-1.75 (m, 1H), 1.93-2.01 (m, 2H), 2.32-2.45 (m, 2H), 2.62-
2.77 (m, 2H), 3.43 (dt, J ) 4.5 and 9.5 Hz, 1H), 3.53 (dd, J ) 6.0 and
10.0 Hz, 1H), 3.66 (dd, J ) 5.5 and 10.0 Hz, 1H), 3.69 (br s, 1H),
3.70 (d, J ) 6.5 Hz, 1H), 3.75-3.82 (m, 1H), 3.91 (dd, J ) 3.0 and
10.0 Hz, 1H), 3.97 (q, J ) 6.5 Hz, 1H), 4.01 (dd, J ) 4.0 and 10.0 Hz,
1H), 4.00-4.04 (m, 1H), 4.46 (dd, J ) 5.5 and 8.0 Hz, 1H), 4.47 (d,
J ) 11.5 Hz, 1H), 4.53 (d, J ) 11.5 Hz, 1H), 4.61 (d, J ) 11.5 Hz,
1H), 4.66 (d, J ) 11.5 Hz, 1H), 4.73 (d, J ) 11.5 Hz, 1H), 4.77 (d, J
) 11.5 Hz, 1H), 4.94 (d, J ) 3.5 Hz, 1H), 4.96 (d, J ) 11.5 Hz, 1H),
5.09 (br s, 1H), 6.55 (d, J ) 8.0 Hz, 1H), 6.73 (d, J ) 7.5 Hz, 1H),
7.25-7.39 (m, 20H); HRMS calcd for C55H64N2O11Cs (M + Cs)
1061.3564, found 1061.3596.
Alkaline hydrolysis (THF/0.1 N LiOH, 4 h, rt) as usual followed by
acidification and extraction gave the title compound which was dried
over MgSO4 and used directly for peptide coupling.
Compound 95: 1H NMR (500 MHz, CDCl3) δ 1.12 (d, J ) 6.5 Hz,
3H), 1.20 (m, 4H), 1.54 (m, 1H), 1.70 (m, 1H), 1.93 (m, 4H), 2.20 (m,
3H), 2.36 (t, J ) 7.0 Hz, 2H), 3.37 (dd, J ) 7.5 and 9.5 Hz, 1H), 3.46
(dd, J ) 6.0 and 9.5 Hz, 1H), 3.62 (m, 1H), 3.83 (m, 1H), 3.91 (dd, J
) 2.5 and 10.0 Hz, 1H), 3.94 (m, 1H), 4.00 (d, J ) 3.5 Hz, 1H), 4.01
(dd, J ) 43.5 and 10.0 Hz, 1H), 4.23 (m, 1H), 4.46 (dd, J ) 2.0 and
6.0 Hz, 1H), 4.39-5.01 (m, 10H), 4.93 (d, J ) 3.5 Hz, 1H), 7.29 (m,
25H); 13C NMR (125 MHz, CDCl3) δ 16.6, 20.61, 23.2, 29.2, 30.6,
33.1, 35.0, 52.1, 53.1, 66.3, 66.8, 69.0, 69.4, 73.0, 73.1, 73.4, 74.8,
76.0, 77.2, 77.8, 79.1, 94.6, 127.3-128.5 (m), 135.7, 137.5, 138.6,
138.6, 138.9, 170.7, 172.6, 173.0; HRMS calcd for C56H66N2O11Cs (M
+ Cs) 1075.3721, found 1075.3760.
Reduction of 51 with PPh3 for the Synthesis of 92. A solution of
51 (601 mg, 1.08 mmol) was refluxed in a mixture of benzene (25
mL) and water (0.1 mL) for 15 h. The reaction mixture was evaporated
in Vacuo, and the residue was applied to silica gel column chroma-
tography (CHCl3:MeOH ) 20:1) to obtain 92 (558 mg, 97%): 1H NMR
(500 MHz, CDCl3) δ 1.13 (d, J ) 6.8 Hz, 3H), 1.21-1.38 (m, 4H),
1.62-2.11 (m, 6H), 2.78-2.85 (m, 1H), 3.34-3.46 (m, 1H), 3.71 (d,
J ) 1.8 Hz, 1H), 4.00 (dd, J ) 1.8 and 10.0 Hz, 1H), 4.02-4.07 (m,
2H), 4.63-4.98 (m, 6H), 5.00 (d, J ) 3.5 Hz, 1H), 7.23-7.47 (m,
15H); 13C NMR (125 MHz, CDCl3) δ 16.7, 24.5, 24.6, 29.2, 54.4, 61.0,
66.6, 73.2, 73.4, 74.8, 76.1, 77.6, 79.4, 80.8, 93.6, 127.4, 127.5, 127.6,
127.1, 128.1, 128.2, 128.3, 128.4; HRMS calcd for C33H41NO5 (M +
H) 532.3063, found 532.3040.
Coupling of 92 and N-Fmoc-γ-(benzyloxy)threonine for the
Synthesis of 93. To a solution of 90 (137 mg, 0.258 mmol) and
N-Fmoc-γ-(benzyloxy)threonine (105 mg, 0.235 mmol) in CH2Cl2 (30
mL) were added HOBt (48 mg, 0.356 mmol) and EDC (59 mg, 0.308
mmol), successively, at 0 °C. The solution was stirred for 20 min at
0 °C and allowed to rise to room temperature within 6 h. The reaction
mixture was evaporated in Vacuo, and the residue was dissolved in
AcOEt (30 mL). The AcOEt solution was washed with 1 N HCl,
saturated NaHCO3, and brine, successively. The organic layer was dried
over MgSO4 and evaporated in Vacuo. The residue was applied to
silica gel column chromatography (hexane:EtOAc ) 1:1) to obtain 93
(146 mg, 65%): 1H NMR (500 MHz, CDCl3) δ 1.02-1.21 (m, 2H).
1.12 (d, J ) 6.0 Hz, 3H), 1.27-1.42 (m, 2H), 1.53-1.64 (m, 1H),
1.65-1.78 (m, 1H), 1.92-2.05 (m, 2H), 3.34-3.42 (m, 1H), 3.36 (d,
J ) 6.0 Hz, 1H), 3.52 (dd, J ) 6.0 and 10.0 Hz, 1H), 3.64 (dd, J ) 6.0
and 10.0 Hz, 1H), 3.66 (br s, 1H), 3.73-3.81 (m, 1H), 3.89 (d, J )
6.0 Hz, 1H), 3.93-4.02 (m, 2H), 4.01 (dd, J ) 4.0 and 10.0 Hz, 1H),
4.14 (t, J ) 6.5 Hz, 1H), 4.18 (t, J ) 7.5 Hz, 1H), 4.21 (dd, J ) 7.5
and 10.0 Hz, 1H), 4.41 (dd, J ) 7.5 Hz, 1H), 4.48 (d, J ) 11.5 Hz,
1H), 4.54 (d, J ) 11.5 Hz, 1H), 4.56 (d, J ) 11.5 Hz, 1H), 4.63 (d, J
) 11.5 Hz, 1H), 4.65 (d, J ) 11.5 Hz, 1H), 4.76 (d, J ) 11.5 Hz, 1H),
4.77 (d, J ) 11.5 Hz, 1H), 4.90 (br s, 1H), 4.91 (d, J ) 11.5 Hz, 1H),
5.90 (d, J ) 8.0 Hz, 1H), 6.31 (d, J ) 8.0 Hz, 1H), 7.18-7.42 (m,
24H), 7.51 (d, J ) 7.0 Hz, 1H), 7.55 (d, J ) 7.5 Hz, 1H), 7.75 (t, J )
7.0 Hz, 2H); HRMS calcd for C59H64N2O10Cs (M + Cs) 1093.3615,
found 1093.3649.
Compound 96: 1H NMR (500 MHz, CDCl3) δ 1.08-1.20 (m, 2H),
1.16 (d, J ) 6.5 Hz, 3H), 1.22-1.32 (m, 1H), 1.33-1.41 (m, 1H),
1.44 (s, 9H), 1.52-1.57 (m, 1H), 1.67-1.73 (m, 1H), 1.88-1.97 (m,
2H), 2.76 (dd, J ) 5.5 and 17.5 Hz, 1H), 3.05 (dd, J ) 5.0 and 17.5
Hz, 1H), 3.41 (dt, J ) 4.0 and 9.5 Hz, 1H), 3.51 (d, J ) 6.5 Hz, 1H),
3.54 (dd, J ) 5.5 and 9.5 Hz, 1H), 3.65 (dd, J ) 5.0 and 9.5 Hz, 1H),
3.70-3.78 (m, 1H), 3.76 (br s, 1H), 3.93 (dd, J ) 3.0 and 10.5 Hz,
1H), 3.99-4.06 (m, 1H), 4.00 (q, J ) 6.5 Hz, 1H), 4.02 (dd, J ) 4.0
and 10.5 Hz, 1H), 4.42 (td, J ) 5.0 and 7.0 Hz, 1H), 4.45 (dd, J ) 5.5
and 7.5 Hz, 1H), 4.51 (d, J ) 12.0 Hz, 1H), 4.54 (d, J ) 12.0 Hz, 1H),
4.62 (d, J ) 11.5 Hz, 1H), 4.67 (d, J ) 11.5 Hz, 1H), 4.75 (d, J )
11.5 Hz, 1H), 4.78 (d, J ) 11.5 Hz, 1H), 4.78 (d, J ) 11.5 H, 1H),
4.82 (d, J ) 11.5 Hz, 1H), 4.90 (d, J ) 4.0 Hz, 1H), 4.96 (d, J ) 11.5
Hz, 1H), 5.09 (d, J ) 12.0 Hz, 1H), 5.12 (d, J ) 12.0 Hz, 1H), 5.44
(d, J ) 9.0 Hz, 1H), 6.50 (d, J ) 7.5 Hz, 1H), 7.23-7.39 (m, 20H),
7.52 (d, J ) 7.0 Hz, 1H); HRMS calcd for C60H73N3O13Cs (M + Cs)
1176.4198, found 1176.4237.
Deprotection of 94-96 for the Syntheses of 72-74. To the
solution of 94, 95, or 96 (0.73 mmol) in MeOH (10 mL) was added
Pd(OH)2 on carbon (Degussa type E101, 10 mg). The mixture was
stirred for 6 h under hydrogen (1 atm), and the catalyst was removed
by filtration through Celite. The solvent was evaporated in Vacuo, and
the residue was purified by Biogel P-2 column chromatography (H2O)
to obtain 72-74.
1
Compound 72: H NMR (500 MHz, D2O) δ 1.09 (d, J ) 6.5 Hz,
3H), 1.29 (m, 3H), 1.45 (m, 1H), 1.65 (m, 3H), 2.18 (m, 1H), 2.57 (m,
2H), 2.63 (m, 2H), 3.40 (m, 1H), 3.47 (d, J ) 6.5 Hz, 2H), 3.72 (m,

6840 J. Am. Chem. Soc., Vol. 118, No. 29, 1996
Lin et al.
5H), 4.22 (dt, J ) 2.0 and 6.5 Hz, 1H), 4.49 (d, J ) 2.0 Hz, 1H), 5.03
(d, J ) 3.0 Hz, 1H); HRMS calcd for C20H34N2O11Cs (M + Cs)
611.1217, found 611.1241.
3.22 (m, 1H), 3.31-3.36 (m, 1H), 3.54-3.68 (m, 2H), 3.83 (q, J )
6.8 Hz, 1H), 3.98 (t, J ) 6.4 Hz, 1H), 4.52 (dd, J ) 6.2 Hz, 1H), 4.78
(d, J ) 3.9 Hz, 2H), 6.74 (d, J ) 8.4 Hz, 2H), 7.07 (d, J ) 8.4 Hz,
2H); HRMS calcd for C25H37N3O10Cs (M + Cs) 672.1533, found
672.1546.
1
Compound 73: H NMR (500 MHz, D2O) δ 1.11 (d, J ) 6.5 Hz,
3H), 1.13-1.28 (m, 4H), 1.67-1.79 (m, 5H), 2.13-2.29 (m, 5H), 3.34-
3.38 (m, 1H), 3.47 (dd, J ) 6.5 and 12.0 Hz, 1H), 3.54 (dd, J ) 3.0
and 10.0 Hz, 1H), 3.56 (t, J ) 3.0 Hz, 1H), 3.60 (dd, J ) 3.0 and 12.0
Hz, 1H), 3.63 (dd, J ) 3.5 and 10.0 Hz, 1H), 3.68-3.78 (m, 2H), 3.83
(q, J ) 6.5 Hz, 1H), 4.37 (d, J ) 8.0 Hz, 1H), 4.99 (d, J ) 3.5 Hz,
1H).
Coupling of 85 and 92 for the Synthesis of 99. To a solution of
92 (48 mg, 91 µmol) in dry DMF (1 mL) were added 85 (20 mg, 90
µmol), HOBt (13 mg, 99 µmol), and 4-methylmorpholine (20 µL, 0.18
mmol), successively, at -20 °C. The solution was stirred for 20 min
at -20 °C, then EDC (21 mg, 0.11 mmol) was added, and the mixture
was allowed to rise to room temperature within 12 h. The reaction
mixture was diluted with water and extracted with EtOAc. The organic
layer was dried over MgSO4 and evaporated in Vacuo. The residue
was applied to silica gel column chromatography (hexane:acetone )
4:1) to obtain 99 (43 mg, 58%): 1H NMR (400 MHz, CDCl3) δ 1.08
(d, 3H, J ) 6.1 Hz), 1.25-1.42 (m, 8H), 1.95-2.12 (m, 2H), 2.24-
2.32 (m, 2H), 3.30 (s, 3H), 3.45-3.63 (m, 1H), 3.91-4.26 (m, 9H),
3.91-4.70 (m, 6H), 5.69 (s, 1H), 6.82 (d, J ) 8.3 Hz, 1H), 7.25-7.42
(m, 20H); HRMS calcd for C48H57O11NCs (M + Cs) 956.2986, found
956.2971.
Methoxycarbonylmethylation of 99 for the Synthesis of 100.
Compound 99 (14 mg, 17 µmol) was dissolved in dry DMF (0.8 mL),
and methyl bromoacetate (2 µL, 22 µmol), NaH (95% suspension in
mineral oil, 0.5 mg, 2 µmol), and Bu4NI (3 mg, 8.5 µmol) were added
to the solution successively at 0 °C. The mixture was stirred for 1 h
at 0 °C and was allowed to react for 4 h at room temperature. The
mixture was then concentrated in Vacuo and purified by silica gel
column chromatography (hexane:EtOAc ) 4.5:5.5) to give 100 (7.5
mg, 53%): 1H NMR (400 MHz, CDCl3) δ 1.09 (d, J ) 6.0 Hz, 3H),
1.59 (m, 8H), 1.90-2.22 (m, 2H), 2.45-2.49 (m, 2H), 3.32 (s, 3H),
3.77 (s, 3H), 3.92-4.25 (m, 11H), 4.61-4.90 (m, 6H), 5.70 (s, 1H),
6.8 (d, J ) 8.0 Hz, 1H), 7.41-7.25 (m, 20H); HRMS calcd for
C51H61O13NCs (M + Cs) 1028.3197, found 1028.3240.
1
Compound 74: H NMR (500 MHz, D2O) δ 1.12 (d, J ) 6.5 Hz,
3H), 1.08-1.26 (m, 4H), 1.39 (s, 9H), 1.65-1.80 (m, 3H), 2.14 (m,
1H), 2.74 (m, 2H), 3.39-3.88 (m, 9H), 4.37 (m, 2H), 4.98 (d, J ) 3.5
Hz, 1H); HRMS calcd for C25H43N3O13Cs (M + Cs) 726.1850, found
726.1832.
Synthesis of 75. To the solution of 96 (40 mg, 38 µmol) in MeOH
(2 mL) was added Pd(OH)2 on carbon (Degussa type, 10 mg). The
mixture was stirred for 18 h under hydrogen (1 atm), and the catalyst
was removed by filtration through Celite. The solvent was evaporated
in Vacuo, and the residue was purified by Biogel P-2 column
chromatography (H2O) to obtain 75 (9.3 mg, 49%): 1H NMR (500
MHz, D2O) δ 1.15 (d, J ) 6.5 Hz, 3H), 1.10-1.40 (m, 4H), 1.66-
1.85 (m, 3H), 2.16 (m, 1H), 2.59 (dd, J ) 8.5 and 17.5 Hz, 1H), 2.72
(dd, J ) 5.0 and 17.5 Hz, 1H), 3.40 (m, 1H), 3.51 (dd, J ) 6.0 and
12.0 Hz, 1H), 3.56 (dd, J ) 3.5 and 10.0 Hz, 1H), 3.60 (m, 1H), 3.64
(dd, J ) 4.0 and 10.0 Hz, 1H), 3.69 (m, 1H), 3.73 (m, 1H), 3.85 (m,
1H), 3.91 (m, 1H), 4.15 (m, 1H), 4.40 (d, J ) 7.0 Hz, 1H), 5.00 (d, J
) 4.0 Hz, 1H); HRMS calcd for C20H35N3O11Na (M + Na) 516.2169,
found 516.2169.
Synthesis of 97 and 98. These compounds were synthesized by
the coupling reactions of O-benzyl-Ser with 80 or N-Boc-Asp â-benzyl
ester according to the procedure for the syntheses of 82 and 83.
Yields: (97) 73%, (98) 51%.
1
Compound 97: H NMR (500 MHz, CDCl3) δ 1.95 (m, 2H), 2.29
Debenzylation of 100 Followed by Hydrolysis of the Ester for
the Synthesis of 79. Compound 100 (7 mg, 7.8 µmol) was dissolved
in MeOH (1 mL) and stirred in the presence of 20% Pd(OH)2 on carbon
(Degussa type, 1 mg) under an atmosphere of hydrogen (1 atm) for 8
h. The mixture was filtered through Celite and concentrated in Vacuo
to obtain the deprotected product (4 mg, 90%), which was dissolved
in 0.1 N NaOH (2 mL) and stirred for 4 h at room temperature. The
crude mixture was concentrated in Vacuo and purified by Biogel P-2
column chromatography (H2O) to obtain 79 (2.8 mg, 76%): 1H NMR
(400 MHz, CD3OD) δ 1.19 (d, J ) 6.0 Hz), 1.24-1.31 (m, 2H), 1.36-
1.39 (m, 5H), 1-45-1.48 (m, 1H), 1.73-1.81 (m, 3H), 1.88 (s, 1H),
2.11-2.13 (m, 2H), 2.15-2.18 (m, 1H), 2.31 (dd, J ) 4.1 and 7.9 Hz,
2H), 3.25 (s, 3H), 3.62-3.66 (m, 4H), 3.47-3.53 (m, 1H), 3.76-3.92
(m, 4H), 4.12-4.16 (m, 1H), 4.27-4.29 (m, 1H), 4.47-4.53 (m, 1H);
13C NMR (100 MHz, CD3OD) δ 16.9, 19.8, 24.7, 25.7, 29.9, 42.7,
50.0, 50.9, 63.5, 64.5, 67.8, 69.8, 70.2, 70.9, 71.6, 73.6, 76.0, 80.3,
85.8, 95.2, 100.1, 178.1; HRMS calcd for C22H36O13NNa (M + Na)
546.2163, found 546.2186.
(m, 2H), 2.40 (m, 2H), 3.69 (dd, J ) 3.5 and 9.5 Hz, 1H), 3.92 (dd, J
) 3.0 and 9.5 Hz, 1H), 4.49 (m, 2H), 4.76 (m, 1H), 5.09 (m, 2H), 6.77
(d, J ) 8.0 Hz, 1H), 7.30 (m, 10H); HRMS calcd for C22H25NO6Cs
(M + Cs) 532.0736, found 532.0760.
1
Compound 98: H NMR (500 MHz, CDCl3) δ 1.44 (s, 9H), 2.78
(m, 4H), 2.97 (dd, J ) 4.5 and 17.5 Hz, 1H), 3.12 (dd, J ) 5.0 and
17.5 Hz, 1H), 5.01 (m, 1H), 5.17 (m, 1H), 5.74 (d, J ) 9.0 Hz, 1H),
7.35 (m, 5H); HRMS calcd for C20H24N2O8Cs (M + Cs) 553.0587,
found 553.0573.
Coupling of 97, 98, and 92 Followed by Debenzylation for the
Syntheses of 76 and 77. The syntheses of 76 and 77 were carried out
according to the procedure for the syntheses of 65-67. Yields: (76)
59%, (77) 59%.
Compound 76: 1H NMR (500 MHz, D2O) δ 1.12 (d, J ) 6.5 Hz,
3H), 1.18 (m, 5H), 1.66 (m, 3H), 1.77 (m, 2H), 2.15 (t, J ) 7.5 Hz,
2H), 2.28 (m, 3H), 3.42 (m, 1H), 3.66 (dd, J ) 3.5 and 8.0 Hz, 1H),
3.69 (m, 2H), 3.74 (m, 2H), 3.85 (m, 1H), 4.37 (t, J ) 5.5 Hz, 1H),
5.02 (d, J ) 3.5 Hz, 1H); HRMS calcd for C20H34N2O10Na (M + Na)
485.2111, found 485.2127.
Acknowledgment. The work was supported by the National
Science Foundation and Sandoz Pharmaceuticals Corp., Swit-
zerland. M.-P.H. is a recipient of the Lavoisier French Fellow-
ship from the Ministere des Affaires Etrangeres.
1
Compound 77: H NMR (500 MHz, D2O) δ 1.48 (d, J ) 7.0 Hz,
3H), 1.47-1.74 (m, 4H), 1.74 (s, 9H), 2.00-2.11 (m, 3H), 2.47 (m,
1H), 3.64 (s, 1H), 3.76 (m, 1H), 3.97-4.25 (m, 6H), 4.65-4.74 (m,
2H), 5.31 (d, J ) 3.5 Hz, 1H); HRMS calcd for C24H41N3O12Cs (M +
Cs) 696.1745, found 696.1717.
Supporting Information Available: 1H NMR spectra for
compounds 6, 8, 9, 11, 12, 14, 15, 22, 23, 25, 27, 39-53, 55,
56, 65-87, 89-94, 96, 99, and 100 (60 pages). See any current
masthead page for ordering and Internet access instructions.
Coupling of 92 and 84 Followed by Hydrogenation: Synthesis
of 78. Compound 92 (73 mg, 0.14 mmol) was subjected to the previous
procedure described for the synthesis of 68 to obtain 78 (31 mg,
42%): 1H NMR (500 MHz, D2O) δ 1.08 (d, J ) 6.8 Hz, 3H), 1.08-
1.27 (m, 4H), 1.54-1.71 (m, 3H), 2.12-2.14 (m, 1H), 2.54-2.62 (m,
2H), 2.74-2.86 (m, 2H), 2.96 (dd, J ) 6.2 and 10.2 Hz, 1H), 3.15-
JA952265X
