Palladium-catalyzed one-pot approach to 3-(Diarylmethylene)oxindoles from propiolamidoaryl triflate

Article abstract of DOI:10.3390/molecules200814022

3-(Diarylmethylene)oxindoles have been synthesized from propiolamidoaryl triflate utilizing a palladium-catalyzed one-pot reaction consisting of three successive reactions: Sonogashira, Heck, and Suzuki-Miyaura. This method allows for the production of a complex skeleton of 3-(diarylmethylene)oxindole from propiolamidoaryl triflate using a commercially available aryl iodide and arylboronic acid in a simple and efficient way with moderate yield and stereoselectivity.

Full text of DOI:10.3390/molecules200814022

Molecules 2015, 20, 14022-14032; doi:10.3390/molecules200814022
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Palladium-Catalyzed One-Pot Approach to
3-(Diarylmethylene)oxindoles from Propiolamidoaryl Triflate
Dahye Lee †, Sunhwa Park †, Yoseb Yu, Kye Jung Shin and Jae Hong Seo *
Integrated Research Institute of Pharmaceutical Sciences, College of Pharmacy, The Catholic
University of Korea, Bucheon-si, Gyeonggi-do 420-743, Korea; E-Mails: dahye8821@naver.com (D.L.);
sunalovegs@catholic.ac.kr (S.P.); fbdytpq@catholic.ac.kr (Y.Y.); kyejung@catholic.ac.kr (K.J.S.)
†
These authors contributed equally to this work.
* Author to whom correspondence should be addressed; E-Mail: jaehongseo@catholic.ac.kr;
Tel.: +82-2-2164-6531; Fax: +82-2-2164-4059.
Academic Editor: Roman Dembinski
Received: 7 July 2015 / Accepted: 31 July 2015 / Published: 3 August 2015
Abstract: 3-(Diarylmethylene)oxindoles have been synthesized from propiolamidoaryl
triflate utilizing a palladium-catalyzed one-pot reaction consisting of three successive
reactions: Sonogashira, Heck, and Suzuki-Miyaura. This method allows for the production
of a complex skeleton of 3-(diarylmethylene)oxindole from propiolamidoaryl triflate using
a commercially available aryl iodide and arylboronic acid in a simple and efficient way with
moderate yield and stereoselectivity.
Keywords: 3-(Diarylmethylene)oxindole; one-pot reaction; aryl triflate; palladium-catalyzed
reaction
1. Introduction
The oxindole scaffold, one of the major subfamilies of indoles, has been found in various biologically
active natural products, therapeutics, and synthetic intermediates, which have attracted much interest from
synthetic chemists to develop numerous methods for the synthesis of the unique scaffold [1–3]. Although
synthetic studies on 3-(diarylmethylene)oxindoles are relatively rare, few biological activities have been
reported (Figure 1). For example, TAS-301 (1) exhibits inhibitory activity of neointimal thickening
following single balloon injury [4]. Recently, novel activities of the 3-(diarylmethylene)oxindoles have

Molecules 2015, 20
14023
been revealed, such as AMPK activation of 2 [5] and anti-breast-cancer activity of 3 [6]. Due to these results,
there is an increasing interest in the molecule’s structure. Over the last decade, several groups have
reported efficient synthetic methods for 3-(diarylmethylene)oxindoles utilizing a metal-catalyzed tandem
reaction [7–14]. However, more efficient synthetic methods for 3-(diarylmethylene)oxindoles are required.
Cl
HO
MeO
O
OMe
N
O
O
CO2H
O
N
N
N
OMe
H
1
2
3
Figure 1. Biologically active 3-(diarylmethylene)oxindoles.
Due to our ongoing efforts to develop a novel domino reaction for the synthesis of biologically active
heterocycles, we recently reported a palladium-catalyzed one-pot approach to 3-(diarylmethylene)
oxindoles combining the Sonogashira, Heck, and Suzuki-Miyaura reactions (Scheme 1) [15]. In the one-
pot reaction, a Sonogashira reaction of propiolamide 4 (X = Br) afforded the internal alkyne 5, which
was transformed into 3-(diarylmethylene)oxindole 7 by the addition of the corresponding arylboronic
acid and elevation in reaction temperature. Unfortunately, the stereoselectivity for the newly formed olefin
was low, yielding a mixture of E- and Z- isomers (7a and 7b). This unexpected result could be rationalized
by the formation of the zwitter ionic metal carbene intermediate 8, with a rotatable
σ-bond at the olefin position to facilitate interconversion between two vinylpalladium species, (Z)-6 and
(E)-6 [16–18]. This assumption led us to add a silver (I) salt during the second step of the reaction to
create 5 using the Heck reaction to proceed through the cationic pathway, which is likely to reduce the
formation of the carbene intermediate 8 due to the pre-existence of the cationic charge of the vinyl
palladium species 6. To our delight, the addition of silver (I) salt dramatically increased stereoselectivity,
strongly supporting the proposed carbene-intermediated E/Z isomerization mechanism [15].
Ar1
Pd
Ar2
Ar1
O
Ar1
O
a) Ar1I
Pd catalyst
b) Ar2B(OH)2
X
X
N
R
O
N
N
R
N
R
O
Sonogashira
Heck
R
(Z)-6
4
5
7a
Suzuki-
Miyaura
Pd+
Ar1
Ar1
O-
Pd
Ar1
previous work
Ar2
O
X = Br, with Ag(I) salt
O
this work
X = OTf
N
R
N
R
(E)-6
N
8
R
7b
Scheme 1. Palladium-catalyzed one-pot approach to 3-(diarylmethylene)oxindoles.

Molecules 2015, 20
14024
The Heck reaction of the aryl triflate has been known to follow the cationic pathway due to complete
dissociation of the triflate anion from the palladium center [19]. This fact prompted us to investigate the
one-pot reaction with propiolamidoaryl triflate (4, X = OTf) as a substrate, with the expectation of
identifying a solution to solve the low stereoselectivity of the arylbromo substrate (4, X = Br). Here, we
describe optimization efforts for the one-pot reaction with aryl triflate 4 and substrate scope.
2. Results and Discussion
The aryl triflate substrate 11 was prepared from a known benzoxazolone, 9 [20], using a modification
of the Overman process (Scheme 2) [21]. The addition of TBS-acetylide to 9 gave the corresponding
phenoxide, which was trapped by the triflating reagent to afford TBS-propiolamide 10 with a yield of
88%. Deprotection of the TBS group of 10 by TBAF under AcOH-buffered conditions gave rise to aryl
triflate 11 with a yield of 83%.
a)
TBS
n-BuLi, THF
-78 oC to -20 oC, 5 h
OTf
OTf
TBAF, AcOH
b) PhNTf2
O
N
THF, 0 oC, 6 h
0 oC, 1 h
O
O
O
N
N
Me
88%
83%
Me
10
TBS
Me
11
9
Scheme 2. Synthesis of propiolamidophenyl triflate 11.
When aryl triflate 11 was exposed to the previously optimized palladium-catalyzed one-pot conditions
for the bromo-substrate [15], the desired 3-(diarylmethylene)oxindole 12 was formed with a yield of
64%, with 1,4-benzoxazine 13 as a by-product (7% yield) (entry 1) (Table 1). The unexpected formation
of 13 was due to the base-sensitive and thermally-labile characteristics of triflates [22], causing
decomposition of the triflate group of the Sonogashira adduct to the corresponding phenol compound,
followed by 6-endo-dig cyclization [23,24], to give 13. To investigate the effect of the base on the
reaction, a number of bases were tested. Using KOAc as a base gave a similar yield of 12 and 13 (entry 1).
The weak base, K3PO4, increased the yield of both 12 and 13 to 68% and 20%, respectively (entry 2).
Interestingly, the reaction with Cs2CO3 was completed in a short time (2 h). However, the decomposition
rate of the triflate group was much faster than the Heck/Suzuki-Miyaura domino reaction to give 13 as
a major product with a 55% yield but a small amount of the desired oxindole, 12 (5% yield) (entry 4).
K2CO3 also completed the reaction in 4 h, but 12 was obtained as the major product with a yield of 64%
(entry 5). We decided to extend the reaction time to 3 h, expecting less decomposition of the triflate group.
For NaOAc, changing the reaction time did not increase the yield of 12 (61% yield) (entry 6).
In the case of K3PO4 as a base, the longer reaction time slightly increased the yield of 12 (72%), but
substantially decreased the formation of 13 (5% yield, entry 7 vs. 20% yield, entry 3). The best result
was obtained with K2CO3, which afforded 12 with a yield of 78% and a small amount of by-product, 13
(7% yield) (entry 8).

Molecules 2015, 20
14025
Table 1. Optimization of the one-pot reaction a.
a) PhI, Pd(PPh3)4
CuI, base, DMF
60 oC, time1
+
OTf
O
O
N
b) PhB(OH)2
O
90 oC, time2
Me
N
O
N
Me
Me
13
11
12
Yield (%) b
Entry
Base
Time 1 (h)
Time 2 (h)
12
64
58
68
5
13
7
1
2
3
4
5
6
7
8
NaOAc
KOAc
K3PO4
Cs2CO3
K2CO3
NaOAc
K3PO4
K2CO3
1
1
1
1
1
3
3
3
12
12
12
2
10
20
55
29
7
4
64
61
72
78
12
3
5
2
7
a reagents and conditions: PhI (1.1 equiv), Pd(PPh3)4 (10 mol %), CuI (5 mol %), base (3.0 equiv), DMF, 60 °C,
Time 1; PhB (OH)2 (1.2 equiv), 90 °C, Time 2; b isolated yield.
After establishing optimal conditions, we investigated the substrate scope of the one-pot reaction
(Table 2). First, we applied the reaction conditions to the synthesis of symmetrically substituted
3-(diarylmethylene)oxindoles. All reactions afforded the desired oxindoles, 14a–c, with a moderate yield
(42%–55% yields), regardless of substituents on aryliodide and arylboronic acid (entries 1–3). Comparing
these results to that of the bromo substrate, 4 (X = Br) [15], product yields from triflate 11 were slightly
lower, likely due to the formation of 1,4-benzoxazine (<10% yield). When phenyliodide was used as a
Sonogashira coupling partner, the electronic character of the substituents on arylboronic acids affected the
stereochemical outcome of the products (entries 4–6). Reaction with 4-methoxyphenylboronic acid
afforded 14d as a 1:1 mixture of E/Z isomers (entry 4). However, electron-withdrawing chloro- and
nitro-substituents on the arylboronic acids increased E/Z stereoselectivity to 5:1 and 3:1, respectively
(entries 5 and 6). Since the three above-mentioned reactions went through the same vinylpalladium
intermediate, different stereochemical outcomes of these reactions suggested that formation of the E/Z
mixture of the product was not only caused by E/Z isomerization of vinylpalladium species, 6. One possible
explanation for this result may be the isomerization between the two products under the reaction conditions.
However, when pure each isomer was re-exposed to the reaction conditions (Pd(PPh3)4
(10 mol %), CuI (5 mol %), K2CO3 (3.0 equiv), DMF, 90 °C, 2 h) the interconversion between two E/Z
isomeric products was less than 20%. This result ruled out isomerization of the product from the main
contributor of low stereoselectivity [15]. However, since the reactions of the bromo substrate with the
same combination of phenyliodide and arylboronic acids showed no selectivity on the E/Z isomers [15],
enhanced stereoselectivity by the triflate substrate strongly supports that isomerization could be reduced
under the cationic pathway. Substituents of aryliodides also exerted an effect on the stereoselectivity of
the products. The reaction with 4-mehoxyphenyl iodide resulted in a low E/Z ratio (1.5:1) (entry 7).
4-Chloro- and 4-nitro-phenyl iodide both showed good stereoselectivity (E/Z = 1:5 and 1:12, respectively)
(entries 8 and 9). The stereoselectivity of the last two results are higher than those of the bromo substrate,

Molecules 2015, 20
14026
which proved the usefulness of the triflate substrate for stereoselective synthesis of unsymmetrically
substituted 3-(diarylmethylene)oxindole.
Table 2. Substrate scope of the one-pot reaction a.
a) Ar1I, Pd(PPh3)4
CuI, K2CO3, DMF
60 oC, 3 h
Ar2
Ar1
O
OTf
O
b) Ar2B(OH)2
90 oC, 2 h
N
N
Me
Me
11
14
Bromo Substrate (Ref. [15])
Entry
Ar1
Ar2
14
Yield (%) b
E/Z Ratio c
Yield (%) b
E/Z Ratio c
1
2
3
4
5
6
7
8
4-MeOPh
4-ClPh
4-NO2Ph
Ph
4-MeOPh
4-ClPh
4-NO2Ph
4-MeOPh
4-ClPh
4-NO2Ph
Ph
14a
14b
14c
14d
14e
14f
55
54
42
58
65
59
62
66
62 d
-
-
85
80
67 d
-
-
-
-
1:1
5:1
3:1
1.5:1
1:5
1:12
52
1:1
1:1
1:1
1.6:1
1:3.4
1:10
Ph
57
Ph
52
4-MeOPh
4-ClPh
4-NO2Ph
14d
14e
14f
70
Ph
77
73 d
9
Ph
a
reagents and conditions: PhI (1.1 equiv), Pd(PPh3)4 (10 mol %), CuI (5 mol %), K2CO3 (3.0 equiv), DMF,
b
c
60 °C, 3 h; PhB(OH)2 (1.2 equiv), 90 °C, 2 h; isolated yield; ratio between isolated E/Z isomers;
d Heck/Suzuki-Miyaura reaction was conducted at 110 °C.
3. Experimental Section
3.1. General Information
All reactions were performed under an argon atmosphere with dry solvents, unless otherwise stated.
Dry diethyl ether (Et2O), tetrahydrofuran (THF), acetonitrile (MeCN), toluene, and methylene chloride
(CH2Cl2) were obtained from Ultimate Solvent Purification System (JC Meyer Solvent System, Laguna
Beach, CA, USA). Other dry solvents were purchased as anhydrous grade. All commercially available
reagents were purchased and used without further purification. Reactions were monitored by thin-layer
chromatography (TLC) on silica gel plates (Merck TLC Silica Gel 60 F254) using UV light, PMA
(an ethanolic solution of phosphomolybdic acid) or ANIS (an ethanolic solution of para-anisaldehyde)
as visualizing agent. Purification of products was conducted by column chromatography through silica gel
60 (0.060–0.200 mm). Melting points of all solid compounds were determined by Buchi M-565 (BÜCHI
Labortechnik AG, Flawil, Switzerland). NMR spectra were obtained on Bruker AVANCE
III 500 MHz (Bruker Corporation, Billerica, MA, USA) using residual undeuterated solvent or
TMS (tetramethylsilane) as an internal reference. IR spectra were recorded on a Jasco P-2000 FT-IR
spectrometer (JASCO, Easton, MD, USA). High-resolution mass spectra (HR-MS) were recorded on an
Agilent 6530 Q-TOF mass spectrometer (Agilent Tchnology, Santa Clara, CA, USA) using ESI
(electrospray ionization) or a JEOL JMS-700 (JEOL, Tokyo, Japan) using EI (electron impact). Copies
of NMR spectra of all compounds are available in the Supplementary Materials (Supplementary Figures
S1–S17).

Molecules 2015, 20
14027
3.2. Preparation of Propiolamidoaryl Triflate 11
2-(3-(Tert-butyldimethylsilyl)-N-methylpropiolamido)phenyl trifluoromethanesulfonate (10): To a
stirred solution of TBS-acetylene (1.30 mL, 6.96 mmol) in THF (30 mL) was added n-BuLi (2.0 M in
hexanes, 3.2 mL, 6.4 mmol) at −78 °C. After 1 h, a solution of N-methyl-2-benzoxzolinone (9) [20]
(881 mg, 5.91 mmol) in THF (15 mL) was added dropwise to the reaction mixture. Then, the reaction
temperature was gradually raised to −20 °C. After 4 h stirring at −20 °C, to the mixture was added a
solution of N-phenylbis(trifluoromethansulfonimide) (3.2 g, 9.0 mmol) in THF (15 mL). The reaction
mixture was warmed to 0 °C and stirred for 1 h. Then, the mixture was diluted with sat. aq. NH4Cl (30 mL)
and EtOAc (300 mL). The organic layer was separated, dried (Na2SO4), filtered and concentrated under
reduced pressure. The crude residue was purified by column chromatography (silica gel, hexanes:EtOAc
4:1) to afford TBS-propiolamide 10 (2.20 g, 88% yield) as a pale yellow oil. 10: Rf = 0.16 (silicagel,
hexanes:EtOAc 4:1); IR (film) 3726, 2984, 1652, 1496, 1423, 1361, 1308, 1212, 1140, 940, 882, 827,
778 cm−1;1H-NMR (500 MHz, CDCl3, 3:1 atropisomeric mixture): δ = 7.47–7.31 (m, 4H, major and minor),
3.56 (s, 3H, minor), 3.28 (s, 3H, major), 0.99 (s, 9H, minor), 0.68 (s, 9H, major), 0.20 (s, 6H, minor),
−0.08 (d, J = 3.5 Hz, 6H, major) ppm; 13C-NMR (125 MHz, CDCl3, major peaks) δ = 153.7, 145.5, 136.0,
131.0, 130.1, 129.3, 122.8, 118.6 (q, 1JC-F = 320.1 Hz), 97.3, 96.5, 36.0, 25.8, 16.3, −5.4 ppm; HRMS (FAB):
calcd for C17H23F3NO4SSi [M + H]+: 422.1069, found 422.1073.
2-(N-methylpropiolamido)phenyl trifluoromethanesulfonate (11): To
a
stirred solution of
TBS-propiolamide 10 (912 mg, 3.15 mmol) in THF (30 mL) was added TBAF (1.0 M in THF, 4.15 mL,
4.15 mmol) and AcOH (0.18 mL, 3.14 mmol) at 0 °C. After 24 h, the reaction mixture was diluted with
sat. aq. NH4Cl (30 mL) and EtOAc (100 mL). The organic layer was separated, dried (Na2SO4), filtered
and concentrated under reduced pressure. The crude residue was purified by column chromatography
(silica gel, hexanes:EtOAc 4:1) to afford propiolamide 11 (457 mg, 83% yield) as white solid. 11:
mp = 70.1 °C (uncorrect); Rf = 0.38 (silicagel, hexanes:EtOAc 2:1); IR (film) 3727, 3229, 2923, 2852,
1
2109, 1778, 1652, 1494, 1421, 1368, 1309, 1213, 1138, 1092, 880, 769, 737, 681 cm−1; H-NMR
(500 MHz, CDCl3, 3:1 atropisomeric mixture): δ = 7.52–7.41 (m, 4H, major, 2H, minor), 7.38–7.36 (m,
2H, minor), 3.59 (s, 3H, minor), 3.31 (s, 3H, major), 3.27 (s, 1H, minor), 2.79 (s, 1H, major) ppm; 13C-NMR
(125 MHz, CDCl3, major peaks): δ = 153.1, 145.4, 135.5, 130.8, 130.5, 129.4, 122.8, 118.6 (q, 1JC-F
=
318.6 Hz), 79.4, 75.6, 36.1 ppm; HRMS (EI): Calcd for C11H8F3NO4S [M]+: 307.0126, found 307.0121.
3.3. General Procedure for Palladium-Catalyzed One-Pot Reaction
To a stirred solution of propiolamide 11 (0.5 mmol, 1.0 equiv) in DMF (5 mL) were added the
corresponding aryl iodide (0.55 mmol, 1.1 equiv), CuI (0.025 mmol, 5 mol %), K2CO3 (1.5 mmol,
3.0 equiv) and Pd(PPh3)4 (0.05 mmol, 10 mol %) at 25 °C. The reaction mixture was stirred at 60 °C for
3 h. Then, the corresponding aryl boronic acid (0.6 mmol, 1.2 equiv) was quickly added to the mixture.
Reaction temperature was raised to 90 °C or 110 °C. After 2 h stirring at the indicated temperature, the
mixture was cooled to 25 °C and diluted with EtOAc (200 mL). The organic layer was washed with H2O
(30 mL × 3) and brine (30 mL), then dried (Na2SO4), filtered and concentrated under reduced pressure.
The crude residue was purified by column chromatography (silica gel, hexane:EtOAc) to yield 3-
(diarylmethylene)oxindoles (12 and 14a–f) and 1,4-benzoxazine 13.

Molecules 2015, 20
14028
3-(Diphenylmethylene)-1-methylindolin-2-one (12): Yellow solid, mp = 165.9 °C (lit. [13],
153.2–154.9 °C); Rf = 0.33 (silica gel, hexanes:EtOAc 4:1); IR (film) 3054, 2923, 1700, 1606, 1469 cm−1;
1H-NMR (500 MHz, CDCl3): δ = 7.45–7.41 (m, 3H), 7.37–7.32 (m, 7H), 7.17 (td, J = 7.5, 1.0 Hz, 1H),
6.76 (d, J = 8.0 Hz, 1H), 6.68 (td, J = 7.5, 1.0 Hz, 1H), 6.42 (dd, J = 7.5, 1.0 Hz, 1H), 3.21 (s, 3H) ppm;
13C-NMR (125 MHz, CDCl3): δ = 167.0, 154.7, 143.5, 141.5, 140.1, 130.1, 129.5, 129.3, 129.2, 129.1,
128.9, 128.0, 124.4, 123.4, 123.3, 121.5, 107.8, 26.0 ppm; HRMS (ESI-TOF): calcd for C22H17 NO [M
+ H]+: 312.1388, found 312.1394.
(Z)-2-Benzylidene-4-methyl-2H-benzo[b][1,4]oxazin-3(4H)-one (13): White solid; mp = 155.1 °C
(lit. [25], 155–156 °C); Rf = 0.60 (silicagel, CH2Cl2); IR (film) 3727, 2923, 2853, 1668, 1630, 1504,
1422, 1381, 1288, 1167, 1127, 1039, 743, 686 cm−1; 1H-NMR (500 MHz, CDCl3): δ = 7.85 (d, J = 7.5 Hz,
2H), 7.41 (t, J = 7.5 Hz, 2H), 7.31 (t, J = 7.3 Hz, 1H), 7.20–7.18 (m, 1H), 7.10–7.07 (m, 2H), 7.02–7.00 (m,
1H), 6.96 (s, 1H), 3.48 (s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 157.4, 142.0, 141.2, 133.9, 130.1,
128.7, 128.3, 127.6, 123.9, 123.4, 116.1, 114.5, 113.0, 28.8 ppm; HRMS (EI): calcd for C16H13NO2 [M]+:
251.0946, found 251.0947.

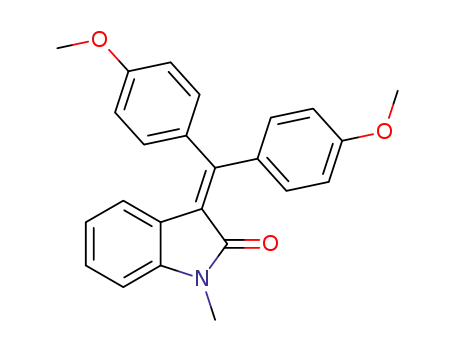

3-(bis(4-Methoxyphenyl)methylene)-1-methylindolin-2-one (14a): Brown solid; mp = 192.2 °C; Rf = 0.2
(silica gel, hexanes:EtOAc 4:1); IR (film) 3017, 1691, 1603, 1251 cm−1; 1H-NMR (500 MHz, CDCl3):
δ = 7.29–7.24 (m, 4H), 7.14 (td, J = 8.0, 1.5 Hz, 1H), 6.93 (d, J = 9.0 Hz, 2H), 6.88 (d, J = 9.0 Hz, 2H),
6.77 (d, J = 8.0 Hz, 1H), 6.70 (td, J = 8.0, 1.5 Hz, 1H), 6.57 (dd, J = 7.5, 0.5 Hz, 1H), 3.88
(s, 3H), 3.84 (s, 3H), 3.22 (s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 167.3, 161.0, 160.8, 155.1,
142.8, 133.9, 132.9, 132.4, 132.1, 128.0, 124.3, 122.7, 122.5, 121.3, 114.2, 113.2, 107.7, 55.5, 55.4, 26.0
ppm; HRMS (ESI-TOF): calcd for C24H21 NO3 [M + H]+: 372.1600, found 372.1611.
3-(bis(4-Chlorophenyl)methylene)-1-methylindolin-2-one (14b): Yellow solid; mp = 134.4 °C; Rf = 0.33
1
(silica gel, hexanes:EtOAc 4:1); IR (film) 3054, 2927, 1699, 1606, 1486, 1089 cm–1; H-NMR
(500 MHz, CDCl3): δ = 7.41 (dd, J = 7.0, 2.0 Hz, 2H), 7.33 (dd, J = 7.0, 2.0 Hz, 2H), 7.26–7.20 (m, 5H),
6.78 (d, J = 8.0 Hz, 1H), 6.73 (td, J = 7.5, 1.0 Hz, 1H), 6.52 (d, J = 7.5 Hz, 1H), 3.20 (s, 3H) ppm;
13C-NMR (125 MHz, CDCl3): δ = 166.7, 151.4, 143.5, 139.3, 138.0, 135.7, 135.6, 131.7, 131.1, 129.5,
129.4, 128.3, 125.1, 123.2, 122.8, 121.7, 108.1, 26.0 ppm; HRMS (ESI-TOF): calcd for C22H15Cl2 NO
[M + H]+: 380.0609, found 380.0612.
3-(bis(4-Nitrophenyl)methylene)-1-methylindolin-2-one (14c): Brown solid; mp = 244.5 °C; Rf = 0.21
1
(silica gel, hexanes:EtOAc 3:1); IR (film) 3073, 1703, 1601, 1517, 1486, 1344, 1098 cm−1; H-NMR
(500 MHz, CDCl3): δ = 8.34 (dd, J = 7.0, 2.0 Hz, 2H), 8.24 (dd, J = 7.0, 2.0 Hz, 2H), 7.56 (dd, J = 7.0,
2.0 Hz, 2H), 7.48 (dd, J = 7.0, 2.0 Hz, 2H), 7.29 (dd, J = 7.5, 1.0 Hz, 1H), 6.83 (d, J = 8.0 Hz, 1H), 6.76
(td, J = 8.0, 1.0 Hz, 1H), 6.45 (d, J = 7.5, 1H), 3.20 (s, 3H) ppm; 13C-NMR (125 MHz, CDCl3):
δ = 166.0, 148.4, 148.1, 147.1, 146.3, 145.6, 144.3, 130.9, 130.6, 130.4, 127.5, 124.8, 123.63,
123.61, 122.2, 121.4, 108.7, 26.1 ppm; HRMS (ESI-TOF): calcd for C22H15N3O5 [M + H]+: 402.1092, found
402.1097.
(Z)-3-((4-Methoxyphenyl)(phenyl)methylene)-1-methylindolin-2-one (Z-14d): Yellow solid; mp = 153.0 °C
(lit. [26], 163.8-164.3 °C); Rf = 0.24 (silica gel, hexanes:EtOAc 4:1); IR (film) 2931, 1696, 1604,

Molecules 2015, 20
14029
1
1250 cm−1; H-NMR (500 MHz, CDCl3): δ = 7.46–7.40 (m, 3H), 7.32–7.29 (m, 4H), 7.15
(t, J = 13.0 Hz, 1H), 6.88 (dd, J = 7.0, 2.0 Hz, 2H), 6.76 (d, J = 8.0 Hz, 1H), 6.66 (t, J = 7.5 Hz, 1H), 6.32
(d, J = 7.5 Hz, 1H), 3.84 (s, 3H), 3.23 (s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 167.1, 161.0, 154.9,
143.0, 141.7, 132.7, 131.9, 129.9, 129.3, 129.0, 128.4, 123.9, 123.0, 121.4, 113.2, 107.7, 55.4, 26.0 ppm;
HRMS (ESI-TOF): Calcd for C23H19 NO2 [M + H]+: 342.1494, found 342.1503.
(E)-3-((4-Methoxyphenyl)(phenyl)methylene)-1-methylindolin-2-one (E-14d): Yellow solid; mp = 162.7 °C
(lit. [13], 163.8-164.3 °C); Rf = 0.26 (silica gel, hexanes:EtOAc 4:1); IR (film) 3053, 2927, 1696, 1603,
1508, 1469, 1250 cm−1; 1H-NMR (500 MHz, CDCl3): δ = 7.39–7.25 (m, 7H), 7.17 (td, J = 7.5, 1.5 Hz,
1H), 6.93 (dd, J = 7.0, 2.0 Hz, 2H), 6.78–6.67 (m, 3H), 3.87 (s, 3H), 3.20 (s, 3H) ppm; 13C-NMR
(125 MHz, CDCl3): δ = 167.1, 160.8, 154.9, 143.3, 140.6, 133.6, 132.7, 131.7, 130.5, 129.3, 129.0, 128.6,
127.9, 122.9, 121.4, 114.3, 107.8, 55.5, 26.0 ppm; HRMS (ESI-TOF): calcd for C23H19 NO2
[M + H]+: 342.1494, found 342.1498.
(Z)-3-((4-Chlorophenyl)(phenyl)methylene)-1-methylindolin-2-one (Z-14e): Yellow solid; mp = 59.0 °C:
Rf = 0.37 (silica gel, hexanes:EtOAc 4:1); IR (film) 3054, 1698, 1606, 1486, 1335, 1090 cm−1;
1H-NMR (500 MHz, CDCl3): δ = 7.48–7.43 (m, 3H), 7.35–7.27 (m, 6H), 7.17 (td, J = 7.5, 1.0 Hz, 1H),
6.77 (d, J = 8.0 Hz, 1H), 6.68 (td, J = 7.5, 1.0 Hz, 1H), 6.42 (dd, J = 7.5, 0.5 Hz, 1H), 3.20 (s, 3H) ppm;
13C-NMR (125 MHz, CDCl3): δ = 166.9, 153.0, 143.5, 141.0, 138.4, 135.3, 131.6, 129.51, 129.50, 129.2,
129.1, 128.2, 124.7, 123.4, 123.2, 121.6, 107.9, 26.0 ppm; HRMS (EI): Calcd for C22H16ClNO [M]+:
345.0920, found 345.0916.
(E)-3-((4-Chlorophenyl)(phenyl)methylene)-1-methylindolin-2-one (E-14e): Yellow solid; mp = 54.8 °C;
1
Rf = 0.35 (silica gel, hexanes:EtOAc 4:1); H-NMR (500 MHz, CDCl3): δ = 7.41–7.18 (m, 9H), 7.19
(td, J = 7.5, 1.0 Hz, 1H), 6.78 (d, J = 7.5 Hz, 1H), 6.73 (td, J = 7.5, 1.0 Hz, 1H), 6.53 (dd, J = 7.5, 0.5 Hz,
1H), 3.20 (s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 166.8, 153.0, 143.6, 139.8, 139.7, 135.5, 131.1,
130.2, 129.42, 129.37, 129.2, 128.1, 124.7, 123.2, 123.0, 121.6, 108.0, 26.0 ppm; HRMS (EI): Calcd for
C22H16ClNO [M]+: 345.0920, found 345.0919.
(Z)-1-Methyl-3-((4-nitrophenyl)(phenyl)methylene)indolin-2-one (Z-14f): Yellow solid; mp = 186.6 °C;
1
Rf = 0.28 (silica gel, hexanes:EtOAc 4:1); IR (film) 3057, 1699, 1603, 1510, 1342 cm−1; H-NMR
(500 MHz, CDCl3): δ = 8.22 (dd, J = 7.0, 1.5 Hz, 2H), 7.50–7.44 (m, 5H), 7.32 (dd, J = 8.0, 2.0 Hz, 2H),
7.22 (t, J = 7.5 Hz, 1H), 6.80 (d, J = 8.0 Hz, 1H), 6.73 (t, J = 7.75 Hz, 1H), 6.52 (d, J = 8.0 Hz, 1H), 3.20
(s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 166.6, 150.8, 147.8, 147.0, 143.9, 140.0, 130.7, 129.9,
129.8, 129.4, 129.2, 126.1, 123.7, 123.4, 122.4, 121.9, 108.2, 26.0 ppm; HRMS (ESI-TOF): Calcd for
C22H16 N2O3 [M + H]+: 357.1239, found 357.1249.
(E)-1-Methyl-3-((4-nitrophenyl)(phenyl)methylene)indolin-2-one (E-14f): Yellow solid; mp = 201.2 °C
(lit. [13], 198.8–200.8 °C); Rf = 0.25 (silica gel, hexanes:EtOAc 4:1); IR (film) 3056, 1701, 1604, 1519,
1469, 1345 cm−1; 1H-NMR (500 MHz, CDCl3): δ = 8.30 (t, J = 4.25 Hz, 2H), 7.54 (d, J = 9.0 Hz, 2H),
7.41–7.21 (m, 6H), 6.80 (d, J = 8.0 Hz, 1H), 6.71 (t, J = 7.75 Hz, 1H), 6.36 (d, J = 7.5 Hz, 1H), 3.21
(s, 3H) ppm; 13C-NMR (125 MHz, CDCl3): δ = 166.4, 150.9, 148.2, 147.9, 143.9, 138.8, 130.6, 130.0,

Molecules 2015, 20
14030
129.9, 129.7, 128.3, 125.7, 124.4, 123.3, 122.4, 121.8, 108.3, 26.1 ppm; HRMS (EI): calcd for
C22H16N2O3 [M]+: 356.1161, found 356.1161.
4. Conclusions
In conclusion, we developed an efficient method for the synthesis of 3-(diarylmethylene)oxindoles
from propiolamidoaryl triflate. Aryl triflate showed greater E/Z selectivity than those of the bromo
substrate, which proved itself as another solution for low stereoselectivity of the palladium-catalyzed
one-pot reaction, and supports the previously proposed isomerization mechanism of vinylpalladium
species via a zwitter ionic metal carbene intermediate.
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/20/08/14022/s1.
Acknowledgments
This research was supported by the Basic Science Research Program through the National Research
Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning
(NRF-2014R1A1A1038332), and Research Fund 2011 of The Catholic University of Korea
Author Contributions
J.H.S. and K.J.S. conceived and designed the experiments; D.L. and S.P. performed experiments;
Y.Y. analyzed data; J.H.S. wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Marti, C.; Carreira, E.M. Construction of spiro[pyrrolidine-3,3ʹ-oxindoles]—Recent Application to
the synthesis of oxindole alkaloids. Eur. J. Org. Chem. 2003, 12, 2209–2219.
2. Kein, J.E.M.; Taylor, R.J.K. Transition-metal-mediated Routes to 3,3-disubstituted oxindoles
through anilide cyclization. Eur. J. Org. Chem. 2011, 34, 6821–6841.
3. Ziarani, G.M.; Gholamzadeh, P.; Lashgari, N.; Hajiabbast, P. Oxindole as starting material in
organic synthesis. ARKIVOC 2013, 1, 470–535.
4. Sasaki, E.; Miyoshi, K.; Nozawa, Y.; Kanda, A.; Nakano, K.; Yamasaki, Y.; Miyake, H.; Mausuura,
N. TAS-301, a new synthetic inhibitor of neointimal thickening after balloon injury, inhibits
calcium-dependent signal transduction and cytoskeletal reorganization. Pharmacology 2001, 63,
17–27.
5. Yu, L.F.; Li, Y.Y.; Su, M.B.; Zhang, M.; Zhang, W.; Zhang, L.N.; Pang, T.; Zhang, R.T.; Liu, B.;
Li, J.Y.; et al. Development of novel alkene oxindole derivatives as orally efficacious AMP-activated
protein kinase activators. ACS Med. Chem. Lett. 2013, 4, 475–480.

Molecules 2015, 20
14031
6. Pal, A.; Ganguly, A.; Ghosh, A.; Yousuf, M.; Rathore, B.; Banerjee, R.; Adhikari, S. Bis-arylidene
oxindoles as anti-breast-cancer agents acting via the estrogen receptor. Chem. Med. Chem. 2014, 9,
727–732.
7. Yanada, R.; Obika, S.; Oyama, M.; Takemoto, Y. Stereoselective synthesis of
3-alkylideneoxindoles using tandem In-mediated carbometalation and Pd-catalyzed cross-Coupling
reaction. Org. Lett. 2004, 6, 2825–2828.
8. Yanada, R.; Obika, S.; Inokuma, T.; Yanada, K.; Yamashita, M.; Ohta, S.; Takemoto, Y.
Stereoselective synthesis of 3-alkylideneoxindoles via palladium-catalyzed domino reactions.
J. Org. Chem. 2005, 70, 6972–6975.
9. Cheung, W.S.; Patch, R.J.; Player, M.R. A tandem Heck-carbocyclization/Suzuki-coupling approach to
the Stereoselective synthesis of asymmetric 3,3-(diarylmethylene)indolinones. J. Org. Chem. 2005,
70, 3741–3744.
10. Shintani, R.; Yamagami, T.; Hayashi, T. Rhodium-catalyzed multicomponent-coupling reactions
involving a carborhodation-cross-coupling sequence. Org. Lett. 2006, 8, 4799–4801.
11. Pinto, A.; Neuville, L.; Zhu, J. Palladium-catalyzed three-component synthesis of
3-(diarylmethylene)oxindoles through a domino Sonogashira/carbopalladation/C–H activation/C–C
bond-forming sequence. Angew. Chem. Int. Ed. 2007, 46, 3291–3295.
12. Miura, T.; Toyoshima, T.; Takahashi, Y.; Murakami, M. Stereoselective synthesis of
3-alkylideneoxindoles by palladium-catalyzed cyclization reaction of 2-(alkynyl)aryl isocyanates
with organoboron reagents. Org. Lett. 2008, 10, 4887–4889.
13. Tang, S.; Peng, P.; Zhong, P.; Li, J.H. Palladium-catalyzed C–H functionalization of
N-arylpropiolamides with aryliodonium salts: Selective synthesis of 3-(1-arylmethylene)oxindoles.
J. Org. Chem. 2008, 73, 5476–5480.
14. Song, R.J.; Liu, Y.; Li, R.J.; Li, J.H. Selective synthesis of 3-methyleneindolin-2-ones by one-pot
multicatalytic processes. Tetrahedron Lett. 2009, 50, 3912–3916.
15. Dong, G.R.; Park, S.; Lee, D.; Shin K. J.; Seo, J.H. Synthesis of 3-(diarylmethylene)oxindoles via
a palladium-catalyzed one-pot reaction: Sonogashira-Heck-Suzuki-Miyaura combined reaction.
Synlett 2013, 24, 1993–1997.
16. Zargarian, D.; Alper, H. Palladium-catalyzed hydrocarboxylation of alkynes with formic acid.
Organometallics 1993, 12, 712–724.
17. Cacchi, S.; Fabrizi, G.; Marinelli, F.; Moro, L.; Pace, P. Palladium-catalyzed hydroarylation and
hydrovinylation of 3,3-dialkoxy-1-aryl-1-propynes. An approach to 3-aryl- and 3-vynylquinolines.
Tetrahedron 1996, 52, 10225–10240.
18. Amatore, C.; Bensalem, S.; Ghalem, S.; Jutand, A. Mechanism of the carbopalladation of alkynes
by aryl-palladium complexes. J. Organomet. Chem. 2004, 689, 4642–4646.
19. Dounay, A.B.; Overman, L.E. The asymmetric intramolecular Heck reaction in natural product total
synthesis. Chem. Rev. 2003, 103, 2945–2963.
20. Sam, J.; Plampin, J.N.; Poos, G.I. Methylated 2-Amino-5-chlorobenzoxazoles. J. Org. Chem. 1958,
23, 1500–1503.
21. Overman, L.E.; Peterson, E.A. Enantioselective synthesis of (−)-idiospermuline. Tetrahedron 2003,
59, 6905–6919.

Molecules 2015, 20
14032
22. Suzuki, A. Recent advances in the cross-coupling reactions of organoboron derivatives with organic
electrophiles, 1995–1998. J. Organomet. Chem. 1999, 576, 147–168.
23. Chowdhury, C.; Chaudhuri, G.; Guha, S.; Mukherjee, A.K.; Kundu, N.G. Palladium-catalyzed
heteroannulation leading to heterocyclic structures with two heteroatoms: A highly convenient and
facile method for a totally region- and stereoselective synthesis of (Z)-2,3-dihydro-2-(ylidene)-1,4-
benzo- and -naphtho[2,3-b]dioxnis. J. Org. Chem. 1998, 63, 1863–1871.
24. Kumar, K.S.; Rambabu, D.; Prasad, B.; Mujahid, M.; Krishna, G.R.; Rao, M.V.B.; Reddy, C.M.;
Vanaja, G.R.; Kalle, A.M.; Pal, M. A new approach to construct a fused 2-ylidene chromene ring:
highly regioselective synthesis of novel chromeno quinoxalines. Org. Biomol. Chem. 2012, 10,
4774–4781.
25. Loudon, J.D.; Ogg, J. 2,3-Dihydro-3-oxobenz-1,4-oxaxines. J. Chem. Soc. 1955, 739–744,
doi:10.1039/JR9550000739.
26. Tang, D.J.; Tang, B.X., Li, J.H. Selective synthesis of 3-aryl quinolin-2(1H)-ones and
3-(1-arylmethylene)oxindoles involving a 2-fold arene C–H activation process J. Org. Chem. 2009,
74, 6749–6755.
Sample Availability: Not available.
© 2015 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
