Novel synthesis of substituted 4′-hydroxy-2,2′:6′,2″-terpyridines

Article abstract of DOI:10.1039/a704295g

4-Substituted-2,6-diacetylpyridines 2-4 have been synthesised; by using the Kroehnke-methodology, chalcone and methylacylpyridinium salts have been reacted to yield 4′-ethoxy-2,2′:6′,2″-terpyridines 5-7. These novel 2,2′:6′,2″-terpyridines are functionali

Full text of DOI:10.1039/a704295g

View Online / Journal Homepage / Table of Contents for this issue
Novel synthesis of substituted 4Ј-hydroxy-2,2Ј:6Ј,2Љ-terpyridines
Reza-Ali Fallahpour * and Edwin C. Constable
Institut für Anorganische Chemie, Universität Basel, Spitalstrasse 51, CH-4056 Basel,
Switzerland
4-Substituted-2,6-diacetylpyridines 2–4 have been syn-
thesised; by using the K röhnke-methodology, chalcone
and methylacylpyridinium salts have been reacted to yield
4Ј-ethoxy-2,2Ј:6Ј,2Љ-terpyridines 5–7. These novel 2,2Ј:6Ј,2Љ-
terpyridines are functionalised at C(4Ј) and possess sub-
stituents at C(4), C(5) and C(6) of both terminal pyridines,
respectively. The ethyl ether protecting group has been
cleaved to obtain 4Ј-hydroxy-2,2Ј:6Ј,2Љ-terpyridine 8.

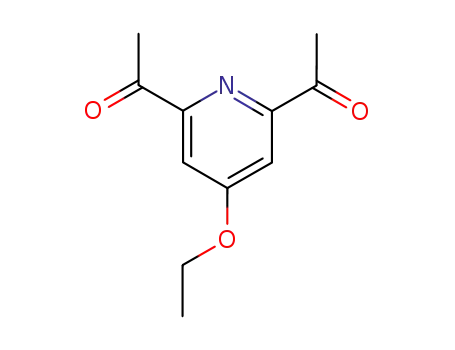

2,6-diacetylpyridine 2 as yellowish crystals in 30% overall yield
from 4-ethoxypyridine-2,6-dicarboxylic acid.‡
Alternatively diethyl 4-chloropyridine-2,6-dicarboxylate was
hydrolysed to 4-chloropyridine-2,6-dicarboxylic acid which
readily reacted with thionyl chloride to give 4-chloropyridine-
2,6-dicarbonyl dichloride.12 The reaction of 4-chloropyridine-
2,6-dicarbonyl dichloride with Meldrum’s acid gave, after
evaporation of solvent, brown crystals which were hydrolysed
with aqueous acetic acid to give 4-chloro-2,6-diacetylpyridine 3
as yellow crystals in 32% overall yield from 4-chloropyridine-
2,6-dicarboxylic acid.§
Chelidamic acid 1 was esterified to diethyl 4-hydroxy-
pyridine-2,6-dicarboxylate then reacted with benzyl bromide in
the presence of crown ether to give diethyl 4-benzyloxy-
pyridine-2,6-dicarboxylate.13 This ester was hydrolysed, reacted
with thionyl chloride and after treatment with Meldrum’s acid
and aqueous hydrolysis gave 4-benzyloxy-2,6-diacetylpyridine
4¶ as colorless crystals in 35% overall yield from 4-benzyl-
oxypyridine-2,6-dicarboxylic acid.
Oligopyridines have received considerable attention in supra-
molecular chemistry1 and have been incorporated into helic-
ates,2 catenanes,3 dendrimers4 and knots5 among others. An
interesting field in supramolecular chemistry relates to the
photochemical properties of homo- and hetero-metallic com-
plexes using oligopyridine metal-binding domains.6,7
The 2,2Ј:6Ј,2Љ-terpyridine metal-binding is commonly incorp-
orated into multinucleating systems using 4Ј-chloro- or 4Ј-
hydroxy-functionalised derivatives.8 To date the synthetic
approaches to these key intermediates have not permitted add-
itional functionalisation on the terminal rings. We now report
the synthesis of 4Ј-hydroxy derivatives bearing functionality at
the 4,4Љ-, 5,5Љ- or 6,6Љ-positions.
All data for the fully characterised protected 4-hydroxy-2,6-
diacetylpyridines 2–4 are in agreement with the expected prop-
erties of these compounds in comparison with the known 2,6-
diacetylpyridine.
Among the existing methods for the synthesis of pyridines
and oligopyridines the Kröhnke-methodology is the most
commonly used.14 The synthesis consists of the reaction of a
chalcone and a methacylpyridinium [N-(2-oxoalkyl)pyridinium]
salt. The same methodology was applied to 4-ethoxy-2,6-di-
acetylpyridine 2. Thus we were able to synthesise terpyridines
with substituents at C(4), C(5) and C(6) of both terminal pyri-
dines while the 4Ј-position of terpyridine is functionalised as a
protected hydroxy group.
OH
HO
OH
N
O
O
1
Chelidamic acid 1 has not, to the best of our knowledge, been
used as a starting material for the synthesis of oligopyridines.
The presence of functionality in a position destined to become
C(4Ј) of a 2,2Ј:6Ј,2Љ-terpyridine makes it an attractive starting
point.
Compound 2 was reacted with p-tolualdehyde in ethanol at
0 ЊC to obtain the chalcone which readily gave 4Ј-ethoxy-6,6Љ-
dimethyl-4,4Љ-di(p-tolyl-2,2Ј:6Ј,2Љ-terpyridine 5|| in the reaction
Chelidamic acid 1 was esterified to diethyl 4-chloropyridine-
2,6-dicarboxylate which was then reacted with sodium ethoxide
to obtain diethyl 4-ethoxypyridine-2,6-dicarboxylate.†,9 This
ester was hydrolysed and converted to 4-ethoxypyridine-2,6-
dicarbonyl dichloride on reaction with thionyl chloride. The
reaction of 4-ethoxypyridine-2,6-dicarbonyl dichloride with
2,2-dimethyl-1,3-dioxane-4,6-dione (Meldrum’s acid)10 fol-
lowed by hydrolysis with aqueous acetic acid 11 gave 4-ethoxy-
‡ Compound 2: yellow crystals; mp 103–4 ЊC (hexane); νmax(KBr)/cmϪ1
1704; δH (CDCl3; J/Hz) 7.60 (s, 2H), 4.13 (q, J 7.3, 2H), 2.70 (s, 6H), 1.41
(t, J 7.33, 3H); δC(CDCl3) 199.34 (H3CC᎐O), 166.70 [C(4)], 154.39
᎐
[C(2,6)], 110.72 [C(3,5)], 64.37 (H3CCH2O), 25.56 (H3CC᎐O), 14.24
᎐
(H3CCH2O).
§ Compound 3: yellow crystals; mp 64 ЊC (hexane); νmax(KBr)/cmϪ1
1704; δH (CDCl3) 8.17 (s, 2H), 2.77 (s, 6H); δC(CDCl3) 197.95 (H3CC᎐O),
᎐
153.73 [C(2,6)], 146.75 [C(4)], 124.78 [C(3,5)], 25.50 (H3CC᎐O).
᎐
¶ Compound 4: colorless crystals; mp 74 ЊC (hexane); νmax(KBr)/cmϪ1
1699; δH (CDCl3) 7.78 (s, 2H), 7.41–7.37 (m, 5H), 5.21 (s, 2H), 2.77 (s,
6H); δC(CDCl3) 199.26, 166.49, 154.53, 134.91, 128.72, 128.50, 127.51,
111.11, 70.41, 25.62.
† The Claisen condensation of 4-ethoxy and 4-benzyloxy9 diethyl
pyridine-2,6-dicarboxylates with sodium ethoxide and ethyl acetate to
give a β-keto ester failed, although the reaction of diethyl pyridine-2,6-
dicarboxylate to obtain 2,6-diacetylpyridine has already been
reported.16
|| Compound 5: colorless crystals; mp 116–117 ЊC (ethanol); δH (CDCl3;
J/Hz) 8.63 (m, 2H), 8.04 (s, 2H), 7.68 (d, J 7.80, 2H), 7.40 (m, 2H), 7.31
(d, J 7.80, 2H), 4.34 (q, J 7.3, 2H), 2.70 (s, 6H), 2.44 (s, 6H), 1.51 (t,
J 7.3, 3H).
J. Chem. Soc., Perkin Trans. 1, 1997
2263

View Online
with N-(methylacetyl)pyridinium chloride [N-(2-oxopropyl)-
pyridinium chloride] in 60% yield. A bis-Mannich-base was
obtained in the reaction of 2 with paraformaldehyde and
dimethylamine in DMF which readily reacted with N-
(methylacetyl)pyridinium chloride to give 4Ј-ethoxy-6,6Љ-
dimethyl-2,2Ј:6Ј,2Љ-terpyridine 6†† in 56% yield.
The data for the new terpyridines 5–8 are in agreement with
the expected properties of the known 4Ј-hydroxy-2,2Ј:6Ј,2Љ-
1
terpyridine.8 In the H NMR spectrum of 8 the protons at
C(6,6Љ) and C(3Ј,5Ј) were each observed as singlets at 8.59 and
7.02 ppm, respectively, while protons at C(3,3Ј) were observed
as a doublet at 7.81 ppm and protons at C(4,4Ј) as a doublet of
doublets at 7.67 ppm, respectively. The methyl groups were
observed as a singlet at 2.43 ppm. Compound 8 has been fully
characterised. While terpyridines 7 and 8 react readily at
ambient temperature to give purple FeII-complexes, the FeII-
complexes of 5 and 6 are formed only at elevated temperatures,
because of the substituents at the 6,6Љ-positions.
In conclusion, we have established a methodology for prepar-
ing 8 which has the potential for undergoing regioselective reac-
tions both at C(5), C(5Љ) and, more importantly, at C(4Ј) which
possesses a hydroxy group.
R1
R1
R2
R2
R3
N
N
N
N
R3
O
O
R4
R4
5 R1 = OEt, R2 = Me, R4 = p-tolyl, R3 = H
6 R1 = OEt, R2 = Me, R3 = R4 = H
7 R1 = OEt, R3 = Me, R2 = R4 = H
2 R1 = OEt
3 R1 = Cl
4 R1 = OBn
Acknowledgements
We thank the Schweizerischer Nationalfonds zur Förderung
der wissenschaftlichen Forschung and the University of Basel.
References
OH
1 J.-M. Lehn, Supramolecular Chemistry, VCH, Weinheim, 1995.
2 A. F. Williams, Chem. Eur. J., 1997, 3, 15.
3 C. O. Dietrich-Buchecker and J.-P. Sauvage, Chem. Rev., 1987, 87,
795.
N
N
N
4 G. R. Newkome, F. Cardullo, E. C. Constable, C. N. Moorefield and
A. M. W. Cargill Thompson, J. Chem. Soc., Chem. Comm., 1993,
925.
5 C. O. Dietrich-Buchecker and J.-P. Sauvage, New J. Chem., 1992, 16,
277.
Me
Me
8
Scheme 1
6 V. Balzani, A. Juris, M. Venturi, S. Campagna and S. Serroni,
Chem. Rev., 1996, 96, 759.
7 F. Barigelletti, L. Flamigni, J.-P. Collin and J.-P. Sauvage, Chem.
Commun., 1997, 333.
8 E. C. Constable and M. D. Ward, J. Chem. Soc., Dalton Trans., 1990,
1405.
9 D. G. Markees and G. W. Kidder, J. Am. Chem. Soc., 1956, 78, 4130.
10 Y. Oikawa, K. Sugano and O. Yonemitsu, J. Org. Chem., 1978, 43,
2087.
11 T. A. Hase and K. Salonen, Synth. Commun., 1980, 10, 221.
12 F. Chaubet, M. N. Van Duong, J. Courtieu, A. Gaudemer, A. Gref
and A. L. Crumbliss, Can. J. Chem., 1991, 69, 1107.
13 D. G. Markees, V. C. Dewey and G. W. Kidder, J. Med. Chem., 1967,
11, 126.
2,6-Bis(1-oxo-2-pyridinoethyl)-4-ethoxypyridinediiodidewas
obtained by the reaction of 2 with iodine in pyridine; this
reacted with methacrolein (2-methylpropenal) to give a terpyri-
dine substituted at C(5) of both terminal pyridines, namely 4Ј-
ethoxy-5,5Љ-dimethyl-2,2Ј:6Ј,2Љ-terpyridine 7‡‡ in 45% yield.
The ethyl ether protecting group was cleaved in pyridine and
hydrochloric acid at elevated temperature15 and 5,5Љ-dimethyl-
4Ј-hydroxy-2,2Ј:6Ј,2Љ-terpyridine 8 was obtained in 50% yield.§§
†† Compound 6: colorless crystals; mp 169–170 ЊC (ethanol);
δH (CDCl3; J/Hz) 8.39 (d, J 7.80, 2H), 8.01 (s, 2H), 7.72 (t, J 7.80, 2H),
7.18 (d, J 7.80, 2H), 4.31 (q, J 7.3, 2H), 2.64 (s, 6H), 1.49 (t, J 7.3, 3H).
‡‡ Compound 7: yellow needles; mp 140–141 ЊC (ethanol); δH (CDCl3;
J/Hz) 8.50 (s, 2H), 8.48 (d, J 7.3, 2H), 7.93 (s, 2H), 7.63 (d, J 7.3, 2H),
4.28 (q, J 7.3, 2H), 2.40 (s, 6H), 1.47 (t, J 7.3, 3H); δC(CDCl3) 167.21,
156.26, 152.84, 148,83, 137.88, 133.74, 121.12, 107.12, 64.02, 18.32,
14.53.
14 F. Kröhnke, Synthesis, 1976, 1.
15 C. O. Dietrich-Buchecker and J.-P. Sauvage, J.-P. Kintzinger,
P. Maltese, C. Pasacard and J. Guilhem, New J. Chem., 1992, 16, 931.
16 L. Lukes and M. Pergal, Coll. Czech. Chem. Commun., 1959, 24, 36.
§§ Compound 8: colorless crystals; mp 168–169 ЊC (hexane); δH (CDCl3)
8.59 (s, 2H), 7.81 (d, J 8.30, 2H), 7.67 (dd, J 8.30, J 1.95, 2H), 7.02 (s,
2H), 2.43 (s, 6H); δC(CDCl3) 149.66, 146.18, 144.59, 137.78, 135.01,
119.71, 112.65, 18.31.
Paper 7/04295G
Received 19th June 1997
Accepted 19th June 1997
2264
J. Chem. Soc., Perkin Trans. 1, 1997
