substituents of the large ring chelate ligand. Not only do these
preventthebindingofsmallbasemoleculessuchasMe2NH,they
also undoubtedly lend protection to the active catalyst site.
BP Chemicals Ltd and the EPSRC are thanked for a CASE
studentship to B. S. K. BP Chemicals is also thanked for
assistance with catalyst evaluation.
C(3)
C(4)
N(7)
Si(5)
Si(2)
N(1)
N(6)
Zr
N(10)
Notes and References
* E-mail: v.gibson@ic.ac.uk
† The similar 1s,2p bonding characteristics of the cyclopentadienide and
alkoxide ligands affords a direct isolobal relationship. It should be noted
that, whilst closely related to the alkoxide moiety, the amide ligand is
formally a 1s,1p unit and therefore is not strictly isolobal; as a 1s,1p ligand
it also donates two fewer electrons to the metal centre.

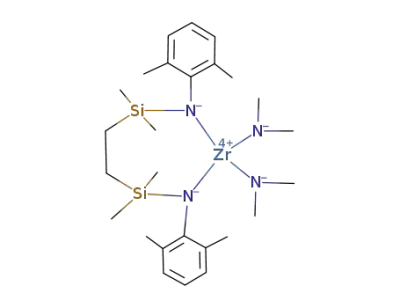

Fig. 2 Molecular structure of 4. Selected bond lengths (Å) and angles (°):
Zr–N(10) 2.024(4), Zr–N(7) 2.032(4), Zr–N(1) 2.084(4), Zr–N(6) 2.105(4),
N(1)–Si(2) 1.735(4), Si(2)–C(3) 1.874(5), C(3)–C(4) 1.535(7), C(4)–Si(5)
1.869(5), Si(5)–N(6) 1.746(4); N(10)–Zr–N(7) 104.7(2), N(10)–Zr–N(1)
116.0(2), N(7)–Zr–N(1) 108.2(2), N(10)–Zr–N(6) 111.1(2), N(7)–Zr–N(6)
107.2(2), N(1)–Zr–N(6) 109.2(1), Si(2)–N(1)–Zr 129.0(2), N(1)–Si(2)–
C(3) 107.8(2), C(4)–C(3)–Si(2) 116.8(4), C(3)–C(4)–Si(5) 116.6(4),
N(6)–Si(5)–C(4) 110.8(2), Si(5)–N(6)–Zr 131.7(2).
‡ Satisfactory elemental analyses have been obtained. Selected data for 1:
dH(C6D6, 298 K) 2.10 (s, 12 H, PhMe2), 3.39 (br s, 2 H, NH), 6.80–6.91
(overlapping m, aryl H), 7.04–7.10 (overlapping m, aryl H), 7.66–7.84
(overlapping m, aryl H); dC(C6D6, 298 K) 20.44, 122.13, 129.05, 130.10,
130.72, 134.81, 135.02, 136.82, 142.90. For 2: dH(C6D6, 298 K) 0.76 (s, 12
H, SiMe2), 0.51 (s, 4 H, (CH2SiMe2)2, 2.18 (s, 12 H, PhMe2), 6.85 (t, 2 H,
3JHH 6.7, p-C6H3), 7.00 (d, 4 H, 3JHH 6.7, m-C6H3); dC(C6D6, 298 K) 21.10,
9.75, 19.85, 122.01, 128.70, 131.45, 143.80. For 3: dH(C6D6, 298 K) 1.42
(br s, 1 H, HNMe2), 1.68 (d, 6 H, 3JHH 5.9, HNMe2), 2.26 (br s, 6 H, PhMe),
2.42 (br s, 6 H, PhMe), 2.79 (s, 12 H, NMe2), 7.07–7.11 (overlapping m, aryl
H), 7.61–7.64 (overlapping m, aryl H); dC(C6D6, 298 K) 21.15, 39.43,
41.95, 120.99, 127.22, 128.65, 135.64, 142.83. For 4: dH(C6D6, 298 K) 0.13
(s, 12 H, SiMe2), 1.21 (s, 4 H, Me2SiCH2), 2.39 (s, 12 H, PhMe2), 2.48 (s,
12 H, NMe2), 6.83 (t, 2 H, 3JHH 7.3, aryl H), 7.06 (d, 4 H, 3JHH 7.3, aryl H);
dC(C6D6, 298 K) 1.06, 10.72, 20.61, 42.42, 123.21, 128.95, 135.36, 146.13.
For 5: dH(C6D6, 298 K) 0.12 (s, 12 H, SiMe2), 0.23 (s, 6 H, ZrMe2), 1.08 (s,
4 H, Me2SiCH2), 2.37 (s, 12 H, C6H3Me2), 6.89–6.95 (m, 2 H, p-aryl H),
7.00–7.03 (m, 4 H, m-aryl H); dC(C6D6, 298 K) 0.18 (SiMe2), 9.38
(C6H3Me2), 20.75 (C6H3Me2), 43.07 (ZrMe2), 125.48 (C6H3-Cm), 129.51
(C6H3-Cp), 137.00 (C6H3-Co), 137.94 (C6H3-Cipso).
§ Crystal data for 3: C34H47N5SiZr, M = 645.1, monoclinic, P21/n (no. 14),
a = 11.425(1), b = 19.501(1), c = 15.423(3) Å, b = 97.58(1)°, V =
3406.1(7) Å3, Z = 4, Dc = 1.26 g cm23, m(Cu-Ka) = 32.0 cm21, F(000)
= 1360. A clear prism of dimensions 0.35 3 0.23 3 0.10 mm was used. For
4: C26H46N4Si2Zr, M = 562.1, monoclinic, P21/c (no. 14), a = 9.403(2), b
= 33.301(6), c = 10.640(2) Å, b = 113.02(1)°, V = 3066(1) Å3, Z = 4,
Dc = 1.22 g cm23, m(Mo-Ka) = 4.6 cm21, F(000) = 1192. A clear prism
of dimensions 0.67 3 0.57 3 0.57 mm was used. For 3 (4), 5590 (4306)
independent reflections were measured on a Siemens P4/PC diffractometer
at 183 K (293 K) with graphite monochromated Cu-Ka—rotating anode
source—(Mo-Ka) radiation using w-scans. The structures were solved by
direct methods and all the non-hydrogen atoms were refined anisotropically
using full-matrix least-squares based on F2 to give R1 = 0.036 (0.046), wR2
by exposure to ethylene (10 atm) in the presence of MAO (750
equiv.) at 50 °C gave an active, although short-lived ( < 15 min)
catalyst; 450 mg of polyethylene was isolated, corresponding to
an activity of 3 g mmol21 h21 bar21. By contrast, under
identical conditions of temperature, pressure and cocatalyst
concentration (entry 2), complex 4 afforded a steady uptake of
ethylene over the 60 min duration of the run at an activity of 490
g mmol21 h21 bar21. Increasing the temperature (entries 2–4)
gave a corresponding increase in activity, although a noticeable
deactivation occurs over the course of the 60 min run at 50 °C,
which becomes even more enhanced at 75 °C. The effect of
MAO cocatalyst concentration can be seen from entries 3, 5 and
6, the more MAO the higher the activity and also the more stable
the kinetic profile. If the procatalyst is not pre-alkylated with
AlMe3 (entry 7) reduced activity is found, consistent with the
necessity for efficient alkylation of the Me2N complex;13 MAO
on its own is known to be a relatively poor alkylating agent. The
molecular weights of the polyethylenes generated using the
most active catalysts are in the region of 105 (Mw) with
relatively broad molecular weight distributions (PDIs 5–9).
These will be discussed in more detail in a future publication.
Treatment of dimethylzirconium procatalyst
5
with
trityltetrakis(pentafluorophenyl)borate at 50 °C initially gives a
highly active catalyst that rapidly deactivates over 10 min. The
same procatalyst in the presence of MAO gives a much more
stable kinetic profile and an activity figure of merit comparable
to prealkylated 4 (entry 3). This is consistent with the general
stabilising effect found for MAO with metallocene catalyst
systems.
The dramatically more favourable activity and kinetic profile
characteristics found for 4 relative to 3 may be attributed to the
steric protection of the zirconium centre by the bulky aryl
=
0.095 (0.099) for 5084 (3093) independent observed absorption
corrected reflections [ıFoı > 4s(ıFoı), 2q @ 128° (50°)] and 351 (299)
parameters respectively. The N–H hydrogen atom in 3 was located from a
DF map and refined isotropically subject to an N–H distance constraint
(0.90 Å). CCDC 182/700.
1 J. D. Scollard, D. H. McConville, N. C. Payne and J. J. Vittal,
Macromolecules, 1996, 29, 5241.
2 F. G. N. Cloke, T. J. Geldbach, P. B. Hitchcock and J. B. Love,
J. Organomet. Chem., 1996, 506, 343.
3 S. Tinkler, R. J. Deeth, D. J. Duncalf and A. McCamley, Chem.
Commun., 1996, 2623.
4 M. Oberthu¨r, P. Arndt and R. Kempe, Chem. Ber., 1996, 129, 1087.
5 K. Aoyagi, P. K. Gantzel, K. Kalai and T. D. Tilley, Organometallics,
1996, 15, 923.
6 R. Baumann, W. M. Davis and R. R. Schrock, J. Am. Chem. Soc., 1997,
119, 3830.
7 F. Ja¨ger, H. W. Roesky, H. Dorn, S. Shah, M. Noltemeyer and H.-G.
Schmidt, Chem. Ber., 1997, 130, 399.
8 D. R. Click, B. L. Scott and J. G. Watkin, Abstract 322, 213th ACS
National meeting, San Francisco, April 13–17, 1997.
9 T. H. Warren, R. R. Schrock and W. M. Davis, Organometallics, 1996,
15, 562.
10 N. A. H. Male, M. Thornton-Pett and M. Bochmann, J. Chem. Soc.,
Dalton Trans., 1997, 2487.
Table 1 Ethylene polymerisation characteristicsa for 3–5
Cocatalyst
Entry Procatalyst (equiv.)
Activity/
T/°C g mmol21 h21 bar21
1
2
3
4
5
6
7
8
9
3
4
4
4
4
4
4
5
5
MAO (750)
MAO (750)
MAO (750)
MAO (750)
MAO (100)
MAO (2000)
MAO (750)f
[Ph3C][B(C6F5)4]
MAO (750)
50
25
50
75
50
50
50
50
50
3b
250c
490d
680e
140b
990d
70
60b
400d
a
General conditions: procatalyst dissolved in toluene for runs 1–7 and 9,
11 J. C. Stevens, F. J. Timmers, D. R. Wilson, G. F. Schmidt, P. N. Nickias,
R. K. Rosen, G. W. Knight and S.-Y. Lai, Eur. Pat. Appl., 416-815-A2,
1990, Dow.
12 J. A. M. Cannich, Eur. Pat. Appl., EP-420-436-A1, 1990, Exxon.
13 I. Kim and R. F. Jordan, Macromolecules, 1996, 29, 489.
CH2Cl2 for run 8, pretreatment with excess AlMe3 (10 equiv.) for runs 1–6,
1 litre autoclave, 10 atm ethylene pressure, isobutane solvent, AlMe3
b
c
scavenger, runs carried out over 60 min. Rapid deactivation. Stable
d
ethylene uptake over 1 h duration of run. Slow deactivation over 1 h
e
f
duration of run. Deactivation more rapid than in footnote (d). No
prealkylation.
Received in Liverpool, UK, 28th August 1997; 7/06304K
314
Chem. Commun., 1998
