Non-classical transformation of benzendiazonium hydrogen sulfates. access to 1,3-dimethylisochromeno[4,3-c]pyrazol-5(1h)-one, a potential benzodiazepine receptor ligand

Article abstract of DOI:10.3390/molecules181013096

The compound 2-((1,3-dimethyl-1H-pyrazol-5-yl)(methyl)carbamoyl) benzenediazonium hydrogen sulfate (10) was reacted with copper sulfate and sodium chloride, in the presence of ascorbic acid as reducing agent, to afford a mixture of the chlorinated epimers 4′-chloro-2,2′,5′- trimethyl-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-3-one (18) and (19), the epimers 4′-hydroxy-2,2′,5′-trimethyl- 2′,4′-dihydrospiro[isoindoline-1,3′- pyrazol]-3-one (20) and (21), and N-(1,3-dimethyl-1H-pyrazol-5-yl)benzamide (22). Under the foregoing conditions, diazonium salt 10 affords neither the 2-chloro-N-(1,3-dimethyl- 1H-pyrazol-5-yl)-N-methylbenzamide (23) nor the tricyclic derivative 24, the classical products of the Sandmeyer and Pschorr reactions, respectively. Finally, by heating 20 at 210 °C the compound 1,3-dimethylisochromeno[4,3-c] pyrazol-5(1H)-one (24) was obtained. The transformation under the above conditions of 2-((4-chloro-3-methyl-1-phenyl- 1H-pyrazol-5-yl)(methyl)carbamoyl) benzendiazonium hydrogen sulphate (11) afforded 4′,4′-dichloro-2, 5′-dimethyl-2′-phenyl-2′,4′-dihydrospiro[isoindoline-1, 3′-pyrazol]-3-one (29) as the sole reaction product.

Full text of DOI:10.3390/molecules181013096

Molecules 2013, 18, 13096-13110; doi:10.3390/molecules181013096
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Non-Classical Transformation of Benzendiazonium Hydrogen
Sulfates. Access to 1,3-Dimethylisochromeno[4,3-c]pyrazol-
5(1H)-one, a Potential Benzodiazepine Receptor Ligand
Benedetta Maggio, Demetrio Raffa *, Maria Valeria Raimondi and Giuseppe Daidone
Dipartimento di Scienze e Tecnologie Biologiche Chimiche e Farmaceutiche,
Università degli Studi di Palermo, Via Archirafi, 32, 90123-Palermo, Italy;
E-Mails: benedetta.maggio@unipa.it (B.M.); mariavaleria.raimondi@unipa.it (M.V.R.);
giuseppe.daidone@unipa.it (G.D.)
* Author to whom correspondence should be addressed; E-Mail: demetrio.raffa@unipa.it;
Tel.: +39-091-2389-1917.
Received: 13 September 2013; in revised form: 12 October 2013 / Accepted: 15 October 2013 /
Published: 22 October 2013

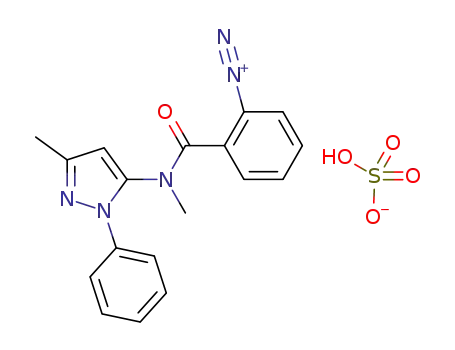

Abstract: The compound 2-((1,3-dimethyl-1H-pyrazol-5-yl)(methyl)carbamoyl)benzene-
diazonium hydrogen sulfate (10) was reacted with copper sulfate and sodium chloride, in
the presence of ascorbic acid as reducing agent, to afford a mixture of the chlorinated
epimers 4′-chloro-2,2′,5′-trimethyl-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-3-one (18)
and (19), the epimers 4′-hydroxy-2,2′,5′-trimethyl-2′,4′-dihydrospiro[isoindoline-1,3′-
pyrazol]-3-one (20) and (21), and N-(1,3-dimethyl-1H-pyrazol-5-yl)benzamide (22). Under
the foregoing conditions, diazonium salt 10 affords neither the 2-chloro-N-(1,3-dimethyl-
1H-pyrazol-5-yl)-N-methylbenzamide (23) nor the tricyclic derivative 24, the classical
products of the Sandmeyer and Pschorr reactions, respectively. Finally, by heating 20 at
210 °C the compound 1,3-dimethylisochromeno[4,3-c]pyrazol-5(1H)-one (24) was obtained.
The transformation under the above conditions of 2-((4-chloro-3-methyl-1-phenyl-
1H-pyrazol-5-yl)(methyl)carbamoyl)benzendiazonium hydrogen sulphate (11) afforded
4′,4′-dichloro-2,5′-dimethyl-2′-phenyl-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-3-one (29)
as the sole reaction product.
Keywords: heterocycles; Pschorr reaction; Sandmeyer reaction; 1,5-hydrogen atom transfer;
isochromeno[4,3-c]pyrazol-5(1H)-one

Molecules 2013, 18
13097
1. Introduction
Previously we reported the transformation of diazonium hydrogen sulphate 2 derived from
2-amino-N-methyl-N-(3-methyl-1-phenyl-1H-pyrazol-5-yl)benzamide (1). This reaction was carried
out with CuSO4 and NaCl, in the presence of ascorbic acid as a reducing agent [1] (Scheme 1). The
above mixture was used earlier by Hanson and co-workers [2] to perform the Sandmeyer reaction on
4-chlorobenzendiazonium chloride in a homogeneous aqueous phase. Ascorbic acid reduces Cu(II) to
Cu(I) which, in turn, reduces the diazonium ion to a diazenyl radical. The latter intermediate
decomposes to dinitrogen and the phenyl radical. Copper(II) ions form complexes with chloride ions
which are able to transfer a chloro radical to the 4-chlorophenyl by a ligand transfer process to afford
1,4-dichlorobenzene [2]. The diazonium hydrogen sulfate 2 afforded neither the chloro derivative 3,
the product of the classical Sandmeyer reaction, nor the tricyclic derivative 9, the expected product of
the competitive Pschorr ring closure, and instead we obtained epimers 7 and 8 [1].
Scheme 1. Transformation of the diazonium salt 2 by reaction with CuSO4/NaCl/ascorbic acid.
H3C
HO
H
H3C
H
H3C
OH
O
N
N
N
N
N
N
N
N
N
H
Ph
Ph
Ph
O
O
CH3
CH3
4
5
6
-
H3C
NH2
H3C
H3C
HSO4
Cl
N2
O
O
O
N
N
N
x
N
N
N
N
N
N
CH3
CH3
CH3
Ph
Ph
Ph
3
1
2
x
Cl
H
H3C
H
N
H3C
Cl
H3C
N
N
N
O
N
N
N
N
N
Ph
Ph
O
CH3
O
CH3
CH3
Ph
9
7
8
Recently a re-investigation of the transformation reaction of diazonium salt 2 in the presence of
CuSO4/NaCl/ascorbic acid has allowed to establish that a demethylation process also takes place to
give N-(3-methyl-1-phenyl-1H-pyrazol-5-yl)benzamide 4 (for the mechanism see Scheme 5, below).
Moreover, trace amounts of the hydroxy spiro derivatives 5 and 6 [1] were detected by TLC analysis.
In our continuing research on this reaction [1,3–5], we became interested in investigating the
behaviour of substrates possessing an alkyl group, such as methyl, in lieu of the pyrazole N-phenyl, as
well as a substituent at the 4-position of the pyrazole nucleus, in order to verify whether such
modifications are able to influence the course of the reaction. In fact, phenyl and methyl groups exert

Molecules 2013, 18
13098
different electronic as well as steric effects on the pyrazole ring. Moreover, electronic and steric effects
engendered by the substituent at the 4-position of the pyrazole nucleus could also affect the reaction
outcome. Here, we describe the CuSO4/ascorbic acid-catalyzed decomposition in the presence of NaCl
of the diazonium hydrogen sulfates 10 and 11 (Figure 1). These intermediates bear a methyl group or a
chloro atom on the pyrazole nucleus, at positions 1 or 4, respectively.
Figure 1. Diazonium hydrogen sulfates 2, 10 and 11.
-
-
-
H3C
HSO4
H3C
HSO4
N2
N2
HSO4
N2
H3C
Cl
O
O
O
N
N
N
N
N
N
N
N
N
CH3
CH3
CH3
Ph
CH3
Ph
2
10
11
2. Results and Discussion
Benzendiazonium hydrogen sulfates derivatives 10 and 11 were prepared following Schemes 2 and 3.
Scheme 2. Preparation of the amino derivative 17 and its transformation.
H3C
H3C
H3C
O
O
Ac2O
CH3I/KOH
N
N
N
NH2
N
N
H
CH3
N
N
CH3
N
CH3
CH3
CH3
14
CH3
13
12
KOH/EtOH 5N
H3C
H3C
NO2
O
H3C
O
NH2
O
NO2
Cl
N
N
Pd/C-H2
N
N
N
N
N
CH3
NH
N
CH3
CH3
16
CH3
CH3
CH3
NaNO2/H2SO4
17
15
H3C
H3C
-
H3C
O
N
2HSO4
O
Cl
N
N
N
X
O
N
X
N
N
N
N
N
CH3
CH3
23
CH3
10
CH3
CH3
CH3
24
CuSO4/NaCl/Ascorbic acid, r.t.
OH
H3C
Cl
H3C
H
H3C
H
O
N
N
N
+
N
H
+
N
N
N
N
N
CH3
O
O
CH3
CH3
CH3
CH3
22
20, 21
18, 19

Molecules 2013, 18
Scheme 3. Preparation of the amino derivative 28 and its transformation.
13099
Cl
H3C
O2N
- O2N
H3C
O2N
N
2Cl
H3C
KNO2/HCl
CH3COOH
i
N
N
N
N
N
N
N
N
N
O
CH3
O
Ph
CH3
Ph
O
CH3
26
Ph
27
25
Fe/CH3COOH
-
HSO4
+N2
Cl
Cl
H3C
Cl
H3C
Cl
H3C
H2N
N
i
X
NaNO2
H2SO4
N
N
N
N
N
N
N
N
O
CH3
O
O
Ph
CH3
CH3
Ph
Ph
28
11
32
i
CuSO4/NaCl/ascorbic acid r.t.
HO OH
O
N
Cl
H3C
H3C
H3C
Cl
H2O
N
N
N
N
N
N
N
N
Ph
Ph
O
Ph
O
O
CH3
CH3
CH3
29
30
31
The amine 12 was reacted with acetic anhydride to give the acetamide derivative 13 which, in turn,
was methylated with methyl iodide (Scheme 2). The obtained di-substituted acetamide derivative 14
was hydrolyzed with a potassium hydroxide ethanol-water solution to give the pyrazol-5-amine 15.
Condensation of 15 with 2-nitrobenzoyl chloride afforded the 2-nitrobenzamide derivative 16 which
was reduced with hydrogen in the presence of palladium/activated charcoal catalyst to give the
2-amino-N-methylbenzamide derivative 17, diazotization of which produced the diazonium hydrogen
sulfate 10. Exposure of 10 to CuSO4/NaCl/ascorbic acid, as seen earlier for 2, afforded a mixture of the
chlorinated epimers (1S,4′R)- (or (1S,4′S)-) and (1S,4′S)- (or (1S,4′R)-) 18 and 19, respectively, and the
hydroxyl epimers (1S,4′R)- (or (1S,4′S)-) and (1S,4′S)- (or (1S,4′R)-) 20 and 21, together obviously with
the related enantiomers (not represented in the Schemes), and the benzamide derivative 22. Finally, no
evidence was obtained for the formation of the chloro derivative 23, the product of the classical
Sandmeyer reaction, as well as of 1,3,4-trimethylpyrazole[3,4-c]isoquinoline-5(4H)-one (24), the
expected product of a possible competing Pschorr ring closure.
The preparation of substrate 11 started with the reaction of the 2-nitrobenzamide derivative 25 with
a seven-fold excess of nitrous acid in acetic acid, resulting in the direct introduction of a diazo group at
the 4-position of the pyrazole nucleus [6,7] (Scheme 3). The transformation in situ of the diazonium
salt 26 into the chloro derivative 27 was performed with CuSO4, NaCl and ascorbic acid [1,2].
Compound 27 was then reduced with iron in acetic acid, and the aniline derivative 28 thus obtained
was diazotized to furnish 11.

Molecules 2013, 18
13100
The reaction of this diazonium salt under the same conditions employed earlier for 2 and 10
afforded the dichloro spiro derivative 29, as the sole product of reaction (Scheme 3). Compound 29
was then converted into dione derivative 31, possibly via intermediate 30, upon refluxing in water. The
new compounds were characterized by means of analytical and spectral data. The relative
configuration of the pyrazoline C(4′)-atom of the spiro-compounds 18–21 were not determined. The
work up of the reaction mixture obtained by transformation of 10 did not allow us to isolate the
epimers 18 and 19. The 1H-NMR spectrum of the obtained mixture showed singlets at 2.05, 2.07, 2.37,
2.44, 2.79 and 2.81 ppm, as well as at 5.54 and 5.83 ppm (ratio 1:2.25), consistent with the methyls
and the pyrazoline H-4 of both epimers. On the contrary, epimers 20 and 21 were obtained as single
1
compounds. The H-NMR spectrum of 20 showed three singlets at 1.94, 2.34 and 2.78 ppm,
attributable to three methyls, and two doublets centered at 5.11 and 6.12 ppm for the pyrazoline H-4
and OH-4, respectively. Upon D2O exchange the OH signal in the the spectrum disappeared, and the
H-4 doublet collapsed to a singlet. The IR spectrum confirmed the presence of the pyrazoline hydroxyl
1
by the absorption band at 3,263 cm−1. The epimer 21 produced very similar IR and H-NMR spectra.
The analogous compounds 22 and 4 were identified by comparison of their physical and spectroscopic
data with authentic specimens (see the Experimental Section).
As regards 29, the 1H-NMR spectrum showed signals at 2.38 and 2.66 ppm for two methyls, as well
as those in the range 6.70–7.96 ppm for nine aromatic protons. The assigned structure of compound 29
was confirmed by its 13C-NMR spectrum and by its chemical modification. In fact, the action of water
on compound 29 afforded a product which was identical in all respects (mixed melting point, TLC,
MS, IR) to dione derivative 31 [1].
Rationalization of the formation of 18, 19, 20, 21 and 4, 22 is outlined in the Schemes 4 and 5.
Formation of the chloro epimers 18 and 19 from 10 takes place via the intermediates 33 and 34
(Scheme 4). The latter transforms to 18 and 19 by a chloro transfer process from copper(II)-chloro
complexes [1,2]. As regards the hydroxy spiro epimers 20 and 21, they might be afforded by two different
mechanisms: by transfer of H2O+ from the hydratation shell of the aqueous copper(II)-complex [8] to
radical spiro intermediate 34, or by nucleophilic replacement of the chloro atom in 18 and 19 by attack
of a molecule of water. We noted that the chloro epimers 7, 8 (Scheme 1) and 18, 19 (Scheme 2) were
obtained as precipitates from the solutions of diazonium salts 2 and 10 respectively, being the yield for
7, 8 [1] quite higher than that of 18, 19 (45% versus 8%). Moreover, extraction of the mother liquors of
the above reaction mixtures of 2 and 10 allowed us to obtain hydroxy spiro epimers only in the case of
10 (that is 20 and 21, yield 7%). Instead, only trace amounts of the hydroxy spiro epimers 5, 6 could be
detected by TLC in the crude mixture of 7, 8. We also observed that the mixture of 18 and 19 could be
transformed in 20 and 21 when it was reacted with cold (5 °C) 0.09 M sulfuric acid solution, where 18,
19 slowly dissolved, allowing the mixture to stand at r.t. for 1 h, mimicking thus the pH conditions of
the reaction medium in which 10 transformed. When the same experiment was performed with the
mixture of 7 and 8 no dissolution of the epimers in the acidic medium was observed. The suspension
was extracted with ethyl acetate, and TLC of the extract did not reveal any transformation to give 5
and 6. At this point we realized that the low yield for 18, 19 is due to their solubility in the reaction
medium, where they undergo a nucleophilic substitution by attack of a molecule of water to afford the
hydroxy spiro epimers 20 and 21. Nevertheless, a radical transfer process of H2O+ to the spiro
intermediate 34 to give 20, 21 can’t be ruled out (Scheme 4).

Molecules 2013, 18
13101
Scheme 4. Suggested mechanism for the transformation of 10.
CH3
+ HSO4
-
CH3
N2
O
O
.
CuSO4/Ascorbic acid, r.t.
N
N
N
N
N
N
CH3
CH3
CH3
CH3
10
33
H
CH3
C•
N
2+
Cu(H2O)n
N
N
CH3
CH3
O
OH
HO
N
CH3
N
H
CH3
N
H
34
+
N
[CuCln]2-n
N
N
CH3
CH3
CH3
CH3
O
O
H2O
Cl
Cl
N
CH3
N
CH3
H
H
21 (or 20)
20 (or 21)
N
+
N
N
N
CH3
CH3
CH3
CH3
O
O
18, 19
The latter process can be invoked for the formation of the trace amounts of 5 and 6. Lastly,
compounds 4 and 22 (Scheme 5) could be justified by considering a 1,5-hydrogen atom transfer
process affording the radical intermediates 35a,b which possibly undergo oxidation by cupric ions [9] to
give carbocations 36a,b. The oxidation process would probably be favoured by the resonance stability
of 36a,b, but the direct ligand radical transfer route from 35a,b to 38a,b cannot be ruled out.
Intermediates 36a,b and 38a,b react with water affording the unstable compounds 37a,b which by loss
of formaldehyde transform into benzamide derivatives 22 and 4, respectively.
Considering all the above data we concluded that the apparent different chemical behaviour
between diazonium salts 2 and 10 is due to different solubilities of phenyl- and methyl-substituted chloro
epimers, rather than to any electronic and steric effects of the N-phenyl- or N-methyl-pyrazole substituents.
As regards the transformation of the diazonium salt 11, performed under the identical conditions
followed for the chemical analogues 10 and 2, the production of the dichloro spiro compound 29 was
observed, which demonstrates that substitution at the 4-position of the pyrazoline nucleus does not hinder
the ligand radical transfer process from the copper(II)-chloro complex to radical species 38 (Scheme 6).

Molecules 2013, 18
13102
Scheme 5. 1,5-hydrogen atom transfer by -reaction in the transformation of diazonium
salts 10, 2.
H3C
-
N2
H3C
HSO4
O
O
.
N
N
N
N
R
N
N
R
CuSO4/Ascorbic acid, r.t.
CH3
CH3
R = CH3 10
33 a,b
R = Ph
2
H3C
N
H3C
O
O
[CuCln]2-n
N
N
N
R
N
CH2
N
CH2Cl
38 a,b
•
R
35 a,b
H2O
Cu2+
H3C
N
H3C
O
O
H2O
N
CH2OH
N
N
R
N
N
+
CH2
R
37 a,b
36 a,b
-CH2O
a, R=CH3
b, R=Ph
H3C
O
N
N
H
N
R
R = CH3 22
R = Ph
4
Scheme 6. Suggested mechanism for the transformation of 11.
-
HSO4
Cl
H3C
Cl
+N2
H3C
.
Cu2+/Ascorbic acid, r.t.
28
N
N
N
N
N
N
O
CH3
Ph
O
CH3
Ph
11
37
Cl
Cl
H3C
Cl
H3C
.
[CuCln]2-n
N
N
N
N
N
N
Ph
O
Ph
O
CH3
CH3
29
38

Molecules 2013, 18
13103
The spiro compound 20 proved to be a useful intermediate since it was transformed by heating at
210 °C into 1,3-dimethylisochromeno[4,3-c]pyrazol-5(1H)-one (39) (Scheme 7). The latter compound
has the potential as a benzodiazepine receptor ligand. In fact, this compound shows two hydrogen bond
acceptor atoms at the distance of about 3.5 Å, that is the isochromene oxygen and the nitrogen at
position 2 of the pyrazole nucleus, which are mandatory in the molecule for a good affinity at the
benzodiazepine binding site [10].
Scheme 7. Transformation of 20 by fusion.
CH3
N
CH3
N
HO
HO
H
H
or
N
N
N
N
O
O
CH3
CH3
CH3
CH3
20
210 °C, 10 min
CH3
O
O
N
CH3NH2
+
N
CH3
39
3. Experimental
3.1. General
Reaction progress was monitored by TLC on silica gel plates (Merck 60, F254, 0.2 mm). Organic
solutions were dried over Na2SO4. Evaporation refers to the removal of solvent on a rotary evaporator
under reduced pressure. All melting points were determined on a Büchi 530 capillary melting point
apparatus and are uncorrected. IR spectra were recorded with a Perkin Elmer Spectrum RXI FT-IR
1
System spectrophotometer as solid in KBr disc. H-NMR and 13C-NMR spectra were obtained in
CDCl3 or DMSO-d6 at 300.13 and 75.47 MHz respectively, using a Bruker AC series 300 MHz
spectrometer (tetramethylsilane as an internal standard): chemical shifts are expressed in ppm values.
Mass spectra at 70 eV were obtained using an Autospec Ultima Ortogonal T.O.F.T. (Micromass)
spectrometer. Merck silica gel (Kiesegel 60/230-400 mesh) was used for flash chromatography
columns. Microanalyses data (C, H, N) were obtained by an Elemental Vario EL. III apparatus and are
within ±0.4% of the theoretical values. Yields refer to products after one crystallization. The names of
the compounds were obtained using the Chem Draw 9.0.1 software of Cambridge Soft (Cambridge
MA, USA).

Molecules 2013, 18
13104
3.2. Preparation of N-(1,3-Dimethyl-1H-pyrazol-5-yl)acetamide (13)
This compound was prepared following a literature method [11] modified by us: 1,3-dimethyl-1H-
pyrazol-5-amine (12, 11.4 g, 0.102 mol) was reacted under stirring at r.t. with acetic anhydride (45 mL)
for 24 h. After this time the solution was evaporated to give an oily residue which solidified when
treated with triturated ice (20 g) and scraped. After filtration the material was air dried and crystallized
from ethyl acetate/petroleum ether (b.p. 40–70 °C) to give 13 in 70% yield; mp: 43–45 °C; IR (KBr, cm−1):
1
3,123 (broad, NH), 1,667 (CO); H-NMR (DMSO-d6, ppm): 2.04 (3H, s, CH3); 2.07 (3H, s, CH3);
3.55 (3H, s, CH3); 5.95 (1H, s, pyrazole H-4); 9.84 (1H, s, exchangeable with D2O, NH); Anal. Calcd.
for C7H11N3O (153.18) : C, 54.89%; H, 7.24%; N, 27.43%. Found: C, 54.51%; H, 6.86%; N, 27.28%.
3.3. Preparation of N-(1,3-Dimehyl-1H-pyrazol-5-yl)-N-methylacetamide (14)
To a solution of N-(1,3-dimethyl-1H-pyrazol-5-yl)acetamide (13, 1 g, 6.5 mmol) in hot acetone
(26 mL) was added KOH (1.58 g), and the mixture was refluxed for 10 min. After this time CH3I (0.67
mL, 10 mmol) in acetone (4 mL) was added and reflux was continued for one hour. The mixture was
filtered, and evaporation of the filtrate afforded a residue which was treated with water (20 mL) and
extracted with diethyl ether (4 × 20 mL). The combined ether extracts were evaporated to give a solid
residue which was crystallized from ethyl acetate affording compound 14 as colorless crystals in 46%
yield, mp: 128–130 °C. MS (m/z): 167 (M+); IR (KBr, cm−1): 1,681 (CO); 1H-NMR (DMSO-d6, ppm):
1.75 (3H, s, CH3); 2.12 (3H, s, CH3); 3.03 (3H, s, CH3); 3.57 (3H, s, CH3); 6.04 (1H, s, pyrazole H-4).
13C-NMR (DMSO-d6) (ppm): 13.79 (CH3), 21.39 (CH3), 34.54 (CH3), 35.39 (CH3), 101.50 (CH),
141.83 (C), 146.30 (C), 169.82 (CO); Anal. Calcd. for C8H13N3O (167.21) : C, 57.46%; H, 7.84%; N,
25.13%. Found: C, 57.21%; H, 7.90%; N, 24.76%.
3.4. Preparation of N,1,3-Trimethyl-1H-pyrazol-5-amine (15) [12]
To a solution of N-(1,3-dimethyl-1H-pyrazol-5-yl)-N-methylacetamide (14, 7.16 g, 42 mmol) in
ethanol (69 mL) was added a 5 N aqueous solution of KOH (40 mL), and the mixture was refluxed for
10 h. After this time the reaction mixture was first filtered and then evaporated under vacuum to give a
residue which was extracted with diethyl ether (4 × 90 mL). The combined extracts were evaporated
under reduced pressure and the obtained residue was processed by flash chromatography [13]: column
external diameter 4 cm, silica gel 0.040–0.063 mm, ethyl acetate/acetone (1:1 v/v ) as eluent (1.5 L),
fractions each 50 mL. The first ten fractions were discarded, and fractions 11-25 were evaporated
1
affording pure 15 as a pale yellow oil in 70% yield. IR (KBr, cm−1): 3,228 (NH); H-NMR (CDCl3,
ppm): 2.18 (3H, s, CH3), 2.80 (3H, s, CH3), 3.53 (4H, s, CH3, NH; 3H after exchange with D2O), 5.27
(1H, s, pyrazole H-4); Anal. Calcd. for C6H11N3 (125.17) : C, 57.57%; H, 8.86%; N, 33.57%. Found:
C, 57.21%; H, 8.86%; N, 33.53%.
3.5. Preparation of N-(1,3-dimethyl-1H-pyrazol-5-yl)-N-methyl-2-nitrobenzamide (16)
A solution containing equimolar amounts (6.16 mmol) of N,1,3-trimethyl-1H-pyrazol-5-amine (15)
and 2-nitrobenzoyl chloride in dry chloroform (29 mL) was refluxed for 5 h. After the first hour
triethylamine (0.86 mL) was added in four portions (0.43 mL; 0.21 mL; 2 × 0.11 mL respectively, with

Molecules 2013, 18
13105
intervals of 1 h between additions). The solution was evaporated under reduced pressure, the residue
washed with cold water and extracted with dichloromethane (3 × 50 mL). The combined extracts were
dried (sodium sulfate) and the solid residue afforded by evaporation was crystallized from ethyl acetate
to give 16, as colorless crystals, in 64% yield, mp 132–133 °C; MS (m/z) 274 (M+); IR (KBr, cm−1):
1
1,671 (CO); H-NMR (CDCl3, ppm): 2.03 (3H, s, CH3), 3.40 (3H, s, CH3), 3.63 (3H, s, CH3), 5.70
13
(1H, s, pyrazole H-4), 7.29–8.30 (4H, a set of signals, C6H4); C-NMR (DMSO-d6, ppm): 13.92
(CH3), 35.35 (CH3), 36.36 (CH3), 102.44 (CH), 124.80 (CH), 128.67 (CH), 131.09 (CH), 132.34 (C),
134.96 (CH), 140.62 (C), 145.49 (C), 146.50 (C), 167.31 (CO); Anal. Calcd. for C13H14N4O3 (274.28) :
C, 56.93%; H, 5.14%; N, 20.43%. Found: C, 56.75%; H, 5.13%; N, 20.62%.
3.6. Preparation of 2-Amino-N-(1,3-Dimethyl-1H-pyrazol-5-yl)-N-methylbenzamide (17)
To a solution of N-(1,3-dimethyl-1H-pyrazol-5-yl)-N-methyl-2-nitrobenzamide (16, 3.84 g, 14 mmol) in
ethanol (150 mL) was added 10% palladium on activated charcoal catalyst (380 mg). The mixture was
reacted with hydrogen in a Parr apparatus at 50 psi for 20 h. After this time the reaction mixture was
filtered, and the filtrate was evaporated under vacuum to give an oily residue which was processed by
Flash chromatography [13]: column external diameter 4.5 cm, silica gel (0.040-0.063 mm), ethyl
acetate as eluent (1.8 L), fractions each 50 mL. The first 17 fractions were discarded. Fractions 18–21
were collected and evaporated under vacuum to afford 17 as a pale yellow pure oil in 44% yield; MS
1
(m/z): 244 (M+); IR (KBr) (cm−1): 3490–3200 (multiple bands, NH2), 1638 (CO); H-NMR (CDCl3,
ppm): 2.16 (3H, s, CH3), 3.34 (3H, s, CH3), 3.44 (3H, s, CH3), 4.81 (2H, s, NH2, exchangeable with
D2O), 5.87 (1H, s, pyrazole H-4), 6.40–7.07 (4H, a set of signals, C6H4); Anal. Calcd. for C13H16N4O
(244.29) : C, 63.91%; H, 6.60%; N, 22.93%. Found: C, 64.18%; H, 6.63%; N, 22.67%.
3.7. Preparation of 2-((1,3-Dimethyl-1H-pyrazol-5-yl)(methyl)carbamoyl)benzendiazonium hydrogen
sulfate (10)
The pulverized amine 17 (2.07 g, 8.48 mmol) was dissolved in cooled (0–5 °C) aqueous sulfuric
acid (5 N) (17 mL), and aqueous sodium nitrite (2.5 M) (3.5 mL) was added dropwise to the stirred
solution. The solution was stirred for a further 15 min in the ice bath and was then checked for excess
nitrous acid with potassium iodide starch paper; the eventual excess can be destroyed by addition of
urea. This solution was utilized in the next step.
3.8. Transformation of the Diazonium Hydrogen Sulphate (10)
To a cold (0–5 °C) solution. (400 mL) of CuSO4·5 H2O (0.3 M) and NaCl (0.75 M), first the soln. of 10,
obtained from the previous procedure, and then ascorbic acid (370 mg, 2.11 mmol) were added under
stirring. The mixture was stirred for 1 h at r.t. and then filtered. The solid product obtained was washed
with cold water, dried in desiccator (anhydrous CaCl2, 24 h) and then crystallized from diethyl ether to
give the epimeric mixture of (1S,4′R)- (or (1S,4′S)-) and (1S,4′S)- (or (1S,4′R)-)4′-chloro-2,2′,5′-
trimethy-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-3-one (18) and 19, respectively in 8% overall
1
yield; GLC-MS: two peaks, 228 (m/z) for each, (M+-Cl); IR (KBr, cm−1): 1,710 (CO); H-NMR
(DMSO-d6, ppm): 2.05 (3H, s, CH3), 2.07 (3H, s, CH3), 2.37 (3H, s, CH3), 2.44 (3H, s, CH3), 2.79

Molecules 2013, 18
13106
(3H, s, CH3), 2.81 (3H, s, CH3), 5.54 (1H, s, pyrazoline H-4); 5.83 (1H, s, pyrazoline H-4); 7.59–7.77 (2
× 4H, a set of signals, 2 × C6H4); Anal. Calcd. for C13H14ClN3O (263.72) : C, 59.21%; H, 5.35%; N,
15.93%. Found: C, 59.28%; H, 5.33%; N, 15.93%.
The mother liquors were saturated with NaCl and extracted with diethyl ether (3 × 100 mL). The
combined extracts were dried (Na2SO4) and evaporated under reduced pressure. The oily residue (850 mg)
was chromatographed following the flash procedure [13]: external diameter of the column 4.5 cm,
silica gel (0.040–0.063 mm), ethyl acetate as eluent (2L), fractions each 50 mL. The initial seven
fractions were discarded. Fractions 8 and 9 were evaporated under vacuum to give 130 mg (7%) of
pure (1S,4′R)- (or (1S,4′S)-)4′-hydroxy-2,2′,5′-trimethyl-2′,4′-dihydrospiro[isoindole-1,3′-pyrazol]-
3(2H)-one (20) as a colourless solid, mp 160–163 °C (ethyl acetate); MS (m/z): 245 (M+), 214
1
(M+-CH3NH2); IR(KBr, cm−1): 3,263 (OH), 1,671 (CO); H-NMR (DMSO-d6, ppm): 1.94 (3H, s,
CH3), 2.34 (3H, s, CH3), 2.78 (3H, s, CH3), 5.11 (1H, d, J = 6.3 Hz, pyrazoline H-4), 6.12 (1H, d,
J = 6.3 Hz, OH, exchangeable with D2O), 7.52-7.70 (4H, a set of signals, C6H4); Anal. Calcd. for
C13H15N3O2 (245.28): C, 63.66%; H, 6.16%; N, 17.13%. Found: C, 63.42%; H, 6.55%; N, 17.02%.
The combined fractions 11–14 when evaporated gave a residue (170 mg) which was
chromatographed by preparative TLC on silica gel (20 × 20 cm, thickness 2 mm; ethyl acetate/chloroform
1:1 as eluent). The plate showed three bands (U.V. light at 254 nm) among which the intermediate one
underwent extraction with ethyl acetate. The extract was evaporated under vacuum and the residue
obtained was crystallized to give a compound which was identical in all respects (mp, mixed mp, Rf,
IR, 1H-NMR) with an authentic specimen of N-(1,3-dimethyl-1H-pyrazol-5-yl)benzamide (22) [7], 2%
yield. The mother liquors from the crystallization of 22 were evaporated under vacuum, and the
residue was processed by preparative TLC: 20 × 20 cm, thickness 2 mm, ethyl acetate/chloroform 1:1
as eluent. The crude product obtained underwent the same procedure to give 10 mg of pure (1S,4′S)-
(or (1S,4′R)-)4′-hydroxy-2,2′,5′-trimethy-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-3-one (21), as a
colorless solid, mp 177–180 °C; MS (m/z): 245 (M+), 214 (M+-CH3NH2); 1H-NMR (DMSO-d6, ppm):
1.97 (3H, s, CH3), 2.22 (3H, s, CH3), 2.85 (3H, s, CH3), 4.92 (1H, d, J =5.7 Hz, pyrazoline H-4), 5.85
(1H, d, J = 6.3 Hz, pyrazoline OH-4, exchangeable with D2O), 7.43-7.70 (4H, a set of signals, C6H4);
13C-NMR (DMSO-d6, ppm): 12.75 (CH3), 24.74 (CH3), 34.02 (CH3), 77.76 (CH), 91.86 (C), 111.21
(C), 122.10 (CH), 124.65 (CH), 128.83 (CH), 130.45 (CH), 131.52 (C), 139.47 (C), 152.38 (C), 166.02
(CO); Anal. Calcd. for C13H15N3O2 (245.28) : C, 63.66%; H, 6.16%; N, 17.13%. Found: C, 63.45%; H,
6.17%; N, 17.20%.
3.9. Preparation of 1,3-Dimethylisochromeno[4,3-c]pyrazol-5(1H)-one (39)
Compound 20 (30 mg) was melted at 210 °C for 10 min. The obtained material was crystallized
from ethanol to give 39, as colorless solid, in 69% yield, mp 237–239 °C; MS (m/z): 214 (M+); IR
(KBr, cm−1): 1715 (CO); 1H-NMR (CDCl3, ppm): 2.37 (3H, s, CH3), 4.23 (3H, s, CH3), 7.55–8.46 (4H,
13
a set of signals, C6H4); C-NMR (CDCl3, ppm): 9.96 (CH3), 40.07 (CH3), 119.86 (C), 120.47 (CH),
122.41 (C), 128.10 (CH), 128.58 (C), 132.47 (CH), 132.91 (C), 134.97 (CH), 136.95 (C), 162.08 (CO);
Anal. Calcd. for C12H10N2O2 (214.22) : C, 67.28%; H, 4.71%; N, 13.08%. Found: C, 67.56%; H,
4.87%; N, 13.09%.

Molecules 2013, 18
13107
3.10. Preparation of N-(3-Methyl-1-phenyl-1H-pyrazol-5-yl)benzamide (4)
From the transformation of the diazonium salt 2 by the CuSO4/NaCl/ascorbic acid reagent
combination: the diazonium hydrogen sulfate 2 derived from compound 1 [1] (5.9 mmol) was
decomposed following the procedure used for 10. The suspension obtained was filtered, and the solid
was crystallized from ethanol (95% V/V) to give epimers 7, 8. The mother liquors when evaporated
leave a residue (350 mg) which was processed by preparative TLC (two plates, 20 × 20 cm, thickness
2 mm, ethyl acetate/petroleum ether 3:7 as eluent). Work up allowed us to obtain a product (140 mg)
1
which was identical in all respects (mp, mixed mp, IR, H-NMR) to an authentic specimen of
compound 4 [7].The aqueous mother liquors were saturated with sodium chloride and extracted with
ethyl acetate (4 × 150 mL). The combined extracts were evaporated to give a residue (70 mg) which
was processed by preparative TLC. More of compound 4 (20 mg) was obtained following the above
procedure, overall yield 10%.
3.11. Preparation of N-(4-Chloro-3-methyl-1-phenyl-1H-pyrazol-5-yl)-N-methyl-2-nitrobenzamide (27)
This compound was prepared by modifying the procedure reported in reference [14]. Compound
25 [15] (2 g, 5.95 mmol) was dissolved in acetic acid (57 mL) and then concentrated hydrochloric acid
(36.5% w/w, 4.3 mL) was added. To the stirred solution a potassium nitrite aqueous solution (3.5 g of
KNO2 in 1.8 mL of H2O) was added dropwise and stirring was continued for a further 24 h. The
obtained suspension was filtered and the filtrate was treated first with an aqueous solution (300 mL) of
hydrochloric acid (0.24 M), copper sulphate pentahydrate (0.3 M) and sodium chloride (0.75 M) and
then with ascorbic acid (260 mg, 1.48 mmol). The mixture was stirred for 1 h at r.t. and then filtered.
The solid product obtained was crystallized from ethanol (95% V/V) to give 27 (yield 60%) identical
in all respects (mixed melting point, TLC, MS, IR) to an authentic specimen of compound 27 [14].
3.12. Preparation of 2-Amino-N-(4-chloro-3-methyl-1-phenyl-1H-pyrazol-5-yl)-N-methylbenzamide (28)
A suspension of Fe filings (12.41 g) in 5% (V/V) aqueous AcOH (16 mL) was heated at about 100 °C
under stirring on the water bath of a rotavapor until H2 evolution ceased. The nitro derivative 27 (6.9 g,
18.5 mmol) was added in four portions, with intervals of 20 min. between additions. After the last
addition, stirring was continued at 100 °C for 1 h, then the mixture was cooled to r.t. The pH of the
suspension was adjusted to 7–8 with a saturated NaHCO3 solution. The solid was separated by
filtration, air dried overnight, and then extracted with boiling CHCl3 (3 × 30 mL). The combined
extracts were evaporated under vacuum, leaving an residue which was crystallized from ethyl acetate
to give 28 in 80% yield, mp 165–166 °C; MS (m/z): 342 (M+); IR (cm−1): 3485, 3358 (NH2), 1640 (CO);
1H-NMR (ppm): 2.26 (3H, s, Me), 3.40 (3H, s, Me); 4.33 (2H, s, exchangeable with D2O, NH2),
6.40–7.35 (9H, m, C6H5 and C6H4); Anal. Calcd. for C18H17ClN4O (340.81) : C, 63.44%; H, 5.03%; N,
16.44%. Found: C, 63.35%; H, 5.21%; N, 16.56%.

Molecules 2013, 18
13108
3.13. Preparation of 2-((4-Chloro-3-methyl-1-phenyl-1H-pyrazol-5-yl)(methyl)carbamoyl)benzendiazonium
Hydrogen sulphate (11)
The pulverized amine 28 (1.5 g, 4.41 mmol) was dissolved in cooled (0–5 °C) aqueous sulfuric acid
(10 M) (17.6 mL) and aqueous sodium nitrite (2.5 M) (1.82 mL) was added drop-wise to the stirred
solution. The solution was stirred for a further 15 min in the ice bath and was then checked for excess
nitrous acid with potassium iodide starch paper. The eventual excess can be destroyed by addition of urea.
3.14. Decomposition of the Diazonium Hydrogen Sulphate 11
To a cold (0–5 °C) soln. (220 mL) of CuSO4·5H2O (0.3 M) and NaCl (0.75M), first the soln. of 11
obtained from the previous procedure, and then ascorbic acid (195 mg, 1.11 mmol) were added under
stirring. The mixture was stirred for 1 h at r.t. and then filtered. The solid product obtained was dried in
desiccator (anhydrous CaCl2) for 24 h and then crystallized from ethyl acetate to give compound 29 in
80% yield, mp 202–203 °C; MS (m/z): 359 (M+); IR (cm−1):1713 (CO); 1H-NMR (CDCl3, ppm): 2.38
13
(3H, s, Me), 2.66 (3H, s, Me), 6.70–7.96 (9H, m, C6H5 and C6H4); C-NMR (CDCl3, ppm): 11.13
(CH3), 26.64 (CH3), 96.61 (C), 93.23 (C), 115.59 (2xCH), 122.45 (CH), 124.30 (CH), 127.21 (CH),
129.05 (2xCH), 130.98 (CH), 131.62 (CH), 132,66 (C), 139.08 (C), 142.21 (C), 147 (C), 167 (CO);
Anal. Calcd. for C18H15Cl2N3O (359.06) : C, 60.01%; H, 4.20%; N, 11.66%. Found: C, 60.20%; H,
4.58%; N, 11.69%.
3.15. Reaction of 4′,4′-Dichloro-2,5′-dimethyl-2′-phenyl-2′,4′-dihydrospiro[isoindoline-1,3′-pyrazol]-
3-one (29) with Water
To a solution of 29 (10 mg) in acetonitrile (1 mL) was added water (1 mL) and the mixture was
refluxed for 30 min. The solution was evaporated under vacuum to give a pure residue which was
identical in all respects to an authentic specimen of compound 31 [1].
4. Conclusions
The diazonium salts 2 and 10 show as unique structural diversity the different substituent at the
1-position of the pyrazole nucleus, that is phenyl or methyl. The above diversity does not lead to a
different chemical reactivity of these diazonium salts when they are reacted with the reagents copper
sulphate/ascorbic acid/sodium chloride. In fact, the observed difference in the composition of the
reaction mixtures of 10 and 2 is not due to different electronic and/or steric effects of the pyrazole
substituents at 1-position, but rather to a remarkable differential solubility between the pairs of epimers
18, 19 and 7, 8. Epimers 18, 19 partially dissolve in the reaction mixture and undergo nucleophilic
replacement of the chloro atom to give the hydroxy spiro derivatives 20, 21, whereas epimers 7, 8 do
not follow this pathway. As regards diazonium salt 11, the presence of a substituent at the 4-position of
the pyrazole moiety does not hinder this position, and a dichloro spiro derivative 29 is obtained.

Molecules 2013, 18
13109
Supplementary Materials
1H-NMR and 13C-NMR of compounds 17, 18, 19 (mixture), 20, 21, 28, 29 and 39. These materials
can be accessed at: http://www.mdpi.com/1420-3049/18/10/13096/s1.
Acknowledgments
Financial support from “Fondo di Finanziamento della Ricerca dell′Ateneo di Palermo (ex 60%)” is
gratefully acknowledged.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Daidone, G.; Maggio, B.; Raffa, D.; Plescia, S.; Benetollo, F.; Bombieri, G. Consecutive
Pschorr-Sandmeyer reactions in a pyrazole series. Part 2.1 Access to the [2]benzopyrano[4,3-
c]pyrazole system of pharmaceutical interest. J. Chem. Soc. Perkin Trans. I 1998, 1988, 2891–2898.
2. Hanson, P.; Jones, J.R.; Gilbert, B.C.; Timms, A.W. Sandmeyer reactions. Part 1. A comparative
study of the transfer of halide and water ligands from complexes of CuII to aryl radicals.
J. Chem. Soc. Perkin. Trans. II 1991, 1991, 1009–1017.
3. Daidone, G.; Plescia, S.; Maggio, B.; Sprio, V.; Benetollo, F.; Bombieri, G. Modifications and
extensions of the Pschorr reaction in pyrazole series. Access to the [2]benzopyrano[4,3-c]pyrazole
system of pharmaceutical interest. J. Chem. Soc. Perkin Trans. I 1993, 1993, 285–291.
4. Maggio, B.; Daidone, G.; Raffa, D.; Plescia, S.; Bombieri, G.; Meneghetti, F. Nonclassical
Pschorr and Sandmeyer Reactions in Pyrazole Series. Helv. Chim. Acta 2005, 88, 2272–2281.
5. Maggio, B.; Raffa, D.; Raimondi, M.V.; Cascioferro, S.; Plescia, S.; Sabatino, M.A.; Bombieri, G.;
Meneghetti, F.; Daidone, G. Comparative studies of the Pschorr reaction in the pyrazole series.
Access to the new dibenzo[e,g]pyrazolo[1,5-a][1,3]diazocine system of pharmaceutical interest.
Arkivoc 2008, 16, 130–143.
6. Fusco, R. Heterocyclic Compounds: Pyrazoles, Pyrazolines, Pyrazolidines, and Condensed
Rings; Wiley, R.H., Behr, L.C., Eds.; Interscience Publishers: New York, NY, USA, 1967; p. 105.
7. Daidone, G.; Bajardi, M.L.; Plescia, S.; Raffa, D.; Schillaci, D.; Maggio, B.; Benetollo, F.;
Bombieri, G. One-step synthesis, crystallographic studies and antimicrobial activity of new
4-diazopyrazole derivatives. Eur. J. Med. Chem. 1996, 31, 461–468.
8. Lewin, A.H.; Cohen, T. Mechanism of the copper induced Pschorr cyclization. New phenol
synthesis involving hydroxylation of the intermediate radical by cupric ion. J. Org. Chem. 1967,
32, 3844–3850.
9. Lewin, A.H.; Dinwoodie, A.H.; Cohen T. 1,5-hydrogen transfer during diazonium ion
decomposition—IV: The copper catalyzed reaction. A Case of hydrogen atom or hydride ion
transfer in the same system. Tetrahedron 1966, 22, 1527–1537.

Molecules 2013, 18
13110
10. Maggio, B.; Raffa, D.; Raimondi, M.V.; Plescia, F.; Trincavelli, M.L.; Martini, C.; Meneghetti, F.;
Basile, L.; Guccione, S.; Daidone, G. Synthesis, benzodiazepine receptor binding and molecular
modelling of isochromeno[4,3-c]pyrazol-5(1H)-one derivatives. Eur. J. Med. Chem. 2012, 54,
709–720.
11. Vicentini, C.B.; Veronese, A.C.; Giori, P.; Lumachi, B.; Guarneri, M. A new general and efficient
synthesis of imidazo[4,5-c]pyrazole derivatives. Tetrahedron 1990, 46, 5777–5788.
12. Migliara, O.; Flugy, A.; Novara, V.; Gagliano, M. Synthesis and pharmacological evaluation of
some pyrazolo [3,4-e][1,4] diazepin-4,7-diones. Farmaco 1992, 47, 111–119.
13. Still, W.C.; Kahn, M.; Mitra, A. Rapid chromatographic technique for preparative separations
with moderate resolution. J. Org. Chem. 1978, 43, 2923.
14. Daidone, G.; Plescia, S.; Raffa, D.; Maggio, B.; Schillaci, D. Synthesis and Evaluation of
antimicrobial Activity of New 4-Nitroso and 4-Diazopyrazole Derivatives. Farmaco 1992, 47,
203–217.
15. Plescia, S.; Daidone, G.; Sprio, V.; Aiello, E.; Dattolo, G.; Cirrincione, G. Studies on the
synthesis of heterocyclic compounds. Part I. The pschorr reaction in the pyrazole series.
J. Heterocycl. Chem. 1978, 15, 1287–1290.
Sample Availability: Samples of the compounds 18, 19 (mixture), 20, 22, 39, 16, 17, 4 are available
from the authors.
