Catalytic enantioselective synthesis of the phosphodiesterase type IV inhibitor (R)-(-)-rolipram via intramolecular C-H insertion process

Article abstract of DOI:10.1055/s-1999-2958

A new route to the phosphodiesterase type IV inhibitor (R)-(-)-rolipram (1) has been developed, wherein the key step relies on enantioselective intramolecular C-H insertion of N-alkyl-N-4-nitrophenyl-α-methoxycarbonyl- α-diazoacetamide 7 catalyzed by chir

Full text of DOI:10.1055/s-1999-2958

LETTER
1775
Catalytic Enantioselective Synthesis of the Phosphodiesterase Type IV
Inhibitor (R)-(-)-Rolipram via Intramolecular C-H Insertion Process
Masahiro Anada, Orie Mita, Hiroko Watanabe, Shinji Kitagaki, Shunichi Hashimoto*
Graduate School of Pharmaceutical Sciences, Hokkaido University, Sapporo 060-0812, Japan
Fax +81 (11) 706 4981; E-mail: hsmt@pharm.hokudai.ac.jp
Received 24 August 1999
or a modified pyroglutamate,12 conjugate addition of cya-
nide to the chiral a,b-unsaturated oxazoline,13 palladium-
catalyzed, diastereoselective substitution of allylic car-
bonate by dimethyl malonate,14 a Claisen rearrangement
Abstract: A new route to the phosphodiesterase type IV inhibitor
(R)-(-)-rolipram (1) has been developed, wherein the key step relies
on enantioselective intramolecular C-H insertion of N-alkyl-N-4-ni-
trophenyl-a-methoxycarbonyl-a-diazoacetamide 7 catalyzed by
chiral dirhodium(II) complex. The dirhodium(II) carboxylate, process with the transfer of chirality,9 enantioselective
Rh2(S-BPTTL)4, incorporating N-benzene-fused-phthaloyl-(S)-
tert-leucinate as a bridging ligand has proven to be the catalyst of
deprotonation of 3-substituted cyclobutanone using chiral
lithium amide.15 However, a catalytic enantioselective
choice for this process, providing the desired 2-pyrrolidinone 8 in
synthesis of 1 has not yet been addressed. In this respect,
88% ee.
we have recently given a protocol for enantioselective
Key words: (R)-(-)-rolipram, phosphodiesterase inhibitor, enanti-
oselective synthesis, chiral dirhodium(II) catalyst, C-H insertion
construction of 4-substituted 2-pyrrolidinones (up to 82%
ee) via a site-selective C-H insertion catalyzed by dirhod-
ium(II) tetrakis[N-phthaloyl-(S)-tert-leucinate], Rh2(S-
PTTL)4.16 In order to demonstrate a synthetic potential of
this catalytic methodology, we have now explored a new
route to 1.
Rolipram, (±)-4-(3-cyclopentyloxy-4-methoxyphenyl)-2-
pyrrolidinone, originally developed as an antidepressant
by Schering AG has been shown to be a potent and selec-
tive inhibitor of phosphodiesterase type IV (PDE IV),1
one of the cyclic adenosine 3',5'-monophosphate (cAMP)-
specific phosphodiesterases.2 Inhibition of PDE IV is rap-
idly becoming recognized as a promising therapeutic tar-
get for the treatment of a number of disorders such as
asthma,3 atopy,4 and multiple sclerosis.5 While the thera-
peutic use of rolipram is hampered by nausea and emetic
side effects,6 rolipram has been not only used as a research
tool in determining PDE IV isozymes in disease state and
second messenger pathways but also chosen as a starting
point for subsequent structural modification.7 It has re-
cently been disclosed that the (R)-(-)-enantiomer (1) of ro-
lipram is primarily responsible for the pharmacological
effects.8 It is therefore not surprising that (R)-(-)-rolipram
(1) as the prototypical agent has elicited considerable at-
tention from synthetic chemists.9
O
N
O
N
R
R
H
O
H
O
O
O
O
O
Rh
Rh
Rh
Rh
R = Bn: Rh2(S-PTPA)4
R = Me: Rh2(S-PTA)4
R = i-Pr: Rh2(S-PTV)4
R = t-Bu: Rh2(S-PTTL)4
Rh2(S-BPTPA)4
Rh2(S-BPTA)4
Rh2(S-BPTV)4
Rh2(S-BPTTL)4
Toward this end, we selected N-2-(3-cyclopentyloxy-4-
methoxyphenyl)ethyl-N-4-nitrophenyl-a-methoxycarbo-
nyl-a-diazoacetamide 7 as a carbene precursor on the ba-
sis of our recent finding that the N-4-nitrophenyl
substituent plays a dual role as a nitrogen protecting group
as well as a site-control element.16 The synthesis of 7 was
implemented as shown in Scheme 1. O-Alkylation of
commercially available isovanillin (2) with cyclopentyl
bromide and K2CO3 in DMF followed by a Knoevenagel
condensation of 313 with nitromethane in the presence of
ammonium acetate17 provided trans-b-nitrostyrene 418 in
72% yield. Reduction of 4 with LiAlH4 followed by con-
densation with the 4-fluoronitrobenzene19 afforded 4-ni-
troaniline 5 in 60% yield. N-Acylation of 5 with methyl 3-
chloro-3-oxopropionate in the presence of N,N-dimethyl-
aniline and subsequent diazo transfer using 4-acetamido-
benzenesulfonyl azide20 and DBU21 furnished a-diazoace-
tamide 7 in 88% yield.
OMe
O
O
N
H
(R)-(-)-rolipram (1)
Numerous strategies have been developed to achieve
asymmetric syntheses of 1, including conjugate addition
of the chiral enolate of Evans' N-acetyloxazolidinones to
b-nitrostyrene,10 conjugate addition of an arylcopper re-
agent to Meyers' chiral a,b-unsaturated bicyclic lactam11
Synlett 1999, No. 11, 1775–1777 ISSN 0936-5214 © Thieme Stuttgart · New York

1776
M. Anada et al.
LETTER
OMe
O
OMe
OMe
(c), (d)
O
OMe
OMe
OR
(b)
O
O
HN
5
OHC
(a)
chiral Rh(II) complex
(2 mol %)
O2N
N2
4
MeO2C
MeO2C
2: R = H
N
N
O2N
3: R = cyclopentyl
OMe
CH2Cl2, 23 °C
O
O
OMe
O
O
NO2
NO2
7
8
N2
(f)
(e)
MeO2C
MeO2C
N
N
O
O
7
6
NO2
NO2
Reagents and conditions: (a) cyclopentyl bromide, K2CO3, DMF, 60
°C, 12 h, 91%; (b) MeNO2, NH4OAc, reflux, 3 h, 79%; (c) LiAlH4,
THF, reflux, 1.5 h; (d) 4-fluoronitrobenzene, Na2CO3, EtOH, sealed
tube, 150 °C, 12 h, 60% (2 steps); (e) MeO2CCH2COCl, Me2NC6H5,
CH2Cl2, 0 °C, 2 h, 97%; (f) 4-acetamidobenzenesulfonyl azide, DBU,
MeCN, 0 °C, 3 h, 91%.
Scheme 1
With the effectiveness of Rh2(S-PTTL)4 as a catalyst pre-
viously identified through a closely related C-H inser-
tion,16 we first examined cyclization of 7 with the aid of 2
mol % of Rh2(S-PTTL)4 (Table 1, entry 1). The reaction
in CH2Cl2 proceeded smoothly to give the 2-pyrrolidinone
derivative 8, [a]D25 +5.72 (c 1.06, CHCl3), in 75% yield,
with no trace of the 2-azetidinone derivative. The enanti-
oselectivity in this reaction was determined to be 78% ee
by 1H NMR spectroscopy using Eu(hfc)3 as a chiral shift
reagent. As might be expected from the precedent, the
preferred absolute configuration at the insertion site was
established as R by transformation of 8 into 1 (vide infra).
In a comparative experiment with 7, we then reexamined
the other chiral dirhodium(II) carboxylates previously
screened, Rh2(S-PTPA)4, Rh2(S-PTA)4, and Rh2(S-PTV)4,
derived from N-phthaloyl-(S)-phenylalanine, alanine, and
valine, respectively (entries 2-4). While a consistent sense
of enantioselection was observed in all cases, poor enan-
tioselectivities observed with them simply provided con-
firmation that Rh2(S-PTTL)4 characterized by a bulky
tert-butyl group proved to be by far the best choice. At this
point, we were intrigued by the feasibility of enhancement
of the enantioselectivity by means of the recently devel-
oped catalysts,22 Rh2(S-BPTTL)4, Rh2(S-BPTPA)4,
Rh2(S-BPTA)4, and Rh2(S-BPTV)4, derived from N-ben-
zene-fused-phthaloyl-(S)-tert-leucine, phenylalanine, ala-
nine, and valine, respectively (entries 5-8).23 Indeed, we
found that this class of catalysts characterized by an ex-
tension of the phthalimido wall with one more benzene
ring improved the enantioselectivities while the same
sense of enantioselection as above was observed in every
case. In particular, 88% ee with Rh2(S-BPTTL)4 was the
highest achievement (entry 5).
With highly optically active 2-pyrrolidinone 8 secured,
we then proceeded to the elaboration of the target mole-
cule, which also determined the preferred absolute config-
uration at the insertion site (Scheme 2).

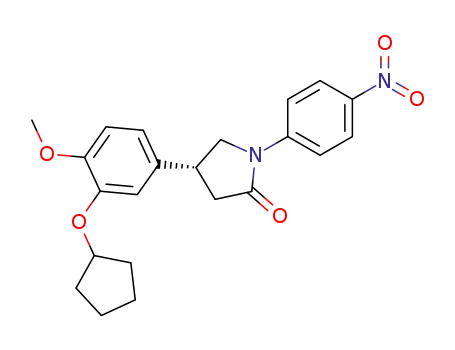

Demethoxycarbonylation of 8 of 88% ee, [a]D24 +9.75 (c
1.47, CHCl3), under Krapcho conditions24 furnished 4-
substituted 2-pyrrolidinone 9, mp 98-99 °C, [a]D26 +29.1
(c 1.10, CHCl3), as pale yellow plates in 97% yield. Upon
one recrystallization from CH2Cl2-hexane, there was pro-
25
duced an optically pure sample, mp 99-102 °C, [a]D
+34.0 (c 1.00, CHCl3) in 71% yield, the homochirality of
which was confirmed by HPLC on Daicel Chiralpak
AD.25 One-pot conversion of the nitro group into the ace-
tamido group was effected under the influence of iron
powder in boiling acetic acid26 to give acetanilide 10, mp
120-121 °C, [a]D25 +28.4 (c 1.30, CHCl3) as colorless nee-
dles in 86% yield. Prior to an oxidative removal of the 4-
acetamidophenyl group with ceric (IV) ammonium nitrate
(CAN),27 concern arose over the compatibility of 3-cyclo-
pentyloxy-4-methoxyphenyl group in 10 with the reaction
conditions, since CAN was reported to oxidize 1,2-
dimethoxybenzene to give a complex mixture of prod-
ucts.28 Thus, we were gratified to find that treatment of 10
with CAN in aqueous MeCN at 0 °C uneventfully afford-
25
ed 1, mp 130-133 °C, [a]D -31.1 (c 1.08, MeOH) [lit.8
24
mp 131-133 °C, [a]D -31.0 (c 0.5, MeOH)], in 71%
yield.
Synlett 1999, No. 11, 1775–1777 ISSN 0936-5214 © Thieme Stuttgart · New York

LETTER
Catalytic Enantioselective Synthesis of the Phosphodiesterase Type IV Inhibitor
1777
Tickner, J. E.; Umland, J. P. Bioorg. Med. Chem. Lett. 1995,
5, 1969.
(8) Baures, P. W.; Eggleston, D. S.; Erhard, K. F.; Cieslinski, L.
B.; Torphy, T. J.; Christensen, S. B. J. Med. Chem. 1993, 36,
3274.
OMe
O
OMe
O
(d)
(a), (b)
8
O
(9) For a review on asymmetric synthesis of (R)-(-)-rolipram, see;
Mulzer, J. J. Prakt. Chem. 1994, 336, 287.
(10) Mulzer, J.; Zuhse, R.; Schmiechen, R. Angew. Chem. Int. Ed.
Engl. 1992, 31, 870.
(11) Meyers, A. I.; Snyder, L. J. Org. Chem. 1993, 58, 36.
(12) Diaz, A.; Siro, J. G.; GarcÌa-NavÌo, J. L.; Vaquero, J. J.;
Alvarez-Builla J. Synthesis 1997, 559.
O
N
R
N
H
1
9: R = NO2
(c)
10: R = NHAc
(13) Langlois, N.; Wang, H.-S. Synth. Commun. 1997, 27, 3133.
(14) Braun, M.; Opdenbusch, K.; Unger, C. Synlett 1995, 1174.
(15) Honda, T.; Ishikawa, F.; Kanai, K.; Sato, S.; Kato, D.;
Tominaga, H. Heterocycles 1996, 42, 109.
Reagents and conditions: (a) NaCl, aq. DMSO, 160 °C, 2 h, 97%; (b)
recrystallization 71%; (c) Fe, AcOH, reflux, 2 h, 86%; (d)
Ce(NH4)2(NO2)6 (2.5 eq), aq. MeCN, 0 °C, 1 h, 71%.
(16) Anada, M.; Hashimoto, S. Tetrahedron Lett. 1998, 39, 79.
(17) Butterick, J. R.; Unrau, A. H. J. Chem. Soc., Chem. Commun.
1974, 307.
Scheme 2
(18) All new compounds exhibited satisfactory spectral (IR, 400
MHz 1H NMR and 100 MHz 13C NMR), analytical, and/or
high-resolution mass spectral characteristics.
(19) Lantz, R.; Obellianne, P. Bull. Soc. Chim. Fr. 1956, 311.
(20) Davies, H. M. L.; Cantrell, W. R., Jr.; Romines, K. R.; Baum,
J. S. Org. Synth. 1992, 70, 93.
(21) Koteswar Rao, Y.; Nagarajan, M. J. Org. Chem. 1989, 54,
5678.
(22) Kitagaki, S.; Anada, M.; Kataoka, O.; Matsuno, K.; Umeda,
C.; Watanabe, N.: Hashimoto, S. J. Am. Chem. Soc. 1999, 121,
1417.
In summary, we have achieved the first catalytic enanti-
oselective synthesis of (R)-(-)-rolipram from isovanillin
with an overall yield of 12% for the ten-step sequence,
wherein the effectiveness of the catalytic methodology
has been increased with the advent of Rh2(S-BPTTL)4.
The present protocol does not require sophisticated condi-
tions such as exclusion of moisture and oxygen as well as
low reaction temperatures, thus providing great potential
for a facile access to its novel analogues for biological and
pharmacological investigations.
(23) Typical procedure for enantioselective intramolecular C-H
insertion reaction (Table 1, entry 5): Bis(tetrahydrofuran)
adduct of Rh2(S-BPTTL)4 (6.4 mg, 0.004 mmol) was added in
one portion to a stirred solution of 7 (100 mg, 0.21 mmol) in
CH2Cl2 (2 mL) at 23 °C. The mixture was stirred at this
temperature for 8 h and the solvent was removed in vacuo. The
greenish residue was purified by column chromatography
(silica gel 10 g, 3:1Æ2:1 hexane/EtOAc) to provide 8 (70 mg,
74%) as yellow amorphous; [a]D24 +9.75 (c 1.47, CHCl3); IR
(film) n 1738, 1715, 1595 cm-1; 1H NMR (400 MHz, CDCl3)
d 1.55-1.63 (m, 2H), 1.79-1.93 (m, 6H), 3.80 (s, 3H), 3.82 (s,
3H), 3.84 (d, J = 10.0 Hz, 1H), 3.91 (t, J = 9.0 Hz, 1H), 4.02
(ddd, J = 8.1, 9.0, 10.0 Hz, 1H), 4.26 (dd, J = 8.1, 9.0 Hz, 1H),
4.76 (tt, J = 3.2, 5.8 Hz, 1H), 6.80-6.87 (m, 3H), 7.82 (d, J =
9.3 Hz, 2H), 8.21 (d, J = 9.3 Hz, 2H); 13C NMR (100 MHz,
CDCl3) d 24.0 (CH2), 32.7 (CH2), 40.7 (CH), 53.0 (CH3), 53.4
(CH2), 56.0 (CH3), 57.2 (CH), 80.5 (CH), 112.3 (CH), 113.7
(CH), 118.7 (CH), 119.0 (CH), 124.6 (CH), 130.4 (C), 143.7
(C), 143.9 (C), 147.9 (C), 149.7 (C), 168.6 (C), 168.7 (C); MS
(EI) m/z (rel. int. %) 454 (M+, 18), 386 (30), 328(100); HRMS
m/z 454.1737 [M+, calcd for C24H26N2O7 454.1740]. The
enantiomeric excess was determined to be 88% on the basis of
1H NMR spectrum (CDCl3) taken with 100 mol % of Eu(hfc)3
which exhibited the methoxy signals of the 3S,4R and 3R,4S
enantiomers at d 4.01 and 3.92, respectively.
Acknowledgement
This research was supported in part by a Grant-in-Aid for Scientific
Research on Priority Areas from the Ministry of Education, Sci-
ence, Sports and Culture, Japan. The authors thank the Japan Socie-
ty for the Promotion of Science for Research Fellowships for Young
Scientists (to M. A.).
References and Notes
(1) (a) Wachtel, H. J. Pharm. Pharmacol. 1983, 35, 440.
(b) Schneider, H. H.; Schmiechen, R.; Brezinski, M.; Seidler,
J. Eur. J. Pharmacol. 1986, 127, 105.
(2) Beavo, J. A.; Reifsnyder, D. H. Trends Pharm. Sci. 1990, 11,
150.
(3) (a) Giembycz, M. A.; Dent, G. Clin. Exp. Allergy 1992, 22,
337. (b) Torphy, T. J.; Livi, G. P.; Christensen, S. B. Drug
News Perspect. 1993, 6, 203.
(4) Klein-Tebbe, J.; Wicht, H.; Gagné, L.; Friese, A.; Schunack,
W.; Schudt, C.; Kunkel, G. Agent Actions 1992, 36, 200.
(5) Dinter, H.; Onuffer, J.; Faulds, D.; Perez, H. D. J. Mol. Med.
1997, 75, 95.
(6) (a) Zeller, E.; Stief, H. J.; Pflung, B.; Sastre, Y.; Hernandez,
M. Pharmacopsychiatry 1984, 17, 188. (b) Duplantier, A. J.;
Biggers, M. S.; Chambers, R. J.; Cheng, J. B.; Cooper, K.;
Damon, D. B.; Eggler, J. F.; Kraus, K. G.; Marfat, A.;
Masamune, H.; Pillar, J. S.; Shirley, J. T.; Umland, J. P.;
Watson, J. W. J. Med. Chem. 1996, 39, 120.
(7) (a) Pinto, I. L.; Buckle, D. R.; Readshaw, S. A.; Smith, D. G.
Bioorg. Med. Chem. Lett. 1993, 3, 1743. (b) Masamune, H.;
Cheng, J. B.; Cooper, K.; Eggler, J. F.; Marfat, A.; Marshall,
S. C.; Shirley, J. T.; Tickner, J. E.; Umland, J. P.; Vazquez, E.
Bioorg. Med. Chem. Lett. 1995, 5, 1965. (c) Cheng, J. B.;
Cooper, K.; Duplantier, A. J.; Eggler, J. F.; Kraus, K. G.;
Marshall, S. C.; Marfat, A.; Masamune, H.; Shirley, J. T.;
(24) Krapcho, A. P. Synthesis 1982, 805; 893.
(25) Separation conditions: 10% i-PrOH in hexane as an eluent;
flow rate: 1.5 mL/min; retention time: 26.0 min [(4S)-9] and
31.5 min [(4R)-9].
(26) Owsley, D. C.; Bloomfield, J. J. Synthesis 1977, 118.
(27) Fukase, K.; Yasukochi, T.; Nakai, Y.; Kusumoto, S.
Tetrahedron Lett. 1996, 37, 3343.
(28) Jacob, P., III; Callery, P. S.; Shulgin, A. T.; Castagnoli, N., Jr.
J. Org. Chem. 1976, 41, 3627.
Article Identifier:
1437-2096,E;1999,0,11,1775,1777,ftx,en;Y17699ST.pdf
Synlett 1999, No. 11, 1775–1777 ISSN 0936-5214 © Thieme Stuttgart · New York
