Total Synthesis of (‡)-Deoxypyrrololine:
A Potential Biochemical Marker
for Diagnosis of Osteoporosis
Maciej Adamczyk,* Donald D. Johnson, and
Rajarathnam E. Reddy
Osteoporosis is a crippling degenerative bone disease that
affects the aged population, particularly postmenopausal
women.[1] This metabolic disease is a consequence of an
inbalance in the bone renewal process, which occurs when
bone resorption exceeds bone formation. The current meth-
ods for diagnosis of osteoporosis involve analysis of bone
based on histomorphometry and densitometric measure-
ments.[2] The efforts for prevention of this bone disease, as
well as to develop an effective antiresorptive therapy, have
increased the search for reliable and noninvasive biochemical
markers of bone resorption.[1c, 3] The traditional markers of
bone resorption, for example urinary calcium[4] and hydrox-
yproline,[5] lack clinical sensitivity and specificity for diagnosis
of osteoporosis.
that 2 and 4 are formed from natural (2S,5R)-hydroxylysine
and (S)-lysine present in collagen by a lysyl oxidase mediated
enzymatic process, in an analogous fashion to the pyridinium
cross-links 1 and 3.[3d, 13c,d,f] Here we report the first synthesis
of the pyrrole cross-link (‡)-deoxypyrrololine (Dpl, 4) from
(4S)-5-(tert-butoxy)-4-[(tert-butoxycarbonyl)amino]-5-oxo-p-
entanoic acid (7).
The synthesis of 4 involves alkylation of the pyrrole
derivative (S,S)-( )-5 with iodide (S)-( )-6, followed by
hydrolysis of the protecting groups and removal of the
2-carboxybenzyl ester moiety (Scheme 1). It was envisioned
that the key intermediate (S,S)-( )-5 could be prepared from
the a-acetoxynitro compound 13 (see Scheme 2) and benzyl
In recent years, the pyridinium cross-links (‡)-pyridinoline
(Pyd, 1)[6] and (‡)-deoxypyridinoline (Dpd, 3)[7] have gained
much attention owing to their poten-
tial clinical utility in the diagnosis of
osteoporosis and other bone diseas-
es.[8±10] In 1981 Scott et al.[11] postu-
lated the existence of pyrrole cross-
links pyrrololine (Pyl, 2) and deoxy-
pyrrololine (Dpl, 4)[12] in various
tissues. Subsequent studies by sever-
al other groups have provided fur-
ther convincing evidence for the
existence of pyrrole cross-links.[13, 14]
Unfortunately, the attempts to iso-
late cross-links 2 and 4 have not been
successful so far.[3a,d] It was proposed
Scheme 1. Retrosynthesis of (‡)-deoxypyrrololine (Dpl, 4). Bn ˆ benyzl, Boc ˆ tert-butyloxycarbonyl.
isocyanoacetate (14)[15, 16] by a base-promoted condensation
and cyclization process. Compound 13 could be obtained
from 7.
Accordingly, the commercially available (S)-7 was convert-
ed into the aldehyde (S)-( )-8,[17] which was then reduced
[*] Dr. M. Adamczyk, D. D. Johnson, Dr. R. E. Reddy
Division Organic Chemistry Research (9NM, AP20)
Diagnostics Division, Abbott Laboratories
100 Abbott Park Road, Abbott Park, IL 60064-6016 (USA)
Fax: (‡1)847-938-8927
E-mail: maciej.adamczyk@abbott.com
Angew. Chem. Int. Ed. 1999, 38, No. 23
ꢀ WILEY-VCH Verlag GmbH, D-69451 Weinheim, 1999
1433-7851/99/3823-3537 $ 17.50+.50/0
3537

COMMUNICATIONS
yield using I2, PPh3, and imidazole in THF.
Treatment of (S,S)-( )-5 with 1.0 equiva-
lent of tBuOK in THF and subsequent
reaction with 2.0 equivalents of (S)-( )-6
in the presence of [18]crown-6[21] at room
temperature afforded the N-alkylated pyr-
role derivative ( )-17 in 42% yield after
purification by column chromatography on
silica gel.[22] The derivative ( )-17 has the
required amino acid chains at the 1-,3-, and
4-positions of the pyrrole ring. The syn-
thesis of (‡)-Dpl (4) would only require
unmasking the protecting groups and re-
moval of the benzyloxycarbonyl group at
the 2-position of pyrrole ring. Thus, ( )-17
was first treated with trifluoroacetic acid
and water,[9a] and the mixture obtained was
purified by preparative reverse-phase
HPLC to afford (‡)-18 in 79% yield. The
Scheme 2. Synthesis of (S,S)-( )-5. Reagents and conditions: a) See ref. [17]; b) NaBH4
(1.0 equiv), MeOH, 08C, 45 min, 95%; c) I2 (1.5 equiv), PPh3 (1.6 equiv), imidazole (2.0 equiv),
THF, 238C, 1.5 h, 94%; d) NaNO2 (2.0 equiv), DMF, 238C, 30 min, 55%; e) (S)-( )-8 (1.1 equiv),
DMAP, (4.0 equiv), CH2Cl2, 238C, 8 d, 91%; f) Ac2O (1.5 equiv), DMAP (0.1 equiv), THF, 238C,
2 h, 96%; g) BnO2CCH2NC (14, 1.3 equiv), DBU (2.5 equiv), THF, 0 ± 238C, 5 h, 57%. DBU ˆ 1,8-
diazabicyclo[5.4.0]undec-7-ene, DMAP ˆ 4-dimethylaminopyridine.
with NaBH4 in MeOH to the alcohol
(S)-( )-9 in 95% yield (Scheme 2).[18]
The hydroxyl group in (S)-( )-9 was
converted into the iodide to provide
(S)-( )-10, which was subsequently
treated with sodium nitrite in DMF[19]
to afford the corresponding nitro com-
pound (S)-( )-11 in 55% yield. Con-
densation of (S)-( )-11 with aldehyde
(S)-( )-8 (Henry reaction)[20] in the
presence of 4-dimethylaminopyridine
in CH2Cl2 gave a-hydroxynitro com-
pound 12 in 91% yield as a mixture of
diastereomers (1:1 ratio). Since the two
new chiral centers (the locations of the
NO2 and OH groups) in 12 are even-
tually eliminated during the pyrrole ring
formation, the diastereomeric mixture
of 12 was converted into the corre-
sponding acetate derivative 13 by treat-
Scheme 3. Synthesis of (‡)-4. Reagents and conditions: MePPh3Br (2.0 equiv), nBuLi (2.0 equiv),
THF 08C, 45 min, 61%; b) B2H6 ´ THF (1.3 equiv), THF, 0 !238C, 17 h, 87%; c) I2 (1.5 equiv), PPh3
(1.6 equiv), imidazole (2.0 equiv), THF, 238C, 1 h, 92%; d) (S,S)-( )-5, tBuOK (1.0 equiv), [18]crown-
6 (0.1 equiv), THF, 238C, 7 h, 42%; e) TFA/water (95/5), 238C, 2 h, 79%; f) 10% Pd/C, H2, MeOH,
238C, 1 h, then TFA, 238C, 15 min, 39%. TFA ˆ trifluoroacetic acid.
ment with Ac2O in THF in almost
quantitative yield (96%). Finally, con-
densation of the diastereomeric mixture
of a-acetoxynitro compound 13 with
benzyl isocyanoacetate (14)[15, 16] in the
presence of DBU in THF at 08C to
room temperature, followed by column chromatography on
benzyl group in (‡)-18 was removed by hydrogenation over
10% Pd/C in MeOH to give the acid 19, which without
purification was decarboxylated with trifluoroacetic acid.[23]
Concentration of the crude reaction mixture followed by
purification by preparative reverse-phase HPLC and lyophi-
lization afforded 4[24] in 39% yield as a pale pink powder
([a]2D3 ˆ ‡20.6 (c ˆ 0.17, H2O)).
silica gel, gave the key intermediate (S,S)-( )-5 in 57% yield
([a]2D3
ˆ
14.9 (c ˆ 1.37, MeOH)).
The next step in the synthesis of (‡)-4 was installation of
lysine chain at the pyrrole nitrogen atom in (S,S)-( )-5 by
alkylation with 6. The iodide (S)-( )-6 was prepared from
aldehyde (S)-( )-8 in three steps (Scheme 3). First, the (S)-
( )-8 was extended by a methylene group to the correspond-
ing olefin (S)-( )-15 by Wittig reaction,[17] which upon
hydroboration afforded the alcohol (S)-( )-16 in excellent
yield (87%). The hydroxyl group in (S)-( )-16 was then
converted to provide the desired iodide (S)-( )-6 in 92%
In summary a general and convergent total synthesis of (‡)-
deoxypyrrololine (Dpl, 4), a pyrrole cross-link of collagen, has
been achieved utilizing a commercially available chiral
starting material (7). The method is currently being applied
to the synthesis of pyrrololine (2) and for the preparation of
3538
ꢀ WILEY-VCH Verlag GmbH, D-69451 Weinheim, 1999
1433-7851/99/3823-3538 $ 17.50+.50/0
Angew. Chem. Int. Ed. 1999, 38, No. 23

COMMUNICATIONS
Meat Sci. 1994, 37, 67 ± 89; e) J. Risteli, H. Eriksen, L. Risteli, J. P.
Mansell, A. J. Bailey, J. Bone. Miner. Res. 1994, 9, Suppl. 1, A186;
f) A. A. Hanson, D. R. Eyre, J. Biol. Chem. 1996, 271, 26508 ± 26516.
[14] G. A. Kleter, J. J. M. Damen, J. J. Kettenes-van den Bosch, R. A.
Bank, J. M. te Koppele, J. R. Veraart, J. M. ten Cate, Biochim.
Biophys. Acta 1998, 1381, 179 ± 190.
various immunocomponents (immunogens, antibodies, and
probes) which are imperative for development of assays for
diagnosis and treatment of bone diseases.
Received: May 18, 1999 [Z13433IE]
[15] a) D. H. R. Barton, J. Kervagoret, S. Z. Zard, Tetrahedron 1990, 46,
7587 ± 7598; b) T. D. Lash, J. R. Bellettini, J. A. Bastian, K. B. Couch,
Synthesis 1994, 170 ± 172.
[16] a) M. Adamczyk, R. E. Reddy, Tetrahedron Lett. 1996, 37, 2325 ± 2326;
b) M. Adamczyk, J. R. Fishpaugh, K. J. Heuser, J. M. Ramp, R. E.
Reddy, M. Wong, Tetrahedron 1998, 54, 3093 ± 3112.
German version: Angew. Chem. 1999, 111, 3751 ± 3753
Keywords: collagen
´ natural products ´ osteoporosis ´
pyrrololines ´ total synthesis
[17] M. Adamczyk, D. D. Johnson, R. E. Reddy, Tetrahedron: Asymmetry
1999, 10, 775 ± 781.
[18] Satisfactory spectroscopic and chromatographic data (1H and
13C NMR, MS) were obtained for all new compounds.
[19] A. J. Blake, E. C. Boyd, R. O. Gould, R. M. Paton, J. Chem. Soc.
Perkin Trans. 1 1994, 2841 ± 2847.
[1] a) M. Sato, T. A. Grese, J. A. Dodge, H. U. Bryant, C. H. Turner, J.
Med. Chem. 1999, 42, 1 ± 24; b) M. Zaidi, M. Pazianas in Therapy of
Osteoporosis (Ed.: T. Dyson), Dervent Information, London, 1995;
c) Principles of Bone Biology (Eds.: J. P. Bilezikian, L. G. Raisz, G.
Rodan), Academic Press, New York, 1996; d) P. Da Silva Jardaine, D.
Thomson, Annu. Rep. Med. Chem. 1996, 31, 211 ± 220; e) J. G. Gums,
US Pharmacist 1996 (September), 85 ± 96; f) D. R. Eyre, M. A. Paz,
P. M. Gallop, Annu. Rev. Biochem. 1984, 53, 717 ± 749.
[2] a) A. M. Parfitt, M. K. Drezner, F. H. Glorieux, J. A. Kanis, H.
Malluche, P. J. Meunier, S. M. Ott, R. R. Rocker, J. Bone. Miner. Res.
1987, 2, 595 ± 610; b) S. Hagiwara, S.-O. Yang, C. C. Gluer, E.
Bendavid, H. K. Genant, Osteoporosis 1994, 20, 651 ± 669; c) G. M.
Blake, I. Fogelman in ref. [1c], pp. 1313 ± 1332; d) H. K. Genant, T. F.
Lang, K. Engelke, T. Fuerst, C.-C. Gluer, S. Majumdar, M. Jergas,
Calcif. Tissue Int. 1996, 59, Suppl. 1, S10 ± S15.
[20] a) L. Henry, Bull. Soc. Chim. Fr. 1895, 13, 999; b) L. Henry, C. R.
Hebd. Seances Acad. Sci. 1885, 120, 1265.
[21] a) S. P. Tenis, J. W. Raggon, J. Org. Chem. 1987, 52, 819 ± 827; b) G.
Stefancich, M. Artico, R. Silvestri, J. Heterocycl. Chem. 1992, 29,
1005 ± 1007.

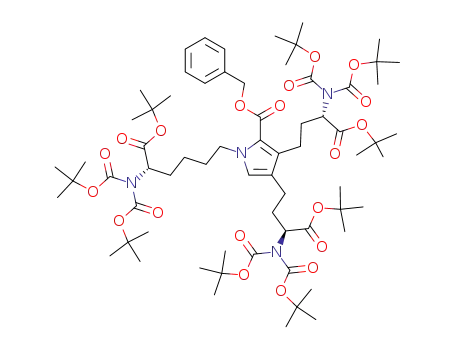

[22] ( )-17: Rf ˆ 0.42 (silica gel, EtOAc/hexanes 2/8); [a]D28
ˆ
6.8 (c ˆ 2.0,
MeOH); analytical reverse-phase HPLC (Waters, Rcm, mBondapak
C18 column, 10 mm, 8 Â 10 mm; MeCN/0.1% aq. trifluoroacetic acid
95/5, 2.0 mLmin 1, detection at 215 nm): Rt ˆ 8.7 min (97%); 1H NMR
(300 MHz, CDCl3, 238C, TMS): d ˆ 7.43 ± 7.26 (m, 5H, Ar-H), 6.58 (s,
1H, pyrrole-H), 5.26 (q, 2H, J ˆ 48.3, 12.3 Hz, Ar-CH2), 4.72 ± 4.61 (m,
3H, 3  N-CH-CO2tBu), 4.11 (t, 2H, J ˆ 8.1 Hz, pyrrole-N-CH2),
2.82 ± 2.60 (m, 2H), 2.44 ± 1.24 (m, 12H), 1.49 (s, 18H), 1.48 (s, 18H),
1.47 (s, 18H), 1.44 (s, 9H), 1.43 (s, 9H), 1.42 (s, 9H); 13C NMR
(75 MHz, CDCl3, 238C, TMS): d ˆ 169.8, 169.7, 169.6, 161.0, 152.5,
152.4, 136.6, 132.2, 128.5, 127.9, 126.5, 121.4, 118.2, 82.7, 82.5, 82.4, 81.1,
81.0, 77.2, 65.3, 59.3, 58.8, 58.3, 49.7, 31.7, 31.1, 29.2, 29.1, 28.0, 27.9, 23.8,
[3] a) L. Knott, A. J. Baily, Bone 1998, 22, 181 ± 187; b) I. T. James, A. J.
Walne, D. Perrett, Ann. Clin. Biochem. 1996, 33, 397 ± 420; c) M. J.
Seibel, H. A. P. Pols in ref. [1c], pp. 1293 ± 1311; d) D. R. Eyre in
ref. [1c], pp. 143 ± 153; e) W. Withhold, Eur. J. Clin. Chem. Clin.
Biochem. 1996, 34, 785 ± 799.
[4] L. G. Raisz, Nature 1963, 197, 1015 ± 1016; b) R. J. Murrils in ref. [1c],
pp. 1239 ± 1251.
‡
23.1, 21.3; ESI-MS (m/z%): 1319 (100) [M‡NH4] ; HR-MS (FAB):
[5] a) P. H. Weiss, L. Klein, J. Clin. Invest. 1969, 48, 1 ± 10; b) M. L. Efron,
E. M. Bixby, C. V. Pryles, New Engl. J. Med. 1965, 272, 1299 ± 1309;
c) J. P. Segrest, Methods Enzymol. 1982, 82, 398 ± 410; d) S. Lippincott,
R. W. Chesney, A. Friedman, R. Pityer, H. Barden, R. B. Mazess,
Bone 1989, 10, 265 ± 268.
[6] For the isolation of Pyd (1), see D. Fujimoto, T. Moriguchi, T. Ishida,
H. Hayashi, Biochem. Biophys. Res. Commun. 1978, 84, 52 ± 57.
[7] For the isolation of Dpd (3), see T. Ogawa, T. Ono, M. Tsuda, Y.
Kawanishi, Biochem. Biophys. Res. Commun. 1982, 107, 1252 ± 1257.
[8] a) D. R. Eyre, H. Oguchi, Biochem. Biophys. Res. Commun. 1980, 92,
403 ± 410; b) Z. Gunja-Smith, R. J. Boucek, Biochem. J. 1981, 197,
759 ± 762; c) S. P. Robins, Biochem. J. 1983, 215, 167 ± 173.
‡
calcd for C68H109N4O20: 1323.7427 [M‡Na] , found: 1323.7449.
[23] A. G. H. Wee, E. Bunnenberg, C. Djerassi, Synth. Commun. 1984, 14,
383 ± 390.
[24] (‡)-Dpl (4): [a]2D0 ˆ ‡20.6 (c ˆ 0.17, H2O); analytical reverse-phase
HPLC (Waters, Rcm, mBondapak C18 column, 10 mm, 8 Â 10 mm;
MeCN/0.1% aq. trifluoroacetic acid 4/96, 2.0 mLmin 1, detection at
215 nm): Rt ˆ 5.54 min (96%); 1H NMR (300 MHz, CD3OD, 238C,
TMS): d ˆ 6.51 (s, 2H, pyrrole-H), 3.92 ± 3.78 (m, 5H, 3  N-CH-
CO2H and pyrrole-N-CH2), 2.64 ± 2.52 (m, 4H), 2.20 ± 1.98 (m, 4H),
1.94 ± 1.82 (m, 2H), 1.82 ± 1.70 (m, 2H), 1.48 ± 1.38 (m, 2H); 13C NMR
(75 MHz, D2O (0.5 mL ‡ MeCN (2.0 mL), 238C): d ˆ 173.7, 120.0,
119.7 (CN), 54.1, 54.0, 49.0, 31.6, 30.8, 30.1, 22.1, 20.7, 1.5 (CH3); ESI-
[9] For the synthesis of pyridinium cross-links of collagen, see a) M.
Adamczyk, D. D. Johnson, R. E. Reddy, Tetrahedron 1999, 55, 63 ± 88;
b) R. Waelchli, C. Beerli, H. Meigel, L. Revesz, Bioorg. Med. Chem.
Lett. 1997, 7, 2831 ± 2836.
‡
MS (m/z%): 399 (100) [MH ]; HR-MS (FAB): calcd for C18H31N4O6:
‡
399.2244 [MH ], found: 399.2253.
[10] a) S. P. Robins, Biochem. J. 1982, 207, 617 ± 620; b) S. P. Robins, H.
Woitge, R. Hesley, J. Ju, S. Seyedin, M. J. Seibel, J. Bone. Miner. Res.
1994, 9, 1643 ± 1649; c) U. M. Casserly, A. OꢁRorke, M. J. Power, P. F.
Fottrell, Anal. Biochem. 1996, 242, 255 ± 260; d) B. Gomez, Jr., S.
Ardakani, B. J. Evans, L. D. Merrell, D. K. Jenkins, V. T. Kung, Clin.
Chem. 1996, 42, 1168 ± 1175; e) T. G. Rosano, R. T. Peaston, H. G.
Bone, H. W. Woitge, R. M. Francis, M. J. Seibel, Clin. Chem. 1998, 44,
2126 ± 2132; f) H. Engler, D. Koeberle, B. Tuerlimann, H.-J. Senn,
W. F. Riesen, Clin. Chem. Lab. Med. 1998, 36, 879 ± 885.
[11] a) J. E. Scott, E. W. Hughes, A. A. Shuttleworth, Biosci. Rep. 1981, 1,
611 ± 618; b) J. E. Scott, R. Qian, W. Henkel, R. W. Glanville,
Biochem. J. 1983, 209, 263 ± 264; c) P. D. Kemp, J. E. Scott, Biochem.
J. 1988, 252, 387 ± 393.
[12] The names for pyrrole cross-links pyrrololine (Pyl, 2) and deoxy-
pyrrololine (Dpl, 4) were given in analogy to the pyridinium cross-
links pyridinoline (Pyd, 1) and deoxypyridinoline (Dpd, 3).
[13] a) W. Henkel, R. W. Glanville, D. Greifendorf, Eur. J. Biochem. 1987,
165, 427 ± 436; b) D. J. Horgan, N. L. King, L. B. Kurth, R. Kuypers,
Arch. Biochem. Biophys. 1990, 281, 21 ± 26; c) R. Kuypers, M. Tyler,
L. B. Kurth, I. D. Jenkins, D. J. Horgan, Biochem. J. 1992, 283, 129 ±
136; d) R. Kuypers, M. Tyler, L. B. Kurth, I. D. Jenkins, D. J. Horgan,
Angew. Chem. Int. Ed. 1999, 38, No. 23
ꢀ WILEY-VCH Verlag GmbH, D-69451 Weinheim, 1999
1433-7851/99/3823-3539 $ 17.50+.50/0
3539
