F u n ction a lized Rh en iu m (V) Or ga n oim id o Com p lexes a s
P oten tia l Ra d iop h a r m a ceu tica ls. 2. Syn th esis, Str u ctu r a l
Ch a r a cter iza tion , a n d Rea ctivity of N-Su ccin im id yl Ester
Der iva tives w ith Am in es
J effrey B. Arterburn,* Kalla Venkateswara Rao, Donna M. Goreham,†
Marcela V. Valenzuela, and Mylena S. Holguin
Department of Chemistry and Biochemistry MSC 3C, New Mexico State University,
P.O. Box 30001, Las Cruces, New Mexico 88003
Keith A. Hall,‡ Kevin C. Ott, and J effrey C. Bryan§
CST Division, MS J 514, Los Alamos National Laboratory, Los Alamos, New Mexico 87545
Received November 24, 1999
Organoimidorhenium(V) complexes were synthesized as potential labeling agents for
biologically relevant organic amines using the preconjugate approach. The bistriphenylphos-
phine organoimidorhenium N-succinimidyl ester complex Cl3(PPh3)2RedN-C6H4CO2N-
(COCH2)2 (2) was synthesized and characterized by single-crystal X-ray analysis. Complex
2 was coupled in aqueous dimethylformamide solvent with a series of primary and secondary
amines, amino acids, and a biotin-ethylenediamine derivative to give the corresponding
amide complexes in good yields. These results demonstrate that the organoimido linkage is
resistant toward hydrolysis and stable in the presence of more basic alkylamines. An unusual
oxygen atom transfer reaction was observed between the byproduct N-hydroxysuccinimide
and triphenylphosphine ligands when dichloromethane was used as solvent. The dithiocar-

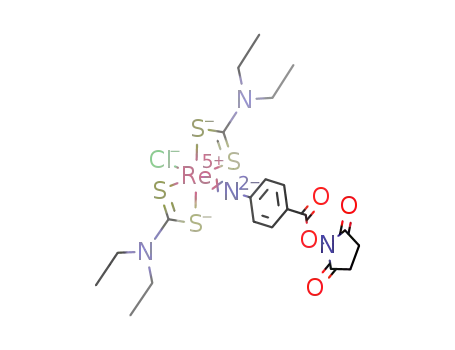

bamate complexes Cl[Et2NCS2]2RedN-C6H4CO2N(COCH2)2 (3) and O[(Et2NCS2)2RedN-C6H4-
CO2N(COCH2)2]2 (4) were also synthesized from 2. These complexes were unaffected by
N-hydroxysuccinimide, but were not suitable for labeling due to hydrolysis of the organoimido
groups under the reaction conditions.
In tr od u ction
attained through multifaceted approaches leading to a
diverse variety of candidate complexes for clinical trials.
Three general methods for producing metal biocon-
jugates are available: (1) direct labeling of biomolecules
that contain a natural ligating or reactive group such
as thiols; (2) the postconjugate approach where the
biomolecule is first attached to a modified ligand that
is then complexed with the metal; and (3) the precon-
jugate approach, where a metal complex is formed first
and then attached to the biomolecule as an intact unit.
With direct labeling it is difficult to control the site of
attachment, the structure of the biomolecule can be
disrupted, and redox changes at the metal can occur.
The postconjugate approach provides a controlled ligand
environment, but remains subject to problems during
Biomolecules labeled with organometallic and coor-
dination complexes have been developed for use as
electron-transfer mediators, as probes for the active
sites of enzymes, and for protein structural resolution
with X-ray diffraction and electron microscopy.1 The
synthesis of radiopharmaceuticals represents another
area where new technologies are necessary to overcome
the challenges associated with labeling biomolecules
with radioactive metals.2 Peptides, antibodies, and
steroids are all potential substrates for labeling with
radioactive metals such as Tc-99m and Re-186/188 for
diagnostic imaging and targeted radiotherapy, respec-
tively. The ideal radiopharmaceutical would be easy to
synthesize, exhibit stability and selective biodistribution
in vivo, and then clear the body after the clinical pro-
cedure. These stringent requirements can ultimately be
