Design of a new bifunctional asymmetric catalyst from carbohydrates: Application to catalytic asymmetric cyanosilylation of aldehydes and acetophenone

Article abstract of DOI:10.1016/S0040-4039(00)00174-X

A new active Lewis acid-Lewis base bifunctional asymmetric catalyst 7 was developed using carbohydrate as a scaffold and this catalyst was applied to the asymmetric cyanosilylation of aldehydes and acetophenone. The β-Ph group at the 6-position of 7 was found to be important for a high asymmetric induction (up to 80% ee) by bringing the Al and the phosphine oxide at optimum positions for a dual activation of carbonyl compounds and TMSCN. (C) 2000 Elsevier Science Ltd.

Full text of DOI:10.1016/S0040-4039(00)00174-X

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 41 (2000) 2405–2409
Design of a new bifunctional asymmetric catalyst from
carbohydrates: application to catalytic asymmetric
cyanosilylation of aldehydes and acetophenone
Motomu Kanai, Yoshitaka Hamashima and Masakatsu Shibasaki ∗
Graduate School of Pharmaceutical Sciences, The University of Tokyo, Hongo, Bunkyo-ku, Tokyo 113-0033, Japan
Received 22 December 1999; revised 17 January 2000; accepted 21 January 2000
Abstract
A new active Lewis acid–Lewis base bifunctional asymmetric catalyst 7 was developed using carbohydrate as a
scaffold and this catalyst was applied to the asymmetric cyanosilylation of aldehydes and acetophenone. The β-Ph
group at the 6-position of 7 was found to be important for a high asymmetric induction (up to 80% ee) by bringing
the Al and the phosphine oxide at optimum positions for a dual activation of carbonyl compounds and TMSCN.
© 2000 Elsevier Science Ltd. All rights reserved.
Keywords: bifunctional asymmetric catalyst; Lewis acid; Lewis base; cyanosilylation; conformation.
We have recently succeeded in developing the new Lewis acid–Lewis base bifunctional catalyst
1, and we could demonstrate that 1 is the most general catalyst for the asymmetric cyanosilylation
of aldehydes.1 From experimental results, such as kinetic profiles and the absolute configuration of
the products, it was deduced that in the transition state, Al and the oxygen atom of the phosphine
oxide work cooperatively as a Lewis acid and as a Lewis base to activate the aldehyde and TMSCN,
respectively. In the course of our studies to develop a general and more reactive asymmetric catalyst
based on the concept of bifunctional catalysis,2 we anticipated that carbohydrates would be an ideal
matrix providing multifunctionalities at well-defined positions. Although carbohydrates are among the
most easily available chiral compounds in nature, they have barely been used as chiral scaffolds for Lewis
acid catalysts.3,4 Within this report, the design and synthesis of a new Lewis acid–Lewis base bifunctional
catalyst derived from carbohydrates and its application to the cyanosilylation of aldehydes,5 as well as a
preliminary result with acetophenone,6 are described.
∗
Corresponding author. E-mail: mshibasa@mol.f.u-tokyo.ac.jp (M. Shibasaki)
0040-4039/00/$ - see front matter © 2000 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(00)00174-X
tetl 16454

2406
Our design of the asymmetric catalyst for the cyanosilylation of carbonyl compounds is as follows.
The Lewis acid should be attached to the 3- and 4-OH groups forming a five-membered metal alkoxide,
while the Lewis base should be connected to C-6 (see 7). The OH groups at the 1- and 2-positions
should be deleted for specifying the combination of the Lewis acid and the Lewis base moieties. From
molecular modeling, it seems that the transition state via a dual activation of the carbonyl compounds
and the TMSCN by the Lewis acid and the Lewis base moieties of the catalyst is readily feasible, when
the Lewis base moiety is moving to an optimum position. This basic design prompted us to synthesize
four possible catalysts 2–5 from the corresponding glycals.7
We first evaluated these catalysts by the reaction of TMSCN with PhCHO (8a). As shown in Table 1, 2
was found to be the most reactive catalyst, giving the highest ee among 2–5. Although the stereochemistry
of the Lewis acid moiety (3R,4S for 2 and 3S,4R for 3) seems to have a predominant effect on the
enantioselectivity, as can be seen from the reversed absolute configuration of the product by 2 (giving
S-9a) and 3 (giving R-9a), the phosphine oxide appears to have some contribution.8 This was confirmed
by a low selectivity and lower activity of the control catalyst 6, containing no Lewis base moiety. The
absolute configuration of the product can be explained from a working model of a dual activation by the
Lewis acid and the Lewis base. These results suggest that the designed catalyst promotes the reaction in
the bifunctional manner.
Table 1
Initial results of catalytic asymmetric cyanosilylation of PhCHO 8a to give 9aa
In order to improve the enantioselectivity by enhancing such a dual activation pathway, we planned
to introduce a conformationally constraining group at the 6-position, to which the phosphine oxide is
connected. If the substituent restricts the conformation, fixing the Lewis base moiety at an optimum
position for the cooperation with the Lewis acid, the transition state of the dual activation pathway should
be more stabilized, thus being more favored. Synthesizing ligands containing several kinds of substituents
at the 6-position (Scheme 1)9 we found that catalyst 7, containing a β-phenyl group,10 afforded improved
enantioselectivity compared to the original catalyst, 2. Thus, 7 afforded 9a in 96% yield with 80% ee
(66% ee using 2 under the same conditions) (Table 2, entry 1).11 These results clearly show that the
orientation of the Lewis base moiety constrained by the substituent at the 6-position is very important for

2407
a high asymmetric induction. The results of the catalytic asymmetric cyanosilylation of aldehydes with
catalyst 7 are shown in Table 2.12

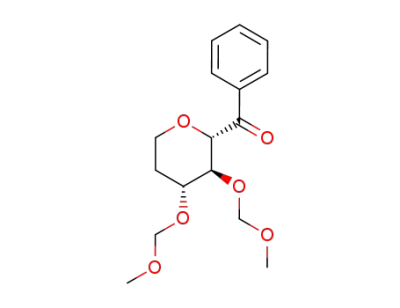

Scheme 1. Reagents and conditions: (a) H2, Pd/C, MeOH; (b) NaOMe, MeOH, 100% (two steps); (c) TBDMSCl (1.6 mol
i
equiv.), Et3N (1.8 mol equiv.), DMF, 70%; (d) MOMCl (4.5 mol equiv.), Pr2NEt (5 mol equiv.), CH2Cl2, 75%; (e) TBAF (2
mol equiv.), THF, 88%; (f) PDC (5 mol equiv.), DMF–H2O, 52%; (g) MeNHOMe·HCl (2 mol equiv.), EDCI (3 mol equiv.),
Et3N (2.2 mol equiv.), DMAP (0.4 mol equiv.), CH2Cl2, 70%; (h) PhMgBr (1.2 mol equiv.), THF, 82%; (i) NaBH4 (2 mol
equiv.), MeOH, 87% (+9% β-Ph); (j) MsCl (5 mol equiv.), py (10 mol equiv.), CH2Cl2; (k) Ph2PK (2 mol equiv.), THF; H2O2,
79% (two steps); (l) Me2AlCl (10 mol equiv.), CH2Cl2, 54%
Table 2
Catalytic asymmetric cyanosilylation of aldehydes by 7a
The origin of the C-6 substituent effect was further investigated by molecular modeling studies (Fig. 1).
It was initially anticipated that the conformer A would be ideal for the cooperation of the Lewis acid and
the Lewis base moieties. From a conformation search by randomly generating initial structures (Monte
Carlo method), the conformer A was found to be the most stable in both cases of R=H and Ph.13 However,
it was found that the substituent R changes the contribution of the second most stable conformer B by
destabilizing this conformer. Thus, in the case of the catalyst 2 (R=H), the energy difference between the
conformer A and B is only 0.34 kcal/mol. On the other hand, in the case of 7 (R=Ph), this value is 4.2
kcal/mol. Therefore, the population of the conformer A is more predominant in the case of 7 than in the
case of 2.14,15 The absolute configuration of the products may be explained by the working model of the
dual activation transition state depicted in Fig. 1.
Although the ee values are not better compared to the previous catalyst 1,1 several advantages are
noteworthy: (1) The additive phosphine oxides such as Bu3P(O) and MeP(O)Ph2 are not necessary any
more for high asymmetric induction. (2) Slow addition of TMSCN is not necessary. (3) The catalytic

2408
Fig. 1. Newman projection in terms of C5–C6 bond of catalysts 2 and 7 and working model of the transition state with 7
activity of 2 and 7 is significantly higher than that of 1, which enables lower catalyst loadings at lower
reaction temperatures.
Taking advantage of the higher reactivity of 2 and 7, we tried the catalytic asymmetric cyanosilylation
of a ketone.16 Thus, in the presence of 20 mol% of 2, the cyanosilylation of acetophenone took place to
give the product in 96% yield with 20% ee (R) at −10°C for 64 h.17
In summary, we have developed new Lewis acid–Lewis base asymmetric bifunctional catalysts using
carbohydrates as scaffolds. We have shown that by restricting the conformation of the Lewis acid and
the Lewis base moieties at optimum positions relative to each other for the dual activation transition
state, the enantioselectivity of this type of catalyst could be optimized. Further studies for improving the
enantioselectivity, especially for ketones are currently under investigation.
Acknowledgements
This work was supported by CREST and RFTF.
References
1. Hamashima, Y.; Sawada, D.; Kanai, M.; Shibasaki, M. J. Am. Chem. Soc. 1999, 121, 2641–2642.
2. Shibasaki, M.; Sasai, H.; Arai, T. Angew. Chem., Int. Ed. Engl. 1997, 36, 1236–1256.
3. To our knowledge, the only example is a Ti catalyst for the phosphonylation of aldehydes. However, these catalysts derived
from a carbohydrate were not the most effective ones in this work: Groaning, M. D.; Rowe, B. J.; Spilling, C. D. Tetrahedron
Lett. 1998, 39, 5485–5488.
4. For other selected examples of asymmetric catalysts derived from carbohydrates, see: Chiral phosphinites or phosphines:
Shin, S.; RajanBabu, T. V. Org. Lett. 1999, 1, 1229–1232; Yonehara, K.; Hashizume, T.; Ohe, K.; Uemura, S. Tetrahedron:
Asymmetry 1999, 10, 4029–4035. Chiral crown ethers: van Maarschalkerwaart, D. A. H.; Willard, N. P.; Pandit, U. K.
Tetrahedron 1992, 48, 8825–8840. Chiral dioxiranes: Tu, Y.; Wang, Z.-X.; Frohn, M.; He, M.; Yu, H.; Tang, Y.; Shi, Y. J.
Org. Chem. 1998, 63, 8475–8485.
5. For selected examples, see: Belokon’, Y. N.; Caveda-Cepas, S.; Green, B.; Ikonnikov, N. S.; Khrustalev, V. N.; Larichev, V.
S.; Moscalenko, M. A.; North, M.; Orizu, C.; Tararov, V. I.; Tasinazzo, M.; Timofeeva, G. I.; Yashkina, L. V. J. Am. Chem.
Soc. 1999, 121, 3968–3973; Hwang, C.-D.; Hwang, D.-R.; Uang, B.-J. J. Org. Chem. 1998, 63, 6762–6763; Abiko, A.;
Wang, G.-Q. J. Org. Chem. 1996, 61, 2264–2265; Corey, E. J.; Wang, Z. Tetrahedron Lett. 1993, 34, 4001–4004; Ohno, H.;
Nitta, H.; Tanaka, K.; Mori, A.; Inoue, S. J. Org. Chem. 1992, 57, 6778–6783; Kobayashi, S.; Tsuchiya, Y.; Mukaiyama, T.
Chem. Lett. 1991, 541–544.
6. Developing a practical asymmetric cyanosilylation of ketones is an unsolved problem: Belokon’, Y. N.; Green, B.; Ikonnikov,
N. S.; North, M.; Tararov, V. I. Tetrahedron Lett. 1999, 40, 8147–8150 and references cited therein; Choi, M. C. K.; Chan,
S. S.; Matsumoto, K. Tetrahedron Lett. 1997, 38, 6669–6672.
1
7. H (500 MHz) and 31P (202.35 MHz) NMR of the ligands of the catalysts 2–5: 2 (CDCl3): δ 1.65 (dddd, J=4.9, 12.5, 12.5,
12.5 Hz, 1H), 1.87 (m, 1H), 2.78 (m, 2H), 3.28 (m, 2H), 3.39 (m, 1H), 3.55 (ddd, J=5.2, 8.5, 11.6 Hz, 1H), 3.78 (m, 1H),
7.5 (m, 6H), 7.73 (m, 4H); 31P; δ 37.90; 3 (CD3OD): δ 1.36 (br dd, J=1.4, 14 Hz, 1H), 2.05 (dddd, J=3.1, 5.5, 12.8, 12.8

2409
Hz, 1H), 2.55 (ddd, J=4.6, 14.3, 15.5 Hz, 1H), 2.84 (ddd, J=8.5, 8.5, 15.6 Hz, 1H), 3.37 (br d, J=3.4 Hz, 1H), 3.49 (m, 1H),
3.59 (m, 1H), 3.86 (br d, J=3.1 Hz, 1H), 4.14 (m, 1H), 7.58 (m, 6H), 7.78 (m, 4H); 31P; δ 38.93; 4 (CDCl3): δ 1.65 (m, 1H),
1.84 (dddd, J=4.9, 12.6, 12.6, 12.6 Hz, 1H), 2.71 (ddd, J=5.8, 7.9, 15.3 Hz, 1H), 2.85 (ddd, J=7.9, 15.3, 15.3 Hz, 1H), 3.29
(ddd, J=2.2, 12.2, 12.2, 1H), 3.62 (m, 2H), 3.86 (m, 2H), 7.5 (m, 6H), 7.74 (m, 4H); 31P; δ 34.19; 5 (CDCl3): δ 1.83 (m,
2H), 2.63 (ddd, J=9.5, 15.0, 15.0 Hz, 1H), 2.75 (ddd, J=3.1, 9.5, 15.0 Hz, 1H), 3.46 (dd, J=3.1, 9.2 Hz, 1H), 3.58 (m, 1H),
3.67 (ddd, J=3.8, 11.6, 11.6 Hz, 1H), 3.75 (ddd, J=3.1, 9.2, 17.0 Hz, 1H), 4.12 (dd, J=3.1, 5.8 Hz, 1H), 7.5 (m, 6H), 7.72
(m, 4H); 31P; δ 34.23.
8. The importance of a phosphine oxide as the Lewis base was also confirmed from the fact that the catalysts containing a
phosphine or an amine as the Lewis base gave rather low selectivities.
9. Spectral data of ligand 7: 1H NMR (500 MHz, CDCl3); δ 1.38 (dddd, J=4.9, 12.8, 12.8, 12.8 Hz, 1H), 1.73 (m, 1H), 2.93
(s, 1H), 3.29 (m, 2H), 3.51 (m, 2H), 3.81 (dd, J=4.0, 11.6 Hz, 1H), 4.07 (dd, J=2.5, 12.5 Hz), 6.67 (s, 1H), 7.25 (m, 6H),
7.53 (m, 7H), 7.94 (m, 2H): 31P NMR (202.35 MHz, CDCl3); δ 38.29: 13C NMR (125.65 MHz, CDCl3); δ 31.68, 51.53 (d,
J=66 Hz), 65.86, 71.62, 73.51, 78.37 (d, J=6 Hz), 127.56, 128.26, 128.30, 128.39, 129.02, 129.11, 129.88, 130.65, 130.72,
18
130.97, 131.04, 131.07, 131.14, 131.46, 131.52, 131.70 (d), 131.82 (d), 132.23 (d): [α]D +14.1 (c=0.55, CHCl3).
10. The stereochemistry of the substituent was determined from the coupling constant of 1H NMR as shown below.
11. Effects of other substituents: β-Me (58% ee (S)), α-Me (23% ee (S)), β-Bu (56% ee (S)), α-Bu (47% ee (S)), β-iPr (37%
ee (S)) α-iPr (32% ee (R)).
12. Representative procedures: To a solution of the ligand (0.0245 mmol) in CH2Cl2 (0.4 mL) was added Et2AlCl (0.0238
mmol as a 0.95 M hexane solution) at ambient temperature under Ar atmosphere. After stirring for 2 h, the reaction mixture
was cooled to −78°C and the aldehyde (0.48 mmol) was added. After 30 min, TMSCN (0.58 mmol) was added in one
portion and the mixture was stirred at −60°C until the starting aldehyde disappeared on TLC (SiO2, AcOEt/hexane 1/4).
Acid hydrolysis and usual workup followed by purification by silica gel column chromatography gave the corresponding
cyanohydrin.
13. These calculations were done with the universal force field of Cerius 2_3.8.
14. From the Curtin–Hammet principle, the distribution of the ground state species may not be reflected on the actual reaction
pathway. However, the difference between transition state energies by the dual activation pathway and the mono activation
pathway by the Lewis acid seems to be not large enough to overcome the ground state distribution, since the activation of
TMSCN by the phosphine oxide is not strong. For the activation ability of the phosphine oxide toward TMSCN, see Ref. 1.
15. The same consideration may explain the lower enantioselectivities by α-substituted catalysts (see Ref. 11). In these cases,
the optimum conformer A is destabilized by the α-substituent.
16. However, the cyanosilylation of acetophenone with catalyst 1 did not proceed.
17. The ee of the TMS protected cyanohydrin was determined by chiral HPLC column (Chiralcel OJ, iPrOH/hexane 2/98, flow
rate 0.5 mL/min, retention time 15 min for the R isomer and 16 min for the S isomer). The absolute configuration of the
product was determined by the optical rotation of the cyanohydrin: Kilijunen, E.; Kanerva, L. T. Tetrahedron: Asymmetry
1997, 8, 1551–1557. Compound 7 gave the almost the same ee.
