much faster in a polar solvent. In contrast, the difference
between E0−0(3CT) and E0−0(3ππ*) increases in nonpolar
hexane solvent, and as a result, the reverse IC process is
hindered and the total PLQY (0.52) is thus lower than that in
the three other solvents (∼0.70).
and S9). The Commission Internationale de L’Eclairage (CIE)
coordinates of the EL of the 3-based device are (0.15, 0.07),
which are very close to those of the National Television
Standards Committee (NTSC) standard blue of (0.14, 0.08).
Note that a pure blue fluorescent OLED generally has an EQE
of less than 3%,9 and pure blue emission with CIEy < 0.10 is still
a critical issue for phosphorescent transition-metal complexes.10
Here, Ir(fppz)2(dfbdp)10e was selected for comparison because
it is the most efficient blue phosphor, with a strong emission
band in the 400−450 nm region. Using the same configuration
described above, an Ir(fppz)2(dfbdp) based device exhibits a
similar maximum EQE of 8.8% with a reduced efficiency roll-off
when compared with that of the 3-based device (see Figure
S10). We believe that the design of an appropriate device
structure in a subsequent study can solve the roll-off problem.
In summary, although a high degree of CT in the excitation
process leads to a small exchange energy between the singlet
By doping of these three compounds in a high triplet energy
host, bis(2-(diphenylphosphino)phenyl)ether oxide (DPEPO),
with a concentration of 10 wt %, the TADF emissions were also
observed in vacuum conditions. The proportion of the delayed
component in the total emission occurs in the order 3 > 2 > 1
(see Figure S7), which agrees with the behavior in toluene. The
emission maximum and the PLQY of 1, 2, and 3 in the DPEPO
films are 421 nm/0.60, 430 nm/0.66, and 423 nm/0.80,
respectively. Using these doped DPEPO films as the emitting
layers (EML), multilayer OLEDs were fabricated with a
configuration of ITO/α-NPD (30 nm)/TCTA (20 nm)/CzSi
(10 nm)/EML (20 nm)/DPEPO (10 nm)/TPBI (30 nm)/LiF
(1 nm)/Al (Figure S8), where α-NPD, TCTA, CzSi and TPBI
represent N,N′-diphenyl-N,N′-bis(1-naphthyl)-1,10-biphenyl-
4,4′-diamine, 4,4′,4″-tris(N-carbazolyl) triphenylamine, 9-(4-
tert-butylphenyl)-3,6-bis(triphenylsilyl)-9H-carbazole and 1,3,5-
tris(N-phenylbenzimidazol-2-yl)benzene, respectively. As
shown in Figure 5a, the maximum EQE of the device based
3
and triplet CT states, the ππ* state is the lowest triplet state
for an aromatic CT compound in most cases. The energy
interchange between its singlet and triplet states can be efficient
3
only when the ππ* state is close to or even higher than the
3CT state. Therefore, to attain efficient blue TADF emission,
both the π-conjugation length and the redox potential of the
donor and acceptor moieties should be taken into account,
along with the interruption of the conjugation between them.

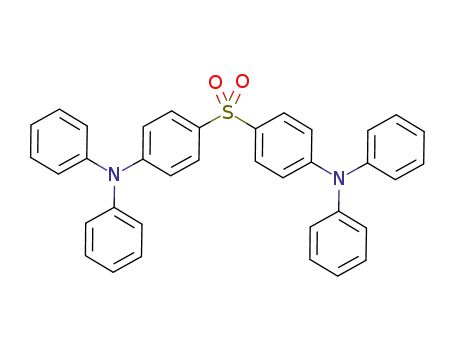

On the basis of this principle, a simple and efficient pure blue
TADF material has been designed and successfully applied to
OLEDs. Its higher EL efficiency relative to fluorescent materials
with similar CIE coordinates indicates that TADF materials
have great potential for OLED applications, even in the pure
blue region where noble metal based phosphors do not work
well.
ASSOCIATED CONTENT
* Supporting Information
■
S
Experimental details; photophysical and molecular orbital data;
comparison of device data. This material is available free of
AUTHOR INFORMATION
Corresponding Author
■
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
The authors wish to thank Prof. Masahiro Kotani for
stimulating discussions with regard to this work. This work
was supported by a Grant-in-Aid from the Funding Program for
World-Leading Innovative R&D on Science and Technology
(FIRST).
Figure 5. (a) The EQE-current density characteristics of the OLEDs
based on compounds 1−3; (b) the EL and PL spectra of 10 wt % 3
doped in a DPEPO layer. Inset: The CIE coordinates of the EL
spectrum of a 3-based device.
REFERENCES
■
(1) (a) Adachi, C.; Baldo, M. A.; Thompson, M. E.; Forrest, S. R. J.
Appl. Phys. 2001, 90, 5048. (b) Highly Efficient OLEDs with
Phosphorescent Materials; Yersin, H., Ed.; Wiley-VCH, Weinheim,
2008. (c) Xiao, L.; Chen, Z.; Qu, B.; Luo, J.; Kong, S.; Gong, Q.; Kido,
J. Adv. Mater. 2011, 23, 926.
(2) Zhang, Q.; Zhou, Q.; Cheng, Y.; Wang, L.; Ma, D.; Jing, X.;
Wang, F. Adv. Funct. Mater. 2006, 16, 1203.
(3) (a) Tsuboyama, A.; Kuge, K.; Furugori, M.; Okada, S.; Hoshino,
M.; Ueno, K. Inorg. Chem. 2007, 46, 1992. (b) Deaton, J. C.; Switatski,
S. C.; Kondakov, D. Y.; Young, R. H.; Pawlik, T. D.; Giesen, D. J.;
on 1 is 2.9%, while the values for the devices based on 2 and 3
increase dramatically to 5.6% and 9.9%, respectively, although
the EQE roll-off of all these devices is significant, probably
because of the unbalanced charge capture ability of these large
band gap emitters in the EML. The EL spectra of these devices
are almost identical to the PL spectra of their EMLs (Figures 5b
C
