[ReO(N2O2)X] Complexes: “4 + 1”?
Liang Xu, Mark P. Lowe, Steven J. Rettig, and Chris Orvig*,†
Medicinal Inorganic Chemistry Group, Department of Chemistry, University of British Columbia,
2036 Main Mall, Vancouver, B.C. V6T 1Z1, Canada
ReceiVed December 18, 2000

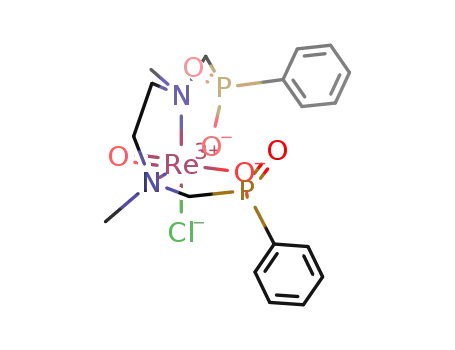

[ReO(ppme)X] (where ppme2- is 2,5-diazo-N,N′-dimethylhexyl-1,6-bis(phenylphosphinate), X ) Br0.3Cl0.7) has
been synthesized via a substitution reaction and structurally characterized. The coordination geometry is a distorted
octahedron and one phosphinate coordinates cis and the other trans to the oxo O atom. This coordination mode
is conserved in all [ReOppmeX] complexes synthesized in this study. [ReO(ppme)Cl] has been prepared by a
reduction/complexation reaction from [NH4][ReO4]. [ReO(ppme)Cl] reacts with thiocyanate and benzene thiolate
forming [ReO(ppme)X] (X ) -NCS, -SC6H5), but the one-pot synthesis of the respective ternary thiolate complexes
from perrhenate was not successful. The reduction/complexation reaction of a thiol, H2ppmeCl4, and perrhenate
resulted in the formation of [H3ppme][ReO(SR)4], the reaction of which with [ReO(ppme)Cl] does not lead to
[ReO(ppme)SR] in high yields.
