J. You, et al.
JournalofPhotochemistry&PhotobiologyA:Chemistry386(2020)112097
Scheme 2. Process of the preparation of 3HFs.
to room temperature, and then 30 ml of ethanol was added; Next, weigh
6.0 mmol of 2-hydroxyacetophenone or substituted 2-hydro-
xyacetophenone and 6.0 mmol of benzaldehyde or substituted benzal-
dehyde were added, and diluted with 20.0 ml of ethanol. After 12 h of
reaction, 30% Hydrogen peroxide (H2O2) (2.0 ml) was added directly,
and the reaction was continued for 12 h. The reaction solution was
neutralized with concentrated hydrochloric acid to neutrality. Water
was then added to dissolve the inorganic salts produced by the neu-
tralization. At that time, a large amount of solid precipitated. The solid
was filtered, and then recrystallized from ethanol.
127.68, 122.29, 122.16, 121.90, 121.28, 109.04; IR (KBr, (cm−1)):
3266, 1126 (CeOeH), 1611 (C]O), 1570 (C]C); Yield: 55%. Mp:
159–160 °C (160–161 °C) [31];
2.2.7. 6-Bromo-3-hydroxy-2-phenyl-4H-chromen-4-one (3HF-A-Br)
1H NMR (400 MHz, DMSO-d6) δ: 8.29 (d, J =7.7 Hz, 2 H), 8.18 (d, J
=2.4 Hz, 1 H), 7.93 (dd, J = 9.0, 2.5 Hz, 1 H), 7.77 (d, J =9.0 Hz, 1 H),
7.52 (m, 3 H); 13C NMR (101 MHz, DMSO-d6) δ: 172.76, 153.30,
145.44, 140.93, 135.91, 131.43, 129.64, 128.42, 127.42, 126.65,
122.75, 121.12, 116.59; IR (KBr, (cm−1)): 3289, 1115 (CeOeH), 1600
(C]O), 1554 (C]C); Yield: 58%; Mp: 182–183 °C (180–181 °C) [31].
2.2.1. 3-Hydroxy-2-phenyl-4H-chromen-4-one (3HF)
1H NMR (400 MHz, DMSO-d6) δ: 8.47 – 7.95 (m, 3 H), 7.96 – 7.22
(m, 6 H); 13C NMR (101 MHz, DMSO-d6) δ 172.97, 154.56, 145.15,
139.05, 133.71, 131.27, 129.85, 128.49, 127.63, 124.77, 124.54,
121.28, 118.39; IR (KBr, (cm−1)): 3210, 1130 (CeOeH), 1608 (C]O),
1562 (C]C); Yield: 70%; Mp:178–179 °C (170 °C) [28];
2.3. Free radical polymerization (FRP) [24]
The two-component photoinitiating systems (PISs) are mainly based
on 3HFs/TEOA (1.0%/3.0% w/w) and 3HFs/ONI (0.20%/1.0% w/w)
or (1.0%/0.20% w/w) for the free radical polymerization of metha-
crylates. The weight percent of the photoinitiating system is relative to
the monomer content. The free radical photopolymerization experi-
ments were carried out under laminated conditions. The photosensitive
formulations were photocured in 0.6 mm thick plastic molds (Black
opaque and does not absorb 385 nm LED light) with a 5 mm diameter
center. The molds were clamped between two glass slides. The distance
between irradiation sources and formulations was 3 cm (I0 ≈ 64 mW
cm−2). The specimens were irradiated at different time intervals by
manually controlling the curing light.
2.2.2. 3-Hydroxy-2-(p-tolyl)-4H-chromen-4-one (3HF-B-CH3)
1H NMR (400 MHz, DMSO-d6) δ : 8.16 (d, J =8.1 Hz, 2 H), 8.12 (dd,
J = 8.0, 1.6 Hz, 1 H), 7.85 – 7.72 (m, 2 H), 7.47 (ddd, J = 8.0, 6.6,
1.5 Hz, 1 H), 7.38 (d, J =8.1 Hz, 2 H), 2.40 (s, 3 H); 13C NMR (101 MHz,
DMSO-d6) δ : 173.10, 154.45, 145.31, 139.61, 139.22, 133.51, 129.08,
128.61, 127.47, 124.72, 124.41, 121.24, 118.34, 21.01. IR (KBr,
(cm−1)): 3282, 1110 (CeOeH), 1608 (C]O), 1563 (C]C); Yield: 75%;
Mp: 197–199 °C (206 °C) [28];
The near-infrared spectra of uncured resin were collected by using a
Fourier transform near-infrared spectrometer (Nicolet 5700,
4000–7000 cm−1 wavelength range); the spectra were obtained im-
mediately after each exposure interval. For each sample, the RT-NIR
runs were repeated three times. The double bond conversion profiles
were calculated from the decay of the absorption intensities located at
6165 cm−1 as described by Stansbury and Dickens [32]. The double
bond conversion was calculated using the following equation (Eq. (1)):
2.2.3. 2-(4-Fluorophenyl)-3-hydroxy-4H-chromen-4-one (3HF-B-F)
1H NMR (400 MHz, DMSO-d6) δ: 8.30 (dd, J = 8.7, 5.6 Hz, 2 H),
8.13 (d, J =8.0 Hz, 1 H), 7.80 (dt, J = 16.3, 8.3 Hz, 2 H), 7.46 (dt,
J = 16.4, 8.1 Hz, 3 H); 13C NMR (101 MHz, DMSO-d6) δ: 172.94,
163.83, 161.36, 154.49, 144.37, 138.83, 133.72, 130.06, 127.83,
124.76, 124.56, 121.29, 118.38, 115.70, 115.48; IR (KBr, (cm−1)):
3299, 1126 (CeOeH), 1637 (C]O), 1620 (C]C); Yield: 61%; Mp:
147–149 °C (152–154 °C) [29];
St
S0
(1)
2.2.4. 2-(4-Chlorophenyl)-3-hydroxy-4H-chromen-4-one (3HF-B -Cl)
1H NMR (400 MHz, DMSO-d6) δ: 8.26 (d, J =8.3 Hz, 2 H), 8.13 (d, J
=7.9 Hz, 1 H), 7.80 (dt, J = 7.4, 8.3 Hz, 2 H), 7.65 (d, J =8.3 Hz, 2 H),
7.48 (t, J =7.4 Hz, 1 H); 13C NMR (101 MHz, DMSO-d6) δ : 172.97,
154.49, 143.93, 139.30, 134.39, 133.82, 130.16, 129.28, 128.62,
124.78, 124.59, 121.26, 118.39; IR (KBr, (cm−1)): 3271, 1127
(CeOeH), 1608 (C]O), 1570 (C]C); Yield: 64%; Mp:186–187 °C
where St is the area of the C = C characteristic absorbance peak and S0
is the initial area of the C = C characteristic absorbance peak.
2.4. Steady state photolysis experiments
In this study, the UV–vis absorption spectrum was used to char-
acterize the photolysis rate of 3HFs with the change of illumination
time. The experimental process is as follows:
The [3HFs] = 5.0 × 10−5 M solution is prepared.
2.2.5. 2-(4-Bromophenyl)-3-hydroxy-4H-chromen-4-one (3HF-B -Br)
1H NMR (400 MHz, DMSO-d6) δ : 8.23 – 8.15 (m, 2 H), 8.12 (dd,
J = 8.0, 1.6 Hz, 1 H), 7.87 – 7.72 (m, 4 H), 7.53 – 7.44 (m, 1 H); 13C
NMR (101 MHz, DMSO-d6) δ : 172.97, 154.49, 143.98, 139.35, 133.83,
131.55, 130.51, 129.46, 124.78, 124.60, 123.27, 121.26, 118.39; IR
(KBr, (cm−1)): 3265, 1125 (CeOeH), 1610 (C]O), 1586 (C]C); Yield:
62%; Mp: 186–188 °C (163–167 °C) [30];
The samples were irradiated for 0 s, 30 s, 60 s, 120 s, 180 s, 240 s,
300 s, the UV–vis absorption spectra were measured. The distance be-
tween the 385 nm LED light source and cuvette was 3 cm. The absor-
bance at 345 nm of the same sample taken at different times was re-
corded as At. The photolysis progress was followed by plotting At/A0 as
a function of irradiation time, where A0 was the initial absorbance of
3HFs at 345 nm.

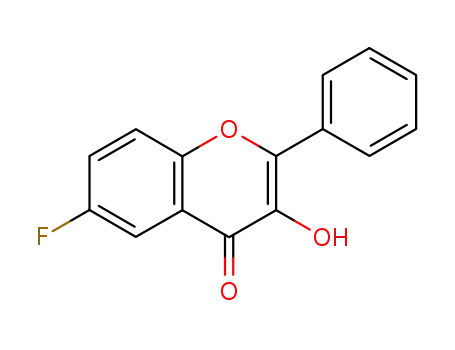

2.2.6. 6-Fluoro-3-hydroxy-2-phenyl-4H-chromen-4-one (3HF-A-F)
1H NMR (400 MHz, DMSO-d6) δ 8.23 (d, J =7.6 Hz, 2 H), 7.89 (dd,
J = 9.3, 4.2 Hz, 1 H), 7.78 (dd, J = 8.5, 3.1 Hz, 1 H), 7.72 (td, J = 8.7,
3.1 Hz, 1 H), 7.56 (m, 3 H); 13C NMR (101 MHz, DMSO-d6) δ: 172.45,
159.60, 157.18, 151.07, 145.63, 138.91, 131.12, 129.97, 128.49,
2.5. Fluorescence quenching experiment
Fluorescence quenching experiments were tested using an FS5
fluorescence spectrometer. The experimental method was similar to the
3
