Inorg. Chem. 2001, 40, 6451-6462
6451
Early Transition Metal Complexes Containing 1,2,4-Triazolato and Tetrazolato Ligands:
Synthesis, Structure, and Molecular Orbital Studies
Carlos Ye´lamos,† Karl R. Gust, Anwar G. Baboul, Mary Jane Heeg,
H. Bernhard Schlegel, and Charles H. Winter*
Department of Chemistry, Wayne State University, Detroit, Michigan 48202
ReceiVed August 30, 2001
Several early transition metal complexes bearing 1,2,4-triazolato and tetrazolato ligands have been prepared by
reaction of the pyrazolato complexes Ti(tBu2pz)4-xClx (tBu2pz ) 3,5-di-tert-butylpyrazolato; x ) 1, 2) and
M(tBu2pz)5-xClx (M ) Nb, Ta: x ) 2, 3) with the sodium or potassium salts derived from 1,2,4-triazoles and
tetrazoles. The X-ray structure analysis of Ti(tBu2pz)2(Me2C2N3)2 shows η2-coordination of the 1,2,4-triazolato
ligands, while in Ti(tBu2pz)3(C2H2N3) and Nb(tBu2pz)3(Me2C2N3)2 the analogous groups are joined in a η1-
fashion in the solid-state structure. Solution NMR studies at different temperatures suggest transition states involving
η2-1,2,4-triazolato ligands for the complexes containing η1-1,2,4-triazolato ligands in the solid state. X-ray crystal

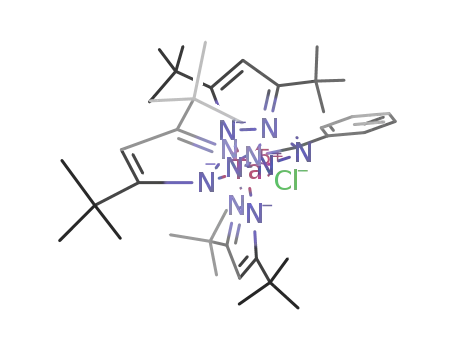

structures of analogous tetrazolato complexes Ti(tBu2pz)3(PhCN4) and Nb(tBu2pz)3(PhCN4)2 show η1-coordination
of the 2-nitrogen atoms of the tetrazolato ligands. Molecular orbital calculations have been carried out on several
model titanium complexes and provide detailed insight into the bonding between early transition metal centers
and 1,2,4-triazolato and tetrazolato ligands. The η2-coordination mode of 1,2,4-triazolato and tetrazolato ligands
is predicted to be more stable than the η1-coordination mode by 13.8-5.2 kcal/mol.
Introduction
been reported recently include amidinate,17-22 pyrazolylborate,23-26
amido,27-30 and others.31-40 Our group has reported extensively
about the use of pyrazolato ligands41-44 among the transition,45-50
There is considerable interest in the development of new
nitrogen donor ligand sets for early transition metal complexes.
Motivations in this area are diverse and include the preparation
of new single-site olefin polymerization catalysts,1-6 attempts
to understand and mimic hydrodenitrogenation catalysts,7-14 and
the preparation of improved precursors to metal nitride phases,15,16
to name a few. Examples of nitrogen donor ligands that have
(17) Hagadorn, J. R.; Arnold, J. Angew. Chem., Int. Ed. Engl. 1998, 37,
1729.
(18) Hagadorn, J. R.; Arnold, J. Organometallics 1998, 17, 1355.
(19) Hagadorn, J. R.; Arnold, J. J. Chem. Soc., Dalton Trans. 1997, 3087.
(20) Littke, A.; Sleiman, N.; Bensimon, C.; Richeson, D. S.; Yap, G. P.
A.; Brown, S. J. Organometallics 1998, 17, 446.
(21) Edelmann, F. T. Coord. Chem. ReV. 1994, 137, 403.
(22) Barker, J.; Kilner, M. Coord. Chem. ReV. 1994, 133, 219.
(23) Reger, D. L. Coord. Chem. ReV. 1996, 147, 571.
(24) Kitajima, N.; Tolman, W. B. Prog. Inorg. Chem. 1995, 43, 419.
(25) Parkin, G. AdV. Organomet. Chem. 1995, 42, 291.
(26) Trofimenko, S. Scorpinates: Polypyrazolylborate Ligands and Their
Coordination Chemistry; Imperial College Press: London, 1999.
(27) Daniele, S.; Hitchcock, P. B.; Lappert, M. F.; Perle, P. G. J. Chem.
Soc., Dalton Trans. 2001, 13.
† Current address: Departamento de Qu´ımica Inorga´nica, Edificio de
Farmacia-Campus Universitario, Universidad de Alcala´, Carretera Madrid-
Barcelona, Km 33.600, E28871, Alcala´ de Henares, Madrid, Spain.
(1) Schrock, R. R.; Casado, A. L.; Goodman, J. T.; Liang, L. C.;
Bonitatebus, P. J.; Davis, W. M. Organometallics 2000, 19, 5325.
(2) Chen, R. F.; Qian, C. T.; Li, Y.; Zou, F. L. Chin. J. Org. Chem. 2000,
20, 712.
(3) Laine, T. V.; Piironen, U.; Lappalainen, K.; Klinga, M.; Aitola, E.;
Leskela, M. J. Organomet. Chem. 2000, 606, 112.
(4) Shao, P. C.; Gendron, R. A. L.; Berg, D. J.; Bushnell, G. W.
Organometallics 2000, 19, 509.
(5) Britovsek, G. J. P.; Bruce, M.; Gibson, V. C.; Kimberley, B. S.;
Maddox, P. J.; Mastroianni, S.; McTavish, S. J.; Redshaw, C.; Solan,
G. A.; Stromberg, S.; White, A. J. P.; Williams, D. J. J. Am. Chem.
Soc. 1999, 121, 8728.
(28) Humphries, M. J.; Green, M. L. H.; Leech, M. A.; Gibson, V. C.;
Jolly, M.; Williams, D. N.; Elsegood, M. R. J.; Clegg, W. J. Chem.
Soc., Dalton Trans. 2000, 4044.
(29) Sanchez-Nieves, J.; Royo, P.; Pellinghelli, M. A.; Tiripicchio, A.
Organometallics 2000, 19, 3161.
(30) Sinnema, P. J.; Spaniol, T. P.; Okuda, J. J. Organomet. Chem. 2000,
598, 179.
(31) Gantzel, P.; Walsh, P. J. Inorg. Chem. 1998, 37, 3450.
(32) Martin, A.; Uhrhammer, R.; Gardner, T. G.; Jordan, R. F.; Rogers, R.
D. Organometallics 1998, 17, 382.
(6) Scollard, J. D.; McConville, D. H.; Vittal, J. J. Organometallics 1997,
16, 4415.
(7) Bianchini, C.; Meli, A.; Vizza, F. Eur. J. Inorg. Chem. 2001, 3, 43.
(8) Castro, A.; Galakhov, M. V.; Go´mez, M.; Sa´nchez, F. J. Organomet.
Chem. 1999, 507, 161.
(9) Vicic, D. A.; Jones, W. D. Organometallics 1999, 18, 134.
(10) Tayebani, M.; Gambarotta, S.; Yap, G. P. A. Angew. Chem., Int. Ed.
Engl. 1998, 37, 3002.
(11) Garcia, J. J.; Casado, A. L. J. Organomet. Chem. 1998, 558, 189.
(12) Fox, P. A.; Bruck, M. A.; Gray, S. D.; Gruhn, N. E.; Grittini, C.;
Wigley, D. E. Organometallics 1998, 17, 2720.
(33) Fryzuk, M. D.; Love, J. B.; Rettig, S. J. Organometallics 1998, 17,
846.
(34) Scott, M. J.; Lippard, S. J. Organometallics 1998, 17, 1769.
(35) Muller, E.; Muller, J.; Olbrich, F.; Bruser, W.; Knapp, W.; Abeln,
D.; Edelmann, F. T. Eur. J. Inorg. Chem. 1998, 1, 87.
(36) Schrock, R. R.; Schattenmann, F.; Aizenberg, M.; Davis, W. M. J.
Chem. Soc., Chem. Commun. 1998, 199.
(37) Warren, T. H.; Schrock, R. R.; Davis, W. M. Organometallics 1998,
17, 308.
(13) Weller, K. J.; Filippov, I.; Briggs, P. M.; Wigley, D. E. Organome-
tallics 1998, 17, 322.
(14) Weller, K. J.; Fox, P. A.; Gray, S. D.; Wigley, D. E. Polyhedron 1997,
16, 3139.
(38) Armistead, L. T.; White, P. S.; Gagne´, M. R. Organometallics 1998,
17, 216.
(39) Lee, C. H.; La, Y.-H.; Park, S. J.; Park, J. W. Organometallics 1998,
17, 3648.
(15) Winter, C. H. Aldrichim. Acta 2000, 33, 3.
(16) Hoffman, D. M. Polyhedron 1994, 13, 1169.
(40) Guzei, I. A.; Liable-Sands, L. M.; Rheingold, A. L.; Winter, C. H.
Polyhedron 1997, 16, 4017.
10.1021/ic0109389 CCC: $20.00 © 2001 American Chemical Society
Published on Web 11/07/2001

6452 Inorganic Chemistry, Vol. 40, No. 25, 2001
Ye´lamos et al.
lanthanide,51-54 and main group metals.55-58 In particular,
we45-49 and others59,60 have demonstrated that η2-coordination
of pyrazolato ligands is common in the early transition metals
and that complexes containing this coordination mode bear
significant structural and chemical resemblance to analogous
cyclopentadienyl and â-diketonate derivatives. As part of this
program, we sought to extend our exploration to complexes
containing 1,2,4-triazolato and tetrazolato ligands.
The coordination chemistry of 1,2,4-triazolato and tetrazolato
ligands has not been as widely studied as that of pyrazolato
ligands, and there is more variability in the binding modes due
to the increased number of nitrogen atoms and the attendant
possibilities for isomerism.61-92 Binding modes that have been
observed for 1,2,4-triazolato ligands include η1,62-64 1,2-µ:
η1,η1,65-69 1,4-µ:η1,η1,70-73 and 1,2,4-µ:η1,η1,η1.74-78 The bridg-
ing coordination modes are by far the most common with 1,2,4-
triazolato ligands; η1 coordination is rare. A review article on
the coordination chemistry of ligands derived from 1,2,4-
triazoles has recently appeared and gives a comprehensive listing
of known coordination modes.61 Structurally characterized
coordination modes among tetrazolato ligands include η1,79-82
1,2-µ:η1,η1,83 1,3-µ:η1,η1,84,85 2,3-µ:η1,η1,86 1,2,3-µ:η1,η1,η1,87
1,2,4-µ:η1,η1,η1,88 µ-1,2-η2,3-η1,89,90 µ-1,3-η1,2,3-η2,91 and
µ:η1,η1,η1,η1.92 The best documented coordination mode for
tetrazolato ligands is η1, although the number of crystallographi-
cally characterized complexes is small.
We are interested in the synthesis of complexes that possess
only nitrogen atoms in the coordination sphere and their
subsequent use as precursors for the deposition of thin films of
nitride materials.51-54,93 1,2,4-Triazolato and tetrazolato ligands
are potentially interesting for such applications, since they may
form complexes that are analogous to complexes containing
pyrazolato ligands. In addition, the higher nitrogen content in
triazolato and tetrazolato complexes, compared to pyrazolato
complexes, may lead to low film deposition temperatures and
highly efficient precursor decomposition pathways that are
driven by the formation of dinitrogen. Herein we describe the
synthesis, structure, and properties of titanium, niobium, and
tantalum complexes containing 1,2,4-triazolato and tetrazolato
ligands. This is the first description of early transition metal
complexes containing these ligands. Crystal structures of
representative complexes document η1- and η2-coordination of
1,2,4-triazolato ligands, depending on the degree of steric
crowding in the coordination sphere and η1-coordination of the
tetrazolato ligands. This study provides the first example of η2-
1,2,4-triazolato ligand coordination by any metal. NMR studies
