Electrochemical utilization of methanol and methanol-d4 as a C1 source to access (deuterated) 2,3-dihydroquinazolin-4(1H)-one

Article abstract of DOI:10.1016/j.cclet.2021.09.019

Herein, an electrocatalytic protocol for the synthesis of 2,3-dihydroquinazolin-4(1H)-one has been disclosed. Methanol is activated and utilized as the C1 source to cyclize with 2-aminobenzamides. This cyclization reaction proceeds conveniently (room temperature and air atmosphere) without any homogeneous metal catalysts, external oxidants, or bases. A wide variety of N,N-disubstituted 2,3-dihydroquinazolin-4(1H)-ones are obtained via this approach. Moreover, when methanol-d₄ is used, a deuterated methylene motif is incorporated into the N-heterocycles, providing an efficient approach to the deuterated N-heterocycles.

Full text of DOI:10.1016/j.cclet.2021.09.019

Journal Pre-proof
Electrochemical utilization of methanol and methanol-d4 as a C1
source to access (deuterated) 2,3-dihydroquinazolin-4(1H)-one
Mingzhu Liu , Liang X , Yu Wei
PII:
DOI:
Reference:
S1001-8417(21)00731-2
https://doi.org/10.1016/j.cclet.2021.09.019
CCLET 6731
To appear in:
Chinese Chemical Letters
Received date:
Revised date:
Accepted date:
23 June 2021
2 September 2021
3 September 2021
Please cite this article as: Mingzhu Liu , Liang X , Yu Wei , Electrochemical utilization of methanol
and methanol-d4 as a C1 source to access (deuterated) 2,3-dihydroquinazolin-4(1H)-one, Chinese
Chemical Letters (2021), doi: https://doi.org/10.1016/j.cclet.2021.09.019
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2021 Published by Elsevier B.V. on behalf of Chinese Chemical Society and Institute of Materia
Medica, Chinese Academy of Medical Sciences.

Chinese Chemical Letters
journal homepage: www.elsevier.com
Communication
Electrochemical utilization of methanol and methanol-d4 as a C1 source to access
(deuterated) 2,3-dihydroquinazolin-4(1H)-one
Mingzhu Liu, Liang Xu*, Yu Wei
School of Chemistry and Chemical Engineering, Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, Shihezi University,
Shihezi 832003, China
ARTICLE INFO
ABSTRACT
Article history:
Received
Received in revised form
Accepted
Herein, an electrocatalytic protocol for the synthesis of 2,3-dihydroquinazolin-4(1H)-one has been
disclosed. Methanol is activated and utilized as the C1 source to cyclize with 2-aminobenzamides.
This cyclization reaction proceeds conveniently (room temperature and air atmosphere) without any
homogeneous metal catalysts, external oxidants, or bases. A wide variety of N,N-disubstituted 2,3-
dihydroquinazolin-4(1H)-ones are obtained via this approach. Moreover, when methanol-d4 is used,
a deuterated methylene motif is incorporated into the N-heterocycles, providing an efficient
approach to the deuterated N-heterocycles.
Available online
Keywords:
Electrochemistry
Heterocycles
Dihydroquinazolinone
Aminobenzamide
C1 source
of reagents are utilized as the C1-precursors and applied in these
transformations, such as carbon monoxide, formic acid, HCHO
[3]. With an increasing demand for high environmental
friendliness and atom economy [4], methanol (MeOH), one
abundant, biodegradable, and renewable feedstock, which can be
efficiently obtained from fossil fuels and agricultural products [5,
6], has gradually gained accelerating application as the C1 source
in the last decades [7, 8]. An array of transition-metal-catalyzed
MeOH utilization reactions have emerged, forging a variety of C-
C and C-heteroatom bonds [9]. Among these, Ir- and Ru-based
catalysts are most frequently used [10-16]. In this regard, a
metal-free protocol with MeOH as C1 source should be
beneficial to address the cost and metal residue issues [17, 18].
On the other hand, electrochemical synthesis, which directly
employs electrons as the redox agent, has recently gained
renaissance as an environmentally benign protocol and enabled
Graphical Abstract
An environmentally benign protocol is disclosed herein,
which takes advantage of methanol as a methylene source to
access 2,3-dihydroquinazolin-4(1H)-one via an
electrochemical cyclization process.
many
previous
challenging
transformations
[19-27].
Electrochemical utilization of MeOH as the C1 source instead of
methoxy source remains rather unexplored. The only examples
were disclosed in 2020. Pan, Tang, Wang and co-workers
achieved the electrochemical activation of MeOH, realizing α-
methoxymethylation and aminomethylation of propiophenones
under metal- and oxidant-free conditions [28]. Zhao group
disclosed a pathway for direct C–H methylthiolation of electron-
rich aromatics, using KSCN as sulfur source and methanol as the
methylation reagent [29]. This leaves ample space to investigate
the electrochemical toolkit of MeOH as the C1 source.
Incorporation of C1-motif to the organic skeleton, such as
methyl, methylene and methenyl, has always been an important
research topic in organic synthesis. Such transformations have
been demonstrated to be an effective way to modify the chemical
and biochemical properties of organic molecules [1, 2]. A variety
———
 Corresponding authors.
E-mail addresses: xuliang4423@shzu.edu.cn (L. Xu); yuweichem@shzu.edu.cn (Y. Wei)

conditions in an undivided cell. The desired aminal-type product
3a could be obtained fortunately. After an extensive screening of
an array of variables, the electrolysis could result in a 97%
isolated yield of the target product 3a in a mixed solvent of
MeOH/HFIP (1:1) at room temperature (Table 1, entry 1), when
the reaction was conducted under a constant current of 5 mA in
an undivided cell equipped with a glassy carbon electrode (GCE)
anode and a platinum cathode. Et4NPF6 was explored as the
supporting electrolyte. Replacing Et4NPF6 with other electrolytes,
n
such as Me4NPF6, Bu4NBF4 and Et4NBF4, was found to be
detrimental to this cyclization process (entries 2-4). Thereafter,
other solvents/C1 sources were investigated. DMF and MeCN
were found ineffective for the formation of 3a (entries 5 and 6).
The Pt(+)/Pt(−) and GCE(+)/GCE(−) electrode combinations led
to slightly decreased yields (entries 7 and 8). Reducing the
current slightly affect the result (entry 9), while increasing the
current to 8 mA resulted in a 22% decrease in isolated yield
(entry 10). When the reaction time was shortened or prolonged,
the isolated yield both lowered. Finally, the transformation was
totally prohibited when the electric current was cut off, indicating
its essential role in this cyclization (Table 1, entry 13).
Scheme 1. (a) Biologically active molecules containing the 2,3-
dihydroquinazolin-4(1H)-one skeleton; (b) Ir-catalyzed activation of
methanol as a C1 source for the construction of quinazolin-4(3H)-
ones; (c) Electrochemical synthesis of 2,3-dihydroquinazolin-4(1H)-
ones.
As our continued efforts to discover new methods to construct
N-heterocycles [30-33], we envisioned that electrochemical
activation of MeOH with 2-aminobenzamides would provide an
alternative paradigm to access 2,3-dihydroquinazolin-4(1H)-one
skeleton, which exist in many naturally occurring alkaloids and
drug molecules (Scheme 1a) [34-38]. To the best of our
knowledge, there are no precedents achieving this transformation,
no matter under thermochemical, photochemical, or
electrochemical conditions [39, 40], although one protocol for the
construction of quinazolinones has been disclosed via Ir-
catalyzed activation of MeOH as the C1 source (Scheme 1b) [41].
Herein, the success of this hypothesis was reported (Scheme
1c). A range of N,N'-disubstituted dihydroquinazolinones, which
could only be obtained from aldehyde/ketone previously [42], are
accessed via this approach under metal-, oxidant, and additive-
free conditions.
With the optimal conditions in hand, the substrate scope for
the synthesis of 2,3-dihydroquinazolin-4(1H)-one was then
investigated via this electrochemical cyclization approach
(Scheme 2).
Table 1
Optimization of the reaction conditions. a
Entry
1
Variations from the standard conditions
none
Yield (%)b
97
2
3
4
5
6
7
8
9
10
11
12
13
Me4NPF6 as electrolyte
nBu4NBF4 as electrolyte
Et4NBF4 as electrolyte
DMF as solvent
90
85
63
N.R.
N.R.
84
92
91
75
82
86
N.R.
CH3CN as solvent
Pt/Pt instead of GCE/Pt
GCE/GCE instead of GCE/Pt
3 mA instead of 5 mA
8 mA instead of 5 mA
12 h instead of 16 h
20 h instead of 16 h
no electricity
CCE: constant current electrolysis, GCE: glassy carbon electrode.
a
Standard conditions: undivided cell, 1a (0.3 mmol), solvent (2.0
mL), nEt4NPF6 (0.1 mol/L), 5 mA, room temperature for 16 h.
b Isolated yields.
Initially, N,N'-disubstituted 2-aminobenzamide 1a and MeOH
were chosen as the model substrate to explore the reaction

Scheme 2. Substrate scope of 2,3-dihydroquinazolin-4(1H)-one from
MeOH. Reaction conditions: undivided cell, 1 (0.3 mmol), solvent
n
a
(2.0 mL), Et4NPF6 (0.1 mol/L), 5 mA, r.t., 16 h. 1a (3.0 mmol),
solvent (10.0 mL), nEt4NPF6 (0.1 mol/L), 5 mA, r.t., 36 h.
At first, variants on the phenyl of anthranilamide were
explored. 5-Methyl (1b), 5-Cl (1c) and 5-Br (1e) substituted
anthranilamides
afforded
the
corresponding
dihydroquinazolinone compounds in good yields, indicating the
compatibility of the conditions with electron-withdrawing and
donating groups. Halogen (Cl and Br) substituted anthranilamide
reacted smoothly with methanol, affording 3c-3e in isolated
yields of 78%-88%. When the methyl on the aniline motif of 1a
was replaced by a phenyl, N3-benzyl-N1-phenyl-substituted 3f
was obtained in 74% yield. Also, the electron-donating and
electron-withdrawing groups on the N1-aryl group were well
tolerated to access the corresponding products 3g-3j in 61%-70%
yields. Similarly, 3n-3t could be obtained in moderate to good
yields, affording diverse N3-aryl-N1-methyl substituted substrates.
Methoxy, trifluoromethoxy, methyl, and halogens were all
compatible herein. When two methyls were present on the aniline
and benzamide motifs, 3l was obtained in 80% yields. In the
same while, probably due to the steric effect, a bulky cyclohexyl
resulted in a dramatically decreased yield to 36% (3m). N1,N3-
Diphenyl substrate 3u could be accessed in 70% yield. The
presence of the aminal motif, with methylene between two
nitrogen atoms, was confirmed unambiguously by X-ray single-
crystal diffraction.
Scheme 4. Substrate scope of 2,3-dihydroquinazolin-4(1H)-one-2,2-
d2 from methanol-d4. Reaction conditions: undivided cell,
anthranilamide (0.3 mmol), methanol-d4 (1.0 mL), HFIP (1.0 mL),
a
nEt4NPF6 (0.1 mol/L), 5 mA, r.t., 16 h. The ratio of deuterium-
incorporation.
Deuterium is a stable isotope of hydrogen. Deuterated
ingredients can be utilized in mechanistic, spectroscopic, and
tracer studies during the discovery and development of
pharmaceuticals [43-45]. Therefore, the incorporation of
deuterium into potential drug substances has seen a great
progress in recent years. It was envisioned that methanol-d4, a
readily available and relatively cheap deuterated solvent, might
introduce a deuterated methylene motif in this electrosynthesis
process [46]. As illustrated in Table 4, methanol-d4 was found to
engage in the cyclization process smoothly, leading to 2,2-
deuterated dihydroquinazolin-4(1H)-ones. Generally, compared
with its methanol counterpart, deuterated methanol resulted in the
products in decreased yields. For example, 5a could be isolated
in 77% yield (Scheme 4), which was 20% lower than the value of
undeuterated 3a (97%, Scheme 2). Also, an array of variants
from the starting anthranilamides were explored, demonstrating
this protocol to be compatible with different N,N’-disubstituted
substrates.
Scheme 3. Substrate scope of 2,3-dihydroquinazolin-4(1H)-one from
other alcohols. Reaction conditions: undivided cell, anthranilamide
(0.3 mmol), alcohol (1.0 mL), HFIP (1.0 mL), nEt4NPF6 (0.1 mol/L),
5 mA, r.t., 16 h. a 7 mA.
Then, different alcohols were treated under such
electrochemical cyclization conditions (Scheme 3). Generally,
lower isolated yields were obtained probably due to steric
hindrance, in comparison with the MeOH case. Without
modifying the conditions in Scheme 2, ethanol reacted with
anthranilamide derivatives to access corresponding products 4a-
4c with methyl on the aminal carbon in 45%-60% yields. When
secondary alcohols were used, increasing the current to 7 mA
resulted in the products in moderate yields (4d, 48%).
Scheme 5. Control experiments.
The mechanism of the reaction was explored by several
control
reactions.
When
5.0
equiv.
of
2,2,6,6-
tetramethylpiperidine N-oxyl (TEMPO), a radical scavenger, was
added into the standard reaction conditions, the yield of the
desired product is only 16% (Scheme 5a), which implied the
involvement of radical species during the reaction. Oxygen has
also been determined to be not critical to this transformation

References
(Scheme 5b). The reaction between 1a and formaldehyde under
standard conditions led to the formation of 3a in 86% isolated
yield (Scheme 5c), indicating aldehyde might be a possible
intermediate during this cyclization reaction. This envision was
further reiforced since the cyclization process between 1a and
formaldehyde could proceed efficiently in the absence of
current (Scheme 5c).
[1] H. Schönherr, T. Cernak, Angew. Chem. Int. Ed. 52 (2013)
12256-12267.
[2] E.J. Barreiro, A.E. Kümmerle, C.A.M. Fraga, Chem. Rev. 111
(2011) 5215-5246.
[3] V.S. Kudale, J.J. Wang, Green Chem. 22 (2020) 3506-3511.
[4] R.A. Sheldon, Chem. Soc. Rev. 41 (2012) 1437-1451.
[5] G.A. Olah, Angew. Chem. Int. Ed. 44 (2005) 2636-2639.
[6] D.R. Palo, R.A. Dagle, J.D. Holladay, Chem. Rev. 107 (2007)
3992-4021.
[7] K. Natte, H. Neumann, M. Beller, R.V. Jagadeesh, Angew.
Chem. Int. Ed. 56 (2017) 6384-6394.
[8] R.H. Crabtree, Chem. Rev. 117 (2017) 9228-9246.
[9] B. Sam, B. Breit, M.J. Krische, Angew. Chem. Int. Ed. 54
(2015) 3267-3274.
[10] M. González-Lainez, M.V. Jiménez, V. Passarelli, J.J. Pérez-
Torrente, Catal. Sci. Technol. 10 (2020) 3458-3467.
[11] J. Wang, W. Qiang, S. Ye, et al., Catal. Sci. Technol. 11
(2021) 3364-3375.
[12] A. Kaithal, M. Schmitz, M. Hölscher, L. Walter,
ChemCatChem 12 (2020) 781-787.
[13] J. Wang, J. Wu, Z.N. Chen, et al., J. Catal. 389 (2020) 337-344.
[14] P. Liu, N.T. Tung, X. Xu, et al., J. Org. Chem. 86 (2021)
2621-2631.
[15] C. Meng, P. Liu, N.T. Tung, et al., J. Org. Chem. 85 (2020)
5815-5824.
[16] Y. Tsukamoto, S. Itoh, M. Kobayashi, Y. Obora, Org. Lett. 21
(2019) 3299-3303.
[17] B. Zhang, H. Gao, W. Wang, Green Chem. 22 (2020) 4433-
4437.
[18] Z. Xie, J. Lan, H. Zhu, et al., Chin. Chem. Lett. 32 (2021)
1427-1431.
[19] E.J. Horn, B.R. Rosen, P.S. Baran, ACS Cent. Sci. 2 (2016)
302-308.
[20] S. Möhle, M. Zirbes, E. Rodrigo, et al., Angew. Chem. Int. Ed.
57 (2018) 6018-6041.
[21] A. Wiebe, T. Gieshoff, S. Möhle, et al., Angew. Chem. Int. Ed.
57 (2018) 5594-5619.
[22] S. Tang, Y. Liu, A. Lei, Chem 4 (2018) 27-45.
[23] Y. Jiang, K. Xu, C. Zeng, Chem. Rev. 118 (2018) 4485-4540.
[24] M. Yan, Y. Kawamata, P.S. Baran, Chem. Rev. 117 (2017)
13230-13319.
[25] Y. Zhao, W. Xia, Chem. Soc. Rev. 47 (2018) 2591-2608.
[26] J. Chen, S. Lv, S. Tian, ChemSusChem, 12 (2019) 115-132.
[27] J. Li, S. Zhang, K. Xu, Chin. Chem. Lett. (2021) DOI:
10.1016/j.cclet.2021.03.027.
Scheme 6. Plausible reaction mechanism.
Based on the above observations and previous reports, a
plausible mechanism of this electrochemical cyclization was
proposed, which was shown in Scheme 6. The proposed
mechanism was initiated by sequential oxidation of methanol to
produce formaldehyde at the anode [47]. During the oxidation
process, proton was released into the mixture, which could
catalyze the nucleophilic addition of the amine motif onto
formaldehyde and lead to the intermediate A. Then, enamine
cation B was generated via the dehydration process. The final
cyclization would afford the target product. During this process,
H2 was released on the cathode via the consumption of the proton.

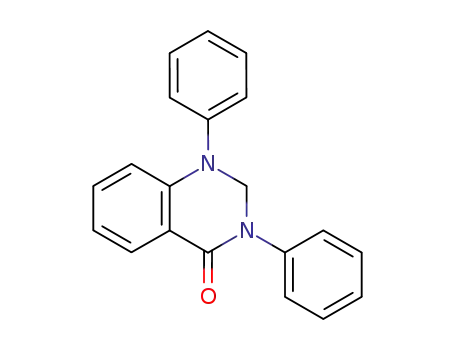

In summary, an efficient electrochemical protocol for the
construction of 2,3-dihydroquinazolin-4(1H)-one skeleton has
been developed herein. Using methanol or methanol-d4 as the C1
source, anthranilamide derivatives could be cyclized at room
temperature to afford the desired (deuterated) N-heterocycles
conveniently, under homogeneous metal-based catalyst, external
oxidant and base-free conditions. This electrochemical
methodology is expected to not only complement the existing
methods towards the privileged dihydroquinazolinone skeleton,
but also provide a chance to access deuterated N-heterocycles
efficiently and economically.
[28] X.J. Meng, Y.Z. Pan, S.K. Mo, et al., Org. Chem. Front. 7
(2020) 2399-2404.
[29] Y. Wu, H. Ding, M. Zhao, et al., Green Chem. 22 (2020)
4906-4911.
[30] Q. Tian, J. Zhang, L. Xu, Y. Wei, Mol. Catal. 500 (2021)
111345.
[31] Y. He, L. Xu, J. Zhang, Y. Wei, Appl. Organomet. Chem. 34
(2020), e5316.
mmc1.pdf
Declaration of Competing Interest
[32] Z. Cao, Y. Zhu, X. Li, et al., J. Org. Chem. 85 (2020) 10167-
10174.
[33] S. Liu, L. Xu, Y. Wei, J. Org. Chem. 84 (2019) 1596-1604.
[34] G.S. Pedgaonkar, J.P. Sridevi, V.U. Jeankumar, et al., Eur. J.
Med. Chem. 86 (2014) 613-627.
The authors declare that they have no known
competing financial interests or personal
relationships that could have appeared to influence
the work reported in this paper.
[35] J. Xing, L. Yang, Y. Yang, et al., Eur. J. Med. Chem. 125
(2017) 411-422.
[36] J. Bergman, S. Bergman, J. Org. Chem. 50 (1985) 1246-1255.
[37] N. Gupta, V. Pons, R. Noël, et al., ACS Med. Chem. Lett.
5(2014) 94-97.
Acknowledgments
[38] R. Noel, N. Gupta, V. Pons, et al., J. Med. Chem. 56 (2013)
3404-3413.
[39] G.C. Senadi, V.S. Kudale, J.J. Wang, Green Chem. 21 (2019)
979-985.
The authors are thankful for the financial support from the
National Natural Science Foundation of China (No. 22061036),
the program for youth science and technology innovation leader
of Xinjiang Bingtuan (Nos. 2019CB026, CXRC201601).

[40] M. Maji, D. Panja, I. Borthakur, S. Kundu, Org. Chem. Front.
8(2021) 2673-2709.
[44] A. Kurimoto, R. S. Sherbo, Y. Cao, et al., Nat. Catal. 3(2020)
719-726.
[41] F. Li, L. Lu, P. Liu, Org. Lett. 18 (2016) 2580-2583.
[42] X. Zhang, Y. Zhu, Y. Zhu, et al., Chin. J. Org. Chem. 39
(2019) 2392-2402.
[45] B. Zhang, C. Qiu, S. Wang, et al., Sci. Bull. 66 (2021) 562-569.
[46] Z. Zhang, C. Qiu, Y. Xu, et al., Nat. Commun. 11 (2020) 4722.
[47] G. Yuan, S. Yu, J. Jie, et al., Chin. Chem. Lett. 31 (2020)
1941-1945.
[43] T.G. Gant, J. Med. Chem. 57 (2014) 3595-3611.
