Ion-sensing properties of thiophene-based oxazol-5-ones

Article abstract of DOI:10.1080/00387010.2021.1881128

Seven fluorescent thiophene-based oxazol-5-one derivatives were prepared via Erlenmeyer reaction of 2-thiophenecarboxaldehyde and 3-thiophenecarboxaldehyde with different aryl glycine intermediates. Their absorption and emission properties were investigat

Full text of DOI:10.1080/00387010.2021.1881128

Spectroscopy Letters
An International Journal for Rapid Communication
ISSN: (Print) (Online) Journal homepage: https://www.tandfonline.com/loi/lstl20
Ion-sensing properties of thiophene-based
oxazol-5-ones
Aslı Çıkıt Şener, Derya Topkaya, Serap Alp & Gülsiye Öztürk Ürüt
To cite this article: Aslı Çıkıt Şener, Derya Topkaya, Serap Alp & Gülsiye Öztürk Ürüt (2021) Ion-
sensing properties of thiophene-based oxazol-5-ones, Spectroscopy Letters, 54:3, 171-179, DOI:
10.1080/00387010.2021.1881128
To link to this article: https://doi.org/10.1080/00387010.2021.1881128
Published online: 14 Feb 2021.
Submit your article to this journal
Article views: 57
View related articles
View Crossmark data
Full Terms & Conditions of access and use can be found at
https://www.tandfonline.com/action/journalInformation?journalCode=lstl20

SPECTROSCOPY LETTERS
2021, VOL. 54, NO. 3, 171–179
https://doi.org/10.1080/00387010.2021.1881128
Ion-sensing properties of thiophene-based oxazol-5-ones
a
b
b
b
€
€
€
€
€
Aslı C¸ıkıt S¸ener , Derya Topkaya , Serap Alp and Gulsiye Ozturk Urut
a
b
€
Graduate School of Natural and Applied Science, Dokuz Eylul University, Izmir, Turkey; Department of Chemistry, Faculty of Science,
Dokuz Eylul University, Izmir, Turkey
ABSTRACT
ARTICLE HISTORY
Received 15 October 2020
Accepted 19 January 2021
Seven fluorescent thiophene-based oxazol-5-one derivatives were prepared via Erlenmeyer
reaction of 2-thiophenecarboxaldehyde and 3-thiophenecarboxaldehyde with different aryl
glycine intermediates. Their absorption and emission properties were investigated in solu-
tion environment and in the solid film matrix of polyvinylchloride. Moreover, the fluores-
cence sensing abilities to iron (III), cobalt (II), nickel (II), zinc (II) and copper (II) ions were
examined in polyvinylchloride matrix. Thiophene-based oxazol-5-one derivatives revealed
high sensitivity and selectivity toward iron (III). A good linearity with a correlation coefficient
of 0.99 was observed in the concentration range of 1.0 ꢀ 10ꢁ7 to 1.0 ꢀ 10ꢁ3 M iron (III) for
KEYWORDS
Fluorescence sensing; iron
(III); oxazol-5-one;
polyvinylchloride
film; thiophene
2-phenyl-4-(2-thienylmethylene)oxazol-5-one,
2-(3-thienyl)-4-(2-thienylmethylene)oxazol-5-
one and 2-(3-thienyl)-4-(3-thienylmethylene)oxazol-5-one.
Introduction
the performance of the sensing system such as
sensitivity, stability and response time.[23,25]
Many immobilization methods like covalent,
physical and electrostatic immobilization have
been developed. Polyvinylchloride (PVC) doped
state of the organic molecules provides them high
stability and permeability for the ions, which
gives opportunity for wide range of applications
in sensors and electronics.[13,22,25] By using PVC
immobilized solid state, as all the advantages
pointed out by literature, it was aimed to develop
sensing system with high sensitivity and stability.
The development of sensors for target ion detec-
tion have a great potential for different chemical
and biological applications.[3,4,6,15,16,22,24–31] One of
the most abundant and necessary transition metal
ion in human body due to being involved in many
biological processes such as oxygen delivery, cell
metabolism, electron transfer and synthesis of
DNA and RNA is the trivalent form of iron
(Fe3þ).[22–42] As much as lack of iron, its overdose
is also detrimental for health, namely its abnormal
values can cause diseases such as Alzheimer’s,
Parkinson’s, anemia, heart failure, liver and kidney
damage, intelligence decline, neurodegenerative
Because of their favorable physicochemical prop-
erties, heterocyclic compounds are promising
candidates for developing functional organic and
biochemical
materials,
agrochemicals
and
dyes.[1–6] One of the most extensively studied
electron donating heterocyclic structure is thio-
phene and its derivatives. They are reported to be
used in preparing fluorescent materials with per-
fect properties by lowering the energy of conju-
gated structures for diversity of applications.[1–21]
Due to its favorable properties reported in the
literature, the thiophene moiety was chosen in
order to develop fluorescent ion-sensing
derivatives.
Due to their applicability in sensors, organic
light-emitting diodes, field effect transistors and
solid state lasers, the fluorescent organic conju-
gated structures in solid, immobilized and fluor-
escent
doped
film
state
are
under
interest.[12,13,22–25] In comparison to solution
phase, immobilized phase provides many advan-
tages like giving opportunity to perform study in
fully aqueous media. Immobilization step of the
fluorescent molecule is important because it affect
CONTACT Serap Alp
serap.alp@deu.edu.tr
Department of Chemistry, Faculty of Sciences, Dokuz Eylul University, Tinaztepe Campus, Buca, 35160,
Izmir, Turkey.
ß 2021 Taylor & Francis Group, LLC

172
A. ÇIKIT ŞENER ET AL.
diseases, diabetes, loss of motor skills, the burden
of hemochromatosis, etc.; thus, its detection is very
important.[23–29,31–35,37–42] Despite the fact that
many techniques were tried to be developed for
Fe3þ detection, there are nevertheless some restric-
tions of sensitivity and selectivity thus preparing an
efficient sensor for Fe3þ in this respect is import-
ant.[25–28,30–34,37–42] This was our motivation to
synthesize sensitive, selective and efficient fluores-
cent derivatives for Fe3þ sensing.
points apparatus. Infrared spectra were recorded
on a Perkin ELMER FT-IR infrared spectrometer
(spectrum BX-II). H-NMR were obtained on a
1
high resolution Fourier transform Bruker WH-
400 1H NMR spectrometer with chloroform
(CDCl3) as solvent. Analytical and preparative
thin layer chromatography (TLC) as carried out
using silica gel 60 HF254 (Merck). Column chro-
matography was carried out by using 70-230
mesh silica gel (0.063-0.2 mm, Merck) UV/visible
absorption spectra were recorded with Schimadzu
UV-1601 spectrophotometer. All fluorescence
measurements were undertaken by using Varian-
Carry Eclipse spectrofluorimeter.
In this work, seven thiophene bearing oxazol-5-
one derivatives, 2-phenyl-4-(2-thienylmethyle-
ne)oxazol-5-one(PTO-I),
2-(4-nitrophenyl)-4-(2-
thienylmethylene)oxazol-5-one (PTO-II), 2-(4-me
thylphenyl)-4-(2-thienylmethylene)oxazol-5-one
(PTO-III), 2-(2-thienyl)-4-(2-thienylmethylene)oxa-
zol-5-one (PTO-IV), 2-(2-thienyl)-4-(3-thienylme-
thylene)oxazol-5-one (PTO-V), 2-(3-thienyl)-4-(2-
thienylmethylene)oxazol-5-one (PTO-VI) and 2-(3-
thienyl)-4-(3-thienylmethylene)oxazol-5-one (PTO-
VII), were synthesized and characterized structur-
ally. Their absorption and emission properties
were detected in the solvents of dichloromethane
(DCM), tetrahydrofuran (THF) and acetonitrile
(ACN) and in the solid film matrix of PVC. In
our previous studies we have reported on Fe3þ
detection with different oxazol-5-one derivative.[43]
Due to their promising results, the sensing proper-
ties of the synthesized derivatives toward Fe3þ
were also investigated in PVC matrix and reported
in this paper.
Absorption and fluorescence emission spectral
data of polymer films were acquired in quartz
cells which were filled with sample solution and
polymer films were placed in diagonal position.
The advantage of this kind of a placement was to
improve the reproducibility of the measurement.
General synthesis of oxazol-5-one derivatives
The synthesis of the oxazol-5-one derivatives
(Fig. 1) starting from aromatic aldehyde and N-
aryloylglycine were carried out by Erlenmeyer
[44]
€
Ploch method.
A mixture of aromatic alde-
hyde and sodium acetate was heated with acetic
anhydride until the mixture just liquefied, and
then heating was continued for 4 h. After comple-
tion of the reaction ethanol was added while
cooling and reaction mixture was allowed to
stand overnight. The crystalline product was col-
lected by filtration, washed with cold ethanol and
recrystallized from ethanol. After recrystallization
process, purity of the products was controlled by
TLC method and applied column chromatog-
raphy techniques if it is necessary.
Materials and methods
Chemicals and equipment
The membrane components, PVC (high molecu-
lar weight) and the plasticizer bis-(2-ethylhex-
yl)phthalate (DOP) were supplied from Fluka.
Lipophilic anionic additive reagent potassium tet-
rakis-(4-chlorophenyl)borate (PTCPB), tetra-
hydrofuran (THF) and acetonitrile acetonitrile
(ACN) were obtained from Aldrich. All the other
chemicals were obtained from Fluka and Merck.
The polyester support (Mylar type) was provided
from DuPont, Switzerland. Bidistilled ultra-pure
water was used throughout the studies.
2-Phenyl-4-(2-thienylmethylene)oxazol-5-one (PTO-I)
0.560 g (5.0 mmol) 2-thiophenenecarboxaldehyde,
0.95 mL (10.0 mmol) acetic anhydride, 0.9 g
(5.0 mmol) benzoylglycine and 0.68 g (5.0 mmol)
sodium acetate (yield 80ꢁ%1, 1.01 g). Mp
159–160 ꢂC. FT-IR (KBr, cm ): 1789 (C¼O),
1
1632 (C¼N), 1152 (C–O), 696 (C–S). H NMR
(400 MHz, CDCl3, d (ppm)): 8.19 ꢁ 8.16 (d, 2H,
J ¼ 12 Hz), 7.71 ꢁ 7.73 (d, 1H, J ¼ 8 Hz),
7.65 ꢁ 7.63 (d, 1H, J ¼ 8 Hz), 7.63 ꢁ 7.58 (t, 1H,
All melting points were measured in sealed
tubes using an electrothermal digital melting

SPECTROSCOPY LETTERS
173
Figure 1. Molecular structure of thiophene-based oxazol-5-one derivatives proposed for ion-sensing. Seven derivatives with
different aryl and thienyl groups have been synthesized. PTO-I: 2-phenyl-4-(2-thienylmethylene)oxazol-5-one; PTO-II: 2-(4-nitro-
phenyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-III: 2-(4-methylphenyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-IV: 2-(2-thienyl)-4-
(2-thienylmethylene)oxazol-5-one; PTO-V: 2-(2-thienyl)-4-(3-thienylmethylene)oxazol-5-one; PTO-VI: 2-(3-thienyl)-4-(2-thienylmethyle-
’
’
ne)oxazol-5-one; PTO-VII: 2-(3-thienyl)-4-(3-thienylmethylene)oxazol-5-one; Ar1 : aryl group; Ar2 : thienyl group.
J ¼ 10 Hz), 7.57 ꢁ 7.50 (m, 2H), 7.48 (s, 1H),
7.17 ꢁ 7.16 (t, 1H, J ¼ 2 Hz).
sodium acetate (yield 60ꢁ%1, 1.05 g). Mp
219–220 ꢂC. FT-IR (KBr, cm ): 1792 (C¼O),
1
1643 (C¼N), 1154 (C–O), 714 (C–S). H NMR

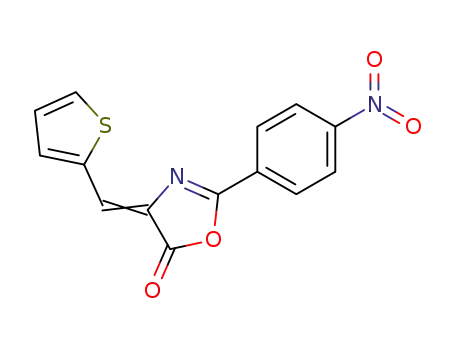

2-(4-Nitrophenyl)-4-(2-thienylmethylene)oxazol-5-
one (PTO-II)
0.47 g (0.0042 mol), 2-thiophenenecarboxalde-
hyde, 0.8 mL (0.0084 mol) acetic anhydride, 0.85 g
(400 MHz, CDCl3, d (ppm)): 8.07 ꢁ 8.05 (d, 2H,
J ¼ 8 Hz), 7.71 ꢁ 7.69 (d, 1H, J ¼ 8 Hz)
,
7.63 ꢁ 7.62 (d, 1H, J ¼ 4 Hz), 7.45 (s, 1H),
7.33 ꢁ 7.31 (d, 2H, J ¼ 8 Hz), 7.17 ꢁ 7.15 (dd, 1H,
J ¼ 8 Hz, J ¼ 4 Hz), 2.45 (s, 3H).
(0.0042 mol)
4-nitroglycine
and
0.57 g
(0.0042 mol) sodium acetate (yield 65ꢁ%1, 0.81 g).
Mp 170–171 ꢂC. FT-IR (KBr, cm ): 1789
2-(2-Thienyl)-4-(2-thienylmethylene)oxazol-5-one
(PTO-IV)
0.224g (0.002 mol) 2-thiophenenecarboxaldehyde,
0.38 mL (0.04 mol) acetic anhydride, 0.45 g
1
(C¼O), 1648 (C¼N), 1155 (C–O), 705 (C–S). H
NMR (400 MHz, CDCl3, d (ppm)): 8.40 ꢁ 8.32
(m, 4H), 7.81 ꢁ 7.79 (d, 1H, J ¼ 8 Hz), 7.69 ꢁ 7.68
(d, 1H, J ¼ 4 Hz), 7.60 (s, 1H), 7.21 ꢁ 7.19 (t,
1H, J ¼ 4 Hz).
(0.002 mol)
2-thienylglycine
and
0.272 g
(0.002mol) sodium acetate (yield 82%, 0.43 g).
Mp 168–170 ꢂC. FT-IR (KBr, cmꢁ1): 1793
1
(C¼O), 1640 (C¼N), 1151 (C–O), 711 (C–S). H
2-(4-Methylphenyl)-4-(2-thienylmethylene)oxazol-5-
one (PTO-III)
0.728 g (0.0065 mol) 2-thiophenenecarboxalde-
hyde, 2.38 mL (0.013 mol) acetic anhydride, 1.1 g
(0.0065 mol) tolylglycine and 0.884 g (0.0065 mol)
NMR (400 MHz, CDCl3, d (ppm)): 7.88–7.87 (d,
1H, J ¼ 4 Hz), 7.70–7.69 (d, 1H, J ¼ 4 Hz),
7.67–7.66 (d, 1H, J ¼ 4 Hz), 7.63–7.62 (d, 1H,
J ¼ 4 Hz), 7.43 (s, 1H), 7.21–7.19 (dd, 1H,

174
A. ÇIKIT ŞENER ET AL.
J ¼ 8 Hz,
J ¼ 4 Hz),
7.16–7.14
(dd,
1H,
(PTCPB) to oxazol-5-one derivative in 1.5 mL of
dried THF. The resulting cocktails were spread
onto a 125 mm polyester support (Mylar TM
type). The polymer support is optically fully
transparent, ion impermeable and exhibits good
adhesion to PVC. Sensor slides were kept in a
desiccator therefore the damage from the ambient
air of laboratory was avoided. Each sensor PVC
film was cut with a size of 13 ꢀ 50 mm.
J ¼ 8 Hz, J ¼ 4 Hz).
2-(2-Thienyl)-4-(3-thienylmethylene)oxazol-5-one
(PTO-V)
0.738g (0.006 mol) 3-thiophenenecarboxaldehyde,
1.142 mL (0.012 mol) acetic anhydride, 1.222 g
(0.006 mol) 2-thienylglycine and 0.9 g (0.006 mol)
sodium acetate (yield 48ꢁ%1, 0.75 g). Mp
181–182 ꢂC. FT-IR (KBr, cm ): 1788 (C¼O),
1
1648 (C¼N), 1149 (C–O), 712 (C–S). H NMR
Results and discussion
(400 MHz, CDCl3, d (ppm)): 8.17 (s, 1H),
7.89–7.87 (m, 2H), 7.68–7.67 (d, 1H, J ¼ 4 Hz),
7.40 (s, 1H), 7.26–7.25 (d, 1H, J ¼ 4 Hz),
7.21–7.19 (dd, 1H, J ¼ 8 Hz, J ¼ 4 Hz).
Structural characterization
The oxazole-5-one derivatives (Fig. 1) have been
€
successfully synthesized by Erlenmeyer Ploch
method[44] with high yields up to 82%. In general,
the compounds bearing 2-thienylmethylene moiety
were obtained in higher yields in comparison to
the ones which contain 3-thienylmethylene moiety.
The presence of electron withdrawing group in the
position 2 makes the formation of the oxazolone
ring difficult, thus reducing the efficiency. The
structures of the synthesized derivatives were iden-
2-(3-Thienyl)-4-(2-thienylmethylene)oxazol-5-one
(PTO-VI)
0.112 g (0.001 mol) 2-thiophenenecarboxaldehyde,
0.190 mL (0.002 mol) acetic anhydride, 0.187 g
(0.001 mol)
3-thienylglicine
and
0.136 g
(0.001 mol) sodium acetate (yield 72%, 0.19 g).
Mp 178–180 ꢂC. (KBr, cmꢁ1): 1786 (C¼O), 1644
(C¼N), 1153 (C–O), 714 (C–S). 1H NMR
(400 MHz, CDCl3, d (ppm)): 8.19 (s, 1H),
7.75–7.74 (d, 1H, J ¼ 4 Hz), 7.71–7.70 (d, 1H,
J ¼ 4 Hz), 7.63–7.62 (d, 1H, J ¼ 4 Hz), 7.46 (s,
1H), 7.45–7.44 (d, 1H, J ¼ 4 Hz), 7.17–7.14 (dd,
1H, J ¼ 12 Hz, J ¼ 4 Hz).
1
tified by using FT-IR and H-NMR spectroscopy
techniques. The results of FT-IR technique showed
that the oxazole-5-one derivatives which have been
synthesized have the characteristic bands of the
oxazole-5-one ring, thiophene ring and amide
group (C¼Ostretch at 1786–1793 cmꢁ1, C¼Nstretch at
1632–1648 cmꢁ1 and C–Sstretch at 696–715 cmꢁ1).
1
2-(3-Thienyl)-4-(3-thienylmethylene)oxazol-5-one
(PTO-VII)
0.112 g (0.001 mol) 3-thiophenenecarboxaldehyde,
0.190 mL (0.002 mol) acetic anhydride, 0.22 g
The results of the H-NMR technique proved
that oxazole-5-one derivatives have the expected
characteristic peaks. The arylmethylene proton
which indicates the formation of oxazol-5-one
derivatives has a singlet signal between 7.40 and
7.60 ppm for all the derivatives. The protons on
aromatic ring have multiplet and doublet peaks.
Protons on the thienyl groups have shown doub-
let signal between 7.13 and 8.19 ppm as expected
in all the derivatives.
(0.001 mol)
3-thienylglicine
and
0.136 g
(0.001 mol) sodium acetate (yield 55%, 0.14 g).
Mp 185–186 ꢂC. (KBr, cmꢁ1): 1789 (C¼O), 1648
(C¼N), 1146 (C–O), 715 (C–S). 1H NMR
(400 MHz, CDCl3, d (ppm)): 8.19 (s, 1H), 8.17 (s,
1H), 7.91–7.90 (d, 1H, J ¼ 4 Hz), 7.74–7.73 (d,
1H, J ¼ 4 Hz), 7.46–7.44 (d, 1H, J ¼ 8 Hz), 7.41 (s,
1H), 7.27–7.26 (d, 1H, J ¼ 4 Hz).
Absorption and emission properties
All derivatives’ maximum absorption wavelengths
were detected by using UV-vis absorption spec-
trophotometer in the solution of acetonitrile
(ACN), tetrahydrofuran (THF), DCM (Table 1
and Fig. 2) and solid matrix of PVC (Table 2). In
general, the longest absorption maxima for all
Preparation of polyvinylchloride membranes
A mixture for membrane preparation was
obtained by dissolving 120 mg of polyvinyl chlor-
ide (PVC), 240 mg of plasticizer and equimolar
potassium tetrakis-(4- chlorophenil) borate

SPECTROSCOPY LETTERS
175
Table 1. Absorption and emission properties of thiophene-based oxazol-5-one derivatives proposed for ion-sensing in the sol-
vents of dichloromethane, tetrahydrofuran and acetonitrile: absorption maxima; molar extinction coefficients; emission maxima;
Stokes’ shift and singlet energy.
Solvent
DCM
THF
ACN
abs
f
abs
f
abs
f
PTO
kmax
emaxꢀ 104
kmax
Dk
Es
kmax
emaxꢀ 104
kmax
Dk
Es
kmax
emaxꢀ 104
kmax
Dk
Es
PTO-I
392
305
393
403
380
390
364
2.90
1.90
3.40
3.10
1.60
2.00
1.10
452
538
465
553
444
442
410
60
118
55
150
64
52
46
73.6
93.4
72.5
70.7
75.0
73.0
78.2
390
310
390
402
380
387
362
4.50
1.90
3.50
3.31
2.23
3.28
0.77
438
530
465
528
436
435
413
48
110
55
126
56
48
51
73.0
91.9
73.0
70.9
75.0
73.6
78.7
387
309
388
398
376
385
362
4.00
1.70
3.70
3.36
2.33
2.86
0.70
458
583
465
551
438
437
412
71
163
55
153
62
52
50
73.6
92.2
73.4
71.6
75.7
74.0
78.7
PTO-II
PTO-III
PTO-IV
PTO-V
PTO-VI
PTO-VII
As seen from the table the derivatives synthesized have large Stokes’ Shift values up to 163 nanometers.
kmaxabs: absorption maxima (nanometer); emax: molar extinction coefficient (cantimeterꢁ1molꢁ1Liter); kmaxf: emission maxima (nanometer); Dk: Stokes’
Shift (nanometer); Es: singlet energy (kilocalorie/mol); PTO-thiophene-based oxazol-5-ones; PTO-I: 2-phenyl-4-(2-thienylmethylene)oxazol-5-one; PTO-II:
2-(4-nitrophenyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-III: 2-(4-methylphenyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-IV: 2-(2-thienyl)-4-(2-thienylme-
thylene)oxazol-5-one; PTO-V: 2-(2-thienyl)-4-(3-thienylmethylene)oxazol-5-one; PTO-VI: 2-(3-thienyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-VII: 2-(3-
thienyl)-4-(3-thienylmethylene)oxazol-5-one; DCM: dichloromethane; THF: tetrahydrofuran; ACN: acetonitrile.
group which prolongs the conjugation pathway.
Besides, in general for all the derivatives the
highest Stokes’ shift values were observed in
ACN, which has the highest polarity. Also in
PVC matrix the longest emission maximum and
largest Stokes’ shift value was observed for
PTO-II.
Fluorescence response to iron (III) ion
Fluorescence response to Fe3þ, Co2þ, Ni2þ, Zn2þ
and Cu2þ was tested by incorporating PTO fluo-
Figure 2. Absorption spectra of thiophene-based oxazol-5-one
derivatives derivatives proposed for ion-sensing in polyvinyl-
chloride. The absorption maxima of the derivatives
roionophores in plasticized polyvinyl chloride
matrix bearing the lipophilic anionic additive of
potassium tetrakis(4-chlorophenyl) borate. One of
the most important feature of an ion sensor is its
selectivity. The prepared sensor membranes
revealed negligible response to the ions under
interest except for Fe3þ (Figs. 3 and 4). Among
the studied ions iron (III) has the smallest ionic
radius and this could be the reason for the select-
ive emission quenching of it but not the other
transition metal ions. The fluorescence quenching
of PTO derivatives by Fe3þ ions in aqueous solu-
tions of 1.0 ꢀ 10ꢁ2 M CH3COOH/CH3COONa
buffer with a pH of 5 was utilized as sensor
response (Fig. 3).
varies between 366 and 417 nanometers. I: 2-phenyl-4-(2-thie-
nylmethylene)oxazol-5-one; II: 2-(4-nitrophenyl)-4-(2-thienylme-
thylene)oxazol-5-one; III: 2-(4-methylphenyl)-4-(2-thienylmet
hylene)oxazol-5-one; IV: 2-(2-thienyl)-4-(2-thienylmethylene)oxa-
zol-5-one; V: 2-(2-thienyl)-4-(3-thienylmethylene)oxazol-5-one;
VI: 2-(3-thienyl)-4-(2-thienylmethylene)oxazol-5-one; VII: 2-(3-
thienyl)-4-(3-thienylmethylene)oxazol-5-one.
derivatives was observed in DCM solution.
Among PTO derivatives, PTO-IV which has 2-
thienyl moiety on both sides, had the longest
absorption maximum wavelength. In PVC matrix,
the derivatives of PTO-II and PTO-IV exhibited
higher bathochromic shift.
Moreover, their emission spectra were also col-
lected by exciting the molecules at their absorp-
tion maximum in both solution and PVC matrix
and the results obtained are given in Tables 1
and 2. PTO-II and PTO-IV exhibited the longest
emission maxima in all the solvents studied. The
longest emission maximum and largest Stokes’
shift value was observed for PTO-II in ACN, pre-
sumably due to strong electron withdrawing nitro
The sensor response toward Fe3þ was both
tested in plain aqueous solutions and aqueous
solutions
of
1.0 ꢀ 10ꢁ2
M
CH3COOH/
CH3COONa buffer with a pH of 5. The results
obtained revealed that the PTO derivatives
response toward Fe3þ ions were more stable and
reproducible in aqueous solutions of 1.0 ꢀ 10ꢁ2
M CH3COOH/CH3COONa buffer with a pH of

176
A. ÇIKIT ŞENER ET AL.
Table 2. Absorption and emission properties of thiophene-based oxazol-5-one derivatives derivatives proposed for ion-sensing in
polyvinylchloride matrix (absorption maxima; molar extinction coefficients; emission maxima; Stokes’ Shift; singlet energy and
fluorescence response upon addition of iron (III) in polyvinylchloride (concentration range; the relative standard deviation;
correlation coefficient; regeneration).
abs
f
PTO
kmax
emax ꢀ 104
kmax
Dk
Es
Concentration range
RSD
R2
Regeneration
PTO-I
379
417
398
405
383
392
366
0.0020
0.0014
0.0006
0.0038
0.0029
0.0021
0.0025
423
518
448
468
449
453
423
44
101
50
63
66
61
44
75.3
68.4
71.6
70.4
74.4
72.7
75.3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
1 ꢀ 10-7 to 1 ꢀ 10-3
5.0 ꢀ 10-2 (n ¼ 5)
3.0 ꢀ 10-3 (n ¼ 5)
8.5 ꢀ 10-5 (n ¼ 5)
1.6 ꢀ 10-2 (n ¼ 5)
7.3 ꢀ 10-3 (n ¼ 5)
9.6 ꢀ 10-5 (n ¼ 5)
1.2 ꢀ 10-2 (n ¼ 5)
0.9943
0.9686
0.9748
0.9710
0.9700
0.9947
0.9870
80.6
90.1
87.5
78.7
77.5
86.8
87.0
PTO-II
PTO-III
PTO-IV
PTO-V
PTO-VI
PTO-VII
The table reveals that the derivatives have a response to iron at wide concentration range and good regeneration.
kmaxabs: absorption maxima (nanometer); emax: molar extinction coefficient (cantimeterꢁ1molꢁ1Liter); kmaxf: emission maxima (nanometer); Dk: Stokes’ shift (nano-
meter); Es: singlet energy (kilocalorie/mol); concentration range (Molarity); RSD: the relative standard deviation (percent); R2: correlation coefficient; regeneration
(percent); PTO-thiophene-based oxazol-5-ones; PTO-I: 2-phenyl-4-(2-thienylmethylene)oxazol-5-one; PTO-II: 2-(4-nitrophenyl)-4-(2-thienylmethylene)oxazol-5-one;
PTO-III: 2-(4-methylphenyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-IV: 2-(2-thienyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-V: 2-(2-thienyl)-4-(3-thienylmethyle-
ne)oxazol-5-one; PTO-VI: 2-(3-thienyl)-4-(2-thienylmethylene)oxazol-5-one; PTO-VII: 2-(3-thienyl)-4-(3-thienylmethylene)oxazol-5-one.
Figure 3. Fluorescence spectra and Stern–Volmer plot of 2-(3-thienyl)-4-(2-thienylmethylene)oxazol-5-one derivative doped in poly-
vinylchloride for ion-sensing after addition of different concentrations of iron (III) (Molar) (a: buffer, b: 1 ꢀ 10ꢁ7, c: 1 ꢀ 10ꢁ6, d:
1 ꢀ 10ꢁ5, e: 2 ꢀ 10ꢁ5, f: 4 ꢀ 10ꢁ5, g: 6 ꢀ 10ꢁ5, h: 8 ꢀ 10ꢁ5, j: 2 ꢀ 10ꢁ4, k: 4 ꢀ 10–4, l: 6 ꢀ 10ꢁ4, m: 8 ꢀ 10ꢁ4, n: 1 ꢀ 10ꢁ3). The
spectra and Stern–Volmer plot reveal good linearity in a wide concentration range for iron (III). I0: Fluorescence signal in the
absence of iron (III); I: Fluorescence signal in the presence of iron (III); R2: correlation coefficient; y ¼ 1E–04x þ 1.07: refers to
Stern–Volmer equation, (I0/I) ¼ KSV[Q] þ 1; KSV: Stern–Volmer constant; [Q]: concentration of the quencher (iron (III)); y: (I0/I); x: [Q].
5 than in plain aqueous solutions thus further
in more efficient interaction with Fe (III). Fe3þ
ions selective fluorescence PTO-VI bearing sensor
membranes optical response at different Fe3þ
concentrations are shown in Fig. 3. Sensor mem-
branes exhibited calibration curves in a wide con-
centration range between 1.0ꢀ 10ꢁ7ꢁ1.0 ꢀ 10ꢁ3
M (Fig. 3 and Table 2).
Moreover, the regeneration studies proved that
the sensor membranes reversibility is satisfactory,
which is also an important feature for optical
sensors (Table 2). Another important characteris-
tic for defining the compatibility of an optical
sensor membrane for selective detection of an
ion under interest is reproducibility. By exposing
the same sensor membranes of PTO derivatives
to fixed concentrations of Fe3þ in the range of
8.5 ꢀ 10ꢁ5 and 5.0 ꢀ 10ꢁ2 M the relative standard
experiments were performed in 1.0 ꢀ 10ꢁ2
M
CH3COOH/CH3COONa buffer with a pH of 5.
By replacing the aryl group on the oxazolone
(as seen in PTO 1, II and III) with a thienyl
group (as seen in the other four) resulted in
slightly greater emission quenching. With the
introduction of sulfur atom into the structure, the
interaction of electrons with iron (III) increased
and hence the molecular rigidity decreased and as
a result, the aromaticity decreased, ending up in
more quenching. Although all the seven deriva-
tives exhibited similar emission quenching, among
them, 2-(3-thienyl)-4-(2-thienylmethylene)oxazol-
5-one derivative displayed the greatest emission
quenching presumably due to the position of
both thienyl moieties which could have resulted

SPECTROSCOPY LETTERS
177
Disclosure statement
No potential conflict of interest was reported by
the author(s).
References
[1] Wang, C.-Z.; Do, J.-H.; Akther, T.; Feng, X.;
Matsumoto, T.; Tanaka, J.; Redshaw, C.; Yamato, T.
Synthesis and Fluorescence Emission Properties of
D-p-D Monomers Based Ondithieno[3,2-b:20,30-
d]Thiophene. Journal of Luminescence 2017, 188,
388–393. DOI: 10.1016/j.jlumin.2017.04.060.
[2] Johann, T.; Schmidt, K.; Prabhakaran, P.; Zentel, R.;
Lee, K. S. Two-Photon Absorption Dye Based on
Figure 4. Fluorescence spectra of 2-phenyl-4-(2-thienylmethy-
lene)oxazol-5-one derivative doped in polyvinylchloride for ion-
sensing after addition of different concentrations of nickel (II)
ion up to 1 ꢀ 10ꢁ3 Molar. The derivatives emission intensity
was not quenched by nickel (II) ion.
2,5-Bis(Phenylacrylonitrile)Thiophene
with
Aggregration Enhanced Fluorescence. Optical
Materials Express 2016, 6, 1296–1305. DOI: 10.1364/
OME.6.001296.
~
[3] Fonseca, S. M.; Galvao, R. P.; Burrows, H. D.;
Gutacker, A.; Scherf, U.; Bazan, G. C. Selective
Fluorescence Quenching in Cationic Fluorene-
Thiophene Diblock Copolymers for Ratiometric
deviation of five determinations were calculated
as 0.9943, 0.9686, 0.9748, 0.9710, 0.9700, 0.9947
and 0.9870 for PTO-I, PTO-II, PTO-III, PTO-IV,
PTO-V, PTO-VI and PTO-VII, respectively
(Table 2). The results obtained revealed that the
PTO based sensor membranes have good
repeatability.
Sensing
of
Anions.
Macromolecular
Rapid
Communications 2013, 34, 717–722. DOI: 10.1002/
marc.201200734.
[4] Cao, J.; Yan, W.; Huang, Y. Design, Synthesis and
Fluorescence Behavior of Novel Chemosensor with a
Thieno[2,3-b]Thiophene Fluorophore. RSC Advances
2016, 6, 101313–101317. DOI: 10.1039/c6ra19610a.
[5] Satapathi, S.; Yan, F.; Anandakathir, R.; Yang, K.; Li,
L.; Mosurkal, R.; Samuelson, L. A.; Kumar, J.
Fabrication of Dye-Sensitized Solar Cells and
Fluorescence Quenching Study Using Thiophene-
Based Copolymers. Journal of Macromolecular
Science, Part A 2010, 47, 1180–1183. DOI: 10.1080/
10601325.2010.518864.
Conclusion
The synthesized and characterized oxazolone
derivatives have allowed us to derive the follow-
ing main conclusions:
[6] Adhikari, S.; Ghosh, A.; Mandal, S.; Sengupta, A.;
ꢃ It is proved that the immobilized oxazole-5-one
derivatives can be used for Fe3þ sensing in the
wide concentration range of 1.0 ꢀ 10ꢁ7 to 1.0 ꢀ
10ꢁ3 M with good stability.
ꢃ In contrast, the fluorescence response of the sen-
sor membranes to Co2þ, Ni2þ, Zn2þ and Cu2þ
ions were negligible indicating their selectivity
for Fe3þ sensing is good.
ꢃ The fluorescent thiophene-based oxazole-5-one
derivatives of PTOs have reproducible response
to Fe3þ and provide an inexpensive and quick
method for the determination of iron.
ꢃ These results strongly suggest that PTO deriva-
tives can be used for fluorescent Fe3þ sensor
and have an application potential for determin-
ation of iron in real samples.
ꢀ
Chattopadhyay, A.; Sanmartın Matalobos, J.; Lohar,
S.; Das, D. Visible Light Excitable on Fluorescence
and Naked Eye Detection of Cu2þ via Hydrolysis of
Rhodamine–Thiophene Conjugate: human Breast
Cancer Cell (MCF7) Imaging Studies. Dalton
Transactions 2014, 43, 7747–7751. DOI: 10.1039/
c4dt00002a.
[7] Zhengneng, J.; Najun, L.; Chuanfeng, W.; Huajiang,
J.; Jianmei, L.; Qizhong, Z. Synthesis and
Fluorescence Property of Some Novel 1,8-
Naphthalimide Derivatives Containing a Thiophene
Ring at the C-4 Position. Dyes and Pigments 2013,
96, 204–210. DOI: 10.1016/j.dyepig.2012.07.018.
[8] Ono, Y.; Sasaki, F.; Yanagi, H. Fuorescence and
Ampified Emission Properties of Single-Crystal
2,5-Bis(4-Biphenylyl)Thiophene. Molecular Crystals
and Liquid Crystals 2016, 629, 29–234. DOI: 10.
1080/15421406.2015.1096436.

178
A. ÇIKIT ŞENER ET AL.
[9] Kim, J. U.; Reddy, S. S.; Cui, L.-S.; Nomura, H.;
AMM 2012, 164, 251–254. DOI: 10.4028/www.scien-
tific.net/AMM.164.251.
Hwang, S.; Kim, D. H.; Nakanotani, H.; Jin, S. –H.;
[18] Castiglioni, E.; Abbate, S.; Lebon, F.; Longhi, G.
Ultraviolet, Circular Dichroism, Fluorescence, and
Circularly Polarized Luminescence Spectra of
Regioregular Poly-[3-((s)-2-Methylbutyl)-Thiophene]
in Solution. Chirality 2012, 24, 725–730. DOI: 10.
1002/chir.22023.
Adachi,
Fluorescence of Bis(9,9-Dimethyl-9,10dihydroacri-
dine) Dibenzo[b,d]Thiophene 5,5-Dioxide
Derivatives for Organic Light-Emitting Diodes.
Journal of Luminescence 2017, 190, 485–491. DOI:
10.1016/j.jlumin.2017.06.006.
C.
Thermally
Activated
Delayed
[19] Guo, C. L.; Zhuo, X.; Li, Y. Z.; Zheng, H. G.
Synthesis, Crystal Structures, and Fluorescence
Properties of Six Complexes with Thiophene
Derivative Carboxylic Acid Ligand. Inorganica
Chimica Acta 2009, 362, 491–501. DOI: 10.1016/j.
ica.2008.04.044.
[10] Rouhani, S.; Haghgoo, S. A Novel Fluorescence
Nanosensor Based on 1,8 Naphthalimide-Thiophene
Doped Silica Nanoparticles, and Itsapplication to the
Determination of Methamphetamine. Sensors and
Actuators B: Chemical 2015, 209, 957–965. DOI: 10.
1016/j.snb.2014.12.035.
[20] Genin, E.; Hugues, V.; Clermont, G.; Herbivo, C.;
Castro, M. C. R.; Comel, A.; Raposo, M. M. M.;
Blanchard-Desce, M. Fluorescence and Two-Photon
[11] Tawfik, S. M.; Shim, J.; Biechele-Speziale, D.;
Sharipov, M.; Lee, Y.-I. Novel “Turn off-on” Sensors
for Highly Selective and Sensitive Detection of
Spermine Based on Heparin-Quenching of
Absorption
of
Push-Pull
Aryl(bi)thiophenes:
Structure-Property Relationships. Photochemical and
Photobiological Sciences 2012, 11, 1756–1766. DOI:
10.1039/c2pp25258a.
Fluorescence
CdTe
Quantum
Dots-Coated
Amphiphilic Thiophene Copolymers. Sensors and
Actuators B: Chemical 2018, 257, 734–744. DOI: 10.
1016/j.snb.2017.10.172.
[21] Wu, Y. X.; Cao, J.; Deng, H. Y.; Feng, J. X.
Synthesis, Complexation, and Fluorescence Behavior
of 3,4-Dimethylthieno[2,3-b]Thiophene Carrying
ꢀꢁ
ꢀ
[12] Elias, Z.; Lunak, S. Jr.; Vynuchal, J.; Lycka, A.;
ꢀ
Padelkova, Z.; Hrdina, R. Structure, Absorption and
Two
Monoaza-15-Crown-5
Ether
Groups.
Fluorescence of (bi)Thiophene Substituted
Spectrochimica Acta, Part A: Molecular and
Biomolecular Spectroscopy 2011, 82, 340–344. DOI:
10.1016/j.saa.2011.07.058.
Methylidene-Pyrrolinones. Journal of Molecular
Structure 2013, 104, 343–351. DOI: 10.1016/j.mol-
struc.2013.03.055.
[22] Li, P.; Ji, C.; Ma, H.; Zhang, M.; Cheng, Y.
Development of Fluorescent Film Sensors Based on
Electropolymerization for Iron(III) Ion Detection.
Chemistry 2014, 20, 5741–5745. DOI: 10.1002/chem.
201304364.
[13] Abd-El-Aziz, A. S.; Dalgakiran, S.; Kucukkaya, I.;
Wagner, B. D. Synthesis, Electrochemistry and
Fluorescence Behavior of Thiophene Derivatives
Decorated with Coumarin, Pyrene and Naphthalene
Moieties. Electrochimica Acta 2013, 89, 445–453.
DOI: 10.1016/j.electacta.2012.11.082.
[23] Xu, J.-H.; Hou, Y.-M.; Ma, Q.-J.; Wu, X.-F.; Wei, X.-
J.
A
Highly Selective Fluorescent Sensor for
[14] Raposo, M. M. M.; Herbivo, C.; Hugues, V.;
Clermont, G.; Castro, M. C. R.; Comel, A. Synthesis,
Fe3þ Based on Covalently Immobilized Derivative of
Naphthalimide Spectrochim. Spectrochimica Acta,
Part A: Molecular and Biomolecular Spectroscopy
2013, 112, 116–124. DOI: 10.1016/j.saa.2013.04.044.
[24] Karimi, M.; Badiei, A.; Ziarani, G. M. A Novel
Naphthalene-Immobilized Nanoporous SBA-15 as a
Highly Selective Optical Sensor for Detection of Fe3þ
in Water. Journal of Fluorescence 2015, 25,
1297–1302. DOI: 10.1007/s10895-015-1617-y.
Fluorescence,
Properties
and
Two-Photon
Push–Pull 5-Arylthieno[3,2-
Absorption
of
b]Thiophene Derivatives. European Journal of
Organic Chemistry 2016, 31, 5263–5273. DOI: 10.
1002/ejoc.201600806.
[15] Jeong, H. Y.; Lee, S. Y.; Han, J.; Lim, M. H.; Kim, C.
Thiophene and Diethylaminophenol-Based “Turn-
on” Fluorescence Chemosensor for Detection of
Alþ3 and F- in a near-Perfect Aqueous Solution.
Tetrahedron 2017, 73, 2690–2697. DOI: 10.1016/j.tet.
2017.03.069.
[25] Shamsipur, M.; Sadeghi, M.; Garau, A.; Lippolis, V.
An Efficient and Selective Flourescent Chemical
Sensor Based on 5-(8-Hydroxy-2-Quinolinylmethyl)-
2,8-Dithia-5-Aza-2,6-Pyridinophane as
Fluoroionophore for Determination of Iron(III) Ions.
Novel Probe for Iron Speciation. Analytica
a
New
[16] Yang, X.; Zhao, P.; Qu, J.; Liu, R. Fluorescent
Sensors
Based
on
Quinoline-Containing
A
Styrylcyanine: Determination of Ferric Ions,
Hydrogen Peroxide, and Glucose, pH-Sensitive
Properties and Bioimaging. Luminescence 2015, 30,
592–599. DOI: 10.1002/bio.2791.
Chimica Acta 2013, 761, 169–177. DOI: 10.1016/j.
aca.2012.11.029.
[26] Singh, V.; Mishra, A. K. Green and Cost-Effective
Fluorescent Carbon Nanoparticles for Theselective
and Sensitive Detection of Iron (III) Ions in
Aqueous Solution: Mechanistic Insights and Cell
Line Imaging Studies. Sensors and Actuators B:
[17] Jing, S.; Pu, S.; Li, H. Photochromism and
Fluorescence of a Novel Unsymmetrical Diarylethene
Material Bearing Benzene and Thiophene Ring.

SPECTROSCOPY LETTERS
179
Chemical 2016, 227, 467–474. DOI: 10.1016/j.snb.
2015.12.071.
[35] Zhang, J.; Wang, J.; Fu, J.; Fu, X.; Gan, W.; Hao, H.
Rapid Synthesis of N, S co-Doped Carbon Dots and
Their Application for Fe3þ Ion Detection. Journal of
Nanoparticle Research 2018, 20, 41–50. DOI: 10.
1007/s11051-018-4141-6.
[36] Wang, N.; Wang, Y.; Guo, T.; Yang, T.; Chen, M.;
Wang, J. Green Preparation of Carbon Dots with
Papaya as Carbon Source for Effective Fluorescent
Sensing of Iron (III) and Escherichia coli. Biosensors
and Bioelectronics 2016, 85, 68–75. DOI: 10.1016/j.
bios.2016.04.089.
[27] Sun, J.; Shang, K. X.; Wu, Y. J.; Zhang, Q.; Yao,
X. Q.; Yang, Y. X.; Hu, D. C.; Liu, J. C. Three New
Coordination Polymers Based on a 1-(3,5-Dicarboxy-
Benzyl)-1H-Pyrazole-3,5 Dicarboxylic Acid Ligand:
Synthesis, Crystal Structures, Magnetic Properties
and Selectively Sensing Properties. Polyhedron 2018,
141, 223–229. DOI: 10.1016/j.poly.2017.11.037.
[28] Chi, Z.; Ran, X.; Shi, L.; Lou, J.; Kuang, Y.; Guo, L.
Molecular
Characteristics
of
a
Fluorescent
[37] Fegley, M. E. A.; Sandgren, T.; Duffy-Matzner, J. L.;
Chen, A.; Jones, W. E. Jr Detection and
Differentiation of Ferrous and Ferric Ions Using
Fluorescent Metallopolymer and Oligomer. Journal
of Polymer Science Part A: Polymer Chemistry 2015,
53, 951–954. DOI: 10.1002/pola.27560.
[38] Yu, M.; Zhu, Z.; Wang, H.; Li, L.; Fu, F.; Song, Y.;
Song, E. Antibiotics Mediated Facile One-Pot
Synthesis of Gold Nanoclusters as Fluorescent Sensor
for Ferric Ions. Biosensors and Bioelectronics 2017,
91, 143–148. DOI: 10.1016/j.bios.2016.11.052.
Chemosensor for the Recognition of Ferric Ion Based
on Photoresponsive Azobenzene Derivative. Spectrochi-
mica Acta, Part A: Molecular and Biomolecular
Spectroscopy 2017, 171, 25–30. DOI: 10.1016/j.saa.2016.
07.033.
[29] Fegade, U.; Singh, A.; Chaitanya, G. K.; Singh, N.;
Attarde, S.; Kuwar, A. Highly Selective and
Sensitive Receptor for Fe3þ Probing. Spectrochimica
Acta, Part A: Molecular and Biomolecular
Spectroscopy 2014, 121, 569–574. DOI: 10.1016/j.saa.
2013.11.007.
[30] Chen, G. F.; Jia, H. M.; Zhang, L. Y.; Hu, J.; Chen,
B. H.; Song, Y. L.; Li, J. T.; Bai, G. Y. A Highly
Selective Fluorescent Sensor for Fe3þ Ion Based on
Coumarin Derivatives. Research on Chemical
Intermediates 2013, 39, 4081–4090. DOI: 10.1007/
s11164-012-0924-z.
[31] Joshi, S.; Kumari, S.; Bhattacharjee, R.; Sarmah, A.;
Sakhuja, R.; Pant, D. D. Experimental and
Theoretical Study: Determination of Dipole Moment
of Synthesized Coumarin–Triazole Derivatives and
Application as Turnoff Fluorescence Sensor: High
Sensitivity for Iron(III) Ions. Sensors and Actuators
B: Chemical 2015, 220, 1266–1278. DOI: 10.1016/j.
snb.2015.07.053.
[32] Ghosh, K.; Rathi, S.; Kushwaha, R. Sensing of Fe(III)
Ion via Turn-on Fluorescence by Fluorescence
Probes Derived from 1-Naphthylamine. Tetrahedron
Letters 2013, 54, 460–6463. DOI: 10.1016/j.tetlet.
2013.09.066.
[33] Hou, G. G.; Wang, C. H.; Sun, J. F.; Yang, M. Z.;
Lin, D.; Li, H. J. Rhodamine-Based ‘‘Turn-On’’
Fluorescent Probe with High Selectivity for Fe2þ
Imaging in Living Cells. Biochemical and Biophysical
Research Communications 2013, 439, 459–463. DOI:
10.1016/j.bbrc.2013.08.092.
[34] Zhou, M.; Guo, J.; Yang, C. Ratiometric
Fluorescence Sensor for Fe3þ Ions Detection Based
Onquantum Dot-Doped Hydrogel Optical Fiber.
Sensors and Actuators B: Chemical 2018, 264, 52–58.
DOI: 10.1016/j.snb.2018.02.119.
[39] Anitha, I.; Sheela, G. M.; Thomas, D. A New
Fluorescent Sensor
Based on Bisindolizine
Derivative. Journal of Fluorescence 2016, 26,
725–729. DOI: 10.1007/s10895-015-1760-5.
[40] Marenco, M. J. C.; Fowley, C.; Hyland, B. W.;
~
Galindo-Riano, D.; Sahoo, S. K.; Callan, J. F. A New
Fluorescent Sensor for the Determination of Iron
(III) in Semi-Aqueous Solution. Journal of
Fluorescence 2012, 22, 795–798. DOI: 10.1007/
s10895-011-1015-z.
[41] Hayashi, T.; Osawa, A.; Watanabe, T.; Murata, Y.;
Nakayama, A.; Namba, K. Development of 1,3a,6a-
Triazapentalene-Labeled
Enterobactin
as
a
Fluorescence Quenching Sensor of Iron Ion.
Tetrahedron Letters 2017, 58, 1961–1964. DOI: 10.
1016/j.tetlet.2017.04.011.
[42] Chen, J. F.; Cheng, X. B.; Li, H.; Lin, Q.; Yao, H.;
Zhang, Y. M.; Wei, T. B. A Copillar[5]Arene-Based
Fluorescence ‘‘on–off–On’’sensor is Applied in
Sequential Recognition of an Iron Cation and a
Fluoride Anion. New Journal of Chemistry 2017, 41,
2148–2153. DOI: 10.1039/c6nj03380f.
[43] Ozturk, G.; Alp, S.; Ertekin, K. Fluorescence
Emission Studies of 4-(2-Furylmethylene)-2-Phenyl-
5-Oxazolone Embedded in Polymer Thin Film and
Detection of Fe3þ Ion. Dyes and Pigments 2007, 72,
150–156. DOI: 10.1016/j.dyepig.2005.08.012.
[44] Erlenmeyer, E. Ueber die Condensation der
€
€
Hippursaure mit Phtalsaureanhydrid und mit
Benzaldehyd. Annalen der Chemie 1893, 275, 1–8.
DOI: 10.1002/jlac.18932750102.
