Targeting the Tumor-Associated Folate Receptor with an
111In-DTPA Conjugate of Pteroic Acid
Chun-Yen Ke, Carla J. Mathias, and Mark A. Green*
Contribution from the Department of Industrial and Physical Pharmacy, Purdue UniVersity,
West Lafayette, Indiana 47907
Received November 19, 2004; E-mail: magreen@purdue.edu
Abstract: The cell membrane folate receptor is a potential molecular target for tumor-selective drug delivery.
To probe structural requirements for folate receptor targeting with low molecular weight radiometal chelates,
specifically the role of the amino acid fragment of folic acid (pteroylglutamic acid) in mediating targeting
selectivity, the amide-linked conjugate pteroyl-NHCH2CH2OCH2CH2OCH2CH2NH-DTPA was prepared by
a three-step procedure from pteroic acid, 2,2′-(ethylenedioxy)-bis(ethylamine), and t-Bu-protected DTPA.
This conjugate, 1-{2-[2-[(2-(biscarboxymethyl-amino)ethyl)-carboxymethyl-amino]ethyl]-carboxymethyl-
amino}-acetylamino-3,6-dioxa-8-pteroylamino-octane (1), was employed for synthesis of the corresponding
111In(III) radiopharmaceutical. Following intravenous administration to athymic mice, the 111In complex of 1
was found to selectively localize in folate receptor-positive human KB tumor xenografts and to afford
prolonged tumor retention of the 111In radiolabel (5.4 ( 0.8, 5.6 ( 1.1, and 3.6 ( 0.6% of the injected dose
per gram of tumor at 1, 4, and 24 h, respectively). The observed tumor localization was effectively blocked
by co-administration of folic acid with the 111In-1 complex, consistent with a folate receptor-mediated
targeting process. In control studies, tumor targeting with this pteroic acid conjugate appears as effective
as that seen using 111In-DTPA-folate, a radiopharmaceutical that has progressed to clinical trials for
detection of folate receptor-expressing gynecological tumors.
Introduction
endocytosis of, a range of folate conjugates that are not
substrates for the ubiquitous reduced folate carrier.35-39 Thus,
The cell membrane folate receptor (or folate-binding protein,
FBP)1,2 is a potential molecular target for tumor-selective drug
delivery,3-7 since the folate receptor is found in only a limited
range of normal tissues but commonly overexpressed by
malignant cells.8-34 The folate receptor binds, and allows
(18) Weitman, S. D.; Weinberg, A. G.; Coney, L. R.; Zurawski, V. R.; Jennings,
D. S.; Kamen, B. A. Cancer Res. 1992, 52, 6708-6711.
(19) Weitman, S. D.; Lark, R. H.; Coney, L. R.; Fort, D. W.; Frasca, V.;
Zurawsky, V. R.; Kamen, B. A. Cancer Res. 1992, 52, 3396-3401.
(20) Holm, J.; Hansen, S. I.; Hoier-Madsen, M.; Birn, H.; Helkjaer, P.-E. Arch.
Biochem. Biophys. 1999, 366, 183-191.
(21) Ross, J. F.; Chaudhuri, P. K.; Ratnam, M. Cancer 1994, 73, 2432-2443.
(22) Wu, M.; Gunning, W.; Ratnam, M. Cancer Epidemiol. Biomarkers PreV.
1999, 8, 775-782.
(23) Mantovani, L. T.; Miotti, S.; Menard, S.; Canevari, S.; Raspagliesi, F.;
Bottini, C.; Bottero, F.; Colnaghi, M. I. Eur. J. Cancer 1994, 30A, 363-
369.
(1) Elnakat, H.; Ratnam, M. AdV. Drug DeliVery ReV. 2004, 56, 1067-1084.
(2) Sabharanjak, S.; Mayor, S. AdV. Drug DeliVery ReV. 2004, 56, 1099-
1109.
(3) Wang, S.; Lee, R. J.; Mathias, C. J.; Green, M. A.; Low, P. S. Bioconjugate
Chem. 1996, 7, 56-62.
(4) Mathias, C. J.; Lee, R. J.; Wang, S.; Waters, D. J.; Low, P. S.; Green, M.
A. J. Nucl. Med. 1996, 37, 1003-1008.
(24) Reddy, J. A.; Haneline, L. S.; Srour, E. F.; Antony, A. C.; Clapp, D. W.;
Low, P. S. Blood 1999, 93, 3940-3948.
(5) Mathias, C. J.; Wang, S.; Low, P. S.; Waters, D. J.; Green, M. A. Nucl.
Med. Biol. 1999, 26, 23-25.
(25) Nakashima-Matsushita, N.; Homma, T.; Yu, S.; Matsuda, T.; Sunahara,
N.; Nakamura, T.; Tsukano, M.; Ratnam, M.; Matsuyama, T. Arthritis
Rheum. 1999, 42, 1609-1616.
(6) Wang, S.; Luo, J.; Lantrip, D. A.; Waters, D. J.; Mathias, C. J.; Green, M.
A.; Fuchs, P. L.; Low, P. S. Bioconjugate Chem. 1997, 8, 673-679.
(7) Mathias, C. J.; Wang, S.; Waters, D. J.; Turek, J. J.; Low, P. S.; Green, M.
A. J. Nucl. Med. 1998, 39, 1579-1585.
(26) Spinella, M. J.; Brigle, K. E.; Sierra, E. E.; Goldman, I. D. J. Biol. Chem.
1995, 270, 7842-7849.
(27) Holm, J.; Hansen, S. I.; Hoier-Madsen, M.; Helkjaer, P.-E.; Bzorek, M.
Acta Pathol. Microbiol Immunol. Scand. 1995, 103, 862-868.
(28) Baggnoli, M.; Canevari, S.; Figini, M.; Mezzanzanica, D.; Raspagliesi, F.;
Tomassetti, A.; Miotti, S. Gynecol. Oncol. 2003, 88, S140-S144.
(29) Maziarz, K. M.; Monaco, H. L.; Shen, F.; Ratnam, M. J. Biol. Chem. 1999,
274, 11086-11091.
(8) Garin-Chesa, P.; Campbell, I.; Saigo, P. E., Jr.; Lewis, J. L.; Old, L. J.;
Rettig, W. J. Am. J. Pathol. 1993, 142, 557-567.
(9) Stein, R.; Goldenberg, D. M.; Mattes, M. J. Int. J. Cancer 1991, 47, 163-
169.
(10) Li, P. Y.; Del Vecchio, S.; Fonti, R.; Carriero, M. V.; Potena, M. I.; Botti,
G.; Miotti, S.; Lastoria, S.; Menard, S.; Colnaghi, M. I.; Salvatore, M. J.
Nucl. Med. 1996, 37, 665-672.
(30) Shen, F.; Wu, M.; Ross, J. F.; Miller, D.; Ratnam, M. Biochemistry 1995,
34, 5660-5665.
(11) Buist, M. R.; Kenemans, P.; den Hollander, W.; Vermorken, J. B.; Molthoff,
C. J. M.; Burger, C. W.; Helmerhorst, T. J. M.; Baak, J. P. A.; Roos, J. C.
Cancer Res. 1993, 53, 5413-5418.
(31) Matherly, L. H.; Wong, S. C.; Angeles, S. M.; Taub, J. W.; Smith, G. K.
Proc. Am. Assoc. Cancer Res. 1994, 35, 307.
(32) Shen, F.; Zheng, X.; Wang, J.; Ratnam, M. Biochemistry 1997, 36, 6157-
(12) Toffoli, G.; Cernigoi, C.; Russo, A.; Gallo, A.; Bagnoli, M.; Boiocchi, M.
Int. J. Cancer 1997, 74, 193-198.
6163.
(33) Wang, H.; Ross, J. F.; Ratnam, M. Nucleic Acid Res. 1998, 26, 2132-
2142.
(13) Williams, W. M.; Huang, K. C. Am. J. Physiol. 1982, 242, F484-F490.
(14) Selhub, J.; Franklin, W. A. J. Biol. Chem. 1984, 259, 6601-6606.
(15) Selhub, J.; Emmanouel, D.; Stavropoulos, T.; Arnold, R. Am. J. Physiol.
1987, 252, F750-F756.
(34) Holm, J.; Hansen, S. I.; Hoier-Madsen, M.; Bostad, L. Biochem. J. 1991,
280, 267-271.
(35) Leamon, C. P.; Reddy, J. A. AdV. Drug DeliVery ReV. 2004, 56, 1127-
(16) Selhub, J.; Nakamura, S.; Carone, F. A. Am. J. Physiol. 1987, 252, F757-
F760.
1141.
(36) Ke, C.-Y.; Mathias, C. J.; Green, M. A. AdV. Drug DeliVery ReV. 2004,
56, 1143-1160.
(17) Kamen, B. A.; Caston, J. D. J. Biol. Chem. 1975, 250, 2203-2205.
9
10.1021/ja043006n CCC: $30.25 © 2005 American Chemical Society
J. AM. CHEM. SOC. 2005, 127, 7421-7426
7421

A R T I C L E S
Ke et al.
Chart 1. Structural Formulas of Folic Acid, Pteroic Acid, DTPA-Folate, and DTPA-NOON-Pte (1)
both in vitro and in vivo, these folate conjugates selectively
target folate receptor-expressing cells. Internalization of the
folate conjugates appears to occur via a receptor-mediated
pathway, since the uptake is specific for the attached folate
molecule, saturable at nanomolar concentrations, inhibited at
low temperatures, competitively blocked by excess free folate
or FBP antibody, and eliminated by removal of FBP from the
cell surface.3,6,40-50
radiometal-labeled (111In, 66-68Ga, 99mTc) folate-chelate con-
jugates.36,55 The present study was undertaken to better probe
the structural requirements for folate receptor targeting with low
molecular weight radiometal chelates, specifically examining
the role of the amino acid fragment of folic acid (pteroylglutamic
acid) in mediating folate-receptor affinity.
Results and Discussion
Characterizations of the folate “binding pocket” and structural
requirements for folate receptor ligands have been inves-
tigated51-53 to improve the binding affinity and selectivity of
ligands to the receptor; however, the detailed structure of the
folate receptor has not been crystallographically established.
Notably, pteroic acid, a fragment of folic acid lacking the distal
glutamyl residue (Chart 1), does not appreciably bind to the
high-affinity folate receptor.54
Pteroic acid was conjugated with diethylenetriaminepentaace-
tic acid (DTPA) via an amide-linked hydrophilic spacer, 2,2′-
(ethylenedioxy)-bis(ethylamine), yielding the bifunctional che-
late: pteroyl-NHCH2CH2OCH2CH2OCH2CH2NH-DTPA (1).
The three-step synthesis is outlined in Scheme 1. Briefly, pteroic
acid and 2,2′-(ethylenedioxy)-bis(ethylamine) were coupled
using
benzotriazole-1-yl-oxy-tris(pyrrolidino)phosphonium
hexafluorophosphate (PyBOP) and N-hydroxybenzotriazole
(HOBt) in the presence of N-methylmorpholine (NMM) as a
base. Due to the poor solubility of pteroic acid and its
derivatives, dimethyl sulfoxide (DMSO) was used as a solvent
for all the synthetic steps. After removal of DMSO by trituration
with methanol and diethyl ether and vacuum evaporation of

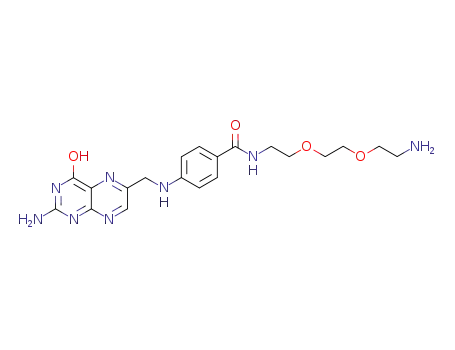

volatile reagents, pteroyl-ethylenedioxy-bis(ethyldiamine) (in-
