First asymmetric synthesis of chiral analogues of the novel immunosuppressant FTY720

Article abstract of DOI:10.1016/S0040-4039(02)01925-1

FTY720 is an immunosuppressant with a novel mode of action and is highly effective in animal models of transplantation and autoimmunity. Herein we describe the first asymmetric synthesis of chiral FTY720 analogues using the Sch?llkopf-protocol. We also describe a practical synthesis of the corresponding phosphates, which are essential tools for elucidation of FTY720's mechanism of action.

Full text of DOI:10.1016/S0040-4039(02)01925-1

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 43 (2002) 8095–8097
First asymmetric synthesis of chiral analogues of the novel
immunosuppressant FTY720
Klaus Hinterding,* Rainer Albert and Sylvain Cottens
Transplantation Research, Novartis Pharma AG, CH-4002 Basel, Switzerland
Received 7 August 2002; accepted 9 September 2002
Abstract—FTY720 is an immunosuppressant with a novel mode of action and is highly effective in animal models of
transplantation and autoimmunity. Herein we describe the first asymmetric synthesis of chiral FTY720 analogues using the
Scho¨llkopf-protocol. We also describe a practical synthesis of the corresponding phosphates, which are essential tools for
elucidation of FTY720’s mechanism of action. © 2002 Elsevier Science Ltd. All rights reserved.
FTY720 1 (Fig. 1) is a novel immunosuppressant which
is highly effective in animal models of transplantation
and autoimmunity.1 Additionally, in a recently com-
pleted Phase II trial, the drug has proven efficacious in
preventing kidney allograft rejection in humans.2
Unlike any other immunosuppressant currently on the
market, FTY720 does not inhibit T- and B-cell prolifer-
ation and activation at therapeutically relevant concen-
trations in vitro; instead it leads to a sequestration of
lymphocytes from the periphery into secondary
lymphoid organs.3 According to our current under-
standing, the phosphorylated molecule FTY720-phos-
phate 2 (Fig. 1), which is generated in vivo via a
sphingosine-kinase, signals as an agonist through four
of five sphingosine-1-phosphate (S1P) receptors (for-
merly known as EDG-receptors).4
revealed that only R-enantiomer (R)-3 is biologically
active in vivo and only phosphate (R)-4 has low
nanomolar affinities on S1P-receptors.4 Chiral ana-
logues and phosphates are therefore invaluable tools to
differentiate biological effects and to further elucidate
FTY720’s mechanism of action.
We herein describe a practical and versatile stereoselec-
tive synthesis of chiral FTY720 analogues 3 and their
corresponding phosphates 4. This synthetic protocol is
also amenable to the preparation of additional struc-
tural analogues.
The Scho¨llkopf-protocol5 is the centerpiece of our syn-
thesis. It was chosen because both Gly- and Ala-derived
auxiliaries are commercially available in either enan-
tiomeric form.6 In addition, the protocol allows for
broad structural variations at the quaternary center,
which was considered to be advantageous for the gener-
Using chiral FTY720 analogues (R)-3 and (S)-3 and
their corresponding phosphates (R)-4 and (S)-4 (Fig. 1)
Figure 1. Structures of immunosuppressant FTY720 and chiral analogues.
Keywords: immunosuppressant; FTY720; Schoellkopf-auxiliary; phosphates.
* Corresponding author. Tel.: +41613243724; fax: +41613246735; e-mail: klaus.hinterding@pharma.novartis.com
0040-4039/02/$ - see front matter © 2002 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(02)01925-1

8096
K. Hinterding et al. / Tetrahedron Letters 43 (2002) 8095–8097
Boc-protected aminoalcohols 814 were phosphorylated
with tri-valent phosphorylating agent 915 and oxidized
in situ using H2O2. This sequence produced fully pro-
tected phosphates 10 in 85% yield. At this stage, the
compounds were purified by chromatography and then
subjected to two deprotection steps without any further
purification. This protocol delivered phosphates 416
from Boc-protected aminoalcohols with an overall yield
of 75%. Again as described earlier, only phosphate
(R)-4 had low nanomolar affinities to S1P-receptors.4
ation of a larger collection of chiral FTY720 analogues.

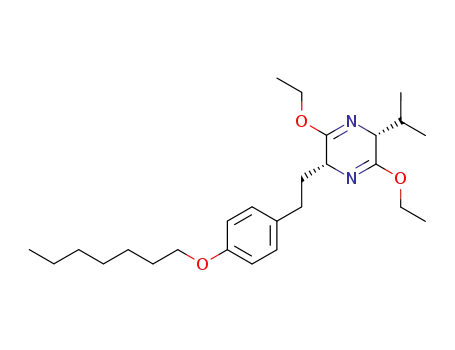

As shown in Scheme 1 for the synthesis of the biologi-
cally active R-enantiomer,
D
-cyclo-Val-Gly-OEt 57 was
lithiated and treated with iodide 68 to generate the
monoalkylated Scho¨llkopf adduct as pure diastereomer
in 71% yield.9 This intermediate was subsequently lithi-
ated and methylated to generate the quaternary center
in 7 stereoselectively with 65% yield.10 Hydrolysis of the
bislactimether proceeded uneventfully to produce the
aminoacid ester (58% yield), which was reduced to
(R)-3 in 95% yield.11
In summary, we described a highly practical asymmet-
ric synthesis of chiral FTY720 analogues and an
efficient procedure to generate the corresponding phos-
phates. These compounds as well as additional struc-
tural analogues accessible via the synthetic procedures
described here will be essential tools to further elucidate
the mechanism of action of the novel immunosuppres-
sant FTY720.
The (S)-enantiomer was synthesized in an analogous
manner starting from L
-cyclo-Val-Gly-OEt.12 The enan-
tiomeric purity of (R)-3 and (S)-3 was confirmed by
HPLC analysis of the corresponding dinitrobenzamide
derivatives.13 As described earlier, only the R-enan-
tiomer was biologically active and induced lymphocyte
depletion after oral dosing in rats.4
Due to the difficult physicochemical properties of phos-
phates 4, in particular their low solubility, and due to
lack of availability of sphingosine kinases, biochemical
synthesis and isolation is tedious. We therefore describe
here a straightforward chemical approach for the
preparation of phosphates (R)- and (S)-4 (Scheme 2).
Acknowledgements
We wish to thank E. Francotte for chiral HPLC separa-
tions and K. Christ, H. Jundt, H. Knecht, C. Simeon
and B. Thai for technical assistance.
Scheme 1. (a) BuLi, THF, −78°C to 0°C; then 6, −78°C to 0°C, 71%; (b) BuLi, THF, −78°C to 0°C, then MeI, −78°C to 0°C,
65%; (c) 0.5N HCl, dioxane, rt, 16 h, 58%; (d) LiAlH4, THF, 65°C, 2 h, 95%.
Scheme 2. (a) (1,5-Dihydro-benzo[e][1,3,2]dioxaphosphepin-3-yl)-diethylamine 9, tetrazole, THF, rt, 2 h; then 30% H2O2, rt, 1 h,
85%; (b) 1 bar H2, Pd/C, MeOH, rt, 1 h, 88%; (c) conc. HCl, HOAc, rt, 16 h, quant.

K. Hinterding et al. / Tetrahedron Letters 43 (2002) 8095–8097
8097
References
dropwise below −65°C. The temperature was kept at
−78°C for 0.5 h before the mixture was warmed to 0°C
and stirred for an additional 5 h. Quenching with satd
aqueous NH4Cl (100 ml) was followed by extraction with
ethylacetate (2×150 ml) and drying of the organic phase
with MgSO4. After evaporation of the solvent the crude
oil was purified by chromatography (hexanes/ether=9/1)
to give the desired product as a slowly crystallizing oil
(9.87 g, 22.2 mmol).
1. Brinkmann, V.; Pinschewer, D. D.; Feng, L.; Chen, S.
Transplantation 2001, 72, 764–769.
2. Tedesco, T.; Kahan, B.; Mourad, G.; Vanrenterghem, Y.;
Grinyo, J.; Weimar, W.; Pellet, P.; Chodoff, L.; Sablin-
ski, T. Am. J. Transplant. 2001, 1, S243.
3. Chiba, K.; Yanagawa, Y.; Yasubuchi, Y.; Kataoka, H.;
Kawaguchi, T.; Ohtsuki, M.; Hoshino, Y. J. Immunol.
1998, 160, 5037–5044.
1
11. Analytical data: H NMR (400 MHz, CD3OD): l=0.71
ppm (t, J=7 Hz, 3H, CH2CH3), 0.88 (s, 3H, CCH3),
1.05–1.21 (m, 6H, CH2), 1.21–1.29 (m, 2H, CH2), 1.38–
1.47 (m, 1H, CCH2), 1.47–1.56 (p, J=7 Hz, 2H,
OCH2CH2), 2.35 (t, J=7 Hz, 1H, PhCH2), 3.13 (d, J2=9
Hz, 1H, OCH2), 3.16 (d, J2=9 Hz, 1H, OCH2), 3.71 (t,
J=7 Hz, 2H, PhOCH2), 6.58 (d, J=8 Hz, 2H, arom.
CH), 6.89 (d, J=8 Hz, 2H, arom. CH); MS (EI): 294.5
(MH+); hD −14 (20°C; c 0.98, CHCl3).
4. (a) Brinkmann, V.; Davis, M. D.; Heise, C. E.; Albert,
R.; Cottens, S.; Hof, R.; Bruns, C.; Prieschl, E.; Baum-
ruker, T.; Hiestand, P.; Foster, C. A.; Zollinger, M.;
Lynch, K. R. J. Biol. Chem. 2002, 277, 21453–21457; (b)
Mandala, S.; Hajdu, R.; Bergstrom, J.; Quakenbush, E.;
Xie, J.; Milligan, J.; Thornton, R.; Shei, G. J.; Card, D.;
Keohane, C.; Rosenbach, M.; Hale, J.; Lynch, C. L.;
Rupprecht, K.; Parsons, W.; Rosen, H. Science 2002,
296, 346–349.
12. Alternatively, bis-alkylated Scho¨llkopf adducts 7 can be
synthesized from
with iodide 6.
13. Column: Chiracel OD (25×0.46 cm); Eluent: EtOH/hex-
ane=1/1; UV detection at 210 nm; flow: 1 ml/min;
injection: 20 mL 0.1% in EtOH; ee of (R)-3=95%.
14. Accessible from 3 in 85% yield by treatment with Boc2O
in CH2Cl2/THF.
L-cyclo-Val-Ala-OMe by alkylation
5. (a) Scho¨llkopf, U. Pure Appl. Chem. 1983, 55, 1799; (b)
Scho¨llkopf, U.; Groth, U.; Deng, C. Synthesis 1981, 737.
6. Commercially available as OMe-ethers from Merck and
Fluka.
7. Alternatively,
D-cyclo-Val-Gly-OMe can be used.
8. Kiuchi, M.; Adachi, K.; Kohara, T.; Minoguchi, M.;
Hanano, T.; Aoki, Y.; Mishina, T.; Arita, M.; Nakao,
N.; Ohtsuki, M.; Hoshino, Y.; Teshima, K.; Chiba, K.;
Sasaki, S.; Fujita, T. J. Med. Chem. 2000, 43, 2946–2961.
9. The diastereomeric ratio (>10:1) of this step was irrele-
vant, since the stereochemical outcome of the overall
sequence was determined by the following methylation.
10. Isolated yield of pure diastereomer at ca. 70% conversion;
other isomer not detected (d.r.>20:1). Experimental pro-
cedure: To a solution of monoalkylated Scho¨llkopf
adduct (13.45 g, 31.3 mmol) in dry THF (75 ml) was
added a solution of n-BuLi (21.38 ml, 1.6 M in hexanes,
34.2 mmol) at −78°C to −65°C under an Ar atmosphere.
After stirring for 0.5 h at −78°C, methyliodide (4.05 g,
28.5 mmol) dissolved in dry THF (50 ml) was added
15. Watanabe, Y.; Komoda, Y.; Ebisuya, K.; Ozaki, S. Tet-
rahedron Lett. 1990, 31, 255–256.
1
16. Analytical data: H NMR (400 MHz, CD3OD): l=0.94
ppm (t, J=7 Hz, 3H, CH2CH3), 1.30–1.45 (m, 6H, CH2),
1.40 (s, 3H, CCH3), 1.45–1.53 (m, 2H, CH2), 1.73–1.82
(p, J=7 Hz, 2H, OCH2CH2), 1.97–2.06 (dt, J2=12 Hz,
J3=7 Hz, 1H, CCH2), 2.57–2.64 (dt, J2=13 Hz, J3=7
Hz, 1H, PhCH2), 2.66–2.73 (dt, J2=13 Hz, J3=7 Hz,
1H, PhCH2), 3.86 (dd, JPꢀH=11 Hz, JHꢀH=7 Hz, 1H,
POCH2), 3.93–3.98 (m, 1H, POCH2), 3.96 (t, J=7 Hz,
2H, PhOCH2), 6.84 (d, J=8 Hz, 2H, arom. CH), 7.16 (d,
J=8 Hz, 2H, arom. CH); MS (EI): 745 (2M−H)−, 372
(M−H)−.
