F er r ocen e-Ba sed Olefin P olym er iza tion Ca ta lysts:
Activa tion , Str u ctu r e, a n d In ter m ed ia tes
Alexandr Shafir and J ohn Arnold*
Department of Chemistry, University of California, Berkeley, and the Chemical Sciences
Division, Lawrence Berkeley National Laboratory, Berkeley, California 94720-1460
Received September 18, 2002
This paper describes abstraction of a benzyl group from the Zr dibenzyl complex 1,1′-Fc-
(NSiMe3)2]ZrBn2 (1) using B(C6F5)3 and [Ph3C][B(C6F5)4] (TB). In both cases, clean formation
of the corresponding cationic monobenzyl species LZrBn+ (L ) 1,1′-Fc(NSiMe3)22-) was
observed by NMR spectroscopy. In the case of [LZrBn][BnB(C6F5)3] (2), an X-ray crystal
structure determination confirmed an η6 coordination of the borate benzyl group to the
cationic Zr center. Reaction of this complex with 1 equiv of C2H2 or RCCR (R ) Me, Ph)
proceeded with rapid single insertion of the olefin or acetylene into the Zr-carbon σ-bond.
With ethylene or 2-butyne further insertions occur more slowly and longer chains were
obtained upon addition of more monomer. Activation of 1 with TB leads to an active ethylene
polymerization catalyst, producing 102 g of PE mmol-1 atm-1 h-1. Compound 2 reacted with
CH2Cl2 to form the dimeric [LZrCl2]2, which was characterized crystallographically.
In tr od u ction
dimethyl complex actively polymerized 1-hexene and,
when activated with B(C6F5)3, did so in a “living”
manner.3,4 Closely related systems incorporating ad-
ditional donor atoms have also been investigated.10 The
Schrock group has developed a range of such tridentate
diamido/donor ligands for group IV catalyzed 1-hexene
polymerization.11-14
Ferrocene derivatives have long served as scaffolds
for a variety of ligands used in catalytic transforma-
tions.1 The success of these systems is attributed mainly
to the steric bulk of a ferrocene group and the fairly
constrained directionality of the chelate vectors imposed
by the relative rigidity of the metallocene. Additionally,
many ferrocene-based ligands feature a combination of
planar and central chirality, rendering them useful in
asymmetric catalysis.
The bulk and the rigidity of the ferrocene group made
it an attractive candidate for the design of new types of
olefin polymerization catalysts. We chose diaminofer-
rocene as a ligand precursor on the basis of the fact that
various diamide ligands are well-known to support Ti-
and Zr-based olefin polymerization systems. While some
of the earlier examples of group 4 diamide systems are
based on nonbridged diamide ligands,2 more recently
the research in this area has been focused on more
restricted linked diamide complexes. Several diamines
have served as the basis for these complexes, including
propylenediamine,3,4 phenylenediamine,5,6 biphenylene-
diamine,7 and naphthalenediamine.8,9 Perhaps the most
striking example was discovered by the McConville
group, who reported that a propylenediamine-based Ti
Our group recently reported the synthesis of a series
of Ti and Zr complexes based on the silylated15 and
arylated16 diaminoferrocenes (C5H4NHR)2Fe; closely
related ferrocenediamide complexes have also been
prepared by other groups.17,18 In these compounds the
N-donor atoms are attached directly to the ferrocene
backbone. Several features of this arrangement are
notable. As is often the case with ferrocene-based
ligands, diamidoferrocene provides for a fairly rigid and
highly directing scaffold. Despite the low rotation bar-
rier around the Cp(centroid)-Fe axis, all of our struc-
turally characterized group 4 complexes featured a fully
eclipsed syn-periplanar ferrocene group and an open
N-M-N angle (>130°). In addition, the electron-rich
ferrocene group may stabilize an extremely electron-
poor Ti or Zr center. Indeed, an X-ray crystal structure
(10) Horton, A. D.; De With, J .; van der Linden, A. J .; van de Weg,
H. Organometallics 1996, 15, 2672-2674.
(11) Baumann, R.; Davis, W. M.; Schrock, R. R. J . Am. Chem. Soc.
1997, 119, 3830-3831.
(12) Baumann, R.; Stumpf, R.; Davis, W. M.; Liang, L. C.; Schrock,
R. R. J . Am. Chem. Soc. 1999, 121, 7822-7836.
(13) Liang, L. C.; Schrock, R. R.; Davis, W. M.; McConville, D. H. J .
Am. Chem. Soc. 1999, 121, 5797-5798.
(14) Liang, L. C.; Schrock, R. R.; Davis, W. M. Organometallics 2000,
19, 2526-2531.
(15) Shafir, A.; Power, M. P.; Whitener, G. D.; Arnold, J . Organo-
metallics 2001, 20, 1365-1369.
(16) Shafir, A.; Arnold, J . Inorg. Chim. Acta, in press.
(17) Siemeling, U.; Kuhnert, O.; Neumann, B.; Stammler, A.;
Stammler, H. G.; Bildstein, B.; Malaun, M.; Zanello, P. Eur. J . Inorg.
Chem. 2001, 913-916.
(18) Gibson, V. C.; Long, N. J .; Marshall, E. L.; Oxford, P. J .; White,
A. J . P.; Williams, D. J . J . Chem. Soc., Dalton Trans. 2001, 1162-
1164.
(1) Togni, A.; Hayashi, T., Ferrocenes; VCH: Weinheim, Germany,
1995.
(2) Horton, A. D.; de With, J . Chem. Commun. 1996, 1375-1376.
(3) Scollard, J . D.; McConville, D. H. J . Am. Chem. Soc. 1996, 118,
10008-10009.
(4) Scollard, J . D.; McConville, D. H.; Vittal, J . J .; Payne, N. C. J .
Mol. Catal. A: Chem. 1998, 128, 201-214.
(5) Aoyagi, K.; Gantzel, P. K.; Kalai, K.; Tilley, T. D. Organometallics
1996, 15, 923.
(6) Daniele, S.; Hitchcock, P. B.; Lappert, M. F.; Merle, P. G. J .
Chem. Soc., Dalton Trans. 2001, 13-19.
(7) Cloke, F. G. N.; Geldbach, T. J .; Hitchcock, P. B.; Love, J . B. J .
Organomet. Chem. 1996, 506, 343-345.
(8) Lee, C. H.; La, Y.-H.; Park, S. J .; Park, J . W. Organometallics
1998, 17, 7, 3648.
(9) Lee, C. H.; La, Y.-H.; Park, J . W. Organometallics 2000, 19, 344.
10.1021/om020780f CCC: $25.00 © 2003 American Chemical Society
Publication on Web 01/09/2003

568 Organometallics, Vol. 22, No. 3, 2003
Shafir and Arnold
Sch em e 1

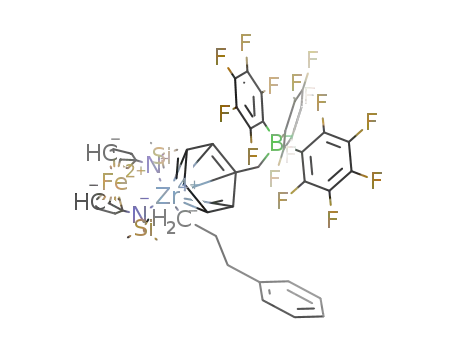

F igu r e 1. Partial ORTEP diagram of [Fc(NSiMe3)2Zr(CH2-
Ph)][PhCH2B(C6F5)3] (2) drawn with 50% thermal el-
lipsoids. For clarity, methyl groups and all hydrogen atoms
are omitted. Selected bond distances (Å): Fe1-Zr1 (non-
bonding) ) 3.1981(7), Zr1-Phcentroid ) 2.385(4), Zr1-N1 )
2.086(4), Zr1-N2 ) 2.068(4), Zr1-C11 ) 2.283(5), Zr1-
C25 ) 2.853(4), Zr1-C26 ) 2.735(4), Zr1-C27 ) 2.727(4),
Zr1-C28 ) 2.733(4), Zr1-C29 ) 2.754(4), Zr1-C30 )
2.805(4). Selected bond angles (deg): N1-Zr1-N2 ) 136.9-
(1), N1-Zr1-C11 ) 96.0(2), N2-Zr1-C11 ) 95.3(2), C11-
Zr1-Phcentroid ) 104.7(1), Zr1-C11-C12 ) 105.7(3).
