Syntheses and X-ray Structures of Monocyclic, Bicyclic, and Spirocyclic
Gallium and Indium Boraamidinates
Tristram Chivers,* Chantall Fedorchuk, Gabriele Schatte, and Masood Parvez
Department of Chemistry, UniVersity of Calgary, Calgary, Alberta, Canada T2N 1N4
Received October 16, 2002
t
t
The reactions of {Li2[PhB(NBu)2]}2 with GaCl3 in various stoichiometries yield [Li(thf)4][PhB(µ-NBu)2GaCl2‚GaCl3]
t
t
(1), [PhB(µ-NBu)2GaCl]2 (2), and {µ-Li(OEt2)[PhB(NBu)2]Ga} (3a), a series of complexes in which the three chloride
ligands are successively replaced by the dianion [PhB(NBu)2]2-. The X-ray structures of 1, 2, and 3a show that
t
the boraamidinate ligand adopts an N,N′-chelating mode. In the ion-separated complex 1, one of the nitrogen
t
atoms is coordinated to a GaCl3 molecule. The related indium complexes [µ-LiCl(thf)2][PhB(µ-NBu)2InCl]2 (4) and
t
{µ-Li(OEt2)[PhB(µ-NBu)2]In} (3b) were obtained in a similar manner. Complex 4 is the indium analogue of 2 with
t
the incorporation of a bissolvated LiCl molecule. In 3a and 3b the spirocyclic {[PhB(µ-NBu)2]2M}- (M ) Ga, In)
anions are N,N′-chelated to the [Li(OEt2)]+ counterion. Prolonged reactions result in the formation of [PhB(µ-
t
t
NBu)2GaCl][tBuN(H)GaCl2] (5) and {[PhB(µ-NBu)2InCl][tBuN(H)InCl2][µ-LiCl(OEt2)2]} (6), respectively. The X-ray
structures of 5 and 6 reveal bicyclic structures which formally involve the entrapment of the monomers tBuN(H)-
MCl2 by a four-membered BN M ring (M ) Ga, In). The synthesis and X-ray structure of Cl2Ga[µ-N(H)Bu]2GaCl2
t
2
are also reported.
Introduction
recently we have discovered a potentially versatile route to
alkyl or aryl boraamidinates that involves the reaction of
trisaminoboranes B(NHR′)3 with 3 equiv of an organolithium
reagent RLi (R ) alkyl, aryl).9 In addition to effecting
dilithiation, the RLi reagents serve as a nucleophile in the
displacement of one NHR′ group by the substituent R. The
Complexes of amidinate anions [RC(NR′)2]- with main
group elements1a or transition metals1a,b have been studied
extensively. Recent work on group 13 systems has revealed
novel structural chemistry for In2 and catalytic activity for
cationic Al or Ga complexes.3 By contrast, previous inves-
tigations of the coordination chemistry of the isoelectronic
boraamidinate dianion [RB(NR′)2]2- have been limited to
group 4 for the transition metals and groups 14-16 in the
case of p-block elements.4 The most common route to aryl
boraamidinate complexes has involved the preparation of
{Li2[PhB(NR′)2]}x (R ) Pr, Bu) by dilithiation of PhB-
(NHR′)2 with LinBu followed by lithium-halogen exchange
with the appropriate transition-metal or main group element
halide.5-7 This approach has also been applied to the
pentafluorophenyl derivative C6F5B(µ-NtBu)2SnMe2.8 More
n
dilithium derivatives {Li2[RB(NR′)2]}x (R ) Me, Bu, Ph;
R′ ) tBu) have dimeric (x ) 2) cluster structures,7,9 although
a trimer (x ) 3) has also been structurally characterized for
t
R ) Me, R′ ) Bu.7
Although the use of the reagents {Li2[RB(NR′)2]}x in
metathetical reactions is the most versatile route to bora-
amidinate complexes,5-7 several other synthetic approaches
have been reported. These include the preparation of (a) the
dimeric Sn(II) complex [PhB(µ-NtBu)2Sn]2 by the reaction
of SnCl2 with Me3SiN(Li)BMe2,10 (b) sulfur(II) complexes
i
t
* Author to whom correspondence should be addressed. Phone: (403)
220-5741. Fax: (403) 289-9488. E-mail: chivers@ucalgary.ca.
(1) (a) Edelmann, F. T. Coord. Chem. ReV. 1994, 137, 403. (b) Barker,
J.; Kilner, M. Coord. Chem. ReV. 1994, 133, 219.
(2) (a) Zhou, Y.; Richeson, D. S. Inorg. Chem. 1996, 35, 1423. (b) Zhou,
Y.; Richeson, D. S. Inorg. Chem. 1996, 35, 2448.
(5) (a) Heine, A.; Fest, D.; Stalke, D.; Habben, C. D.; Meller, A.;
Sheldrick, G. M. J. Chem. Soc., Chem. Commun. 1990, 742. (b) Fest,
D.; Habben, C. D.; Meller, A.; Sheldrick, G. M.; Stalke, D.; Pauer, F.
Chem. Ber. 1990, 123, 703.
(6) Koch, H.-J.; Roesky, H. W.; Besser, S.; Herbst-Irmer, R. Chem. Ber.
1993, 126, 571.
(3) Dagome, S.; Guzei, I. A.; Coles, M. P.; Jordan, R. F. J. Am. Chem.
Soc. 2000, 122, 274 and references therein.
(4) For a review, see: Blais, P.; Brask, J. K.; Chivers, T.; Fedorchuk, C.;
Schatte, G. ACS Symposium Series 822; American Chemical Soci-
ety: Washington, DC, 2002; Chapter 14, pp 195-207.
(7) Brask, J. K.; Chivers, T.; Fedorchuk, C.; Schatte, G. Can. J. Chem.
2002, 80, 821.
(8) Habben, C. D.; Heine, A.; Sheldrick, G. M.; Stalke, D. Z. Naturforsch.
1992, 47b, 1367.
(9) Brask, J. K.; Chivers, T.; Schatte, G. Chem. Commun. 2000, 1805.
2084 Inorganic Chemistry, Vol. 42, No. 6, 2003
10.1021/ic0206286 CCC: $25.00 © 2003 American Chemical Society
Published on Web 02/21/2003

Syntheses of Gallium and Indium Boraamidinates
(NO3)3 in D2O, and 1.0 M LiCl in D2O, respectively. FTIR spectra
were obtained as Nujol mulls between KBr plates on a Mattson
4030 FTIR or Nicolet Nexus 470 spectrometer in the range 4000-
350 cm-1. Elemental analyses and mass spectra were obtained by
the Analytical Services Laboratory, Department of Chemistry,
University of Calgary.
of the type RB(µ-NR′)(µ-NR′′)S by treatment of sulfur(IV)
12
diimides with RB(SMe)2,11 (c) C6F5B(µ-NtBu)2CPh2 and
tBuB(µ-NtBu)2PtBu(NtBu)13 by [2 + 2] cycloaddition reac-
t
tions of the appropriate iminoborane with BuNdCPh2 or
tBuNdPtBu, respectively, (d) MesB(µ-NtBu)2Si(Mes)SiMe3
by the reaction of the iminoborane Me3Si(tBu)NBdNtBu
with the photochemically generated silylene SiMes2,14 (e)
MeB(µ-NAr)2SiMe2 (Ar ) 2,6-diisopropylphenyl) from the
isomerization of ArNdBN(Ar)SiMe3 formed by the lithiation
of Ar(H)NB(F)N(R)SiMe3 with LitBu,15 and (f) PhB(µ-
NtBu)2TeNtBu by the reaction of PhBCl2 with {Li2[Te-
(NtBu)3]}2.16
Preparation of (thf)4Li{[PhB(µ-NtBu)2GaCl2]GaCl3} (1). A
colorless solution of Li2[PhB(NtBu)2] (0.541 g, 2.215 mmol) in thf
(20 mL) was added to solid GaCl3 (0.780 g, 4.430 mmol) cooled
to -78 °C, whereupon a dark purple solution was obtained. The
reaction mixture was allowed to reach 23 °C after 30 min, and a
colorless solution was obtained after another 30 min. After 3.5 h
the volatile materials were removed under vacuum to give a sticky
white solid. Et2O (10 mL) was added, and the pale yellow solution
was filtered through a PTFE filter disk into a Schlenk glass tube to
remove LiCl. The formation of two phases was observed. The upper
colorless phase was removed and discarded. The remaining yellow
liquid was transferred into a test tube. Colorless blocklike crystals
of 1 (0.764 g, 0.907 mmol, 82% based on GaCl3) were obtained
In view of the current interest in the catalytic activity of
aluminum and gallium amidinates, as well as the potential
importance of group 13 complexes of nitrogen-centered
ligands as precursors of electronic materials such as gallium
nitride, we have initiated an investigation of boraamidinate
complexes of group 13 metals. In this paper we describe
the synthesis, spectroscopic characterization, and X-ray
structures of [Li(thf)4][PhB(µ-NtBu)2GaCl2‚GaCl3] (1), [PhB-

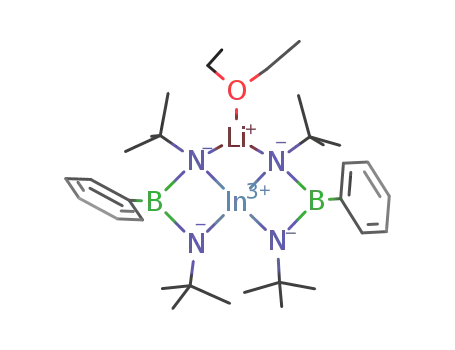

(µ-NtBu)2GaCl]2 (2), [µ-Li(OEt2){PhB(µ-NtBu)2}2M] (3a, M
