Inhibition of patched drug efflux increases vemurafenib effectiveness against resistant brafv600e melanoma

Article abstract of DOI:10.3390/cancers12061500

Melanoma patients harboring the BRAF^V600E mutation are treated with vemurafenib. Almost all of them ultimately acquire resistance, leading to disease progression. Here, we find that a small molecule from a marine sponge, panicein A hydroquinone

Full text of DOI:10.3390/cancers12061500

cancers
Article
Inhibition of Patched Drug Efflux Increases
Vemurafenib Effectiveness against Resistant
BrafV600E Melanoma
Laurie Signetti 1, Nelli Elizarov 2, Méliné Simsir 1, Agnès Paquet 1, Dominique Douguet 1,
Fabien Labbal 1, Delphine Debayle 1, Audrey Di Giorgio 2, Valérie Biou 3, Christophe Girard 4
,
Maria Duca 2, Lionel Bretillon 5 , Corine Bertolotto 4, Bernard Verrier 6, Stéphane Azoulay 2,
*
and Isabelle Mus-Veteau 1,
*
1
Université Côte d’Azur, CNRS, IPMC, 660 Route des Lucioles, 06560 Valobonne, France;
lauriesignetti@gmail.com (L.S.); simsir@ipmc.cnrs.fr (M.S.); paquet@ipmc.cnrs.fr (A.P.);
douguet@ipmc.cnrs.fr (D.D.); labbal@ipmc.cnrs.fr (F.L.); debayle@ipmc.cnrs.fr (D.D.)
Université Côte d’Azur, CNRS, ICN, 28 Avenue Valrose, 06108 Nice, CEDEX 2, France;
nelli.elizarov@yahoo.de (N.E.); Audrey.DI-GIORGIO@univ-cotedazur.fr (A.D.G.);
Maria.DUCA@univ-cotedazur.fr (M.D.)
CNRS, IBPC, Sorbonne Paris Cité, Laboratoire de Biologie Physico-Chimique des Protéines Membranaires,
Institut de Biologie Physico-Chimique, University Paris Diderot, 13 rue Pierre et Marie Curie,
75005 Paris, France; valerie.biou@ibpc.fr
Université Côte d’Azur, INSERM, CNRS, C3M, Bâtiment Universitaire ARCHIMED 151 Route Saint Antoine
de Ginestière BP 2 3194, 06204 Nice, CEDEX 3, France; christophe.girard@univ-cotedazur.fr (C.G.);
Corine.Bertolotto@unice.fr (C.B.)
Centre des Sciences du Goût et de l’Alimentation, Université Bourgogne Franche-Comté CNRS, INRA,
SSGA, AgroSup Dijon, F-21000 Dijon, France; lionel.bretillon@dijon.inra.fr
Adjuvatis SAS, IBCP, 7 Passage du Vercors—69007 Lyon, France; bernard.verrier@adjuvatis.com
Correspondence: stephane.azoulay@univ-cotedazur.fr (S.A.); mus-veteau@ipmc.cnrs.fr (I.M.-V.)
2
3
4
5
6
*
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 5 May 2020; Accepted: 5 June 2020; Published: 9 June 2020
Abstract: Melanoma patients harboring the BRAFV600E mutation are treated with vemurafenib.
Almost all of them ultimately acquire resistance, leading to disease progression. Here, we find that
a small molecule from a marine sponge, panicein A hydroquinone (PAH), overcomes resistance of
BRAFV600E melanoma cells to vemurafenib, leading to tumor elimination in corresponding human
xenograft models in mice. We report the synthesis of PAH and demonstrate that this compound
inhibits the drug efflux activity of the Hedgehog receptor, Patched. Our SAR study allowed identifying
a key pharmacophore responsible for this activity. We showed that Patched is strongly expressed
in metastatic samples from a cohort of melanoma patients and is correlated with decreased overall
survival. Patched is a multidrug transporter that uses the proton motive force to efflux drugs.
This makes its function specific to cancer cells, thereby avoiding toxicity issues that are commonly
observed with inhibitors of ABC multidrug transporters. Our data provide strong evidence that PAH
is a highly promising lead for the treatment of vemurafenib resistant BRAFV600E melanoma.
Keywords: Patched; melanoma; vemurafenib; chemotherapy resistance: drug efflux; new
therapeutic lead
1. Introduction
One of the major challenges in the clinical management of cancer is resistance to chemotherapeutics.
Multidrug resistance (MDR) has been intensively studied, and overexpression of ATP-binding cassette
(ABC) transporters has been considered to be the most prominent underlying mechanism for MDR.
Cancers 2020, 12, 1500; doi:10.3390/cancers12061500
www.mdpi.com/journal/cancers

Cancers 2020, 12, 1500
2 of 28
Despite research efforts to develop compounds that inhibit the efflux activity of ABC transporters and
increase classical chemotherapy efficacy, to date, the Food and Drug Administration has not approved
the use of any ABC transporter inhibitor due to toxicity issues [1]. Therefore, it is necessary to find
other targets.
The Hedgehog (Hh) signaling pathway controls cell differentiation and proliferation. It plays a
crucial role during embryonic development and, in adulthood, it is involved in stem cell homeostasis
and tissue regeneration. However, Hh signaling is also involved in cancer development, progression,
and metastasis. Aberrant activation of Hh signaling has been observed in many aggressive cancers [
in particular, in cells exhibiting resistance to chemotherapy such as cancer stem cells or tumor-initiating
cells [ ]. The Hh receptor, Patched (Ptch1), whose expression is induced upon activation of the
Hh pathway, is overexpressed in many cancers, including breast, prostate, ovary, colon, brain,
melanoma [ ], and myeloid leukemia [ ] (see the Human Protein Atlas website http://www.
proteinatlas.org/ENSG00000185920-PTCH1/cancer). Studies have even suggested Ptch1 as an early
marker of gastric and thyroid cancers [ 10]. We previously showed, for the first time, that Ptch1 has a
2],
3
4
–
6
7,8
9,
drug efflux activity and contributes to the resistance of cancer cells to chemotherapy [11]. Remarkably,
Ptch1 is not an ABC transporter but uses the proton motive force to efflux drugs. This allows Ptch1
to efflux drugs, at the expense of proton consumption, from the extracellular medium of cancer cells
where the extracellular pH is acidic due to the strong glucose consumption (Warburg effect) [12].
This metabolic feature makes Ptch1 drug efflux activity specific to cancer cells. Hence, Ptch1 is a
particularly relevant and highly specific therapeutic target for resistant cancers that express Ptch1.
This breakthrough allowed us to propose Ptch1 as a new target to enhance the efficiency of classical or
targeted chemotherapeutic treatments and decrease the risk of recurrence and metastasis [13]. We then
developed a test using Ptch1-overexpressing yeast to identify molecules that were able to inhibit the
drug efflux activity of Ptch1 [14]. A first screening of natural compounds purified from marine sponges
led to the identification of panicein A hydroquinone (PAH). We showed that this compound strongly
inhibited the resistance of Ptch1-overexpressing yeast to doxorubicin (dxr), a chemotherapeutic agent
used to treat many cancers, as well as increased the cytotoxic effect of dxr in melanoma cells and
strongly inhibited in vitro dxr efflux [15]. The screening of a chemical library allowed us to identify a
second inhibitor, methiothepin, which increases the efficacy of dxr against adrenocortical carcinoma
cells, in vitro and in vivo [16]. These discoveries suggest that the use of inhibitors of Ptch1 drug efflux
activity in combination with classical chemotherapy, such as doxorubicin, could be a novel way to
circumvent drug resistance, recurrence and metastasis of tumors expressing Ptch1.
Around 45–50% of cutaneous melanomas have mutations in the BRAF serine/threonine kinase.
These patients are treated with vemurafenib. This targeted chemotherapy presents heterogeneous
clinical responses, and almost all patients who experience an initial response to vemurafenib ultimately
acquire resistance and relapse [17]. In the present study, we have performed the chemical synthesis
of the Ptch1 drug efflux inhibitor, PAH, and some analogues, and conducted a preliminary structure
activity relationship (SAR) study to enable the identification of a key pharmacophore. We showed that
PAH enhances the efficacy of vemurafenib against BRAFV600E melanoma cells, in vitro and in vivo
,
by directly interacting with Ptch1 and inhibiting vemurafenib efflux. Our results suggest that the use of
this inhibitor of Ptch1 drug efflux in combination with vemurafenib could be a promising therapeutic
option to improve vemurafenib efficacy against resistant BRAFV600E melanomas.
2. Results
2.1. Ptch1 Is Expressed in Melanoma and Contributes to the Efflux of Chemotherapy Agents out of Cells
Normalized gene expression data and matching clinical information for cutaneous melanoma
tumors were downloaded from The Cancer Genome Atlas (TCGA), then separated into primary tumor
samples (n = 103) and metastatic tumor samples (n = 368). The distribution of PTCH1 gene expression
level for all TCGA patients compared to genes known to be well expressed in melanoma (GAPDH,

Cancers 2020, 12, 1500
3 of 28
ACTB, MITF) indicates that PTCH1 is well expressed in primary and metastatic samples (Figure 1A
left). We did not observe a significant difference in the distribution of PTCH1 gene expression between
tumors carrying or not BRAFV600 mutation for primary or metastatic samples (Figure 1A middle).
Figure 1. Ptch1 is expressed in patients-derived melanoma specimens and melanoma cell lines,
and transports chemotherapy agents out of cells. (A). Ptch1 is expressed in patients-derived melanoma
specimens and decreases survival in metastatic patients. Left panel: Distribution of gene expression
level of PTCH1, GAPDH, ACTB, MITF, and SHH. Middle panel: Distribution of PTCH1 gene expression
by the presence or the absence of any BRAFV600 mutation for metastatic samples (0: no mutation
(n = 217), 1: presence of a mutation (n = 151). Right panel: Kaplan–Meier analysis of overall survival
for a subset of patients with metastatic disease and did not receive immunotherapy. Patients were
grouped by their level of Ptch1 protein expression (low: Ptch1 expression
> 8.83). The number of patients in each group over time is displayed at the bottom of the graph. (
Ptch1 is expressed in melanoma BRAFV600 mutant cell lines. Western blots were performed on extracts
from various melanoma cell lines with antibodies directed against Ptch1. ( ). Ptch1 contributes to the
≤
8.83, high: Ptch1 expression
B
).
C
efflux of doxorubicin from melanoma cells. Ptch1 protein expression (right panel) and intracellular
doxorubicin (dxr; left panel) were analyzed after transfection of MeWo cells with Ptch1-siRNA or
negative-control-siRNA. After incubation with dxr, 3 coverslips were fixed for dxr loading control;
the other coverslips were incubated with efflux buffer and fixed. Dxr fluorescence images were acquired
using a 40
per condition per experiment. Ptch1 and
ImageJ software. All data presented are the mean
×
objective, and dxr fluorescence was quantified using ImageJ software for about 100 cells
-tubulin signals on Western blots were quantified using
SEM of 3 independent experiments. Significance
β
±
is attained at p < 0.05 (*), ns: no significant difference. The uncropped blots and molecular weight
markers of Figure 1B,C are shown in Figure S7.

Cancers 2020, 12, 1500
4 of 28
In this cohort, the Kaplan–Meier analysis for a subset of patients with metastatic disease who
did not receive immunotherapy indicated that a high level of Ptch1 in patient samples significantly
correlated with a lower overall survival time (Figure 1A right). Patients were grouped according
to their level of Ptch1 expression (low: samples with Ptch1 expression
Ptch1 expression > 8.83). A significant difference in survival was observed (log-rank p-value = 0.0146).
The same analysis for primary tumor did not show any significant difference.
≤
8.83, high: samples with
Western blots were performed on extracts from four melanoma cell lines that are sensitive
or resistant to chemotherapy, and strong expression of Ptch1 was found in all of the studied cell
lines (Figure 1B). Interestingly, the depletion of Ptch1 using specific silencing RNA in the MeWo
melanoma cell line induced cell retention of doxorubicin (dxr), a fluorescent chemotherapeutic drug
commonly used to treat many types of cancers, while control cells showed a strong decrease of
intracellular dxr fluorescence 30 min after the removal of this drug from the medium (Figure 1C).
In this experiment, MeWo cells were seeded on coverslips and transfected with 40 nM Ptch1-siRNA
or negative-control-siRNA. Ptch1 protein expression (right panel) and intracellular dxr (left panel)
were analyzed 16 h after transfection. After 2 h of incubation with dxr, 3 coverslips were fixed for dxr
loading control. The other coverslips (triplicate per condition) were incubated with efflux buffer for
30 min and fixed. Dxr fluorescence was imaged acquired and quantified using ImageJ software for
about 100 cells per condition per experiment. Results indicate that Ptch1 contributes to dxr efflux in
these cells.
2.2. Panicein A Hydroquinone Obtained by Chemical Synthesis Enhances the Sensitivity of Melanoma Cells to
Doxorubicin by Inhibiting the Drug Efflux
Given that natural panicein A hydroquinone (PAH), identified as the first Ptch1 drug efflux inhibitor,
is not readily available, the molecule was prepared by chemical synthesis. Starting from previously
published work [18], an additional step allowed us to obtain the desired molecule (see Supplementary
Materials). The 10-step synthesis, based on a key microwave accelerated Claisen rearrangement,
yielded a mixture of E and Z stereoisomers (3:2 ratio) of PAH at 7% total yield (Figure 2A). To produce a
sufficient quantity, the synthesis was conducted on a scale of several tens of grams of starting material,
demonstrating the robustness of the optimized procedure. As natural PAH is exclusively composed of
E isomer, we wanted to separate the E and Z stereoisomers or isomerize the synthesized PAH mixture
to the E configuration. Our attempts were unfortunately not successful, and we decided to test the
synthetic PAH (sPAH) as a mixture of both stereoisomers.
Melanoma cells from the MeWo cell line and the BRAFV600E mutant cell line A375 were treated
with increasing concentrations of dxr, with or without natural or synthetic PAH for either 48 or 24 h,
before assessment of cell viability. Results showed that sPAH strongly increased the sensitivity to
dxr of cells from both cell lines (Figure 2C, Table 1), and was as effective as the natural PAH (Table 2).
Interestingly, our results showed that sPAH also strongly increased drx cytotoxicity in MeWo cells
rendered resistant to dxr (MeWo-DxrR) (Figure 2C, Table 1). One can observe that sPAH at 20 µM was
slightly cytotoxic by itself. We then treated A375 and MeWo cells with increasing concentrations of
sPAH for either 24 or 48 h, and we calculated that the IC50 of sPAH in these melanoma cells was of
about 40
µM (Figure 2D). This indicates that the effect observed in combination with dxr did not result
from additive cytotoxicities of each compound.

Cancers 2020, 12, 1500
5 of 28
Table 1. Synthetic panicein A hydroquinone (sPAH) increases doxorubicin cytotoxicity against several
melanoma cell lines. IC50s were calculated using GraphPad Prism 6 software. The mean SEM of 3
±
independent experiments are presented.
Dxr IC50 (µM)
MeWo DxrR
247 ± 49
Treatment
MeWo
141.5 ± 2.2
1.1 ± 0.4
A375
Dxr + DMSO
41 ± 8.2
0.6 ± 0.2
Dxr + sPAH 20 µM
1.75 ± 1
Table 2. Synthetic PAH is as effective as natural PAH to increase dxr cytotoxicity against melanoma
cells. IC50 values were calculated using GraphPad Prism 6 software. Mean
experiments are presented.
±
SEM of 3 independent
IC50 (µM)
With Natural PAH With Synthetic PAH
Heading Treatment
Dxr (at 20 µM PAH)
0.5 ± 0.1
1.1 ± 0.4
MeWo cells
PAH at 2 µM Dxr
6.6 ± 0.8
8.1 ± 1.3
Dxr (at 20 µM PAH)
PAH at 2 µM Dxr
0.5 ± 0.1
0.6 ± 0.2
A375 cells
12.4 ± 4.9
12.4 ± 2.3
Epifluorescence microscopy was used to measure the effect of sPAH on dxr efflux in melanoma
cells. As exemplified in Figure 2E, the amount of dxr accumulated in the nuclei of A375 and MeWo
cells after incubation with dxr was drastically reduced after 30 min of incubation with an efflux buffer,
and the presence of sPAH in the efflux buffer allowed the cells to retain a significant amount of dxr.
Quantification of the dxr amounts in cells showed that sPAH inhibited the efflux of dxr from A375
and MeWo cells by 30 to 40%. We demonstrated that synthetic PAH is able to inhibit the efflux of
dxr in melanoma cells as efficiently as the natural PAH (Figure 2F). The IC50 values of natural and
synthetic PAH obtained in the presence of dxr are very similar (Table 2), suggesting the Z stereoisomer
is as active as the natural E configurational isomer of PAH. In order to compare the 3D structures of E
and Z forms of PAH, 60 and 62 conformers for E-PAH and Z-PAH, respectively, were generated by
using chemoinformatic software. The two ensembles of conformers were aligned and compared using
the program SENSAAS. The good gfit score of 0.761 indicates that the E and Z isomers are almost
similar (a gfit score ranges from 0 (dissimilar) to 1 (perfect similarity)) (Figure 2B). The comparable
activities of the natural E-PAH and the synthetic mixture of E-PAH and Z-PAH can be explained by the
flexibility of the pentene linker that allows some E and Z stereoisomers to superimpose very well and
to position the two hydroxyls of the benzene ring in such a way that interactions with same residues
can be considered (Figure 2B). Therefore, we used the E/Z stereoisomer mixture of the synthetic PAH
(sPAH) for further study of the in vitro and in vivo activity of PAH.

Cancers 2020, 12, 1500
6 of 28
A
B

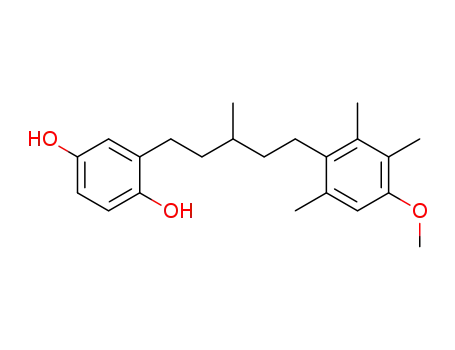

E-PaniceinA hydroquinone
Z-Panicein A hydroquinone
C
MeWo-DxrR
A375
MeWo
Dxr + DMSO
Dxr + 20µM sPAH
100
80
60
40
20
0
100
100
80
60
40
20
0
80
60
40
20
0
Dxr (µM)
Dxr (µM)
Dxr (µM)
D
MeWo
A375
sPAH-IC50 = 36 2.3 µM
sPAH-IC50 = 38.3 6.8 µM
100
80
60
40
20
0
100
80
60
40
20
0
0
5
10
15
20
30
0
1.6 3.1 6.25 12.5 25 50 100
sPAH(µM)
sPAH(µM)
***
1400
1200
1000
800
600
400
200
0
E
F
ns
ns
50
40
30
20
10
0
***
MeWo
A375
After dxr
incubation
30 min after changing medium
+ DMSO + sPAH
DMSO PAH sPAH
A375 MeWo WM9S WM9R
Figure 2. The chemically synthesized PAH is as effective as natural PAH in increasing cytotoxicity
and inhibiting the efflux of doxorubicin. ( ) Stereoisomers of PAH. ( ) 3D structures of E and Z
forms of PAH are very similar. The E form is in green and the Z form is in cyan. ( ) sPAH increases
doxorubicin cytotoxicity in various melanoma cell lines. Cell viability was measured after treatment
with increasing concentrations of dxr in the presence of DMSO or 20 M sPAH on MeWo cells, MeWo
cells rendered resistant to dxr (MeWo-DxrR) and A375 cells. ( ) sPAH cytotoxicity against melanoma
A
B
C
µ
D
cells. Cell viability was measured after treatment with increasing concentrations of sPAH on A375 or
MeWo cells. The mean sPAH-IC50 values calculated from 3 independent experiments are represented.
(E) sPAH inhibits the dxr efflux activity of Ptch1. A375 or MeWo cells were seeded on coverslips and
incubated with dxr. After 2 h, 3 coverslips were fixed for dxr loading control. The other coverslips were
incubated with DMSO or sPAH and fixed. Dxr fluorescence was imaged and quantified using ImageJ
software for about 100 cells per condition per experiment. The inhibition of dxr efflux by sPAH for each
cell lines is reported. (
PAH. Dxr fluorescence in MeWo cells was quantified after 30 mins in buffer containing DMSO, natural
PAH, or synthetic PAH as described in E. All histograms represent the mean SEM of 3 independent
experiments. Significance is attained at p < 0.05 (*) (***: p < 0.0005), ns: no significant difference.
F) Synthetic PAH inhibits the dxr efflux activity of Ptch1 as efficiently as natural
±

Cancers 2020, 12, 1500
7 of 28
2.3. The Hydroquinone Moiety Is Essential for PAH Inhibition of Ptch1 Drug Efflux
In order to identify the key pharmacophores of the PAH, we performed SAR analyses. At this
preliminary stage, we tested the activity of 20 M of two PAH precursors and three synthesized PAH
µ
analogues on MeWo and A375 cells (Figure 3A) to focus on the importance of the hydroquinone part
and the central double bond. As shown in Figure 3B and Figure S1, the quinone precursor 9 very
weakly increased the cytotoxicity of dxr against melanoma cells as compared to PAH, indicating that
the quinone form is not able to increase chemotherapy efficacy. Interestingly, precursor 8, where one
of the hydroxyl moieties of the hydroquinone is protected by a methyl group, had no effect on dxr
cytotoxicity, indicating that this hydroxyl group is crucial. Compound 13 is a hydrogenated form
of sPAH where, the central double bond is no longer present. The IC50 of dxr for molecules 8, 9, 11,
and 12 could not be determined, owing to greater than 50% viability. The IC50 of dxr calculated in the
presence of 13 is approximately 4-fold higher than that calculated in the presence of PAH in MeWo
cells but comparable to that of PAH in A375 cells. These results show that the hydroquinone moiety is
essential for sPAH activity as a Ptch1 drug efflux inhibitor, and that the loss of the double bond slightly
reduces its activity.
Figure 3. The hydroquinone moiety of PAH is essential to increase doxorubicin efficacy. (
precursors and analogues. ( ) Effect of PAH precursors and analogues on dxr cytotoxicity. Cell viability
was measured after treatment with increasing concentration of dxr in the presence of DMSO or 20
A) PAH
B
µM
sPAH (10), PAH precursors 8 and 9, or PAH analogues 11, 12, and 13 in MeWo cells. Dxr-IC50 values
calculated in the presence of sPAH or PAH analogue 13 are presented.

Cancers 2020, 12, 1500
8 of 28
2.4. sPAH Increases the Efficacy of Doxorubicin on Melanoma Cells Xenografted in Chick Eggs without
Toxic Effects
MeWo cells were grafted on the chorioallantoic membrane (CAM) after drilling a small hole
through the eggshell. Eggs were then randomized in groups of 20 eggs for treatments. Chick embryos
were first treated with increasing doses of sPAH alone in order to evaluate sPAH toxicity (Figure 4A)
After 10 days of treatment, the dead embryos were counted and abnormalities in 22 checkpoints
(head: size, closure, eyes, ear, face, branchial arc derivatives, mobility; body: size, axis deformation,
ventral and dorsal closures, caudal formation, sexual area; limbs: size, axis morphology, mobility;
skin: appendage formation, attachment, blood vessel; extra-embryonic structures: vascularization,
transparency, attachment, blood vessels) were observed in surviving embryos. No acute toxicity was
observed even at the highest dose of 1 mM. The percentage of death between 10 and 25% was normal
without link with sPAH treatment, and no abnormalities were observed in surviving embryos.
.
A
N of
eggs
Alive
embryos
Dead
embryos
Egg groups
% dead
Tumor cell grafts
Toxicity
Ctl (DMSO)
20
20
16
18
4
2
20
10
sPAH 100 µM
sPAH 500 µM
sPAH 1 mM
20
20
15
18
5
2
25
10
Tumor cell grafts
Analysis: -Tumor weight
- Toxicity
B
***
***
***
***
Number of embryos
30
20
10
0
Tumor
Before
After
Egg groups Treatment
% alive
*
regression (%) treatment treatment
Ctl
1.2% DMSO
sPAH 500 µM
Dxr 20 µM
-
18
19
19
15
17
15
83
89
79
sPAH
Dxr
7.26
28
Dxr 20 µM +
sPAH 500 µM
Dxr + sPAH
37.43
18
17
94
Ctl
PAH
Dxr
Dxr + PAH
Figure 4. sPAH increases the efficacy of doxorubicin on melanoma cells xenografted in chick eggs
without toxic effect. MeWo cells were grafted on the eggs chorioallantoic membrane (CAM). ( ) Toxicity
analysis. Chick embryos were treated with increasing doses of sPAH for 10 days. Then, the dead
embryos were counted, and abnormalities were observed on surviving embryos. ( ) Effect of the
association sPAH and dxr on melanoma tumors. One day after inoculation of MeWo cells on the CAM,
the tumors were treated by adding 100 L of vehicle, dxr alone, sPAH alone or with dxr. After 10 days,
A
B
µ
the tumors were cut away from the CAM tissue and weighed. Significance: *: 0.05
***: 0.001 ≥ p value; ns: no significant difference.
≥
p value > 0.01;
We evaluated the effect of sPAH on dxr treatment of melanoma tumors initiated from MeWo cells
(Figure 4B). When tumors became detectable (1 day after inoculation of MeWo cells on the CAM),
they were treated by adding 100 L of vehicle, dxr alone, sPAH alone or in combination with dxr.
µ

Cancers 2020, 12, 1500
9 of 28
After 10 days of treatment, the tumors were carefully cut away from normal CAM tissue and weighed.
We observed that dxr alone induced a 28% reduction in tumor weight with respect to control, and that
association with sPAH enhanced the tumor regression to 37% while sPAH by itself had a very weak
effect on tumor development. Mortality rates were normal, and no abnormalities were observed in the
surviving embryos.
2.5. sPAH Enhances the Sensitivity of Melanoma Cells to Cisplatin
We previously showed that Ptch1 drug efflux inhibition enhanced the cytotoxicity of dxr against
adrenocortical carcinoma cells, but also that of cisplatin, another well known chemotherapeutic
drug [19], suggesting that both cisplatin and dxr are substrates of Ptch1 [16]. Therefore, we tested the
effect of sPAH on the cytotoxicity of cisplatin in the melanoma cell lines MeWo and A375. Interestingly,
the IC50 of cisplatin was significantly decreased in the presence of sPAH in both MeWo and A375 cells,
indicating that sPAH also increases the cytotoxicity of cisplatin against melanoma cells (Figure S2).
2.6. sPAH Enhances the Sensitivity of BRAFV600E Melanoma Cells to Vemurafenib
Vemurafenib is a targeted chemotherapy agent which interrupts the BRAF/MEK step in the
BRAF/MEK/ERK pathway when BRAF has the V600E mutation [20,21]. In the present study, we used
three melanoma cell lines carrying the BRAFV600E mutation: A375, WM9S sensitive to vemurafenib,
and WM9R rendered resistant to vemurafenib. Cells from these three cell lines were treated with
increasing concentrations of vemurafenib in the presence of DMSO or sPAH for 24 h before assessment
of cell viability. Results show that sPAH significantly increased the sensitivity of A375 and WM9S
cells to vemurafenib (Figure 5A). Remarkably, sPAH also increased the effectiveness of vemurafenib
against WM9 cells rendered resistant to vemurafenib (WM9R) with a decrease by a factor of ten of
the IC50 of vemurafenib in the presence of sPAH 20
sPAH used (between 10 and 20 M) have a slight cytotoxic effect in line with sPAH-IC50 calculated of
38.3 6.8, 28.6 5.1, and 41 6.2 M for A375, WM9S, and WM9R respectively (Figure 5B). Therefore,
µM (Figure 5A). Note that the concentrations of
µ
±
±
±
µ
the cytotoxicity of sPAH itself at the concentration used was not sufficient to explain the strong increase
of vemurafenib cytotoxicity observed.
The effect of the combination sPAH and vemurafenib on cell migration was assessed using
a wound-healing assay (Figure 5C). Experiments revealed that sPAH also increased vemurafenib
efficacy against the A375 cells’ ability to migrate. Indeed, 48 h after wounding, the closing area was
significantly greater when sPAH was added to vemurafenib (Figure 5C). Remarkably, the same effect
was observed on cells resistant to vemurafenib (WM9R). This indicates that the combination of sPAH
and vemurafenib more significantly inhibited the wound-healing and, therefore, cell migration than
vemurafenib alone.

Cancers 2020, 12, 1500
10 of 28
A
Vemu + DMSO
Vemu + sPAH 10 µM
Vemu + DMSO
Vemu + sPAH 15 µM
Vemu + DMSO
Vemu + sPAH 10 µM
A375
WM9S
WM9R
100
80
60
40
20
0
100
80
60
40
20
0
100
80
60
40
20
0
0
4.7 9.4 18.8 37.5 75 150
0
12.5 25 50 75 100 200 300
0
5
10 20 30 50 75 100
Vemurafenib (µM)
Vemurafenib (µM)
Vemurafenib (µM)
****
***
***
400
150
150
100
50
**
ns
300
200
100
0
100
50
0
0
DMSO
DMSO
10
20
15
sPAH (µM)
20
DMSO
10
20
sPAH (µM)
sPAH (µM)
B
WM9S
WM9R
100
80
60
40
20
0
100
80
60
40
20
0
60
40
20
0
WM9S
A375
WM9R
A375
0
5
10 15 20 30 40 50
sPAH (µM)
0
5
10 15 20 30 40 50
sPAH (µM)
WM9R
C
DMSO
DMSO
sPAH 10 µM
DMSO
sPAH
15 μM
Vemu
Vemu 1.25 μM
sPAH 10 µM
sPAH 15 µM
1.25 μM + sPAH 15 μM
80
60
40
20
0
**
*
40
30
20
10
0
**
***
*
***
**
J0
J2
*
5
10
0
1.25
5
10
Vemurafenib (µM)
Vemu (µM)
Figure 5. sPAH increases the sensitivity of BRAFV600E melanoma cells to vemurafenib. (
A
) sPAH
increases vemurafenib cytotoxicity in three BRAFV600E melanoma cell lines. Cell viability was measured
after treatment with increasing concentrations of vemurafenib in the presence of DMSO or sPAH in
A375, WM9S, and WM9R cells. Vemurafenib IC50 values calculated in the presence of DMSO or at
various concentrations of sPAH are reported. (
Cell viability was measured after treatment with increasing concentration of sPAH in A375, WM9S,
and WM9R cells. sPAH IC50 values are reported. ( ) sPAH increases vemurafenib effect on cell
B
) sPAH cytotoxicity for BRAFV600E melanoma cells.
C
migration. After wounding, A375 or MW9R cells were treated with vemurafenib, sPAH, or vemurafenib
+ sPAH. Pictures were taken immediately and 48 h after wounding. The width of the wound was
measured using ImageJ software and reported as a percentage of final wound width/initial wound
width. All data presented are the mean
at p < 0.05 (*) (**: p < 0.005, ***: p < 0.0005); ns: no significant difference.
±
SEM of 3 independent experiments. Significance is attained

Cancers 2020, 12, 1500
11 of 28
2.7. sPAH Inhibits Doxorubicin, Vemurafenib and Cholesterol Efflux by Directly Binding to Ptch1
Using microscale thermophoresis (MST), we showed that sPAH binds to membranes prepared from
yeast expressing human Ptch1 with a Kd around 7 M, while sPAH does not bind to membranes prepared
µ
from yeast expressing another human membrane protein, Smoothened (Figure 6A). These results
demonstrate that sPAH directly interacts with Ptch1 and that Ptch1 is the target of sPAH.
A
2
Mb from yeast expressing hPtch1
Mb from control yeast
2
0
0
-2
-4
-2
Kd (sPAH) = 7.2 +/- 2.8 µM
1E-09 1E-08 1E-07 1E-06 1E-05 1E-04 1E-03 1E-02
1E-09 1E-08 1E-07 1E-06 1E-05 1E-04 1E-03 1E-02
sPAH (M)
sPAH (M)
B
C
*
180
160
140
120
100
80
A375
*
300
250
200
150
100
50
**
WM9R
*
*
60
40
20
0
0
Dxr
Dxr +
Vemurafenib
After Bo-Chol
incubation
30 min after changing medium
- PAH +PAH 15µM
Figure 6. sPAH inhibits doxorubicin, vemurafenib and cholesterol efflux by directly binding to Ptch1.
) Direct binding of sPAH to Ptch1. Membranes from yeast expressing hPtch1 or hSmoothened proteins
(A
labeled with tris-NTA-NT647 fluorescent probe were incubated with sPAH and analyzed by microscale
thermophoresis (MST). Kd reported is the mean of the Kd values determined in 3 independent
experiments. (
incubated with BODIPY-cholesterol (Bo-chol) for 2 h. Three coverslips were fixed for Bo-chol loading
control, while the others were incubated with DMSO or sPAH and fixed. ( ) Vemurafenib inhibits
B) sPAH inhibits BODIPY-cholesterol efflux. A375 cells were seeded on coverslips and
C
doxorubicin efflux. A375 and WM9R cells were seeded on coverslips, incubated with dxr in the absence
or the presence of vemurafenib for 1 h and fixed. BODIPY and dxr fluorescence were imaged and
quantified using ImageJ software for about 100 cells per condition per experiment. All data presented
are the mean
±
SEM of 3 independent experiments. Significance is attained at p < 0.05 (*) (**: p < 0.005).
We previously showed that Ptch1 transports cholesterol [22], and subsequently measured the
effect of sPAH on the efflux of BODIPY-cholesterol, a fluorescent derivative of cholesterol, from A375
cells. As shown in Figure 6B, the amount of BODIPY-cholesterol accumulated in cells was drastically
reduced after 30 min of incubation with an efflux buffer, and the presence of sPAH in the efflux buffer
allowed the retention of a significant amount of BODIPY-cholesterol in cells, suggesting that sPAH
inhibited the efflux of cholesterol in A375 cells.
In order to assess if vemurafenib was a substrate of Ptch1, we measured the efflux of dxr from
A375 and WM9R cells in the presence of vemurafenib by fluorescence microscopy. Figure 6C reports the

Cancers 2020, 12, 1500
12 of 28
mean percentage of dxr accumulated in cells in the presence of vemurafenib relative to dxr accumulated
in the absence of vemurafenib. Interestingly, when A375 or WM9R cells were incubated with dxr in
the presence of vemurafenib, we observed that the amount of dxr in cells was significantly increased,
suggesting that vemurafenib competes with dxr in Ptch1 efflux activity and is a substrate of Ptch1.
As Ptch1 cryo-EM structure has been solved, we performed an in silico docking analysis to
visualize the possible binding sites of doxorubicin, vemurafenib, and PAH on Ptch1. Ptch1 structures
harbor several cholesterol binding sites as is the case with the structure 6n7h used for in silico docking
analyses [23], but one is shown on many structures and is also the site of palmitate binding from Shh.
We call it the “central binding cavity”. The docking was performed first on the whole structure, then,
given that the poses with the lowest scores were in the central cholesterol binding cavity, docking was
subsequently performed by targeting this cavity. The analysis was performed on the 10 best poses
of the docking (ranked by score). Because both the amino acids involved in the interaction with the
ligands and the nature of interactions were similar among those poses, only one per ligand is presented
(Figure 7). Among the amino acids surrounding the cholesterol in the central cavity, five are conserved
in proteins from Patched family, of which two have side chains directed toward the cholesterol (Leu427
and Ala497; Figure S3). We also observed that single nucleotide variations in seven of the residues
surrounding the cholesterol are responsible for diseases according to the BioMuta database (Table 3).
Being built between loops, this cavity is flexible and should be able to accommodate many types of
ligands thanks to a large number of aromatic amino acids with polar groups (tyrosines and tryptophans)
and some polar residues among the hydrophobic ones. As shown in Figure 7, the best docking poses
for dxr, vemurafenib, and PAH are superimposed on cholesterol. We observed at least one hydrogen
bond with nearby amino acids for dxr, vemurafenib, and PAH (Leu775 or Asp776), both with the
oxygen of the peptide bond. Interestingly, when Asp776 is mutated to glycine, the probability of a
damaging phenotype is high (with a score of 0.87 according to the BioMuta database) supporting
the importance of this amino acid for Ptch1 function. Another amino acid predicted to interact with
dxr, vemurafenib and PAH is Trp129, either by pi-stacking or hydrophobic interaction. This docking
analysis revealed that PAH engages more specific interactions with the hydroquinone moiety than with
the other half of the molecule which seems to undergo more hydrophobic and less specific interactions.
This is in good agreements with the SAR study showing that hydroquinone moiety is very important
for the inhibition of Ptch1 drug efflux activity.
Table 3. List of amino acids within a radius of 6Å of a ligand in the best docking pose.
Ligand
Amino Acids Involved
V125, E126, L128, W129, *L427*, *L431*, F434, N496, *A497*, A498, T499, V502, *I567*,
*A569*, L570, *F573*, L775, D776, L777, I780, Q794, Y801, F987, Y1013, F1017, W1018,
Q1020, S1079, V1081, F1147, I1148, Y1151, F1152
Cholesterol
N124, V125, L128, W129, F422, T424, *L427*, L431, G774, L775, D776, L777, F1017, W1018,
Dxr
Y1021, S1079
Vemurafenib
PAH
V125, W129, N496, *A497*, A498, *A569*, L775, D776, L777, I780, Y801, Y1013, F1017
V125, W129, F434, N496, *A497*, A498, *A569*, L570, L775, D776, L777, I780, F1017, W1018
Underlined amino acids have side chains orientated toward the cholesterol or interactions, found by PoseView,
with dxr, vemu, and PAH. Amino acids with mutations that result in a damaging phenotype are indicated in
bold, between *asterisks* when conserved in the family, and in italics if common with an amino acid listed for
the cholesterol.

Cancers 2020, 12, 1500
13 of 28
Doxorubicin
Vemurafenib
PAH
Figure 7. Docking of doxorubicin, vemurafenib, and PAH in the human Ptch1 protein. Chain A of pdb
6n7h with cholesterol (magenta) and molecules: doxorubicin (cyan, top), vemurafenib (yellow, middle),
and PAH (blue, bottom) binding in the same binding cavity when docked using Vina. All ligands interact
with similar amino acids (see Table 3). Binding interactions between docked molecules and Ptch1 amino
acids are represented in black dash for H-bonds and green for hydrophobic interaction/pi-stacking.
2.8. sPAH Enhances the In Vivo Effect of Vemurafenib in BRAFV600E Melanoma Cells Xenografted in Mice
Metabolic stability is crucial in drug discovery and development, since it impacts parameters,
such as half-life, which are very important in defining the pharmacological and toxicological profile of
drugs. Therefore, before testing sPAH in mice, we determined the metabolic stability of sPAH in the
presence of mice microsomes and NADPH, and we observed that the half-life of sPAH was only 1 min.
LC–MS/MS analyses showed that sPAH is rapidly oxidized in its quinone form (9; Figure S4), which is
an inactive precursor of sPAH (Figure 3), without further degradation. This indicates that sPAH is a
substrate of cytochrome P450.

Cancers 2020, 12, 1500
14 of 28
As sPAH is rapidly oxidized to an inactive compound by liver microsomes, we had to formulate
it in order to carry out experiments in mice. We used a biocompatible delivery system, i-Particles (iP),
developed by Adjuvatis (Lyon, France) to provide a highly concentrated aqueous and injectable
solution of sPAH and protect it from in vivo oxidation. These fully metabolizable i-Particles
are made of poly(lactic acid). The efficiency of encapsulation of sPAH in i-Particles was high
( 79%), and sPAH-loaded i-Particles produced were extremely reproducible in terms of size and
≥
size homogeneity, with an average diameter of 185 nm as characterized by DLS. iP-sPAH exhibited
low polydispersity and negative zeta potential values whatever the drug loading (from 1 to 9%)
(Figure S5A), and a colloidal stability at +4 ◦C for at least six months (Figure S5B). A formulation of
2.44 mg of encapsulated sPAH/mL (7 mM) was tested on melanoma cells and results show that sPAH
encapsulated in i-Particles (iP-sPAH) was able to increase the cytotoxicity of vemurafenib against
A375 cells in a manner that was comparable to the free sPAH (Figure 8A). As expected, sPAH was not
metabolized by mice microsomes after 60 min indicating that the sPAH in i-Particles is metabolically
stable. Moreover, no behavioral disorders related to product toxicity were observed for 3 days after
intraperitoneal administration of this preparation at doses of 1.33, 4, 13.3, and 40 mg/kg (10 mL/kg)
in mice.
Therefore, we tested the effect of iP-sPAH in association with vemurafenib in athymic mice
xenografted with BRAFV600E A375 melanoma cells. When tumors became detectable, the mice were
randomized in 4 groups and treated intraperitoneally with 4 therapeutic cycles which consisted of
either vemurafenib 8 mg/kg body weight (5
weight (4 L/g) every other day, or a combination of vemurafenib and iP-sPAH. Mice from the control
group were injected with olive oil (5 L/g) 5 days a week plus empty i-Particles 4 L/g every other
µL/g in olive oil) 5 days a week, iP-sPAH 5 mg/kg body
µ
µ
µ
day. Animals were monitored daily for symptoms of disease and tumor size was measured every 3 to
4 days. At day 23 after the start of treatment, when the first tumors reached a longest tumor diameter
of 1.5 cm, the study was terminated, and animals sacrificed. Tumors were excised and subsequently
snap frozen using OCT. Although the dose of vemurafenib chosen causes a slightly too strong effect,
experience showed that the combination with i-Particles containing sPAH reduced tumor size more
significantly (Figure 8B). Remarkably, no obvious signs of undesirable side effects such as weight loss
or abnormal behavior of the animals were observed.
Analyses showed that tumors excised from animals treated with the iP-sPAH + vemurafenib
combination contained significantly fewer proliferative cells (Figure 8C) and more apoptotic cells
(Figure 8D) than tumors excised from animals treated with vemurafenib alone, indicating that sPAH
increased the anti-proliferative and anti-apoptotic effects of vemurafenib.
Moreover, quantification of the vemurafenib contained within the tumors showed that extracts
from all the tumors treated with the combination iP-sPAH + vemurafenib exhibited a vemurafenib
peak area that was greater than 106 units, corresponding to approximately 100 nM, while extracts from
two of seven tumors treated with vemurafenib alone showed a vemurafenib peak area of 2.105 to 4.105
units corresponding to the background signal (Figure 8E).
Furthermore, sterols were extracted from tumor homogenates and analyzed by gas
chromatography and mass spectrometry (GC–MS). Interestingly, this analysis revealed that tumors
treated with iP-sPAH contained significantly more cholesterol than the other tumors (Figure 8F).
This increase in cholesterol suggests that sPAH also inhibited cholesterol efflux in tumors in good
agreements with in vitro observations.
Vemurafenib is known to selectively block the RAF/MEK/ERK pathway in BRAF mutant
cells [24–26]. Since the BRAF/MEK/ERK pathway is linear, it is possible to relate the BRAF activity to
the levels of phosphorylated ERK (pERK) in a Western blot assay. Therefore, we studied the levels
of pERK and ERK in extracts from tumors excised from animals by Western blotting (Figure S6) and,
in line with previous reports, we observed that vemurafenib treatment reduced ERK phosphorylation.
Although the dose of vemurafenib applied causes a slightly too strong effect, this experiment shows that
the addition of iP-sPAH to the vemurafenib treatment reduced ERK phosphorylation more significantly

Cancers 2020, 12, 1500
15 of 28
than vemurafenib alone. This result can be explained by the increased amount of vemurafenib in
tumors, shown in Figure 8E, and is consistent with the increased number of apoptotic cells observed
when iP-sPAH was added to the vemurafenib treatment (Figure 8D).
A
C
B
2500
2000
1500
1000
500
**
40
30
20
10
0
COMBO (Vemu + iP-sPAH)
Vemu (+ empty iP)
iP-sPAH
w/oiP-sPAH
+ 10 µM iP-sPAH
100
80
60
40
20
0
Ctl
ns
*
***
0
0
2.3 4.7 9.4 18.7 37.5 75 150
0
5
10
Days
15
20
25
Vemurafenib (µM)
ns
D
E
F
108
107
106
105
100
80
60
40
20
0
ns
*
50
*
ns
ns
40
30
20
10
0
ns
Figure 8. sPAH enhances the effect of vemurafenib on BRAFV600E melanoma cells xenografted in
mouse. ( ) sPAH encapsulated in i-Particles increases the cytotoxicity of vemurafenib. Cell viability
was measured after treatment with increasing concentrations of vemurafenib with or without iP-sPAH
in A375 cells. ( ) The addition of iP-sPAH to vemurafenib significantly inhibits the growth of tumors.
A
B
Mice were injected subcutaneously with A375 cells and treated with either empty i-Particles (empty
iP) (Ctl), vemurafenib and empty iP, iP-sPAH, or a combination of vemurafenib and iP-sPAH. Tumor
size was measured every 3 to 4 days. At day 23 animals were sacrificed, and tumors were excised and
subsequently snap frozen using OCT. (
the number of proliferative cells in tumors. Tumor sections were submitted to Ki67 immunostaining
for quantification of proliferative cells using fluorescence microscopy and ImageJ software. ( ) The
C) The addition of iP-sPAH to vemurafenib significantly reduced
D
addition of iP-sPAH to vemurafenib significantly increases the number of apoptotic cells in tumors.
Tumor sections were submitted to the colorimetric DeadEND TUNEL System to determine the number
of apoptotic tumor cells in each tumor. (
amount of vemurafenib in tumors. The amount of vemurafenib in each tumor extract was quantified
by mass spectrometry. ( ) iP-sPAH increases the amount of cholesterol in tumors. Sterols were
extracted from tumor homogenates and analyzed by GC–MS. All data presented are the mean SEM
E) The addition of iP-sPAH to vemurafenib increases the
F
±
of 3 independent experiments. Significance is attained at p < 0.05 (*) (**: p < 0.005, ***: p < 0.0005);
ns: no significant difference.
3. Discussion
Cutaneous melanoma is a complex disorder characterized by elevated heterogeneity. It is one of
the most aggressive types of cancer and one of the leading causes of cancer-related mortality due its
metastatic power. Its therapeutic management is a real challenge as it is amongst the solid malignancies
most refractory to conventional cancer therapies [27]. Up to 90% of melanomas exhibit aberrant
MAPK pathway activation that induces cell cycle deregulation and apoptosis inhibition, and marked

Cancers 2020, 12, 1500
16 of 28
improvements in cutaneous melanoma treatment have been achieved by targeting the MAPK signaling
pathway. Improved overall survival outcomes were observed with targeted therapies in patients
with BRAFV600 mutant unresectable stage III or stage IV melanoma. Nearly half of patients with
metastatic melanomas harbor a valine–glutamine substitution in codon 600 of the serine/threonine
kinase BRAF [28]. Vemurafenib, dabrafenib, and encorafenib are BRAF inhibitors (BRAFi) approved
by the US Food and Drug Administration (FDA) to treat patients with BRAFV600E mutated metastatic
melanomas [29]. BRAFi have relatively high response rates; however, patients almost invariably
develop disease progression after about 5 months. The addition of a MEK inhibitor to BRAFi extends
the median duration of response from 5.6 months to 9.5 months [30
,31]. However, some patients
develop resistance to BRAF ( MEK) inhibitors [31 32]. Both intrinsic and acquired resistances can
±
,
be driven by genetic and epigenetic alterations that drive gene expression changes and intratumor
heterogeneity which, in turn, enable tumor regrowth and disease relapse [33]. Although significant
progress has been made in therapeutic approaches, cutaneous melanoma still represents a major
problem worldwide due to its high incidence and the lack of a curative treatment for advanced stages.
The discovery of therapeutic compounds for treating advanced melanomas that are resistant to existing
therapies is paramount to further improve patient outcomes.
Amongst the mechanisms used by cancer cells to become resistant to treatment, multidrug
resistance (MDR) has been intensively studied [34]. A key mechanism underlying MDR is
overexpression of ATP-binding cassette (ABC) transporters [35]. However, we recently discovered that
the Hedgehog receptor Ptch1, which is overexpressed in many cancers, also pumps chemotherapeutic
agents such as doxorubicin out of cancer cell lines that were derived from melanoma and adrenocortical
carcinoma (ACC), thereby conferring resistance to chemotherapy [11,16].
In the present study, we report that Ptch1 is strongly expressed in primary and metastatic specimens
from a cohort of 471 cutaneous melanoma patients from The Cancer Genome Atlas (TCGA), and that a
high expression level of Ptch1 in patient-derived metastatic samples significantly correlated with a
lower overall survival time (Figure 1A). Ptch1 is endogenously expressed in various melanoma cell lines,
and we found that decreased Ptch1 expression strongly inhibited the efflux of doxorubicin, indicating
that Ptch1 is involved in doxorubicin efflux in melanoma cells with or without the BRAF mutation
(Figure 1C). Interestingly, we observed that the presence of the BRAFV600E inhibitor, vemurafenib,
strongly inhibited the accumulation of doxorubicin in melanoma cells, and in silico docking studies
suggested that doxorubicin and vemurafenib bind to Ptch1 at the cholesterol binding site (Figure 7).
These observations suggest that vemurafenib could also be transported by Ptch1 and that Ptch1 could
contribute to melanoma cell resistance to vemurafenib, and also that the drugs are exported through
the same mechanism as cholesterol.
In a previous study, we identified panicein A hydroquinone (PAH) as an inhibitor of the doxorubicin
efflux activity of Ptch1 [15]. Due to the limited availability of PAH that is naturally produced by marine
sponges, production of synthetic PAH was necessary. To the best of our knowledge, PAH synthesis
has not previously been reported; thus, we carried out the first chemical synthesis of PAH in order
to further characterize its activity in vitro and in vivo. While natural PAH is exclusively observed in
the E configuration, the chemical synthesis led to a mixture of E and Z stereoisomers that could not
be separated. However, the mixture of both stereoisomers proved to be as effective as the natural
compound in increasing the cytotoxicity of doxorubicin and inhibiting its efflux in melanoma cells
(Figure 2 and Table 2). This suggests that the configuration of the double bond does not have a
strong influence on the activity. As revealed by the energy minimization study, this may be due to its
sufficiently flexible backbone that allows both stereoisomers to superimpose for a large part of the
structure of the molecule, coming into proximity with the functional group in such a way that the same
interactions can be considered. However, the hydrogenated form of PAH (13) showed a significant
loss of activity, indicating that too much flexibility is detrimental. More interestingly, the absence of
compound 8 activity highlights the importance of the hydroxyl function of the hydroquinone. This data
is perfectly in accordance with the docking study where this function is engaged in a hydrogen bond

Cancers 2020, 12, 1500
17 of 28
with Leu775, which could be a key interaction for the activity. This is also confirmed by the fact that the
quinone form of PAH (9) is not active, maybe due to the inability to interact as a hydrogen bond donor.
Experiments carried out in embryonated eggs have shown that this synthetic PAH mixture (sPAH)
is not toxic to the chicken embryos and, when added in combination with doxorubicin, can inhibit
melanoma growth more effectively than doxorubicin alone (Figure 4), which is a very encouraging
in vivo proof of concept.
We also observed that sPAH was able to increase the cytotoxicity of cisplatin, another
chemotherapeutic agent that we previously identified as a substrate of Ptch1 [16], against melanoma
cells in vitro (Figure S2). We then wanted to know if sPAH could also enhance the efficiency of targeted
chemotherapy such as vemurafenib against BRAFV600E melanoma cells, and found that sPAH strongly
increased the cytotoxicity of vemurafenib, even in resistant BRAFV600E melanoma cells (Figure 5).
We observed that sPAH itself is slightly cytotoxic for melanoma cells; however, the concentration of
sPAH used was not sufficient to explain the strong increase of vemurafenib cytotoxicity induced by
sPAH, implying that the combination vemurafenib/sPAH is synergistic, as is the case for combinations
of sPAH with doxorubicin or cisplatin. Moreover, wound-healing assays showed that addition of
sPAH to vemurafenib significantly reduced the reclosure of wounds compared to vemurafenib alone
(Figure 5), suggesting that a sPAH/vemurafenib combination could be more effective against the
migration of BRAFV600E melanoma cells than vemurafenib alone.
A microscale thermophoresis study allowed us to demonstrate the direct binding of sPAH to
Ptch1, and in silico docking of PAH with the Ptch1 structure revealed that the best poses of PAH are
located in the cholesterol central binding cavity, where vemurafenib and doxorubicin also present the
best docking score (Figures 6 and 7).
Altogether, our in vitro results suggest that sPAH increases doxorubicin and vemurafenib efficacy
by binding to the same pocket as these chemotherapeutic agents on Ptch1 and inhibiting their efflux by
Ptch1. The fact that sPAH also inhibited cholesterol efflux strengthens this interpretation.
Before testing sPAH in mice, we studied its metabolic stability and found that sPAH is very rapidly
oxidized on contact with mice liver microsomes. The resulting quinone derivative is unfortunately
inactive (Figure 3, Figures S1 and S4). Therefore, we decided to encapsulate sPAH in particles
made of poly(lactic acid) (iP-sPAH). This delivery system is highly effective in protecting sPAH from
metabolic degradation and iP-sPAH proved to be as active as free sPAH in increasing the cytotoxicity of
vemurafenib in vitro (Figure 8A). Moreover, experiments performed on mice have shown that iP-sPAH
is well tolerated up to high doses by these animals. Based on these results, we subsequently tested
the effect of the iP-sPAH/vemurafenib combination on melanoma xenografts in mice. We injected
immune-compromised mice with BRAFV600E A375 melanoma, which is a cell line typically used as
a model of xenograft melanoma for testing novel anti-melanoma compounds [36,37]. Experiments
performed on these mice showed that the addition of iP-sPAH to the vemurafenib treatment inhibited
tumor growth more significantly than vemurafenib alone (Figure 8B). This was accompanied by a
decrease in proliferation and an increase in apoptosis of tumor cells, indicating that the treatment
is more cytotoxic against melanoma cells, which is supported by the in vitro results. In melanoma
cells, BRAFV600E causes constitutive activation of the BRAF tyrosine kinase, which phosphorylates and
activates the MEK1/2 dual kinase, which in turn phosphorylates and activates its only target, the receptor
tyrosine kinase ERK1/2. Vemurafenib inhibits BRAF activation and ERK1/2 phosphorylation [20,24,26].
Analyses of tumor extracts revealed that the addition of iP-sPAH to vemurafenib treatment more
significantly inhibited the phosphorylation of ERK1/2 than vemurafenib alone, indicating an increase
in the effectiveness of vemurafenib. This effect was due to the increased concentration of vemurafenib
in tumors (Figure 8E). Indeed, in the absence of iP-sPAH, we found that some tumors contained little
vemurafenib, suggesting that these tumors contained cells that were able to efflux vemurafenib. In the
presence of iP-sPAH, all tumors accumulated sufficient vemurafenib to inhibit BRAF and to induce
cell apoptosis. All these results strongly suggest that iP-sPAH inhibited the efflux of vemurafenib in

Cancers 2020, 12, 1500
18 of 28
melanoma xenografts. Notably, these effects were achieved without obvious undesirable side effects
for mice.
We noticed that iP-sPAH alone induced an insignificant decrease in tumor growth (Figure 8B).
Given that sPAH inhibited the cholesterol efflux activity of Ptch1 on A375 cells in vitro (Figure 6),
we wondered if this effect was not due to an increase of cholesterol in melanoma cells. We therefore
quantified the amount of cholesterol in tumor extracts and, indeed, found that tumors treated with
iP-sPAH contained significantly more cholesterol than other tumors (Figure 8F), indicating that sPAH
inhibited cholesterol efflux mediated by Ptch1 in this system. Previous studies have shown that
cholesterol synthesis increases in cancer cells, which helps cancer cell proliferation [38]. However,
Lim and co-workers reported, in 2014, that addition of cholesterol to culture medium led to markedly
reduced viability of stomach cancer cells [39]. Indeed, in healthy cells, accumulation of free cholesterol
has been shown to induce many mechanisms of cellular toxicity, including disrupted function of the
integral membrane proteins and signaling proteins that reside in membrane domains, intracellular
cholesterol crystallization, oxysterol formation, and the triggering of apoptotic signaling pathways [40].
Thus, we cannot exclude that the increase in cholesterol accumulation caused by the inhibition of
Ptch1 cholesterol efflux by sPAH also contributes to toxicity in melanoma cells. In such a hypothesis,
the inhibition of Ptch1 efflux activity by sPAH would have dual benefits: to keep the intracellular
antineoplastic concentration high and to specifically increase the intracellular cholesterol concentration
in cancer cells.
Our data provide strong evidence that PAH is a highly promising lead for the treatment of
vemurafenib resistant BRAFV600E melanoma. However, one of the key pharmacophores of sPAH is not
stable under biological conditions in living animals and, therefore, in human, since the hydroquinone is
metabolized in the inactive quinone form. As the rest of the scaffold is stable and no other modifications
have been observed in metabolic experiments, we first plan to replace the hydroquinone part by
another group, mainly aromatic, with substitutes that maintain the hydrogen bond interactions.
In parallel, an in-depth SAR study will be conducted on other parts of PAH, in particular, on the
methoxytrimethylphenyl part, to optimize the activity.
4. Materials and Methods
4.1. Chemical and Biological Material
Reagents and solvents were purchased from Merck and Carlo Erba Reagents and used without
further purification. All reactions involving air- or moisture-sensitive reagents or intermediates were
performed under an argon atmosphere. Flash column chromatography was carried out on silica gel
columns (Interchim Puriflash silica HP 15 µm) on a Puriflash XS420 system (Interchim). Analytical
thin-layer chromatography (TLC) was conducted on Sigma Aldrich precoated silica gel and compounds
were visualized by irradiation (254 nm) and/or by staining with ninhydrin and phosphomolybdic acid.
1H and 13C NMR spectra were recorded on a Bruker AC 200 MHz or a Bruker AC 400 MHz spectrometer.
Chemical shifts are reported in parts per million (ppm,
δ
) referenced to the residual 1H resonance
2.50). Doxorubicin hydrochloride and
of the solvent (CDCl3, 7.26; CD3OD 3.31; DMSO-d6 δ
δ
δ
vemurafenib were purchased from Sigma-Aldrich and Selleckchem, respectively. BODIPY-cholesterol
was purchased from Avanti (Topfluor, Avanti). Empty i-Particles® made of poly(d,l-lactic acid) only
were purchased from Adjuvatis (Lyon, France).
Human melanoma cell lines A375 and MeWo were purchased from ATCC, and cultured in DMEM
medium supplemented with 10% fetal bovine serum and penicillin/streptomycin (Invitrogen) at 37
◦C in a 5% CO2/95% water-saturated air atmosphere. Melanoma cell lines SKMEL 28, SKMEL V3,
WM9S, and WM9R were provided by Robert Ballotti (C3M, Nice, France). MeWo-dxrR cells were
obtained by adding increasing concentrations of doxorubicin, up to 0.2
over 6 months. These cells were grown in medium supplemented with 0.2
obtained by adding increasing concentrations of vemurafenib, up to 5
µ
M, in the culture medium
M dxr. WM9R cells were
M, in the culture medium
µ
µ

Cancers 2020, 12, 1500
19 of 28
over 6 months. These cells were grown in medium supplemented with 5
µM vemurafenib. HEK cells
were grown in 75 mm tissue culture dishes (Falcon, Franklin Lakes, NJ, USA) in Dulbecco’s modified
Eagle’s medium (Gibco, Life Technologies, Saint Aubin, France) supplemented with 10% fetal calf
serum (Hyclone, Thermo Fisher Scientific GMBH, Ulm, Germany) and 1% penicillin/streptomycin
(Gibco, Life Technologies, Saint Aubin, France) in a humidified incubator at 37 ◦C (5% CO2).
4.2. Chemical Synthesis of Panicein A Hydroquinone and Analogues
The first steps of the synthesis were conducted as reported [18] with minor modifications, as
described in Supplementary Material.
Panicein A hydroquinone (10): A solvent mixture of acetone and water in a ratio of 1:1 was
prepared. Panicein A (20 mg) was dissolved in 0.3 mL solvent. A suspension of Na2S2O5 (3 eq) in water
(0.1 mL) was added dropwise to the starting material. The reaction was stirred at room temperature for
6 h max (see TLC). An extraction with ethyl acetate followed. The organic fractions were washed with
saturated NaCl (aq.) solution, dried over Na2SO4, and evaporated. The crude residue was purified
by flash chromatography on silica gel using a gradient of PE/EA (5:1) as the eluent to give 10 as a
white solid. Yield = 86%. Rf = 0.105 (Cy/EA 5:1). 1H NMR (400 MHz, CDCl3)
δ 6.68 (m, 1H), 6.62–6.47
(m, 3H), 5.34 (m, 1H), 3.80 (s, 3H), 3.34 (d, J = 7.1 Hz) and 3.25 (d, J = 7.1 Hz) (1H, E and Z), 2.78–2.66
(m, 2H), 2.35 (s) and 2.32 (s) (3H, E and Z), 2.26 (s) and 2.22 (s) (3H E and Z), 2.20–2.15 (m, 2H), 2.19 (s)
and 2.15 (s) (3H, E and Z), 1.81 (s) and 1.78 (s) (3H, E and Z).13C NMR (101 MHz, CDCl3) δ 155.5, 155.4,
149.6, 149.5, 148.2, 148.1, 138.6, 138.2, 136.1, 136.1, 133.9, 133.8, 131.0, 131.0, 128.4, 123.1, 123.0, 122.6,
121.6, 116.7, 116.7, 116.6, 116.5, 113.9, 113.8, 110.7, 110.6, 55.8, 55.8, 39.7, 32.2, 31.0, 29.5, 29.3, 28.9, 28.2,
23.7, 20.6, 20.5, 16.6, 15.9, 15.9, 12.1. ESI: m/z 341.4 (M + H)+ (theoretical 341.2).
Compound 11: Compound
8 was dissolved in ethyl acetate (10 mL solvent for 1 mmol of starting
material). Around 1–2 mol% Pd/C (10 mol%) was added, and the reaction mixture was stirred overnight
under hydrogen atmosphere. The crude residue was purified by flash chromatography on silica gel
using a gradient of PE/EA (5:1) as the eluent to give 11 as a white solid. Yield = 96%. Rf = 0.36
(Cy/EA 5:1). 1H NMR (400 MHz, CDCl3)
(m, 4H), 2.23 (s, 3H), 2.14 (s, 3H), 2.06 (s, 3H), 1.70–1.49 (m, 2H), 1.49–1.35 (m, 2H), 1.22 (m, 1H),
0.99 (d, J = 6.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) 155.3, 153.9, 147.6, 135.9, 133.5, 131.9, 130.3,
δ 6.65–6.46 (m, 4H), 3.70 (s, 3H), 3.67 (s, 3H), 2.68–2.36
δ
122.9, 116.0, 115.9, 111.7, 110.5, 55.9, 55.7, 37.1, 36.8, 33.7, 28.1, 27.3, 20.5, 19.7, 15.8, 12.1. ESI: m/z 357.1
(M + H)+ (theoretical 357.2).
Compound 12: A solvent mixture of acetonitrile and water in ration of 2:1 was prepared. Around
◦
100 mg of 11 was dissolved in 2 mL of solvent and cooled to 0 C. Under stirring, CAN (2.2 eq)
dissolved in 4 mL solvent was added dropwise to the mixture. The mixture was stirred for maximum
4h. The reaction was extracted with ethyl acetate and the crude residue was purified by flash
chromatography on silica gel using a gradient of PE/EA (15:1) as the eluent to give 12 as an orange solid.
Yield = 79%. 1H NMR (400 MHz, CDCl3)
δ 6.80–6.68 (m, 2H), 6.60–6.53 (m, 2H), 3.79 (s, 3H), 2.76–2.38
(m, 4H), 2.31 (s, 3H), 2.22 (s, 3H), 2.15 (s, 3H), 1.66–1.54 (m, 2H), 1.53–1.37 (m, 3H), 1.07 (d, J = 6.3 Hz,
3H, 9-H). ESI: m/z 341.5 (M + H)+ (theoretical 341.2).
Compound 13: Compound 10 was dissolved in ethyl acetate (for 1 mmol of starting material
10 mL solvent). Around 1–2 mol% Pd/C (10 mol%) was added, and the reaction mixture was stirred
overnight under hydrogen atmosphere. The crude residue was purified by flash chromatography
on silica gel using a gradient of PE/EA (5:1) as the eluent to give 13 as light yellow oil. Yield = 97%.
1H NMR (200 MHz, CDCl3)
2.07 (s, 3H), 1.76–1.07 (m, 5H), 0.99 (d, J = 6.0 Hz, 3H). 13C NMR (50 MHz, CDCl3)
δ
6.61–6.36 (m, 4H), 3.69 (s, 3H), 2.65–2.45 (m, 4H), 2.23 (s, 3H), 2.14 (s, 3H),
155.3, 149.5, 147.5,
δ
135.9, 133.6, 131.9, 130.4, 122.9, 116.9, 116.2, 113.4, 110.5, 55.8, 37.0, 36.8, 33.6, 27.8, 27.2, 20.5, 19.7, 15.9,
12.1. ESI: m/z 343.6 (M + H)+ (theoretical 343.2).

Cancers 2020, 12, 1500
20 of 28
4.3. Alignment of E and Z Stereoisomers of PAH
The RDKit Open-Source Cheminformatics Software [41] was used to generate up to 100 conformers
for each molecule by using the e-LEA3D web server (https://chemoinfo.ipmc.cnrs.fr). This resulted in
60 and 62 conformers for PAH E and Z, respectively. The shape-based alignment program SENSAAS
(https://arxiv.org/abs/1908.11267) was used to align and compare the two ensembles of conformers.
The alignment with the best shape score (gfit = 0.761) is displayed in Figure 2B. A gfit score ranges
from 0 (dissimilar) to 1 (perfect similarity).
4.4. TCGA Data Analysis
Normalized gene expression data and matching clinical information for cutaneous melanoma
(SKCM) tumors were downloaded from TCGA using the R package curatedTCGAData, then separated
into primary tumor samples (n = 103) and metastatic tumor samples (n = 368). Gene expression
data was transformed into log2 scale prior to analysis. A count of 1 was added to all expression
values to avoid zeros prior to transformation. BRAFV600 mutation status was downloaded using the R
package GenomicDataCommons (MuTect2 Variant Aggregation and Masking workflow). Survival
data was further processed as described in [42]. Statistical significance of the differences in gene
expression distribution was performed using the Wilcoxon rank sum test. A Kaplan–Meier analysis
was performed using the R package rms (Harrel). Optimal cut-offs were determined using positional
scanning [43].
4.5. Ptch1 Knock-Down
MeWo cells were transfected with 400 pmol of human Ptch1 Silencer® Select pre-designed siRNA
(Ambion, #4392420, s11441 (sense: 50GCACUUACUUUACGACCUAtt30; as: 50UAGGUCGUAAAGU
AAGUGCtg30) or control (medium GC) siRNA oligos (Invitrogen) using Lipofectamine RNAiMAX
reagent (Invitrogen) following the manufacturer’s protocol, then seeded in 24-well plates and incubated
at 37 ◦C and 5% CO2 for 16 h before Western blotting and dxr efflux measurements.
4.6. Cytotoxicity Assays
Cells were seeded in 96-well plates in triplicate and grown in medium to achieve 70 to 80%
confluence. Medium was then removed and replaced with 100
PAH or DMSO as a control. After 2 h, 100 L of complete medium containing serial dilutions of dxr,
cisplatin or vemurafenib were added. Plates were incubated at 37 ◦C and 5% CO2. After 24 or 48 h,
cells were incubated for 3 h at 37 ◦C with 100
L/well neutral red (NR) solution (50 g/mL in medium)
µL/well of complete medium containing
µ
µ
µ
following the manufacturer’s protocol. Measurements were made in microplate readers (Multiskan
Go Microplate Spectrophotometer from Thermo Scientific). IC50 was defined as the concentration that
resulted in a 50% decrease in the number of live cells, and IC50 values were calculated using GraphPad
Prism 6 software.
4.7. Wound-Healing Assay
Once cells were confluent in 24-well plates, a wound was created using a p200 tip. Two pictures
were taken at two different points of each well immediately after wounding, and 48 h after wounding.
Images were taken with Leica DM IRB (5 ). The width of the wound was measured using ImageJ
×
software and reported as percentage final wound width/initial wound width.
4.8. Efflux Measurements
Dxr efflux measurements were carried out as previously described [16]. Cells were seeded on
coverslips in 24-well plates and allowed to grow to 80% confluence. Coverslips were incubated at
37 ◦C and 5% CO2 with 10
µM dxr in physiological buffer (140 mM NaCl, 5 mM KCl, 1 mM CaCl2,
1 mM MgSO4, 5 mM glucose, 20 mM HEPES, pH 7.4). After 2 h, three coverslips were immediately

Cancers 2020, 12, 1500
21 of 28
fixed with 4% PFA for the dxr loading control, rapidly washed with PBS and mounted in SlowFade
Gold antifade reagent with DAPI (Invitrogen). The other coverslips (triplicated per condition) were
incubated with physiological buffer supplemented with DMSO or 10 µM of PAH under gentle shaking
at room temperature and protected from light. After 30 min, coverslips were fixed with 4% PFA,
washed, and mounted as described above. For competition on dxr loading, A375 and WM9R cells
seeded on coverslips were incubated for 1 h at 37 ◦C and 5% CO2 with 10
µ
M dxr in physiological
M vemurafenib. Images were acquired with a Zeiss
Axioplan 2 fluorescence microscope coupled to a digital charge-coupled device camera using a 40 /1.3
buffer in the presence or the absence of 100
µ
×
Plan NeoFluar objective and filters for Alexa 594. Dxr fluorescence was quantified using ImageJ
software. Sampling of cells was performed randomly. About 100 cells (from three wells) were scored
per condition per experiment.
Cholesterol efflux measurements were carried out as described for dxr efflux except that cells
were incubated with 10 µM BODIPY-cholesterol, a fluorescent derivative of cholesterol, and images
were acquired using a 40×/1.3 Plan NeoFluar objective and filters for FITC.
4.9. Microscale Thermophoresis
Microscale thermophoresis (MST) is a biophysical technique that measures the strength of the
interaction between two molecules by detecting a variation in the fluorescence signal of a fluorescently
labeled target as a result of an IR-laser induced temperature change. The range of the variation in the
fluorescence signal correlates with the binding of a ligand to the fluorescent target.
Membranes from yeast expressing human Ptch1 or human Smoothened were incubated at
30 µg/mL with 20 nM of the fluorescent dye NT-647 2nd gen (NanoTemper Technologies, München,
Germany) to label the His-tag present at the c-terminus of both proteins. In this MST experiment,
we kept the concentration of labeled membranes constant, while the concentration of non-labeled
sPAH was varied between 250
µM and 15 nM. The assay was performed in PBS containing 0.5%
DMSO. After a short incubation, the samples were loaded into Monolith
™
NT.115 standard treated
capillaries from NanoTemper Technologies and the MST analysis was performed using the NanoTemper
Technologies Monolith NT.115 (LED: 30%; MST: medium). The fluorescence within the capillary
is excited and detected through the same objective. A focused infrared laser is used to locally
heat a defined sample volume. The MST response of fluorescent proteins within the temperature
gradient is detected. After activation of the IR laser, a decrease in fluorescence is observed which
corresponds to temperature-related intensity change (TRIC) triggered by the fast temperature change
and thermophoretic movement of the fluorescent proteins out of the heated sample volume. The MST
signal of fluorescent proteins changes or not upon binding to sPAH resulting in different MST traces.
For analysis, the change in MST signal is expressed as the change in the normalized fluorescence
(Fnorm), which is defined as F1/F0. Titration of sPAH results in a gradual change in MST signal, which
is plotted as Fnorm against the sPAH concentration to yield a dose–response curve, which has been
fitted to derive binding constants (Kd). The sPAH Kd was determined for 3 independent experiments.
4.10. In Silico Docking
Docking of vemurafenib, doxorubicin, and PAH on Ptch1 structure were performed using Vina
toolkit [44] in USCF Chimera [45]. The structure of Ptch1 was obtained from RCSB Protein Data
Bank (PDB ID: 6N7H, chain A) [23] and prepared using USCF Chimera Predock Toolkit. For the
missing side chains, the Dunbrack rotamer 2010 library [46] was used and charges were assigned
with ANTECHAMBER Amber ff14SB force field [47]. The docking was first done on the whole
protein structure. Observing that the poses with lowest scores were in the previously predicted
biologically relevant binding sites for cholesterol, docking was then performed by targeting the central
cholesterol cavity.
The analysis was performed on the 10 best poses of the docking (ranked by score). Every
interaction was compared to the cholesterol equivalents. Amino acids within a radius of 6 Å from

Cancers 2020, 12, 1500
22 of 28
the cholesterol were selected and listed in Table 2. We highlighted amino acid mutations due to
single nucleotide variation associated to disease (with a probability above 0.8) which were reported in
BioMuta database [48].
For the docked ligands, interactions were further analyzed using PoseView [49], a function of
the ProteinsPlus web server [50]. In order to assess conserved amino acids among the proteins from
Patched family, sequence alignment of Patched family members was performed on 30 sequences using
T-COFFEE server for transmembrane proteins [51].
4.11. Quantification of Metabolic Stability
A 10 µL aliquot of the sPAH stock solution (10 mM in DMSO) was diluted in 990 µL of a mixture
of acetonitrile and water. This solution was then diluted 100-fold in phosphate buffer containing mice
liver microsomes (0.5 mg/mL), 1 mM NADPH, and 3 mM MgCl2, and incubated at 37 ◦C. After 2, 10,
20, 40, and 60 min, 70 µL aliquots were collected and mixed with 70 µ
L acetonitrile at 0 ◦C. Equivalent
experiments were performed without NADPH in order to identify chemical instability or enzymatic
process not depending on NADPH, and with testosterone as a positive control. The enzymatic reaction
was stopped by addition of acetonitrile. Samples were analyzed by LC–MS/MS on an UHPLC LC–MS
8030 (Shimazu, Kyoto, Japan).
For metabolite identification, 50
NADPH. Two samples were prepared: one in which acetonitrile was added immediately (t0) and one
in which acetonitrile was added after 30 min. After centrifugation for 5 min at 15,000 g, 2 samples
µM of sPAH were incubated with mice liver microsomes and
×
of each supernatant were analyzed by LC–MS/MS on a LC–MS 8030 (Shimazu, Kyoto, Japan) and
detected by selected ion monitoring (SIM).
4.12. sPAH Toxicity on Chick Embryos
These experiments were performed by the company INOVOTION (La Tronche, France). Fertilized
White Leghorn eggs were incubated at 37.5 ◦C with 50% relative humidity for 9 days. At this time (E9),
an access point to the chorioallantoic membrane (CAM) was made by drilling a small hole through the
eggshell into the air sac and a 1 cm2 window was cut in the eggshell above the CAM. Twenty-one eggs
were used for each condition. Because of some instances of early death just after the opening of the
shell (surgical act), data could be collected in fewer than 21 eggs per group. MeWo cells cultivated in
DMEM medium with 10% FBS (and 1% penicillin/streptomycin) were detached with trypsin, washed
with complete medium, labeled, and suspended in PBS. An inoculum of 3
the CAM of each egg (E9). Eggs were then randomized in 4 groups. The chick embryos were then
treated every two days (E11, E13, E15, E17) for 10 days in total, by adding 100 L of vehicle (1% DMSO
in PBS) as a negative control or 100 L of sPAH at 3 different doses onto the CAM. The number of dead
×
106 cells was added onto
µ
µ
embryos evaluates the toxicity after 10 days of the treatment, as does the observation of 22 abnormality
checkpoints in surviving embryos.
4.13. Effect of sPAH and Doxorubicin on Melanoma Cells Grafted in Chick Eggs
These experiments were performed by the company INOVOTION (La Tronche, France). Fertilized
White Leghorn eggs were randomized in 4 groups 9 days after inoculation of 3.106 MeWo cells onto
the CAM of each egg. At day 10 (E10), tumors began to be detectable and they were treated by adding
100 µL of vehicle (1.2% DMSO in PBS), doxorubicin, and sPAH alone or with doxorubicin. Eggs were
treated every two days (E10, E12, E14, E16, E18) for 10 days in the same way. At day 19 (E19), the upper
portion of the CAM was removed, washed in PBS, and directly transferred in PFA for 48 h, and the
tumors were then carefully cut away from normal CAM tissue. Tumors were weighed, and one-way
ANOVA analysis with post-tests was performed on these data.

Cancers 2020, 12, 1500
23 of 28
4.14. Preparation and Characterization of i-Particles Loaded with sPAH
iP-sPAH synthesis was custom-developed by Adjuvatis (Lyon, France) based on i-Particles®
preparation by nanoprecipitation method [52], using poly(d,l-lactic acid) (PLA) as polymer.
No surfactant or stabilizer was required to stabilize the colloid solution. The resulted 180 nm
size iP-sPAH were precisely characterized for their physicochemical parameters (hydrodynamic
diameter, size distribution, and zeta potential), using a zetasizer NanoZS from Malvern-Panalytical
(UK) and after high dilution in 0.22
entrapment efficiency (%EE) within i-Particles were also precisely quantified by fluorimetry after PLA
and sPAH solubilization in acetonitrile, using a standard curve of sPAH ranging from 5 to 55 g/mL
µm-filtered 1 mM NaCl solution. sPAH loading (%DL) and
µ
in the same solvent. The measurements were made using a fluorimeter equipped with a 96-well
microplate reader (infinite M1000, Tecan, Mannedorf, Switzerland) and black microplates (Greiner
Bio-One, Courtaboeuf, FranceCity) at 288 nm excitation and 324 nm emission. The DL and EE were
calculated by following equations:
encapsulated mass of PAH
total mass of the particles
DL (%) =
× 100
encapsulated mass of PAH
total mass of PAH in the formulation
E (%) =
× 100
4.15. Evaluation of the Toxicity of sPAH in Mice
sPAH encapsulated in i-Particles was diluted in saline solution and injected intraperitoneally
at 40, 13.3, 4, and 1.33 mg/kg (10 mL/kg) in Swiss (CD-1) mice (2 mice per dose). Monitoring and
evaluation of toxicity was carried out for 72 h based on the behavioral signs and appearance of the
animals. All experiments were carried out following protocols approved by the ethics committee from
the University of Strasbourg (APAFIS#3671-2016012012046243) and in accordance with the council of
the European communities’ guidelines for animal studies (86/609/CEE).
4.16. Melanoma Xenograft Study in Mice
Forty-eight male athymic Nu/NU NMRI mice (4–5 weeks) were purchased from Charles River and
housed under pathogen-free conditions. A 200
were injected subcutaneously per mouse. Tumor-bearing mice were treated with 4 therapeutic cycles,
which consisted of either vemurafenib (8 mg/kg body weight (5 L/g in olive oil) intraperitoneally
5 days a week) plus empty i-Particles (lot 180509-DF-CP02, 4 µL/g intraperitoneally every other day),
iP-sPAH (Lot: 180821-DF-PAH, 5 mg/kg body weight (4 L/g) intraperitoneally every other day), or a
µ
L aliquot of 3 Millions A375 BRAFV600E melanoma cells
µ
µ
combination of vemurafenib and iP-sPAH (vemurafenib 8 mg/kg body weight intraperitoneally every
other day plus iP-sPAH 5 mg/kg body weight intraperitoneally 5 days a week). Mice from the control
group were injected with olive oil (5
µL/g) intraperitoneally 5 days a week plus empty i-Particles
(lot 180509-DF-CP02, 4 L/g) intraperitoneally every other day. Animals were monitored daily for
µ
symptoms of disease (weight loss >20%, ruffled coat, hunched back, weakness, reduced motility)
and tumor sizes were measured every 3 to 4 days. At day 23 after the start of treatment, when the
first tumors reached the longest tumor diameter of 1.5 cm, the study was terminated, and animals
sacrificed. Tumors were excised and subsequently snap frozen in isopentane using OCT (optimal
cutting temperature) compound. This study was conducted in agreement with the French Guidelines
for animal handling and approved by local ethics committee (APAFIS#18382-201901081114131v3),
and in accordance with the council of the European communities’ guidelines for animal studies.
A part of each tumor was cut in 8 µm thick tissue sections using a microtome-cryostat for
quantification of the number of apoptotic tumor cells and of proliferative cells performed using the
colorimetric DeadEND TUNEL System (Promega, Mannheim, Germany) and immunofluorescence
analysis of Ki67 (BD pharmigen 556003), respectively. OCT was removed from the remainder of each

Cancers 2020, 12, 1500
24 of 28
tumor, and tumors were crushed in 50 mM Tris-HCl pH 6.8, 10% glycerol, and 2% SDS), heated at
95 ◦C, and sonicated for Western blot analyses as well as vemurafenib and cholesterol quantification.
Protein concentration in each homogenate was evaluated using a Bio-Rad protein assay based on the
Bradford dye-binding method.
4.17. Quantification of Vemurafenib in Tumors
Metabolites were extracted from tumor homogenates using methanol and resuspended in 40%
acetonitrile before mass spectrometry analysis. Briefly, the metabolites were separated with UPLC
system (ThermoFisher, Illkirch, France on a C18 column in an appropriate gradient. Mass spectrometry
data were acquired with a Q-Exactive plus mass spectrometer (ThermoFisher) operating in Parallel
Reaction Monitoring (PRM) mode. Finally, vemurafenib was identified using Xcalibur Quan-Browser
software version 4.1.31.9 (ThermoFisher).
4.18. Quantification of Cholesterol in Tumors
Total lipids were extracted from the tumor homogenates according to the method developed by
Folch [53]. The total lipids were submitted to alkaline hydrolysis in 5 mL of 0.35 M KOH for 2 h at
ambient temperature. The solution was neutralized with 65
extracted with 9 mL chloroform in the presence of 3 mL 0.9% sodium chloride. The organic phase was
removed, and the solvent was evaporated to dryness. For the quantification of sterols, 5 -cholestane
was added as an internal standard. The samples were derivatized to trimethylsilyl ethers by heating at
60 ◦C for 30 min after the addition of 100
L of pyridine and 100 L of BSTFA (Supelco, Bellafonte, PA,
USA). The derivatives were analyzed on a gas chromatograph coupled to a flame ionization detector
µL of phosphoric acid, and the sterols were
α
µ
µ
(GC–FID Hewlett-Packard HP5890A). A 1 µL aliquot was introduced by automated injection in splitless
mode at 290 ◦C on a DB-5MS fused silica capillary column (30 m × 0.25 mm id, 0.25
µm film thickness;
J&W Scientific, Agilent Technologies, Massy, France). The initial oven temperature was kept at 60 ◦C
for 1 min, then increased at a rate of 20 ◦C/min to 290 ◦C, and then 2 ◦C/min to a final temperature of
300 ◦C.
4.19. SDS-PAGE and Western Blotting
Total RIPA extracts from cells or tumor homogenates were prepared. Protein concentrations were
determined by the DC Protein Assay (Bio-Rad, Marnes-la-Coquette, France). Samples (50 to 80 µg)
were separated on SDS-PAGE and transferred to nitrocellulose membranes (Amersham, Bath, UK)
using standard techniques. After 1 h at room temperature in blocking buffer (20 mmol/L Tris-HCl pH
7.5, 45 mmol/L NaCl, 0.1% Tween-20, and 5% non-fat milk), nitrocellulose membranes were incubated
overnight at 4 ◦C with rabbit anti-Patched antibody (Abcam ab53715; 1/1000), rabbit anti-Phospho-Erk1/2
antibody (Cell Signaling Technology (Leiden, The Netherlands); 1/1000), rabbit anti-Erk1/2 antibody
(Cell Signaling Technology; 1/1000), or mouse anti-β-tubulin antibody (Sigma; 1/1000). After 3 washes,
membranes were incubated for 45 min with anti-rabbit (1:2000) or anti-mouse (1:5000) immunoglobulin
coupled to horseradish peroxidase (Dako-Agilent, Santa Clara, CA, USA). Detection was carried
out with an ECL Prime Western blotting detection reagent (Amersham) on a Fusion FX imager
(Vilber Lourmat, Collegien, France), and analyses were performed using ImageJ software.
4.20. Statistical Analysis
All results represent at least three independent replications. Data are shown as mean value
Prism 6 (GraphPad) was used to determine IC50 values and other statistical analyses using one-way
analysis of variance (ANOVA) followed by Bonferroni’s multiple comparison tests.
±
SEM.

Cancers 2020, 12, 1500
25 of 28
5. Conclusions
Altogether, our data show that panicein A hydroquinone is able to increase vemurafenib
effectiveness against resistant BRAFV600E melanoma cells and to eliminate resistant melanoma cells
without undesirable side effects. sPAH specifically binds to Ptch1 and inhibits the Ptch1 drug efflux
activity both in vitro and in vivo after encapsulation to protect it from oxidation. SAR studies allowed
us to identify one of the key pharmacophores responsible for this activity, and a new chemical synthesis
pathway under development by our team makes it possible to consider the rapid preparation of large
number of PAH analogues in order to obtain a more stable and efficient lead and a potential drug
candidate. We conclude that sPAH is a very promising lead for vemurafenib resistant BRAFV600E
melanoma where Ptch1 is overexpressed.
6. Patent
Mus-Veteau I, Thomas O, Tribalat MA, Azoulay S. (27/10/2014, PCT/EP2015/074771). Patched
inhibiting compounds, composition and uses thereof. Delivered in USA in April 2019 and in Japon in
January 2020.
Supplementary Materials: The following are available online at http://www.mdpi.com/2072-6694/12/6/1500/s1,
Figure S1: Effect of PAH precursors and analogues on dxr cytotoxicity in A375 cells. Cell viability was measured
after treatment with increasing concentration of dxr with DMSO or 20 µM of sPAH. sPAH precursors 8 or 9, or
sPAH analogues 11, 12, or 13 in A375 cells. Dxr-IC50 values calculated in the presence of sPAH or sPAH analogue
13 are presented, Figure S2: sPAH increases cisplatin cytotoxicity against MeWo and A375 melanoma cell lines.
Cells were treated with increasing concentrations of cisplatin in the presence of DMSO or sPAH 20
µM. IC50 values
were calculated using GraphPad Prism 6 software. The mean SEM of at least 3 experiments are presented,
±
Figure S3: Cholesterol binding pocket on Ptch1 structure. Chain A of pdb6n7h with cholesterol (magenta). Amino
acids underlined in Table 3 are represented as sticks, Figure S4: sPAH is oxidized into its quinone form upon
contact with liver microsomes. For metabolite identification, 50 µM of sPAH were incubated with mice liver
microsomes and NADPH. Two samples were prepared: one in which acetonitrile was added immediately (t0)
and one in which acetonitrile was added after 30 min. Samples were analyzed by LC–MS/MS and detected by
selected ion monitoring (SIM). LC–MS/MS analysis shows that sPAHis oxidized in its quinone form (9), Figure S5.
PAH-loaded i-Particles size distribution and colloidal stability. Particles size distribution and colloidal stability
were determined by dynamic light scattering using a Zetasizer Nano ZSP from Malvern-Panalytical. In a typical
experiment, 20
wavelength 633 nm was used as source and detector was placed at a 173◦ angle. Measurements were carried-out
at 25 ◦C. Zeta potential was determined by measuring electrophoretic mobility in a 0.22
m-filtered 1 mM NaCl
µL of dispersions were added to 1.5 mL of 0.22 µm-filtered 1 mM NaCl solution. A laser of
µ
solution using a Zetasizer Nano ZSP from Malvern-Panalytical and a disposable folded capillary cell. A laser of
wavelength 633 nm was used as source and detector was placed at a 13◦ angle. Measurements were carried-out at
25 ◦C. A. The hydrodynamic diameter (average size (Z-average) and polydispersity index (PdI) based on DLS),
zeta potential (mV), drug loading (DL%), and encapsulation efficiency (EE%) of PAH-loaded i-Particles. Mean
and SD of 4 measurements. B. Variation of hydrodynamic diameter (Z-average based on DLS, filled square and
polydispersity index, PdI, empty squares) of iP-PAH (drug loading 8.49%) with storage time (+4 ◦C, fridge). Four
measurements were taken, and the averages and standard deviations are presented, Figure S6: The addition of
iP-sPAH to vemurafenib more strongly inhibits ERK phosphorylation in tumors. Tumor extracts were analyzed by
Western blotting with anti-Phospho-Erk1/2 and anti-Erk1/2 antibodies. Signal quantification was performed using
ImageJ software and the pERK/ERK ratio was calculated and reported for each tumor extract. Significance is
attained at p < 0.05 (*), ns: no significant difference, Figure S7: (
was cut into 2 pieces incubated respectively with anti-Ptch1antibody and anti-b tubulin antibody. (
Western blot of Figure 1C. V The membrane was cut into 2 pieces incubated respectively with anti-Ptch1antibody
and anti-b tubulin antibody. ( ) Whole Western blot of Supplementary Figure 6 and densitometry of each band.
A
) Whole Western blot of Figure 1B. The membrane
B
) Whole
C
The membrane was incubated first with anti-phosphoERK antibody, then stripped and incubated with ERK
antibody and then with anti-btubulin antibody. Densitometry of each band is shown in the table.
Author Contributions: Conceptualization, I.M.-V. and S.A.; Methodology, L.S., N.E., M.S., A.P., D.D. (Dominique
Douguet), F.L., D.D. (Delphine Debayle), C.G., V.B., A.D.G., M.D., C.B., L.B., B.V., S.A. and I.M.-V.; Validation,
M.S., A.P., D.D. (Dominique Douguet), F.L., D.D. (Delphine Debayle), V.B., A.D.G., M.D., C.B., L.B., B.V., S.A. and
I.M.-V.; Formal Analysis, L.S., N.E., M.S., A.P., D.D. (Dominique Douguet), F.L., D.D. (Delphine Debayle), and L.B.;
Investigation, L.S., N.E., M.S., A.P., V.B. and D.D. (Dominique Douguet), S.A., I.M.-V.; Resources, S.A. and I.M.-V.;
Data Curation, S.A. and I.M.-V.; Writing—Original Draft Preparation, L.S., N.E., M.S., A.P., D.D. (Dominique
Douguet), F.L., D.D. (Delphine Debayle), V.B., L.B., B.V., S.A. and I.M.-V.; Writing—Review & Editing, A.D.G.,
C.G., M.D., C.B. and.; Supervision, A.D.G., M.D., C.B., L.B., B.V., S.A. and I.M.-V.; Project Administration, S.A.
and I.M.-V.; Funding Acquisition, V.B., M.D., S.A. and I.M-V. All authors have read and agreed to the published
version of the manuscript.

Cancers 2020, 12, 1500
26 of 28
Funding: This research was funded by Investments in the Future project managed by the National Research
Agency (ANR) grant number ANR-15-IDEX-01 and LABEX Dynamo grant number ANR 11-LABX-0011, CNRS
prematuration programme, SATT-Sud-Est and the association France Cancer.
Acknowledgments: We thank the TrGET Preclinical Platform (Inserm, CNRS, Institut Paoli-Calmettes, CRCM,
Aix-Marseille Université, Marseille, France) for the mice xenograft assays, Inovotion SAS (Biopolis, La Tronche,
France) for experiments on chick eggs, Patrick Gizzi from PCBIS—UMS 3286 for metabolic stability measurements
and tolerance tests. The authors acknowledge Maxime Dzikwoski and Charlotte Primard from Adjuvatis for
formulations development, characterization and support. We are also grateful to Jean-Michel Jault for providing
access to the MST equipment and to Pierre Soule for his advice on MST technology, to Robert Ballotti and Sophie
Tartare-Deckert for helpful discussions, and to Abby Cuttriss for English editing.
Conflicts of Interest: B Verrier is an advisor and shareholder of Adjuvatis and declares no other conflicts of
interest. The other authors declare no competing interests.
References
1.
2.
3.
4.
Kathawala, R.J.; Gupta, P.; Ashby, C.R.J.; Chen, Z.S. The modulation of ABC transporter-mediated multidrug
resistance in cancer: A review of the past decade. Drug Resist. Updat. 2015, 18, 1–17. [CrossRef]
Scales, S.; De Sauvage, F. Mechanisms of Hedgehog pathway activation in cancer and implications for
therapy. Trends Pharm. Sci. 2009, 30, 303–312. [CrossRef]
Cochrane, C.R.; Szczepny, A.; Watkins, D.N.; Cain, J.E. Hedgehog Signaling in the Maintenance of Cancer
Stem Cells. Cancers 2015, 7, 1554–1585. [CrossRef]
Gonnissen, A.; Isebaert, S.; Perneel, C.; McKee, C.M.; Van Utterbeeck, F.; Lerut, E.; Verrill, C.; Bryant, R.J.;
Joniau, S.; Muschel, R.J.; et al. Patched 1 Expression Correlates with Biochemical Relapse in High-Risk
Prostate Cancer Patients. Am. J. Pathol. 2018, 188, 795–804. [CrossRef]
5.
6.
7.
8.
9.
Blotta, S.; Jakubikova, J.; Calimeri, T.; Roccaro, A.M.; Amodio, N.; Azab, A.K.; Foresta, U.; Mitsiades, C.S.;
Rossi, M.; Todoerti, K.; et al. Canonical and noncanonical Hedgehog pathway in the pathogenesis of multiple
myeloma. Blood 2012, 120, 5002–5013. [CrossRef]
Jeng, K.S.; Sheen, I.S.; Jeng, W.J.; Yu, M.C.; Hsiau, H.; Chang, F.Y. High expression of Sonic Hedgehog
signaling pathway genes indicates a risk of recurrence of breast carcinoma. Onco Targets Ther. 2013, 7, 79–86.
[CrossRef] [PubMed]
Zhao, C.; Chen, A.; Jamieson, C.H.; Fereshteh, M.; Abrahamsson, A.; Blum, J.; Kwon, H.Y.; Kim, J.; Chute, J.P.;
Rizzieri, D.; et al. Hedgehog signalling is essential for maintenance of cancer stem cells in myeloid leukaemia.
Nature 2009, 458, 776–779. [CrossRef] [PubMed]
Queiroz, K.C.; Ruela-De-Sousa, R.R.; Fuhler, G.M.; Aberson, H.L.; Ferreira, C.V.; Peppelenbosch, M.P.;
Spek, C.A. Hedgehog signaling maintains chemoresistance in myeloid leukemic cells. Oncogene 2010, 29,
6314–6322. [CrossRef] [PubMed]
Saze, Z.; Terashima, M.; Kogure, M.; Ohsuka, F.; Suzuki, H.; Gotoh, M. Activation of the sonic hedgehog
pathway and its prognostic impact in patients with gastric cancer. Dig. Surg. 2012, 29, 115–123. [CrossRef]
[PubMed]
10. Xu, X.; Ding, H.; Rao, G.; Arora, S.; Saclarides, C.P.; Esparaz, J.; Gattuso, P.; Solorzano, C.C.; Prinz, R.A.
Activation of the Sonic Hedgehog pathway in thyroid neoplasms and its potential role in tumor cell
proliferation. Endocr. Relat. Cancer 2012, 19, 167–179. [CrossRef]
11. Bidet, M.; Tomico, A.; Martin, P.; Guizouarn, H.; Mollat, P.; Mus-Veteau, I. The Hedgehog receptor Patched
functions in multidrug transport and chemotherapy resistance. Mol. Cancer Res. 2012, 10, 1496–1508.
[CrossRef] [PubMed]
12. Damaghi, M.; Wojtkowiak, J.W.; Gillies, R.J. pH sensing and regulation in cancer. Front. Physiol. 2013, 17, 370.
[CrossRef] [PubMed]
13. Hasanovic, A.; Mus-Veteau, I. Targeting the Multidrug Transporter Ptch1 Potentiates Chemotherapy Efficiency.
Cells 2018, 7, 107. [CrossRef] [PubMed]
14. Fiorini, L.; Mus-Veteau, I. Method to Screen Multidrug Transport Inhibitors Using Yeast Overexpressing a
Human MDR Transporter. Methods Mol. Biol. 2016, 1432, 303–318. [PubMed]
15. Fiorini, L.; Tribalat, M.-A.; Sauvard, L.; Cazareth, J.; Lalli, E.; Broutin, I.; Thomas, O.P.; Mus-Veteau, I. Natural
paniceins from Mediterranean sponge inhibit the multidrug resistance activity of Patched and increase
chemotherapy efficiency on melanoma cells. Oncotarget 2015, 6, 22282–22287. [CrossRef] [PubMed]

Cancers 2020, 12, 1500
27 of 28
16. Hasanovic, A.; Ruggiero, C.; Jung, S.; Rapa, I.; Signetti, L.; Ben Hadj, M.; Terzolo, M.; Beuschlein, F.;
Volante, M.; Hantel, C.; et al. Targeting the multidrug transporter Patched potentiates chemotherapy
efficiency on adrenocortical carcinoma in vitro and in vivo. Int. J. Cancer 2018, 143, 199–211. [CrossRef]
17. Dummer, R.; Ascierto, P.A.; Gogas, H.J.; Arance, A.; Mandala, M.; Liszkay, G.; Garbe, C.; Schadendorf, D.;
Krajsova, I.; Gutzmer, R.; et al. Overall survival in patients with BRAF-mutant melanoma receiving
encorafenib plus binimetinib versus vemurafenib or encorafenib (COLUMBUS): A multicentre, open-label,
randomised, phase 3 trial. Lancet Oncol. 2018, 19, 1315–1327. [CrossRef]
18. Davis, C.J.; Hurst, T.E.; Jacob, A.M.; Moody, C.J. Microwave-mediated Claisen rearrangement followed
by phenol oxidation: A simple route to naturally occurring 1,4-benzoquinones. The first syntheses of
verapliquinones A and B and panicein A. J. Org. Chem. 2005, 70, 4414–4422. [CrossRef]
19. Dasari, S.; Tchounwou, P.B. Cisplatin in cancer therapy: Molecular mechanisms of action. Eur. J. Pharm.
2014, 740, 364–378. [CrossRef]
20. Chapman, P.B.; Hauschild, A.; Robert, C.; Haanen, J.B.; Ascierto, P.; Larkin, J.; Dummer, R.; Garbe, C.;
Testori, A.; Maio, M.; et al. Improved survival with vemurafenib in melanoma with BRAF V600E mutation.
N. Engl. J. Med. 2011, 364, 2507–2516. [CrossRef]
21. Maverakis, E.; Cornelius, L.A.; Bowen, G.M.; Phan, T.; Patel, F.B.; Fitzmaurice, S.; He, Y.; Burrall, B.; Duong, C.;
Kloxin, A.M.; et al. Metastatic melanoma—A review of current and future treatment options. Acta Derm.
Venereol. 2015, 95, 516–524. [CrossRef] [PubMed]
22. Bidet, M.; Joubert, O.; Lacombe, B.; Nehmé, R.; Mollat, P.; Brétillon, L.; Faure, H.; Bittman, R.; Ruat, M.;
Mus-Veteau, I. The Hedgehog Receptor Patched Contributes to Cholesterol Efflux. PLoS ONE 2011, 6, e23834.
[CrossRef] [PubMed]
23. Qian, H.; Cao, P.; Hu, M.; Gao, S.; Yan, N.; Gong, X. Inhibition of tetrameric Patched1 by Sonic Hedgehog
through an asymmetric paradigm. Nat. Commun. 2019, 10, 2320. [CrossRef] [PubMed]
24. Bollag, G.; Hirth, P.; Tsai, J.; Zhang, J.; Ibrahim, P.N.; Cho, H.; Spevak, W.; Zhang, C.; Zhang, Y.; Habets, G.;
et al. Clinical efficacy of a RAF inhibitor needs broad target blockade in BRAF-mutant melanoma. Nature
2010, 467, 596–599. [CrossRef]
25. Wortzel, I.; Seger, R. The ERK cascade: Distinct functions within various subcellular organelles. Genes Cancer
2011, 2, 195–209. [CrossRef]
26. Tsai, J.; Lee, J.T.; Wang, W.; Zhang, J.; Cho, H.; Mamo, S.; Bremer, R.; Gillette, S.; Kong, J.; Haass, N.K.; et al.
Discovery of a selective inhibitor of oncogenic B-Raf kinase with potent antimelanoma activity. Proc. Natl.
Acad. Sci. USA 2008, 105, 3041–3046. [CrossRef]
27. Leonardi, G.C.; Falzone, L.; Salemi, R.; Zanghì, A.; Spandidos, D.A.; Mccubrey, J.A.; Candido, S.; Libra, M.
Cutaneous melanoma: From pathogenesis to therapy (Review). Int. J. Oncol. 2018, 52, 1071–1080. [CrossRef]
28. Davies, H.; Bignell, G.R.; Cox, C.; Stephens, P.; Edkins, S.; Clegg, S.; Teague, J.; Woffendin, H.; Garnett, M.J.;
Bottomley, W.; et al. Mutations of the BRAF gene in human cancer. Nature 2002, 417, 949–954. [CrossRef]
29. Flaherty, K.T.; Puzanov, I.; Kim, K.B.; Ribas, A.; McArthur, G.A.; Sosman, J.A.; O’Dwyer, P.J.; Lee, R.J.;
Grippo, J.F.; Nolop, K.; et al. Inhibition of mutated, activated BRAF in metastatic melanoma. N. Engl. J. Med.
2010, 363, 809–819. [CrossRef]
30. Flaherty, K.T.; Infante, J.R.; Daud, A.; Gonzalez, R.; Kefford, R.F.; Sosman, J.; Hamid, O.; Schuchter, L.;
Cebon, J.; Ibrahim, N.; et al. Combined BRAF and MEK inhibition in melanoma with BRAF V600 mutations.
N. Engl. J. Med. 2012, 367, 1694–1703. [CrossRef]
31. Broman, K.K.; Dossett, L.A.; Sun, J.; Eroglu, Z.; Zager, J.S. Update on BRAF and MEK inhibition for treatment
of melanoma in metastatic, unresectable, and adjuvant settings. Expert Opin. Drug Saf. 2019, 18, 381–392.
[CrossRef]
32. Kakadia, S.; Yarlagadda, N.; Awad, R.; Kundranda, M.; Niu, J.; Naraev, B.; Mina, L.; Dragovich, T.; Gimbel, M.;
Mahmoud, F. Mechanisms of resistance to BRAF and MEK inhibitors and clinical update of US Food and
Drug Administration-approved targeted therapy in advanced melanoma. Onco Targets Ther. 2018, 11,
7095–7107. [CrossRef] [PubMed]
33. Strub, T.; Ballotti, R.; Bertolotto, C. The Art of Epigenetics in Melanoma: From histone “Alterations, to
Resistance and Therapies”. Theranostics 2020, 10, 1777–1797. [CrossRef] [PubMed]
34. Stavrovskaya, A.A.; Rybalkina, E.Y. Recent Advances in the Studies of Molecular Mechanisms Regulating
Multidrug Resistance in Cancer Cells. Biochemistry 2018, 83, 779–786. [CrossRef] [PubMed]
35. Gottesman, M.M. Mechanisms of cancer drug resistance. Annu. Rev. Med. 2002, 53, 615–627. [CrossRef]

Cancers 2020, 12, 1500
28 of 28
36. Avram, S.; Coricovac, D.E.; Pavel, I.Z.; Pinzaru, I.; Ghiulai, R.; Baderca, F.; Soica, C.; Muntean, D.;
Branisteanu, D.E.; Spandidos, D.A.; et al. Standardization of A375 human melanoma models on chicken
embryo chorioallantoic membrane and Balb/c nude mice. Oncol. Rep. 2017, 38, 89–99. [CrossRef]
37. Coricovac, D.; Dehelean, C.; Moaca, E.A.; Pinzaru, I.; Bratu, T.; Navolan, D.; Boruga, O. Cutaneous
Melanoma-A Long Road from Experimental Models to Clinical Outcome: A Review. Int. J. Mol. Sci. 2018
19, 1566. [CrossRef]
,
38. Kuzu, O.F.; Noory, M.A.; Robertson, G.P. The Role of Cholesterol in Cancer. Cancer Res. 2016, 76, 2063–2070.
[CrossRef]
39. Lim, S.C.; Parajuli, K.R.; Duong, H.Q.; Choi, J.E.; Han, S.I. Cholesterol induces autophagic and apoptotic
death in gastric carcinoma cells. Int. J. Oncol. 2014, 44, 805–811. [CrossRef]
40. Tabas, I. Consequences of cellular cholesterol accumulation: Basic concepts and physiological implications.
J. Clin. Investig. 2002, 110, 905–911. [CrossRef]
41. Riniker, S.; Landrum, G.A. Better Informed Distance Geometry: Using What We Know To Improve
Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562–2574. [CrossRef] [PubMed]
42. The Cancer Genome Atlas Network. Genomic Classification of Cutaneous Melanoma. Cell 2015, 161,
1681–1696. [CrossRef] [PubMed]
43. Lipton, A.; Köstler, W.J.; Leitzel, K.; Ali, S.M.; Sperinde, J.; Weidler, J.; Paquet, A.; Sherwood, T.; Huang, W.;
Bates, M.; et al. Quantitative HER2 protein levels predict outcome in fluorescence in situ hybridization-positive
patients with metastatic breast cancer treated with trastuzumab. Cancer 2010, 116, 5168–5178. [CrossRef]
[PubMed]
44. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring
function, efficient optimization and multithreading. J. Comput. Chem. 2010, 31, 455–461. [CrossRef]
45. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF
Chimera—a visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612.
[CrossRef]
46. Shapovalov, M.V.; Dunbrack, J.R.L. A smoothed backbone-dependent rotamer library for proteins derived
from adaptive kernel density estimates and regressions. Structure 2011, 19, 844–858. [CrossRef]
47. Wang, J.; Wang, W.; Kollman, P.A.; Case, D.A. Automatic atom type and bond type perception in molecular
mechanical calculations. J. Mol. Graph. Modeling 2006, 25, 247–260. [CrossRef]
48. Dingerdissen, H.M.; Torcivia-Rodriguez, J.; Hu, Y.; Chang, T.C.; Mazumder, R.; Kahsay, R. BioMuta and
BioXpress: Mutation and expression knowledgebases for cancer biomarker discovery. Nucleic Acids Res.
2017, 46, 1128–1136. [CrossRef]
49. Stierand, K.; Maass, P.C.; Rarey, M. Molecular Complexes at a Glance: Automated Generation of
two-dimensional Complex Diagrams. Bioinformatics 2006, 22, 1710–1716. [CrossRef]
50. Fährrolfes, R.; Bietz, S.; Flachsenberg, F.; Meyder, A.; Nittinger, E.; Otto, T.; Volkamer, A.; Rarey, M. Proteins
Plus: A web portal for structure analysis of macromolecules. Nucleic Acids Res. 2017, 45, W337–W343.
[CrossRef]
51. Chang, J.M.; Di Tommaso, P.; Taly, J.F.; Notredame, C. Accurate multiple sequence alignment of
transmembrane proteins with PSI-Coffee. BMC Bioinform. 2012, 13, S1. [CrossRef] [PubMed]
52. Jawinski, K.; Hartmann, M.; Singh, C.; Kinnear, E.; Busse, D.C.; Ciabattini, A.; Fiorino, F.; Medaglini, D.;
Trombetta, C.M.; Montomoli, E.; et al. Recombinant Haemagglutinin Derived From the Ciliated Protozoan
Tetrahymena thermophila Is Protective Against Influenza Infection. Front. Immunol. 2019, 10, 2661.
[CrossRef] [PubMed]
53. Folch, J.; Lees, M.; Sloane Stanley, G.H. A simple method for the isolation and purification of total lipides
from animal tissues. J. Biol. Chem. 1957, 226, 497–509. [PubMed]
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
