Regioselective Three Component Domino Synthesis of
Polyhydrospiro[indoline-3,3'-pyrrolizine]-2-one via [3+2] Cycloaddition Reaction
1,*
2
3
VISHWA DEEPAK TRIPATHI , AKHILESH KUMAR SHUKLA and HASAN SHAMRAN MOHAMMED
1Department of Chemistry, M.K. College (Lalit Narayan Mithila University), Darbhanga-846003, India
2Department of Applied Chemistry, Babasaheb Bhimrao Ambedkar University (A Central University), Lucknow-226025, India
3Department of Chemistry, Science College, Al-Qadisiyah University, Al-Qadisiyah, Iraq
*Corresponding author: E-mail: vishwadeepak66@gmail.com
Received: 3 October 2018;
Accepted: 12 November 2018;
Published online: 31 January 2019;
AJC-19255
In present work, we have reported the synthesis and characterisation of novel hexahydrospiro[indoline-3,3′-pyrrolizine]-2-one derivatives
in good to excellent yields via [3+2] cycloaddtion reaction in regioselective manner. These compounds were synthesized via multicomponent
reaction of substituted 3-cinnamoyl-4-hydroxy-6-methyl-2H-pyran-2-one, isatin, L-proline at room temperature. All the synthesized
hexahydrospiro molecules were characterized by 1H and 13C NMR, IR spectra, mass spectra and elemental analysis. Regioselectivity in
synthesized molecules were also explained on the basis of secondary orbital interactions. A simple and facile methodology is developed
which has great importance in synthetic chemistry.
Keywords: Spiropyrrolidine, Dehydroacetic acid, Isatin, Multicomponent reaction, Cycloaddition.
substituted pyrrolidines derivatives [9,10]. Enhancing the effici-
ency and manoeuvrability of reaction is a challenge in organic
synthesis. For a molecule with fascinating structure and excellent
pharmacological properties always promotes synthetic chemists
to develop easy and ecofriendly synthesis [11]. Spirocyclic systems
containing one carbon atom common to two rings are struc-
turally interesting and asymmetric characteristic of the molecule
due to the chiral spiro carbon which is one of the important criteria
of the biological activities [12,13]. The presence of sterically
constrained spiro structure in various natural products also
adds to the interest in the investigations of spiro compounds [14].
The spirooxindole ring system forms the core structure of many
pharmacological agents and alkaloids [15]. For example, spiro-
tryprostatin (Fig. 1), a natural product isolated from the fermen-
tation of Aspergillus funigatus, has been identified as a novel
inhibitor of microtubule assembly [16]. Natural product isoptero-
podine [17] (Fig. 1) has been shown to modulate the function
of muscarinic and serotonin receptors. It has been observed
that incorporation of more than one bioactive heterocyclic
moiety into a single framework may result into the production
of novel heterocycles with enhanced bioactivity [18-20]. Spiro-
oxindoles have been reported to behave as aldose reductase,
INTRODUCTION
In the past several years, significant advances have been
achieved on the development of new synthetic methods to access
spiroindole derivatives. Spiro compounds with attached indole
moiety having all-carbon quaternary stereogenic center has
attracted synthetic organic chemists due to its fascinating struc-
ture and biological importance [1-3]. These polyhydro hetero-
cyclic compounds are important targets among synthetic as
well as medicinal chemist due to its wide range of pharmaco-
logical properties. Spiroindoles and their derivatives have facile
structural similarity the core unit of many naturally occurring
molecules that possess significant biological activities, which
include spasmolitic, diuretic, anticoagulant, anticancer, and
antianaphylactic activities [4].
Therefore, a number of protocols have been developed to
synthesize these structural frameworks via cycloaddition reaction
[5]. The [3+2] cycloadditions have special place in synthetic
chemistry as well for theoretical chemist because it constitutes
one of the most fundamental reactions for regioselective constru-
ction of 5-membered heterocyclic compounds [6-8]. The reaction
of azomethine ylides with various dipolarophils forms highly
This is an open access journal, and articles are distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike
4.0 (CC BY-NC-SA 4.0) International License which allows readers to freely read, download, copy, distribute, print, search, or link to the full
texts of its articles and to use them for any other lawful non-commercial purpose as long as the original source is duly acknowledged.

614 Tripathi et al.
Asian J. Chem.
O
General procrdure for synthesis of compounds (4a-y)
(method A): Isatin (147 mg, 1.0 mmol), L-proline ( 115 mg,
1 mmol) and chalcone derivatives (1 mmol) was taken in 50 mL
round bottom flask follwed by the addition of 10 mL of ethanol.
Reaction mixture was allowed to stir at room temperature. The
progress of reaction was monitored by TLC.After completion
of rection, solvent was evaporated under vaccum and poured
in ice-water. Solid residue was filtered off and recrystallized in
ethanol (Scheme-II).
NH
O
MeO
N
N
O
O
O
N
H
N
H
N
O
Elacomine
Horsfiline
Spirostatin B
R1
O
O
H
O
H
R2
O
N
HO
O
NH
O
OH
O
O
N
N
R3
H
R1
O
O
O
H
N
H
O
Alstonisine
Room
Temperature
Stirring
O
O
R1
Designed bio-siosteric
spiropyrrolidine
Isopterodine
R2
N
HO
O
3(a-y)
Fig. 1. Representatives of spiroindole containing compounds
O
Ethanol
COOH
R2
O
O
N
R3
O
O
N
polio virus and rhino virus 3C-proteinase inhibitors [21]. Inspired
from these excellent pharmacological properties and structurally
complex nature of these spiro compounds, here we wish to report
some new bioisosetric analogues of natural spiropyrrolidines
via [3+2] cycloaddition reaction.
N
R3
H
4(a-y)
1
2
Scheme-II: Synthesis of novel hexahydrobenzo[b][1,8]naphthyridines
2′-(4-Hydroxy-6-methyl-2-oxo-2H-pyran-3-carbonyl)-
1′-(3-methoxyphenyl)-1-propyl-1′,2′,5′,6′,7′,7a′-hexahydro-
spiro[indoline-3,3′-pyrrolizin]-2-one (4a): White solid; m.p.
180 ºC; IR (KBr, νmax, cm-1): 3621, 3020, 2971, 1720, 1604,
1216, 1043. 1H (300 MHz, CDCl3): δ 10.97 (s, 1H,), 7.21 (s, 1H),
7.20-7.04 (m, 4H), 6.80-6.72 (m 3H,), 5.68 (s, 1H), 4.91 (d,
1H, J = 9.4 Hz), 4.57 (t, 1H, J = 8.14 Hz), 4.48 (t, 1H, J = 9.9
Hz), 3.79 (s, 3H), 3.64 (t, 2H, J = 7.5 Hz), 2.58 (t, 1H, J = 7.62
Hz,), 2.28 (s, 3H), 2.14-1.73 (m, 5H), 1.22-1.15 (m, 2H), 1.00
(t, 3H, J = 4.3 Hz). 13C NMR (75MHz, CDCl3): δ 13.7, 22.5,
23.2, 33.4, 38.9, 41.6, 49.7, 51.2, 55.8, 63.4, 65.8, 72.3, 101.5,
103.1, 111.5, 114.8, 116.1, 117.2, 118.4, 119.4, 122.5, 126.6,
129.2, 131.9, 134.4, 140.9, 144.3, 157.8, 163.2, 184.7, 204.4;
MS (ES): m/z (%) 529.1(100) [M+1]+. Anal. calcd. (found) %
for C31H32N2O6: C, 70.44 (70.39); H, 6.10 (6.05); N, 5.30 (5.20).
EXPERIMENTAL
All the reactions were carried out at room temperature,
under ultrasound and microwave condition. Unless otherwise
specified, all the reagents were purchased from Sigma-Aldrich
Chemical Co, Lancaster and used directly without further any
purification. NMR spectra were obtained using Brucker DRX
300MHz spectrometer. Chemical shifts (δ) are given in ppm
relative to TMS, coupling constants (J) in Hz. IR spectra were
taken on VARIAN FT-IR spectrometer as KBr pellets (when
solid). Elemental analysis was preformed using a Perkin Elmer
Autosystem XLAnalyzer. Melting points were measured using
a COMPLAB melting-point apparatus. Reactions were moni-
tored by thin-layer chromatography (TLC) carried out on 0.25
mm silica gel plates visualized with UV light.
RESULTS AND DISCUSSION
General procedure for synthesis of chalcone analogues
(3): Chalcone analogues were synthesized via aldol conden-
sation of substituted benzaldehyde and dehydro acetic acid.
In dry chloroform substituted benzaldehyde (1.0 mmol), dehydro-
acetic acid (1.0 mmol) in the presence of catalytic pyrrolidine
(20 mol %) was taken. Reaction was stirred at room temperature
for 2 h leading to generation of chalcone. Progress of reaction
was monitored by TLC. After completion of reaction solvent
was evaporated under the reduced pressure and residue was
extracted with ethyl acetate and water. The organic layer was
separated and dried over anhydrous Na2SO4 and filtered. The
filtrate was evaporated under vacuum on a rotary evaporator
(Scheme-I).

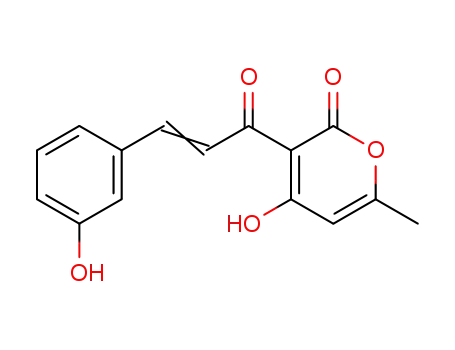

Our synthetic journey begins by synthesizing a series of
different substituted 3-cinnamoyl-4-hydroxy-6-methyl-2H-
pyran-2-one (3a-y) as substrate for cycloaddition reaction by
condensation of dehydroacteic acid and substituted benzal-
dehydes via Claisen-Schmidt condensation reaction. Further,
efforts were made for synthesis of spiroindoles. Our first objective
was to find optimum reaction condition. We started study in
search of best solvent for synthesis of spiropyrrolidines (4a-y).
To achieve this goal the reaction of (E)-4-hydroxy-3-(3-(2-
methoxyphenyl)acryloyl)-6-methyl-2H-pyran-2-one (3a),
isatin (1) and L-proline (2) was taken as the model reaction.
Various solvents such as methanol, dichloromethane, ethanol,
acetonitrile, chloroform, benzene and DMSO were explored
to check the feasibility of reaction. To our delight, product 4a
was formed in excellent yield. Whereas yield of product was
not satisfactory with other solvents, even at refluxing condition
and prolonged reaction time. Hence ethanol was chosen as
the solvent for reaction. The results are summarized in Table-1.
After optimizing appropriate solvent for reaction, to verify
general procedure for synthesis of spirooxindole we carried
