Electrochemical Synthesis and Properties of Poly[1,4-bis(N-pyrrolylalkoxy)benzene]s
with a Three-dimensional Crosslinked Structure
Katsuhiko Ono,ꢀ Satsuki Yamada, Masakazu Ohkita, Katsuhiro Saito, Shoji Tanaka,y and Takamasa Hanaichiyy
Department of Applied Chemistry, Nagoya Institute of Technology, Gokiso, Nagoya 466-8555
yInstitute for Molecular Science, Myodaiji, Okazaki 444-8585
yyHanaichi Ultrastructure Research Institute, Daijuji, Okazaki 444-2134
(Received February 26, 2003; CL-030166)
The title polymers, which were composed of p-conjugated
pyrroles and dialkoxybenzene crosslinkers, were prepared by
electrochemical polymerization to afford uniform thin films.
These films were characterized by cyclic voltammetry (CV),
scanning electron microscope (SEM), and redox stability.
OR
(H C)
X O
4 R = H
O (CH2)X
i
RO
2
3 R = Ts
ii
N
(H2C)
N
X O
O (CH2)X
Much research attention has been focused on development
of carrier-transporting materials since they are important for
fabrication of organic electroluminescent (EL) devices, whose
efficiencies and lifetimes are largely governed by facility of car-
rier-injection and transportation.1 Electrical conducting poly-
mers are powerful candidates for these materials, some of which
have been already examined, e.g., poly(p-phenylenevinylene)
(PPV),2 poly(3,4-ethylenedioxythiophene) (PEDOT),3 poly-
aniline,4 and polypyrrole.5 However, applications of p-conju-
gated polymers are very limited because these polymers are in-
soluble in organic solvents without modification by large alkyl
groups6 and are difficult to prepare uniform thin films due to
their highly crystalline properties. In recent papers, poly-
thiophene7 and tris[4-(2-thienyl)phenyl]amine8 films accumu-
lated on ITO (indium-tin-oxide) electrodes in electrolysis were
applied for hole-transporting layers, which exhibited usefulness
of electrochemical synthesis in fabrication of the devices. We
have now prepared poly[1,4-bis(N-pyrrolylalkoxy)benzene]s
(1), which are composed of p-conjugated pyrroles and dialkoxy-
benzene crosslinkers, by electrochemical polymerization of
monomers (2) to afford thin films on ITO electrodes. We report
here the electrochemical synthesis of 1 and properties of the ob-
tained films.

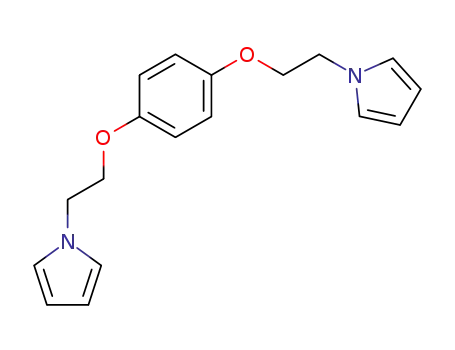

Monomers 2a-c were prepared in 39-60% yields by reac-
tions of pyrrole anions with ditosylates (3a-c), which were de-
rived from alkanediols (4a-c) (Scheme 1). Compounds 2 were
obtained as colorless crystals after recrystallization (2a: mp
98-101 ꢁC, 2b: mp 48–49 ꢁC, 2c: mp 62–63 ꢁC) and are stable
for air. Cyclic voltammograms of 2a-c showed irreversible oxi-
dation waves. The oxidation peak potentials in acetonitrile are
shown in Table 1. These values are similar to that of N-ethyl-
pyrrole (5). Introduction of the hydroquinone moiety into 1,2-
bis(N-pyrrolyl)ethane (6)9 resulted in the higher oxidation po-
tential of 2a.
2
x = 2
x = 6
x = 8
a
b
c
iii
N
O (CH2)X
(H2C)
X O
N
n
m
1
Scheme 1. Reagents and conditions: (i) TsCl, Et3N, Et3NHCl,
CH2Cl2; (ii) pyrrole, KOH, DMSO, 65 ꢁC, 5 h; (iii) electroche-
mical polymerization.
Table 1. Oxidation potentialsa of monomers 2 and polymers 1
and onset potentialsa for polymerization
Monomer
Epa
Eonset
Polymer
Epa
2a (x = 2)
2b (x = 6)
2c (x = 8)
5
6
0.88
0.80
0.81
0.83
0.70
0.66
0.61
0.61
0.66
0.47
1a
1b
1c
7
0.19
0.19
0.23
0.24
8
À0:17
a0.1 M n-Bu4NClO4 in MeCN, Pt electrode, scan rate
100 mV sÀ1, V vs Fc/Fcþ.
method and the potentiostatic electrolysis. The oxidation poten-
tials of polymers 1 are not dependent on the used electrodes (Pt,
ITO) and are summarized in Table 1. The values are compar-
able to that of poly(N-ethylpyrrole) (7)10 and are higher than
that of poly[1,2-bis(N-pyrrolyl)ethane] (8).9 Dependence of
the oxidation potentials with chain length (x) was not observed
in contrast to those of bis(N-pyrrolyl)alkane homopolymers.
The cyclic voltammograms of polymer 1b measured at various
scan rates are displayed in Figure 1. The peak current increased
depending on the scan rates with a linear relationship, indicating
that the electrode reactions were attributed to a surface-attached
redox species.11 The linear relationship was also observed in the
CVs of 1a and 1c.
Polymers 1a-c were prepared by electrochemical synthesis
using a Pt disk (f 1.6mm) or ITO (10 ꢀ=Ã, 12 Â 8 mm2) as a
working electrode in acetonitrile containing 0.1 M tetrabutylam-
monium perchlorate as supporting electrolyte. Minimum poten-
tials (Eonset) for the polymerization were surveyed (Table 1) and
the shifts from the peak potentials of monomers (Epa) were al-
most À0:2 V. These conditions were employed for the CV
The potentiostatic electrolysis in 1.0 mM solutions of
monomers 2 afforded thin films of 1a-c with fine smooth sur-
faces on the ITO electrodes although the surface of poly(N-
Copyright ꢀ 2003 The Chemical Society of Japan

Chemistry Letters Vol.32, No.6(2003)
517
0.8
0.7
0.6
0.5
0.4
0.3
0.2
poly[1,2-bis(N-pyrrolyl)ethane]
8
poly(N-ethylpyrrole)
polymer 1b
7
20
40
60
80
100
Cycle number
Figure 3. Peak current densities at oxidation peak poten-
tials of dedoped polymers with increasing number of CV
cycle at scan rate of 100 mV sÀ1
.
of crosslinker in the network structure was highly effective for
stabilization of the redox cycles in the application as electronic
materials.12
Figure 1. Cyclic voltammograms of polymer 1b mea-
sured in a monomer-free MeCN/0.1 M n-Bu4NClO4
electrolyte at various scan rates under a nitrogen atmo-
sphere. Pt electrode, Pt wire, Ag/Agþ were used as the
working, counter, and reference electrodes, respectively.
Conductivities of doped polymers 1a-c measured by a two-
probe method as a compressed pellet were 8:4 Â 10À8
,
3:0 Â 10À7, and 1:7 Â 10À7 S cmÀ1, respectively. These values
were lower than that of poly[1,2-bis(N-pyrrolyl)ethane] (8)
(4:7 Â 10À4 S cmÀ1).9 This was due to increase of an insulating
moiety by introduction of the hydroquinone unit as well as mor-
phological change. Improvement for highly conducting materi-
als is under study.
This work was supported by a grant from the NITECH 21st
Century COE Program for Environmental Ceramics.
References and Notes
1
2
C. W. Tang and S. A. VanSlyke, Appl. Phys. Lett., 51, 913 (1987); C.
Adachi, S. Tokito, T. Tsutsui, and S. Saito, Jpn. J. Appl. Phys., 27,
L713 (1988).
J. H. Burroughes, D. D. C. Bradley, A. R. Brown, R. N. Marks, K.
Mackay, R. H. Friend, P. L. Burns, and A. B. Holmes, Nature, 347,
539 (1990); N. C. Greenham, S. C. Moratti, D. D. C. Bradley, R. H.
Friend, and A. B. Holmes, Nature, 365, 628 (1993); D. R. Baigent,
Figure 2. Scanning electron micrographs of doped thin
films of polymers 1a (x = 2) (a) and 1b (x = 6) (b).
N. C. Greenham, J. Gruner, R. N. Marks, R. H. Friend, S. C. Moratti,
¨
and A. B. Holmes, Synth. Met., 67, 3 (1994).
L. Groenendaal, F. Jonas, D. Freitag, H. Pielartzik, and J. R.
Reynolds, Adv. Mater., 12, 481 (2000).
Y. Yang and A. J. Heeger, Appl. Phys. Lett., 64, 1245 (1994).
J. Gao, A. J. Heeger, J. Y. Lee, and C. Y. Kim, Synth. Met., 82, 221
(1996).
ethylpyrrole) 7 was rough, indicating that network structures of
polymers 1 were effective for forming uniform layers. Scanning
electron micrographs of polymers 1a and 1b were observed
(Figure 2). The surface of 1b is almost flat in the range of
800 Â 600 nm2 in comparison with that of 1a. This fact revealed
that the flexible network prepared by the longer alkyl crosslin-
kers was superior to formation of the fine films. Thickness of the
thin films was able to be controlled by electrolysis time. Ac-
cording to a SEM analysis of polymer 1b, the thickness of the
doped films was evaluated as ca. 50 nm in electrolysis for 1 min,
200 nm for 5 min, and 350 nm for 10 min.
3
4
5
6M. Berggren, O. Ingana s, G. Gustafsson, J. Rasmusson, M. R.
¨
¨
Andersson, T. Hjertberg, and O. Wennerstrom, Nature, 372, 444
(1994).
M. Gross, D. C. Muller, H.-G. Nothofer, U. Scherf, D. Neher, C.
¨
Brauchle, and K. Meerholz, Nature, 405, 661 (2000); G. Wang, X.
¨
Hu, and T. K. S. Wong, J. Solid State Electrochem., 5, 150
(2001); G. Wang, X. Hu, and T. K. S. Wong, Appl. Surf. Sci., 174,
185 (2001).
7
8
9
Y. Kunugi, Y. Niwa, L. Zhu, Y. Harima, and K. Yamashita, Chem.
Lett., 2001, 656; Y. Kunugi, I. Tabakovic, A. Canavesi, and L. L.
Miller, Synth. Met., 89, 227 (1997); Y. Kunugi, K. R. Mann, L. L.
Miller, and C. L. Exstrom, J. Am. Chem. Soc., 120, 589 (1998).
Polymers 1 were easily dedoped by electrolysis at À0:5 V
vs Fc/Fcþ to afford colorless or pale yellow films, which were
stable for air. The dedoping time changed depending on thick-
ness of the films. For example, dedoping the film of 1b with
thickness of 200 nm was completed in 60 min. The redox stabi-
lity of dedoped polymers 1 was also investigated by CV cycles
at scan rate of 100 mV sÀ1. Figure 3 shows current densities at
oxidation peak potentials as the cycle number increases. The
peak current densities of 7 and 8 significantly decreased with in-
creasing CV cycles. On the other hand, oxidation deteriorating
was not appreciably observed in 1b, indicating that modification
´
´
J. Hlavaty, V. Papez, and L. Kavan, Synth. Met., 63, 209 (1994).
10 A. F. Diaz and J. Bargon, in ‘‘Handbook of Conducting Polymers,’’
ed. by T. A. Skotheim, Marcel Dekker, New York (1986), Vol. 1,
Chap. 3, p 81.
11 A. F. Diaz, J. I. Castillo, J. A. Logan, and W.-Y. Lee, J. Electroanal.
Chem., 129, 115 (1981); G. A. Sotzing, J. R. Reynolds, A. R.
Katritzky, J. Soloducho, S. Belyakov, and R. Musgrave, Macromole-
cules, 29, 1679 (1996).
12 X. Hu, G. Wang, and T. K. S. Wong, Synth. Met., 106, 145 (1999).
Published on the web (Advance View) May 13, 2003; DOI 10.1246/cl.2003.516
