cancers
Article
Small Molecule Binds with Lymphocyte Antigen 6K
to Induce Cancer Cell Death
Senyi Benti 1, Purushottam B. Tiwari 1, Dustin W. Goodlett 2, Leily Daneshian 2,
Grant B. Kern 3 , Mark D. Smith 2, Aykut Uren 1, Maksymilian Chruszcz 2
,
Linda S. Shimizu 2 and Geeta Upadhyay 1,3,
*
1
Department of Oncology, Georgetown University Medical Center, Washington, DC 20057, USA;
ligaba@carilionclinic.org (S.B.); pbt7@georgetown.edu (P.B.T.); au26@georgetown.edu (A.U.)
Department of Chemistry and Biochemistry, University of South Carolina, Columbia, SC 29208, USA;
dustinwg@email.sc.edu (D.W.G.); leily@email.sc.edu (L.D.); MDSMITH3@mailbox.sc.edu (M.D.S.);
Chruszcz@mailbox.sc.edu (M.C.); SHIMIZLS@mailbox.sc.edu (L.S.S.)
2
3
Department of Pathology, Uniformed Services University of the Health Sciences, Bethesda, MD 20814, USA;
grant.kern.ctr@usuhs.edu
*
Correspondence: geeta.upadhyay@usuhs.edu
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 17 December 2019; Accepted: 19 February 2020; Published: 22 February 2020
Abstract: Elevated gene expression of Lymphocyte antigen 6K (LY6K) in cancer cells is associated with
poor survival outcomes in multiple different cancer types including cervical, breast, ovarian, lung,
and head and neck cancer. Since inhibition of LY6K expression inhibits cancer cell growth, we set out
to explore whether pharmacological inhibition of LY6K could produce the same effect. We screened
small molecule libraries for direct binding to recombinant LY6K protein in a surface plasmon resonance
assay. We found that NSC243928 directly binds to the full-length and mature forms of LY6K and
inhibits growth of HeLa cells that express LY6K. NSC243928 did not display binding with LY6D or
LY6E. Our data demonstrate a first-time proof of principle study that pharmacological inhibition
of LY6K using small molecules in cancer cells is a valid approach to developing targeted therapies
against LY6K. This approach will be specifically relevant in hard-to-treat cancers where LY6K is highly
expressed, such as cervical, pancreatic, ovarian, head and neck, lung, gastric, and triple-negative
breast cancers.
Keywords: small molecule; NSC243928; LY6K; cervical cancer; surface plasmon resonance
1. Introduction
Human Lymphocyte Antigen 6 (LY6) gene family proteins are found clustered on chromosomes 6,
8, 11, and 19 [1]. The LY6 gene family is defined by the presence of a common LU domain present in the
mature form of these small, glycosylated proteins, which are anchored to the extra-cellular side of the
cell membrane by a glycosylphosphatidylinositol moiety. LY6 gene clusters contain 30 known genes
and perform a variety of functions in spermatogenesis, neutrophil activation, complement-mediated
lysis, and macrophage biology [1]. The LY6K gene is a member of this family, located on human
chromosome 8q24. Human chromosome 8q24 is often amplified in many different types of cancers
and has been studied in the context of Myc overexpression, a widely known resident of genetic loci
8q24 [
cancer progression [
in an array of solid cancers, including cervical, breast, head and neck, bladder, esophageal, lung,
and colorectal cancer [ 10]. The expression of LY6K in normal cells is mainly found in testicular germ
cells, where it plays a role in sperm cell migration [11]. LY6K knockout male mice show normal sexual
2
–4]. Recently, it has been shown that genes other than Myc on 8q24 play an important role in
5]. High expression of LY6K mRNA is associated with poor survival outcomes
6
–
Cancers 2020, 12, 509; doi:10.3390/cancers12020509
www.mdpi.com/journal/cancers

Cancers 2020, 12, 509
2 of 12
behavior but are infertile, while LY6K knockout female mice are fertile [12]. The shRNA-mediated LY6K
knockdown in cancer cells results in reduced tumor growth for in vivo tumor models [13]. Increased
expression of LY6K is also associated with increased TGFβ signaling and tumor growth in vivo [13].
We envision that LY6K is an ideal target for drug development for women’s cancer since the
molecule’s normal expression is limited to the testis. We sought to examine whether pharmacological
inhibition of LY6K could be achieved using small molecules. We discovered one small molecule LY6K
binder among the NCI’s small molecule library of approximately 2,600 small molecules. The identified
small molecule, NSC243928, was previously known to have anti-cancer properties [14]. Here we report
small molecule NSC243928 as a first-in-class LY6K binder which also acts as an inhibitor of cell growth.
This study sets up the groundwork to discover novel drugs targeting LY6K to treat cancers with high
LY6K expression.
2. Results
2.1. LY6K Is a Feasible Target to Develop Targeted Therapeutics
Within a panel of normal tissues from the Human Protein Atlas, protein expression of LY6K was
found to be limited to testis (Figure 1a) [15]. It was previously reported that LY6K RNA is not expressed
within a panel of normal purified immune cells [16]. cBioPortal was used to visualize LY6K mRNA
expression in The Cancer Genome Atlas (TCGA) pan-cancer datasets [17]. The 32 studies represented
32 cancer types containing RNA sequence data from 10,967 cancer samples in 10,953 patients. Every
data point in each cancer type represents a unique sample. LY6K expression was elevated in many
cancer types. The highest LY6K expression was seen in cervical, head and neck, bladder, esophageal,
and breast cancer (Figure 1b).
2.2. Identification of a Small Molecule Binder of LY6K
In order to identify small molecules that can directly bind to LY6K protein, we screened the
NCI’s small molecule library in a surface plasmon resonance (SPR) experiment. Full-length LY6K
was cloned in an N-terminal GST-tagged expression vector and transiently expressed in HEK-293T
cells. Protein purification was done using Glutathione Sepharose 4B GST-tagged protein purification
resin (Figure 2a). Purified recombinant full-length LY6K was immobilized on a CM5 Biacore chip and
2643 small molecules were injected one at a time at a single concentration over the protein-coated
surface. We selected 180 small molecules with a binding signal above 50% of the expected theoretical
binding value as primary hits (Figure 2b). Next, a Cell-Titer-Blue (CTB) functional cell viability assay
was performed using the 180 small molecules on LY6K knockdown and control HeLa cells. Stable LY6K
shRNA cells were generated by transduction of two different lentiviral shRNA constructs followed by
a selection in puromycin. Western blotting confirmed the loss of endogenous LY6K protein in LY6K
knockdown cells compared to vector control cells (Figure 2c, Figures S13 and S14; Table S2). Vector
and LY6K knockdown cell lines were treated with the 180 NCI library drugs and the cell viability was
determined using a CTB assay. A heat map depicting the percentage of dead cells in green and live
cells in red was generated. The rectangle marked with an asterisk showed a subset of drugs that lost
their cell death activity in a reproducible manner as seen in both LY6K knockdown cells (sh1 and sh2)
(Figure 2d, asterisk). This data was replotted as a ratio between LY6K shRNA/control cells to identify
the drug which had the biggest impact on its cell death activity due to loss of LY6K. For this experiment,
cell viability was averaged. The average fold change in cell viability (cell viability index) was plotted in
LY6K knockdown vs. control cells. Small molecule NSC243928, an anti-cancer agent [14], showed the
highest loss in cell death activity in the LY6K knockdown cells (Figure 2e). Treatment with NSC243928
in LY6K knockdown sh2 cells led to an 8.5-fold decrease in cell death activity compared to vector
control HeLa cells (Figure 2f).

Cancers 2020, 12, 509
3 of 12
(a)
(b)
Figure 1. Lymphocyte antigen 6K (LY6K) is an ideal target for cancer therapeutics. (a) The Human
Protein Atlas data shows quantification of Immunohistochemistry (IHC) using a nuclear magnetic
resonance (NMR) validated, affinity purified using the PrEST-antigen as affinity ligand HPA017770
(Sigma) antibody for LY6K, in a panel of human normal tissues. The intensity of IHC labeling is shown
on the Y-axis, and the X-axis shows the names of organs tested. In the inset, IHC images are shown
from normal testis and breast using LY6K antibody. (b) cBioPortal data visualization using TCGA 2018
release data suggest high expression of LY6K in multiple cancer types.
To confirm the effect of NSC243928 in LY6K-expressing cells, we observed the parental control
and sh2 LY6K knockdown in MDA-MB-231 cells, a triple negative breast cancer cell line. These cells
were generated as previously described [13]. To test the effect of NSC243928 on cell growth, the cells
were seeded into 96-well plates and treated with 2 µM drug for 24 h. A CTB assay was then performed
according to manufacturer’s instructions to determine the cell growth. We observed that NSC243928
induces cell death in MDA-MB-231 control cells, while LY6K knockdown cells showed increased cell
viability in the presence of NSC243928 (Figure 2g). These experiments indicate that NSC243928 may
induce cell death through LY6K pathways.

Cancers 2020, 12, 509
4 of 12
(a)
(b)
(c)
(d)
(e)
(f)
(g)
Figure 2. Identification of NSC243928 as a binder of LY6K. (
was overexpressed in HEK 293 cells. GST sepharose beads were used to pull down the protein and
were run on SDS-PAGE gel alongside BSA. ( ) Surface plasmon resonance (SPR) data showing binding
a) Full-length GST-tagged LY6K protein
b
of NCI Developmental Therapeutics Program (DTP) small molecules to recombinant full-length LY6K.
The Y axis is normalized to Rmax, which is the theoretical maximum signal that can be achieved based
amount of protein immobilized on the chip surface. Blue line indicates the 50% threshold. (c) Western
blot data validating LY6K knockdown compared to vector control in HeLa cells. A sheep anti-human
LY6K antigen affinity-purified polyclonal antibody (R&D Systems #AF6648) was used. Two specific
bands centered around 25 kDa are standard for this antibody for full-length LY6K [13]. (d) Differential
drug assay on HeLa control and LY6K knockdown cells. A total of 180 compounds showed binding
to LY6K over control. These compounds were tested in cell growth assay in duplicate. The subset of
drugs with a lower activity corresponding to the loss of LY6K are indicated by ‘*’. (
change between LY6K shRNA and control HeLa cells. ( ) HeLa Vector and sh2 Cell-Titer-Blue assay.
HeLa cells were treated with 2 M NSC243928. After 24 h, cell viability was assessed (*** indicates
p < 0.001). ( ) MDA-MB-231 Vector and sh2 Cell-Titer-Blue assay. MDA-MB-231 cells were treated with
2 µM NSC243928. Cell viability was assessed after 24 h of treatment (**** indicates p < 0.0001).
e) Cell viability fold
f
µ
g

Cancers 2020, 12, 509
5 of 12

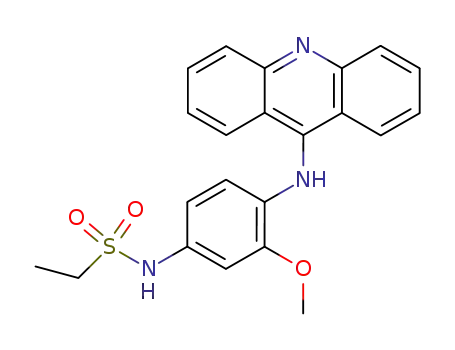

2.3. Re-Synthesized NSC243928 Has Comparable Activity to the Library-Obtained Compound
To further confirm the activity of NSC243928, the small molecule was resynthesized in three
steps starting with an acid-catalyzed nucleophilic aromatic substitution of 9-chloroacridine with
2-methoxy-4-nitroaniline (Figure 3a). Reduction of the nitro group and subsequent treatment with
ethane sulfonyl chloride yielded the desired product. Yellow NSC243928 crystals were used for
structural and spectral studies to verify molecular purity and identity (Figure S1). The identity
of the product was verified by 1H nuclear magnetic resonance spectroscopy, 13C nuclear magnetic
resonance spectroscopy, single crystal X-ray diffraction, and liquid chromatography mass spectrometry
(Figures S1–S9). Purity was monitored by liquid chromatography with two different detectors:
UV (Figure S10) and charged aerosol detection (CAD, Figure S11). Resynthesized NSC243928 showed
a similar IC50 to the repository compound in cell death assays in HeLa cells (Figure 3b).
(a)
(b)
Figure 3. Synthesis and confirmation of NSC243928 activity. (a) Synthesis of NSC243928. Conditions:
(1) 9-Chloroacridine, N-methyl-2-pyrrolidone (NMP), HCl, room temperature for 2 h. (2) H2, Pd/C,
MeOH, room temperature for 2 h. (3) Ethane sulfonyl chloride, Pyridine, DCM, 0 ◦C to room
temperature, overnight. (
in HeLa cells.
b) Cell death activity of repository (NCI) and synthesized (USC) compound
2.4. NSC243928 Shows Specific Binding with the Mature Form of LY6K
LY6K and its family members LY6E and LY6D are glycosylphosphatidylinositol (GPI)-anchored
proteins. It is predicted that the N-terminal and C-terminal sequences are cleaved off in the processed,
mature protein. The mature form of the protein is processed for localization outside of the cell
membrane via a GPI linker sequence. We tested whether NSC243928 binds to the mature form of LY6K
and related genes LY6E and LY6D. For this experiment, the cDNA sequence encoding the mature forms
of LY6K, LY6E, and LY6D were cloned into a pET-24a His-tag vector. Bacterially expressed proteins
were purified using a Nickel-Nitrilotriacetic Acid (Ni-NTA) resin (Figure 4a). The NCI repository
and USC synthesized versions of NSC243928 both showed concentration-dependent binding to the
immobilized LY6K, but did not show concentration-dependent specific binding to the mature form of
LY6E or LY6D (Figure 4b,c).

Cancers 2020, 12, 509
6 of 12
(b)
(a)
(c)
Figure 4. NSC243928 specifically binds to the mature form of LY6K. (a) The mature forms of LY6E, LY6D,
and LY6K were cloned in pET24a N-term His-tag vector (Epoch Biosciences); expressed in BL21DE
Escherichia coli (E. coli); purified using Ni-NTA resin; run on the 15% SDS-PAGE gel. The ‘*’ shows the
specific LY6 protein bands of expected molecular weights. (
b,c) Representative SPR sensorgrams for
NSC243928 binding to LY6K, LY6E, and LY6D. NSC243928 shows a dose-dependent binding response
to LY6K, whereas non-specific/no binding was observed for LY6E/LY6D, respectively; (
b) NSC243928
obtained from NCI repository, (c) NSC243928 synthesized at USC.
3. Discussion
The bioactivity of NSC243928 was previously tested using a tumor cell line growth inhibition
assay in a panel of cancer cell lines [14]. The compound has been found to be active in an in vitro
cell death assay (Developmental Therapeutics Data, public Data). Our findings have confirmed that
NSC243928 induces cell death in various cancer cell lines (Figure 5). Small molecule NSC243928 has
previously been tested in an in vivo anti-tumor screen by the NCI on an L1210 leukemia model in
BDF1 Syngeneic mice [14]. The average survival in this tumor model is 2–3 weeks. Treatment with
NSC243928 increased survival benefit from 30% to 100% in a dose-dependent manner and was not
found to be toxic up to 10 mg/kg/i.p. treatment [18].
Interestingly, NSC243928 was identified as one of 136 small molecules to inhibit the growth of
ovarian cancer stem-like cells by high-throughput screening among 798 tested library compounds
from the NCI repository [14]. It remains to be seen if LY6K is more active in stem-like cancer cells.
LY6K is located on human chromosome 8, syntenic to mouse chromosome 15 which houses stem
cell antigen-1 (Sca-1). Sca-1 is a cancer stem cell marker and plays a causal role in disrupted TGF
β
signaling in mammary mouse tumor models [19]. While there is no human ortholog for Sca-1, several
other genes on human chromosome 8 exist, including LY6E and LY6K [20]. So far, the stem cell-like
properties of these genes have not been demonstrated. The mechanism of action for NSC243928
has not yet been fully elucidated. Currently, we are conducting in vivo experiments to understand
the LY6K-NSC243928 molecular mechanism of action leading to cancer cell death. More work is
needed to understand how LY6K can be used as a potential therapeutic target for precision medicine
cancer treatment, using this new biomarker to design more effective treatment plans. In the future,
pharmacological inhibition of LY6K may be a viable option for novel cancer treatment. As the normal
function of LY6K is limited to normal testis, it is reasonable to anticipate limited toxicity associated
with LY6K-targeted cancer treatment.

Cancers 2020, 12, 509
7 of 12
(a)
(b)
(c)
(d)
Figure 5. Cell death activity of NSC243298 in cancer cell lines. (a) MDA-MB-231 cells. (b) Hs-578-T
cells. (c) BT-549 cells. (d) OVCAR-8 cells.
4. Materials and Methods
4.1. Plasmids
N-terminal GST-tagged LY6K was cloned into a mammalian expression vector pEBG with the
EF1 promoter. The parent vector was a gift from Dr. Mayer, UCHS, CT and described previously [21].
N-terminal His-tagged mature forms of human LY6K, LY6D, and LY6E were gene synthesized in
pET-24a vector (Epoch Biosciences, Bothell, WA, USA).
4.2. Mammalian Cell Culture and Transfection
Expression of mammalian LY6K protein in HEK-293T: HEK-293T cells were obtained from ATCC.
Cells were cultured in a 37 ◦C incubator with 5% CO2. Cells were seeded in 100 mm cell culture dishes
in DMEM with 10% FBS. Cells were transfected with the pEBG-GST-LY6K plasmid using PolyJet
(SignaGen, Rockville, MD, USA) according to manufacturer’s protocol. The transfected cells were
maintained in culture for 27 h for protein production. After 27 h, the cells were collected, and protein
lysates were prepared using RIPA lysis buffer containing 1% glycerol.
LY6K shRNAs and cell lines: LY6K sh1 (Cat# TRCN0000117952), LY6K sh2 (Cat# TRCN0000117953),
shRNAs cloned into pLKO.1 were obtained from Sigma Inc. Lentivirus was produced in 293T cells by
cotransfection of the pMD2.g and VSVG vectors. At 24 h after transfection, the medium was replaced,
and virus was collected. Cells were infected with lentivirus for 24 h in the presence of 4 mg/mL of
polybrene, and selection carried out with 1 µg/mL of puromycin. The Hela cells were obtained by
Georgetown University core facility. The cell line was authenticated by short random repeat DNA
sequencing. Cells were propagated and stored in multiple vials as recommended. Each vial was cells
were used and discarded within six months.

Cancers 2020, 12, 509
8 of 12
4.3. Purification of Full-Length GST-LY6K Protein from Mammalian Cells
The cleared protein lysate was subjected to pull down using GST beads (GE Healthcare, Chicago,
IL, USA) per manufacturer’s instructions. The supernatant was incubated with a 50% slurry of
activated Glutathione beads overnight at 4 ◦C. The beads were then centrifuged at 600 g and washed
four times with PBS containing 1% Triton X-100, then once with PBS. The proteins were then eluted
with an elution buffer containing 40 mM reduced Glutathione (Sigma, St. Louis, MO, USA) solution,
1% Triton X-100, and 1 mM dithiothreitol (DTT). The eluates were analyzed by SDS-PAGE and stained
with Coomassie Brilliant Blue. Glutathione was removed from the eluted proteins via buffer exchange
with HBS-P buffer (0.01 M HEPES pH 7.4, 0.15 M NaCl, 3 mM EDTA, 0.005% v/v Surfactant P20) using
a 3K Amicon Ultra Centrifugal Filter Unit (Millipore, Burlington, MA, USA) for compatibility with
Biacore. The eluates were then split into 25 µL aliquots and stored at −80 ◦C until use.
4.4. Purification of Mature Form of LY6K, LY6D, and LY6E Proteins from E. coli
Plasmids containing the sequences for N-terminal His-tagged mature LY6 proteins were
transformed into BL21 (DE3) E. coli via heat shock. The cells were grown, and protein expression
was induced with Isopropyl β-D-1-thiogalactopyranoside (IPTG). Following centrifugation, the cell
pellet was collected and treated with urea buffer to obtain a protein lysate. A Ni-NTA resin (Roche,
Basel, Switzerland) was used in a batch purification method and protein was eluted using imidazole
according to the manufacturer’s instructions. Protein purity was assessed by SDS-PAGE on a 15%
acrylamide gel.
4.5. Small Molecule Library and Preparation of Master Drug Plates
Oncology set, Diversity Set IV, Mechanistic set II, and Natural Products Set II small molecule
libraries containing a total of 2,643 small molecules were obtained from the NCI Developmental
Therapeutics Program (DTP). These molecules were then diluted to 1 mM in DMSO. All small
molecules, except those from Natural Products Set II, were further diluted to a final concentration
of 50 µM in PBS (20 mM phosphate buffer pH 7.4, 137 mM KCl, 2.7 mM NaCl) containing 0.05%
v/v surfactant P-20 (termed as PBS-P hereafter) supplemented at 5% v/v DMSO and allocated in
eight 384 microplates. Small molecules from Natural Products Set II were further diluted to a final
concentration of 50 µM in PBS-P supplemented with 4.75% v/v DMSO and 0.25% v/v glycerol and
allocated in a separate microplate.
4.6. Surface Plasmon Resonance
Biacore T200 was used for all in vitro SPR screening experiments. To test the ability of the small
molecules to bind to LY6K-GST, LY6K-GST was covalently immobilized to flow cell 2 (FC2) of a
CM5sensor chip to 10,000 RU (response units) using standard amine coupling chemistry in the
≈
presence of 10 mM sodium acetate buffer at pH 4.0. A randomly chosen negative control protein
(CD99) was also captured on FC4 of the same sensor chip using standard biotin-neutravidin coupling
chemistry. HBS-P (10 mM Hepes pH 7.4, 150 mM NaCl, 0.05% v/v surfactant P20) was used as the
immobilization/capture running buffer.
FC1 was used as the reference for FC2 and FC3 was used as the reference for FC4. The reference
FCs had the same coupling chemistry as the active FCs (FC2 and FC4) but did not have proteins. Small
molecules from plates one to nine were injected over these proteins for a period of 60 s at a flow rate
of 30 µL/min. After each injection, compounds were allowed to dissociate for 120 s before starting
the next compound injection cycle. After every 40 compound injections, multiple blank buffer (PBS-P
+5% DMSO or PBS-P +4.75% DMSO +0.25% glycerol) injections were made. Fresh sensor chips and
proteins were used for each 384-well plate.
Compound-LY6K and compound-control-protein binding levels were determined after subtracting
the non-specific binding to the reference surfaces and response values for the blank buffer injections

Cancers 2020, 12, 509
9 of 12
(double reference subtraction). Theoretical maximum binding levels (Rmax) were calculated, and each
molecule’s real binding percentage was compared to its corresponding Rmax value. Compounds
binding to the negative control protein more than the target protein were eliminated from further
evaluation. Compounds binding to LY6K with 50% or more of the Rmax were selected as primary
hits. Compounds that showed more than 200% Rmax were considered non-specific aggregates and
eliminated from further evaluation. Dose response experiments for LY6D, LY6E, and LY6K were
immobilized on FC2, FC3, and FC4 using a standard amine coupling chemistry in the presence of
10 mM sodium acetate buffer at pH values 4.5, 5.5, and 4.0 to levels of
and ≈1,400–3,400 RU, respectively.
≈
800–950 RU, 900–1,700 RU,
≈
4.7. Synthesis of NSC243928
Synthesis of NSC243928 was performed in three steps.
First step—synthesis of N-(2-methoxy-4-nitrophenyl)acridin-9-amine (1): 2-methoxy-4-nitroaniline
(0.842 g, 5.01 mmol) and 9-chloroacridine (0.973 g, 4.55 mmol) were dissolved in N-methyl-2-pyrrolidone
(NMP) (17 mL) and two drops of concentrated HCl were added. The reaction was stirred at r.t. for 4 h.
Afterwards, ethyl acetate (EtOAc) ( 50 mL) was added to form a precipitate, which was collected by
≈
filtration. The solid was redissolved in methanol (MeOH) at 45 ◦C, reprecipitated with EtOAc, and
1
filtered to yield a yellow solid (1.22 g, 78%) [22
,
23]. H NMR (300 MHz, MeOD)
δ
8.23 (d, J = 8.8 Hz,
2H), 8.07–8.00 (m, 6H), 7.67 (d, J = 8.6 Hz, 1H), 7.57–7.52 (m, 2H), 3.69 (s, 3H). 13C NMR (100 MHz,
MeOD) 157.46, 154.51, 148.59, 141.49, 137.25, 136.80, 126.69, 126.17, 125.97, 120.45, 118.04, 116.48,
108.79, 56.96.
Second step—synthesis of N1-(acridin-9-yl)-2-methoxybenzene-1,4-diamine (2): 1 (0.800 g,
δ
2.32 mmol) and a catalytic amount of Pd/C were added to 100 mL MeOH in a pressure flask.
The resulting suspension was agitated under 50 psi of H2 for 2 h. The suspension was then filtered
to remove the Pd/C. The filtrate was evaporated under reduced pressure to yield the crude product
1
as a yellow solid (0.730 g, 99%), which was carried on without further purification [22
(300 MHz, MeOD)
2H), 7.16 (d, J = 8.3 Hz, 1H), 6.50–6.44 (m, 2H), 3.54 (s, 3H).
,
23]. H NMR
δ
8.26 (d, J = 8.7 Hz, 2H), 7.94–7.91 (m, 2H), 7.84 (t, J = 7.9 Hz, 2H), 7.39 (t, J = 7.7 Hz,
Third step—synthesis of NSC243928: N1-(acridin-9-yl)-2-methoxybenzene-1,4-diamine from
step 2 (0.228 g, 0.723 mmol) and dry pyridine (0.086 mL, 1.06 mmol) were added to 3.6 mL of dry
dichloromethane (DCM). Ethane sulfonyl chloride (0.206 mL, 2.17 mmol) was then added to the
reaction mixture dropwise. Due to toxicity of ethane sulfonyl chloride, the addition was carried out
in a fume hood set to an emergency setting with a face velocity around 500 feet per minute and the
following PPE was worn: neoprene gloves on top of nitrile gloves, lab coat, face shield. Any materials
that came in contact with the reagent were then set in an ice water bath to destroy any residual ethane
sulfonyl chloride before being disposed of. The mixture was stirred at room temperature overnight.
MeOH was added to destroy any excess ethane sulfonyl chloride and the solvent was evaporated
under reduced pressure. The crude mixture was dry loaded on a silica gel column and the product
was isolated using the following gradient (100% DCM to 90:10 DCM:MeOH) to yield a yellow solid
1
(0.268 g, 91%) [24]. H NMR (300 MHz, MeOD)
δ 8.01 (d, J = 8.5 Hz, 2H), 7.67–7.60 (m, 4H), 7.18–7.13
(m, 2H), 6.99 (s, 1H), 6.81 (s, 2H), 3.69 (s, 3H), 3.14 (q, J = 7.4 Hz, 2H), 1.35 (t, J = 7.4 Hz, 3H). 13C NMR
(100 MHz, MeOD) 153.53, 152.14, 144.84, 135.59, 135.50, 132.76, 126.75, 123.19, 122.20, 122.03, 119.76,
δ
114.60, 106.61, 56.16, 46.25, 8.48.
4.8. X-Ray Structure Determination, C22H21N3O3S·H2O (NSC243928)
X-ray intensity data from an orange wedge-shaped crystal were collected at 100(2) K using
a Bruker D8 QUEST diffractometer equipped with a PHOTON-100 CMOS area detector and an
Incoatec microfocus source (Mo K
were reduced and corrected for absorption effects using the Bruker APEX3, SAINT+ and SADABS
programs [25 26]. The structure was solved with SHELXT [27 28]. Subsequent difference Fourier
α radiation, λ = 0.71073 Å). The raw area detector data frames
,
,

Cancers 2020, 12, 509
10 of 12
calculations and full-matrix least-squares refinement against F2 were performed with SHELXL-2018
using OLEX2 [28,29].
4.9. Cell Death Assays
For cell death assay, cells were plated in a black walled 96-well plate and treated with the indicated
concentration of drugs for 24 h. Cell-Titer-Blue reagent was added, and the Cytation 5 microplate
reader (BioTek, Winooski, VT, USA) was used to measure fluorescence intensity (excitation 560(10) nm,
emission 590(20) nm) according to manufacturer’s instructions.
5. Conclusions
In this report, we show that NSC243928 interacts specifically with LY6K in a dose-dependent
manner. We used a full-length protein GST-LY6K fusion isolated from mammalian cells to identify
small molecule LY6K binders, from which we selected NSC243928 for additional analysis. Furthermore,
we found out that NSC243928 also shows binding with the mature form of LY6K fused with a His-tag.
NSC243928 did not show specific binding with other LY6 family proteins, LY6E and LY6D. These data
suggest that it is feasible to find specific small molecules that bind to LY6 proteins.
6. Patents
A use of patent application for NSC243928 and its derivatives for binding and targeting LY6K has
been submitted.
Supplementary Materials: The following are available online at http://www.mdpi.com/2072-6694/12/2/509/s1,
Figure S1: Structural and spectral analysis of NSC243928. Figure S2: 1H NMR (300 MHz) of
1
in CD3OD. Figure S3:
13C NMR (100 MHz) of in CD3OD. Figure S4: 1H NMR (300 MHz) of intermediate in CD3OD. Figure S5: 1H
1
2
NMR (300 MHz) of NSC243928 in CD3OD. Figure S6: 13C NMR (100 MHz) of NSC243928 in CD3OD. Figure S7:
LC/MS chromatogram of NSC243928 showing the presence of four peaks. Figure S8: MS of peaks A ([M +
H]+ = 210 g/mol) and B ([M + H]+ = 408 g/mol). Figure S9: MS of peaks C ([M + H]+ = 350 g/mol) and D ([M
+ H]+ = 442 g/mol). Figure S10: LC/UV chromatogram of NSC243928 (95.52% purity). Figure S11: LC/CAD
chromatogram of NSC243928 (95.95% purity). Figure S12: LC/CAD chromatogram of control (blank). Figure S13:
Whole Western blot images. Figure S14: LY6K/GAPDH intensity ratios. Table S1: Crystal data for NSC243928.
Table S2: Western blot densitometry data.
Author Contributions: Conceptualization, G.U.; formal analysis, methodology, and writing, S.B., P.B.T., D.W.G.,
L.D., G.B.K., M.D.S., A.U., M.C., L.S.S., and G.U.; writing, S.B., P.B.T., D.W.G., L.D., G.B.K., M.D.S., A.U., M.C.,
L.S.S., and G.U. All authors have read and agreed to the published version of the manuscript.
Funding: This research has been supported by NIH R01CA227694 and Uniformed Services University Start-Up
funds by Vice President of Research office, USUHS to Geeta Upadhyay. NIH R01CA227694 sub-award to Linda
Shimizu and Maksymilian Chruszcz. Part of the study was supported by Institutional American Cancer Society
Grant to Mike Atkins, Georgetown University, sub-award to Geeta Upadhyay at her work at Georgetown
University. The experimental SPR sensorgrams were measured using a Biacore T200 instrument and were
evaluated using the Biacore T200 evaluation software version 1.0 available in the Biacore Molecular Interaction
Shared Resource (BMISR) facility at Georgetown University. The BMISR is supported by NIH grant P30CA51008.
Conflicts of Interest: The authors declare no conflict of interest. The funders had no role in the design of the
study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to
publish the results.
Disclaimer: The opinions expressed herein are those of the authors and are not necessarily representative of those
of the government of the United States, the Uniformed Services University, the Department of Defense, VA, NIH,
or any other US federal agency.
References
1.
Loughner, C.L.; Bruford, E.A.; McAndrews, M.S.; Delp, E.E.; Swamynathan, S.; Swamynathan, S.K.
Organization, evolution and functions of the human and mouse Ly6/uPAR family genes. Hum. Genom. 2016
10, 10. [CrossRef] [PubMed]
,

Cancers 2020, 12, 509
11 of 12
2.
3.
4.
Letessier, A.; Sircoulomb, F.; Ginestier, C.; Cervera, N.; Monville, F.; Gelsi-Boyer, V.; Esterni, B.; Geneix, J.;
Finetti, P.; Zemmour, C.; et al. Frequency, prognostic impact, and subtype association of 8p12, 8q24, 11q13,
12p13, 17q12, and 20q13 amplifications in breast cancers. BMC Cancer 2006, 6, 245. [CrossRef] [PubMed]
Visapää, H.; Seligson, D.; Eeva, M.; Gaber, F.; Rao, J.; Belldegrun, A.; Palotie, A. 8q24 amplification in
transitional cell carcinoma of bladder. Appl. Immunohistochem. Mol. Morphol. 2003, 11, 33–36. [CrossRef]
[PubMed]
Fromont, G.; Godet, J.; Peyret, A.; Irani, J.; Celhay, O.; Rozet, F.; Cathelineau, X.; Cussenot, O. 8q24
amplification is associated with Myc expression and prostate cancer progression and is an independent
predictor of recurrence after radical prostatectomy. Hum. Pathol. 2013, 44, 1617–1623. [CrossRef]
Li, X.; Chen, W.; Wang, H.; Wei, Q.; Ding, X.; Li, W. Amplification and the clinical significance of circulating
cell-free DNA of PVT1 in breast cancer. Oncol. Rep. 2017, 38, 465–471. [CrossRef]
Upadhyay, G. Emerging Role of Lymphocyte Antigen-6 Family of Genes in Cancer and Immune Cells. Front.
Immunol. 2019, 10, 819. [CrossRef]
Kong, H.K.; Park, S.J.; Kim, Y.S.; Kim, K.M.; Lee, H.W.; Kang, H.G.; Woo, Y.M.; Park, E.Y.; Ko, J.Y.; Suzuki, H.;
et al. Epigenetic activation of LY6K predicts the presence of metastasis and poor prognosis in breast
carcinoma. Oncotarget 2016, 7, 55677–55689. [CrossRef]
5.
6.
7.
8.
9.
Matsuda, R.; Enokida, H.; Chiyomaru, T.; Kikkawa, N.; Sugimoto, T.; Kawakami, K.; Tatarano, S.; Yoshino, H.;
Toki, K.; Uchida, Y.; et al. LY6K is a novel molecular target in bladder cancer on basis of integrate genome-wide
profiling. Br. J. Cancer 2011, 104, 376–386. [CrossRef]
Ishikawa, N.; Takano, A.; Yasui, W.; Inai, K.; Nishimura, H.; Ito, H.; Miyagi, Y.; Nakayama, H.; Fujita, M.;
Hosokawa, M.; et al. Cancer-testis antigen lymphocyte antigen 6 complex locus K is a serologic biomarker
and a therapeutic target for lung and esophageal carcinomas. Cancer Res. 2007, 67, 11601–11611. [CrossRef]
10. Luo, L.; McGarvey, P.; Madhavan, S.; Kumar, R.; Gusev, Y.; Upadhyay, G. Distinct lymphocyte antigens 6
(Ly6) family members Ly6D, Ly6E, Ly6K and Ly6H drive tumorigenesis and clinical outcome. Oncotarget
2016, 7, 11165–11193. [CrossRef]
11. Endo, S.; Yoshitake, H.; Tsukamoto, H.; Matsuura, H.; Kato, K.; Sakuraba, M.; Takamori, K.; Fujiwara, H.;
Takeda, S.; Araki, Y. TEX101, a glycoprotein essential for sperm fertility, is required for stable expression of
Ly6k on testicular germ cells. Sci. Rep. 2016, 6, 23616. [CrossRef] [PubMed]
12. Fujihara, Y.; Okabe, M.; Ikawa, M. GPI-anchored protein complex, LY6K/TEX101, is required for sperm
migration into the oviduct and male fertility in mice. Biol. Reprod. 2014, 90, 60. [CrossRef] [PubMed]
13. AlHossiny, M.; Luo, L.; Frazier, W.R.; Steiner, N.; Gusev, Y.; Kallakury, B.; Glasgow, E.; Creswell, K.;
Madhavan, S.; Kumar, R.; et al. Ly6E/K Signaling to TGFbeta Promotes Breast Cancer Progression, Immune
Escape, and Drug Resistance. Cancer Res. 2016, 76, 3376–3386. [CrossRef] [PubMed]
14. Mezencev, R.; Wang, L.; McDonald, J.F. Identification of inhibitors of ovarian cancer stem-like cells by
high-throughput screening. J Ovarian Res. 2012, 5, 30. [CrossRef]
15. Uhlen, M.; Bjorling, E.; Agaton, C.; Szigyarto, C.A.; Amini, B.; Andersen, E.; Andersson, A.C.; Angelidou, P.;
Asplund, A.; Asplund, C.; et al. A human protein atlas for normal and cancer tissues based on antibody
proteomics. Mol. Cell. Proteom. 2005, 4, 1920–1932. [CrossRef]
16. Lee, P.Y.; Wang, J.X.; Parisini, E.; Dascher, C.C.; Nigrovic, P.A. Ly6 family proteins in neutrophil biology.
J. Leukoc. Biol. 2013, 94, 585–594. [CrossRef]
17. Cerami, E.; Gao, J.; Dogrusoz, U.; Gross, B.E.; Sumer, S.O.; Aksoy, B.A.; Jacobsen, A.; Byrne, C.J.; Heuer, M.L.;
Larsson, E.; et al. The cBio cancer genomics portal: An open platform for exploring multidimensional cancer
genomics data. Cancer Discov. 2012, 2, 401–404. [CrossRef]
18. Ferguson, L.R.; Denny, W.A. Potential antitumor agents. 30. Mutagenic activity of some 9-anilinoacridines:
Relationships between structure, mutagenic potential, and antileukemic activity. J. Med. Chem. 1979, 22,
251–255. [CrossRef]
19. Upadhyay, G.; Yin, Y.; Yuan, H.; Li, X.; Derynck, R.; Glazer, R.I. Stem cell antigen-1 enhances tumorigenicity
by disruption of growth differentiation factor-10 (GDF10)-dependent TGF-beta signaling. Proc. Natl. Acad.
Sci. USA 2011, 108, 7820–7825. [CrossRef]
20. Holmes, C.; Stanford, W.L. Concise review: Stem cell antigen-1: Expression, function, and enigma. Stem Cells
2007, 25, 1339–1347. [CrossRef]
21. Mayer, B.J.; Hirai, H.; Sakai, R. Evidence that SH2 domains promote processive phosphorylation by
protein-tyrosine kinases. Curr. Biol. 1995, 5, 296–305. [CrossRef]

Cancers 2020, 12, 509
12 of 12
22. Cope, H.; Mutter, R.; Heal, W.; Pascoe, C.; Brown, P.; Pratt, S.; Chen, B. Synthesis and SAR study of acridine,
2-methylquinoline and 2-phenylquinazoline analogues as anti-prion agents. Eur. J. Med. Chem. 2006, 41,
1124–1143. [CrossRef] [PubMed]
23. Gellerman, G.; Waintraub, S.; Albeck, A.; Gaisin, V. One-Pot Synthesis of Novel Antiproliferative
9-Aminoacridines. Eur. J. Org. Chem. 2011, 2011, 4176–4182. [CrossRef]
24. Elgaher, W.A.; Sharma, K.K.; Haupenthal, J.; Saladini, F.; Pires, M.; Real, E.; Mely, Y.; Hartmann, R.W.
Discovery and Structure-Based Optimization of 2-Ureidothiophene-3-carboxylic Acids as Dual Bacterial
RNA Polymerase and Viral Reverse Transcriptase Inhibitors. J. Med. Chem. 2016, 59, 7212–7222. [CrossRef]
[PubMed]
25. Bruker SAINT (Version 8.38A) in APEX3 (Version 2018.1-0); Bruker AXS Inc.: Madison, WI, USA, 2018.
26. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus
X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [CrossRef]
27. Sheldrick, G.M. SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. A
Found. Adv. 2015, 71, 3–8. [CrossRef]
28. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C Struct. Chem. 2015, 71, 3–8.
[CrossRef]
29. Bourhis, L.J.; Dolomanov, O.V.; Gildea, R.J.; Howard, J.A.; Puschmann, H. The anatomy of a comprehensive
constrained, restrained refinement program for the modern computing environment—Olex2 dissected.
Acta Crystallogr. A Found. Adv. 2015, 71, 59–75. [CrossRef]
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
