Synthesis and molecular structure of [Fe2Cl2(μ-S-tBu)2(η 1-η1-μ-dppe)] (dppe = Ph2P(CH2)2PPH2)

Article abstract of DOI:10.1515/znb-2003-0418

The red title compound was synthesized by the metathesis reaction of [FeCl₂(dppe)] (dppe = Ph₂PCH₂)₂PPh₂) and NaS-tBu in THF. The X-ray structure analysis revealed a dinuclear complex with two iron(II) centers coordinated in a distorted tetrahedral fashion by two bridging thiolates, one bridging dppe molecule and one terminal chloro ligand.

Full text of DOI:10.1515/znb-2003-0418

Notizen
359
Synthesis and Molecular Structure of
[Fe2Cl2(µ-S-tBu)2(η1-η1-µ-dppe)]: A suspension
of 526 mg (1 mmol) of [Fe(Cl)2(dppe)] in 50 ml
THF was treated with a mixture of 225 µl
(2 mmol) of tert-butylthiol und 48 mg (2 mmol) of
NaH in 10 ml of THF. The brown reaction mixture
was stirred for 2 h at ambient temperature. Subse-
quently the solvent was stripped in vacuo. The
solid residue was suspended in toluene (60 ml) and
filtered through celite. The filtrate was concen-
trated to 30 ml and n-hexane (30 ml) was added.
A red precipitate formed immediately which was
isolated by filtration and washed with n-hexane.
Red crystals suitable for an X-ray diffraction
analysis were obtained from a concentrated to-
luene/n-hexane solution (3:1, v:v) at Ð20 ∞C. Yield:
410 mg (0.54 mmol, 54 %). Ð C34H42Cl2Fe2P2S2
(759.34): calcd. C 53.78, H 5.57; found C 53.99,
H 5.38.
[Fe2Cl2(µ-S-tBu)2(η1-η1-µ-dppe)]
(dppe = Ph2P(CH2)2PPh2)
Han Vinh Huynha, Roland Fröhlichb,
and F. Ekkehardt Hahna
a
Institut für Anorganische und Analytische
Chemie, Westfälische Wilhelms-Universität
Münster, Wilhelm-Klemm-Straße 8,
D-48149 Münster
b
Organisch-Chemisches Institut,
Westfälische Wilhelms-Universität Münster,
Corrensstraße 40, D-48149 Münster
Reprint requests to Prof. Dr. F. E. Hahn.
E-mail: fehahn@uni-muenster.de
Z. Naturforsch. 58b, 359Ð361 (2003);
received January 16, 2003
The red title compound was synthesized by the
metathesis reaction of [FeCl2(dppe)] (dppe =
Ph2PCH2)2PPh2) and NaS-tBu in THF. The X-ray
structure analysis revealed a dinuclear complex
with two iron(II) centers coordinated in a dis-
torted tetrahedral fashion by two bridging thio-
lates, one bridging dppe molecule and one termi-
nal chloro ligand.
X-ray
structure
determination:
Formula
C34H42Cl2Fe2P2S2, M = 759.34, red crystal 0.30 ¥
0.25 ¥ 0.25 mm3, a = 9.785(1), b = 21.733(1), c =
3
˚
˚
17.428(1) A, ꢀ = 96.06(1)∞, V = 3685.5(5) A ,
ρcalcd = 1.369 g cmÐ3, µ = 11.54 cmÐ1, empirical
absorption correction (0.723 Յ θ Յ 0.761), Z = 4,
monoclinic, space group P21/n (No. 14), λ =
Key words: Dinuclear Complexes, Iron, Thiolates
˚
0.71073 A, T = 198 K, ω and ꢁ scans, 33670 reflec-
Ð1
˚
Introduction
tions collected (ðh, ðk, ðl), [(sinθ)/λ] = 0.71 A
,
10923 independent (Rint = 0.037) and 8771 ob-
served reflections [I Ն 2 σ(I)], 385 refined parame-
ters, R = 0.042, wR2 = 0.100, max. residual electron
In our search for model compounds for the
Fe(µ-S)2Fe ferredoxine [1] we explored the reac-
tivity of [Fe(Cl)2(dppe)] towards thiolates. Expect-
ing that the reaction with simple alkylthiolato salts
NaSR would lead to complexes of the type
[Fe(SR)2(dppe)]. Next it was planned to substitute
the dppe ligand by a functionalized bidentate ben-
zenedithiolato ligand [2] or a bridging bis(ben-
zenedithiolato) ligand [3]. However, the reaction
of [Fe(Cl)2(dppe)] with NaS-tBu does not proceed
with substitution of both chloro ligands but
instead yields the novel dinuclear complex
[Fe2Cl2(µ-S-tBu)2(η1-η1-µ-dppe)].
density 1.07 (Ð0.64) e AÐ3, hydrogens calculated
˚
and refined as riding atoms. The data set was col-
lected with a Nonius KappaCCD diffractometer,
equipped with a rotating anode generator Nonius
FR591. Programs used: data collection COLLECT
[5], data reduction Denzo-SMN [6], absorption
correction SORTAV [7], structure solution
SHELXS-97 [8], structure refinement SHELXL-
97 [9] , graphics SCHAKAL [10]. Crystallographic
data (excluding structure factors) have been de-
posited with the Cambridge Crystallographic Data
Centre as supplementary publication no. CCDC-
201201. Copies of the data can be obtained free of
charge on application to The Director, CCDC, 12
Union Road, CambridgeCB2 1EZ, UK [fax: int.
code +44(1223)336-033,
Experimental Section
All manipulations were performed in an atmo-
sphere of dry argon by standard Schlenk tech-
niques. Solvents were dried by standard methods
und freshly distilled prior to use. [Fe(Cl)2(dppe)]
was prepared according to a literature procedure
[4].
e-mail: deposit@ccdc.cam.ac.uk].
0932Ð0776/03/0400Ð0359 $06.00 ” 2003 Verlag der Zeitschrift für Naturforschung, Tübingen · http://znaturforsch.com
D
Brought to you by | Macquarie University
Authenticated
Download Date | 2/24/19 8:56 AM

360
Notizen
Results and Discussion
the same side of the roughly planar Fe(µ-S)2Fe
ring. Steric interactions between these alkyl
groups lead to almost identical small FeÐSÐFe
angles (Fe1ÐS1ÐFe2 73.94(2)∞, Fe1ÐS2ÐFe2
74.08(2)∞) and larger SÐFeÐS angles (S1ÐFe1ÐS2
106.11(2)∞, S1ÐFe2ÐS2 105.81(2)∞). The other an-
gles around the iron centers deviate strongly from
the value expected for tetrahedral coordination.
Due to steric requirements of the bridging dppe
ligand the SÐFeÐP angles are smaller than ex-
pected for tetrahedral coordination (range
97.30(2)∞Ð100.54(2)∞) while the ClÐFeÐS angles
are larger (range 117.14(3)∞Ð124.70(3)∞).
The reaction of [FeCl2(dppe)] with two equiva-
lents of NaS-tBu yields the title compound
[Fe2Cl2(µ-S-tBu)2(η1-η1-µ-dppe)] as a red solid.
The complex is air sensitive and turns to a black
solid upon decomposition. Crystals suitable for an
X-ray structure determination were obtained from
a
concentrated toluene/n-hexane solution at
Ð20 ∞C.
The X-ray structure analysis reveals a dinuclear
complex (Fig. 1). The iron(II) centers are coodi-
nated in a distorted tetrahedral fashion by two
bridging thiolato sulfur atoms, a terminal chloro
ligand and a phosphorus atom from a bridging
dppe ligand. The dppe ligand forms together with
the two iron(II) centers and one µ-S atom a seven-
membered ring next to a four- membered Fe(µ-
S)2Fe ring. Both tBu substituents are located on
˚
The FeÐS bond distances (range 2.3197(6) AÐ
˚
2.3426(6) A) are comparable to equivalent dis-
tances observed in the FeII phosphine-thiolato
complexes [Fe2(SR)4(dppe)2], [Fe(SR)2(dppp)]
and [Fe(SR)2(PMePh2)] [11] and in the thiourea-
thiolato complex [Fe(SR)2(SC(NMe2)2)2] [12].
They even fall in the range found for homoleptic
FeII tetrathiolates [Fe(SR)4]2- [13].
Substitution of a chloro ligand in [Fe(Cl2(dppe)]
by a thiolato ligand and the subsequent rearrange-
ment to the dinuclear [Fe2Cl2(µ-S-tBu)2(η1-η1-µ-
dppe)] leaves the FeÐCl and FeÐP distances virtu-
ally unchanged as can be seen by comparison to
the molecular structure of [FeCl2(dippe)] [14].
Surprisingly, the reaction of [FeCl2(dppe)] with
NaSÐtBu leads to the substitution of only one
chloro ligand and a rearrangement to the di-
nuclear [Fe2Cl2(µ-S-tBu)2(η1-η1-µ-dppe)]. The ste-
ric bulk of the tert-butylthiolato ligand together
with that of the phosphine ligand are apparently
sufficient to prevent the substitution of the second
chloro ligand. The mononuclear complex
[Fe(SR)2(dppp)] (dppp = Ph2P(CH2)3PPh2) is
known [11]. However, in this complex the thiolato
ligand ist sterically less demanding and the biden-
tate phosphane ligand forms with the iron(II) cen-
ter a six-membered ring. Complexes of the type
[X2Fe(η1-η1-µ-dppe)2FeX2] (X = IÐ, RSÐ) have
also been described [11]. However, the coordina-
tion of only one bridging dppe ligand and two
bridging thiolato ligands together with a terminal
chloro ligand has not been observed in FeII coordi-
nation chemistry so far.
S1
Cl1
Cl2
Fe1
Fe2
S2
P1
P2
C2
C1

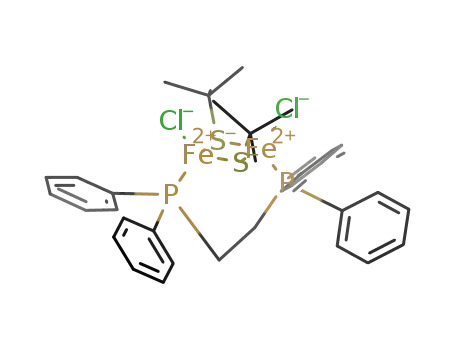

Fig. 1. Molecular structure of [Fe2Cl2(µ-S-tBu)2(η1-η1-µ-
dppe)]. Hydrogen atoms have been omitted. Selected
˚
bond lengths [A] und angles [∞]: Fe1ÐCl1 2.2096(7),
Fe1ÐS1 2.3197(6), Fe1ÐS2 2.3341(6), Fe1ÐP1 2.4355(6),
Fe2ÐCl2 2.2133(6), Fe2ÐS1 2.3426(6), Fe2ÐS2
2.3206(6), Fe2ÐP2 2.4345(6); Cl1ÐFe1ÐS1 124.70(3),
Cl1ÐFe1ÐS2 117.14(3), Cl1ÐFe1ÐP1 106.21(3), S1Ð
Fe1ÐS2 106.11(2), S1ÐFe1ÐP1 98.66(2), S2ÐFe1ÐP1
99.22(2), Cl2ÐFe2ÐS1 120.30(2), Cl2ÐFe2ÐS2 121.94(2),
Cl2ÐFe2ÐP2 106.17(2), S1ÐFe2ÐS2 105.81(2), S1ÐFe2Ð
P2 100.54(2), S2ÐFe2ÐP2 97.30(2), Fe1ÐS1ÐFe2
73.94(2), Fe1ÐS2ÐFe2 74.08(2).
Brought to you by | Macquarie University
Authenticated
Download Date | 2/24/19 8:56 AM

Notizen
361
[1] a) H. Beinert, R. H. Holm, and E. Münck, Science
277, 653 (1997); b) H. Beinert, J. Biol. Inorg. Chem.
5, 2 (2000).
[7] SORTAV, R. H. Blessing, Acta Crystallogr. A51, 33
(1995); R. H. Blessing, J. Appl. Crystallogr. 30, 421
(1997).
[2] a) F. E. Hahn and W. W. Seidel, Angew. Chem. 107,
2938 (1995); Angew. Chem. Int. Ed. 34, 2700 (1995);
b) W. W. Seidel, F. E. Hahn, and T. Lügger, Inorg.
Chem. 37, 6587 (1989); c) H. V. Huynh, W. W. Sei-
[8] SHELXS-97, G. M. Sheldrick, Acta Crystallogr.
A46, 467 (1990).
[9] SHELXL-97,
G. M.
Sheldrick,
Universität
Göttingen (1997).
del, T. Lügger, R. Fröhlich, B. Wibbeling, and F. E. [10] SCHAKAL, E. Keller, Universität Freiburg (1997).
Hahn, Z. Naturforsch. 57b, 1401 (2002).
[11] S. Pohl, U. Opitz, D. Haase, and W. Saak, Z. Anorg.
[3] a) H. V. Huynh, C. Schulze-Isfort, W. W. Seidel,
Allg. Chem. 621, 1140 (1995).
T. Lügger, R. Fröhlich, O. Kataeva, and F. E. Hahn, [12] U. Bierbach, W. Saak, D. Haase, and S. Pohl, Z.
Chem. Eur. J. 8, 1327 (2002); b) W. W. Seidel and
Naturforsch. 46b, 1629 (1991).
F. E. Hahn, J. Chem. Soc. Dalton Trans. 2237 (1999). [13] a) D. Coucouvanis, D. Swenson, N. C. Baenziger,
[4] a) M. J. Mays and P. L. Sears, J. Chem. Soc. Dalton
Trans. 1873 (1973); b) C. B. Ungermann and K. G.
Caulton, J. Am. Chem. Soc. 98, 3862 (1976).
[5] COLLECT, Nonius B. V. (1998).
[6] Denzo-SMN, Z. Otwinowski and W. Minor, Meth- [14] A. R. Hermes and G. S. Girolami, Inorg. Chem. 27,
ods in Enzymology 276, 307 (1997). 1775 (1988).
D. G. Holah, D. Kostikas, A. Simopoulos, and V. Pe-
trouleas, J. Am. Chem. Soc. 98, 5721 (1976); b) R. W.
Lane, J. A. Ibers, R. B. Frankel, G. C. Papefthymiou,
and R. H. Holm, J. Am. Chem. Soc. 99, 84 (1977).
