3
5. Lin, H.-Y.; Liou, G.-S.; Lee, W.-Y.; Chen, W.-C. J. Polym. Sci.,
Part A: Polym. Chem. 2007, 45, 1727.
chlorobenzene solution on the top of the photoactive layer.
Optimal film deposition conditions for each PTAA batch were
evaluated in the preliminary experiments.
Finally, the hole-collecting electrode consisting of MoOx(10
nm) and Ag (100 nm) was deposited by thermal evaporation
under vacuum thus completing the configuration of the
6. Qin, P.; Tetreault, N.; Dar, M. I.; Gao, P.; McCall, K. L.; Rutter, S.
R.; Ogier, S. D.; Forrest, N. D.; Bissett, J. S.; Simms, M. J.; Page, A.
J.; Fisher, R.; Grätzel, M.; Nazeeruddin, M. K. Adv. Energy Mater.
2015, 5, 1400980.
7. Lee, J.; Park, J.; Choi, H.; Yoon, Y. R.; Seo, M.; Song, S.; Kim, B.-
K.; Kim, S. Y. Polym. Bull. 2020.
8. Kisselev, R.; Thelakkat, M. Macromolecules 2004, 37, 8951.
9. Lewis, R. Photoinduced Charge Transfer - Proceedings Of The 10th
Annual Symposium Of The Nsf Center; World Scientific Publishing
Company, 2000.
perovskite
solar
cell
ITO/SnO2/PCBA/CH3NH3PbI3/HTL/MoOx/Ag as illustrated in
Figure 1a.
The J-V characteristics of the best devices fabricated with all
three polymer batches are presented in Figure 1b. The cells
incorporating polymer 4b demonstrated low power conversion
efficiencies (PCE) of 8.2% with a modest fill factor (FF) of 43%.
These results confirmed the poor electronic quality and,
consequently, the suboptimal charge transport properties of low
molecular weight polymer 4b. On the contrary, the devices with
HTL based on PTAA Ref and 4a delivered much higher
efficiencies of 16.7% and 17.6%, respectively. To the best of our
knowledge, these are among the highest efficiency values
demonstrated for perovskite solar cells with an undoped PTAA
layer. The fill factors (FF) and current densities (JSC) were
comparable for devices with both polymer batches. The current
density values were additionally reconfirmed with external
quantum efficiency measurements (Fig. S6). Importantly, the
open-circuit voltage (VOC) of the devices with 4a approached
1.06 V, which was notably higher compared to the cells with
PTAA Ref yielding a VOC of 1.02 V. The higher VOC reached for
devices with 4a indicates a decrease in the density of the defects
at the perovskite/HTL interface suppressing trap-assisted
recombination of charge carriers.25
10. Mark, H. F. Encyclopedia of Polymer Science and Technology,
Concise; Wiley, 2013.
11. Bai, W.; Yao, R.; Guan, M.; Shang, X.; Lai, N.; Xu, Y.; Lin, J. Eur.
Polym. J. 2017, 95, 105.
12. Bonesi, S. M.; Dondi, D.; Protti, S.; Fagnoni, M.; Albini, A.
Tetrahedron Lett. 2014, 55, 2932.
13. Shen, I. W.; McCairn, M. C.; Morrison, J. J.; Turner, M. L.
Macromol. Rapid Commun. 2007, 28, 449.
14. Cao, Z.; Tsuchiy, K. K.; Shimomura, T.; Ogino, K. OJOPM 2012,
Vol.02No.04, 10.
15. Hoyos, M.; Sprick, R. S.; Wang, C.; Turner, M. L.; Navarro, O. J.
Polym. Sci., Part A: Polym. Chem. 2012, 50, 4155.
16. Sprick, R. S.; Hoyos, M.; Navarro, O.; Turner, M. L. React. Funct.
Polym. 2012, 72, 337.
17. Thelakkat, M.; Hagen, J.; Haarer, D.; Schmidt, H. W. Synth. Met.
1999, 102, 1125.
18. Kim, Y.; Jung, E. H.; Kim, G.; Kim, D.; Kim, B. J.; Seo, J. Adv.
Energy Mater. 2018, 8, 1801668.
19. Ialn McCulloch, M. H. Material Matters 2009, 4.3, 4.
20. Zhang, W.; Smith, J.; Hamilton, R.; Heeney, M.; Kirkpatrick, J.;
Song, K.; Watkins, S. E.; Anthopoulos, T.; McCulloch, I. J. Am.
Chem. Soc. 2009, 131, 10814.
21. Chen, Z.-Q.; Chen, T.; Liu, J.-X.; Zhang, G.-F.; Li, C.; Gong, W.-L.;
Xiong, Z.-J.; Xie, N.-H.; Tang, B. Z.; Zhu, M.-Q. Macromolecules
2015, 48, 7823.
22. Bui, T.-T.; Beouch, L.; Sallenave, X.; Goubard, F. Tetrahedron Lett.
2013, 54, 4277.
Conclusion
23. Tsarev, S.; Dubinina, T. S.; Luchkin, S. Y.; Zhidkov, I. S.; Kurmaev,
E. Z.; Stevenson, K. J.; Troshin, P. A. J. Phys. Chem. C 2020, 124,
1872.
24. Hummelen, J. C.; Knight, B. W.; LePeq, F.; Wudl, F.; Yao, J.;
Wilkins, C. L. J. Org. Chem. 1995, 60, 532.

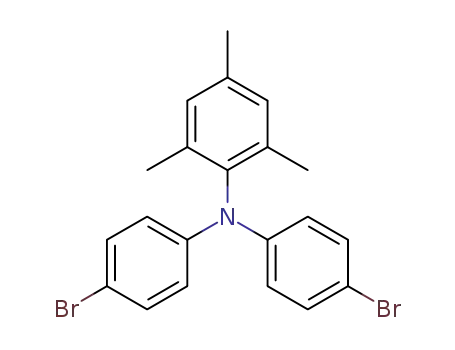

To conclude, the proposed approach for PTAA synthesis from
AA- and BB-type monomers using the Suzuki polycondensation
reaction led to a high-quality polymer with narrow molecular
weight distribution. The obtained polymer was applied as a hole-
transport material in dopant-free perovskite solar cells, which
demonstrated improved performance with the efficiency reaching
17.6% due to the reduced defect density at the perovskite/PTAA
interface. Our results emphasize the importance of the synthetic
route choice for designing high electronic quality materials for
photovoltaic applications.
25. Zhao, P.; Kim, B. J.; Jung, H. S. Mater. Today Energy 2018, 7, 267.
Acknowledgements
This work was supported by Russian Science Foundation
(project No. 19-73-30020) at IPCP RAS and Skolkovo
Foundation grant at Skoltech.
Supplementary Material
Experimental procedures, material characterization, device
fabrication data, and external quantum efficiency spectra can be
found in the Electronic Supplementary Information.
References and notes
1. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. J. Am. Chem. Soc.
2009, 131, 6050.
2. NREL In Best certified Research-Cell Efficiency Chart; Vol. 2020.
3. Yang, W. S.; Noh, J. H.; Jeon, N. J.; Kim, Y. C.; Ryu, S.; Seo, J.;
Seok, S. I. Science 2015, 348, 1234.
4. Tsarev, S.; Yakushchenko, I. K.; Luchkin, S. Y.; Kuznetsov, P. M.;
Timerbulatov, R. S.; Dremova, N. N.; Frolova, L. A.; Stevenson, K.
J.; Troshin, P. A. Sustain. Energy Fuels 2019, 3, 2627.
