New Synthesis of Propargylic Amines
on silica gel (SiO2) utilizing a mixture of hexane and ethyl
acetate as an eluent.
7.21-7.32 (5H, m). 13C NMR (67.8 MHz, CDCl3): δ 60.8, 63.8,
64.7, 127.4, 128.6, 137.6. IR (NaCl, cm-1): νmax 3086, 3063,
3029, 2958, 2837, 909, 733, 698. MS (70 eV): m/z (%) 181/3
(M+, 4), 180/2 (10), 146 (4), 145 (4), 119 (7), 104 (12), 91 (100),
65 (9).
3-(N-Ben zyl-N-m eth yl)am in o-2-ch lor o-1-pr open e 13: To
a solution of 1-benzyl-3-chloroazetidine 12 (0.36 g, 2 mmol) in
diethyl ether (10 mL) was added iodomethane (0.43 g, 1.5
equiv) and the solution was stirred for 3 h at room temperature
upon which a colorless solid separated. Subsequently, KOtBu
(0.22 g, 1.0 equiv) was added and the suspension was refluxed
for 2 h. Extraction with diethyl ether (3 × 10 mL), drying
(MgSO4), filtration of the drying agent, and removal of the
solvent in vacuo afforded 3-(N-benzyl-N-methyl)amino-2-chloro-
1-propene 13 (0.31 g, 79%). The spectral data obtained here
are in accordance with those mentioned in the literature.56
4. Stille Cou p lin g. N,N-Diben zyl-2-(tr im eth ylsta n n yl)-
2-p r op en -1-a m in e 18: This compound was prepared applying
Stille coupling conditions.58,59 To a solution of N,N-dibenzyl-
N-(2-bromo-2-propenyl)amine 6a (1.58 g, 5 mmol) in benzene
(40 mL) at room temperature and under nitrogen atmosphere
were added Hu¨nig’s base (0.17 g, 0.2 equiv) and hexameth-
ylditin (2.72 mL, 2.0 equiv) via a syringe, followed by tetrakis-
(triphenylphosphine)palladium (0.27 g, 0.05 equiv). The yellow
solution was heated for 1 h at 80 °C, gradually darkening from
yellow to black, and additionally stirred for 1 h at room
temperature. The reaction mixture was quenched by the
addition of a saturated aqueous solution of CuSO4 (40 mL).
Extraction with hexane (2 × 30 mL), washing with brine (1 ×
30 mL), drying over MgSO4, filtration through Celite, and
purification by column chromatography (SiO2, hexane/EtOAc
95/5) afforded N,N-dibenzyl-2-(trimethylstannyl)-2-propen-1-
amine 18 (1.34 g, 67%).
Light yellow oil, 67% yield; TLC Rf 0.64 (hexane/EtOAc 95/
5). 1H NMR (270 MHz, CDCl3): δ 0.08 (9H, t, J ) 26.7 Hz),
3.18 (2H, s), 3.50 (4H, s), 5.33 and 5.91 (2H, 2 × d, J ) 1.5
Hz), 7.27-7.36 (10H, m). 13C NMR (67.8 MHz, CDCl3): δ -9.2,
57.8, 63.7, 126.8, 127.1, 128.1, 129.2, 138.8, 154.7. IR (NaCl,
cm-1): νmax 3086, 3063, 3029, 2977, 2911, 2793, 1602, 1495,
1454, 748, 698, 521. MS (70 eV): m/z (%) 394/396/397/398/
399/400/401/402/404/405 (M+ + 1, 100), 300 (25) 270 (20), 268
(44), 250 (14), 239 (19), 238 (94), 236 (15), 198 (12). Anal. Calcd
for C20H27NSn: N 3.50. Found: N 3.41.
2-[(Dib en zyla m in o)m et h yl]-4-m et h yl-1-p en t en -3-on e
19: This compound was prepared applying Stille coupling
conditions.66,67 2-Methylpropanoyl chloride (0.21 g, 1.0 equiv)
was dissolved in benzene (10 mL) and treated with tris-
(dibenzylideneacetone)dipalladium (0.10 g, 0.05 equiv), fol-
lowed by Hu¨nig’s base (0.08 g, 0.3 equiv). To the resultant
purple solution was added vinylstannane 18 (0.80 g, 2 mmol)
and the mixture was stirred for 30 min at room temperature.
An additional amount of palladium (0.10 g, 0.05 equiv) was
added to the black solution, regenerating the purple color.
After an additional 2 h at room temperature, the reaction
mixture was filtered through a pad of SiO2 with EtOAc (40
mL) and concentrated in vacuo, affording 2-[(dibenzylamino)-
methyl]-4-methyl-1-penten-3-one 19 (0.54 g, 88%).
Yellow oil, 88% yield, filtration (SiO2) with EtOAc. 1H NMR
(270 MHz, CDCl3): δ 1.04 (6H, d, J ) 6.8 Hz), 3.14 (1H, sept,
J ) 6.8 Hz), 3.28 (2H, s), 3.54 (4H, s), 6.06-6.08 (2H, m), 7.20-
7.42 (10H, m). 13C NMR (67.8 MHz, CDCl3): δ 19.0, 35.0, 53.8,
58.1, 124.3, 126.9, 128.2, 128.6, 139.2, 145.2, 206.3. IR (NaCl,
cm-1): νmax 3085, 3062, 3028, 2972, 2931, 2873, 2798, 1738,
1673, 1623, 1495, 1451, 698. MS (30 V): m/z (%) 308 (M+ + 1,
100), (70 V), 308 (M+ + 1, 2), 181 (11), 166 (7), 91 (100). Anal.
Calcd for C21H25NO: C 82.04; H 8.20; N 4.56. Found: C 82.18;
H 8.35; N 4.46.
N,N-Diben zyl-N-(2,3-d ibr om op r op yl)a m in e 4a : Color-
less oil, 51% yield. 1H NMR (270 MHz, CDCl3): δ 2.88 and
3.08 (2H, 2 × d × d, J ) 13.9 Hz, J ) 7.3, 6.6 Hz, N(HCH)-
CHBr), 3.63 and 3.67 (4H, 2 × d, J ) 13.9 Hz, 2 × N(HCH)C),
3.60-3.77 (2H, m, CH2Br), 4.01 (1H, quint, J ) 6.3 Hz, CHBr),
7.22-7.44 (10H, m, 2 × C6H5). 13C NMR (67.8 MHz, CDCl3):
δ 35.7, 50.8, 59.1, 59.2, 127.2, 128.2, 128.9, 138.5. IR (NaCl,
cm-1): νmax 3085, 3062, 3028, 2929, 2804, 1494, 1453, 748, 699.
MS (70 eV): m/z (%) 395/7/9 (M+, 7), 316/8 (9), 302/4 (8), 212
(18), 211 (54), 210 (100), 181 (25), 146 (12), 127 (11), 125 (25),
120 (12), 92 (23), 91 (58), 89 (14), 84 (11), 65 (20), 51 (13), 49
(11). Anal. Calcd for C17H19Br2N: C 51.41; H 4.82; N 3.53.
Found: C 51.62; H 4.90; N 3.40.

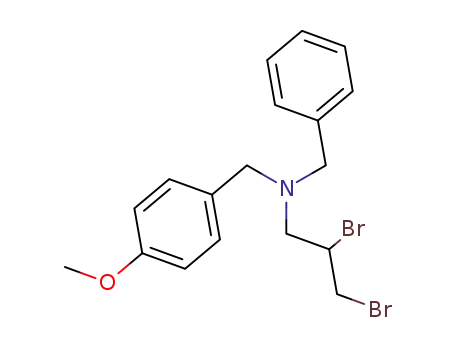

2. Gen er a l P r oced u r e for th e Syn th esis of N,N-Di-
(a r ylm eth yl)-N-(2-br om o-2-p r op en yl)a m in es 6. As a rep-
resentative example, the synthesis of N-(2-bromo-2-propenyl)-
N,N-di((4-methylphenyl)methyl)amine 6e is described. To a
solution of N-(2,3-dibromopropyl)-N,N-di((4-methylphenyl)-
methyl)amine 4e (4.25 g, 10 mmol) in dry diethyl ether (50
mL) was added KOtBu (1.12 g, 10 mmol). After the mixture
was heated for 2 h under reflux, the reaction mixture was
poured into water (50 mL) and extracted with Et2O (3 × 20
mL). Drying (MgSO4), filtration of the drying agent, and
removal of the solvent yielded N-(2-bromo-2-propenyl)-N,N-
di((4-methylphenyl)methyl)amine 6e (2.67 g, 78%). N,N-Di-
(arylmethyl)-N-(2-bromo-2-propenyl)amines 6 were purified by
distillation under reduced pressure.
N,N-Diben zyl-N-(2-br om o-2-p r op en yl)a m in e 6a : Color-
less oil, 82% yield, bp 115 °C/0.02 mmHg. 1H NMR (270 MHz,
CDCl3): δ 3.26 (2H, s), 3.62 (4H, s), 5.60 (1H, s(broad)), 5.96
(1H, d, J ) 1.3 Hz), 7.21-7.43 (10H, m). 13C NMR (67.8 MHz,
CDCl3): δ 57.2, 61.3, 118.4, 126.9, 128.2, 128.6, 132.0, 138.7.
IR (NaCl, cm-1): νmax 3085, 3062, 3028, 2924, 2800, 1629, 1494,
1454, 746, 698. MS (70 eV): m/z (%) 315/7 (M+, 4), 210 (14),
91 (100), 65 (13). Anal. Calcd for C17H18BrN: C 64.57; H 5.74;
N 4.43. Found: C 64.44; H 5.80; N 4.48.
3. Syn th esis of 1-Ben zyl-3-ch lor oa zetid in e 12, Su bse-
qu en t Qu a t er n iza t ion , a n d R in g Op en in g. 1-Ben zyl-3-
h yd r oxya zetid in e 11: To an ice-cooled solution of 1-benzyl-
3-(trimethylsilyl)azetidine 1054 (1.17 g, 5 mmol) in THF (15
mL) was added TBAF‚3H2O (1.65 g, 1.05 equiv) and the
resulting mixture was stirred for 3 h at room temperature.
Afterward, the reaction mixture was poured in water (15 mL),
extracted with diethyl ether (3 × 10 mL), and dried (MgSO4).
Filtration of the drying agent and removal of the solvent in
vacuo afforded 1-benzyl-3-hydroxyazetidine 11 (0.68 g, 83%).
Purity (GC) >97%. The spectral data correspond well with
those published in the literature, where the deprotection was
realized in 73% yield with use of NaOMe in methanol.84
1-Ben zyl-3-ch lor oa zetid in e 12: To a solution of 1-benzyl-
3-hydroxyazetidine 11 (0.82 g, 5 mmol) in CCl4 (10 mL) at room
temperature was added triphenylphosphine (1.44 g, 1.1 equiv)
and the mixture was heated under reflux for 3 days upon
which a solid separated. The cooled reaction mixture was
filtered and the filtrate was extracted with dilute sulfuric acid
(2 × 10 mL, 1 N in H2O) and washed with water (2 × 20 mL).
The combined aqueous extracts were made strongly alkaline
with a 4 N NaOH solution (30 mL) and extracted with diethyl
ether (3 × 25 mL). Drying (MgSO4), filtration of the drying
agent, and removal of the solvent in vacuo afforded 1-benzyl-
3-chloroazetidine 12 and 1-benzyl-2-(chloromethyl)aziridine
(ratio 3/2 based on GC).55a The compound was purified by
distillation. Only 1H NMR data for 1-benzyl-3-chloroazetidine
12 were found in the literature.55b
Colorless liquid, 60% yield, bp 51 °C/0.02 mbar; TLC Rf 0.37
(hexane/EtOAc 6/4). 1H NMR (300 MHz, CDCl3): δ 3.20-3.25
(2H, m), 3.63 (2H, s), 3.72-3.82 (2H, m), 4.12-4.20 (1H, m),
5. Gen er a l P r oced u r e for th e Syn th esis of N,N-Di-
(a r ylm eth yl)-N-(2-p r op yn yl)a m in es 16. As a representative
example, the synthesis of N,N-dibenzyl-N-(2-propynyl)amine
16a is described. To DMSO (20 mL) was added sodium hydride
(0.25 g, 10.5 mmol) and the solution was stirred for 30 min at
(84) Higgins, R. H.; Eaton, Q. L.; Worth, L., J r.; Peterson, M. V. J .
Heterocycl. Chem. 1987, 24, 255.
J . Org. Chem, Vol. 69, No. 8, 2004 2709
