HOJO ET AL.
Figure 1. New physical properties and reactivities acquired by water-dispersible nanoparticulation.
acids are converted to nanoparticles homogeneously dispersed in
water, the specific surface area is increased and water dissolution
speedisimproved.Evenwhenwater-insolubleBoc-aminoacidsare
used, the reaction can be dramatically accelerated. This suggests
that synthesis of peptides in water according to the Boc strategy
is a promising direction to pursue. (Figure 1)
beads were removed by filtration with 60 ml of aqueous 0.4%
Triton X-100 solution. The particle sizes were determined by DLS
analysis and they had the following characteristics:
Boc-Tyr(BrZ)-OH nanoparticles: particle size = 435 118 nm
In-Water Coupling Reaction of Water-Dispersible Boc-Phe-OH
Nanoparticle with H-Leu-NH2 using Water-Soluble Coupling
Reagents
Materials and Methods
Boc-amino acids were purchased from Watanabe Chemical
Industries, Ltd. A planetary ball mill, model pulverisette 7 (Fritsch
GmbH, Markt Einersheim, German), was used for pulverization
to prepare water-dispersible nanoparticles. The size of particles
was determined by a dynamic light scattering (DLS) analysis, using
instrument model LB-500 (Horiba Instruments Inc.). A nanoparticle
image was taken by a scanning electron microscope (SEM), model
JSM-5300LV (JEOL Ltd., Tokyo, Japan). Amino acid ratios in an
acid hydrolysate were determined with a Waters Pico Tag amino
acid analyzer. Reversed phase HPLC was performed using Waters
model 600 equipment with a DISOPAK column and a gradient
system consisting of acetonitrile/water containing 0.05% TFA.
Optical rotations were determined with an automatic polarimeter,
model DIP-360 (Japan Spectroscopic Co., Tokyo, Japan). Mass
spectra were measured with a Kratos MALDI IV mass spectrometer
(Simadzu Co., Kyoto, Japan) using the TOF technique.
H-Leu-NH2·HCl (166 mg, 1.0 mmol) was dissolved in 10 ml
of water, and then water-dispersible Boc-Phe-OH nanoparti-
cles (60 ml, 2.0 mmol) were added. Several coupling meth-
ods using WSCI [1-ethyl-3-(3ꢁ-dimethylaminopropyl)carbodiimide
hydrochloride] (382 mg, 2.0 mmol) and 4-(4,6-dimethoxy-1,3,5-
triazin-2-yl)-4-methylmorpholinium chloride (DMTMM) (552 mg,
2.0 mmol) were examined. N-hydroxy-5-norbornene-endo-2,3-
dicarboximide (HONB) (450 mg, 2.0 mmol), N-hydroxysuccinimide
(HOSu) (230 mg, 2.0 mmol) or 3-sulfo-N-hydroxysuccinimide
(sulfo-HOSu) (436 mg, 2.0 mmol) was used as a coupling addi-
tive. N,N-DIEA (348 µl, 2.0 mmol) was used in the WSCI methods,
and NMM (192 µl, 2.0 mmol) was used in the DMTMM method.
After stirring overnight, the reaction mixture was filtered to collect
the precipitates. The precipitates, which contained the crude pep-
tide, were directly applied to analytical HPLC, and the yields and
purities were measured.
General Procedure for Preparation of Water-Dispersible
Nanoparticle Boc-Amino Acids

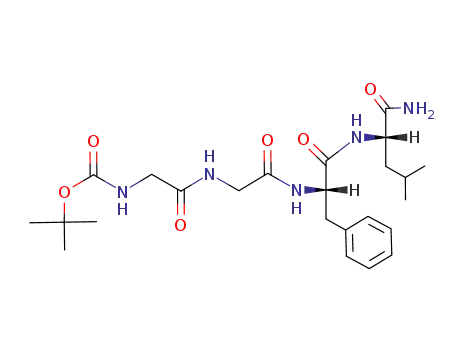

General Procedure for Synthesis of Peptides using
Water-Dispersible Boc-Amino Acid Nanoparticles,
with Boc-Gly-Phe-Leu-NH2 as an Example
An aqueous dispersion of nanoparticulate Boc-amino acids was
prepared by pulverization using a planetary ball mill as follows: A
40-ml agate jar was charged with 1.0-mm diameter pre-cleaned
zirconium oxide beads (80 g), Boc-Phe-OH (530.6 mg, 2.0 mmol),
PEG (average molecular weight 4000 g/mol, 400 mg, 0.1 mmol)
and 20 ml of water. The batch was rolled at 495 rpm for 4 h.
After pulverization, the zirconium oxide beads were removed by
filtration with 40 ml of water. The particle sizes were determined
by DLS analysis and the particles had the following characteristics:
Boc-Phe-Leu-NH2 (674 mg, 1.0 mmol) was treated with 20 ml
of TFA) for 1 h at room temperature. The TFA solution was
concentrated to a residue in vacuo, to which 1 ml of solution
4.0 mol/l HCl in dioxane was added. The residue was triturated
with diethyl ether. The precipitate was collected by filtration
and dried over sodium hydroxide pellets in vacuo. H-Phe-Leu-
NH2·HCl was thus obtained and dissolved in 20 ml of water.
Water-dispersible Boc-Gly-OH nanoparticles (60 ml, 2.0 mmol)
were mixed and then DMTMM (552 mg, 2.0 mmol) and NMM
(196 µl, 2.0 mmol) were added. After stirring at room temperature
overnight, the precipitate was collected by filtration and washed
with water. The residue was dried invacuo to obtain crude peptide,
which was directly applied to analytical HPLC, and the yields and
purities were measured. The yields and characteristics were Boc-
Gly-Phe-Leu-NH2: Yield 82% (calculated from analytical HPLC),
HPLC analytical purity 90%. Crude peptide was crystallized from
Boc-Phe-OH nanoparticles: particle size = 578 48 nm
Boc-Gly-OH nanoparticles: particle size = 712 36 nm
Boc-Tyr(tBu)-OH nanoparticles: particle size = 687 32 nm.
An aqueous dispersion of nanoparticulate Boc-amino acids
havingbenzyl(Bzl)typesidechainprotectiongroupswasprepared
bypulverizationusingaplanetaryballmillasfollows:A40-mlagate
jar was charged with 0.5-mm diameter pre-cleaned zirconium
oxide beads (80 g), Boc-Tyr(Bzl)-OH (494.3 mg, 1.0 mmol) and
20 ml of aqueous 0.4% Triton X-100 solution. The batch was
rolled at 495 rpm for 4 h. After pulverization, the zirconium oxide
ethyl acetate and diethyl ether. mp 155–157 ◦C; [α]D + 55.7
24
(c 1.0 in MeOH); m/z (MALDI-MS) 457.54 ([M+Na]+, C22H34N4NaO5
calculated m/z = 457.52); Boc-Phe-Leu-NH2: white material; mp
c
wileyonlinelibrary.com/journal/jpepsci Copyright ꢀ 2011 European Peptide Society and John Wiley & Sons, Ltd. J. Pept. Sci. 2011; 17: 487–492
