A convenient synthesis of 1-tosyl-3, 4-dimethyl imidazolium salt and N,N,N′-trisubstituted ethylendiamine derivatives

Article abstract of DOI:10.1081/SCC-200030990

1-Tosyl-3,4-dimethyl imidazolium iodide 3 was prepared by convenient cyclization, sulfonylation, and methylation from 4-methyl-2-imidazoline, which was obtained by the reaction of ethyl formate with 1,2-diaminopropane. Monofunctional carbon nucleophiles r

Full text of DOI:10.1081/SCC-200030990

SYNTHETIC COMMUNICATIONSw
Vol. 34, No. 19, pp. 3535–3543, 2004
A Convenient Synthesis of 1-Tosyl-3,
4-Dimethyl Imidazolium Salt and N,N,N0-
Trisubstituted Ethylendiamine Derivatives
Donghong Li, Junsheng Hao, Bing Deng, Wei Guo,
*
Fangjun Huo, Yongbin Zhang, and Chizhong Xia
School of Chemistry and Chemical Engineering,
Shanxi University Taiyuan, 030006, China
ABSTRACT
1-Tosyl-3,4-dimethyl imidazolium iodide 3 was prepared by convenient
cyclization, sulfonylation, and methylation from 4-methyl-2-imidazoline,
which was obtained by the reaction of ethyl formate with 1,2-diaminopro-
pane. Monofunctional carbon nucleophiles reacted with 3 to yield a series
of N,N,N0-trisubstituted ethylendiamine derivatives.
Key Words: Synthesis; THF coenzyme model; N,N,N0-trisubstituted
ethylendiamine; 1-tosyl-3,4-diamethyl-imidazolium.
*
Correspondence: Chizhong Xia, School of Chemistry and Chemical Engineering,
Shanxi University Taiyuan, 030006, China; E-mail: guow@sxu.edu.cn.
3535
DOI: 10.1081/SCC-200030990
0039-7911 (Print); 1532-2432 (Online)
www.dekker.com
Copyright # 2004 by Marcel Dekker, Inc.

3536
Li et al.
Tetrahydrofolate (THF) was responsible for transfer of one-carbon
fragment in biological synthesis and metabolism.[1] Thus, the study on the
THF coenzyme model may provide a valuable class of reagents for group
transfer reactions for practical utility.[2,3] In order to investigate different
types of models that would be capable of transferring substituted one-
carbon unit, a series of 1-aryl-2,3-dimethyl-4,5-dihydroimidazolium iodides
in our earlier research had been synthesized to improve their potential in
one-carbon unit transfer reactions as the THF coenzyme model. One important
approach was to adjust the basicity of N(1), C(2), and N(3) in the imidazolium
by using different substituted groups.[4] However, the improvement was
unobvious by adjusting different substituted groups of N(1) and N(3) in the
imidazolium.[5] Consequently, we presumed that the reactions were affected
by the steric hindrance and induced effect on C(2). A key approach was to
adjust different substituted of N(1), C(2), and C(4) in the imidazolium. In
addition, Pandit’s group had reported two model compounds: 1-tosyl-3,4,4-tri-
methyl-imidazolinium iodide and 1-tosyl-3,4,4,5,5-pentamethyl-imidazoli-
nium iodide. From their experiment results, it could be seen that 1-tosyl-
3,4,4-trimethyl-imidazolinium iodide was more electrophilic than 1-tosyl-
3,4,4,5,5-pentamethyl-imidazolinium iodide.[6] We extrapolated that if some
methyls in imidazoline were reduced, the electrophilic ability would be
improved. Although the most simple imidazoline (without methyl groups con-
nected to carbons) was described in the literature,[7] it was difficult to prepare
and not easy to handle due to its reactivity with carbon dioxide under
atmospheric conditions. Hence, we chose 4-methyl imidazoline as a matrix
and our new model, 1-tosyl-3, 4-dimethyl-imidazolinium iodide 3, was
synthesized.
Imidazolium iodide 3 was synthesized from 1,2-diaminopropane in three
steps: (1) cyclization of 1,2-diaminopropane by ethyl formate in basic
conditions produced 4-methyl imidazoline 1; (2) sulfonylation of 1 by tosyl
chloride under basic conditions obtained 1-tosyl-4-methyl imidazoline 2; (3)
further methylation of 2 by reflux with excess iodomethane in benzene syn-
thesized imidazolium salt 3 in the yield of 81%. The synthesis process was
shown in Sch. 1.
Furthermore, the structure of 1-tosyl-3, 4-dimethyl imidazolium iodide 3
had been determined by X-ray diffraction, the structure of which was shown in
Fig. 1.
It was observed from the X-ray that the length of N2—C11 and N1—C11
were 1.272(8)/%A and 1.325(7)/%A; they were much shorter than standard
single C—N bond [Lide (1962) pointed out that the standard single and
doubled C—N bond lengths are 1.474 and 1.265/%A]. It suggested that the
positive charge delocalized among N1—C11—N2, thus C11 had become
the reaction point of nucleophilic reagents in the imidazoline ring.

A Convenient Synthesis of 1-Tosyl-3,4-Dimethyl Imidazolium Salt
3537
Scheme 1.
In our current research, through a series of attempts towards different
nucleophilic reagents,[8] model compound 3 was found to be more electro-
philic. When 1-tosyl-3,4-dimethyl imidazolium iodide 3 was treated with a
malononitrile, ethyl malonate, and nitromethane, the corresponding N,N,N0-
trisubstituted 2-methyl-ethylenediamines 4, 5, and 6 were produced in the
yield of 79–95%. These experiments were carried out by stirring in tetra-
hydrofuran and the reaction time depended on the nucleophilicity of carbon
anion, generally from 1 to 5 h. When the mixture was cooled to 08C, the
products 4 and 5 were crystallized as white crystals and the product 6 was
purified by column chromatography as an oil. Compared with our earlier
results,[9,10] the model compound 3 proved to be more electrophilic under
the same conditions. Some data was shown in Table 1.
Figure 1. X-ray structure of 1-tosyl-3,4-dimethyl imidazolium iodide 3.

3538
Li et al.
Table 1. Comparison of model compound 3 with the other models reported before.
Reaction
time (h)
Yield
(%)
Model compound
Reagent
CH2(CN)2
CH3NO2
overnight
2
85
59
CH2(CN)2
CH2(CN)2
CH2(CN)2
4.5
—
—
82
77
78
CH2(CN)2
CH3NO2
—
overnight
60
92
CH2(CN)2
CH3NO2
2
1
89
95
aAll reactions were performed in tetrahydrofuran.
We considered that a possible mechanism is that nucleophilic addi-
tion to the C55N double bond in the imidazolium forms an imidazolidine
intermediate, which subsequently leads to ring-opened products 4 and
5. The thermodynamically favored products were obtained from the
imidazolidine intermediate through a ring-opening process (Sch. 2).
But compound 6 was special, and we obtained a ring-locking process
(Sch. 3).
In summary, N,N,N0-trisubstituted 2-methyl-ethylenediamine deri-
vatives 4, 5, and 6 were prepared by using a commercially available
heterocyclic compound, 4-methyl-2-imidazoline. The approach should be
wildly applicable for the preparation of other relevant N,N,N0-trisubstituted
2-methyl-ethylenediamine derivatives. Model compound 3 was treated with
a series of aromatic amines and research is being continued in our group.

A Convenient Synthesis of 1-Tosyl-3,4-Dimethyl Imidazolium Salt
3539
Scheme 2.
EXPERIMENTAL
Mass spectra were obtained on a JMS-D300 GC/MS spectrometer.
1
The H and 13C nmr were obtained on a JOELFX-60Q, Varian FT-80A or
Bruker AC-P 300 MHz, with TMS as an internal standard. Combustion
Scheme 3.

3540
Li et al.
analyses were performed on a Perkin-Elmer 240C or a MOD 1106 instrument.
Infrared spectra were obtained on a Shimadzu IR-1700 spectrometer. The
TLC were carried out on silica gel GF-254 20 ꢀ 20 cm2 plate. Melting
points were uncorrected. All reactions were performed under an inert atmos-
phere of nitrogen; all reagents and solvents were purified and dried as
required.
4-Methyl imidazoline (1): Ethyl formate (14.8 g, 0.2 mmol) was added
dropwise to 17.6 g (0.2 mmol) of 1,2-diaminopropane, the latter being
cooled in ice about 2 h. After having stirred for 1 h at room temperature,
the reaction mixture was heated and ethanol was distilled off. The resulting
mixture was heated at 1508C–1608C for 2 h. Then cooling, the mixture
was distilled under reduced pressure. Yield: 11.2 g (67%); boiling point
(bp) 100–1108/15 mm; 1H NMR (CDCl3): 1.12 (d, 3 H), 3.08 (m, 1 H),
3.65 (m, 1 H), 3.84 (m, 1 H), 4.17 (s, 1 H), 6.96 (s, 1 H).

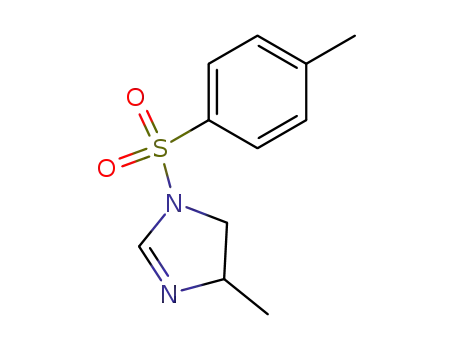

1-Tosyl-4-methyl imidazoline (2): 4-Methyl imidazoline 1 (8.4 g,
0.1 mol) was dissolved in 20 mL dry dichloromethane at 08C, followed by
the addition of triethyl amine (10.1 g, 0.1 mol). To this solution was added
dropwise a solution of tosyl chloride (19.05 g, 0.1 mol) in 10 mL dichloro-
methane. The reaction mixture was stirred and warmed to room temperature
in an additional 1.5 h. The resulted solution was washed with 5% sodium
hydroxide solution (20 mL) and water (50 mL), and dried over anhydrous
sodium sulfate. Evaporation of dichloromethane in vacuo gave a crude
solid, while was recrystallized from anhydrous ethyl alcohol to yield
1
12.36 g (52%) of 2 as a white crystal, mp 53–558C. H NMR (CDCl3):
1.15 (d, 3 H), 2.44 (s, 3 H), 2.97 (t, 1 H), 3.53 (t, 1 H), 4.22 (m, 1 H), 7.34
(t, 3 H), 7.71 (d, 2 H) IR (KBr) cm21: 3284, 1652 (yC55N), 1598, 1494,
1436, 1359, 1163 (yC55N). MS m/e: 237.2([M-1]þ), 207, 149, 91. Anal.
calcd. for C11H14N2O2S: C, 55.44; H, 5.92; N, 11.76. Found C, 55.27;
H, 5.88; N, 11.69.
1-Tosyl-3,4-dimethyl imidazolium iodide (3): 1-Tosyl-4-methyl
imidazoline 2 (2.38 g, 10 mmol) and iodomethane (1.9 mL, 30 mmol) were
refluxed in 20 mL dry benzene for 2 h. A lot of solid was separated out.
Then cooled to room temperature, a precipitate was collected by filtration
and crystallized from ethyl alcohol to give 3.04 g (80%) of 3 as a white
1
crystal. mp 175.2–176.78C H NMR (CDCl3): 1.51 (d, 3 H), 2.46 (s, 3 H),
3.63 (s, 4 H), 4.33 (t, 1 H), 4.80 (s, 1 H), 7.45 (d, 2 H), 8.15 (d, 2 H)
9.72 (s, 1 H). IR (KBr) cm21: 3430, 1661 (yC55N), 1594, 1451, 1422,
1374, 1166 (yC55N). MS m/e: 253 ([M-HI]þ), 238, 155, 91. Anal. calcd.
for C12H17N2O2SI: C, 37.90; H, 4.51; N, 7.37. Found C, 38.04; H, 4.59;
N, 7.30.
N-Methyl-N-(2-dicyanovinyl)-N0-(p-toluenesulphonyl)-ethylenedia-
mine (4): Sodium hydride (43 mg, 1.8 mmol) was added into a solution of

A Convenient Synthesis of 1-Tosyl-3,4-Dimethyl Imidazolium Salt
3541
malononitrile (78 mg, 1.5 mmol) in 10 mL of dry tetrahydrofuran, which was
cooled in an ice-water bath. The reaction mixture was stirred for 30 minutes,
then the imidazolium 3 (380 mg, 1 mmol) was added and the mixture
was allowed to warm to room temperature for 2 h. Then the solution was
extracted with dichloromethane (3 ꢀ 30 mL), the combined organic layers
were washed with water and dried over anhydrous sodium sulfate. Evapor-
ation of dichloromethane in vacuo gave a crude solid, which was recrystal-
lized from anhydrous ethyl alcohol to yield 2.8 g (88%) of 4 as a white
1
crystal, mp 179.18C–180.48C. H NMR (CD3COCD3): 1.26 (d, 3 H), 2.42
(s, 3 H), 2.89 (s, 1 H), 3.12 (s, 4 H), 3.83 (s, 1 H), 7.25 (s, 1 H), 7.42
(d, 2 H), 7.74 (d, 2 H). IR (KBr) cm21: 3429 (m, NH), 2211 (s, CN),
1631, 1448, 1417, 1358, 1163 (yC55N). MS m/e: 318 ([M]þ), 238, 155,
91. Anal. calcd. for C15H18N4O2S: C, 56.58; H, 5.70; N, 17.60. Found C,
56.39; H, 5.70; N, 17.59.
N-Methyl-N-(2-dicyanovinyl)-N0-(p-toluenesulphonyl)-ethylenedia-
mine (5): Sodium hydride (43 mg, 1.8 mmol) was added into a solution of
nitromethane (91.5 mg, 1.5 mmol) in 10 mL of dry tetrahydrofuran, which
was cooled with an ice-water bath. The reaction mixture was stirred for
30 minutes, then the imidazolium 3 (380 mg, 1 mmol) was added and the
mixture was allowed to warm to room temperature for 1 h, then the solution
was extracted with dichloromethane (3 ꢀ 30 mL), the combined organic
layers were washed with water and dried over anhydrous sodium sulfate.
Evaporation of dichloromethane, a crude solid was yielded by column chro-
matography, yield: 0.302 g (96%) of 5 as a white crystal, mp 136–1388C;
1H NMR (CDCl3): 1.22 (d, 3 H), 2.43 (s, 3 H), 2.74 (s, 3 H), 3.01 (m, 2 H),
3.68 (m, 1 H), 6.17 (s, 1 H), 6.68 (d, 1 H), 7.33 (d, 2 H), 7.56 (d, 2 H),
8.17 (d, 2 H). IR (KBr) cm21: 3430, 1661 (yC55N), 1594, 1451, 1422,
1374, 1166 (yC55N). MS m/e: 253 ([M-HI]þ), 238, 155, 91. Anal. calcd.
for C13H19N3O4S: C, 49.84; H, 6.11; N, 13.41. Found C, 50.29; H, 6.29;
N, 13.78.
1-Carbethoxy-2-[20(4-methylbenzenesulphonyl)amine-10-methyl]amino
acrylic acid ethyl ester (6): Sodium hydride (43 mg, 1.8 mmol) was added
into a solution of ethyl malonate (240 mg, 1.5 mmol) in 10 mL of dry tetra-
hydrofuran, which was cooled with an ice-water bath. The reaction mixture
was stirred for 30 minutes, then the imidazolium 3 (380 mg, 1 mmol) was
added and the mixture was allowed to warm to room temperature for 5 h.
The filtrate was concentrated, and the residue was purified by column chro-
matography (silica gel, gradient chloroform, and methanol) of 6 as an oil,
1
yield: 0.325 g (79%). H NMR (CDCl3): 1.14 (m, 9 H), 2.36 (s, 3 H), 2.61
(s, 3 H), 2.92 (d, 2 H), 3.50 (m, 1 H), 4.11 (m, 5 H), 7.23 (d, 2 H), 7.68
(d, 2 H); IR (KBr) cm21: 3205(m), 1680(m), 1650, 1417, 1375, 1150
(yC55N); MS m/e: 355, 281, 267, 253, 225, 207, 155, 91, 73.

3542
Li et al.
ACKNOWLEDGMENTS
This work was supported by the National Natural Science Foundation of
China (20272034) and the Natural Science Foundation of Shanxi Province,
China (20041007 and 20041006).
Supporting information available: X-ray data for model compound
3 (CIF).
REFERENCES
1. Blakley, R.L., Benkovic, S.J, Eds. Folates and Pteridines, Vol. 1, Wiley:
New York, 1984; Vol. 2, John Wiley and Sons, New York, 1985.
2. Anderson, M.W.; Jones, R.C. Nucleophilic addition to 4,5-dihydroimida-
zoles: a ketone synthesis via tetrahydrofolate coenzyme models. J. Chem.
Soc. Perkin. Trans. I. 1986, 1995.
3. Pandit, U.K. Models of biological systems and biological processes. Pure
Appl. Chem. 1994, 66, 759.
4. Xia, C.Z.; Wang, H.X.; Zhao, B.J.; Chen, J.X.; Kang, C.M.; Ni, Y.P.;
Zhou, P.W. A convenient synthesis of imidazolium salts and tri-
substituted ethylenediamine derivatives. Synth. Commun. 2002, 32 (9),
1447–1455.
5. Xia, C.Z.; Zhou, P.W.; Ding, J.F. Tetrahydrofolate coenzyme models I.
Synthesis of 1-methyl-2-phenyl-3-aryl imidazolinium iodide and benzyli-
dyne (phenyl-substituted one carbon unit) transfer reactions. Chin.
J. Chem. (Eng. Ed.). 1990, 8 (4), 333.
6. Bieraugel, H.; Plemp, R.; Hiemstra, H.C.; Pandit, U.K. Synthesis and
carbon transfer reactions of N5,N10-methenyl and N5,N10-methylenetetra-
hydrofolate models. Tetrahedron 1983, 39 (23), 3971–3979.
7. Suzuki, H.; Ohashi, M.; Itoh, K.; Matsuda, I.; Ushi, Y. Reaction of group
IV organometallic compounds. XXXII Modified synthesis of imidazoli-
dines with N,N0-bis(trimethylsilyl)-1,2-diamines. Bull. Chem. Soc. Jpn.
1975, 48, 1922.
8. Xia, C.Z.; Wang, H.X.; Zhou, P.W.; Ding, J.F. Synthesis and carbon
transfer reactions of 1,2-dimethyl-3-arylsulfonyl (aryl ¼ p-tolyl,
phenyl)-D2-imidazolinium iodide. Chin. Chem. Lett. (Eng. Ed.). 1992,
3, 407.
9. Xia, C.Z.; Tang, Y.Q.; Zhou, P.W. Nucleophilic addition to 3-methyl-1-
(4-nitrophenyl)-2-phenyl-4,5-dihydroimidazolium iodide. J. Heterocyclic.
Chem. 2000, 37, 1329–1331.

A Convenient Synthesis of 1-Tosyl-3,4-Dimethyl Imidazolium Salt
3543
10. Xia, C.Z.; Chen, J.X.; Wang, H.X.; Kang, C.M.; Zhao, B.J.; Ni, Y.P.;
Zhou, P.W. Nucleophilic addition to 1,2-dimethyl-3-arylsulfonyl-4,5-
dihydroimidazolium iodides. Synth. Commun. 2002, 32 (19),
2979–2984.
Received in Japan April 22, 2004
